【ATC Alignment Tool Set】from SYIC - ATC Alignment Tool Manufacturers

series:

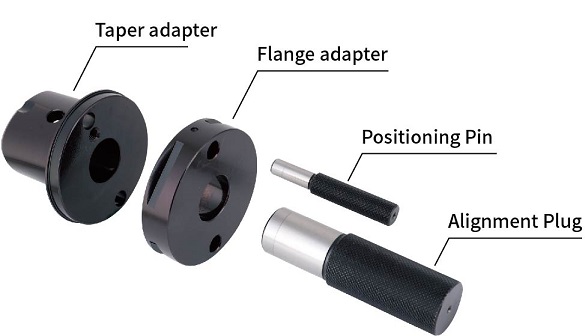

SBT/ATC ALIGNMENT TOOL SET
proimages/Products/Accessories/ATC_Alignment_Tool_Set/ATC_BT-SBT-figure..jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	D	d1	d2	T
5025-009-00	SBT30-ATC	49.4	1	21	50.4	158.4	31.75	46	16	M12x1.75P
5026-009-00	SBT40-ATC	66.4	1	26	67.5	175.5	44.45	63	20	M16x2.0P
5027-009-00	SBT50-ATC	103.3	1.5	36.5	120	320	69.85	100	25	M24x3.0P

SCAT/ATC ALIGNMENT TOOL SET
proimages/Products/Accessories/ATC_Alignment_Tool_Set/ATC_CAT-SCAT-figure..jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	D	d1	d2	T
5043-009-00	SCAT40-ATC	69.199	0.95	18.1	67.5	175.5	44.45	63.5	20	5/8-11UNC
5044-009-00	SCAT50-ATC	103.05	1.45	17.6	125	325	69.85	98.425	25.4	1-8UNC

SDAT/ATC ALIGNMENT TOOL SET
proimages/Products/Accessories/ATC_Alignment_Tool_Set/ATC_DAT-SDAT-figure..jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	D	d1	d2	T
5066-009-00	SDAT40-ATC	69.4	1	18.1	67.5	175.5	44.45	63.55	20	M16x2.0P
5067-009-00	SDAT50-ATC	103.25	1.5	17.6	120	320	69.85	97.5	25	M24x3.0P

HSK/ATC ALIGNMENT TOOL SET

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	D	d1	d2	d3
5069-009-00	HSK25A-ATC	13	2.5	7	17	22	70	19.006	25	20	8
5070-009-00	HSK32A-ATC	16	3.2	14	30	50	100	24.007	32	26	8
5071-009-00	HSK40A-ATC	20	4	14	37	61	141	30.007	40	34	12
5072-009-00	HSK50A-ATC	25	5	18	43	74	174	38.009	50	42	15
5073-009-00	HSK63A-ATC	32	6.3	18	52	90	190	48.010	63	53	20
5074-009-00	HSK80A-ATC	40	8	18	54.5	100.5	200.5	60.012	80	68	20
5075-009-00	HSK100A-ATC	50	10	19	67	125	275	75.013	100	88	24
5076-009-00	HSK125A-ATC	63	12.5	19	74	145	295	95.016	125	111	30
5097-009-00	HSK25E-ATC	13	2.5	7	17	22	70	19.006	25	20	8
5098-009-00	HSK32E-ATC	16	3.2	14	30	50	100	24.007	32	26	8
5099-009-00	HSK40E-ATC	20	4	14	37	61	141	30.007	40	34	12
5100-009-00	HSK50E-ATC	25	5	18	43	74	174	38.009	50	42	15
5101-009-00	HSK63E-ATC	32	6.3	18	52	90	190	48.010	63	53	20
5102-009-00	HSK50F-ATC	20	4	18	43	61	141	30.007	50	42	12
5103-009-00	HSK63F-ATC	25	5	18	52	71	174	38.009	63	53	15
5105-009-00	HSK80F-ATC	32	6.3	18	54.5	90	190	48.010	80	68	20

PSC/ATC ALIGNMENT TOOL SET

MODEL NO.	TYPE	L	l1	l2	l3	l5	d1	d2
5140-009-00	PSC32-ATC	22	19	12	20	60	32	8
5141-009-00	PSC40-ATC	28	24	16	28	78	40	12
5142-009-00	PSC50-ATC	35	30	15	29	79	50	16
5143-009-00	PSC63-ATC	45.2	38	14.8	32	82	63	21
5144-009-00	PSC80-ATC	54.2	48	23.8	49	109	80	21
5145-009-00	PSC80X-ATC	54.2	48	25.8	52	110	100	21
5146-009-00	PSC100-ATC	66.2	60	29.8	56	115	100	24
