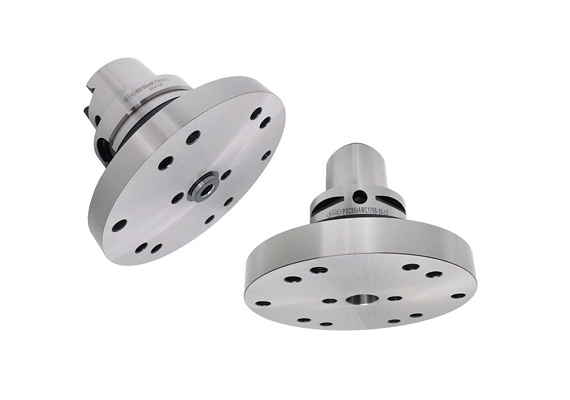

Product Name : AWC Jig Tool Holder

TAPER: PSC & HSK, with the best bending strength and positioning accuracy.

Quick Positioning and Clamping System

Used for machine tables with quick positioning and clamping system.
If a machine doesn't have a built-in quick positioning and clamping system, customers can install manual or hydraulic clamping system on the machine table.

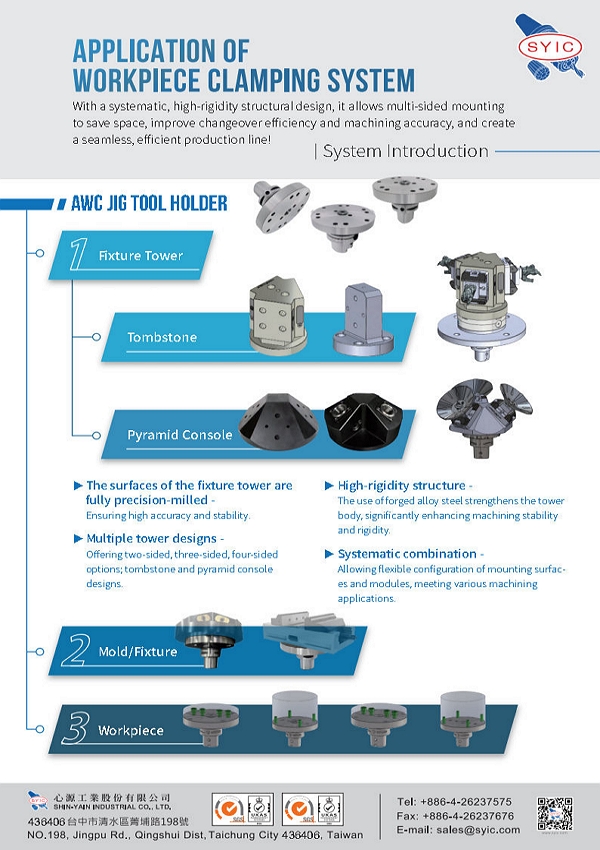

Product Clamping Application
proimages/Products/Workpiece_Clamping_System/AWC/AWC_Product_Clamping_Application-en.jpg

Improve Production Efficiency

The tool clamping system of machine table can quickly clamp or change AWC jig tool holders to increase production efficiency.
Workpiece or mold/fixture can be pre-loaded in AWC jig tool holder and quickly changed during machining process. It saves the downtime for manual feeding.

Support Automation System

Use Touch Probe Holder for Accuracy Compensation

It's recommended to use high-precision touch probe holder for workpiece positioning and size compensation to reduce manual operation errors, shorten the time for calibrating molds/fixtures, and ensure machining accuracy.

Various Clamping Methods

There are different sizes of screw holes on the face of AWC jig tool holder, which provides customers with various methods of clamping workpieces and molds/fixtures. AWC jig tool holder can be customized.

series:

AWC JIG TOOL HOLDER (A TYPE) For Large-Sized Workpieces

MODEL NO.	TYPE	L	l1	l2	D	d1	SCREW HOLES						Fig.	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	D	d1	φP1	TYPE	φP2	TYPE	φP3	TYPE	Fig.	WEIGHT (KGS)
5143-027-116-055	PSC63xAWC116A-55-LS	98	55	5	116	25	40	M8	96	M12	-	-	1	6.88
5143-027-157-055	PSC63xAWC157A-55-LS	98	55	5	157	25	50	M12	100	M12	135	M10	2	12.12
5144-027-176-080	PSC80xAWC176A-80-LS	133	80	5	176	25	50	M12	150	M12	135	M10	3	15.65
5073-027-116-055	HSK63AxAWC116A-55-LS	92	55	5	116	25	40	M8	96	M12	-	-	1	10.55
5073-027-157-055	HSK63AxAWC157A-55-LS	92	55	5	157	25	50	M12	100	M12	135	M10	2	7.77
5075-027-176-080	HSK100AxAWC176A-80-LS	135	80	5	176	25	50	M12	150	M12	135	M10	3	23.32
573T-027-116-055	HSK-T63xAWC116A-55-LS	92	55	5	116	25	40	M8	96	M12	-	-	1	10.55
573T-027-157-055	HSK-T63xAWC157A-55-LS	92	55	5	157	25	50	M12	100	M12	135	M10	2	7.77
575T-027-176-080	HSK-T100xAWC176A-80-LS	135	80	5	176	25	50	M12	150	M12	135	M10	3	23.32

AWC JIG TOOL HOLDER (B TYPE) For Small-Sized Workpieces

MODEL NO.	TYPE	L	l1	l2	D	d1	SCREW HOLES						Fig.	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	D	d1	φP1	TYPE	φP2	TYPE	φP3	TYPE	Fig.	WEIGHT (KGS)
5143-028-116-055	PSC63xAWC116B-55-LS	93	55	18	116	25	40	M8	96	M12	-	-	1	6.82
5143-028-157-055	PSC63xAWC157B-55-LS	93	55	18	157	25	50	M12	100	M12	135	M10	2	12.05
5144-028-176-080	PSC80xAWC176B-80-LS	128	80	18	176	25	50	M12	150	M12	-	-	3	15.60
5073-028-116-055	HSK63AxAWC116B-55-LS	87	55	18	116	25	40	M8	96	M12	135	M10	1	10.47
5073-028-157-055	HSK63AxAWC157B-55-LS	87	55	18	157	25	50	M12	100	M12	135	M10	2	7.69
5075-028-176-080	HSK100AxAWC176B-80-LS	130	80	18	176	25	50	M12	150	M12	135	M10	3	15.45
573T-028-116-055	HSK-T63xAWC116B-55-LS	87	55	18	116	25	40	M8	96	M12	135	M10	1	10.47
573T-028-157-055	HSK-T63xAWC157B-55-LS	87	55	18	157	25	50	M12	100	M12	135	M10	2	7.69
575T-028-176-080	HSK-T100xAWC176B-80-LS	130	80	18	176	25	50	M12	150	M12	135	M10	3	15.45
