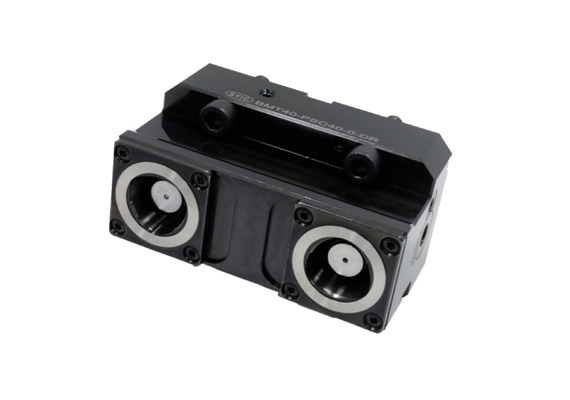

Product Name : BMT Static Tool Holder (Dual Type)
Product Description

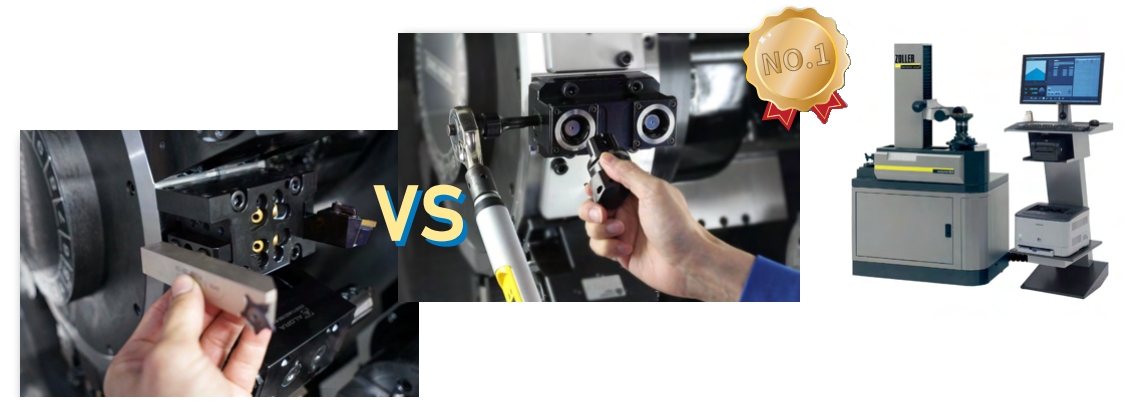

  • The jaw clamping design of BMT tool holder allows rapid tool changeovers, enabling offline tool measurement to significantly reduce downtime and elevate processing efficiency.
proimages/Products/Tool_Holder_for_Mill-Turn_Machine/BMT_Static_Tool_Holder/BMT_Static_Tool_Holder-feature.jpg

  • Applicable machine type: Turn-mill multitasking machine.
    Applicable industry: Automation, electronics and spare parts industries.
  • Clamping force is inspected individually before delivery.
  • BMT static tool holder is built-in with a center coolant mechanism, and coolant pressure can be up to 70BAR.

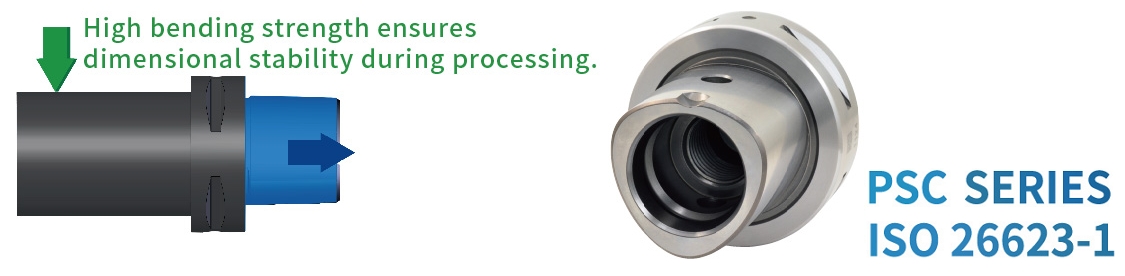

  • BMT static tool holder is optimized for use with PSC taper tools renowned for their exceptional bending strength and superior repeat positioning accuracy.
proimages/Products/Tool_Holder_for_Mill-Turn_Machine/BMT_Static_Tool_Holder/PSC_taper-feature-en.jpg

  • Its versatility extends to various applications, including turning, center hole drilling, and tapping operations, providing reliability and consistency across a spectrum of tasks. If you are looking for other products like quick change clamping systems and CNC tool holders, feel free to contact SYIC.
series:

BMT STATIC TOOL HOLDER (DUAL TYPE)

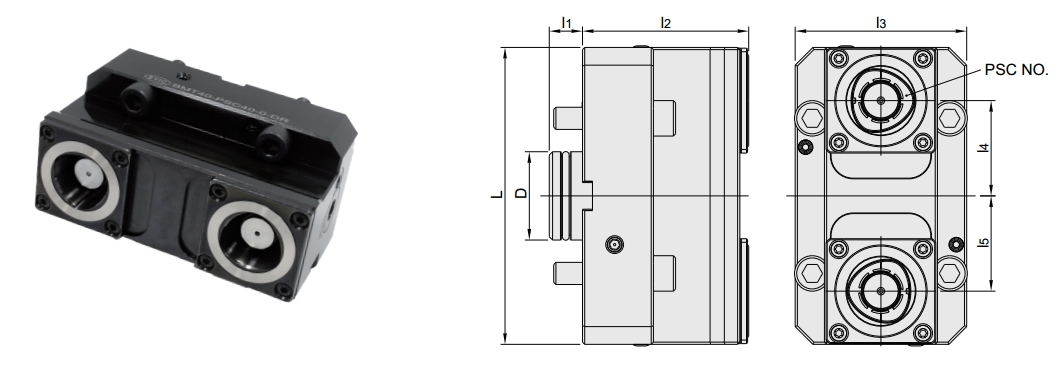

proimages/Products/Tool_Holder_for_Mill-Turn_Machine/BMT_Static_Tool_Holder/BMT_Static_Tool_Holder-figure.jpg
 Axial
MODEL NO.TYPEPSC NO.DLl1l2l3l4l5RIGHT/LEFT
HAND		WEIGHT
(KGS)
5370-S3R-021-01 BMT40-PSC40-0°-DR PSC40 40 134 15 75 77.4 43 43 R 4.43
5370-S3L-021-01 BMT40-PSC40-0°-DL PSC40 40 134 15 75 77.4 43 43 L 4.43

series:

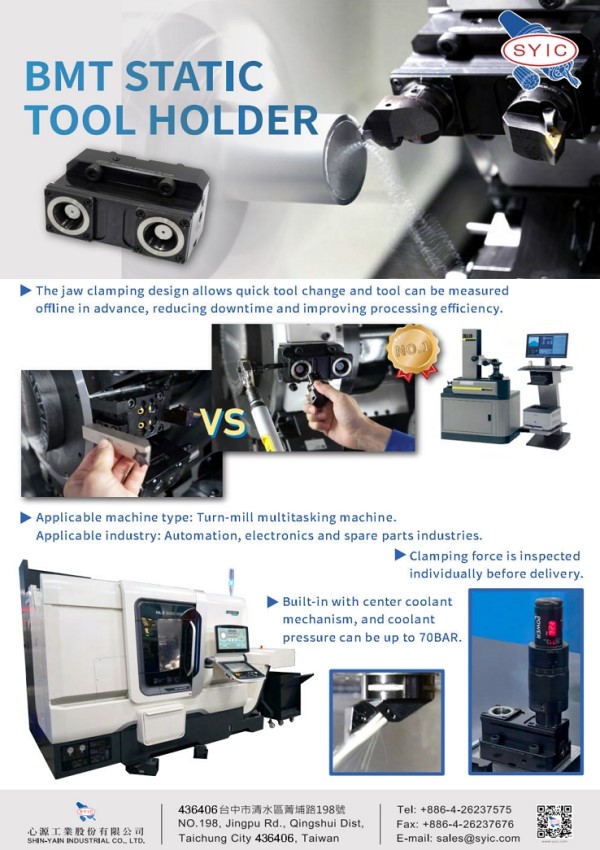

proimages/Products/Tool_Holder_for_Mill-Turn_Machine/BMT_Static_Tool_Holder/BMT_Static_Tool_Holder-en-cover.jpg
