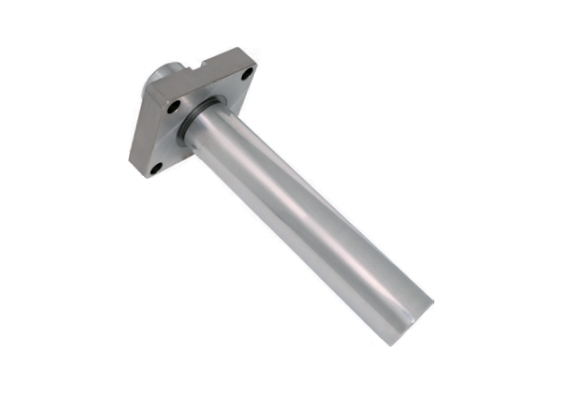

Product Name : BMT Turret Alignment Bar
Product Description

Regular inspection of machine turret is an extremely important step to realize high precision machining!

proimages/Products/Measuring_Tool_for_Machining_Center/BMT_Turret_Master_Bar/Accuracy_table_of_BMT-en..jpg

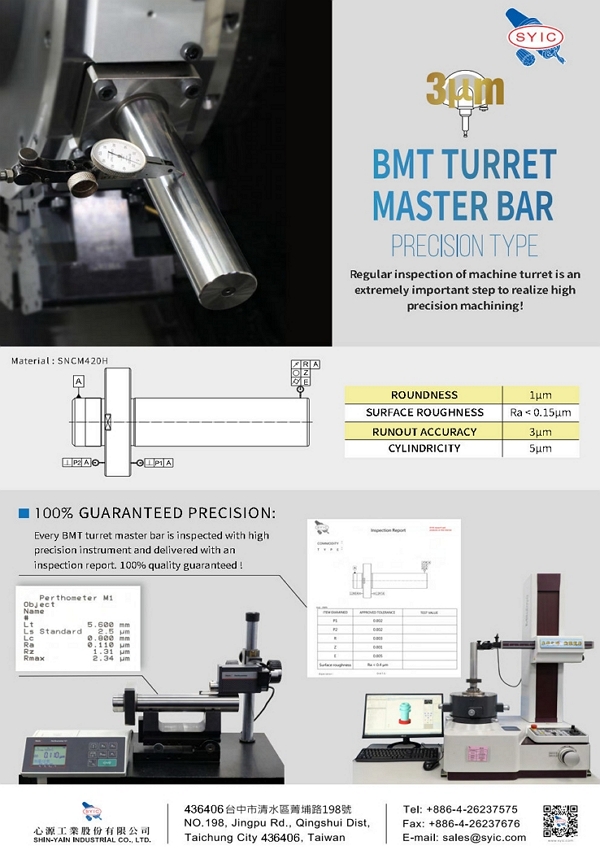

100% GUARANTEED PRECISION:

  • Every BMT turret alignment bar is inspected with high precision instrument and delivered with an inspection report. 100% quality guaranteed!

What are the benefits of using BMT Turret Alignment Bar?

  • Optimal for checking machine turret accuracy.
  • Checking turret accuracy maximizes machining performance and increases productivity.
  • Ensures the machining precision and prolongs the tool life.
  • Helps detect potential problems of turret/equipment and saves downtime and costly repair cost.

Recommendation of storage:

  • It's recommended to store in stock vertically to prevent deformation.
  • Every BMT turret alignment bar is delivered with an aluminum box for vertical storage.
series:

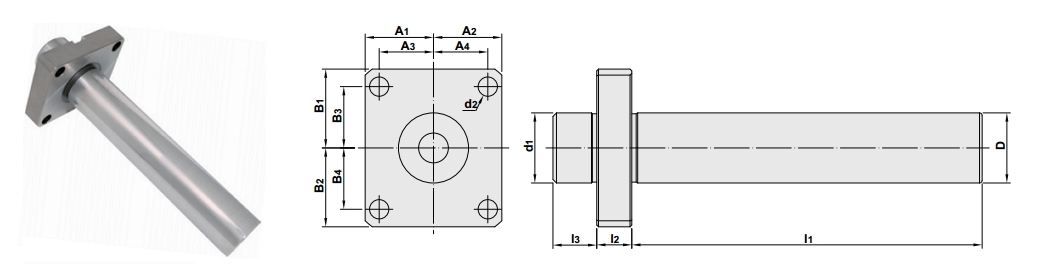

BMT Turret Master Bar

proimages/Products/Measuring_Tool_for_Machining_Center/BMT_Turret_Master_Bar/BMT_Turret_Master_Bar-figure..jpg

MODEL NO.TYPEl1l2l3Dd1d2A1A2A3A4B1B2B3B4WEIGHT
(KGS)
5002-370-401-200 BMT40x40-200 200 20 25 40 40 11 39 39 31 31 45 45 35 35 2.35
5002-371-405-200 BMT45x40-200 200 20 25 40 45 9 37.5 37.5 29 29 40 40 29 29 2.30
5002-372-405-200 BMT55x40-200 200 20 30 40 55 11 42.5 42.5 32 32 50 50 32 32 2.85
5002-373-501-275 BMT60x50-275 275 25 30 50 60 13 54 54 42 42 59 59 47 47 6.10
5002-374-505-275 BMT65x50-275 275 25 30 50 65 13 47.5 47.5 36.5 36.5 55 55 35 35 5.65
5002-375-505-275 BMT75x50-275 275 25 30 50 75 13 56 56 45 45 57.5 57.5 45 45 6.40
series:
proimages/Products/Measuring_Tool_for_Machining_Center/BMT_Turret_Master_Bar/BMT_Turret_Master_Bar-TI-en.jpg
