Product Name : BYB Boring Head (Micrometer Adjustable)
Product Description

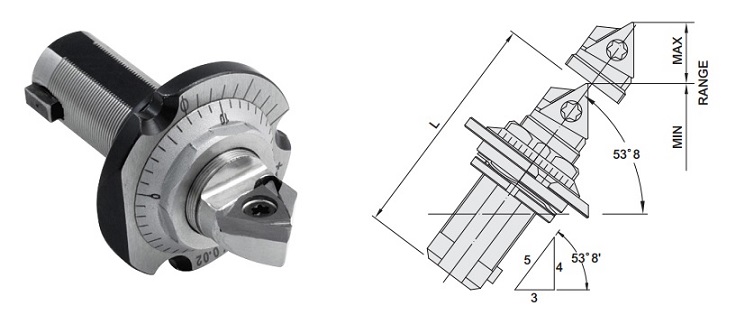

Boring range: ø19~ ø90mm

  • One division for adjustment is 40μm on diameter.

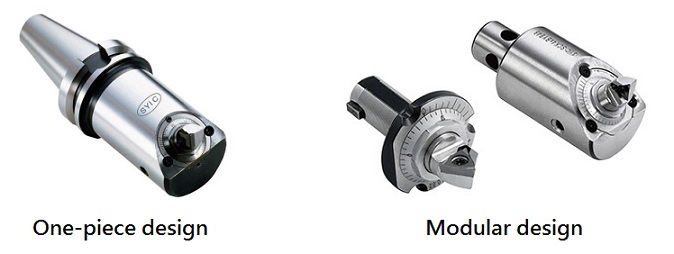

  • Two types to choose from: one-piece type and modular type. The modular type adopts MCK system and is exchangeable with CK series on the market.
  • Inserts: TB..and TP.. need to be purchased separately.

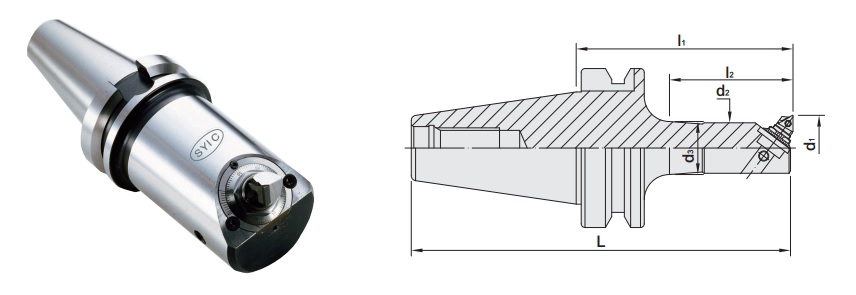

  • One-piece type BT/BYB Boring Head Shank is attached with BYB Boring Head with delivery; for modular type BYB Finish Boring Head Body, BYB Boring Head needs to be purchased separately.

proimages/Products/Boring_head/Finish_boring_head/BYB/BYB_feature_picture.jpg
series:

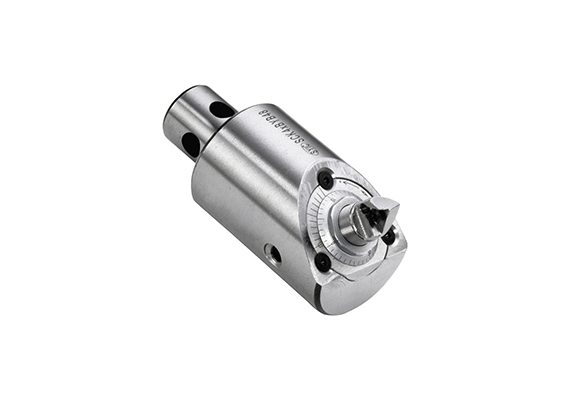

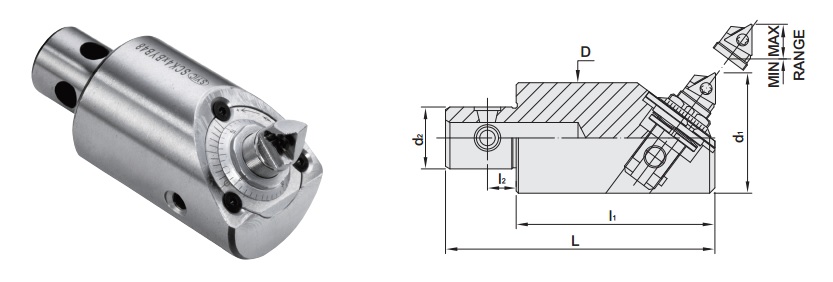

BYB FINISH BORING HEAD BODY

proimages/Products/Boring_head/Finish_boring_head/BYB/BYB_finish_boring_head_body-figure.jpg
MODEL NO.TYPEASSEMBLE TOOL
HOLDER		d1d2Ll1l2DWEIGHT
(KGS)
MIN.MAX.
5158-7019-01-00 BYB19 MCK1 19 22.5 11 51 35 4.75 18 0.36
5158-7022-01-00 BYB22 MCK1 22 29.5 11 51 35 4.75 20 0.36
5158-7029-01-00 BYB29 MCK2 29 41 14 61 45 6.5 25 0.37
5158-7038-01-00 BYB38 MCK3 38 50 18 90 70 7.7 35 0.41
5158-7048-01-00 BYB48 MCK4 48 65 22 84 60 7.7 41 0.59
5158-7062-01-00 BYB62 MCK5 62 90 28 110 80 12.7 54 0.70
5158-7082-01-00 BYB82 MCK6 82 110 36 150 110 15.7 67 1.05
