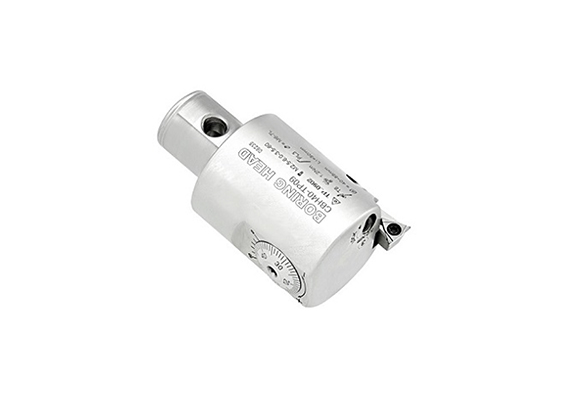

CBH Finish Boring Head

CBH Finish Boring Head
Product Name : CBH Finish Boring Head
Product Description

Boring range: ø20 ~ ø202mm

  • One division for adjustment is 10μm on diameter.
  • High precision internal lead screw with inner lubrication is free from the effects of chip, featuring high durability.
  • Coolant nozzle easily cools the insert, prolonging insert use life.
  • Cartridge unit is housed in a square structure with two face support, providing high stability and rigidity.
  • Replaceable insert holder for CBH32 and the above is easier for maintenance and repair. Can be used for reverse boring.
series:

CBH FINISH BORING HEAD

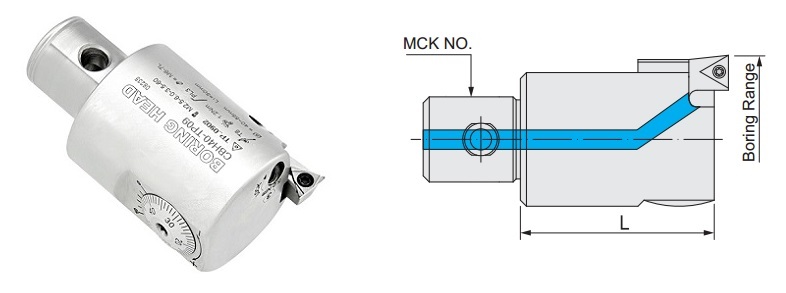

proimages/Products/Boring_head/Finish_boring_head/CBH/CBH_figure.jpg
MODEL NO.TYPEMCK NO.LBORING RANGEINSERTTorque
(N.m)		WEIGHT
(KGS)
405-011-020-000 CBH20 - TB06 MCK1 35 20 ~ 26 TB..0601 0.6 0.19
405-011-025-000 CBH25 - TB06 MCK2 40 25 ~ 33 TB..0601 0.6 0.20
405-011-032-000 CBH32 - TB06 MCK3 40 32 ~ 42 TB..0601 0.6 0.28
405-011-040-000 CBH40 - TB06 MCK4 50 40 ~ 55 TB..0601 0.6 0.59
405-011-020-001 CBH20 - TP08 MCK1 35 20 ~ 26 TP..0802 0.6 0.19
405-011-025-001 CBH25 - TP08 MCK2 40 25 ~ 33 TP..0802 0.6 0.26
405-011-032-001 CBH32 - TP08 MCK3 40 32 ~ 42 TP..0802 0.6 0.37
405-011-040-001 CBH40 - TP08 MCK4 50 40 ~ 55 TP..0802 0.6 0.52
405-011-020-002 CBH20 - TC09 MCK1 35 20 ~ 26 TC..0902 0.6 0.19
405-011-025-002 CBH25 - TC09 MCK2 40 25 ~ 33 TC..0902 0.6 0.20
405-011-032-002 CBH32 - TC09 MCK3 40 32 ~ 42 TC..0902 0.6 0.37
405-011-040-002 CBH40 - TC09 MCK4 50 40 ~ 55 TC..0902 0.6 0.50
405-011-020-003 CBH20 - TP09 MCK1 35 20 ~ 26 TP..0902 1.2 0.10
405-011-025-003 CBH25 - TP09 MCK2 40 25 ~ 33 TP..0902 1.2 0.20
405-011-032-003 CBH32 - TP09 MCK3 40 32 ~ 42 TP..0902 1.2 0.30
405-011-040-003 CBH40 - TP09 MCK4 50 40 ~ 55 TP..0902 1.2 0.50
405-011-052-003 CBH52 - TP08 MCK5 60 52 ~ 75 TP..0802 0.6 1.02
405-011-068-003 CBH68 - TP08 MCK6 72 68 ~ 102 TP..0802 0.6 2.02
405-011-100-003 CBH100 - TP08 MCK6 72 100 ~ 152 TP..0802 0.6 2.90
405-011-150-003 CBH150 - TP08 MCK6 72 150 ~ 202 TP..0802 0.6 4.43
405-011-052-004 CBH52 - TP09 MCK5 60 52 ~ 75 TP..0902 1.2 1.00
405-011-068-004 CBH68 - TP09 MCK6 72 68 ~ 102 TP..0902 1.2 2.00
405-011-100-004 CBH100 - TP09 MCK6 72 100 ~ 152 TP..0902 1.2 3.16
405-011-150-004 CBH150 - TP09 MCK6 72 150 ~ 202 TP..0902 1.2 4.20
405-011-052-005 CBH52 - TC11 MCK5 60 52 ~ 75 TC..1102 1.2 1.00
405-011-068-005 CBH68 - TC11 MCK6 72 68 ~ 102 TC..1102 1.2 2.00
405-011-100-005 CBH100 - TC11 MCK6 72 100 ~ 152 TC..1102 1.2 2.90
405-011-150-005 CBH150 - TC11 MCK6 72 150 ~ 202 TC..1102 1.2 4.20

ACCESSORIES:
INSERTCLAMPING SCREWWRENCH
TB..0601 M2-5.0-2.7-60 T6
TP..0802 M2-5.0-3.1-60 T6
TP..0902 M2.5-6.0-3.5-60 T8
TC..0902 M2-5.0-3.1-60 T6
TC..1102 M2.5-6.0-3.5-60 T8
