Product Name : CBM MICRO ADJUSTMENT BORING HEAD SET
Product Description

CBM55 MICRO ADJUSTMENT BORING HEAD SET:

  • Boring Range from ø6~ø154mm.
  • Enclosed each 1pc with kits parts of CB-M10.
  • Boring range up to ø204mm can be match with option of CB150 adapter plate and RCM100 balance base.

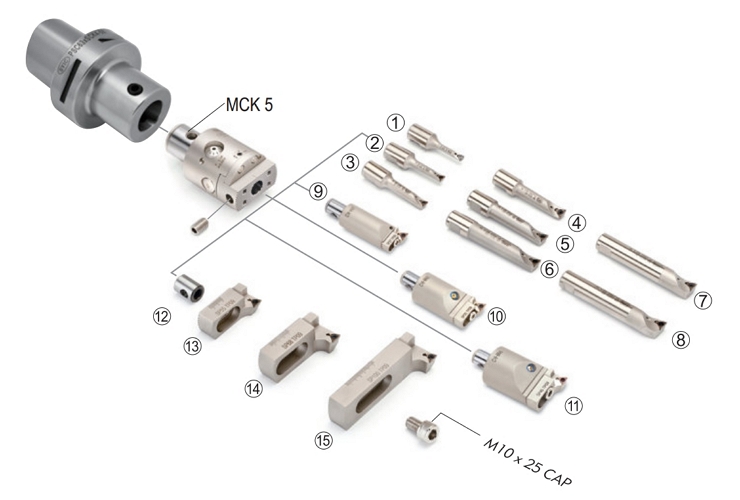

proimages/Products/Boring_head/Finish_boring_head/CMB/CBM55-feature_pict..jpg

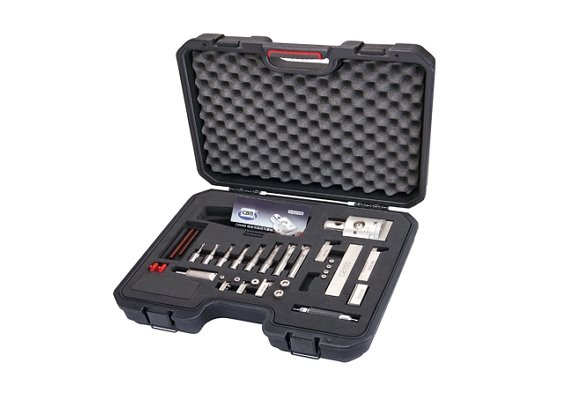

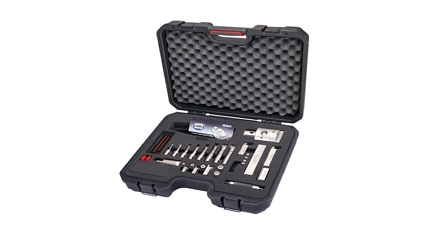

CBM68 MICRO ADJUSTMENT BORING HEAD SET:

  • Boring Range from ø6~ø204mm.
  • Enclosed each 1pc with kits parts of CB-M10 and SP100.
  • Boring range up to ø254mm can be match with option of CB200 adapter plate.
  • Boring range up to ø304mm can be match with option of CB250 adapter plate.

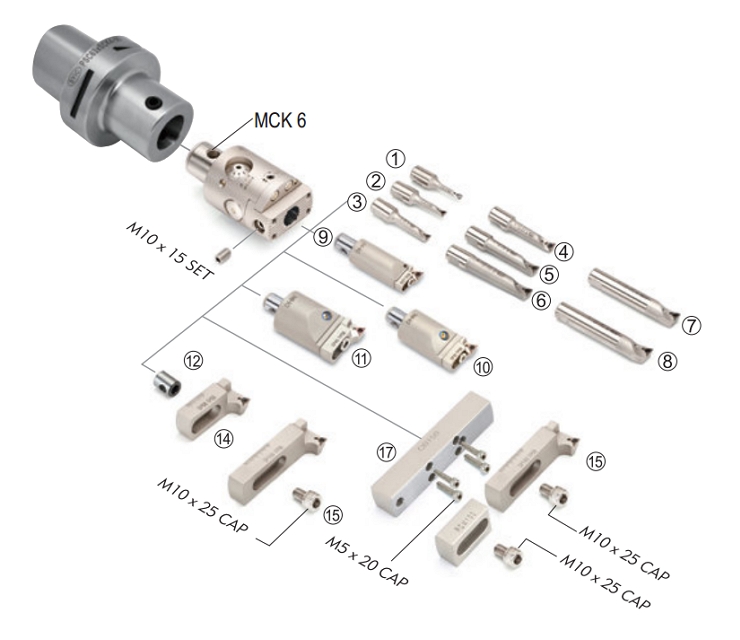

proimages/Products/Boring_head/Finish_boring_head/CMB/CBM68-feature_picture.jpg
series:

CBM55 MICRO ADJUSTMENT BORING HEAD SET

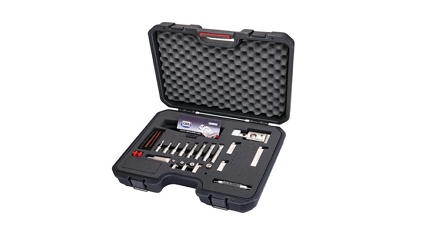

proimages/Products/Boring_head/Finish_boring_head/CMB/CBM55-442x235.jpg

MODEL NO.TYPEBORING CAPACITYBORING CUTTER W/O INSERTSWEIGHT
(KGS)
TYPEINSERTS / CLAMP SCREWWRENCH
405-007-055-000 CBM55 6 ~ 9 BR1606-21 WB06 / ø3xM2 T6 4.7
8~11 BR1608-28 TB06 / ø2.7xM2 T6
10~13 BR1610-35
12~15 BR1612-42 TP09 / M2.5 T8
14~17 BR1614-50
16~20 BR1616-60
20~24 BR1620-65
24~28 BR1624-68
27~40 C16-BR27+SP27
35~50 C16-BR35+SP35
45~68 C16-BR45+SP45
55~80 CB-M10+SP55
64~104 CB-M10+SP68
100~154 CB-M10+SP100
CBM55 ( Boring Range from ø6-ø154 mm )
series:

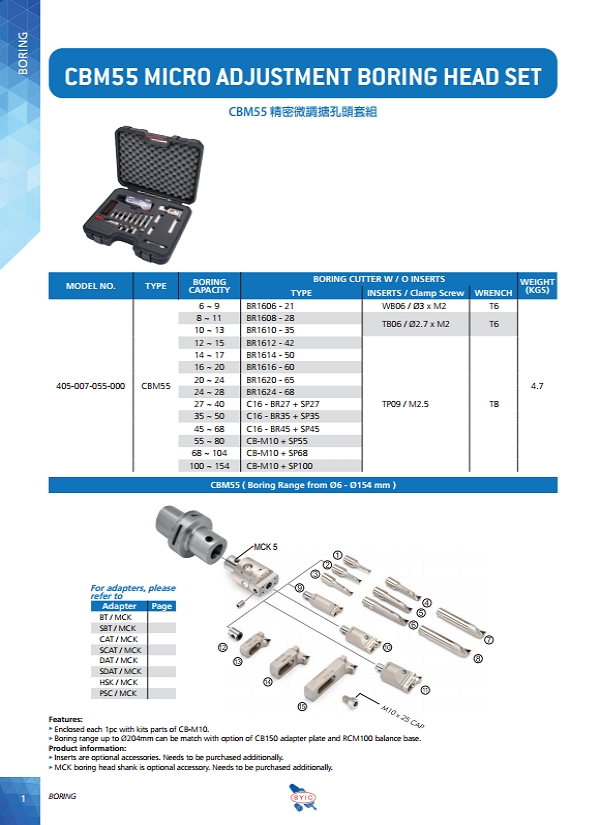

proimages/Products/Boring_head/Finish_boring_head/CMB/CBM_MICRO_ADJUSTMENT_BORING_HEAD_SET.jpg
