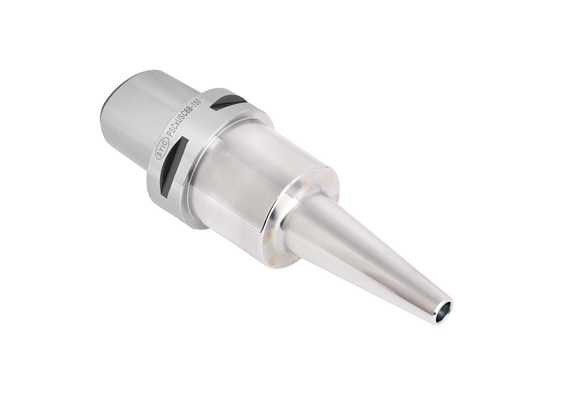

USC Ultimate Side Clamping Chuck (EBL Type)

USC Ultimate Side Clamping Chuck (EBL Type)
Product Name : USC Ultimate Side Clamping Chuck (EBL Type)
Product Description
proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg
  • Quick Tool Change:
    Clamp/Unclamp from the side. Quick tool change!
    Internal gear design, which drives the collet to change the tool.
  • Machining Rigidity:
    The enlarged neck of the tool holder improves machining rigidity.
  • Reducing Interference:
    The USC design w/o nut is good for interference reduction.
  • Center Coolant Available:
    Effectively removes metal chips, extends tool life and improves surface finish of workpiece.
  • Balance:
    G2.5 25,000RPM

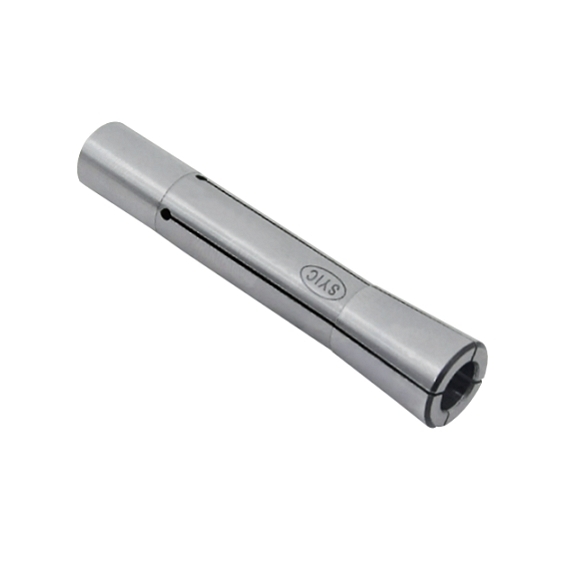

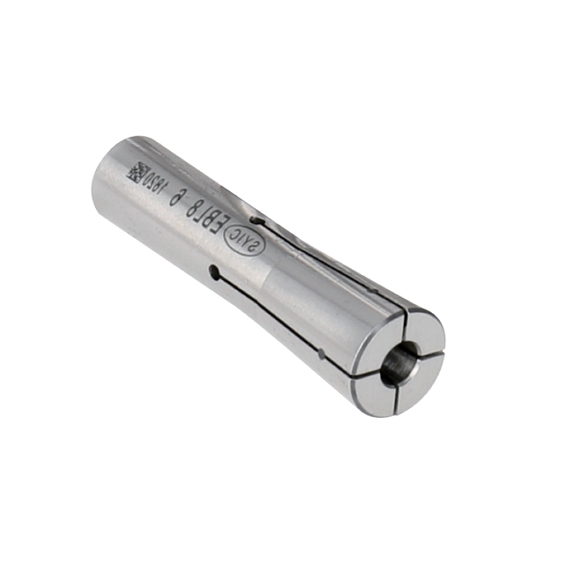

  • USC Ultimate Side Clamping Chuck (EBL type): Use EBL collet or EBL sealed collet to clamp tools.
proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-feature_picture.jpg
series:

USC ULTIMATE SIDE CLAMPING CHUCK (EBL TYPE)

proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-EBL_Type-figure.jpg

MODEL NO.TYPELl1l2Dd1d2SIZE
RANGE		WEIGHT
(KGS)
5026-747-006-150 SBT40xUSC6B-150 215.4 150 97.2 52.4 19.05 28.5 3 ~ 6 1.63
5026-747-006-200 SBT40xUSC6B-200 265.4 200 150 52.4 19.05 33.7 3 ~ 6 1.86
5073-747-006-150 HSK63AxUSC6B-150 182 150 67.2 52.4 19.05 25.6 3 ~ 6 1.73
5073-747-006-200 HSK63AxUSC6B-200 232 200 117.2 52.4 19.05 30.5 3 ~ 6 1.96
5143-747-006-150 PSC63xUSC6B-150 188 150 77.2 52.4 19.05 26.6 3 ~ 6 1.84
5143-747-006-200 PSC63xUSC6B-200 238 200 129.1 52.4 19.05 31.6 3 ~ 6 2.07
