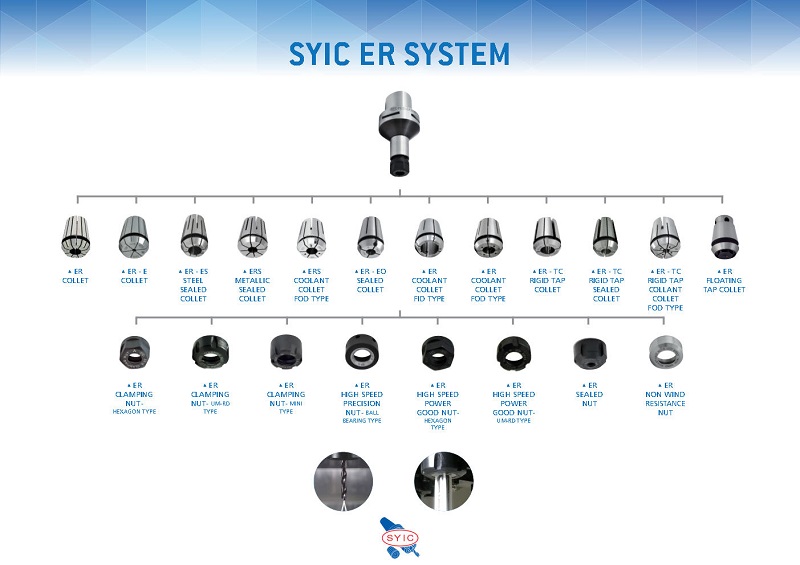

ER Tool Holder

series:

BT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/BT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5010-108-016-050	BT30xER16A-50	98.4	50	27	28	25.1	M10 x 1.5P	1 ~ 10	0.45
5010-108-016-060	BT30xER16A-60	108.4	60	35	28	28	M10 x 1.5P	1 ~ 10	0.6
5010-108-016-070	BT30xER16A-70	118.4	70	40	28	28	M10 x 1.5P	1 ~ 10	0.55
5010-108-016-080	BT30xER16A-80	128.4	80	50	28	28	M10 x 1.5P	1 ~ 10	0.57
5010-108-016-100	BT30xER16A-100	148.4	100	70	28	28	M10 x 1.5P	1 ~ 10	0.7
5010-108-016-120	BT30xER16A-120	168.4	120	93	28	28	M10 x 1.5P	1 ~ 10	0.78
5010-108-020-050	BT30xER20A-50	98.4	50	28	34	-	M12 x 1.75P	1 ~ 13	0.48
5010-108-020-060	BT30xER20A-60	108.4	60	35	34	34	M12 x 1.75P	1 ~ 13	0.54
5010-108-020-070	BT30xER20A-70	118.4	70	45	34	34	M12 x 1.75P	1 ~ 13	0.62
5010-108-020-080	BT30xER20A-80	128.4	80	55	34	34	M12 x 1.75P	1 ~1 3	0.66
5010-108-020-135	BT30xER20A-135	183.4	135	110	34	34	M12 x 1.75P	1 ~ 13	1.1
5010-110-025-060	BT30xER25-60	108.4	60	36	42	42	M16 x 2.0P	1 ~ 16	0.46
5010-110-025-070	BT30xER25-70	118.4	70	46	42	42	M16 x 2.0P	1 ~ 16	0.7
5010-110-025-080	BT30xER25-80	128.4	80	56	42	42	M16 x 2.0P	1 ~ 16	0.72
5010-110-025-135	BT30xER25-135	183.4	135	111	42	42	M16 x 2.0P	1 ~ 16	1.45
5010-110-032-060	BT30xER32-60	108.4	60	38	50	45	M16 x 2.0P	2 ~ 20	0.65
5010-110-032-070	BT30xER32-70	118.4	70	48	50	45	M16 x 2.0P	2 ~ 20	0.7
5010-110-032-100	BT30xER32-100	148.4	100	78	50	45	M16 x 2.0P	2 ~ 20	1
5010-110-040-080	BT30xER40-80	128.4	80	58	63	53	M16 x 2.0P	3 ~ 26	1.1
5011-108-016-070	BT40xER16A-70	135.4	70	40	28	28	M10 x 1.5P	1 ~ 10	1.2
5011-108-016-090	BT40xER16A-90	155.4	90	60.5	28	28	M10 x 1.5P	1 ~ 10	1.16
5011-108-016-100	BT40xER16A-100	165.4	100	63	28	28	M10 x 1.5P	1 ~ 10	1.3
5011-108-016-120	BT40xER16A-120	185.4	120	83	28	28	M10 x 1.5P	1 ~ 10	1.28
5011-108-016-125	BT40xER16A-125	190.4	125	88	28	28	M10 x 1.5P	1 ~ 10	1.36
5011-108-016-150	BT40xER16A-150	215.4	150	113	28	28	M10 x 1.5P	1 ~ 10	1.54
5011-108-016-180	BT40xER16A-180	245.4	180	143	28	28	M10 x 1.5P	1 ~ 10	2
5011-108-016-200	BT40xER16A-200	265.4	200	163	28	28	M10 x 1.5P	1 ~ 10	1.57
5011-108-020-070	BT40xER20A-70	135.4	70	40	34	34	M12 x 1.75P	1 ~ 13	1.2
5011-108-020-090	BT40xER20A-90	155.4	90	53	34	34	M12 x 1.75P	1 ~ 13	1.28
5011-108-020-100	BT40xER20A-100	165.4	100	63	34	34	M12 x 1.75P	1 ~ 13	1.8
5011-108-020-120	BT40xER20A-120	185.4	120	83	34	34	M12 x 1.75P	1 ~ 13	1.46
5011-108-020-135	BT40xER20A-135	200.4	135	98	34	34	M12 x 1.75P	1 ~ 13	1.7
5011-108-020-150	BT40xER20A-150	215.4	150	113	34	34	M12 x 1.75P	1 ~ 13	1.8
5011-108-020-200	BT40xER20A-200	265.4	200	163	34	34	M12 x 1.75P	1 ~ 13	1.87
5011-108-020-250	BT40xER20A-250	315.4	250	213	34	34	M12 x 1.75P	1 ~ 13	2.17
5011-110-025-070	BT40xER25-70	135.4	70	40	42	42	M16 x 2.0P	1 ~ 16	1.3
5011-110-025-090	BT40xER25-90	155.4	90	60	42	42	M16 x 2.0P	1 ~ 16	1.34
5011-110-025-100	BT40xER25-100	165.4	100	70	42	42	M16 x 2.0P	1 ~ 16	1.5
5011-110-025-120	BT40xER25-120	185.4	120	90	42	42	M16 x 2.0P	1 ~ 16	1.67
5011-110-025-125	BT40xER25-125	190.4	125	95	42	42	M16 x 2.0P	1 ~ 16	1.8
5011-110-025-150	BT40xER25-150	215.4	150	115	42	42	M16 x 2.0P	1 ~ 16	2.1
5011-110-025-200	BT40xER25-200	265.4	200	165	42	42	M16 x 2.0P	1 ~ 16	2.32
5011-110-032-070	BT40xER32-70	135.4	70	40	50	50	M16 x 2.0P	2 ~ 20	1.3
5011-110-032-090	BT40xER32-90	155.4	90	60	50	50	M16 x 2.0P	2 ~ 20	1.48
5011-110-032-100	BT40xER32-100	165.4	100	70	50	50	M16 x 2.0P	2 ~ 20	1.7
5011-110-032-120	BT40xER32-120	185.4	120	90	50	50	M16 x 2.0P	2 ~ 20	1.95
5011-110-032-150	BT40xER32-150	215.4	150	118	50	50	M16 x 2.0P	2 ~ 20	2.5
5011-110-032-200	BT40xER32-200	265.4	200	168	50	50	M16 x 2.0P	2 ~ 20	3
5011-110-032-250	BT40xER32-250	315.4	250	218	50	50	M16 x 2.0P	2 ~ 20	2.93
5011-110-040-080	BT40xER40-80	145.4	80	53	63	60	-	3 ~ 26	1.5
5011-110-040-100	BT40xER40-100	165.4	100	73	63	60	M20 x 2.0P	3 ~ 26	2
5011-110-040-120	BT40xER40-120	185.4	120	93	63	60	M20 x 2.0P	3 ~ 26	2.5
5011-110-040-150	BT40xER40-150	215.4	150	123	63	60	M20 x 2.0P	3 ~ 26	3.1
5011-110-040-200	BT40xER40-200	265.4	200	171.5	63	60	M20 x 2.0P	3 ~ 26	3.83
5011-110-040-250	BT40xER40-250	315.4	250	221.5	63	30	M20 x 2.0P	3 ~ 26	4.86
5011-110-050-085	BT40xER50-85	150.4	85	58	78	60	M24 x 2.0P	6 ~ 34	1.7
5011-110-050-100	BT40xER50-100	165.4	100	73	78	60	M24 x 2.0P	6 ~ 34	2.1
5011-110-050-200	BT40xER50-200	265.4	200	171.5	78	60	M24 x 2.0P	6 ~ 34	3.82
5011-110-050-250	BT40xER50-250	315.4	250	221.5	78	60	M24 x 2.0P	6 ~ 34	4.85
5012-108-016-070	BT50xER16A-70	171.8	70	29	28	28	M10 x 1.5P	1 ~ 10	4.05
5012-108-016-090	BT50xER16A-90	191.8	90	47	28	28	M10 x 1.5P	1 ~ 10	4.2
5012-108-016-105	BT50xER16A-105	206.8	105	57	28	28	M10 x 1.5P	1 ~ 10	4.3
5012-108-016-135	BT50xER16A-135	236.8	135	87	28	28	M10 x 1.5P	1 ~ 10	4.4
5012-108-016-150	BT50xER16A-150	251.8	150	102	28	28	M10 x 1.5P	1 ~ 10	4.5
5012-108-016-165	BT50xER16A-165	266.8	165	117	28	28	M10 x 1.5P	1 ~ 10	4.5
5012-108-016-200	BT50xER16A-200	301.8	200	152	28	28	M10 x 1.5P	1 ~ 10	4.6
5012-108-016-250	BT50xER16A-250	351.8	250	202	28	28	M10 x 1.5P	1 ~ 10	4.7
5012-108-016-300	BT50xER16A-300	401.8	300	252	28	28	M10 x 1.5P	1 ~ 10	4.8
5012-108-020-070	BT50xER20A-70	171.8	70	29	34	34	M12 x 1.75P	1 ~ 13	4.2
5012-108-020-090	BT50xER20A-90	191.8	90	47	34	34	M12 x 1.75P	1 ~ 13	4.25
5012-108-020-105	BT50xER20A-105	206.8	105	57	34	34	M12 x 1.75P	1 ~ 13	4.3
5012-108-020-135	BT50xER20A-135	236.8	135	87	34	34	M12 x 1.75P	1 ~ 13	4.55
5012-108-020-150	BT50xER20A-150	251.8	150	102	34	34	M12 x 1.75P	1 ~ 13	4.7
5012-108-020-165	BT50xER20A-165	266.8	165	117	34	34	M12 x 1.75P	1 ~ 13	4.8
5012-108-020-200	BT50xER20A-200	301.8	200	152	34	34	M12 x 1.75P	1 ~ 13	4.9
5012-108-020-250	BT50xER20A-250	351.8	250	202	34	34	M12 x 1.75P	1 ~ 13	5.1
5012-108-020-300	BT50xER20A-300	401.8	300	252	34	34	M12 x 1.75P	1 ~ 13	5.3
5012-110-025-070	BT50xER25-70	171.8	70	29	42	42	M16 x 2.0P	1 ~ 16	4.2
5012-110-025-105	BT50xER25-105	206.8	105	57	42	42	M16 x 2.0P	1 ~ 16	4.4
5012-110-025-135	BT50xER25-135	236.8	135	87	42	42	M16 x 2.0P	1 ~ 16	4.7
5012-110-025-165	BT50xER25-165	266.8	165	117	42	42	M16 x 2.0P	1 ~ 16	5
5012-110-025-250	BT50xER25-250	351.8	250	202	42	42	M16 x 2.0P	1 ~ 16	5.3
5012-110-025-300	BT50xER25-300	401.8	300	252	42	42	M16 x 2.0P	1 ~ 16	5.7
5012-110-025-350	BT50xER25-350	451.8	350	302	42	42	M16 x 2.0P	1 ~ 16	6.1
5012-110-032-080	BT50xER32-80	181.8	80	39	50	50	M16 x 2.0P	2 ~ 20	4.7
5012-110-032-100	BT50xER32-100	201.8	100	57	50	50	M16 x 2.0P	2 ~ 20	4.8
5012-110-032-120	BT50xER32-120	221.8	120	72	50	50	M16 x 2.0P	2 ~ 20	4.7
5012-110-032-135	BT50xER32-135	236.8	135	87	50	50	M16 x 2.0P	2 ~ 20	4.44
5012-110-032-150	BT50xER32-150	251.8	150	102	50	50	M16 x 2.0P	2 ~ 20	5.3
5012-110-032-165	BT50xER32-165	266.8	165	117	50	50	M16 x 2.0P	2 ~ 20	4.8
5012-110-032-200	BT50xER32-200	301.8	200	152	50	50	M16 x 2.0P	2 ~ 20	5.5
5012-110-032-250	BT50xER32-250	351.8	250	202	50	50	M16 x 2.0P	2 ~ 20	5.96
5012-110-032-300	BT50xER32-300	401.8	300	252	50	50	M16 x 2.0P	2 ~ 20	6.7
5012-110-032-350	BT50xER32-350	451.8	350	302	50	50	M16 x 2.0P	2 ~ 20	7.4
5012-110-032-400	BT50xER32-400	501.8	400	352	50	50	M16 x 2.0P	2 ~ 20	8
5012-110-032-450	BT50xER32-450	551.8	450	402	50	50	M16 x 2.0P	2 ~ 20	8.5
5012-110-040-080	BT50xER40-80	181.8	80	39	63	63	M20 x 2.0P	3 ~ 26	4.3
5012-110-040-100	BT50xER40-100	201.8	100	57	63	63	M20 x 2.0P	3 ~ 26	4.64
5012-110-040-120	BT50xER40-120	221.8	120	72	63	63	M20 x 2.0P	3 ~ 26	5.1
5012-110-040-135	BT50xER40-135	236.8	135	87	63	63	M20 x 2.0P	3 ~ 26	5.5
5012-110-040-250	BT50xER40-250	351.8	250	202	63	63	M20 x 2.0P	3 ~ 26	7.9
5012-110-040-300	BT50xER40-300	401.8	300	252	63	63	M20 x 2.0P	3 ~ 26	9
5012-110-040-350	BT50xER40-350	451.8	350	302	63	63	M20 x 2.0P	3 ~ 26	10.1
5012-110-040-400	BT50xER40-400	501.8	400	352	63	63	M20 x 2.0P	3 ~ 26	11.1
5012-110-050-090	BT50xER50-90	191.8	90	49	78	78	M24 x 2.0P	6 ~ 34	4.6
5012-110-050-120	BT50xER50-120	221.8	120	79	78	78	M24 x 2.0P	6 ~ 34	5.5
5012-110-050-165	BT50xER50-165	266.8	165	124	78	78	M24 x 2.0P	6 ~ 34	6.1
5012-110-050-200	BT50xER50-200	301.8	200	157	78	78	M24 x 2.0P	6 ~ 34	8.6
5012-110-050-250	BT50xER50-250	351.8	250	207	78	78	M24 x 2.0P	6 ~ 34	10.3
5012-110-050-300	BT50xER50-300	401.8	300	257	78	78	M24 x 2.0P	6 ~ 34	12
5012-110-050-350	BT50xER50-350	451.8	350	307	78	78	M24 x 2.0P	6 ~ 34	13.7
5012-110-050-400	BT50xER50-400	501.8	400	357	78	78	M24 x 2.0P	6 ~ 34	15.4

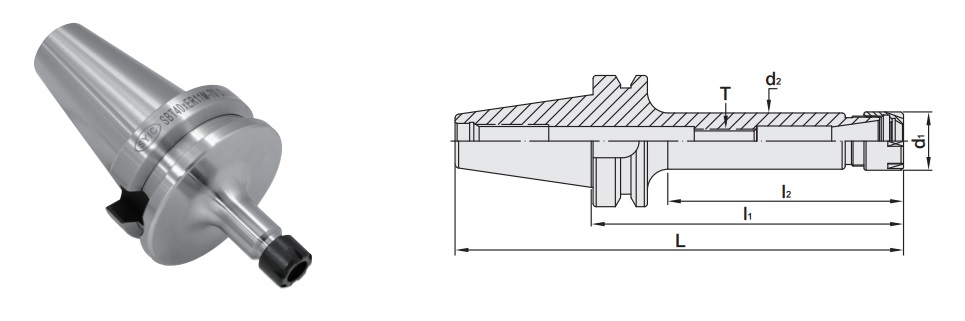

BT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/BT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5010-123-011-070	BT30xER11M-70	118.4	70	40	16	15	M6 x 1.0P	1 ~ 7	0.5
5010-123-011-100	BT30xER11M-100	148.4	100	70	16	15	M6 x 1.0P	1 ~ 7	0.6
5010-123-011-120	BT30xER11M-120	168.4	120	88	16	15	M6 x 1.0P	1 ~ 7	0.7
5010-123-016-070	BT30xER16M-70	118.4	70	43	22	21	M10 x 1.5P	1 ~ 10	0.55
5010-123-016-100	BT30xER16M-100	148.4	100	68	22	21	M10 x 1.5P	1 ~ 10	0.56
5010-123-016-120	BT30xER16M-120	168.4	120	88	22	21	M10 x 1.5P	1 ~ 10	0.75
5010-123-020-070	BT30xER20M-70	118.4	70	45	28	27	M12 x 1.75P	1 ~ 13	0.65
5010-123-020-100	BT30xER20M-100	148.4	100	71	28	27	M12 x 1.75P	1 ~ 13	0.7
5010-123-020-120	BT30xER20M-120	168.4	120	91	28	27	M12 x 1.75P	1 ~ 13	0.8
5010-123-020-150	BT30xER20M-150	198.4	150	121	28	27	M12 x 1.75P	1 ~ 13	1
5011-123-011-070	BT40xER11M-70	135.4	70	33	16	15	M6 x 1.0P	1 ~ 7	1.1
5011-123-011-100	BT40xER11M-100	165.4	100	63	16	15	M6 x 1.0P	1 ~ 7	1.1
5011-123-011-125	BT40xER11M-125	190.4	125	88	16	15	M6 x 1.0P	1 ~ 7	1.12
5011-123-011-150	BT40xER11M-150	215.4	150	113	16	15	M6 x 1.0P	1 ~ 7	1.2
5011-123-016-070	BT40xER16M-70	135.4	70	38	22	21	M10 x 1.5P	1 ~ 10	1.1
5011-123-016-100	BT40xER16M-100	165.4	100	63	22	21	M10 x 1.5P	1 ~ 10	1.16
5011-123-016-125	BT40xER16M-125	190.4	125	88	22	21	M10 x 1.5P	1 ~ 10	1.2
5011-123-016-150	BT40xER16M-150	215.4	150	113	22	21	M10 x 1.5P	1 ~ 10	1.3
5011-123-020-070	BT40xER20M-70	135.4	70	38	28	27	M12 x 1.75P	1 ~ 13	1.2
5011-123-020-100	BT40xER20M-100	165.4	100	63	28	27	M12 x 1.75P	1 ~ 13	1.25
5011-123-020-125	BT40xER20M-125	190.4	125	88	28	27	M12 x 1.75P	1 ~ 13	1.3
5011-123-020-150	BT40xER20M-150	215.4	150	113	28	27	M12 x 1.75P	1 ~ 13	1.45
5012-123-011-070	BT50xER11M-70	171.8	70	22	16	15	M6 x 1.0P	1 ~ 7	3.8
5012-123-011-090	BT50xER11M-90	191.8	90	42	16	15	M6 x 1.0P	1 ~ 7	3.9
5012-123-011-105	BT50xER11M-105	206.8	105	57	16	15	M6 x 1.0P	1 ~ 7	4
5012-123-011-135	BT50xER11M-135	236.8	135	87	16	15	M6 x 1.0P	1 ~ 7	4.1
5012-123-011-165	BT50xER11M-165	266.8	165	92	16	15	M6 x 1.0P	1 ~ 7	4.2
5012-123-016-070	BT50xER16M-70	171.8	70	29	22	21	M10 x 1.5P	1 ~ 10	3.9
5012-123-016-090	BT50xER16M-90	191.8	90	42	22	21	M10 x 1.5P	1 ~ 10	4
5012-123-016-105	BT50xER16M-105	206.8	105	57	22	21	M10 x 1.5P	1 ~ 10	4.1
5012-123-016-135	BT50xER16M-135	236.8	135	87	22	21	M10 x 1.5P	1 ~ 10	4.2
5012-123-016-165	BT50xER16M-165	266.8	165	117	22	21	M10 x 1.5P	1 ~ 10	4.3
5012-123-020-090	BT50xER20M-90	191.8	90	42	28	27	M12 x 1.75P	1 ~ 13	4.1
5012-123-020-105	BT50xER20M-105	206.8	105	57	28	27	M12 x 1.75P	1 ~ 13	4.2
5012-123-020-135	BT50xER20M-135	236.8	135	87	28	27	M12 x 1.75P	1 ~ 13	4.4
5012-123-020-165	BT50xER20M-165	266.8	165	117	28	27	M12 x 1.75P	1 ~ 13	4.6

CAT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/CAT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5031-108-016-051	CAT40xER16A-2"	4.687	2	1.211	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1
5031-108-016-070	CAT40xER16A-2.76"	5.442	2.76	1.28	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.05
5031-108-016-102	CAT40xER16A-4"	6.687	4	2.135	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.35
5031-108-016-152	CAT40xER16A-6"	8.687	6	4.135	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.65
5031-108-016-203	CAT40xER16A-8"	10.687	8	6.135	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.85
5031-108-020-070	CAT40xER20A-2.76"	5.442	2.76	1.28	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	1.25
5031-108-020-102	CAT40xER20A-4"	6.687	4	2.367	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	1.65
5031-108-020-152	CAT40xER20A-6"	8.687	6	4.334	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	1.85
5031-110-025-070	CAT40xER25-2.76"	5.442	2.76	1.379	1.654	1.75	M16 x 2.0P	0.093 ~ 0.625	1.35
5031-110-025-102	CAT40xER25-4"	6.687	4	2.573	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	1.7
5031-110-025-152	CAT40xER25-6"	8.687	6	4.622	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	2.25
5031-110-025-203	CAT40xER25-8"	10.687	8	6.622	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	2.55
5031-110-032-070	CAT40xER32-2.76"	5.442	2.76	1.379	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.16
5031-110-032-076	CAT40xER32-3"	5.687	3	1.622	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.5
5031-110-032-102	CAT40xER32-4"	6.687	4	2.622	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.75
5031-110-032-152	CAT40xER32-6"	8.687	6	4.622	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	2.15
5031-110-032-203	CAT40xER32-8"	10.687	8	6.622	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	2.7
5031-110-040-080	CAT40xER40-3.15"	5.837	3.15	1.772	2.48	1.75	M20 x 2.0P	0.125 ~ 1	1.25
5031-110-040-102	CAT40xER40-4"	6.687	4	2.543	2.48	2.36	M20 x 2.0P	0.125 ~ 1	1.8
5031-110-040-152	CAT40xER40-6"	8.687	6	4.543	2.48	2.36	M20 x 2.0P	0.125 ~ 1	2.9
5031-110-050-102	CAT40xER50-4"	6.687	4	2.543	3.07	2.523	M24 x 2.0P	0.219 ~ 1.313	2.65
5032-108-016-076	CAT50xER16A-3"	7	3	1.425	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.05
5032-108-016-102	CAT50xER16A-4"	8	4	2.065	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.2
5032-108-016-127	CAT50xER16A-5"	9	5	3.065	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.3
5032-108-016-152	CAT50xER16A-6"	10	6	4.289	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.4
5032-108-016-203	CAT50xER16A-8"	12	8	6.147	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.5
5032-108-020-102	CAT50xER20A-4"	8	4	2.065	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.2
5032-108-020-152	CAT50xER20A-6"	10	6	4.146	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.45
5032-108-020-203	CAT50xER20A-8"	12	8	6.065	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.6
5032-110-025-102	CAT50xER25-4"	8	4	2.453	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.15
5032-110-025-152	CAT50xER25-6"	10	6	3.913	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.5
5032-110-025-203	CAT50xER25-8"	12	8	5.91	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.7
5032-110-032-102	CAT50xER32-4"	8	4	2.149	1.969	1.97	M16 x 2.0P	0.0625 ~ 0.75	4.35
5032-110-032-152	CAT50xER32-6"	10	6	4.152	1.969	1.97	M16 x 2.0P	0.0625 ~ 0.75	4.6
5032-110-032-203	CAT50xER32-8"	12	8	6.068	1.969	1.97	M16 x 2.0P	0.0625 ~ 0.75	4.9
5032-110-040-102	CAT50xER40-4"	8	4	2.347	2.48	2.36	M20 x 2.0P	0.125 ~ 1	5.26
5032-110-040-152	CAT50xER40-6"	10	6	4.431	2.48	2.36	M20 x 2.0P	0.125 ~ 1	6.36
5032-110-040-203	CAT50xER40-8"	12	8	6.428	2.48	2.36	M20 x 2.0P	0.125 ~ 1	5.1
5032-110-050-102	CAT50xER50-4"	8	4	2.622	3.07	2.75	M24 x 2.0P	0.219 ~ 1.313	4.85
5032-110-050-152	CAT50xER50-6"	10	6	4.622	3.07	2.75	M24 x 2.0P	0.219 ~ 1.313	5.55

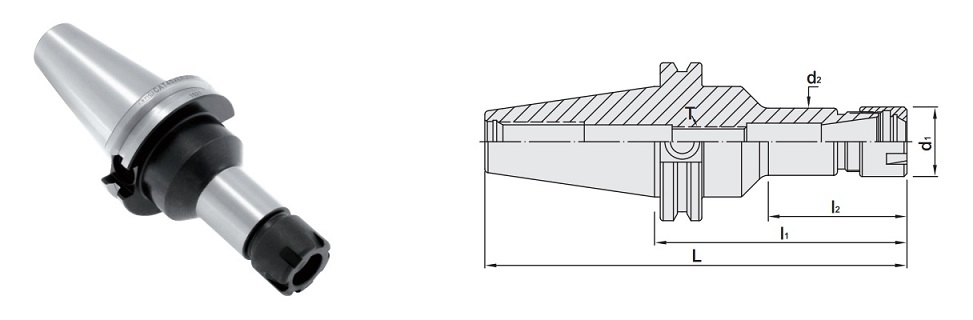

CAT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/CAT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5031-123-011-070	CAT40xER11M-2.75"	5.437	2.75	1.175	0.63	0.59	M6 x 1.0P	0.0625 ~ 0.25	1.1
5031-123-011-102	CAT40xER11M-4"	6.687	4	2.228	0.63	0.59	M6 x 1.0P	0.0625 ~ 0.25	1.2
5031-123-016-070	CAT40xER16M-2.76"	5.447	2.76	1.323	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	1.2
5031-123-016-102	CAT40xER16M-4"	6.687	4	2.425	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	1.3
5031-123-020-070	CAT40xER20M-2.76"	5.447	2.76	1.323	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	1.2
5031-123-020-102	CAT40xER20M-4"	6.687	4	2.196	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	1.5
5032-123-016-102	CAT50xER16M-4"	8	4	1.927	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	3.9
5032-123-016-152	CAT50xER16M-6"	10	6	4.008	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	4
5032-123-020-102	CAT50xER20M-4"	8	4	2.127	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	4.2
5032-123-020-152	CAT50xER20M-6"	10	6	4.127	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	5.2

DAT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/DAT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5050-108-011-080	DAT30xER11A-80	127.8	80	50	19	19	M6 x 1.0P	1 ~ 7	0.6
5050-108-016-063	DAT30xER16A-63	110.8	63	40	28	28	M10 x 1.5P	1 ~ 10	0.7
5050-108-016-120	DAT30xER16A-120	167.8	120	92	28	28	M10 x 1.5P	1 ~ 10	0.85
5050-108-020-063	DAT30xER20A-63	110.8	63	38	34	34	M12 x 1.75P	1 ~ 13	0.8
5050-108-020-120	DAT30xER20A-120	167.8	120	95	34	34	M12 x 1.75P	1 ~ 13	1.05
5050-110-025-063	DAT30xER25-63	110.8	63	43	42	42	M16 x 2.0P	1 ~ 16	0.85
5050-110-032-063	DAT30xER32-63	110.8	63	43	50	44.7	M16 x 2.0P	2 ~ 20	0.9
5051-108-011-080	DAT40xER11A-80	148.4	80	50	19	19	M6 x 1.0P	1 ~ 7	1.05
5051-108-011-125	DAT40xER11A-125	193.4	125	95	19	19	M6 x 1.0P	1 ~ 7	1.15
5051-108-016-070	DAT40xER16A-70	138.4	70	40	28	28	M10 x 1.5P	1 ~ 10	1.05
5051-108-016-100	DAT40xER16A-100	168.4	100	70	28	28	M10 x 1.5P	1 ~ 10	1.15
5051-108-016-125	DAT40xER16A-125	193.4	125	95	28	28	M10 x 1.5P	1 ~ 10	1.25
5051-108-016-150	DAT40xER16A-150	218.4	150	120	28	28	M10 x 1.5P	1 ~ 10	1.4
5051-108-016-180	DAT40xER16A-180	248.4	180	150	28	28	M10 x 1.5P	1 ~ 10	1.85
5051-108-020-070	DAT40xER20A-70	138.4	70	47	34	34	M12 x 1.75P	1 ~ 13	1.1
5051-108-020-100	DAT40xER20A-100	168.4	100	70	34	34	M12 x 1.75P	1 ~ 13	1.3
5051-108-020-135	DAT40xER20A-135	203.4	135	105	34	34	M12 x 1.75P	1 ~ 13	1.95
5051-108-020-160	DAT40xER20A-160	228.4	160	130	34	34	M12 x 1.75P	1 ~ 13	2.2
5051-110-025-070	DAT40xER25-70	138.4	70	50	42	42	M16 x 2.0P	1 ~ 16	1.15
5051-110-025-100	DAT40xER25-100	168.4	100	80	42	42	M16 x 2.0P	1 ~ 16	1.45
5051-110-025-150	DAT40xER25-150	218.4	150	130	42	42	M16 x 2.0P	1 ~ 16	2
5051-110-025-180	DAT40xER25-180	248.4	180	160	42	42	M16 x 2.0P	1 ~ 16	2.45
5051-110-025-200	DAT40xER25-200	268.4	200	180	42	42	M16 x 2.0P	1 ~ 16	2.55
5051-110-032-070	DAT40xER32-70	138.4	70	50	50	49.7	M16 x 2.0P	2 ~ 20	1.22
5051-110-032-100	DAT40xER32-100	168.4	100	80	50	49.5	M16 x 2.0P	2 ~ 20	1.62
5051-110-032-135	DAT40xER32-135	203.4	135	115	50	49.7	M16 x 2.0P	2 ~ 20	2.15
5051-110-032-150	DAT40xER32-150	218.4	150	130	50	49.7	M16 x 2.0P	2 ~ 20	2.65
5051-110-040-070	DAT40xER40-70	138.4	70	50	63	50	M20 x 2.0P	3 ~ 26	1.25
5051-110-040-100	DAT40xER40-100	168.4	100	80	63	50	M20 x 2.0P	3 ~ 26	1.65
5051-110-040-135	DAT40xER40-135	203.4	135	115	63	50	M20 x 2.0P	3 ~ 26	2.3
5051-110-050-100	DAT40xER50-100	168.4	100	65	78	64	M24 x 2.0P	6 ~ 34	1.7
5052-108-016-100	DAT50xER16A-100	201.75	100	70	28	28	M10 x 1.5P	1 ~ 10	3.2
5052-108-016-135	DAT50xER16A-135	236.75	135	105	28	28	M10 x 1.5P	1 ~ 10	4.3
5052-108-016-160	DAT50xER16A-160	261.75	160	130	28	28	M10 x 1.5P	1 ~ 10	4.5
5052-108-016-180	DAT50xER16A-180	281.75	180	150	28	28	M10 x 1.5P	1 ~ 10	4.8
5052-108-020-100	DAT50xER20A-100	201.75	100	70	34	34	M12 x 1.75P	1 ~ 13	3.4
5052-108-020-135	DAT50xER20A-135	236.75	135	105	34	34	M12 x 1.75P	1 ~ 13	3.6
5052-108-020-160	DAT50xER20A-160	261.75	160	130	34	34	M12 x 1.75P	1 ~ 13	3.8
5052-110-025-070	DAT50xER25-70	171.75	70	40	42	42	M16 x 2.0P	1 ~ 16	3.4
5052-110-025-100	DAT50xER25-100	201.75	100	70	42	42	M16 x 2.0P	1 ~ 16	3.54
5052-110-025-150	DAT50xER25-150	251.75	150	120	42	42	M16 x 2.0P	1 ~ 16	4.5
5052-110-025-200	DAT50xER25-200	301.75	200	170	42	42	M16 x 2.0P	1 ~ 16	4.7
5052-110-032-080	DAT50xER32-80	181.75	80	50	50	50	M20 x 2.0P	2 ~ 20	3.6
5052-110-032-120	DAT50xER32-120	221.75	120	90	50	50	M20 x 2.0P	2 ~ 20	4.5
5052-110-032-160	DAT50xER32-160	261.75	160	130	50	50	M20 x 2.0P	2 ~ 20	4.6
5052-110-032-200	DAT50xER32-200	301.75	200	170	50	50	M20 x 2.0P	2 ~ 20	5.16
5052-110-040-080	DAT50xER40-80	181.75	80	50	63	60	M20 x 2.0P	3 ~ 26	3.65
5052-110-040-120	DAT50xER40-120	221.75	120	90	63	60	M20 x 2.0P	3 ~ 26	4.42
5052-110-040-160	DAT50xER40-160	261.75	160	130	63	60	M20 x 2.0P	3 ~ 26	5.2
5052-110-040-200	DAT50xER40-200	301.75	200	170	63	60	M20 x 2.0P	3 ~ 26	5.4
5052-110-050-080	DAT50xER50-80	181.75	80	57	78	-	M24 x 2.0P	6 ~ 34	4.85
5052-110-050-120	DAT50xER50-120	221.75	120	99	78	78	M24 x 2.0P	6 ~ 34	5.45
5052-110-050-160	DAT50xER50-160	261.75	160	139	78	78	M24 x 2.0P	6 ~ 34	5.55
5052-110-050-200	DAT50xER50-200	301.75	200	179	78	78	M24 x 2.0P	6 ~ 34	5.7

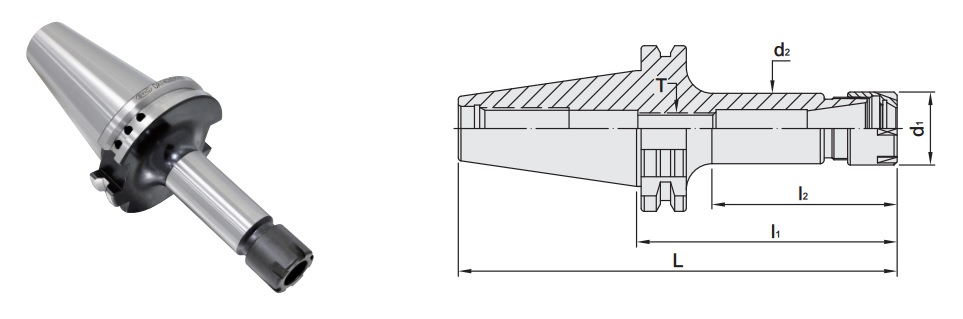

DAT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/DAT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5050-123-011-070	DAT30xER11M-70	117.8	70	40	16	15	M6 x 1.0P	1 ~ 7	0.5
5050-123-011-100	DAT30xER11M-100	147.8	100	70	16	15	M6 x 1.0P	1 ~ 7	0.6
5050-123-011-120	DAT30xER11M-120	167.8	120	90	16	15	M6 x 1.0P	1 ~ 7	0.7
5050-123-016-070	DAT30xER16M-70	117.8	70	40	22	21	M10 x 1.5P	1 ~ 10	0.55
5050-123-016-100	DAT30xER16M-100	147.8	100	70	22	21	M10 x 1.5P	1 ~ 10	0.65
5050-123-016-120	DAT30xER16M-120	167.8	120	90	22	21	M10 x 1.5P	1 ~ 10	0.75
5050-123-020-100	DAT30xER20M-100	147.8	100	75	28	27	M12 x 1.75P	1 ~ 13	0.7
5050-123-020-120	DAT30xER20M-120	167.8	120	95	28	27	M12 x 1.75P	1 ~ 13	0.8
5050-123-020-150	DAT30xER20M-150	197.8	150	125	28	27	M12 x 1.75P	1 ~ 13	1
5051-123-011-070	DAT40xER11M-70	138.4	70	40	16	15	M6 x 1.0P	1 ~ 7	0.84
5051-123-011-100	DAT40xER11M-100	168.4	100	70	16	15	M6 x 1.0P	1 ~ 7	0.86
5051-123-011-125	DAT40xER11M-125	193.4	125	95	16	15	M6 x 1.0P	1 ~ 7	1
5051-123-011-150	DAT40xER11M-150	218.4	150	120	16	15	M6 x 1.0P	1 ~ 7	1
5051-123-016-070	DAT40xER16M-70	138.4	70	40	22	21	M10 x 1.5P	1 ~ 10	0.96
5051-123-016-100	DAT40xER16M-100	168.4	100	70	22	21	M10 x 1.5P	1 ~ 10	1
5051-123-016-125	DAT40xER16M-125	193.4	125	95	22	21	M10 x 1.5P	1 ~ 10	1.05
5051-123-016-150	DAT40xER16M-150	218.4	150	120	22	21	M10 x 1.5P	1 ~ 10	1.14
5051-123-020-070	DAT40xER20M-70	138.4	70	40	28	27	M12 x 1.75P	1 ~ 13	1.2
5051-123-020-100	DAT40xER20M-100	168.4	100	70	28	27	M12 x 1.75P	1 ~ 13	1.55
5051-123-020-125	DAT40xER20M-125	193.4	125	95	28	27	M12 x 1.75P	1 ~ 13	1.7
5051-123-020-150	DAT40xER20M-150	218.4	150	120	28	27	M12 x 1.75P	1 ~ 13	1.8
5052-123-011-070	DAT50xER11M-70	171.75	70	40	16	15	M6 x 1.0P	1 ~ 7	3.8
5052-123-011-090	DAT50xER11M-90	191.75	90	60	16	15	M6 x 1.0P	1 ~ 7	3.9
5052-123-011-105	DAT50xER11M-105	206.75	105	56	16	15	M6 x 1.0P	1 ~ 7	4
5052-123-011-135	DAT50xER11M-135	236.75	135	86	16	15	M6 x 1.0P	1 ~ 7	4.1
5052-123-011-165	DAT50xER11M-165	266.75	165	98	16	15	M6 x 1.0P	1 ~ 7	4.2
5052-123-016-070	DAT50xER16M-70	171.75	70	40	22	21	M10 x 1.5P	1 ~ 10	3.9
5052-123-016-090	DAT50xER16M-90	191.75	90	60	22	21	M10 x 1.5P	1 ~ 10	4
5052-123-016-105	DAT50xER16M-105	206.75	105	68	22	21	M10 x 1.5P	1 ~ 10	4.1
5052-123-016-135	DAT50xER16M-135	236.75	135	98	22	21	M10 x 1.5P	1 ~ 10	4.2
5052-123-016-165	DAT50xER16M-165	266.75	165	128	22	21	M10 x 1.5P	1 ~ 10	4.3
5052-123-020-090	DAT50xER20M-90	191.75	90	60	28	27	M12 x 1.75P	1 ~ 13	4.1
5052-123-020-105	DAT50xER20M-105	206.75	105	71	28	27	M12 x 1.75P	1 ~ 13	4.2
5052-123-020-135	DAT50xER20M-135	236.75	135	101	28	27	M12 x 1.75P	1 ~ 13	4.4
5052-123-020-165	DAT50xER20M-165	266.75	165	131	28	27	M12 x 1.75P	1 ~ 13	4.6

DualDRIVE+ SBT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/SBT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5025-108-016-050	SBT30xER16A-50	98.4	50	27	28	28	M10 x 1.5P	1 ~ 10	0.45
5025-108-016-060	SBT30xER16A-60	108.4	60	35	28	28	M10 x 1.5P	1 ~ 10	0.60
5025-108-016-070	SBT30xER16A-70	118.4	70	43	28	28	M10 x 1.5P	1 ~ 10	0.55
5025-108-016-100	SBT30xER16A-100	148.4	100	70	28	28	M10 x 1.5P	1 ~ 10	0.70
5025-108-016-120	SBT30xER16A-120	168.4	120	93	28	28	M10 x 1.5P	1 ~ 10	0.78
5025-108-020-050	SBT30xER20A-50	98.4	50	28	34	34	M12 x 1.75P	1 ~ 13	0.48
5025-108-020-070	SBT30xER20A-70	118.4	70	45	34	34	M12 x 1.75P	1 ~ 13	0.62
5025-108-020-135	SBT30xER20A-135	183.4	135	110	34	34	M12 x 1.75P	1 ~ 13	1.00
5025-110-025-070	SBT30xER25-70	118.4	70	46	42	42	M16 x 2.0P	1 ~ 16	0.70
5025-110-025-135	SBT30xER25-135	183.4	135	111	42	42	M16 x 2.0P	1 ~ 16	1.45
5025-110-032-070	SBT30xER32-70	118.4	70	48	50	45	M16 x 2.0P	2 ~ 20	0.70
5025-110-032-100	SBT30xER32-100	148.4	100	78	50	45	M16 x 2.0P	2 ~ 20	1.00
5025-110-040-080	SBT30xER40-80	128.4	80	58	63	53	M16 x 2.0P	3 ~ 26	1.10
5026-108-016-070	SBT40xER16A-70	135.4	70	40	28	28	M10 x 1.5P	1 ~ 10	1.20
5026-108-016-100	SBT40xER16A-100	165.4	100	63	28	28	M10 x 1.5P	1 ~ 10	1.30
5026-108-016-125	SBT40xER16A-125	190.4	125	88	28	28	M10 x 1.5P	1 ~ 10	1.36
5026-108-016-150	SBT40xER16A-150	215.4	150	113	28	28	M10 x 1.5P	1 ~ 10	1.54
5026-108-016-180	SBT40xER16A-180	245.4	180	143	28	28	M10 x 1.5P	1 ~ 10	2.00
5026-108-016-200	SBT40xER16A-200	265.4	200	163	28	28	M10 x 1.5P	1 ~ 10	1.56
5026-108-020-070	SBT40xER20A-70	135.4	70	40	34	34	M12 x 1.75P	1 ~ 13	1.18
5026-108-020-100	SBT40xER20A-100	165.4	100	70	34	34	M12 x 1.75P	1 ~ 13	1.80
5026-108-020-135	SBT40xER20A-135	200.4	135	105	34	34	M12 x 1.75P	1 ~ 13	1.70
5026-108-020-150	SBT40xER20A-150	215.4	150	120	34	34	M12 x 1.75P	1 ~ 13	1.80
5026-108-020-200	SBT40xER20A-200	265.4	200	170.5	34	34	M12 x 1.75P	1 ~ 13	1.87
5026-110-025-070	SBT40xER25-70	135.4	70	40	42	42	M16 x 2.0P	1 ~ 16	1.30
5026-110-025-100	SBT40xER25-100	165.4	100	70	42	42	M16 x 2.0P	1 ~ 16	1.50
5026-110-025-125	SBT40xER25-125	190.4	125	95	42	42	M16 x 2.0P	1 ~ 16	1.78
5026-110-025-150	SBT40xER25-150	215.4	150	120	42	42	M16 x 2.0P	1 ~ 16	2.06
5026-110-025-200	SBT40xER25-200	265.4	200	170	42	42	M16 x 2.0P	1 ~ 16	2.38
5026-110-032-070	SBT40xER32-70	135.4	70	40	50	50	M16 x 2.0P	2 ~ 20	1.30
5026-110-032-100	SBT40xER32-100	165.4	100	70	50	50	M16 x 2.0P	2 ~ 20	1.70
5026-110-032-150	SBT40xER32-150	215.4	150	120	50	50	M16 x 2.0P	2 ~ 20	2.50
5026-110-032-200	SBT40xER32-200	265.4	200	170	50	50	M16 x 2.0P	2 ~ 20	3.00
5026-110-040-080	SBT40xER40-80	145.4	80	53	63	60	-	3 ~ 26	1.50
5026-110-040-100	SBT40xER40-100	165.4	100	73	63	60	M20 x 2.0P	3 ~ 26	2.05
5026-110-040-120	SBT40xER40-120	185.4	120	93	63	60	M20 x 2.0P	3 ~ 26	1.92
5026-110-040-150	SBT40xER40-150	215.4	150	123	63	60	M20 x 2.0P	3 ~ 26	3.10
5026-110-050-085	SBT40xER50-85	150.4	85	58	78	60	M24 x 2.0P	6 ~ 34	1.70
5026-110-050-100	SBT40xER50-100	165.4	100	73	78	60	M24 x 2.0P	6 ~ 34	2.10
5027-108-016-070	SBT50xER16A-70	171.8	70	29	28	28	M10 x 1.5P	1 ~ 10	4.05
5027-108-016-090	SBT50xER16A-90	191.8	90	47	28	28	M10 x 1.5P	1 ~ 10	4.20
5027-108-016-105	SBT50xER16A-105	206.8	105	57	28	28	M10 x 1.5P	1 ~ 10	4.30
5027-108-016-135	SBT50xER16A-135	236.8	135	87	28	28	M10 x 1.5P	1 ~ 10	4.40
5027-108-016-150	SBT50xER16A-150	251.8	150	102	28	28	M10 x 1.5P	1 ~ 10	4.50
5027-108-016-165	SBT50xER16A-165	266.8	165	117	28	28	M10 x 1.5P	1 ~ 10	4.50
5027-108-020-070	SBT50xER20A-70	171.8	70	29	34	34	M12 x 1.75P	1 ~ 13	4.20
5027-108-020-090	SBT50xER20A-90	191.8	90	47	34	34	M12 x 1.75P	1 ~ 13	4.25
5027-108-020-105	SBT50xER20A-105	206.8	105	57	34	34	M12 x 1.75P	1 ~ 13	4.30
5027-108-020-135	SBT50xER20A-135	236.8	135	87	34	34	M12 x 1.75P	1 ~ 13	4.55
5027-108-020-150	SBT50xER20A-150	251.8	150	102	34	34	M12 x 1.75P	1 ~ 13	4.70
5027-108-020-165	SBT50xER20A-165	266.8	165	117	34	34	M12 x 1.75P	1 ~ 13	4.80
5027-108-020-200	SBT50xER20A-200	301.8	200	152	34	34	M12 x 1.75P	1 ~ 13	4.90
5027-110-025-070	SBT50xER25-70	171.8	70	29	42	42	M16 x 2.0P	1 ~ 16	4.20
5027-110-025-105	SBT50xER25-105	206.8	105	57	42	42	M16 x 2.0P	1 ~ 16	4.40
5027-110-025-135	SBT50xER25-135	236.8	135	87	42	42	M16 x 2.0P	1 ~ 16	4.70
5027-110-025-165	SBT50xER25-165	266.8	165	117	42	42	M16 x 2.0P	1 ~ 16	5.00
5027-110-032-080	SBT50xER32-80	181.8	80	39	50	50	M16 x 2.0P	2 ~ 20	4.70
5027-110-032-100	SBT50xER32-100	201.8	100	57	50	50	M16 x 2.0P	2 ~ 20	4.80
5027-110-032-120	SBT50xER32-120	221.8	120	72	50	50	M16 x 2.0P	2 ~ 20	4.70
5027-110-032-150	SBT50xER32-150	251.8	150	102	50	50	M16 x 2.0P	2 ~ 20	5.30
5027-110-032-200	SBT50xER32-200	301.8	200	152	50	50	M16 x 2.0P	2 ~ 20	5.50
5027-110-040-080	SBT50xER40-80	181.8	80	39	63	63	M20 x 2.0P	3 ~ 26	4.30
5027-110-040-100	SBT50xER40-100	201.8	100	57	63	63	M20 x 2.0P	3 ~ 26	4.64
5027-110-040-120	SBT50xER40-120	221.8	120	72	63	63	M20 x 2.0P	3 ~ 26	5.10
5027-110-040-135	SBT50xER40-135	236.8	135	87	63	63	M20 x 2.0P	3 ~ 26	5.50
5027-110-050-090	SBT50xER50-90	191.8	90	49	78	78	M24 x 2.0P	6 ~ 34	4.60
5027-110-050-120	SBT50xER50-120	221.8	120	79	78	78	M24 x 2.0P	6 ~ 34	5.50
5027-110-050-165	SBT50xER50-165	266.8	165	124	78	78	M24 x 2.0P	6 ~ 34	6.10

DualDRIVE+ SBT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/SBT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5025-123-011-070	SBT30xER11M-70	118.4	70	40	16	15	M6 x 1.0P	1 ~ 7	0.50
5025-123-011-100	SBT30xER11M-100	148.4	100	70	16	15	M6 x 1.0P	1 ~ 7	0.60
5025-123-011-120	SBT30xER11M-120	168.4	120	88	16	15	M6 x 1.0P	1 ~ 7	0.70
5025-123-016-070	SBT30xER16M-70	118.4	70	43	22	21	M10 x 1.5P	1 ~ 10	0.55
5025-123-016-100	SBT30xER16M-100	148.4	100	73	22	21	M10 x 1.5P	1 ~ 10	0.56
5025-123-016-120	SBT30xER16M-120	168.4	120	88	22	21	M10 x 1.5P	1 ~ 10	0.75
5025-123-020-070	SBT30xER20M-70	118.4	70	45.5	28	27	M12 x 1.75P	1 ~ 13	0.65
5025-123-020-100	SBT30xER20M-100	148.4	100	71	28	27	M12 x 1.75P	1 ~ 13	0.70
5025-123-020-120	SBT30xER20M-120	168.4	120	91	28	27	M12 x 1.75P	1 ~ 13	0.80
5025-123-020-150	SBT30xER20M-150	198.4	150	121	28	27	M12 x 1.75P	1 ~ 13	1.00
5026-123-011-070	SBT40xER11M-70	135.4	70	33	16	15	M6 x 1.0P	1 ~ 7	1.10
5026-123-011-100	SBT40xER11M-100	165.4	100	63	16	15	M6 x 1.0P	1 ~ 7	1.10
5026-123-011-125	SBT40xER11M-125	190.4	125	88	16	15	M6 x 1.0P	1 ~ 7	1.12
5026-123-011-150	SBT40xER11M-150	215.4	150	113	16	15	M6 x 1.0P	1 ~ 7	1.20
5026-123-016-070	SBT40xER16M-70	135.4	70	38	22	21	M10 x 1.5P	1 ~ 10	1.08
5026-123-016-100	SBT40xER16M-100	165.4	100	63	22	21	M10 x 1.5P	1 ~ 10	1.16
5026-123-016-125	SBT40xER16M-125	190.4	125	88	22	21	M10 x 1.5P	1 ~ 10	1.20
5026-123-016-150	SBT40xER16M-150	215.4	150	113	22	21	M10 x 1.5P	1 ~ 10	1.28
5026-123-020-070	SBT40xER20M-70	135.4	70	38	28	27	M12 x 1.75P	1 ~ 13	1.10
5026-123-020-100	SBT40xER20M-100	165.4	100	63	28	27	M12 x 1.75P	1 ~ 13	1.24
5026-123-020-125	SBT40xER20M-125	190.4	125	88	28	27	M12 x 1.75P	1 ~ 13	1.30
5026-123-020-150	SBT40xER20M-150	215.4	150	113	28	27	M12 x 1.75P	1 ~ 13	1.44
5027-123-011-070	SBT50xER11M-70	171.8	70	22	16	15	M6 x 1.0P	1 ~ 7	3.80
5027-123-011-090	SBT50xER11M-90	191.8	90	42	16	15	M6 x 1.0P	1 ~ 7	3.90
5027-123-011-105	SBT50xER11M-105	206.8	105	57	16	15	M6 x 1.0P	1 ~ 7	4.00
5027-123-011-135	SBT50xER11M-135	236.8	135	87	16	15	M6 x 1.0P	1 ~ 7	4.10
5027-123-011-165	SBT50xER11M-165	266.8	165	92	16	15	M6 x 1.0P	1 ~ 7	4.20
5027-123-016-070	SBT50xER16M-70	171.8	70	29	22	21	M10 x 1.5P	1 ~ 10	3.90
5027-123-016-090	SBT50xER16M-90	191.8	90	42	22	21	M10 x 1.5P	1 ~ 10	4.00
5027-123-016-105	SBT50xER16M-105	206.8	105	57	22	21	M10 x 1.5P	1 ~ 10	4.10
5027-123-016-135	SBT50xER16M-135	236.8	135	87	22	21	M10 x 1.5P	1 ~ 10	4.20
5027-123-016-165	SBT50xER16M-165	266.8	165	117	22	21	M10 x 1.5P	1 ~ 10	4.30
5027-123-020-090	SBT50xER20M-90	191.8	90	42	28	27	M12 x 1.75P	1 ~ 13	4.10
5027-123-020-105	SBT50xER20M-105	206.8	105	57	28	27	M12 x 1.75P	1 ~ 13	4.20
5027-123-020-135	SBT50xER20M-135	236.8	135	87	28	27	M12 x 1.75P	1 ~ 13	4.40
5027-123-020-165	SBT50xER20M-165	266.8	165	117	28	27	M12 x 1.75P	1 ~ 13	4.60

DualDRIVE+ SCAT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/SCAT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5043-108-016-070	SCAT40xER16A-2.76"	5.442	2.76	1.28	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.50
5043-108-016-102	SCAT40xER16A-4"	6.687	4	2.14	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.10
5043-108-016-152	SCAT40xER16A-6"	8.687	6	4.14	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.55
5043-108-016-203	SCAT40xER16A-8"	10.687	8	6.29	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	1.85
5043-108-020-070	SCAT40xER20A-2.76"	5.442	2.76	1.28	1.339	1.3	M12 x 1.75P	0.0625 ~ 0.5	1.25
5043-108-020-102	SCAT40xER20A-4"	6.687	4	2.37	1.339	1.3	M12 x 1.75P	0.0625 ~ 0.5	1.65
5043-108-020-152	SCAT40xER20A-6"	8.687	6	4.33	1.339	1.3	M12 x 1.75P	0.0625 ~ 0.5	1.85
5043-110-025-070	SCAT40xER25-2.76"	5.447	2.76	1.38	1.654	1.75	M16 x 2.0P	0.093 ~ 0.625	1.35
5043-110-025-102	SCAT40xER25-4"	6.687	4	2.57	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	1.70
5043-110-025-152	SCAT40xER25-6"	8.687	6	4.62	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	2.25
5043-110-025-203	SCAT40xER25-8"	10.687	8	6.62	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	2.55
5043-110-032-070	SCAT40xER32-2.76"	5.447	2.76	1.38	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.16
5043-110-032-076	SCAT40xER32-3"	5.687	3	1.62	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.50
5043-110-032-102	SCAT40xER32-4"	6.687	4	2.62	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	1.75
5043-110-032-152	SCAT40xER32-6"	8.687	6	5.21	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	2.15
5043-110-032-203	SCAT40xER32-8"	10.687	8	6.62	1.969	1.75	M16 x 2.0P	0.0625 ~ 0.75	2.70
5043-110-040-080	SCAT40xER40-3.15"	5.837	3.15	1.72	2.48	1.75	M20 x 2.0P	0.125 ~ 1	1.25
5043-110-040-102	SCAT40xER40-4"	6.687	4	2.48	2.48	2.36	M20 x 2.0P	0.125 ~ 1	1.80
5043-110-040-152	SCAT40xER40-6"	8.687	6	4.48	2.48	2.36	M20 x 2.0P	0.125 ~ 1	3.00
5043-110-050-102	SCAT40xER50-4"	6.687	4	2.48	3.07	2.52	M24 x 2.0P	0.219 ~ 1.313	2.65
5044-108-016-076	SCAT50xER16A-3"	7	3	1.43	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.05
5044-108-016-102	SCAT50xER16A-4"	8	4	2.07	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.20
5044-108-016-127	SCAT50xER16A-5"	9	5	3.07	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.30
5044-108-016-152	SCAT50xER16A-6"	10	6	4.29	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.40
5044-108-016-203	SCAT50xER16A-8"	12	8	6.15	1.102	1.1	M10 x 1.5P	0.062 ~ 0.406	4.50
5044-108-020-102	SCAT50xER20A-4"	8	4	2.07	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.20
5044-108-020-152	SCAT50xER20A-6"	10	6	4.15	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.45
5044-108-020-203	SCAT50xER20A-8"	12	8	6.07	1.339	1.34	M12 x 1.75P	0.0625 ~ 0.5	4.60
5044-110-025-102	SCAT50xER25-4"	8	4	2.45	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.15
5044-110-025-152	SCAT50xER25-6"	10	6	3.92	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.50
5044-110-025-203	SCAT50xER25-8"	12	8	5.91	1.654	1.65	M16 x 2.0P	0.093 ~ 0.625	4.70
5044-110-032-102	SCAT50xER32-4"	8	4	2.15	1.969	1.96	M16 x 2.0P	0.0625 ~ 0.75	4.35
5044-110-032-152	SCAT50xER32-6"	10	6	4.15	1.969	1.96	M16 x 2.0P	0.0625 ~ 0.75	4.60
5044-110-032-203	SCAT50xER32-8"	12	8	6.07	1.969	1.96	M16 x 2.0P	0.0625 ~ 0.75	4.90
5044-110-040-102	SCAT50xER40-4"	8	4	2.35	2.48	2.36	M20 x 2.0P	0.125 ~ 1	4.25
5044-110-040-152	SCAT50xER40-6"	10	6	4.43	2.48	2.36	M20 x 2.0P	0.125 ~ 1	4.80
5044-110-040-203	SCAT50xER40-8"	12	8	6.43	2.48	2.36	M20 x 2.0P	0.125 ~ 1	5.10
5044-110-050-102	SCAT50xER50-4"	8	4	2.62	3.07	2.75	M24 x 2.0P	0.219 ~ 1.313	4.85
5044-110-050-152	SCAT50xER50-6"	10	6	4.62	3.07	2.75	M24 x 2.0P	0.219 ~ 1.313	5.55

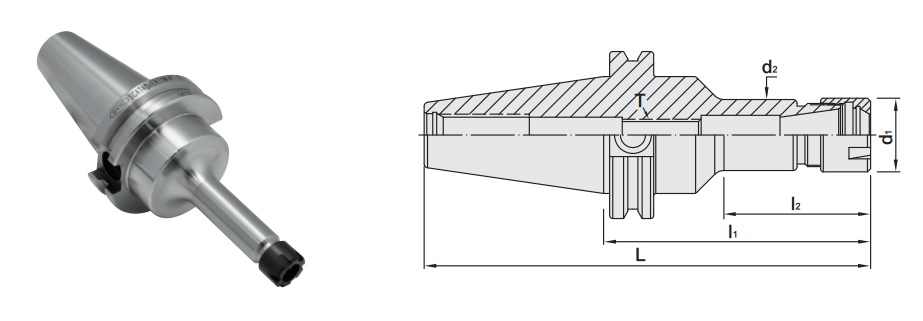

DualDRIVE+ SCAT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/SCAT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5043-123-011-070	SCAT40xER11M-2.75"	5.437	2.75	1.175	0.63	0.59	M6 x 1.0P	0.0625 ~ 0.25	1.10
5043-123-011-102	SCAT40xER11M-4"	6.687	4	2.228	0.63	0.59	M6 x 1.0P	0.0625 ~ 0.25	1.20
5043-123-016-070	SCAT40xER16M-2.76"	5.447	2.76	1.322	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	1.20
5043-123-016-102	SCAT40xER16M-4"	6.687	4	2.425	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	1.30
5043-123-020-070	SCAT40xER20M-2.76"	5.447	2.76	1.323	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	1.20
5043-123-020-102	SCAT40xER20M-4"	6.687	4	2.197	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	1.50
5044-123-016-102	SCAT50xER16M-4"	8	4	1.927	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	3.90
5044-123-016-152	SCAT50xER16M-6"	10	6	4.009	0.87	0.83	M10 x 1.5P	0.0625 ~ 0.406	4.00
5044-123-020-102	SCAT50xER20M-4"	8	4	2.127	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	4.20
5044-123-020-152	SCAT50xER20M-6"	10	6	4.127	1.102	1.06	M12 x 1.75P	0.0625 ~ 0.5	5.20

DualDRIVE+ SDAT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/SDAT-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5066-108-011-080	SDAT40xER11A-80	148.4	80	50	19	19	M6 x 1.0P	1 ~ 7	1.05
5066-108-011-125	SDAT40xER11A-125	193.4	125	95	19	19	M6 x 1.0P	1 ~ 7	1.15
5066-108-016-070	SDAT40xER16A-70	138.4	70	40	28	28	M10 x 1.5P	1 ~ 10	1.10
5066-108-016-100	SDAT40xER16A-100	168.4	100	70	28	28	M10 x 1.5P	1 ~ 10	1.20
5066-108-016-125	SDAT40xER16A-125	193.4	125	95	28	28	M10 x 1.5P	1 ~ 10	1.30
5066-108-016-150	SDAT40xER16A-150	218.4	150	120	28	28	M10 x 1.5P	1 ~ 10	1.38
5066-108-016-180	SDAT40xER16A-180	248.4	180	150	28	28	M10 x 1.5P	1 ~ 10	1.85
5066-108-020-070	SDAT40xER20A-70	138.4	70	47	34	34	M12 x 1.75P	1 ~ 13	1.10
5066-108-020-100	SDAT40xER20A-100	168.4	100	70	34	34	M12 x 1.75P	1 ~ 13	1.30
5066-108-020-135	SDAT40xER20A-135	203.4	135	105	34	34	M12 x 1.75P	1 ~ 13	1.95
5066-108-020-160	SDAT40xER20A-160	228.4	160	130	34	34	M12 x 1.75P	1 ~ 13	2.20
5066-110-025-070	SDAT40xER25-70	138.4	70	50	42	42	M16 x 2.0P	1 ~ 16	1.20
5066-110-025-100	SDAT40xER25-100	168.4	100	80	42	42	M16 x 2.0P	1 ~ 16	1.45
5066-110-025-150	SDAT40xER25-150	218.4	150	130	42	42	M16 x 2.0P	1 ~ 16	2.25
5066-110-025-180	SDAT40xER25-180	248.4	180	160	42	42	M16 x 2.0P	1 ~ 16	2.45
5066-110-025-200	SDAT40xER25-200	268.4	200	180	42	42	M16 x 2.0P	1 ~ 16	2.00
5066-110-032-070	SDAT40xER32-70	138.4	70	50	50	49.7	M16 x 2.0P	2 ~ 20	1.30
5066-110-032-100	SDAT40xER32-100	168.4	100	80	50	49.5	M16 x 2.0P	2 ~ 20	1.65
5066-110-032-135	SDAT40xER32-135	203.4	135	115	50	49.7	M16 x 2.0P	2 ~ 20	2.15
5066-110-032-150	SDAT40xER32-150	218.4	150	130	50	49.7	M16 x 2.0P	2 ~ 20	2.65
5066-110-040-070	SDAT40xER40-70	138.4	70	50	63	50	M20 x 2.0P	3 ~ 26	1.50
5066-110-040-100	SDAT40xER40-100	168.4	100	80	63	50	M20 x 2.0P	3 ~ 26	2.00
5066-110-040-135	SDAT40xER40-135	203.4	135	115	63	50	M20 x 2.0P	3 ~ 26	2.30
5066-110-050-100	SDAT40xER50-100	168.4	100	80	78	64	M24 x 2.0P	6 ~ 34	1.70
5067-108-016-100	SDAT50xER16A-100	201.75	100	70	28	28	M10 x 1.5P	1 ~ 10	3.20
5067-108-016-135	SDAT50xER16A-135	236.75	135	105	28	28	M10 x 1.5P	1 ~ 10	4.30
5067-108-016-160	SDAT50xER16A-160	261.75	160	130	28	28	M10 x 1.5P	1 ~ 10	4.50
5067-108-016-180	SDAT50xER16A-180	281.75	180	150	28	28	M10 x 1.5P	1 ~ 10	4.80
5067-108-020-100	SDAT50xER20A-100	201.75	100	70	34	34	M12 x 1.75P	1 ~ 13	3.40
5067-108-020-135	SDAT50xER20A-135	236.75	135	105	34	34	M12 x 1.75P	1 ~ 13	3.60
5067-108-020-160	SDAT50xER20A-160	261.75	160	130	34	34	M12 x 1.75P	1 ~ 13	3.80
5067-110-025-070	SDAT50xER25-70	171.75	70	40	42	42	M16 x 2.0P	1 ~ 16	3.40
5067-110-025-100	SDAT50xER25-100	201.75	100	70	42	42	M16 x 2.0P	1 ~ 16	3.54
5067-110-025-150	SDAT50xER25-150	251.75	150	120	42	42	M16 x 2.0P	1 ~ 16	4.50
5067-110-025-200	SDAT50xER25-200	301.75	200	170	42	42	M16 x 2.0P	1 ~ 16	4.70
5067-110-032-080	SDAT50xER32-80	181.75	80	50	50	50	M20 x 2.0P	2 ~ 20	3.60
5067-110-032-120	SDAT50xER32-120	221.75	120	90	50	50	M20 x 2.0P	2 ~ 20	4.60
5067-110-032-160	SDAT50xER32-160	261.75	160	130	50	50	M20 x 2.0P	2 ~ 20	4.60
5067-110-032-200	SDAT50xER32-200	301.75	200	170	50	50	M20 x 2.0P	2 ~ 20	5.20
5067-110-040-080	SDAT50xER40-80	181.75	80	50	63	60	M20 x 2.0P	3 ~ 26	3.65
5067-110-040-120	SDAT50xER40-120	221.75	120	90	63	60	M20 x 2.0P	3 ~ 26	4.50
5067-110-040-160	SDAT50xER40-160	261.75	160	130	63	60	M20 x 2.0P	3 ~ 26	5.20
5067-110-040-200	SDAT50xER40-200	301.75	200	170	63	60	M20 x 2.0P	3 ~ 26	5.40
5067-110-050-080	SDAT50xER50-80	181.75	80	57	78	60	M24 x 2.0P	6 ~ 34	4.85
5067-110-050-120	SDAT50xER50-120	221.75	120	99	78	78	M24 x 2.0P	6 ~ 34	5.45
5067-110-050-160	SDAT50xER50-160	261.75	160	139	78	78	M24 x 2.0P	6 ~ 34	5.55
5067-110-050-200	SDAT50xER50-200	301.75	200	179	78	78	M24 x 2.0P	6 ~ 34	5.70

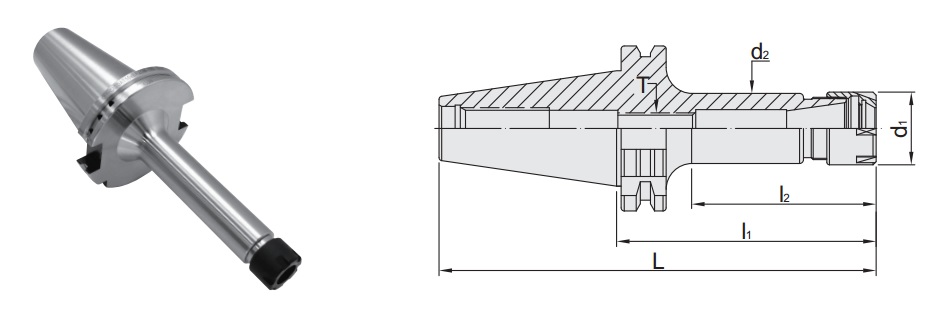

DualDRIVE+ SDAT/ER TOOL HOLDER (M TYPE)

proimages/Products/Tool_holders/Collet_chuck/ER/SDAT-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5066-123-011-070	SDAT40xER11M-70	138.4	70	40	16	15	M6 x 1.0P	1 ~ 7	1.10
5066-123-011-100	SDAT40xER11M-100	168.4	100	70	16	15	M6 x 1.0P	1 ~ 7	1.20
5066-123-011-125	SDAT40xER11M-125	193.4	125	95	16	15	M6 x 1.0P	1 ~ 7	1.40
5066-123-011-150	SDAT40xER11M-150	218.4	150	120	16	15	M6 x 1.0P	1 ~ 7	1.50
5066-123-016-070	SDAT40xER16M-70	138.4	70	40	22	21	M10 x 1.5P	1 ~ 10	1.20
5066-123-016-100	SDAT40xER16M-100	168.4	100	70	22	21	M10 x 1.5P	1 ~ 10	1.30
5066-123-016-125	SDAT40xER16M-125	193.4	125	95	22	21	M10 x 1.5P	1 ~ 10	1.50
5066-123-016-150	SDAT40xER16M-150	218.4	150	120	22	21	M10 x 1.5P	1 ~ 10	1.60
5066-123-020-070	SDAT40xER20M-70	138.4	70	40	28	27	M12 x 1.75P	1 ~ 13	1.20
5066-123-020-100	SDAT40xER20M-100	168.4	100	70	28	27	M12 x 1.75P	1 ~ 13	1.55
5066-123-020-125	SDAT40xER20M-125	193.4	125	95	28	27	M12 x 1.75P	1 ~ 13	1.70
5066-123-020-150	SDAT40xER20M-150	218.4	150	120	28	27	M12 x 1.75P	1 ~ 13	1.80
5067-123-011-070	SDAT50xER11M-70	171.75	70	40	16	15	M6 x 1.0P	1 ~ 7	3.80
5067-123-011-090	SDAT50xER11M-90	191.75	90	60	16	15	M6 x 1.0P	1 ~ 7	3.90
5067-123-011-105	SDAT50xER11M-105	206.75	105	56	16	15	M6 x 1.0P	1 ~ 7	4.00
5067-123-011-135	SDAT50xER11M-135	236.75	135	86	16	15	M6 x 1.0P	1 ~ 7	4.10
5067-123-011-165	SDAT50xER11M-165	266.75	165	98	16	15	M6 x 1.0P	1 ~ 7	4.20
5067-123-016-070	SDAT50xER16M-70	171.75	70	40	22	21	M10 x 1.5P	1 ~ 10	3.90
5067-123-016-090	SDAT50xER16M-90	191.75	90	60	22	21	M10 x 1.5P	1 ~ 10	4.00
5067-123-016-105	SDAT50xER16M-105	206.75	105	68	22	21	M10 x 1.5P	1 ~ 10	4.10
5067-123-016-135	SDAT50xER16M-135	236.75	135	98	22	21	M10 x 1.5P	1 ~ 10	4.20
5067-123-016-165	SDAT50xER16M-165	266.75	165	128	22	21	M10 x 1.5P	1 ~ 10	4.30
5067-123-020-090	SDAT50xER20M-90	191.75	90	60	28	27	M12 x 1.75P	1 ~ 13	4.10
5067-123-020-105	SDAT50xER20M-105	206.75	105	71	28	27	M12 x 1.75P	1 ~ 13	4.20
5067-123-020-135	SDAT50xER20M-135	236.75	135	101	28	27	M12 x 1.75P	1 ~ 13	4.40
5067-123-020-165	SDAT50xER20M-165	266.75	165	131	28	27	M12 x 1.75P	1 ~ 13	4.60

HSK-A/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/HSK-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5071-108-020-080	HSK40AxER20A-80	100	80	59	34	32	M10x1.5P	1~13	0.35
5071-110-025-080	HSK40AxER25-80	100	80	59	42	32	M10x1.5P	1~16	0.40
5072-108-016-080	HSK50AxER16A-80	105	80	49	28	28	M10x1.5P	1~10	0.50
5072-108-016-100	HSK50AxER16A-100	125	100	71	28	28	M10x1.5P	1~10	0.55
5072-108-016-120	HSK50AxER16A-120	145	120	91	28	28	M10x1.5P	1~10	0.70
5072-108-020-080	HSK50AxER20A-80	105	80	53	34	34	M12x1.75P	1~13	0.60
5072-108-020-100	HSK50AxER20A-100	125	100	71	34	34	M12x1.75P	1~13	0.65
5072-108-020-120	HSK50AxER20A-120	145	120	91	34	34	M12x1.75P	1~13	0.70
5072-110-025-080	HSK50AxER25-80	105	80	53	42	40	M16x2.0P	1~16	0.70
5072-110-025-100	HSK50AxER25-100	125	100	73	42	42	M16x2.0P	1~16	0.80
5072-110-025-135	HSK50AxER25-135	160	135	108	42	42	M16x2.0P	1~16	0.90
5072-110-032-100	HSK50AxER32-100	125	100	73	50	50	M16x2.0P	2~20	1.35
5072-110-032-135	HSK50AxER32-135	160	135	108	50	50	M16x2.0P	2~20	1.50
5072-110-032-160	HSK50AxER32-160	185	160	133	50	50	M16x2.0P	2~20	1.70
5073-108-016-080	HSK63AxER16A-80	112	80	44	28	28	M10x1.5P	1~10	1.00
5073-108-016-100	HSK63AxER16A-100	132	100	64	28	28	M10x1.5P	1~10	1.10
5073-108-016-120	HSK63AxER16A-120	152	120	84	28	28	M10x1.5P	1~10	1.70
5073-108-016-160	HSK63AxER16A-160	192	160	124	28	28	M10x1.5P	1~10	1.90
5073-108-020-080	HSK63AxER20A-80	112	80	49	34	34	M12x1.75P	1~13	1.60
5073-108-020-100	HSK63AxER20A-100	132	100	66	34	34	M12x1.75P	1~13	1.70
5073-108-020-120	HSK63AxER20A-120	152	120	91	34	34	M12x1.75P	1~13	1.80
5073-108-020-160	HSK63AxER20A-160	192	160	131	34	34	M12x1.75P	1~13	2.00
5073-110-025-080	HSK63AxER25-80	112	80	49	42	42	M16x2.0P	1~16	1.70
5073-110-025-100	HSK63AxER25-100	132	100	69	42	42	M16x2.0P	1~16	1.80
5073-110-025-120	HSK63AxER25-120	152	120	89	42	42	M16x2.0P	1~16	2.00
5073-110-025-150	HSK63AxER25-150	182	150	119	42	42	M16x2.0P	1~16	2.30
5073-110-025-200	HSK63AxER25-200	232	200	169	42	42	M16x2.0P	1~16	2.17
5073-110-025-250	HSK63AxER25-250	282	250	219	42	42	M16x2.0P	1~16	2.68
5073-110-032-080	HSK63AxER32-80	112	80	53	50	50	-	2~20	1.44
5073-110-032-100	HSK63AxER32-100	132	100	72	50	50	M16x2.0P	2~20	2.55
5073-110-032-145	HSK63AxER32-145	177	145	118	50	50	M16x2.0P	2~20	2.70
5073-110-032-160	HSK63AxER32-160	192	160	133	50	50	M16x2.0P	2~20	3.10
5073-110-032-200	HSK63AxER32-200	232	200	173	50	50	M16x2.0P	2~20	2.78
5073-110-032-250	HSK63AxER32-250	282	250	223	50	50	M16x2.0P	2~20	3.51
5073-110-040-080	HSK63AxER40-80	112	80	53	63	52	-	3~26	2.65
5073-110-040-100	HSK63AxER40-100	132	100	58	63	60	M20x2.0P	3~26	1.66
5073-110-040-120	HSK63AxER40-120	152	120	78	63	60	M20x2.0P	3~26	2.77
5073-110-040-150	HSK63AxER40-150	182	150	108	63	60	M20x2.0P	3~26	2.95
5073-110-040-170	HSK63AxER40-170	202	170	128	63	60	M20x2.0P	3~26	3.10
5073-110-040-200	HSK63AxER40-200	232	200	158	63	60	M20x2.0P	3~26	3.62
5073-110-040-250	HSK63AxER40-250	282	250	208	63	60	M20x2.0P	3~26	4.69
5073-110-050-120	HSK63AxER50-120	152	120	78	78	60	M24x2.0P	6~34	3.50
5074-110-040-080	HSK80AxER40-80	120	80	51	63	60	-	3~26	1.76
5074-110-040-100	HSK80AxER40-100	140	100	71	63	60	-	3~26	2.10
5074-110-040-120	HSK80AxER40-120	160	120	91	63	60	-	3~26	2.49
5074-110-050-120	HSK80AxER50-120	160	120	78	78	78	-	6~34	2.99
5075-108-016-080	HSK100AxER16A-80	130	80	41	28	28	M10x1.5P	1~10	2.90
5075-108-016-100	HSK100AxER16A-100	150	100	61	28	28	M10x1.5P	1~10	2.95
5075-108-016-160	HSK100AxER16A-160	210	160	116	28	28	M10x1.5P	1~10	3.45
5075-108-020-080	HSK100AxER20A-80	130	80	41	34	34	M12x1.75P	1~13	2.90
5075-108-020-100	HSK100AxER20A-100	150	100	61	34	34	M12x1.75P	1~13	3.00
5075-108-020-160	HSK100AxER20A-160	210	160	121	34	34	M12x1.75P	1~13	3.30
5075-110-025-100	HSK100AxER25-100	150	100	61	42	42	M16x2.0P	1~16	3.00
5075-110-025-130	HSK100AxER25-130	180	130	96	42	42	M16x2.0P	1~16	3.20
5075-110-032-100	HSK100AxER32-100	150	100	61	50	50	M16x2.0P	2~20	3.15
5075-110-032-135	HSK100AxER32-135	185	135	96	50	50	M16x2.0P	2~20	3.35
5075-110-032-150	HSK100AxER32-150	200	150	116	50	50	M16x2.0P	2~20	3.50
5075-110-040-080	HSK100AxER40-80	130	80	46	63	62	-	3~26	3.30
5075-110-040-120	HSK100AxER40-120	170	120	86	63	63	M20x2.0P	3~26	3.38
5075-110-040-175	HSK100AxER40-175	225	175	141	63	60	M20x2.0P	3~26	4.20
5075-110-050-100	HSK100AxER50-100	150	100	68	78	78	-	6~34	4.50
5075-110-050-120	HSK100AxER50-120	170	120	88	78	64	M24x2.0P	6~34	5.00
5076-110-025-100	HSK125AxER25-100	163	100	45	42	42	-	1~16	4.43
5076-110-025-130	HSK125AxER25-130	193	130	75	42	42	M16x2.0P	1~16	4.71
5076-110-025-160	HSK125AxER25-160	223	160	85	42	42	M16x2.0P	1~16	5.67
5076-110-025-200	HSK125AxER25-200	263	200	125	42	42	M16x2.0P	1~16	6.92
5076-110-032-100	HSK125AxER32-100	163	100	45	50	50	-	2~20	4.59
5076-110-032-130	HSK125AxER32-130	193	130	75	50	50	M16x2.0P	2~20	5.01
5076-110-032-160	HSK125AxER32-160	223	160	85	50	50	M16x2.0P	2~20	6.02
5076-110-032-200	HSK125AxER32-200	263	200	125	50	50	M16x2.0P	2~20	7.40
5076-110-040-100	HSK125AxER40-100	163	100	45	63	60	-	3~26	4.80
5076-110-040-130	HSK125AxER40-130	193	130	75	63	60	M20x2.0P	3~26	5.40
5076-110-040-160	HSK125AxER40-160	223	160	85	63	60	M20x2.0P	3~26	6.47
5076-110-040-200	HSK125AxER40-200	263	200	125	63	60	M20x2.0P	3~26	8.01

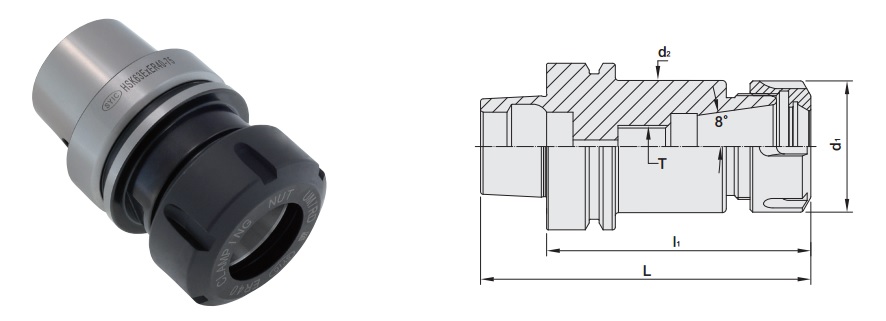

HSK-E/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/HSK-ER_(E_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2 MAX.	T	SIZE RANGE	WEIGHT (KGS)
5099-108-016-065	HSK40ExER16A-65	85	65	28	34	-	1~10	0.35
5099-108-020-060	HSK40ExER20A-60	80	60	34	34	-	1~13	0.35
5099-108-020-100	HSK40ExER20A-100	120	100	34	34	M10x1.5P	1~13	0.45
5099-110-025-075	HSK40ExER25-75	95	75	42	34	M10x1.5P	1~16	0.40
5099-110-032-100	HSK40ExER32-100	120	100	50	34	-	2~20	0.92
5100-108-016-080	HSK50ExER16A-80	105	80	28	42	M10x1.5P	1~10	0.50
5100-108-020-080	HSK50ExER20A-80	105	80	34	42	M12x1.75P	1~13	0.60
5100-110-032-085	HSK50ExER32-85	110	85	50	42	-	2~20	1.30
5101-110-032-090	HSK63ExER32-90	122	90	50	53	M16x2.0P	2~20	2.50
5101-110-040-085	HSK63ExER40-85	117	85	63	53	-	3~26	2.65
5101-110-040-120	HSK63ExER40-120	152	120	63	53	-	3~26	2.77

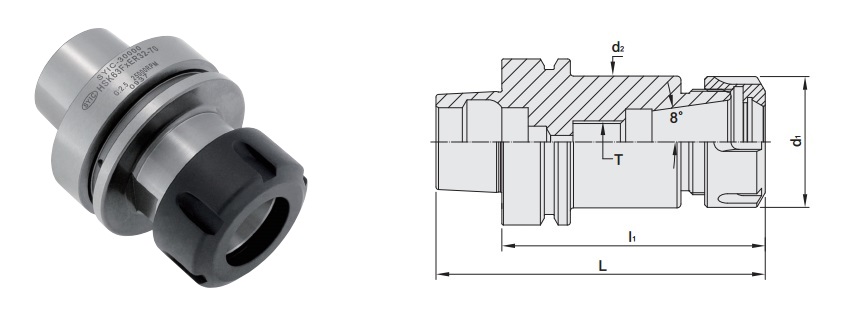

HSK-F/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/HSK-ER_(F_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2 MAX.	T	SIZE RANGE	WEIGHT (KGS)
5102-108-016-080	HSK50FxER16A-80	100	80	28	42	M10x1.5P	1~10	0.50
5102-108-016-100	HSK50FxER16A-100	120	100	28	42	M10x1.5P	1~10	0.55
5102-108-016-120	HSK50FxER16A-120	140	120	28	42	M10x1.5P	1~10	0.70
5102-108-020-080	HSK50FxER20A-80	100	80	34	42	M12x1.75P	1~13	0.60
5102-108-020-100	HSK50FxER20A-100	120	100	34	42	M12x1.75P	1~13	0.65
5102-108-020-120	HSK50FxER20A-120	140	120	34	42	M12x1.75P	1~13	0.70
5102-110-025-080	HSK50FxER25-80	100	80	42	42	M16x2.0P	1~16	0.70
5102-110-025-100	HSK50FxER25-100	120	100	42	42	M16x2.0P	1~16	0.80
5102-110-025-135	HSK50FxER25-135	155	135	42	42	M16x2.0P	1~16	0.90
5102-110-032-100	HSK50FxER32-100	120	100	50	42	M16x2.0P	2~20	1.35
5102-110-032-135	HSK50FxER32-135	155	135	50	42	M16x2.0P	2~20	1.50
5102-110-032-160	HSK50FxER32-160	180	160	50	42	M16x2.0P	2~20	1.70
5103-108-016-080	HSK63FxER16A-80	105	80	28	53	M10x1.5P	1~10	1.50
5103-108-016-100	HSK63FxER16A-100	125	100	28	53	M10x1.5P	1~10	1.55
5103-108-016-120	HSK63FxER16A-120	145	120	28	53	M10x1.5P	1~10	1.70
5103-108-016-160	HSK63FxER16A-160	185	160	28	53	M10x1.5P	1~10	1.90
5103-108-020-080	HSK63FxER20A-80	105	80	34	53	M12x1.75P	1~13	1.60
5103-108-020-100	HSK63FxER20A-100	125	100	34	53	M12x1.75P	1~13	1.70
5103-108-020-120	HSK63FxER20A-120	145	120	34	53	M12x1.75P	1~13	1.80
5103-108-020-160	HSK63FxER20A-160	185	160	34	53	M12x1.75P	1~13	2.00
5103-110-025-080	HSK63FxER25-80	105	80	42	53	M16x2.0P	1~16	1.70
5103-110-025-100	HSK63FxER25-100	125	100	42	53	M16x2.0P	1~16	1.80
5103-110-025-120	HSK63FxER25-120	145	120	42	53	M16x2.0P	1~16	2.00
5103-110-025-150	HSK63FxER25-150	175	150	42	53	M16x2.0P	1~16	2.30
5103-110-032-070	HSK63FxER32-70	95	70	50	53	-	2~20	2.50
5103-110-032-100	HSK63FxER32-100	125	100	50	53	M16x2.0P	2~20	2.55
5103-110-032-145	HSK63FxER32-145	170	145	50	53	M16x2.0P	2~20	2.70
5103-110-032-160	HSK63FxER32-160	185	160	50	53	M16x2.0P	2~20	3.10
5103-110-040-075	HSK63FxER40-75	100	75	63	53	-	3~26	2.65
5103-110-040-100	HSK63FxER40-100	125	100	63	53	M20x2.0P	3~26	2.70
5103-110-040-120	HSK63FxER40-120	145	120	63	53	M20x2.0P	3~26	2.77
5103-110-040-150	HSK63FxER40-150	175	150	63	53	M20x2.0P	3~26	2.95
5103-110-040-170	HSK63FxER40-170	195	170	63	53	M20x2.0P	3~26	3.10
5103-110-050-120	HSK63FxER50-120	145	120	78	53	M24x2.0P	6~34	3.50

PSC/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/PSC-ER_figure.jpg

MODEL NO.	TYPE	L	l1	d1	d2	SIZE RANGE	WEIGHT (KGS)
5140-108-016-045	PSC32xER16A-45	64	45	28	32	1 ~ 10	0.20
5140-108-020-045	PSC32xER20A-45	64	45	34	32	1 ~ 13	0.30
5141-108-016-070	PSC40xER16A-70	94	70	28	28	1 ~ 10	0.40
5141-108-020-052	PSC40xER20A-52	76	52	34	34	1 ~ 13	0.30
5141-110-025-052	PSC40xER25-52	76	52	42	40	1 ~ 16	0.40
5141-110-032-054	PSC40xER32-54	78	54	50	40	2 ~ 20	0.50
5142-108-016-100	PSC50xER16A-100	130	100	28	28	1 ~ 10	0.90
5142-108-020-055	PSC50xER20A-55	85	55	34	34	1 ~ 13	0.50
5142-108-020-100	PSC50xER20A-100	130	100	34	34	1 ~ 13	0.80
5142-110-025-055	PSC50xER25-55	85	55	42	42	1 ~ 16	0.50
5142-110-032-057	PSC50xER32-57	87	57	50	50	2 ~ 20	0.60
5142-110-032-100	PSC50xER32-100	130	100	50	50	2 ~ 20	0.90
5143-108-016-100	PSC63xER16A-100	138	100	28	28	1 ~ 10	1.30
5143-108-020-060	PSC63xER20A-60	98	60	34	34	1 ~ 13	0.80
5143-108-020-100	PSC63xER20A-100	138	100	34	34	1 ~ 13	1.29
5143-110-025-060	PSC63xER25-60	98	60	42	42	1 ~ 16	0.90
5143-110-025-100	PSC63xER25-100	138	100	42	42	1 ~ 16	1.30
5143-110-032-070	PSC63xER32-70	108	70	50	50	2 ~ 20	0.80
5143-110-032-100	PSC63xER32-100	138	100	50	50	2 ~ 20	1.50
5143-110-040-065	PSC63xER40-65	103	65	63	63	3 ~ 26	1.10
5144-108-020-065	PSC80xER20A-65	113	65	34	34	1 ~ 13	1.40
5144-110-025-070	PSC80xER25-70	118	70	42	42	1 ~ 16	1.60
5144-110-032-070	PSC80xER32-70	118	70	50	50	2 ~ 20	1.80
5144-110-032-160	PSC80xER32-160	208	160	50	50	2 ~ 20	2.00
5144-110-040-070	PSC80xER40-70	118	70	63	63	3 ~ 26	2.30
5144-110-040-160	PSC80xER40-160	208	160	63	63	3 ~ 26	4.10
5144-110-050-080	PSC80xER50-80	128	80	78	78	6 ~ 34	4.60
5146-110-032-160	PSC100xER32-160	220	160	50	50	2 ~ 20	5.70
5146-110-040-160	PSC100xER40-160	220	160	63	63	2 ~ 20	5.80
5146-110-050-160	PSC100xER50-160	220	160	63	63	3 ~ 26	6.60

ISO/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/ISO-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	D	d1	d2	d3	T	SIZE RANGE	WEIGHT (KGS)
5111-108-011-052	ISO20xER11A-52	83.3	52	2	8	33	19	21.642	8.5	M6	1 ~ 7	0.55
5111-107-016-052	ISO20xER16AD-52	85.4	52	2	15.9	30	28	22.255	8.5	M10	1 ~ 10	0.60
5111-108-016-052	ISO20xER16A-52	83.3	52	2	8	33	28	21.642	8.5	M10	1 ~ 10	0.60
5111-107-020-052	ISO20xER20AD-52	85.4	52	2	15.9	30	34	22.255	8.5	M10	1 ~ 13	0.65
5111-108-020-052	ISO20xER20A-52	83.3	52	2	8	33	34	21.642	8.5	M12	1 ~ 13	0.65
5112-108-011-052	ISO25xER11A-52	89.7	52	2.95	8	37	19	25.114	8.5	M6	1 ~ 7	0.60
5112-108-016-052	ISO25xER16A-52	89.7	52	2.95	8	37	28	24.91	8.5	M10	1 ~ 10	0.65
5112-108-020-052	ISO25xER20A-52	89.7	52	2.95	8	37	34	25.114	8.5	M12	1 ~ 13	0.70
5113-108-011-080	ISO30xER11A-80	127.8	80	3.2	15.9	50	19	31.75	13	M6	1 ~ 7	0.70
5113-108-016-063	ISO30xER16A-63	110.8	63	3.2	15.9	50	28	31.75	13	M10	1 ~ 10	0.80
5113-108-020-063	ISO30xER20A-63	110.8	63	3.2	15.9	50	34	31.75	13	M12	1 ~ 13	0.85
5113-110-025-063	ISO30xER25-63	110.8	63	3.2	15.9	50	42	31.75	13	M16	1 ~ 16	0.90
5113-110-032-063	ISO30xER32-63	110.8	63	3.2	15.9	50	50	31.75	13	M16	2 ~ 20	0.90
5113-110-040-057	ISO30xER40-57	104.8	57	3.2	15.9	50	63	31.75	13	M16	3 ~ 26	0.95

NT/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/NT-ER.jpg

MODEL NO.	TYPE	L	l1	l2	d1	t2	T DRAW BAR		WEIGHT (KGS)
5120-108-161/5-045	NT30xER16A-45	113.4	45	29.4	28	M10 x 1.5P	M12 x 1.75P	1/2"- 12	0.50
5120-108-201/5-045	NT30xER20A-45	113.4	45	32	34	M12 x 1.75P	M12 x 1.75P	1/2"- 12	0.60
5120-110-251/5-055	NT30xER25-55	123.4	55	42	42	M16 x 2.0P	M12 x 1.75P	1/2"- 12	0.65
5120-110-321/5-060	NT30xER32-60	128.4	60	48	50	M16 x 2.0P	M12 x 1.75P	1/2"- 12	0.80
5120-110-401/5-075	NT30xER40-75	143.4	75	63	63	M16 x 2.0P	M12 x 1.75P	1/2"- 12	0.90
5121-108-161/5-045	NT40xER16A-45	138.4	45	30	28	M10 x 1.5P	M16 x 2.0P	5/8"- 11	0.95
5121-108-201/5-045	NT40xER20A-45	138.4	45	30	34	M12 x 1.75P	M16 x 2.0P	5/8"- 11	1.20
5121-110-251/5-055	NT40xER25-55	148.4	55	40	42	M16 x 2.0P	M16 x 2.0P	5/8"- 11	1.25
5121-110-321/5-060	NT40xER32-60	153.4	60	45	50	M16 x 2.0P	M16 x 2.0P	5/8"- 11	1.30
5121-110-401/5-070	NT40xER40-70	161.8	70	53.8	63	M20 x 2.0P	M16 x 2.0P	5/8"- 11	1.35
5121-110-501/5-080	NT40xER50-80	173.4	80	68	78	M24 x 2.0P	M16 x 2.0P	5/8"- 11	2.00
5122-110-321/5-075	NT50xER32-75	201.8	75	49	50	M16 x 2.0P	M24 x 3.0P	1"- 8	3.20
5122-110-401/5-080	NT50xER40-80	206.8	80	59	63	M20 x 2.0P	M24 x 3.0P	1"- 8	3.40
5122-110-501/5-080	NT50xER50-80	206.8	80	62	78	M24 x 2.0P	M24 x 3.0P	1"- 8	3.70

MTB.R8/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/MTB.R8-ER_figure..jpg

MODEL NO.	TYPE	L	l1	l2	D	t1	T DRAW BAR		Fig.	WEIGHT (KGS)
5177-108-201/5-052	MTB2xER20A-52	116	52	64	34	M10 x 1.5P	M10 x 1.5P	3/8"W16	1	0.45
5177-110-251/5-055	MTB2xER25-55	119	55	64	42	M10 x 1.5P	M10 x 1.5P	3/8"W16	1	0.50
5178-110-251/5-055	MTB3xER25-55	136	55	81	42	M12 x 1.75P	M12 x 1.75P	1/2"W12	1	0.60
5178-110-321/5-060	MTB3xER32-60	141	60	81	50	M12 x 1.75P	M12 x 1.75P	1/2"W12	1	0.80
5178-110-401/5-070	MTB3xER40-70	151	70	81	63	M12 x 1.75P	M12 x 1.75P	1/2"W12	1	1.30
5179-110-321/5-060	MTB4xER32-60	162.5	60	102.5	50	M16 x 2.0P	M16 x 2.0P	5/8"W11	1	0.95
5179-110-401/5-070	MTB4xER40-70	172.5	70	102.5	63	M16 x 2.0P	M16 x 2.0P	5/8"W11	1	1.50
5274-108-164-038	R8xER16A-38	136	38	101	28	M10 x 1.5P	7/16"NF20		2	0.65
5274-110-324-060	R8xER32-60	161	60	101	50	M12 x 1.75P	7/16"NF20		2	0.90
5274-110-404-065	R8xER40-65	168	65	101	63	M16 x 2.0P	7/16"NF20		2	1.15

STRAIGHT SHANK
NC/ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/C-NC-ER_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	C	t1	WEIGHT (KGS)
5273-110-03225-060	C32xNC/ER25-60	97	60	37	42	32	M18 x 1.5P	0.70
5273-110-03232-060	C32xNC/ER32-60	103	60	43	50	32	M22 x 1.5P	0.75
5273-110-04032-080	C40xNC/ER32-80	118	80	38	50	40	M22 x 1.5P	1.25
5273-110-04040-075	C40xNC/ER40-75	135	75	60	63	40	M28 x 1.5P	1.30
5273-110-04532-120	C45xNC/ER32-120	178	120	58	50	45	M22 x 1.5P	1.60
5273-110-04540-120	C45xNC/ER40-120	180	120	60	63	45	M28 x 1.5P	1.65
5273-110-A7225-060	C1-1/4"xNC/ER25-60	97	60	37	42	31.75	M18 x 1.5P	0.70
5273-110-A7232-060	C1-1/4"xNC/ER32-60	103	60	43	50	31.75	M22 x 1.5P	0.75
5273-110-A7240-060	C1-1/4"xNC/ER40-60	120	60	60	63	31.75	M22 x 1.5P	0.84
5273-110-A8032-080	C1-1/2"xNC/ER32-80	118	80	38	50	38.1	M22 x 1.5P	1.25
5273-110-A8040-075	C1-1/2"xNC/ER40-75	135	75	60	63	38.1	M28 x 1.5P	1.30

STRAIGHT SHANK
ER TOOL HOLDER

proimages/Products/Tool_holders/Collet_chuck/ER/C-ER_(A_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	t1	WEIGHT (KGS)
5271-108-01611-140	C16xER11A-140	156.6	140	16.6	19	16	M6 x 1.0P	0.23
5271-108-01616-050	C16xER16A-50	90	50	40	28	16	M10 x 1.5P	0.15
5271-108-01616-100	C16xER16A-100	140	100	40	28	16	M10 x 1.5P	0.20
5271-108-01616-150	C16xER16A-150	190	150	40	28	16	M10 x 1.5P	0.28
5271-108-02016-050	C20xER16A-50	90	50	40	28	20	M12 x 1.75P	0.25
5271-108-02016-100	C20xER16A-100	140	100	40	28	20	M12 x 1.75P	0.35
5271-108-02016-150	C20xER16A-150	190	150	40	28	20	M12 x 1.75P	0.40
5271-108-02020-060	C20xER20A-60	100.5	60	40.5	34	20	M12 x 1.75P	0.35
5271-108-02020-120	C20xER20A-120	160.5	120	40.5	34	20	M12 x 1.75P	0.40
5271-108-02020-180	C20xER20A-180	220.5	180	40.5	34	20	M12 x 1.75P	0.50
5271-110-02025-050	C20xER25-50	101	50	51	42	20	M12 x 1.75P	0.35
5271-110-02025-100	C20xER25-100	151	100	51	42	20	M12 x 1.75P	0.40
5271-110-02032-050	C20xER32-50	101.5	50	51.5	50	20	M12 x 1.75P	0.45
5271-110-02032-100	C20xER32-100	151.5	100	51.5	50	20	M10 x 1.5P	0.42
5271-108-02516-150	C25xER16A-150	176.6	150	26.6	28	25	M10 x 1.5P	0.55
5271-110-02525-050	C25xER25-50	101	50	51	42	25	M16 x 2.0P	0.40
5271-110-02525-100	C25xER25-100	151	100	51	42	25	M16 x 2.0P	0.50
5271-110-02532-050	C25xER32-50	101.5	50	51.5	50	25	M16 x 2.0P	0.60
5271-110-02532-100	C25xER32-100	151.5	100	51.5	50	25	M16 x 2.0P	0.80
5271-110-02540-050	C25xER40-50	115	50	65	63	25	M16 x 2.0P	2.10
5271-110-03225-050	C32xER25-50	101	50	51	42	32	M16 x 2.0P	1.00
5271-110-03232-060	C32xER32-60	111.5	60	51.5	50	32	M16 x 2.0P	1.15
5271-110-03232-100	C32xER32-100	151.5	100	51.5	50	32	M16 x 2.0P	1.40
5271-110-03240-050	C32xER40-50	115	50	65	63	32	M16 x 2.0P	2.00
5271-108-A3211-140	C1/2"xER11A-140	156.6	140	16.6	19	12.7	M6 x 1.0P	0.50
5271-108-A4011-140	C5/8"xER11A-140	156.6	140	16.6	19	15.875	M6 x 1.0P	0.23
5271-108-A4016-060	C5/8"xER16A-60	95.1	60	35.1	28	15.875	M10 x 1.5P	0.12
5271-108-A4816-050	C3/4"xER16A-50	85.1	50	35.1	28	19.05	M10 x 1.5P	0.20
5271-108-A4816-100	C3/4"xER16A-100	135.1	100	35.1	28	19.05	M10 x 1.5P	0.25
5271-108-A4816-140	C3/4"xER16A-140	175.1	140	35.1	28	19.05	M10 x 1.5P	0.25
5271-108-A4820-064	C3/4"xER20A-63.5	104	63.5	40.5	34	19.05	M12 x 1.75P	1.00
5271-108-A6420-140	C1"xER20A-140	167.5	140	27.5	34	25.4	M12 x 1.75P	0.50
5271-110-A6425-050	C1"xER25-50	101	50	51	42	25.4	M16 x 2.0P	0.95
5271-110-A6432-050	C1"xER32-50	101.5	50	51.5	50	25.4	M16 x 2.0P	1.00
5271-110-A6432-140	C1"xER32-140	191.5	140	51.5	50	25.4	M16 x 2.0P	1.50
5271-110-A6440-050	C1"xER40-50	115	50	65	63	25.4	M16 x 2.0P	2.10
5271-110-A7232-060	C1-1/4"xER32-60	111.5	60	51.5	50	31.75	M16 x 2.0P	1.15

STRAIGHT SHANK
C/ER TOOL HOLDER (M TYPE)

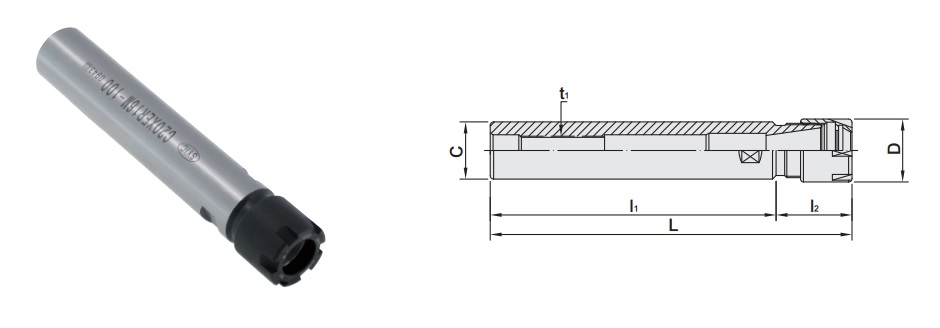

proimages/Products/Tool_holders/Collet_chuck/ER/C-ER_(M_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	C	t1	WEIGHT (KGS)
5271-123-00808-055	C8xER8M-55	78.2	55	23.2	12	8	-	0.05
5271-123-01008-100	C10xER8M-100	116.2	100	16.2	12	10	-	0.11
5271-123-01008-150	C10xER8M-150	166.2	150	16.2	12	10	-	0.12
5271-123-01008-180	C10xER8M-180	196.2	180	16.2	12	10	-	0.15
5271-123-01208-055	C12xER8M-55	71.2	55	16.2	12	12	-	0.20
5271-123-01208-120	C12xER8M-120	136.2	120	16.2	12	12	-	0.30
5271-123-01211-080	C12xER11M-80	96.6	80	16.6	16	12	M5 x 0.8P	0.23
5271-123-01611-050	C16xER11M-50	66.6	50	16.6	16	16	M5 x 0.8P	0.25
5271-123-01611-100	C16xER11M-100	116.6	100	16.6	16	16	M5 x 0.8P	0.23
5271-123-01611-140	C16xER11M-140	156.6	140	16.6	16	16	M5 x 0.8P	0.35
5271-123-01216-080	C12xER16M-80	116.6	80	36.6	22	12	M5 x 0.8P	0.38
5271-123-02016-060	C20xER16M-60	86.6	60	26.6	22	20	M10 x 1.5P	0.40
5271-123-02016-100	C20xER16M-100	126.6	100	26.6	22	20	M10 x 1.5P	0.42
5271-123-02016-140	C20xER16M-140	166.6	140	26.6	22	20	M10 x 1.5P	0.35
5271-123-02016-160	C20xER16M-160	186.6	160	26.6	22	20	M10 x 1.5P	0.38
5271-123-02020-060	C20xER20M-60	100	60	40	28	20	M12 x 1.75P	0.40
5271-123-02020-100	C20xER20M-100	140	100	40	28	20	M12 x 1.75P	0.45
5271-123-02020-120	C20xER20M-120	160	120	40	28	20	M12 x 1.75P	0.50
5271-123-02020-150	C20xER20M-150	190	150	40	28	20	M12 x 1.75P	0.55
5271-123-02020-180	C20xER20M-180	220	180	40	28	20	M12 x 1.75P	0.60
5271-123-02220-140	C22xER20M-140	180	140	40	28	22	M12 x 1.75P	0.38
5271-123-02520-140	C25xER20M-140	168	140	28	28	25	M12 x 1.75P	0.15
5271-123-02025-100	C20xER25M-100	150	100	50	35	20	M12 x 1.75P	0.20
5271-123-A2408-100	C3/8"xER8M-100	117	100	17	12	9.525	-	0.23
5271-123-A3208-078	C1/2"xER8M-78	95	78	17	12	12.7	-	0.20
5271-123-A3211-140	C1/2"xER11M-140	156.6	140	16.6	16	12.7	M5 x 0.8P	0.16
5271-123-A4011-140	C5/8"xER11M-140	156.6	140	16.6	16	15.875	M5 x 0.8P	0.20
5271-123-A6425-140	C1"xER25M-140	190	140	50	35	25.4	M16 x 2.0P	0.23
5271-123-A3216-140	C1/2"xER16M-140	177	140	37	22	12.7	M16 x 2.0P	0.50
5271-123-A4816-140	C3/4"xER16M-140	165	140	25	22	19.05	M10 x 1.5P	0.25
5271-123-A6420-140	C1"xER20M-140	168	140	28	28	25.4	M12 x 1.75P	0.50
5271-123-A4825-100	C3/4"xER25M-100	150	100	50	35	19.05	M12 x 1.75P	0.35

DOUBLE-ENDED STRAIGHT SHANK
ER TOOL HOLDER (M TYPE) (FOR AUTOMATIC LATHE)

proimages/Products/Tool_holders/Collet_chuck/ER/C-DE-ER_(M_TYPE_for_automatic_lathe)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	C	D	WEIGHT (KGS)
5270-123-02011-030	DE20xER11M-30	63.2	16.6	30	20	16	0.09
5270-123-02011-050	DE20xER11M-50	83.2	16.6	50	20	16	0.12
5270-123-02011-075	DE20xER11M-75	108.2	16.6	75	20	16	0.12
5270-123-02016-050	DE20xER16M-50	103.2	26.6	50	20	22	0.10
5270-123-02016-055	DE20xER16M-55	108.2	26.6	55	20	22	0.12
5270-123-02016-075	DE20xER16M-75	128.2	26.6	75	20	22	0.12
5270-123-02211-060	DE22xER11M-60	93.2	16.6	60	22	16	0.12
5270-123-02211-100	DE22xER11M-100	133.2	16.6	100	22	16	0.14
5270-123-02216-055	DE22xER16M-55	108.2	26.6	55	22	22	0.17
5270-123-02216-060	DE22xER16M-60	113.2	26.6	60	22	22	0.14
5270-123-02216-075	DE22xER16M-75	128.2	26.6	75	22	22	0.21
5270-123-02216-100	DE22xER16M-100	153.2	26.6	100	22	22	0.16
5270-123-02311-060	DE23xER11M-60	93.2	16.6	60	23	16	0.16
5270-123-02311-100	DE23xER11M-100	133.2	16.6	100	23	16	0.18
5270-123-02316-060	DE23xER16M-60	113.2	26.6	60	23	22	0.20
5270-123-02316-100	DE23xER16M-100	153.2	26.6	100	23	22	0.21
5270-123-02516-062	DE25xER16M-62	115.2	26.6	62	25	22	0.23

STRAIGHT SHANK
ER TOOL HOLDER (M TYPE) (FOR AUTOMATIC LATHE)

proimages/Products/Tool_holders/Collet_chuck/ER/C-ER_(M_TYPE_for_automatic_lathe)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	C	D	WEIGHT (KGS)
5273-123-02011-060	C20xER11M-60	76.6	16.6	60	20	16	0.14
5273-123-02016-060	C20xER16M-60	84.6	24.6	60	20	22	0.14
5273-123-02211-060	C22xER11M-60	76.6	16.6	60	22	16	0.26
5273-123-02216-060	C22xER16M-60	84.6	24.6	60	22	22	0.28
5273-123-02311-060	C23xER11M-60	76.6	16.6	60	23	16	0.30
5273-123-02316-060	C23xER16M-60	86.6	26.6	60	23	22	0.32
5273-123-02520-060	C25xER20M-60	88	28	60	25	28	0.22

series:

proimages/Technical_information/ER-TI.jpg

series:

Inspection and Assembly Application of HSK50A/ER Collet Chuck

Installation of Set Screw for ER Collet Chuck

Back

Product Description
