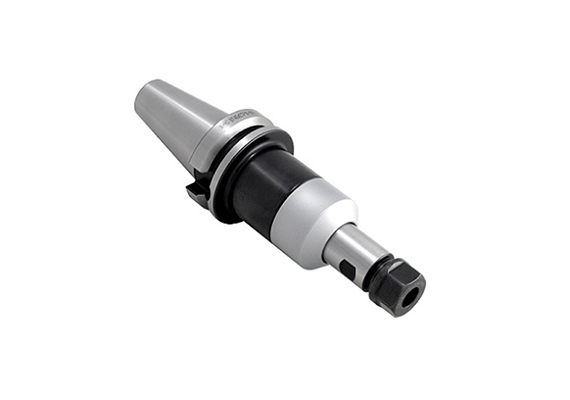

Product Name : ETP Expansion ER Tapper
Product Description
proimages/taper_icon/BT-icon..jpg proimages/taper_icon/CAT-icon..jpg proimages/taper_icon/DAT-icon..jpg proimages/taper_icon/C-icon..jpg
  • Tension: 6.5mm, compression: 5mm.
  • Suitable for traditional CNC machines without rigid tapping program.
  • Using with rigid tap collets increases the clamping force, prevents taps from falling off and improves the machining efficiency.
series:

BT/ETP EXPANSION ER TAPPER

proimages/Products/Tool_holders/Tapping_chuck/ETP/BT-ETP_figure.jpg

MODEL NO.TYPELl1d1COLLETCAPACITYWEIGHT
(KGS)
5010-124-016-075 BT30xETP16A-75 123.4 75 28 ER16 M3 - M12 0.55
5010-124-016-090 BT30xETP16A-90 138.4 90 28 ER16 M3 - M12 0.60
5010-124-020-075 BT30xETP20A-75 123.4 75 34 ER20 M3 - M17 0.58
5010-124-020-090 BT30xETP20A-90 138.4 90 34 ER20 M3 - M17 0.62
5011-124-016-120 BT40xETP16A-120 185.4 120 28 ER16 M3 - M12 1.65
5011-124-016-150 BT40xETP16A-150 215.4 150 28 ER16 M3 - M12 1.85
5011-124-020-100 BT40xETP20A-100 165.4 100 34 ER20 M3 - M17 1.65
5011-124-020-150 BT40xETP20A-150 215.4 150 34 ER20 M3 - M17 1.90
5011-102-020-200 BT40xETP20M-200 265.4 200 28 ER20 M3 - M17 2.15
5011-124-032-125 BT40xETP32-125 190.4 125 50 ER32 M3 - M27 2.10
5012-124-016-120 BT50xETP16A-120 221.8 120 28 ER16 M3 - M12 4.30
5012-124-016-150 BT50xETP16A-150 251.8 150 28 ER16 M3 - M12 4.50
5012-124-020-100 BT50xETP20A-100 201.8 100 34 ER20 M3 - M17 4.30
5012-124-020-150 BT50xETP20A-150 251.8 150 34 ER20 M3 - M17 4.60
5012-102-020-200 BT50xETP20M-200 301.8 200 28 ER20 M3 - M17 4.70
5012-124-032-125 BT50xETP32-125 226.8 125 50 ER32 M3 - M27 4.65
