FMB Type - BT Face Mill Arbor │ Shin-Yain Industrial Co., Ltd.

Specification
Technical information

series:

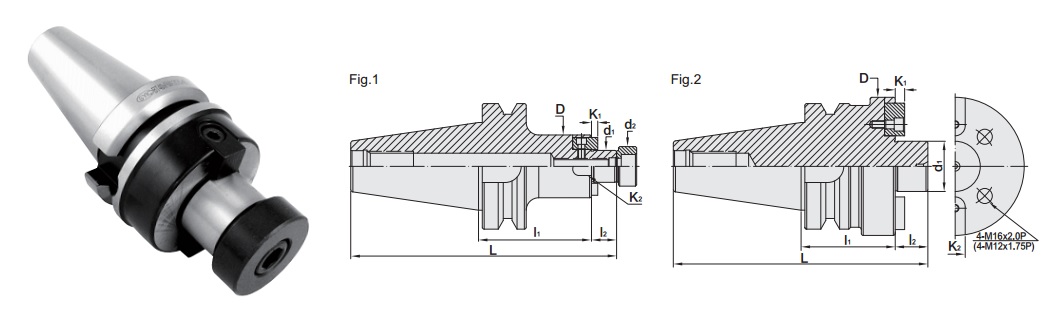

BT FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/BT-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	d2	K1	K2	Fig	WEIGHT (KGS)
5010-153-022-045	BT30xFMB22-45	112.4	45	19	48	22	26	5	10	1	0.82
5010-153-022-060	BT30xFMB22-60	127.4	60	19	48	22	26	5	10	1	1.02
5010-153-027-045	BT30xFMB27-45	113.4	45	20	60	27	31.5	6	12	1	1.06
5010-153-027-060	BT30xFMB27-60	128.4	60	20	60	27	31.5	6	12	1	1.34
5010-153-032-045	BT30xFMB32-45	115.4	45	22	78	32	41	7	14	1	1.46
5011-153-016-050	BT40xFMB16-50	132.4	50	17	34	16	13	5	8	1	1.15
5011-153-016-070	BT40xFMB16-70	152.4	70	17	34	16	13	5	8	1	1.27
5011-153-016-090	BT40xFMB16-90	172.4	90	17	34	16	13	5	8	1	1.39
5011-153-016-100	BT40xFMB16-100	182.4	100	17	34	16	13	5	8	1	1.44
5011-153-016-140	BT40xFMB16-140	222.4	140	17	34	16	13	5	8	1	2.28
5011-153-022-045	BT40xFMB22-45	129.4	45	19	48	22	26	5	10	1	1.34
5011-153-022-060	BT40xFMB22-60	144.4	60	19	48	22	26	5	10	1	1.54
5011-153-022-100	BT40xFMB22-100	184.4	100	19	48	22	26	5	10	1	2.08
5011-153-027-045	BT40xFMB27-45	130.4	45	20	60	27	31.5	6	12	1	1.56
5011-153-027-060	BT40xFMB27-60	145.4	60	20	60	27	31.5	6	12	1	1.88
5011-153-027-090	BT40xFMB27-90	175.4	90	20	60	27	31.5	6	12	1	2.30
5011-153-027-105	BT40xFMB27-105	190.4	105	20	60	27	31.5	6	12	1	2.08
5011-153-032-060	BT40xFMB32-60	147.4	60	22	78	32	41	6.8	14	1	2.34
5011-153-040-060	BT40xFMB40-60	150.4	60	25	80	40	48	8	16	1	2.70
5011-153-040-075	BT40xFMB40-75	165.4	75	25	80	40	48	8	16	1	2.90
5011-153-040-105	BT40xFMB40-105	195.4	105	25	80	40	48	8	16	1	3.32
5012-153-016-050	BT50xFMB16-50	168.8	50	17	34	16	13	5	8	1	3.71
5012-153-016-075	BT50xFMB16-75	193.8	75	17	34	16	13	5	8	1	3.80
5012-153-016-090	BT50xFMB16-90	208.8	90	17	34	16	13	5	8	1	3.89
5012-153-016-100	BT50xFMB16-100	218.8	100	17	34	16	13	5	8	1	3.94
5012-153-016-220	BT50xFMB16-220	338.8	220	17	34	16	13	5	8	1	4.75
5012-153-022-045	BT50xFMB22-45	165.8	45	19	48	22	26	4.8	10	1	4.10
5012-153-022-090	BT50xFMB22-90	210.8	90	19	48	22	26	5	10	1	4.80
5012-153-022-150	BT50xFMB22-150	270.8	150	19	48	22	26	5	10	1	6.80
5012-153-022-200	BT50xFMB22-200	320.8	200	19	48	22	26	5	10	1	7.00
5012-153-022-250	BT50xFMB22-250	370.8	250	19	48	22	26	5	10	1	8.00
5012-153-027-050	BT50xFMB27-50	171.8	50	20	60	27	31.5	5.8	12	1	4.30
5012-153-027-090	BT50xFMB27-90	211.8	90	20	60	27	31.5	6	12	1	5.40
5012-153-027-150	BT50xFMB27-150	271.8	150	20	60	27	31.5	6	12	1	6.50
5012-153-027-200	BT50xFMB27-200	321.8	200	20	60	27	31.5	6	12	1	9.50
5012-153-027-250	BT50xFMB27-250	371.8	250	20	60	27	31.5	6	12	1	11.00
5012-153-032-050	BT50xFMB32-50	173.8	50	22	78	32	41	6.8	14	1	4.60
5012-153-032-090	BT50xFMB32-90	213.8	90	22	78	32	41	7	14	1	5.80
5012-153-040-050	BT50xFMB40-50	176.8	50	25	89	40	48	7.9	16	1	5.20
5012-153-040-090	BT50xFMB40-90	216.8	90	25	89	40	48	8	16	1	6.00
5012-153-040-105	BT50xFMB40-105	231.8	105	25	89	40	48	8	16	1	7.20
5012-153-040-150	BT50xFMB40-150	276.8	150	25	89	40	48	8	16	1	7.90
5012-155-040-075	BT50xFS40F-75	202.8	75	26	110	40	-	7.5	16	2	6.00
5012-155-060-075	BT50xFS60F-75	201.8	75	25	138	60	-	12.4	25.4	2	8.50

DAT FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/DAT-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	K1	K2	Fig	WEIGHT (KGS)
5050-153-022-035	DAT30xFMB22-35	101.8	35	19	14	22	26	45	5	10	1	1.00
5050-153-027-055	DAT30xFMB27-55	122.8	55	20	16	27	31.5	58	6	12	1	1.05
5051-153-016-035	DAT40xFMB16-35	120.4	35	17	-	16	13	34	5	8	1	0.95
5051-153-016-040	DAT40xFMB16-40	125.4	40	17	-	16	13	34	5	8	1	0.95
5051-153-016-100	DAT40xFMB16-100	185.4	100	17	-	16	13	39	5	8	1	1.33
5051-153-016-160	DAT40xFMB16-160	245.4	160	17	-	16	13	39	5	8	1	1.69
5051-153-016-200	DAT40xFMB16-200	285.4	200	17	-	16	13	39	5	8	1	1.92
5051-153-022-035	DAT40xFMB22-35	122.4	35	19	14	22	26	48	5	10	1	1.20
5051-153-027-060	DAT40xFMB27-60	148.4	60	20	16	27	31.5	58	6	12	1	1.80
5051-153-032-060	DAT40xFMB32-60	150.4	60	22	16	32	41	66	7	14	1	2.00
5051-153-040-060	DAT40xFMB40-60	153.4	60	25	20.5	40	48	80	8	16	1	2.60
5052-153-022-035	DAT50xFMB22-35	155.75	35	19	14	22	26	48	5	10	1	3.40
5052-153-027-035	DAT50xFMB27-35	156.75	35	20	16	27	31.5	60	6	12	1	3.50
5052-153-032-035	DAT50xFMB32-35	158.75	35	22	16	32	41	66	7	14	1	3.70
5052-153-040-050	DAT50xFMB40-50	176.75	50	25	20.5	40	48	80	8	16	1	4.70
5052-153-050-060	DAT50xFMB50-60	191.75	60	30	25	50	68	95	10	19	1	5.80
5051-155-040-060	DAT40xFMB40F-60	158.4	60	30	66.7	40	M12	89	7.9	16	2	2.90
5052-155-040-070	DAT50xFMB40F-70	201.75	70	30	66.7	40	M12	89	7.9	16	2	5.50
5052-155-060-070	DAT50xFMB60F-70	211.75	70	40	101.6	60	M16	129	12.4	25.4	2	5.70
5051-156-040-060	DAT40xFS40-60	154.4	60	26	66.7	40	48	110	7.5	16	3	3.20
5052-156-040-070	DAT50xFS40-70	197.75	70	26	66.7	40	48	110	7.5	16	3	5.70
5052-156-060-070	DAT50xFS60-70	196.75	70	25	101.6	60	M16	140	12.4	25.4	2	5.50

DualDRIVE+ SBT FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/SBT-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	d2	K1	K2	WEIGHT (KGS)
5025-153-022-045	SBT30xFMB22-45	112.4	45	19	48	22	26	5	10	0.85
5025-153-022-060	SBT30xFMB22-60	127.4	60	19	48	22	26	5	10	1.02
5025-153-027-045	SBT30xFMB27-45	113.4	45	20	60	27	31.5	6	12	1.06
5025-153-027-060	SBT30xFMB27-60	128.4	60	20	60	27	31.5	6	12	1.35
5025-153-032-045	SBT30xFMB32-45	115.4	45	22	78	32	41	7	14	1.35
5026-153-016-050	SBT40xFMB16-50	132.4	50	17	34	16	13	5	8	1.15
5026-153-016-065	SBT40xFMB16-65	147.4	65	17	38	16	13	5	8	1.24
5026-153-016-120	SBT40xFMB16-120	202.4	120	17	38	16	13	5	8	1.57
5026-153-022-045	SBT40xFMB22-45	129.4	45	19	48	22	26	5	10	1.45
5026-153-022-060	SBT40xFMB22-60	144.4	60	19	48	22	26	5	10	1.54
5026-153-022-100	SBT40xFMB22-100	184.4	100	19	48	22	26	5	10	2.10
5026-153-027-045	SBT40xFMB27-45	130.4	45	20	60	27	31.5	6	12	1.60
5026-153-027-060	SBT40xFMB27-60	145.4	60	20	60	27	31.5	6	12	2.00
5026-153-027-090	SBT40xFMB27-90	175.4	90	20	60	27	31.5	6	12	2.30
5026-153-027-105	SBT40xFMB27-105	190.4	105	20	60	27	31.5	6	12	2.10
5026-153-032-060	SBT40xFMB32-60	147.4	60	22	78	32	41	6.8	14	2.35
5026-153-040-060	SBT40xFMB40-60	150.4	60	25	80	40	48	8	16	2.80
5026-153-040-075	SBT40xFMB40-75	165.4	75	25	80	40	48	8	16	2.97
5026-153-040-105	SBT40xFMB40-105	195.4	105	25	80	40	48	8	16	3.27
5027-153-022-045	SBT50xFMB22-45	165.8	45	19	48	22	26	4.8	10	4.75
5027-153-022-090	SBT50xFMB22-90	210.8	90	19	48	22	26	5	10	5.10
5027-153-022-150	SBT50xFMB22-150	270.8	150	19	48	22	26	5	10	6.80
5027-153-027-050	SBT50xFMB27-50	171.8	50	20	60	27	31.5	5.8	12	4.30
5027-153-027-090	SBT50xFMB27-90	211.8	90	20	60	27	31.5	6	12	5.40
5027-153-027-150	SBT50xFMB27-150	271.8	150	20	60	27	31.5	6	12	6.50
5027-153-027-200	SBT50xFMB27-200	321.8	200	20	60	27	31.5	6	12	7.50
5027-153-027-250	SBT50xFMB27-250	371.8	250	20	60	27	31.5	6	12	8.50
5027-153-032-050	SBT50xFMB32-50	173.8	50	22	78	32	41	6.8	14	4.60
5027-153-032-090	SBT50xFMB32-90	213.8	90	22	78	32	41	7	14	5.80
5027-153-040-050	SBT50xFMB40-50	176.8	50	25	89	40	48	7.9	16	5.20
5027-153-040-090	SBT50xFMB40-90	216.8	90	25	89	40	48	8	16	6.00
5027-153-040-105	SBT50xFMB40-105	231.8	105	25	89	40	48	8	16	7.20
5027-153-040-150	SBT50xFMB40-150	276.8	150	25	89	40	48	8	16	7.90

DualDRIVE+ SDAT FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/SDAT-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	K1	K2	WEIGHT (KGS)
5066-153-022-035	SDAT40xFMB22-35	122.4	35	19	14	22	26	48	5	10	1.20
5066-153-027-060	SDAT40xFMB27-60	148.4	60	20	16	27	31.5	58	6	12	1.80
5066-153-032-060	SDAT40xFMB32-60	150.4	60	22	16	32	41	66	7	14	2.30
5066-153-040-060	SDAT40xFMB40-60	153.4	60	25	20.5	40	48	80	8	16	2.80
5067-153-022-035	SDAT50xFMB22-35	155.75	35	19	14	22	26	48	5	10	3.40
5067-153-027-035	SDAT50xFMB27-35	156.75	35	20	16	27	31.5	58	6	12	3.50
5067-153-032-035	SDAT50xFMB32-35	158.75	35	22	16	32	41	66	7	14	3.70
5067-153-040-050	SDAT50xFMB40-50	176.75	50	25	20.5	40	48	80	8	16	4.70
5067-153-050-060	SDAT50xFMB50-60	191.75	60	30	24	50	65	95	10	19	5.80

HSK FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/HSK-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	K1	K2	WEIGHT (KGS)
5071-153-016-050	HSK40AxFMB16-50	87	50	17	-	16	-	40	5	8	0.70
5071-153-022-060	HSK40AxFMB22-60	99	60	19	14	22	26	52	5	10	0.80
5071-153-027-060	HSK40AxFMB27-60	100	60	20	16	27	31.5	60	6	12	1.00
5071-153-032-060	HSK40AxFMB32-60	102	60	22	16	32	41	78	7	14	1.10
5072-153-016-050	HSK50AxFMB16-50	92	50	17	-	16	-	40	5	8	1.10
5072-153-022-060	HSK50AxFMB22-60	104	60	19	14	22	26	48	5	10	1.00
5072-153-027-060	HSK50AxFMB27-60	105	60	20	16	27	31.5	60	6	12	1.30
5072-153-032-060	HSK50AxFMB32-60	107	60	22	16	32	41	78	6.8	14	1.50
5073-153-016-050	HSK63AxFMB16-50	99	50	17	-	16	-	40	5	8	1.20
5073-153-022-050	HSK63AxFMB22-50	101	50	19	14	22	26	50	5	10	1.30
5073-153-027-060	HSK63AxFMB27-60	112	60	20	16	27	31.5	53	6	12	1.50
5073-153-032-060	HSK63AxFMB32-60	114	60	22	16	32	41	78	6.8	14	1.60
5073-153-040-060	HSK63AxFMB40-60	117	60	25	20.5	40	48	80	8	16	2.10
5075-153-022-050	HSK100AxFMB22-50	119	50	19	14	22	26	48	5	10	2.70
5075-153-027-050	HSK100AxFMB27-50	120	50	20	16	27	31.5	60	5.8	12	2.90
5075-153-032-050	HSK100AxFMB32-50	122	50	22	16	32	41	78	7	14	3.00
5075-153-040-060	HSK100AxFMB40-60	135	60	25	20.5	40	48	80	8	16	4.00
5075-153-050-070	HSK100AxFMB50-70	150	70	30	24	50	65	120	10	19	5.10
5075-153-060-070	HSK100AxFMB60-70	160	70	40	-	60	-	129	12.4	25.4	5.50

proimages/Products/Tool_holders/FACE_mill_arbor/FMB/HSK125A-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	K1	K2	WEIGHT (KGS)
5076-153-022-050	HSK125AxFMB22-50	132	50	19	14	22	26	48	4.8	10	3.80
5076-153-022-100	HSK125AxFMB22-100	182	100	19	14	22	26	48	5	10	5.00
5076-153-022-130	HSK125AxFMB22-130	212	130	19	14	22	26	48	5	10	5.30
5076-153-022-160	HSK125AxFMB22-160	242	160	19	14	22	26	48	5	10	6.40
5076-153-022-200	HSK125AxFMB22-200	282	200	19	14	22	26	48	5	10	7.80
5076-153-027-055	HSK125AxFMB27-55	138	55	20	16	27	31.5	60	6	12	4.20
5076-153-027-100	HSK125AxFMB27-100	183	100	20	16	27	31.5	60	6	12	5.50
5076-153-027-130	HSK125AxFMB27-130	213	130	20	16	27	31.5	60	6	12	6.10
5076-153-027-160	HSK125AxFMB27-160	243	160	20	16	27	31.5	60	6	12	7.30
5076-153-027-200	HSK125AxFMB27-200	283	200	20	16	27	31.5	60	6	12	8.80
5076-153-032-070	HSK125AxFMB32-70	155	70	22	16	32	41	78	7	14	5.40
5076-153-032-100	HSK125AxFMB32-100	185	100	22	16	32	41	78	7	14	6.50
5076-153-032-130	HSK125AxFMB32-130	215	130	22	16	32	41	78	7	14	7.50
5076-153-032-160	HSK125AxFMB32-160	245	160	22	16	32	41	78	7	14	8.90
5076-153-032-200	HSK125AxFMB32-200	285	200	22	16	32	41	78	7	14	10.80
5076-153-040-060	HSK125AxFMB40-60	148	60	25	20.5	40	48	80	8	16	5.10
5076-153-040-100	HSK125AxFMB40-100	188	100	25	20.5	40	48	80	8	16	6.80
5076-153-040-130	HSK125AxFMB40-130	218	130	25	20.5	40	48	80	8	16	7.90
5076-153-040-160	HSK125AxFMB40-160	248	160	25	20.5	40	48	80	8	16	9.30
5076-153-040-200	HSK125AxFMB40-200	288	200	25	20.5	40	48	80	8	16	11.30
5076-153-050-070	HSK125AxFMB50-70	163	70	30	24	50	65	120	10	19	7.40

PSC FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/PSC-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	d2	K1	K2	WEIGHT (KGS)
5140-153-016-030	PSC32xFMB16-30	66	30	17	32	16	-	5	8	0.30
5141-153-016-032	PSC40xFMB16-32	73	32	17	34	16	-	5	8	0.30
5141-153-016-055	PSC40xFMB16-55	96	55	17	34	16	-	5	8	0.40
5141-153-022-025	PSC40xFMB22-25	68	25	19	40	22	26	5	10	0.40
5141-153-022-055	PSC40xFMB22-55	98	55	19	48	22	26	5	10	0.70
5142-153-016-035	PSC50xFMB16-35	82	35	17	34	16	-	5	8	0.60
5142-153-016-070	PSC50xFMB16-70	117	70	17	34	16	-	5	8	0.70
5142-153-022-025	PSC50xFMB22-25	74	25	19	48	22	26	4.8	10	0.60
5142-153-022-070	PSC50xFMB22-70	119	70	19	48	22	26	5	10	1.00
5142-153-027-025	PSC50xFMB27-25	75	25	20	50	27	31.5	5	12	0.70
5142-153-032-040	PSC50xFMB32-40	92	40	22	63	32	41	7	14	1.20
5143-153-016-040	PSC63xFMB16-40	95	40	17	34	16	-	5	8	0.90
5143-153-022-040	PSC63xFMB22-40	97	40	19	48	22	26	4.8	10	0.90
5143-153-027-030	PSC63xFMB27-30	88	30	20	60	27	31.5	5.8	12	1.00
5143-153-032-045	PSC63xFMB32-45	105	45	22	78	32	41	6.8	14	1.60
5143-153-040-045	PSC63xFMB40-45	108	45	25	80	40	48	8	16	1.60
5144-153-016-050	PSC80xFMB16-50	115	50	17	34	16	-	5	8	1.80
5144-153-022-030	PSC80xFMB22-30	97	30	19	48	22	26	4.8	10	1.80
5144-153-027-030	PSC80xFMB27-30	98	30	20	60	27	31.5	5.8	12	2.00
5144-153-032-030	PSC80xFMB32-30	100	30	22	78	32	41	7	14	2.10
5144-153-040-030	PSC80xFMB40-30	103	30	25	80	40	48	8	16	2.10
5144-153-060-060	PSC80xFMB60-60	148	60	40	129	60	-	12.4	25.4	5.30
5145-153-040-040	PSC80XxFMB40-40	113	40	25	80	40	48	8	16	3.20
5145-153-060-070	PSC80XxFMB60-70	158	70	40	129	60	-	12.4	25.4	6.90

NT FACE MILL ARBOR (FMB TYPE)
proimages/Products/Tool_holders/FACE_mill_arbor/FMB/NT-FMB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	K1	K2	T		WEIGHT (KGS)
5120-153-221/5-035	NT30xFMB22mm-35	122.4	35	19	22	42	5	10	1/2" - 12	M12 x 1.75P	0.67
5120-153-271/5-035	NT30xFMB27mm-35	123.4	35	20	27	60	5	12	1/2" - 12	M12 x 1.75P	1.00
5120-153-321/5-035	NT30xFMB32mm-35	125.4	35	22	32	65	7	14	1/2" - 12	M12 x 1.75P	1.20
5120-153-401/5-035	NT30xFMB40mm-35	128.4	35	25	40	80	8	16	1/2" - 12	M12 x 1.75P	1.40
5121-153-221/5-035	NT40xFMB22mm-35	147.4	35	19	22	48	5	10	5/8" - 11	M16 x 2.0P	1.25
5121-153-271/5-035	NT40xFMB27mm-35	148.4	35	20	27	58	5	12	5/8" - 11	M16 x 2.0P	1.45
5121-153-321/5-035	NT40xFMB32mm-35	150.4	35	22	32	65	7	14	5/8" - 11	M16 x 2.0P	1.70
5121-153-401/5-035	NT40xFMB40mm-35	153.4	35	25	40	80	8	16	5/8" - 11	M16 x 2.0P	2.20
5122-153-221/5-045	NT50xFMB22mm-45	189.8	45	19	22	48	5	10	1" - 8	M24 x 3.0P	3.50
5122-153-271/5-045	NT50xFMB27mm-45	191.8	45	20	27	58	5	12	1" - 8	M24 x 3.0P	3.90
5122-153-321/5-045	NT50xFMB32mm-45	193.8	45	22	32	65	7	14	1" - 8	M24 x 3.0P	4.00
5122-153-401/5-045	NT50xFMB40mm-45	196.8	45	25	40	80	8	16	1" - 8	M24 x 3.0P	4.83

series:

proimages/Technical_information/Face_Mill_Arbor-TI.jpg

Back

Face Mill Arbor (FMB type)

Product Description
