Silent Damped FMH-SDG Face Mill Arbor C03-4-2

Specification
Technical information

series:

Silent Damped RBT/FMH-SDG Face Mill Arbor

proimages/Products/Tool_holders/Silent_Damped_Holder/FMH-SDG/RBT-FMH-SDG_figure.jpg

MODEL NO.	TYPE	L	l1	I2	D	d1	d2	k1	k2	WEIGHT (KGS)
401-026-150-160-150	RBT40-FMH16-150-D38-SDG	215.5	150	17	38	16	38	5	8	2.41
401-026-150-160-200	RBT40-FMH16-200-D38-SDG	265.4	200	17	38	16	38	5	8	2.81
401-026-150-160-250	RBT40-FMH16-250-D38-SDG	315.4	250	17	38	16	38	5	8	3.21
401-026-150-160-300	RBT40-FMH16-300-D38-SDG	365.4	300	17	38	16	38	5	8	3.58
401-026-150-221-150	RBT40-FMH22-150-D48-SDG	215.4	150	19	48	22	48	5	10	3.15
401-026-150-221-200	RBT40-FMH22-200-D48-SDG	265.4	200	19	48	22	48	5	10	3.75
401-026-150-221-250	RBT40-FMH22-250-D48-SDG	315.4	250	19	48	22	48	5	10	4.37
401-026-150-221-300	RBT40-FMH22-300-D48-SDG	365.4	300	19	48	22	48	5	10	4.96
401-027-150-160-200	RBT50-FMH16-200-D38-SDG	301.8	200	17	38	16	38	5	8	5.30
401-027-150-160-250	RBT50-FMH16-250-D38-SDG	351.8	250	17	38	16	38	5	8	5.70
401-027-150-160-300	RBT50-FMH16-300-D38-SDG	401.8	300	17	38	16	38	5	8	6.06
401-027-150-221-200	RBT50-FMH22-200-D48-SDG	301.8	200	19	48	22	63	5	10	6.18
401-027-150-221-250	RBT50-FMH22-250-D48-SDG	351.8	250	19	48	22	63	5	10	6.82
401-027-150-221-300	RBT50-FMH22-300-D48-SDG	401.8	300	19	48	22	63	5	10	7.46
401-027-150-221-350	RBT50-FMH22-350-D48-SDG	451.8	350	19	48	22	63	5	10	8.13
401-027-150-221-400	RBT50-FMH22-400-D48-SDG	501.8	400	19	48	22	63	5	10	8.72
401-027-150-222-250	RBT50-FMH22-250-D58-SDG	351.8	250	19	58	22	63	5	10	8.39
401-027-150-222-300	RBT50-FMH22-300-D58-SDG	401.8	300	19	58	22	63	5	10	9.29
401-027-150-222-350	RBT50-FMH22-350-D58-SDG	451.8	350	19	58	22	63	5	10	10.22
401-027-150-222-400	RBT50-FMH22-400-D58-SDG	501.8	400	19	58	22	63	5	10	11.12
401-027-150-222-450	RBT50-FMH22-450-D58-SDG	551.8	450	19	58	22	63	5	10	12.05
401-027-150-222-500	RBT50-FMH22-500-D58-SDG	601.8	500	19	58	22	63	5	10	12.98
401-027-150-272-250	RBT50-FMH27-250-D58-SDG	351.8	250	20	58	27	63	6	12	8.42
401-027-150-272-300	RBT50-FMH27-300-D58-SDG	401.8	300	20	58	27	63	6	12	9.35
401-027-150-272-350	RBT50-FMH27-350-D58-SDG	451.8	350	20	58	27	63	6	12	10.28
401-027-150-272-400	RBT50-FMH27-400-D58-SDG	501.8	400	20	58	27	63	6	12	11.18
401-027-150-272-450	RBT50-FMH27-450-D58-SDG	551.8	450	20	58	27	63	6	12	12.11
401-027-150-272-500	RBT50-FMH27-500-D58-SDG	601.8	500	20	58	27	63	6	12	13.04
401-027-150-273-250	RBT50-FMH27-250-D74-SDG	351.8	250	20	74	27	78	6	12	12.29
401-027-150-273-300	RBT50-FMH27-300-D74-SDG	401.8	300	20	74	27	78	6	12	13.22
401-027-150-273-350	RBT50-FMH27-350-D74-SDG	451.8	350	20	74	27	78	6	12	14.72
401-027-150-273-400	RBT50-FMH27-400-D74-SDG	501.8	400	20	74	27	78	6	12	16.20
401-027-150-273-450	RBT50-FMH27-450-D74-SDG	551.8	450	20	74	27	78	6	12	19.02
401-027-150-273-500	RBT50-FMH27-500-D74-SDG	601.8	500	20	74	27	78	6	12	20.52
401-027-150-273-550	RBT50-FMH27-550-D74-SDG	651.8	550	20	74	27	78	6	12	22.02
401-027-150-273-600	RBT50-FMH27-600-D74-SDG	701.8	600	20	74	27	78	6	12	23.72
401-027-150-323-250	RBT50-FMH32-250-D74-SDG	351.8	250	21	74	32	78	7	14	11.84
401-027-150-323-300	RBT50-FMH32-300-D74-SDG	401.8	300	21	74	32	78	7	14	13.34
401-027-150-323-350	RBT50-FMH32-350-D74-SDG	451.8	350	21	74	32	78	7	14	14.84
401-027-150-323-400	RBT50-FMH32-400-D74-SDG	501.8	400	21	74	32	78	7	14	16.32
401-027-150-323-450	RBT50-FMH32-450-D74-SDG	551.8	450	21	74	32	78	7	14	19.14
401-027-150-323-500	RBT50-FMH32-500-D74-SDG	601.8	500	21	74	32	78	7	14	20.64
401-027-150-323-550	RBT50-FMH32-550-D74-SDG	651.8	550	21	74	32	78	7	14	22.14
401-027-150-323-600	RBT50-FMH32-600-D74-SDG	701.8	600	21	74	32	78	7	14	23.84

Silent Damped HSK/FMH-SDG Face Mill Arbor

proimages/Products/Tool_holders/Silent_Damped_Holder/FMH-SDG/HSK-FMH-SDG_figure.jpg

MODEL NO.	TYPE	L	l1	I2	D	d1	d2	k1	k2	WEIGHT (KGS)
401-073-150-160-150	HSK-A63-FMH16-150-D38-SDG	182	150	17	38	16	38	5	8	2.17
401-073-150-160-200	HSK-A63-FMH16-200-D38-SDG	232	200	17	38	16	38	5	8	2.56
401-073-150-160-250	HSK-A63-FMH16-250-D38-SDG	282	250	17	38	16	38	5	8	2.95
401-073-150-160-300	HSK-A63-FMH16-300-D38-SDG	332	300	17	38	16	38	5	8	3.33
401-073-150-221-150	HSK-A63-FMH22-150-D48-SDG	182	150	19	48	22	48	5	10	2.88
401-073-150-221-200	HSK-A63-FMH22-200-D48-SDG	232	200	19	48	22	48	5	10	3.49
401-073-150-221-250	HSK-A63-FMH22-250-D48-SDG	282	250	19	48	22	48	5	10	4.12
401-073-150-221-300	HSK-A63-FMH22-300-D48-SDG	332	300	19	48	22	48	5	10	4.71
401-073-150-222-250	HSK-A63-FMH22-250-D58-SDG	282	250	19	58	22	58	5	10	5.47
401-073-150-222-300	HSK-A63-FMH22-300-D58-SDG	332	300	19	58	22	58	5	10	6.39
401-073-150-222-350	HSK-A63-FMH22-350-D58-SDG	382	350	19	58	22	58	5	10	7.34
401-075-150-160-200	HSK-A100-FMH16-200-D38-SDG	250	200	17	38	16	38	5	8	3.88
401-075-150-160-250	HSK-A100-FMH16-250-D38-SDG	300	250	17	38	16	38	5	8	4.27
401-075-150-160-300	HSK-A100-FMH16-300-D38-SDG	350	300	17	38	16	38	5	8	4.63
401-075-150-221-200	HSK-A100-FMH22-200-D48-SDG	250	200	19	48	22	48	5	10	4.75
401-075-150-221-250	HSK-A100-FMH22-250-D48-SDG	300	250	19	48	22	48	5	10	5.39
401-075-150-221-300	HSK-A100-FMH22-300-D48-SDG	350	300	19	48	22	48	5	10	6.03
401-075-150-221-350	HSK-A100-FMH22-350-D48-SDG	400	350	19	48	22	48	5	10	6.70
401-075-150-221-400	HSK-A100-FMH22-400-D48-SDG	450	400	19	48	22	48	5	10	7.65
401-075-150-222-250	HSK-A100-FMH22-250-D58-SDG	300	250	19	58	22	61	5	10	6.96
401-075-150-222-300	HSK-A100-FMH22-300-D58-SDG	350	300	19	58	22	61	5	10	7.86
401-075-150-222-350	HSK-A100-FMH22-350-D58-SDG	400	350	19	58	22	61	5	10	8.79
401-075-150-222-400	HSK-A100-FMH22-400-D58-SDG	450	400	19	58	22	61	5	10	10.31
401-075-150-222-450	HSK-A100-FMH22-450-D58-SDG	500	450	19	58	22	61	5	10	11.24
401-075-150-222-500	HSK-A100-FMH22-500-D58-SDG	550	500	19	58	22	61	5	10	12.17
401-075-150-272-250	HSK-A100-FMH27-250-D58-SDG	300	250	20	58	27	61	6	12	6.99
401-075-150-272-300	HSK-A100-FMH27-300-D58-SDG	350	300	20	58	27	61	6	12	7.92
401-075-150-272-350	HSK-A100-FMH27-350-D58-SDG	400	350	20	58	27	61	6	12	8.85
401-075-150-272-400	HSK-A100-FMH27-400-D58-SDG	450	400	20	58	27	61	6	12	10.37
401-075-150-272-450	HSK-A100-FMH27-450-D58-SDG	500	450	20	58	27	61	6	12	11.30
401-075-150-272-500	HSK-A100-FMH27-500-D58-SDG	550	500	20	58	27	61	6	12	12.23
401-075-150-273-250	HSK-A100-FMH27-250-D74-SDG	300	250	20	74	27	78	6	12	10.86
401-075-150-273-300	HSK-A100-FMH27-300-D74-SDG	350	300	20	74	27	78	6	12	11.79
401-075-150-273-350	HSK-A100-FMH27-350-D74-SDG	400	350	20	74	27	78	6	12	13.29
401-075-150-273-400	HSK-A100-FMH27-400-D74-SDG	450	400	20	74	27	78	6	12	14.77
401-075-150-273-450	HSK-A100-FMH27-450-D74-SDG	500	450	20	74	27	78	6	12	17.59
401-075-150-273-500	HSK-A100-FMH27-500-D74-SDG	550	500	20	74	27	78	6	12	19.09
401-075-150-273-550	HSK-A100-FMH27-550-D74-SDG	600	550	20	74	27	78	6	12	20.62
401-075-150-273-600	HSK-A100-FMH27-600-D74-SDG	650	600	20	74	27	78	6	12	22.29
401-075-150-323-250	HSK-A100-FMH32-250-D74-SDG	300	250	21	74	32	78	7	14	10.41
401-075-150-323-300	HSK-A100-FMH32-300-D74-SDG	350	300	21	74	32	78	7	14	11.91
401-075-150-323-350	HSK-A100-FMH32-350-D74-SDG	400	350	21	74	32	78	7	14	13.41
401-075-150-323-400	HSK-A100-FMH32-400-D74-SDG	450	400	21	74	32	78	7	14	14.89
401-075-150-323-450	HSK-A100-FMH32-450-D74-SDG	500	450	21	74	32	78	7	14	17.71
401-075-150-323-500	HSK-A100-FMH32-500-D74-SDG	550	500	21	74	32	78	7	14	19.21
401-075-150-323-550	HSK-A100-FMH32-550-D74-SDG	600	550	21	74	32	78	7	14	20.71
401-075-150-323-600	HSK-A100-FMH32-600-D74-SDG	650	600	21	74	32	78	7	14	22.41

Silent Damped PSC/FMH-SDG Face Mill Arbor

proimages/Products/Tool_holders/Silent_Damped_Holder/FMH-SDG/PSC-FMH-SDG_figure.jpg

MODEL NO.	TYPE	L	l1	I2	D	d1	d2	k1	k2	WEIGHT (KGS)
401-142-150-160-160	PSC50-FMH16-160-D38-SDG	190	160	17	38	16	38	5	8	2.02
401-142-150-221-200	PSC50-FMH22-200-D48-SDG	230	200	19	48	22	48	5	10	3.43
401-143-150-160-160	PSC63-FMH16-160-D38-SDG	198	160	17	38	16	38	5	8	2.33
401-143-150-221-200	PSC63-FMH22-200-D48-SDG	238	200	19	48	22	48	5	10	3.72
401-143-150-222-250	PSC63-FMH22-250-D58-SDG	288	250	19	58	22	58	5	10	5.46
401-143-150-272-250	PSC63-FMH27-250-D58-SDG	288	250	20	58	27	58	6	12	7.43
401-143-150-279-300	PSC80-FMH27-300-D74-SDG	348	300	20	74	27	74	6	12	12.54
401-143-150-329-300	PSC80-FMH32-300-D74-SDG	348	300	21	74	32	74	7	14	12.69
401-143-150-407-300	PSC80-FMH40-300-D88-SDG	348	300	22	88	40	88	8	16	17.06

series:

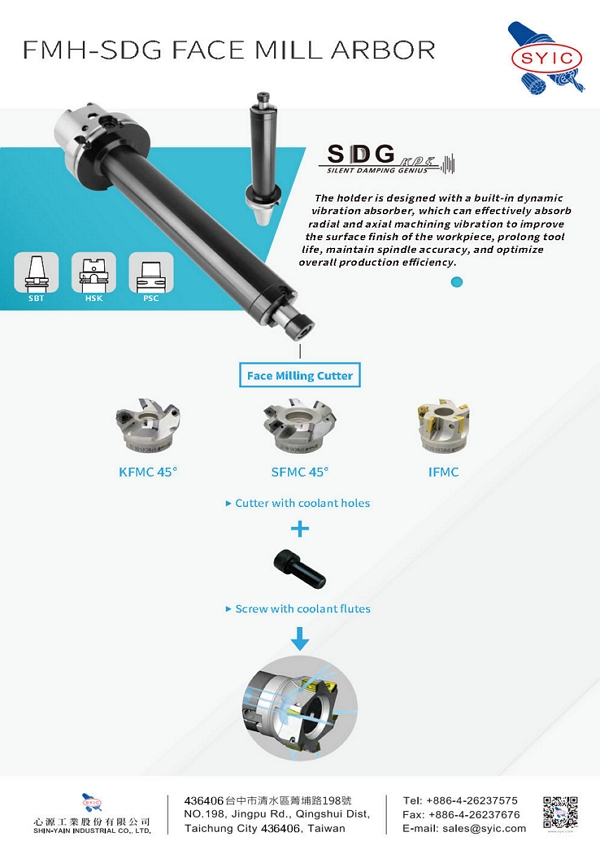

proimages/Products/Tool_holders/Silent_Damped_Holder/FMH-SDG/FMH-SDG_Face_Mill_Arbor-en-.jpg
