HBL Slim-Fit Collet Chucks - SYIC | Quality Collet Holder Provider

series:

BT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5010-275-012-070	BT30xHBL12-70	118.4	70	47	31.75	34.9	M10 x 1.5P	1.4
5010-275-012-100	BT30xHBL12-100	148.4	100	77	31.75	37.6	M10 x 1.5P	1.65
5010-275-020-080	BT30xHBL20-80	128.4	80	56	38.1	42.1	M12 x 1.75P	1.4
5010-275-020-100	BT30xHBL20-100	148.4	100	76	38.1	43.9	M12 x 1.75P	1.65
5011-275-012-070	BT40xHBL12-70	135.4	70	33	31.75	33.7	M10 x 1.5P	1.7
5011-275-012-100	BT40xHBL12-100	165.4	100	63	31.75	36.4	M10 x 1.5P	1.9
5011-275-020-070	BT40xHBL20-70	135.4	70	38	38.1	40.5	M12 x 1.75P	1.7
5011-275-020-100	BT40xHBL20-100	165.4	100	68	38.1	43.1	M12 x 1.75P	1.9
5011-275-025-080	BT40xHBL25-80	145.4	80	50	44.45	47.9	M16 x 1.5P	1.9
5011-275-025-100	BT40xHBL25-100	165.4	100	70	44.45	49.7	M16 x 1.5P	2.1
5012-275-012-070	BT50xHBL12-70	171.8	70	22	31.75	32.8	M10 x 1.5P	4.4
5012-275-012-100	BT50xHBL12-100	201.8	100	52	31.75	35.4	M10 x 1.5P	4.5
5012-275-020-070	BT50xHBL20-70	171.8	70	22	38.1	39.1	M12 x 1.75P	4.8
5012-275-020-100	BT50xHBL20-100	201.8	100	52	38.1	41.8	M12 x 1.75P	4.9
5012-275-025-070	BT50xHBL25-70	171.8	70	22	44.45	45.5	M16 x 1.5P	5
5012-275-025-100	BT50xHBL25-100	201.8	100	54	44.45	48.4	M16 x 1.5P	5.2
5012-275-025-100	BT50xHBL25-100	201.8	100	54	44.45	48.4	M16 x 1.5P	5.2

CAT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5031-275-012-064	CAT40xHBL12-2.5"	5.187	2.5	0.89	1.25	1.29	M10 x 1.5P	1.65
5031-275-012-102	CAT40xHBL12-4"	6.687	4	2.46	1.25	1.43	M10 x 1.5P	1.4
5031-275-020-064	CAT40xHBL20-2.5"	5.187	2.5	1.02	1.5	1.56	M12 x 1.75P	1.4
5031-275-020-102	CAT40xHBL20-4"	6.687	4	2.59	1.5	1.69	M12 x 1.75P	1.8
5031-275-025-083	CAT40xHBL25-3.25"	5.937	3.25	1.81	1.75	1.874	M16 x 1.5P	1.6
5031-275-025-102	CAT40xHBL25-4"	6.687	4	2.529	1.75	1.936	M16 x 1.5P	1.8
5032-275-012-064	CAT50xHBL12-2.5"	6.5	2.5	1.12	1.25	1.3	M10 x 1.5P	4.2
5032-275-012-114	CAT50xHBL12-4.5"	8.5	4.5	2.75	1.25	1.46	M10 x 1.5P	4.3
5032-275-020-064	CAT50xHBL20-2.5"	6.5	2.5	0.93	1.5	1.55	M12 x 1.75P	4.5
5032-275-020-114	CAT50xHBL20-4.5"	8.5	4.5	2.93	1.5	1.72	M12 x 1.75P	4.8
5032-275-025-070	CAT50xHBL25-2.75"	6.75	2.75	1.316	1.75	1.831	M16 x 1.5P	4.6
5032-275-025-114	CAT50xHBL25-4.5"	8.5	4.5	3.066	1.75	1.983	M16 x 1.5P	4.8

DAT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5050-275-012-070	DAT30xHBL12-70	117.8	70	48.03	31.75	35.23	M10 x 1.5P	0.62
5050-275-012-100	DAT30xHBL12-100	147.8	100	78.03	31.75	37.7	M10 x 1.5P	0.63
5050-275-020-080	DAT30xHBL20-80	127.8	80	60.14	38.1	42.48	M12 x 1.75P	0.64
5050-275-020-100	DAT30xHBL20-100	147.8	100	79.94	38.1	42.95	M12 x 1.75P	0.65
5051-275-012-070	DAT40xHBL12-70	138.4	70	41.34	31.75	34.49	M10 x 1.5P	1.4
5051-275-012-100	DAT40xHBL12-100	168.4	100	71.34	31.75	37.11	M10 x 1.5P	1.5
5051-275-020-070	DAT40xHBL20-70	138.4	70	46.12	38.1	41.25	M12 x 1.75P	1.5
5051-275-020-100	DAT40xHBL20-100	168.4	100	78.03	38.1	44.04	M12 x 1.75P	1.6
5051-275-025-080	DAT40xHBL25-80	148.4	80	58.03	44.45	48.6	M16 x 1.5P	1.7
5051-275-025-100	DAT40xHBL25-100	168.4	100	80.1	44.45	49.5	M16 x 1.5P	1.8
5052-275-012-070	DAT50xHBL12-70	171.75	70	41.34	31.75	34.49	M10 x 1.5P	3.2
5052-275-012-100	DAT50xHBL12-100	201.75	100	71.34	31.75	37.11	M10 x 1.5P	3.3
5052-275-020-070	DAT50xHBL20-70	171.75	70	41.34	38.1	40.84	M12 x 1.75P	3.4
5052-275-020-100	DAT50xHBL20-100	201.75	100	71.34	38.1	43.47	M12 x 1.75P	3.5
5052-275-025-070	DAT50xHBL25-70	171.75	70	46.1	44.45	47.6	M16 x 1.5P	3.5
5052-275-025-100	DAT50xHBL25-100	201.75	100	76.1	44.45	50.2	M16 x 1.5P	3.6

DualDRIVE+ SBT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5025-275-012-070	SBT30xHBL12-70	118.4	70	47	31.75	34.9	M10 x 1.5P	1.40
5025-275-012-100	SBT30xHBL12-100	148.4	100	77	31.75	37.6	M10 x 1.5P	1.65
5025-275-020-080	SBT30xHBL20-80	128.4	80	56	38.1	42.1	M12 x 1.75P	1.40
5025-275-020-100	SBT30xHBL20-100	148.4	100	76	38.1	43.9	M12 x 1.75P	1.65
5026-275-012-070	SBT40xHBL12-70	135.4	70	33	31.75	33.7	M10 x 1.5P	1.70
5026-275-012-100	SBT40xHBL12-100	165.4	100	63	31.75	36.4	M10 x 1.5P	1.90
5026-275-020-070	SBT40xHBL20-70	135.4	70	38	38.1	40.5	M12 x 1.75P	1.70
5026-275-020-100	SBT40xHBL20-100	165.4	100	68	38.1	43.1	M12 x 1.75P	1.90
5026-275-025-080	SBT40xHBL25-80	145.4	80	50	44.45	47.9	M16 x 1.5P	1.90
5026-275-025-100	SBT40xHBL25-100	165.4	100	70	44.45	49.7	M16 x 1.5P	2.10
5027-275-012-070	SBT50xHBL12-70	171.8	70	22	31.75	32.8	M10 x 1.5P	4.40
5027-275-012-100	SBT50xHBL12-100	201.8	100	52	31.75	35.4	M10 x 1.5P	4.50
5027-275-020-070	SBT50xHBL20-70	171.8	70	22	38.1	39.1	M12 x 1.75P	4.80
5027-275-020-100	SBT50xHBL20-100	201.8	100	52	38.1	41.8	M12 x 1.75P	4.90
5027-275-025-070	SBT50xHBL25-70	171.8	70	22	44.45	45.5	M16 x 1.5P	5.00
5027-275-025-100	SBT50xHBL25-100	201.8	100	52	44.45	48.1	M16 x 1.5P	5.20

DualDRIVE+ SCAT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5043-275-012-064	SCAT40xHBL12-2.5"	5.187	2.5	0.89	1.25	1.29	M10 x 1.5P	1.65
5043-275-012-102	SCAT40xHBL12-4"	6.687	4	2.46	1.25	1.43	M10 x 1.5P	1.40
5043-275-020-064	SCAT40xHBL20-2.5"	5.187	2.5	1.02	1.5	1.56	M12 x 1.75P	1.40
5043-275-020-102	SCAT40xHBL20-4"	6.687	4	2.59	1.5	1.69	M12 x 1.75P	1.80
5043-275-025-083	SCAT40xHBL25-3.25"	5.937	3.25	1.81	1.75	1.874	M16 x 1.5P	1.60
5043-275-025-102	SCAT40xHBL25-4"	6.687	4	2.529	1.75	1.936	M16 x 1.5P	1.80
5044-275-012-064	SCAT50xHBL12-2.5"	6.5	2.5	1.12	1.25	1.3	M10 x 1.5P	4.20
5044-275-012-114	SCAT50xHBL12-4.5"	8.5	4.5	2.75	1.25	1.46	M10 x 1.5P	4.30
5044-275-020-064	SCAT50xHBL20-2.5"	6.5	2.5	0.93	1.5	1.55	M12 x 1.75P	4.50
5044-275-020-114	SCAT50xHBL20-4.5"	8.5	4.5	2.93	1.5	1.72	M12 x 1.75P	4.80
5044-275-025-070	SCAT50xHBL25-2.75"	6.75	2.75	1.316	1.75	1.831	M16 x 1.5P	4.60
5044-275-025-114	SCAT50xHBL25-4.5"	8.5	4.5	3.066	1.75	1.983	M16 x 1.5P	4.80

DualDRIVE+ SDAT/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5066-275-012-070	SDAT40xHBL12-70	138.4	70	41.34	31.75	34.49	M10 x 1.5P	1.40
5066-275-012-100	SDAT40xHBL12-100	168.4	100	71.34	31.75	37.11	M10 x 1.5P	1.50
5066-275-020-070	SDAT40xHBL20-70	138.4	70	46.12	38.1	41.25	M12 x 1.75P	1.50
5066-275-020-100	SDAT40xHBL20-100	168.4	100	78.03	38.1	44.04	M12 x 1.75P	1.60
5066-275-025-080	SDAT40xHBL25-80	148.4	80	58.03	44.45	48.6	M16 x 1.5P	1.70
5066-275-025-100	SDAT40xHBL25-100	168.4	100	80.1	44.45	49.5	M16 x 1.5P	1.80
5067-275-012-070	SDAT50xHBL12-70	171.75	70	41.34	31.75	34.49	M10 x 1.5P	3.20
5067-275-012-100	SDAT50xHBL12-100	201.75	100	71.34	31.75	37.11	M10 x 1.5P	3.30
5067-275-020-070	SDAT50xHBL20-70	171.75	70	41.34	38.1	40.84	M12 x 1.75P	3.40
5067-275-020-100	SDAT50xHBL20-100	201.75	100	71.34	38.1	43.47	M12 x 1.75P	3.50
5067-275-025-070	SDAT50xHBL25-70	171.75	70	46.1	44.45	47.6	M16 x 1.5P	3.50
5067-275-025-100	SDAT50xHBL25-100	201.75	100	76.1	44.45	50.2	M16 x 1.5P	3.60

HSK/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	WEIGHT (KGS)
5072-275-012-110	HSK50AxHBL12-110	135	110	68	31.75	42	40.79	M10 x 1.5P	1.70
5072-275-012-130	HSK50AxHBL12-130	155	130	75.12	31.75	42	-	M10 x 1.5P	2.05
5072-275-020-120	HSK50AxHBL20-120	145	120	54.66	38.1	42	-	M12 x 1.75P	2.00
5072-275-020-150	HSK50AxHBL20-150	175	150	54.66	38.1	42	-	M12 x 1.75P	2.20
5073-275-012-110	HSK63AxHBL12-110	142	110	79.22	31.75	37.79	-	M10 x 1.5P	2.00
5073-275-012-150	HSK63AxHBL12-150	182	150	121.13	31.75	41.45	-	M10 x 1.5P	2.20
5073-275-020-120	HSK63AxHBL20-120	152	120	89.22	38.1	45.02	-	M12 x 1.75P	2.20
5073-275-020-140	HSK63AxHBL20-140	172	140	89.02	38.1	45	-	M12 x 1.75P	2.65
5075-275-012-120	HSK100AxHBL12-120	170	120	79.05	31.75	37.78	-	M10 x 1.5P	2.60
5075-275-020-135	HSK100AxHBL20-135	185	135	89.02	38.1	45	-	M12 x 1.75P	2.94
5075-275-025-150	HSK100AxHBL25-150	200	150	111.44	44.45	53.31	-	M16 x 1.5P	3.00

PSC/HBL SLIM-FIT COLLET CHUCK

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	WEIGHT (KGS)
5140-275-012-090	PSC32xHBL12-90	109	90	75	31.75	32	M10 x 1.5P	0.55
5141-275-012-090	PSC40xHBL12-90	114	90	68.4	31.75	36.85	M10 x 1.5P	0.64
5141-275-020-105	PSC40xHBL20-105	129	105	85	38.1	40	M12 x 1.75P	0.82
5142-275-012-105	PSC50xHBL12-105	135	105	82.1	31.75	38.04	M10 x 1.5P	0.98
5142-275-020-115	PSC50xHBL20-115	145	115	94.04	38.1	45.3	M12 x 1.75P	0.99
5142-275-025-120	PSC50xHBL25-120	150	120	100	44.45	50	M16 x 1.5P	1.48
5143-275-012-100	PSC63xHBL12-100	138	100	69.9	31.75	36.9	M10 x 1.5P	1.26
5143-275-020-120	PSC63xHBL20-120	158	120	91.4	38.1	45.2	M12 x 1.75P	1.47
5143-275-025-120	PSC63xHBL25-120	158	120	92.6	44.45	51.6	M16 x 1.5P	1.60

series:

series:

The Application of HBL Slim Fit Collet Chuck and Face Contact Type Cutters

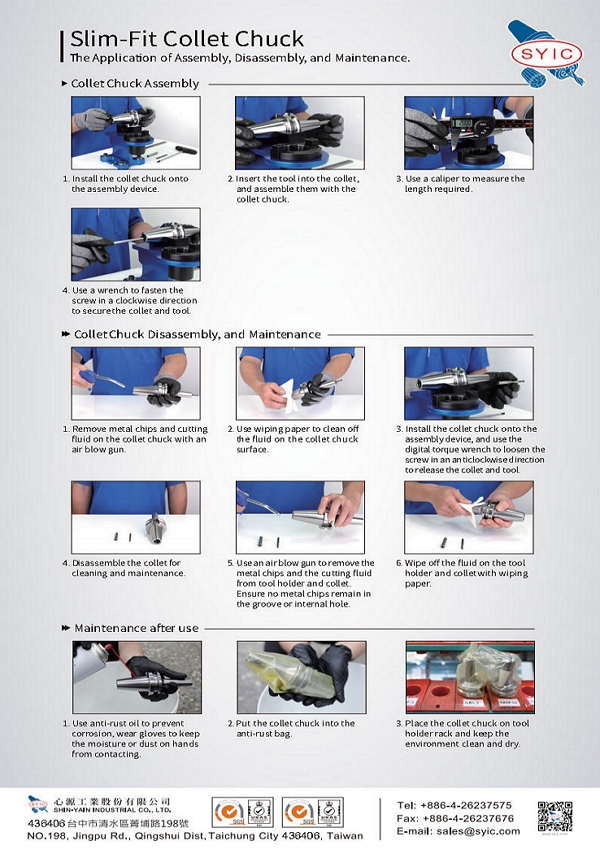

HBL Slim-Fit Collet Chuck
