Product Name : IAP Indexable End Mill Cutter
Product Description
  • Two types to choose from: without coolant holes and with coolant holes.
  • The thicker body design for locking inserts enhances rigidity and durability.
  • Enlarged chip breaker improves metal chip removal and ensures better machining efficiency and longer insert use life.
  • Cutter surface is treated with coating, which makes cutter rustproof and extends cutter use life.
  • Inserts: AP..1003 and AP..1604 need to be purchased separately.
proimages/Products/Cutting_tools/End_mill_cutter/IAP/SHOULDER_MILLING-CIAP.JPG
series:

IAP INDEXABLE END MILL CUTTER

proimages/Products/Cutting_tools/End_mill_cutter/IAP/IAP_figure.jpg
METRIC
MODEL NO.TYPEDdLl1TEETHINSERT
5154-243-1012-100 IAP-1012-100L-1T 10 12 100 20 1 AP..1003
5154-243-1212-100 IAP-1212-100L-1T 12 12 100 25 1 AP..1003
5154-244-1616-100 IAP-1616-100L-2T 16 16 100 25 2 AP..1003
5154-244-1616-120 IAP-1616-120L-2T 16 16 120 25 2 AP..1003
5154-244-1616-160 IAP-1616-160L-2T 16 16 160 25 2 AP..1003
5154-244-1616-200 IAP-1616-200L-2T 16 16 200 25 2 AP..1003
5154-244-2020-120 IAP-2020-120L-2T 20 20 120 25 2 AP..1003
5154-245-2020-120 IAP-2020-120L-3T 20 20 120 25 3 AP..1003
5154-244-2020-150 IAP-2020-150L-2T 20 20 150 25 2 AP..1003
5154-245-2020-150 IAP-2020-150L-3T 20 20 150 25 3 AP..1003
5154-244-2020-200 IAP-2020-200L-2T 20 20 200 25 2 AP..1003
5154-244-2120-150 IAP-2120-150L-2T 21 20 150 25 2 AP..1003
5154-244-2220-150 IAP-2220-150L-2T 22 20 150 25 2 AP..1003
5154-244-2525-150 IAP-2525-150L-2T 25 25 150 25 2 AP..1003
5154-245-2525-150 IAP-2525-150L-3T 25 25 150 25 3 AP..1003
5154-246-2525-150 IAP-2525-150L-4T 25 25 150 25 4 AP..1003
5154-246-2525-200 IAP-2525-200L-4T 25 25 200 25 4 AP..1003
5154-244-A6425-150 IAP-25.425-150L-2T 25.4 25 150 25 2 AP..1003
5154-244-A6425-200 IAP-25.425-200L-2T 25.4 25 200 25 2 AP..1003
5154-244-2625-150 IAP-2625-150L-2T 26 25 150 25 2 AP..1003
5154-244-2625-200 IAP-2625-200L-2T 26 25 200 25 2 AP..1003
5154-245-2725-150 IAP-2725-150L-3T 27 25 150 25 3 AP..1003
5154-246-2725-200 IAP-2725-200L-4T 27 25 200 25 4 AP..1003
5154-245-3232-150 IAP-3232-150L-3T 32 32 150 40 3 AP..1003
5154-247-3232-150 IAP-3232-150L-5T 32 32 150 30 5 AP..1003
5154-247-3232-200 IAP-3232-200L-5T 32 32 200 30 5 AP..1003
5154-245-32A32-150 IAP-3232-150L-3TA 32 32 150 40 3 AP..1604
5154-244-3232-200 IAP-3232-200L-2T 32 32 200 40 2 AP..1604
5154-244-3232-250 IAP-3232-250L-2T 32 32 250 40 2 AP..1604
5154-246-4032-150 IAP-4032-150L-4T 40 32 150 40 4 AP..1604
5154-246-4032-250 IAP-4032-250L-4T 40 32 250 40 4 AP..1604

INCHES
MODEL NO.TYPEDdLl1TEETHINSERT
5154-243-A32A32-400 IAP-1/2-1/2-4-1T 0.5 0.5 4 0.787 1 AP..1003
5154-244-A40A32-275 IAP-5/8-1/2-2.75-2T 0.625 0.5 2.75 0.906 2 AP..1003
5154-244-A40A40-500 IAP-5/8-5/8-5-2T 0.625 0.625 5 1.024 2 AP..1003
5154-245-A48A40-305 IAP-3/4-5/8-3.05-3T 0.75 0.625 3.05 1.024 3 AP..1003
5154-244-A48A48-500 IAP-3/4-3/4-5-2T 0.75 0.75 5 1.142 2 AP..1003
5154-245-A64A48-325 IAP-1-3/4-3.25-3T 1 0.75 3.25 1.142 3 AP..1003
5154-245-A64A64-375 IAP-1-1-3.75-3T 1 1 3.75 1.26 3 AP..1003
5154-246-A72A64-375 IAP-1-1/4-1-3.75-4T 1.25 1 3.75 1.26 4 AP..1003
5154-246-A72A72-400 IAP-1-1/4-1-1/4-4-4T 1.25 1.25 4 1.575 4 AP..1003
5154-247-A80A72-435 IAP-1-1/2-1-1/4-4.35-5T 1.5 1.25 4.35 1.969 5 AP..1003
5154-244-A48A48-520 IAP-3/4-3/4-5.2-2T 0.75 0.75 5.2 2.362 2 AP..1003
5154-245-A64A64-600 IAP-1-1-6-3T 1 1 6 2.362 3 AP..1003
5154-247-A80A72-945 IAP-1-1/2-1-1/4-9.45-5T 1.5 1.25 9.45 2.559 5 AP..1003
5154-244-A64AA48-350 IAP-1-3/4-3.5-2TA 1 0.75 3.5 1.417 2 AP..1604
5154-244-A64AA64-375 IAP-1-1-3.75-2TA 1 1 3.75 1.417 2 AP..1604
5154-245-A72AA64-400 IAP-1-1/4-1-4-3TA 1.25 1 4 1.575 3 AP..1604
5154-245-A72AA72-400 IAP-1-1/4-1-1/4-4-3TA 1.25 1.25 4 1.575 3 AP..1604
5154-245-A72AA72-600 IAP-1-1/4-1-1/4-6-3TA 1.25 1.25 6 1.575 3 AP..1604
5154-246-A80AA72-435 IAP-1-1/2-1-1/4-4.35-4TA 1.5 1.25 4.35 1.969 4 AP..1604
5154-244-A64AA64-630 IAP-1-1-6.3-2TA 1 1 6.3 2.362 2 AP..1604
5154-244-A72AA72-787 IAP-1-1/4-1-1/4-7.87-2TA 1.25 1.25 7.87 2.559 2 AP..1604
5154-244-A80AA72-945 IAP-1-1/2-1-1/4-9.45-2TA 1.5 1.25 9.45 2.559 2 AP..1604

ACCESSORIES
INSERTINSERT SCREWWRENCH
AP..1003 M2.5-6.45-3.7-43 T8
AP..1604 M4-10-5.7-60 T15
series:

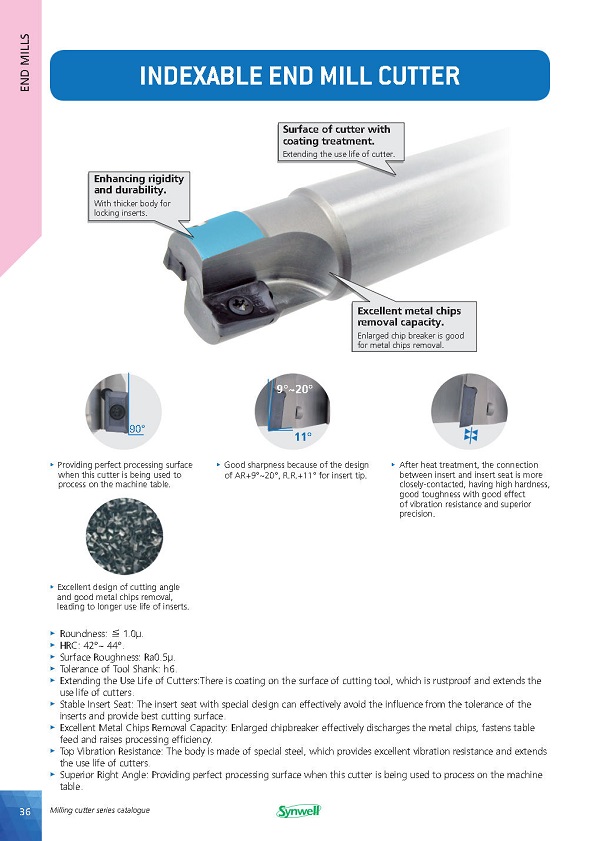

proimages/Products/Cutting_tools/End_mill_cutter/IAP/IAP-TI.jpg
