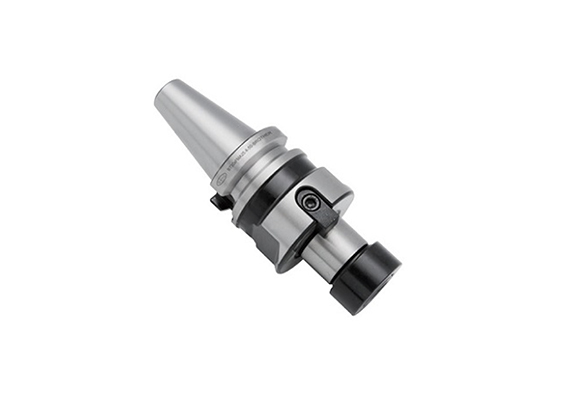

Face Mill Arbor(Light Weight Type-With Two Flat Sides)

Light Weight Type Face Mill Arbor
Product Name : Face Mill Arbor(Light Weight Type-With Two Flat Sides)
Product Description
proimages/taper_icon/BT-icon..jpg

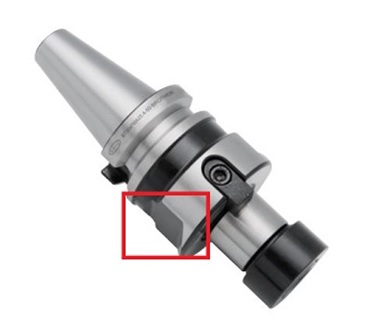

  • Two flat sides for lighter weight reduces the loading for ATC system, ensures operational safety and extends machine life.
  • The tool holder length is extended to avoid interference with ATC system.
  • Tolerance of d1 the connection part with cutter: h6, which is good for less chatter and longer cutter life.
  • Suitable for general face milling cutter.
proimages/picture_of_product_feature/Face_mill_arbor_(light_weight_type)_feature_picture.jpg
series:

BT FACE MILL ARBOR
LIGHT WEIGHT TYPE-WITH TWO FLAT SIDES

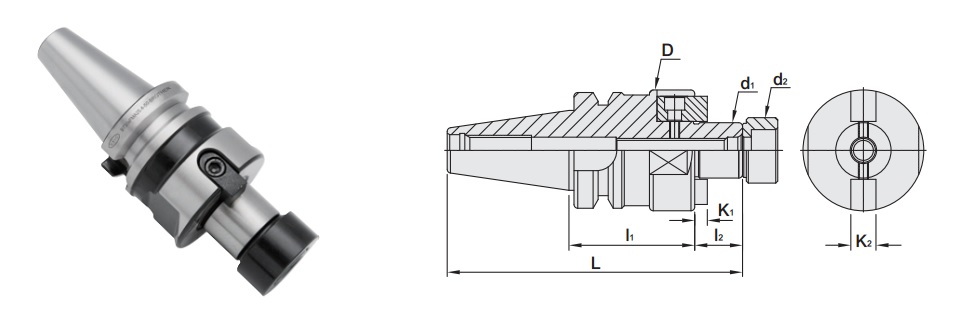

 proimages/Products/Tool_holders/FACE_mill_arbor/light_weight_type/BT-FMA.B-削平兩端輕量型_figure.jpg

MODEL NO.TYPELl1l2Dd1d2K1K2WEIGHT
(KGS)
5010-165-A64-197 BT30xFMA25.4-50-B 118.4 50 20 50 25.4 31.5 5 9.52 1.00
5010-165-A72-197 BT30xFMA31.75-50-B 120.4 50 22 60 31.75 41 6 12.7 1.00
5010-166-022-050 BT30xFMB22-50-B 117.4 50 19 48 22 26 5 10 0.82
5010-166-027-050 BT30xFMB27-50-B 118.4 50 20 60 27 31.5 6 12 1.06
