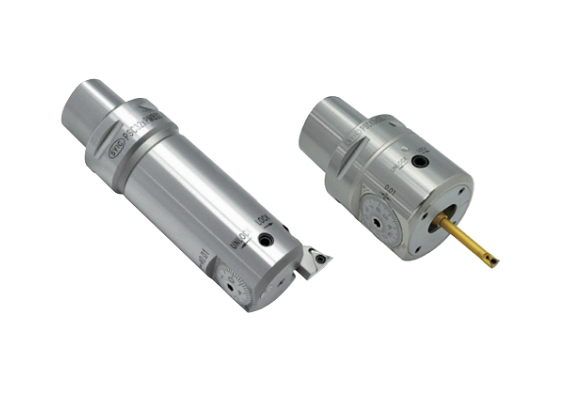

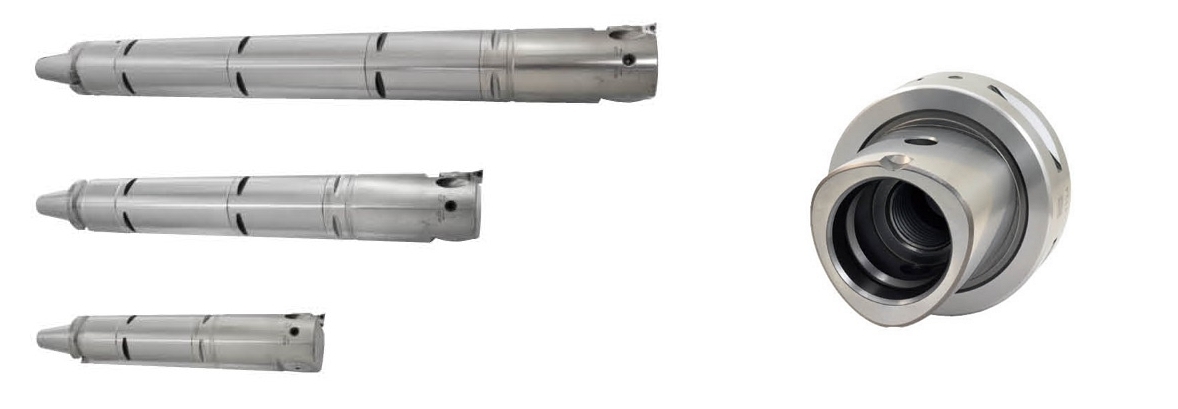

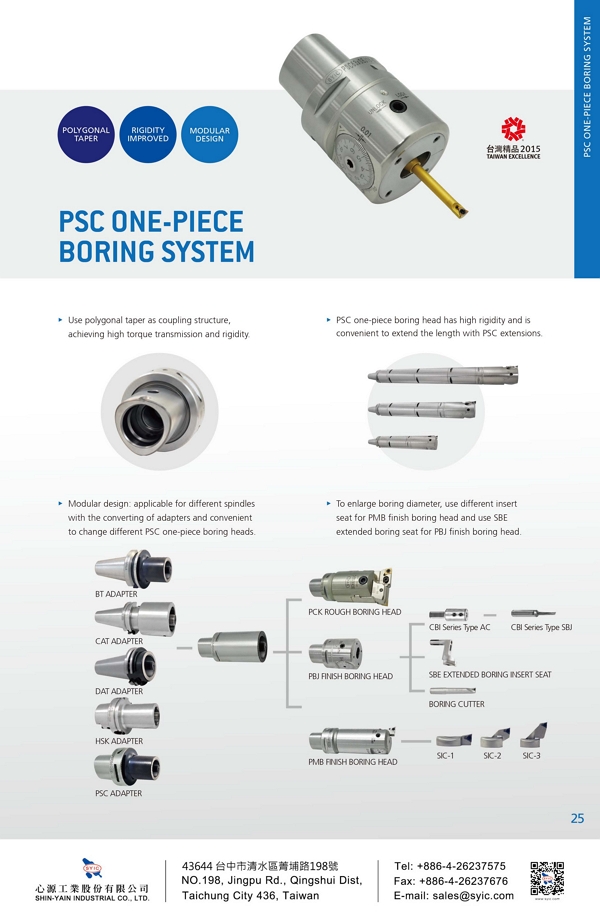

PSC Finish Boring Head (one-piece type) C03-2-9

series:

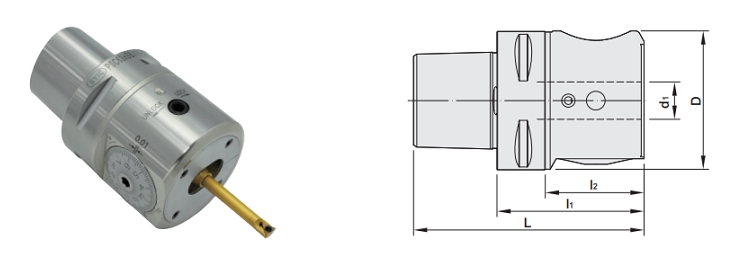

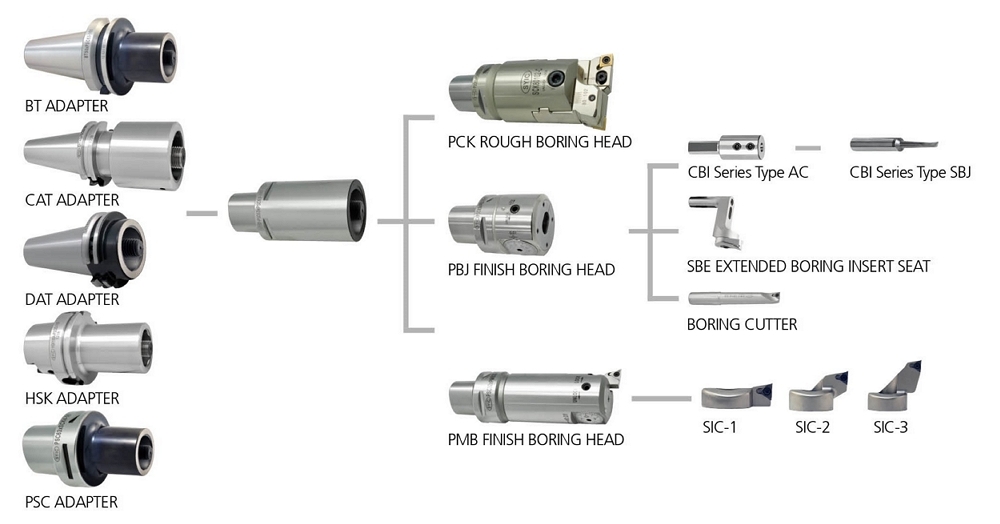

PSC/PBJ FINISH BORING HEAD (ONE-PIECE TYPE)

proimages/Products/Boring_head/Finish_boring_head/PSC_finish_boring_head_(one-piece)/PSC-PBJ_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	WEIGHT (KGS)
5141-542-010-049	PSC40xPBJ10-48.5	72.5	48.5	28.5	39	10	0.49
5142-542-010-056	PSC50xPBJ12-56	86	56	36	50	12	0.91
5143-542-016-067	PSC63xPBJ16-67	105	67	45	63.5	16	1.76

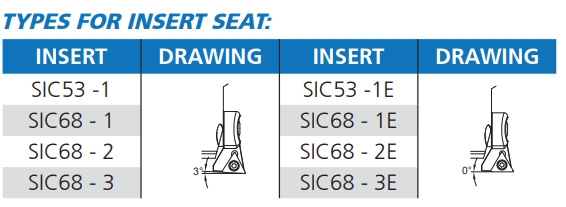

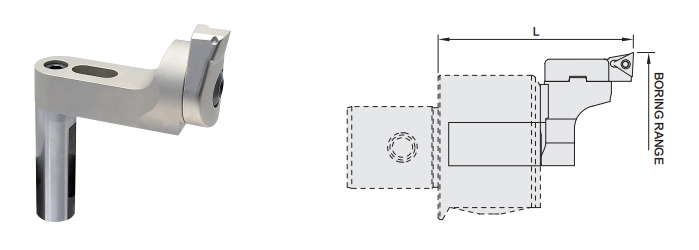

SBE EXTENDED BORING INSERT SEAT

MODEL NO.	TYPE	SBJ NO.	INSERT SEAT	INSERT	BORING AND PROCESSING AT FRONT		WEIGHT (KGS)
MODEL NO.	TYPE	SBJ NO.	INSERT SEAT	INSERT	BORING RANGE	L	WEIGHT (KGS)
5158-684-000	SBE-0	SBJ16	SIC53 - 1	TP09 / TC11	48 - 60	127	0.16
				TP09 / TC11	60 - 72	127	0.16
				TP09 / TC11	72 - 85	127	0.16
5158-684-001	SBE-1	SBJ16	SIC68 - 1	TP09 / TC11	84 - 96	85.5	0.18
5158-684-002	SBE-2	SBJ16	SIC68 - 1	TP09 / TC11	95 - 107	85.5	0.18
		SBJ16	SIC68 - 2	TP09 / TC11	120 - 132	86	0.18
		SBJ16	SIC68 - 3	TP09 / TC11	145 - 157	85.5	0.18
5158-684-003	SBE-3	SBJ16	SIC68 - 1	TP09 / TC11	130 - 142	85.5	0.2
		SBJ16	SIC68 - 2	TP09 / TC11	156 ~ 168	86	0.2
		SBJ16	SIC68 - 3	TP09 / TC11	180 ~ 192	85.5	0.2
5158-684-004	SBE-4	SBJ16	SIC68 - 1	TP09 / TC11	142 ~ 154	85.5	0.24
		SBJ16	SIC68 - 2	TP09 / TC11	168 ~ 180	86	0.24
		SBJ16	SIC68 - 3	TP09 / TC11	192 ~ 202	85.5	0.24

ACCESSORIES:

INSERT	SCREW	WRENCH
TP..0902	M2.5-6.0-3.5-60	T8
TC..1102	M2.5-6.0-3.5-60	T8

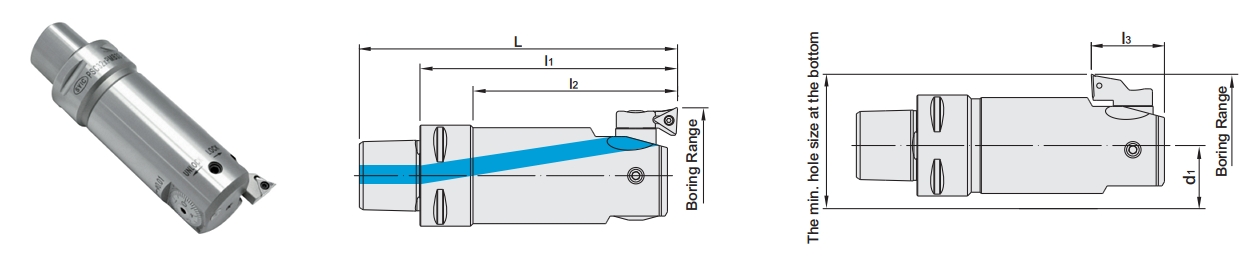

PSC/PMB FINISH BORING HEAD (ONE-PIECE TYPE)

proimages/Products/Boring_head/Finish_boring_head/PSC_finish_boring_head_(one-piece)/PSC-PMB_figure.jpg

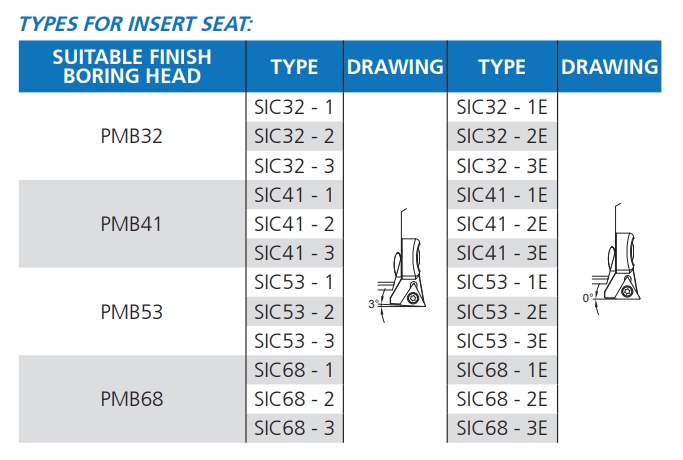

MODEL NO.	TYPE	INSERT SEAT	INSERT	INSERT SCREW	BORING AND PROCESSING AT FRONT
MODEL NO.	TYPE	INSERT SEAT	INSERT	INSERT SCREW	BORING RANGE	L	l1	l2	l3	d1
5140-544-032-085	PSC32xPMB32-85	SIC32 - 1	TB..06 TP..08	M2-5.0-2.7-60	32 ~ 42	104	85	55	25	16
5140-544-032-085	PSC32xPMB32-85	SIC32 - 2	TB..06 TP..08	M2-5.0-2.7-60	41 ~ 51	104	85	55	25	16
5140-544-032-085	PSC32xPMB32-85	SIC32 - 3	TB..06 TP..08	M2-5.0-2.7-60	50 ~ 60	104	85	55	25	16
5141-544-041-102	PSC40xPMB41-102	SIC41 - 1	TP..09 TC..11	M2.5-6.0-3.5-60	41 ~ 54	126	102	70	29	20
5141-544-041-102	PSC40xPMB41-102	SIC41 - 2	TP..09 TC..11	M2.5-6.0-3.5-60	50 ~ 63	126	102	70	29	20
5141-544-041-102	PSC40xPMB41-102	SIC41 - 3	TP..09 TC..11	M2.5-6.0-3.5-60	61 ~ 74	126	102	70	29	20
5142-544-053-112	PSC50xPMB53-112	SIC53 - 1	TP..09 TC..11	M2.5-6.0-3.5-60	53 ~ 70	142	112	74	34	25.5
5142-544-053-112	PSC50xPMB53-112	SIC53 - 2	TP..09 TC..11	M2.5-6.0-3.5-60	65 ~ 82	142	112	74	34	25.5
5142-544-053-112	PSC50xPMB53-112	SIC53 - 3	TP..09 TC..11	M2.5-6.0-3.5-60	78 ~ 95	142	112	74	34	25.5
5143-544-068-140	PSC63xPMB68-140	SIC68 - 1	TP..09 TC..11	M2.5-6.0-3.5-60	68 ~ 100	178	140	90.8	45.2	32.5
5143-544-068-140	PSC63xPMB68-140	SIC68 - 2	TP..09 TC..11	M2.5-6.0-3.5-60	94 ~ 126	178	140	90.8	45.2	32.5
5143-544-068-140	PSC63xPMB68-140	SIC68 - 3	TP..09 TC..11	M2.5-6.0-3.5-60	118 ~ 150	178	140	90.8	45.2	32.5
