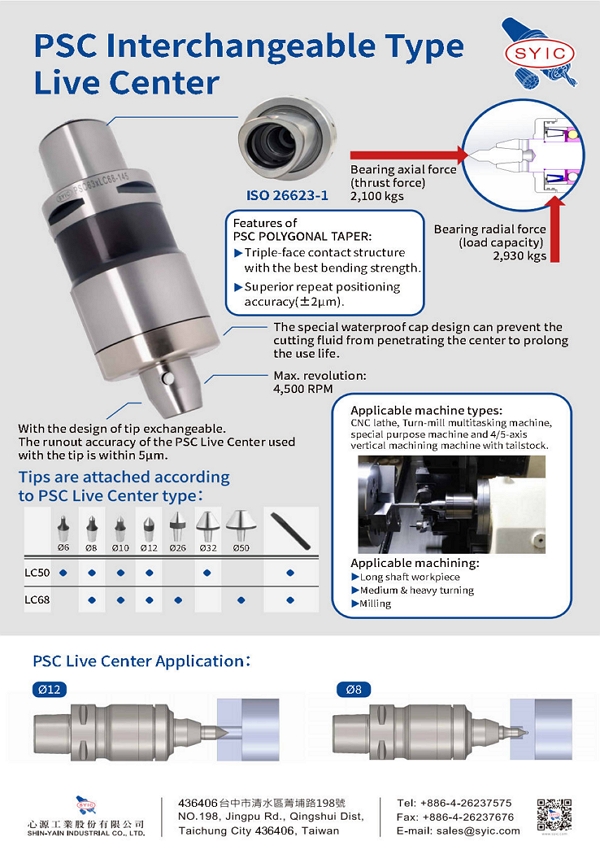

Product Name : PSC Interchangeable Type Live Center

Our live center boasts a PSC triple-face contact structure, ensuring unparalleled bending strength and exceptional repeat positioning accuracy of ±2µm. This design guarantees robust performance and precise machining results.

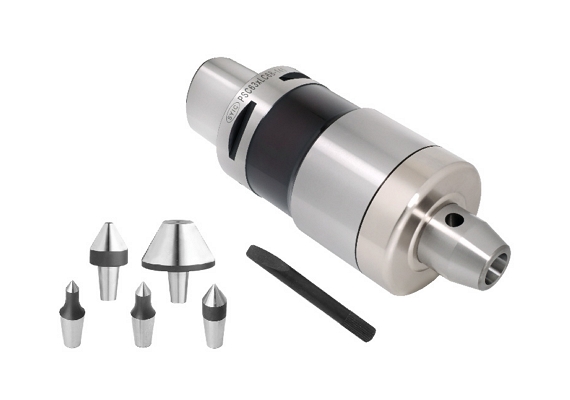

SYIC live center has the design of exchangeable tips. When coupled with a tip, the runout accuracy remains within an impressive 5µm, ensuring consistency and reliability in machining processes.
Featuring a specially designed waterproof cap, our live center offers enhanced longevity by preventing cutting fluid from permeating the center.
Capable of withstanding substantial forces, our PSC live center handles a bearing axial force (thrust force) of 2,100 KGS and a bearing radial force (load capacity) of 2,930 KGS, ensuring stability and durability during machining operations.
Max. revolution: 4,500 RPM.

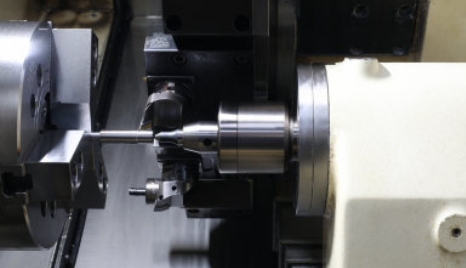

Applicable machine types: CNC lathe, Turn-mill multitasking machine, special purpose machine and 4/5-axis vertical machining machine with tailstock.
Our Live Center excels in a diverse range of machining applications, including long shaft workpieces, medium to heavy turning, and milling processes, showcasing its adaptability across different manufacturing requirements and offering superior strength, accuracy, and durability for CNC lathe operations and various machining tasks. For more SYIC products like BMT tool holders, welcome to browse our website!

series:

PSC Interchangeable Type Live Center

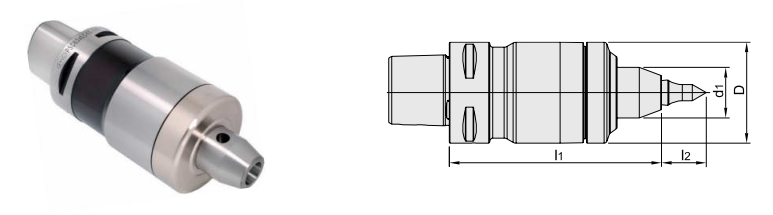

MODEL NO.	TYPE	l1	l2	D	d1	WEIGHT (KGS)
5142-229-050-105	PSC50xLC50-105 (W/ Ø6, Ø8, Ø10, Ø12, Ø32 tips)	105	22	50	25	1.3
5142-229-050-120	PSC50xLC50-120 (W/ Ø6, Ø8, Ø10, Ø12, Ø32 tips)	120	22	50	25	1.5
5143-229-068-145	PSC63xLC68-145 (W/ Ø8, Ø10, Ø12, Ø26, Ø50 tips)	145	22	68	30	3.1
