SBJ Boring Head For Finishing

SBJ Boring Head For Finishing
Product Name : SBJ Boring Head For Finishing
Product Description

Boring range: ø8 ~ ø202mm

  • One division for adjustment is 10μm on diameter.
  • Modular MCK system and exchangeable with CK system on the market.
  • Used with SBJ boring cutters or SBE extended boring insert seat for larger diameters.

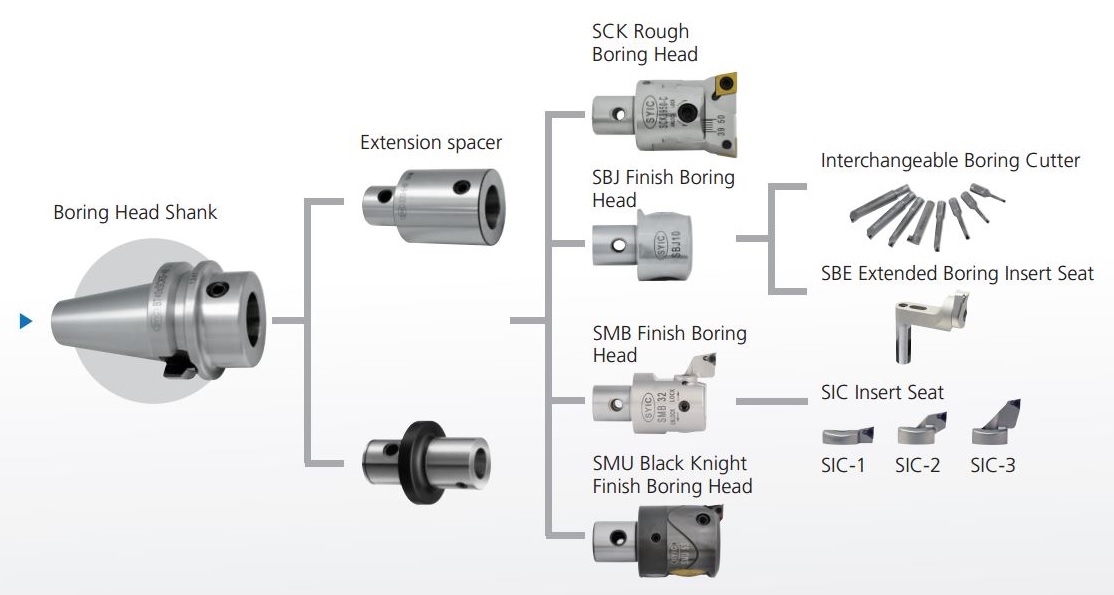

proimages/Products/Boring_head/Finish_boring_head/SBJ_boring_head/SBJ_boring_head-feature_picture.jpg

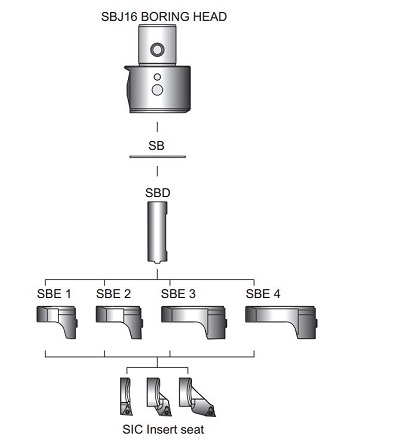

proimages/Products/Boring_head/Finish_boring_head/SBJ_boring_head/SBJ_feature_picture2.jpg
series:

SBJ BORING HEAD FOR FINISHED

proimages/Products/Boring_head/Finish_boring_head/SBJ_boring_head/SBJ_figure.jpg

MODEL NO.TYPEMCK NO.BORING RANGELDd1WEIGHT
(KGS)
5158-647-010 SBJ10 MCK4 8 ~ 21 28.5 39 10 0.25
5158-647-012 SBJ12 MCK5 8 ~ 26 36 50 12 0.50
5158-647-016 SBJ16 MCK6 8 ~ 50 45 63.5 16 1.00
series:

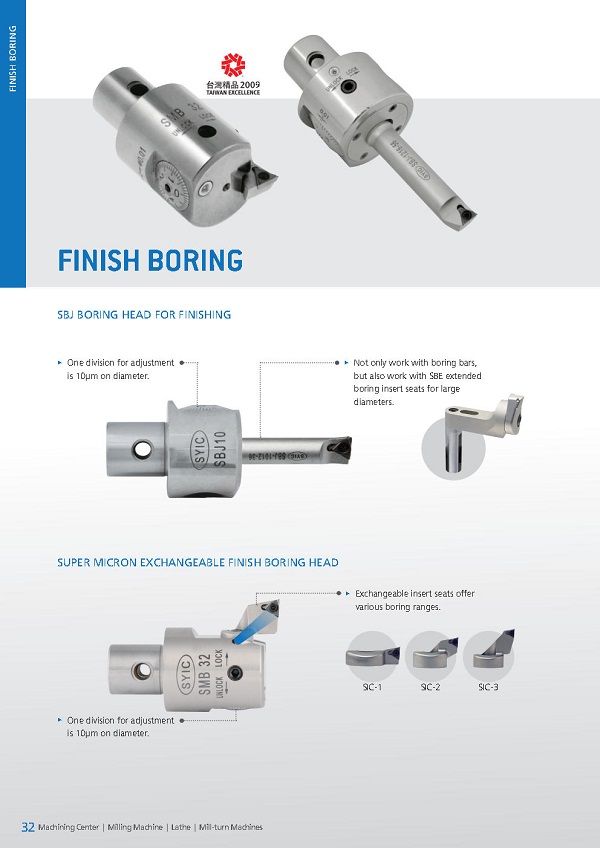

proimages/Products/Boring_head/Finish_boring_head/SBJ_boring_head/SBJ_TI.jpg
