SCK Roughing Twin Adjustment Boring Head

SCK Roughing Twin Adjustment Boring Head

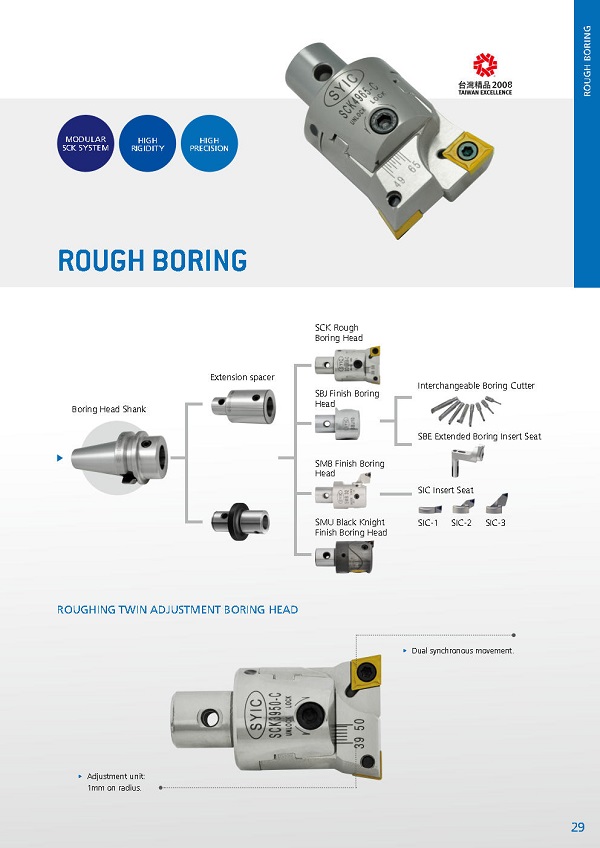

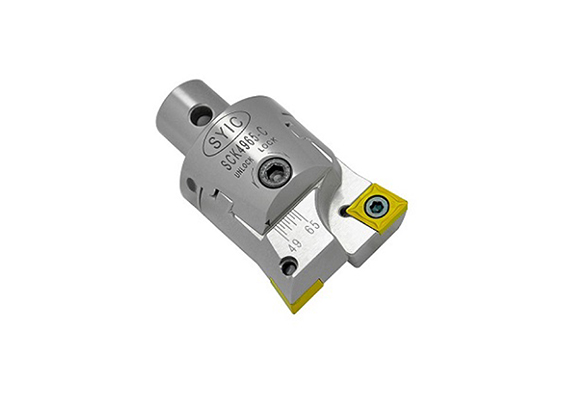

Product Name : SCK Roughing Twin Adjustment Boring Head
Product Description

Boring range: ø24 ~ ø220mm

  • Both insert seats move simultaneously while setting diameters, which makes the adjustment precise and save time.
  • High rigidity results from a perfect contact between the insert seats and the boring head body. Suitable for big table feed (F) cutting, heavy-duty and interrupted boring.
  • The small difference of heights between two insert seats decreases the vibration caused by cutting impedance while touching a workpiece.
  • Modular MCK system and exchangeable with CK system on the market.
  • The coating surface treatment improves chips adhesion, increases heat resistance and extends using life.
    proimages/Products/Boring_head/Rough_boring_head/SCK_roughing_twin_adjustment_boring_head/SCK-feature_picture.jpg
series:

ROUGHING TWIN ADJUSTEMENT BORING HEAD
proimages/Products/Boring_head/Rough_boring_head/SCK_roughing_twin_adjustment_boring_head/SCK_figure.jpg

MODEL NO.TYPEASSEMBLE
TOOL HOLDER		Boring Ranged1LDINSERTSCREWWRENCHWEIGHT
(KGS)
MIN.MAX.
5158-687-024 SCK2430 - C MCK2 24 30 14 34 22 CC..0602 M2.5-6.45-3.7 T8 0.19
5158-687-029 SCK2940 - C MCK2 29 40 14 42 27 CC..09T3 M4-10-5.7-60 T15 0.19
5158-687-039 SCK3950 - C MCK3 39 50 18 45 32 CC..09T3 M4-10-5.7-60 T15 0.19
5158-687-049 SCK4965 - C MCK4 49 65 22 56 42 CC..1204 M5-11-7.5-60 T20 0.10
5158-687-063 SCK6382 - C MCK5 63 82 28 66 54 CC..1204 M5-11-7.5-60 T20 0.20
5158-687-080 SCK80102 - C MCK6 80 102 36 86 68 CC..1204 M5-9.2-7.6-60 T20 2.30
5158-687-100 SCK100125 - C MCK7 100 125 46 100 85 CC..1204 M5-9.2-7.6-60 T20 4.00
5158-687-125 SCK125160 - C MCK7 125 160 46 100 110 CC..1204 M5-9.2-7.6-60 T20 6.16
5158-687-160 SCK160220 - C MCK7 160 220 46 100 145 CC..1204 M5-11-7.5-60 T20 8.10
