Product Name : USC Ultimate Side Clamping Chuck (SFS Type)
Product Description
proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg

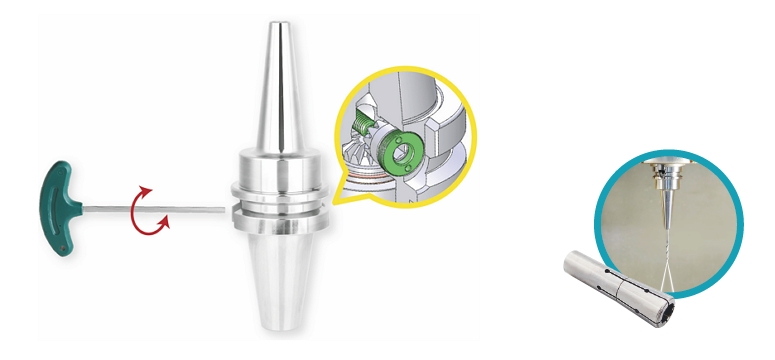

  • Quick Tool Change:
    Clamp/Unclamp from the side. Quick tool change!
    Internal gear design, which drives the collet to change the tool.
  • Machining Rigidity:
    The enlarged neck of the tool holder improves machining rigidity.
  • Reducing Interference:
    The USC design w/o nut is good for interference reduction.
  • Center Coolant Available:
    Effectively removes metal chips, extends tool life and improves surface finish of workpiece.
  • Balance:
    G2.5 25,000RPM

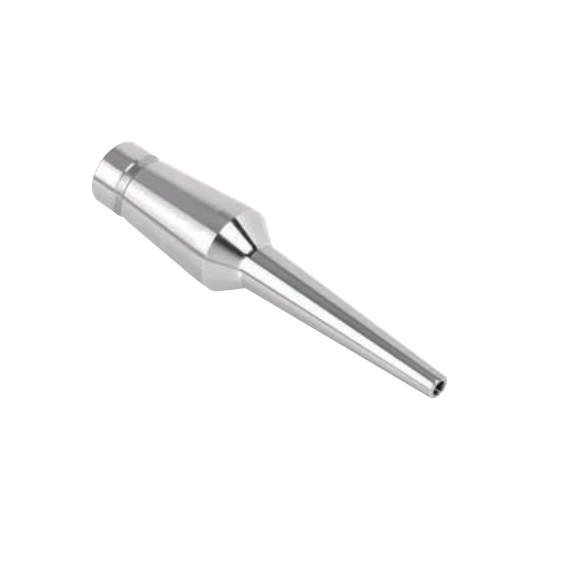

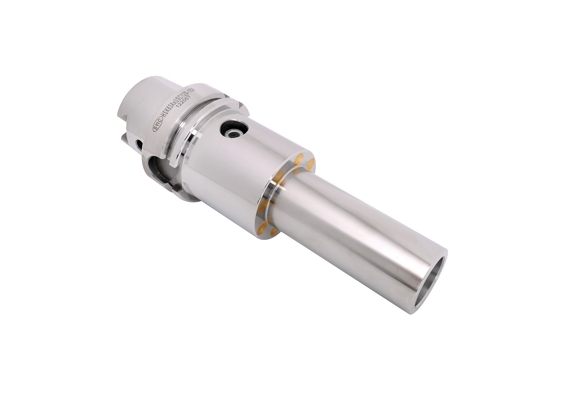

  • USC Ultimate Side Clamping Chuck (SFS type): Use SFS slim-fit shrink extension or MFS slim-fit shrink extension to clamp with the body of SFS chuck, and use shrink fit machine to clamp tools.
proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-feature_picture.jpg
series:

USC ULTIMATE SIDE CLAMPING CHUCK (SFS Type)

proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-SFS_Type-figure.jpg

MODEL NO.TYPELl1l2Dd1WEIGHT
(KGS)
5026-750-012-150 SBT40xUSC12S-150 215.4 150 101 52.4 34 1.51
5073-750-012-150 HSK63AxUSC12S-150 182 150 97 52.4 34 1.61
5143-750-012-150 PSC63xUSC12S-150 188 150 81 52.4 34 1.82
