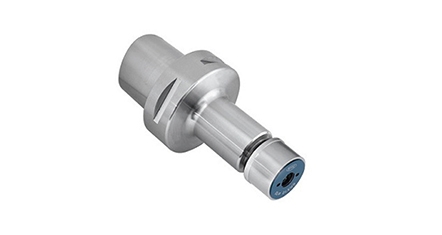

SKX Collet Chuck

series:

DualDRIVE+ SBT/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/SBT-SKX_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	SIZE RANGE	Fig.	WEIGHT (KGS)
5025-790-006-060	SBT30xSKX6-60	108.4	60	33	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	0.70
5025-790-006-090	SBT30xSKX6-90	138.4	90	56	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	0.70
5025-790-006-120	SBT30xSKX6-120	168.4	120	86	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	0.80
5025-790-010-045	SBT30xSKX10-45	93.4	45	23	30	30	-	M12 x 1.75P	2 ~ 10	1	0.80
5025-790-010-060	SBT30xSKX10-60	108.4	60	35	30	30	-	M12 x 1.75P	2 ~ 10	1	0.90
5025-790-010-075	SBT30xSKX10-75	123.4	75	50	30	30	-	M12 x 1.75P	2 ~ 10	1	1.00
5025-790-010-090	SBT30xSKX10-90	138.4	90	65	30	30	-	M12 x 1.75P	2 ~ 10	1	1.00
5025-790-010-120	SBT30xSKX10-120	168.4	120	95	30	30	-	M12 x 1.75P	2 ~ 10	1	1.10
5025-790-013-060	SBT30xSKX13-60	108.4	60	35	33	33	-	M12 x 1.75P	2 ~ 13	1	1.10
5025-790-013-090	SBT30xSKX13-90	138.4	90	65	35	33	-	M12 x 1.75P	2 ~ 13	1	1.10
5025-790-013-120	SBT30xSKX13-120	168.4	120	95	35	33	-	M12 x 1.75P	2 ~ 13	1	1.20
5025-790-016-060	SBT30xSKX16-60	108.4	60	35	40	40	-	M18 x 1.5P	2 ~ 16	1	1.10
5025-790-016-075	SBT30xSKX16-75	123.4	75	50	40	40	-	M18 x 1.5P	2 ~ 16	1	1.20
5025-790-016-090	SBT30xSKX16-90	138.4	90	65	40	40	-	M18 x 1.5P	2 ~ 16	1	1.20
5025-790-016-120	SBT30xSKX16-120	168.4	120	95	40	40	-	M18 x 1.5P	2 ~ 16	1	1.30
5025-790-020-060	SBT30xSKX20-60	108.4	60	30	48	48.5	-	M12 x 1.75P	3 ~ 20	1	0.70
5025-790-020-075	SBT30xSKX20-75	123.4	75	45	48	48.5	-	M12 x 1.75P	3 ~ 20	1	0.90
5025-790-020-090	SBT30xSKX20-90	138.4	90	60	48	48.5	-	M12 x 1.75P	3 ~ 20	1	1.20
5025-790-025-090	SBT30xSKX25-90	138.4	90	60	55	55	-	M12 x 1.75P	3 ~ 25 .4	1	1.50
5026-790-006-060	SBT40xSKX6-60	125.4	60	30	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	1.00
5026-790-006-090	SBT40xSKX6-90	155.4	90	51	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	1.10
5026-790-006-120	SBT40xSKX6-120	185.4	120	93	19.5	19.5	53	M8 x 1.25P	1 ~ 6	2	1.56
5026-790-006-150	SBT40xSKX6-150	215.4	150	123	19.5	19.5	53	M8 x 1.25P	2 ~ 6	2	1.72
5026-790-010-060	SBT40xSKX10-60	125.4	60	32	30	30	-	M12 x 1.75P	2 ~ 10	1	1.10
5026-790-010-075	SBT40xSKX10-75	140.4	75	45	30	30	-	M12 x 1.75P	2 ~ 10	1	1.20
5026-790-010-090	SBT40xSKX10-90	155.4	90	48	30	30	-	M12 x 1.75P	2 ~ 10	1	1.20
5026-790-010-120	SBT40xSKX10-120	185.4	120	93	30	30	53	M12 x 1.75P	2 ~ 10	2	1.40
5026-790-010-150	SBT40xSKX10-150	215.4	150	123	30	30	53	M12 x 1.75P	2 ~ 10	2	1.91
5026-790-010-180	SBT40xSKX10-180	245.4	180	153	30	30	53	M12 x 1.75P	2 ~ 10	2	2.08
5026-790-010-200	SBT40xSKX10-200	265.4	200	173	30	30	53	M12 x 1.75P	2 ~ 10	2	2.17
5026-790-010-250	SBT40xSKX10-250	315.4	250	223	30	30	53	M12 x 1.75P	2 ~ 10	2	2.31
5026-790-013-080	SBT40xSKX13-80	145.4	80	50	33	33		M12 x 1.75P	2 ~ 13	1	1.10
5026-790-013-100	SBT40xSKX13-100	165.4	100	70	33	33		M12 x 1.75P	2 ~ 13	1	1.30
5026-790-013-120	SBT40xSKX13-120	185.4	120	90	33	33		M12 x 1.75P	2 ~ 13	2	1.40
5026-790-016-060	SBT40xSKX16-60	125.4	60	32	40	40	-	M18 x 1.5P	2 ~ 16	1	1.30
5026-790-016-075	SBT40xSKX16-75	140.4	75	43	40	40	-	M18 x 1.5P	2 ~ 16	1	1.40
5026-790-016-090	SBT40xSKX16-90	155.4	90	58	40	40	-	M18 x 1.5P	2 ~ 16	1	1.50
5026-790-016-120	SBT40xSKX16-120	185.4	120	93	40	40	62.5	M18 x 1.5P	2 ~ 16	2	1.83
5026-790-016-150	SBT40xSKX16-150	215.4	150	123	40	40	62.5	M18 x 1.5P	2 ~ 16	2	2.05
5026-790-016-180	SBT40xSKX16-180	245.4	180	153	40	40	62.5	M18 x 1.5P	2 ~ 16	2	2.27
5026-790-016-200	SBT40xSKX16-200	265.4	200	173	40	40	62.5	M18 x 1.5P	2 ~ 16	2	2.41
5026-790-016-250	SBT40xSKX16-250	315.4	250	223	40	40	62.5	M18 x 1.5P	2 ~ 16	2	3.21
5026-790-020-060	SBT40xSKX20-60	125.4	60	32	48	48.5	-	M22 x 1.5P	3 ~ 20	1	1.30
5026-790-020-075	SBT40xSKX20-75	140.4	75	45	48	48.5	-	M22 x 1.5P	3 ~ 20	1	1.40
5026-790-020-090	SBT40xSKX20-90	155.4	90	60	48	48.5	-	M22 x 1.5P	3 ~ 20	1	1.60
5026-790-020-120	SBT40xSKX20-120	185.4	120	93	48	48.5	62.5	M22 x 1.5P	3 ~ 20	2	2.00
5026-790-025-075	SBT40xSKX25-75	140.4	75	47	55	55	-	M28 x 2.0P	3 ~ 25.4	1	1.70
5026-790-025-090	SBT40xSKX25-90	155.4	90	61	55	55	-	M28 x 2.0P	3 ~ 25.4	1	1.80
5026-790-025-120	SBT40xSKX25-120	185.4	120	91	55	55	-	M28 x 2.0P	3 ~ 25.4	1	2.00
5027-790-006-105	SBT50xSKX6-105	206.8	105	55	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	3.80
5027-790-006-135	SBT50xSKX6-135	236.8	135	60	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	3.90
5027-790-006-165	SBT50xSKX6-165	266.8	165	85	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	4.00
5027-790-006-200	SBT50xSKX6-200	301.8	200	162	19.5	19.5	85	M8 x 1.25P	1 ~ 6	2	5.83
5027-790-010-105	SBT50xSKX10-105	206.8	105	57	30	30	-	M12 x 1.75P	2 ~ 10	1	4.20
5027-790-010-135	SBT50xSKX10-135	236.8	135	70	30	30	-	M12 x 1.75P	2 ~ 10	1	4.40
5027-790-010-165	SBT50xSKX10-165	266.8	165	90	30	30	-	M12 x 1.75P	2 ~ 10	1	4.60
5027-790-010-200	SBT50xSKX10-200	301.8	200	162	30	30	85	M12 x 1.75P	2 ~ 10	2	6.19
5027-790-010-225	SBT50xSKX10-225	326.8	225	187	30	30	85	M12 x 1.75P	2 ~ 10	2	6.56
5027-790-010-250	SBT50xSKX10-250	351.8	250	212	30	30	85	M12 x 1.75P	2 ~ 10	2	6.92
5027-790-010-300	SBT50xSKX10-300	401.8	300	262	30	30	85	M12 x 1.75P	2 ~ 10	2	7.55
5027-790-013-105	SBT50xSKX13-105	206.8	105	62	35	33		M12 x 1.75P	2 ~ 13	1	4.50
5027-790-013-135	SBT50xSKX13-135	236.8	135	92	35	33		M12 x 1.75P	2 ~ 13	2	4.70
5027-790-013-165	SBT50xSKX13-165	266.8	165	92	35	33		M12 x 1.75P	2 ~ 13	2	4.90
5027-790-013-200	SBT50xSKX13-200	301.8	200	92	35	33		M12 x 1.75P	2 ~ 13	2	5.20
5027-790-013-250	SBT50xSKX13-250	351.8	250	92	35	33		M12 x 1.75P	2 ~ 13	2	5.70
5027-790-016-105	SBT50xSKX16-105	206.8	105	62	40	40	-	M18 x 1.5P	2 ~ 16	1	4.70
5027-790-016-135	SBT50xSKX16-135	236.8	135	92	40	40	-	M18 x 1.5P	2 ~ 16	1	4.90
5027-790-016-165	SBT50xSKX16-165	266.8	165	90	40	40	-	M18 x 1.5P	2 ~ 16	1	5.10
5027-790-016-200	SBT50xSKX16-200	301.8	200	162	40	40	85	M18 x 1.5P	2 ~ 16	2	6.31
5027-790-016-250	SBT50xSKX16-250	351.8	250	212	40	40	85	M18 x 1.5P	2 ~ 16	2	7.13
5027-790-016-300	SBT50xSKX16-300	401.8	300	262	40	40	85	M18 x 1.5P	2 ~ 16	2	7.87
5027-790-020-105	SBT50xSKX20-105	206.8	105	62	48	48.5	-	M22 x 1.5P	3 ~ 20	1	4.30
5027-790-020-135	SBT50xSKX20-135	236.8	135	92	48	48.5	-	M22 x 1.5P	3 ~ 20	1	4.60
5027-790-020-165	SBT50xSKX20-165	266.8	165	122	48	48.5	-	M22 x 1.5P	3 ~ 20	1	5.00
5027-790-020-200	SBT50xSKX20-200	301.8	200	162	48	48.5	85	M22 x 1.5P	3 ~ 20	2	6.57
5027-790-020-250	SBT50xSKX20-250	351.8	250	212	48	48.5	85	M22 x 1.5P	3 ~ 20	2	7.47
5027-790-020-300	SBT50xSKX20-300	401.8	300	262	48	48.5	85	M22 x 1.5P	3 ~ 20	2	8.27
5027-790-025-105	SBT50xSKX25-105	206.8	105	62	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.20
5027-790-025-135	SBT50xSKX25-135	236.8	135	92	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.40
5027-790-025-165	SBT50xSKX25-165	266.8	165	122	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.60
5027-790-025-200	SBT50xSKX25-200	301.8	200	162	55	55	85	M28 x 2.0P	3 ~ 25.4	2	6.53
5027-790-025-250	SBT50xSKX25-250	351.8	250	212	55	55	85	M28 x 2.0P	3 ~ 25.4	2	7.57
5027-790-025-300	SBT50xSKX25-300	401.8	300	262	55	55	85	M28 x 2.0P	3 ~ 25.4	2	8.51

DualDRIVE+ SCAT/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/SCAT-SKX_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5043-790-006-089	SCAT40xSKX6-3.5"	6.187	3.5	2	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	1.20
5043-790-006-121	SCAT40xSKX6-4.75"	7.437	4.75	2.89	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	1.50
5043-790-006-152	SCAT40xSKX6-6"	8.687	6	4.14	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	1.60
5043-790-010-089	SCAT40xSKX10-3.5"	6.187	3.5	2	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	1.30
5043-790-010-121	SCAT40xSKX10-4.75"	7.437	4.75	3.25	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	1.50
5043-790-010-152	SCAT40xSKX10-6"	8.687	6	4.5	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	1.70
5043-790-010-180	SCAT40xSKX10-7.09"	9.777	7.09	5.59	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	1.80
5043-790-013-089	SCAT40xSKX13-3.5"	6.187	3.5	2.004	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.05
5043-790-013-102	SCAT40xSKX13-4"	6.687	4	2.504	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	1.65
5043-790-016-089	SCAT40xSKX16-3.5"	6.187	3.5	2.03	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	1.60
5043-790-016-121	SCAT40xSKX16-4.75"	7.437	4.75	3.28	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	1.80
5043-790-016-152	SCAT40xSKX16-6"	8.687	6	4.53	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	2.00
5043-790-016-180	SCAT40xSKX16-7.09"	9.777	7.09	5.62	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	2.20
5043-790-020-089	SCAT40xSKX20-3.5"	6.187	3.5	1.71	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	1.70
5043-790-020-121	SCAT40xSKX20-4.75"	7.437	4.75	2.96	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	2.00
5043-790-020-152	SCAT40xSKX20-6"	8.687	6	4.21	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	2.20
5043-790-025-089	SCAT40xSKX25-3.5"	6.187	3.5	1.71	2.165	2.165	M28 x 2.0P	0.125 ~ 1	1.90
5043-790-025-121	SCAT40xSKX25-4.75"	7.437	4.75	2.96	2.165	2.165	M28 x 2.0P	0.125 ~ 1	2.10
5043-790-025-152	SCAT40xSKX25-6"	8.687	6	4.21	2.165	2.165	M28 x 2.0P	0.125 ~ 1	2.30
5044-790-006-105	SCAT50xSKX6-4.13"	8.13	4.13	2.27	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	3.90
5044-790-006-165	SCAT50xSKX6-6.5"	10.5	6.5	4.64	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	4.10
5044-790-006-195	SCAT50xSKX6-7.68"	11.68	7.68	5.82	0.768	0.768	M8 x 1.25P	0.125 ~ 0.25	4.50
5044-790-010-105	SCAT50xSKX10-4.13"	8.13	4.13	2.55	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	4.30
5044-790-010-165	SCAT50xSKX10-6.5"	10.5	6.5	4.92	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	4.70
5044-790-010-195	SCAT50xSKX10-7.68"	11.68	7.68	6.1	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	4.80
5044-790-010-225	SCAT50xSKX10-8.86"	12.86	8.86	7.28	1.181	1.181	M12 x 1.75P	0.125 ~ 0.375	4.90
5044-790-013-102	SCAT50xSKX13-4"	8	4	2.425	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	3.80
5044-790-013-114	SCAT50xSKX13-4.5"	8.5	4.5	2.925	1.299	1.299	M12 x 1.75P	0.125 ~ 0.5	4.00
5044-790-016-105	SCAT50xSKX16-4.13"	8.13	4.13	2.55	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	4.80
5044-790-016-165	SCAT50xSKX16-6.5"	10.5	6.5	4.92	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	5.20
5044-790-016-225	SCAT50xSKX16-8.86"	12.86	8.86	7.28	1.575	1.575	M18 x 1.5P	0.125 ~ 0.625	5.70
5044-790-020-105	SCAT50xSKX20-4.13"	8.13	4.13	2.55	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	4.40
5044-790-020-165	SCAT50xSKX20-6.5"	10.5	6.5	4.92	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	5.10
5044-790-020-225	SCAT50xSKX20-8.86"	12.86	8.86	7.28	1.89	1.909	M22 x 1.5P	0.125 ~ 0.75	5.70
5044-790-025-105	SCAT50xSKX25-4.13"	8.13	4.13	2.55	2.165	2.165	M28 x 2.0P	0.125 ~ 1	5.30
5044-790-025-165	SCAT50xSKX25-6.5"	10.5	6.5	4.92	2.165	2.165	M28 x 2.0P	0.125 ~ 1	6.00
5044-790-025-225	SCAT50xSKX25-8.86"	12.86	8.86	7.28	2.165	2.165	M28 x 2.0P	0.125 ~ 1	6.30

DualDRIVE+ SDAT/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/SDAT-SKX_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	SIZE RANGE	Fig.	WEIGHT (KGS)
5066-790-006-060	SDAT40xSKX6-60	128.4	60	37.9	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	1.00
5066-790-006-090	SDAT40xSKX6-90	158.4	90	51	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	1.10
5066-790-006-120	SDAT40xSKX6-120	188.4	120	81	19.5	19.5	53	M8 x 1.25P	1 ~ 6	2	1.40
5066-790-006-150	SDAT40xSKX6-150	218.4	150	111	19.5	19.5	53	M8 x 1.25P	1 ~ 6	2	1.50
5066-790-010-060	SDAT40xSKX10-60	128.4	60	32	30	30	-	M12 x 1.75P	2 ~ 10	1	1.10
5066-790-010-090	SDAT40xSKX10-90	158.4	90	48	30	30	-	M12 x 1.75P	2 ~ 10	1	1.20
5066-790-010-120	SDAT40xSKX10-120	188.4	120	78	30	30	53	M12 x 1.75P	2 ~ 10	2	1.40
5066-790-010-150	SDAT40xSKX10-150	218.4	150	108	30	30	53	M12 x 1.75P	2 ~ 10	2	1.60
5066-790-010-180	SDAT40xSKX10-180	248.4	180	138	30	30	53	M12 x 1.75P	2 ~ 10	2	1.60
5066-790-013-090	SDAT40xSKX13-90	158.4	90	67	33	33		M12 x 1.75P	2 ~ 13	1	1.40
5066-790-013-120	SDAT40xSKX13-120	188.4	120	97	33	33		M12 x 1.75P	2 ~ 13	2	1.60
5066-790-016-060	SDAT40xSKX16-60	128.4	60	40.9	40	40	-	M18 x 1.5P	2 ~ 16	1	1.30
5066-790-016-090	SDAT40xSKX16-90	158.4	90	58	40	40	-	M18 x 1.5P	2 ~ 16	1	1.50
5066-790-016-120	SDAT40xSKX16-120	188.4	120	88	40	40	80	M18 x 1.5P	2 ~ 16	2	1.70
5066-790-016-150	SDAT40xSKX16-150	218.4	150	118	40	40	80	M18 x 1.5P	2 ~ 16	2	1.90
5066-790-016-180	SDAT40xSKX16-180	248.4	180	148	40	40	80	M18 x 1.5P	2 ~ 16	2	2.00
5066-790-020-090	SDAT40xSKX20-90	158.4	90	60	48	48.5	-	M22 x 1.5P	3 ~ 20	1	1.60
5066-790-020-120	SDAT40xSKX20-120	188.4	120	89.9	48	48.5	80	M22 x 1.5P	3 ~ 20	2	2.00
5066-790-025-090	SDAT40xSKX25-90	158.4	90	55	55	55	-	M28 x 2.0P	3 ~ 25.4	1	1.80
5066-790-025-120	SDAT40xSKX25-120	188.4	120	91	55	55	80	M28 x 2.0P	3 ~ 25.4	2	2.00
5067-790-006-105	SDAT50xSKX6-105	206.8	105	55	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	3.80
5067-790-006-135	SDAT50xSKX6-135	236.8	135	60	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	3.90
5067-790-006-165	SDAT50xSKX6-165	266.8	165	85	19.5	19.5	-	M8 x 1.25P	1 ~ 6	1	4.00
5067-790-006-200	SDAT50xSKX6-200	301.8	200	120	19.5	19.5	80	M8 x 1.25P	1 ~ 6	2	4.20
5067-790-010-105	SDAT50xSKX10-105	206.8	105	57	30	30	-	M12 x 1.75P	2 ~ 10	1	4.20
5067-790-010-135	SDAT50xSKX10-135	236.8	135	70	30	30	-	M12 x 1.75P	2 ~ 10	1	4.40
5067-790-010-165	SDAT50xSKX10-165	266.8	165	90	30	30	-	M12 x 1.75P	2 ~ 10	1	4.60
5067-790-010-200	SDAT50xSKX10-200	301.8	200	125	30	30	80	M12 x 1.75P	2 ~ 10	2	4.80
5067-790-013-105	SDAT50xSKX13-105	206.75	105	80	33	33		M12 x 1.75P	2 ~ 13	1	4.20
5067-790-013-165	SDAT50xSKX13-165	266.75	165	140	33	33		M12 x 1.75P	2 ~ 13	2	4.60
5067-790-016-105	SDAT50xSKX16-105	206.8	105	62	40	40	-	M18 x 1.5P	2 ~ 16	1	4.70
5067-790-016-135	SDAT50xSKX16-135	236.8	135	92	40	40	-	M18 x 1.5P	2 ~ 16	1	4.90
5067-790-016-165	SDAT50xSKX16-165	266.8	165	90	40	40	-	M18 x 1.5P	2 ~ 16	1	5.10
5067-790-016-200	SDAT50xSKX16-200	301.8	200	125	40	40	80	M18 x 1.5P	2 ~ 16	2	5.50
5067-790-020-105	SDAT50xSKX20-105	206.8	105	62	48	48.5	-	M22 x 1.5P	3 ~ 20	1	4.30
5067-790-020-135	SDAT50xSKX20-135	236.8	135	92	48	48.5	-	M22 x 1.5P	3 ~ 20	1	4.60
5067-790-020-165	SDAT50xSKX20-165	266.8	165	122	48	48.5	-	M22 x 1.5P	3 ~ 20	1	5.00
5067-790-025-105	SDAT50xSKX25-105	206.8	105	62	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.20
5067-790-025-135	SDAT50xSKX25-135	236.8	135	92	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.40
5067-790-025-165	SDAT50xSKX25-165	266.8	165	122	55	55	-	M28 x 2.0P	3 ~ 25.4	1	5.60
5067-790-025-200	SDAT50xSKX25-200	301.8	200	157	55	55	80	M28 x 2.0P	3 ~ 25.4	2	6.00

HSK-A/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/HSK-SKX_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	SIZE RANGE	Fig.	WEIGHT (KGS)
5071-790-006-060	HSK40AxSKX6-60	80	60	35	19.5	19.5	-	M8x1.25P	1~6	1	0.25
5071-790-010-075	HSK40AxSKX10-75	95	75	53	30	30	-	M12x1.75P	2~10	1	0.38
5071-790-016-080	HSK40AxSKX16-80	100	80	45	40	40	-	-	2~16	1	0.44
5072-790-006-060	HSK50AxSKX6-60	85	60	29	19.5	19.5	-	-	1~6	1	0.41
5072-790-006-080	HSK50AxSKX6-80	105	80	49	19.5	19.5	-	M8x1.25P	1~6	1	0.44
5072-790-010-060	HSK50AxSKX10-60	85	60	29	30	30	-	-	2~10	1	0.47
5072-790-010-090	HSK50AxSKX10-90	115	90	59	30	30	-	M12x1.75P	2~10	1	0.61
5072-790-013-070	HSK50AxSKX13-70	95	70	41	35	33	-	-	2~13	1	0.90
5072-790-013-105	HSK50AxSKX13-105	130	105	76	35	33	-	M12x1.75P	2~13	1	1.20
5072-790-016-080	HSK50AxSKX16-80	105	80	53	40	40	-	-	2~16	1	0.63
5072-790-016-105	HSK50AxSKX16-105	130	105	78	40	40	-	M18x1.5P	2~16	1	0.83
5073-790-006-060	HSK63AxSKX6-60	92	60	29	19.5	19.5	-	-	1~6	1	0.66
5073-790-006-100	HSK63AxSKX6-100	132	100	69	19.5	19.5	-	M8x1.25P	1~6	1	0.70
5073-790-006-120	HSK63AxSKX6-120	152	120	94	19.5	19.5	53	M8x1.25P	1~6	2	1.08
5073-790-010-060	HSK63AxSKX10-60	92	60	29	30	30	-	-	2~10	1	0.72
5073-790-010-105	HSK63AxSKX10-105	137	105	74	30	30	-	M12x1.75P	2~10	1	0.93
5073-790-010-120	HSK63AxSKX10-120	152	120	94	30	30	53	M12x1.75P	2~10	2	1.23
5073-790-013-070	HSK63AxSKX13-70	102	70	39	33	33	-	-	2~13	1	0.90
5073-790-013-105	HSK63AxSKX13-105	137	105	74	33	33	-	M12x1.75P	2~13	1	1.20
5073-790-013-120	HSK63AxSKX13-120	152	120	89	33	33	-	M12x1.75P	2~13	2	1.50
5073-790-016-080	HSK63AxSKX16-80	112	80	49	40	40	-	-	2~16	1	0.89
5073-790-016-105	HSK63AxSKX16-105	137	105	74	40	40	-	M12x1.75P	2~16	1	1.07
5073-790-016-120	HSK63AxSKX16-120	152	120	94	40	40	53	M18x1.5P	2~16	2	1.29
5073-790-020-090	HSK63AxSKX20-90	122	90	63	48	48.5	-	-	3~20	1	1.14
5073-790-020-105	HSK63AxSKX20-105	137	105	78	48	48.5	-	-	3~20	1	1.34
5073-790-020-135	HSK63AxSKX20-135	167	135	108	48	48.5	-	M22x1.5P	3~20	1	1.67
5073-790-025-090	HSK63AxSKX25-90	122	90	63.5	55	52	-	-	3~25.4	1	1.09
5073-790-025-135	HSK63AxSKX25-135	167	135	108	55	52	-	M28x2.0P	3~25.4	1	1.78
5075-790-006-105	HSK100AxSKX6-105	155	105	61	19.5	19.5	-	M8x1.25P	1~6	1	2.08
5075-790-010-105	HSK100AxSKX10-105	155	105	61	30	30	-	M12x1.75P	2~10	1	2.28
5075-790-010-120	HSK100AxSKX10-120	170	120	76	30	30	-	M12x1.75P	2~10	1	2.35
5075-790-010-150	HSK100AxSKX10-150	200	150	106	30	30	-	M12x1.75P	2~10	1	2.50
5075-790-013-105	HSK100AxSKX13-105	155	105	71	33	33	-	M12x1.75P	2~13	1	2.70
5075-790-013-120	HSK100AxSKX13-120	170	120	76	33	33	-	M12x1.75P	2~13	1	3.10
5075-790-013-150	HSK100AxSKX13-150	200	150	106	33	33	-	M12x1.75P	2~13	1	3.40
5075-790-016-105	HSK100AxSKX16-105	155	105	61	40	40	-	M18x1.5P	2~16	1	2.45
5075-790-016-120	HSK100AxSKX16-120	170	120	76	40	40	-	M18x1.5P	2~16	1	2.56
5075-790-016-150	HSK100AxSKX16-150	200	150	106	40	40	-	M18x1.5P	2~16	1	2.80
5075-790-020-120	HSK100AxSKX20-120	170	120	81	48	48.5	-	M22x1.5P	3~20	1	2.80
5075-790-020-150	HSK100AxSKX20-150	200	150	111	48	48.5	-	M22x1.5P	3~20	1	3.15
5075-790-020-200	HSK100AxSKX20-200	250	200	171	48	48.5	88	M22x1.5P	3~20	2	4.82
5075-790-025-120	HSK100AxSKX25-120	170	120	81	55	55	-	M28x2.0P	3~25.4	1	2.88
5075-790-025-145	HSK100AxSKX25-145	195	145	106	55	55	-	M28x2.0P	3~25.4	1	3.21

HSK-E/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/HSK-SKX_(E_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	SIZE RANGE	Fig.	WEIGHT (KGS)
5097-790-006-045	HSK25ExSKX6-45	58	45	34	19.5	19.5	-	-	1~6	1	0.10
5097-790-010-055	HSK25ExSKX10-55	68	55	35	30	30	-	-	2~10	1	0.18
5098-790-006-060	HSK32ExSKX6-60	76	60	36	19.5	19.5	-	-	1~6	1	0.17
5098-790-010-060	HSK32ExSKX10-60	76	60	40	30	26	-	-	2~10	1	0.26
5098-790-010-075	HSK32ExSKX10-75	91	75	40	30	30	-	M6x1.0P	2~10	1	0.30
5099-790-006-060	HSK40ExSKX6-60	80	60	35	19.5	19.5	-	-	1~6	1	0.28
5099-790-010-060	HSK40ExSKX10-60	80	60	38	30	30	-	-	2~10	1	0.40
5099-790-010-075	HSK40ExSKX10-75	95	75	53	30	30	-	M6x1.0P	2~10	1	0.50
5099-790-016-080	HSK40ExSKX16-80	100	80	45	40	40	-	-	2~16	1	0.60
5100-790-006-060	HSK50ExSKX6-60	85	60	29	19.5	19.5	-	-	1~6	1	0.50
5100-790-006-080	HSK50ExSKX6-80	105	80	49	19.5	19.5	-	M6x1.0P	1~6	1	0.60
5100-790-010-060	HSK50ExSKX10-60	85	60	29	30	30	-	-	2~10	1	0.50
5100-790-010-105	HSK50ExSKX10-105	130	105	74	30	30	-	M10x1.5P	2~10	1	0.70
5100-790-016-080	HSK50ExSKX16-80	105	80	53	40	40	-	-	2~16	1	0.60
5100-790-016-120	HSK50ExSKX16-120	145	120	93	40	40	-	M16x2.0P	2~16	1	1.10
5101-790-006-100	HSK63ExSKX6-100	132	100	69	19.5	19.5	-	M6x1.0P	1~6	1	0.90
5101-790-006-120	HSK63ExSKX6-120	152	120	94	19.5	19.5	53	M6x1.0P	1~6	2	1.00
5101-790-010-105	HSK63ExSKX10-105	137	105	74	30	30	-	M10x1.5P	2~10	1	1.30
5101-790-010-120	HSK63ExSKX10-120	152	120	94	30	30	53	M10x1.5P	2~10	2	1.50
5101-790-010-150	HSK63ExSKX10-150	182	150	124	30	30	53	M10x1.5P	2~10	2	1.70
5101-790-016-120	HSK63ExSKX16-120	152	120	89	40	40	-	M18x1.5P	2~16	1	1.70
5101-790-016-150	HSK63ExSKX16-150	182	150	124	40	40	53	M18x1.5P	2~16	2	1.80
5101-790-020-120	HSK63ExSKX20-120	152	120	92	48	48.5	-	M22x1.5P	3~20	1	1.80
5101-790-020-135	HSK63ExSKX20-135	167	135	107	48	48.5	-	M22x1.5P	3~20	1	2.00
5101-790-025-135	HSK63ExSKX25-135	167	135	108	55	52	-	M28x2.0P	3~25.4	1	1.90

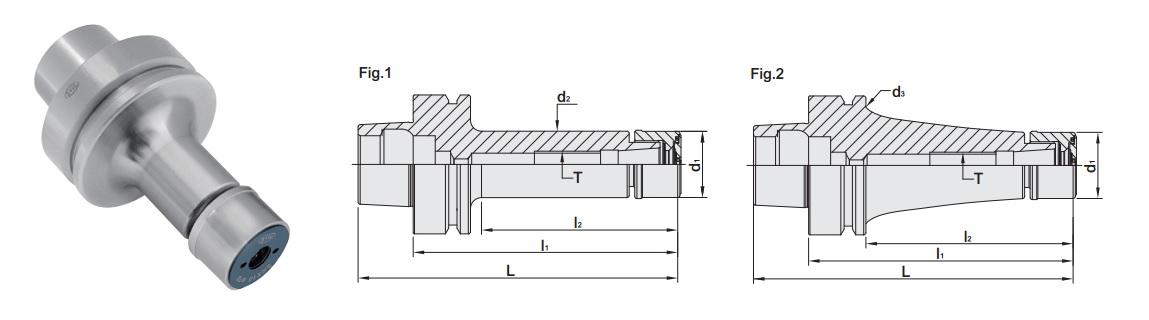

HSK-F/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/HSK-SKX_(F_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	SIZE RANGE	Fig.	WEIGHT (KGS)
5103-790-010-090	HSK63FxSKX10-90	115	90	60	30	30	-	M12x1.75P	2~10	1	0.86
5103-790-010-105	HSK63FxSKX10-105	130	105	75	30	30	-	M12x1.75P	2~10	1	0.94
5103-790-016-090	HSK63FxSKX16-90	115	90	59	40	40	-	M18x1.5P	2~16	1	0.96
5103-790-016-105	HSK63FxSKX16-105	130	105	74	40	40	-	M18x1.5P	2~16	1	1.08
5103-790-016-120	HSK63FxSKX16-120	145	120	94	40	40	53	M18x1.5P	2~16	2	1.30
5103-790-020-120	HSK63FxSKX20-120	145	120	93	48	48.5	-	M22x1.5P	3~20	1	1.50
5103-790-025-090	HSK63FxSKX25-90	115	90	63	52	55	-	-	3~25.4	1	1.12

PSC/SKX COLLET CHUCK

proimages/Products/Tool_holders/Collet_chuck/SKX/PSC-SKX_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	SIZE RANGE	WEIGHT (KGS)
5141-790-006-060	PSC40xSKX6-60	84	60	35	19.5	19.5	M8 x 1.25P	1 ~ 6	0.28
5141-790-010-075	PSC40xSKX10-75	99	75	50	30	30	M12 x 1.75P	2 ~ 10	0.43
5141-790-013-050	PSC40xSKX13-50	74	50	29	35	33	-	2 ~ 13	0.70
5141-790-016-080	PSC40xSKX16-80	104	80	55	40	40	M18 x 1.5P	2 ~ 16	0.54
5142-790-006-060	PSC50xSKX6-60	90	60	35	19.5	19.5	M8 x 1.25P	1 ~ 6	0.45
5142-790-006-080	PSC50xSKX6-80	110	80	55	19.5	19.5	M8 x 1.25P	1 ~ 6	0.52
5142-790-010-060	PSC50xSKX10-60	90	60	35	30	30	M12 x 1.75P	2 ~ 10	0.53
5142-790-010-090	PSC50xSKX10-90	120	90	65	30	30	M12 x 1.75P	2 ~ 10	0.63
5142-790-013-060	PSC50xSKX13-60	90	60	35	35	33	-	2 ~ 13	0.70
5142-790-016-080	PSC50xSKX16-80	110	80	55	40	40	M18 x 1.5P	2 ~ 16	0.72
5142-790-016-105	PSC50xSKX16-105	135	105	80	40	40	M18 x 1.5P	2 ~ 16	1.27
5143-790-006-060	PSC63xSKX6-60	98	60	33	19.5	19.5	M8 x 1.25P	1 ~ 6	0.81
5143-790-006-100	PSC63xSKX6-100	138	100	73	19.5	19.5	M8 x 1.25P	1 ~ 6	0.88
5143-790-006-120	PSC63xSKX6-120	158	120	93	19.5	19.5	M8 x 1.25P	1 ~ 6	0.92
5143-790-010-060	PSC63xSKX10-60	98	60	33	30	30	M12 x 1.75P	2 ~ 10	0.87
5143-790-010-105	PSC63xSKX10-105	143	105	78	30	30	M12 x 1.75P	2 ~ 10	1.12
5143-790-010-120	PSC63xSKX10-120	158	120	93	30	30	M12 x 1.75P	2 ~ 10	1.19
5143-790-013-090	PSC63xSKX13-90	128	90	63	33	33	M12 x 1.75P	2 ~ 13	1.20
5143-790-016-080	PSC63xSKX16-80	118	80	53	40	40	-	2 ~ 16	1.06
5143-790-016-105	PSC63xSKX16-105	143	105	83	40	40	M18 x 1.5P	2 ~ 16	1.28
5143-790-016-120	PSC63xSKX16-120	158	120	98	40	40	M18 x 1.5P	2 ~ 16	1.41
5143-790-020-090	PSC63xSKX20-90	128	90	60	48.5	48.5	-	3 ~ 20	1.32
5143-790-020-105	PSC63xSKX20-105	143	105	80	48.5	48.5	M22 x 1.5P	3 ~ 20	1.48
5143-790-020-135	PSC63xSKX20-135	173	135	95	48.5	48.5	M22 x 1.5P	3 ~ 20	1.80
5143-790-025-090	PSC63xSKX25-90	128	90	64	55	55	-	3 ~ 25.4	1.32
5143-790-025-135	PSC63xSKX25-135	173	135	109	55	55	M28 x 2.0P	3 ~ 25.4	1.82
5144-790-010-075	PSC80xSKX10-75	123	75	22	30	30	M28 x 2.0P	2 ~ 10	1.84
5144-790-010-090	PSC80xSKX10-90	138	90	42	30	30	-	2 ~ 10	1.91
5144-790-016-075	PSC80xSKX16-75	123	75	37	40	40	M12 x 1.75P	2 ~ 16	1.89
5144-790-016-090	PSC80xSKX16-90	138	90	57	40	40	M18 x 1.5P	2 ~ 16	2.01

series:

proimages/Technical_information/SKX-TI.jpg

series:

SKX Collet Chuck Assembly Application

Back

Product Description
