SOG Origin Gauge

SOG (Spindle Origin Gauge) for CNC Machines
Product Name : SOG Origin Gauge
Product Description
proimages/taper_icon/HSK-T_icon..jpg proimages/taper_icon/PSC-icon..jpg proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/SCAT-icon..jpg proimages/taper_icon/SDAT-icon..jpg
  • Regular inspection and calibration of machine origin achieves premium machining quality.
  • SOG is an important gauge to calibrate axial and radial accuracy of CNC machines.
  • Every SOG origin gauge is inspected with high precision instrument and delivered with an inspection report. 100% quality guaranteed!
  • Application:
proimages/Products/Measuring_Tool_for_Machining_Center/SOG_Spindle_Origin_Gauge/Application_of_SOG_en.png
series:

SOG ORIGIN GAUGE

SOG ORIGIN GAUGE

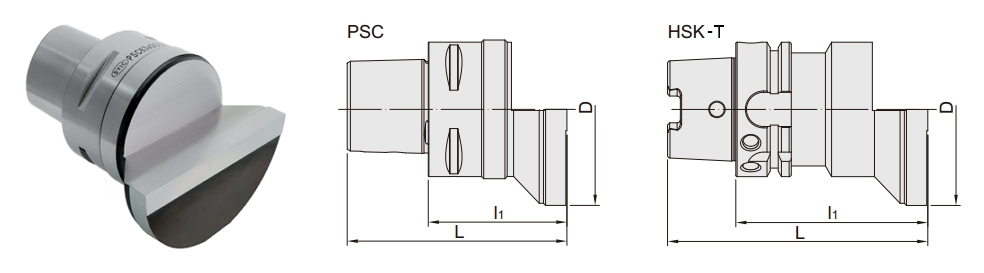

MODEL NO.TYPELl1DWEIGHT
(KGS)
PSC SERIES　　　　　
5140-S98-044-040 PSC32xSOG44-40 59 40 44 0.26
5141-S98-054-050 PSC40xSOG54-50 74 50 54 0.52
5142-S98-070-060 PSC50xSOG70-60 90 60 70 0.99
5143-S98-090-065 PSC63xSOG90-65 103 65 90 1.72
5144-S98-110-080 PSC80xSOG110-80 128 80 110 3.46
5146-S98-130-100 PSC100xSOG130-100 160 100 130 6.57
HSK-T SERIES　　　　　
570T-S98-044-070 HSK-T32xSOG44-70 89 70 44 0.36
571T-S98-054-070 HSK-T40xSOG54-70 94 70 54 0.60
572T-S98-070-080 HSK-T50xSOG70-80 110 80 70 1.06
573T-S98-090-090 HSK-T63xSOG90-90 128 90 90 1.97
574T-S98-110-100 HSK-T80xSOG110-100 148 100 110 3.51
575T-S98-130-110 HSK-T100xSOG130-110 170 110 130 5.94
