Product Name : SPD Indexable High Speed Drill
Product Description


  • Used with side lock end mill holders.
  • Available in 3xD, 4xD and 5xD, drilling range is from13 to 50mm in diameters.
  • Made of anti-vibration tool steels, high rigidity and longer tool life.
  • Finish machining after pre- hardening to improve rigidity and stability, preventing from deformation.
  • Surface treatments of nickel plating provide good corrosion and wear resistance.
  • Inserts, SP.., need to be purchased separately.

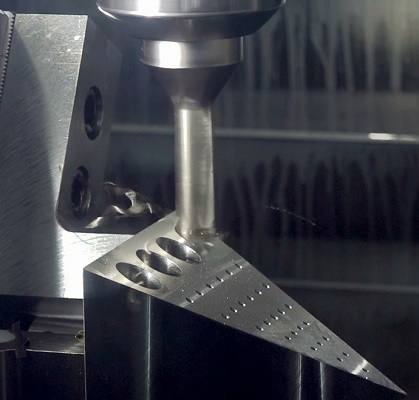

proimages/Products/Cutting_tools/High_speed_drill/SPD/SPD_feature.jpg
series:

INDEXABLE HIGH SPEED DRILL

proimages/Products/Cutting_tools/High_speed_drill/SPD/SPD_figure.jpg

MODEL NO.TYPEDd1Ll1l2l3INSERT
5156-685-132-039 SPD13-C25-3D-39L 25 13 119 63 44 39 SP..0502
5156-685-142-042 SPD14-C25-3D-42L 25 14 122 66 47 42 SP..0502
5156-685-152-045 SPD15-C25-3D-45L 25 15 125 69 50 45 SP..0502
5156-685-162-048 SPD16-C25-3D-48L 25 16 130 74 53 48 SP..0602
5156-685-172-051 SPD17-C25-3D-51L 25 17 133 77 56 51 SP..0602
5156-685-182-054 SPD18-C25-3D-54L 25 18 136 80 59 54 SP..0602
5156-685-192-057 SPD19-C25-3D-57L 25 19 139 83 62 57 SP..0602
5156-685-202-060 SPD20-C25-3D-60L 25 20 142 86 65 60 SP..0602
5156-685-212-063 SPD21-C25-3D-63L 25 21 145 89 68 63 SP..0602
5156-685-222-066 SPD22-C25-3D-66L 25 22 154 94 71 66 SP..07T3
5156-685-233-069 SPD23-C32-3D-69L 32 23 157 97 74 69 SP..07T3
5156-685-243-072 SPD24-C32-3D-72L 32 24 160 100 77 72 SP..07T3
5156-685-253-075 SPD25-C32-3D-75L 32 25 163 103 80 75 SP..07T3
5156-685-263-078 SPD26-C32-3D-78L 32 26 166 106 83 78 SP..07T3
5156-685-273-081 SPD27-C32-3D-81L 32 27 169 109 86 81 SP..07T3
5156-685-283-084 SPD28-C32-3D-84L 32 28 174 114 89 84 SP..0904
5156-685-293-087 SPD29-C32-3D-87L 32 29 177 117 92 87 SP..0904
5156-685-303-090 SPD30-C32-3D-90L 32 30 180 120 95 90 SP..0904
5156-685-313-093 SPD31-C32-3D-93L 32 31 183 123 98 93 SP..0904
5156-685-323-096 SPD32-C32-3D-96L 32 32 186 126 101 96 SP..0904
5156-685-333-099 SPD33-C32-3D-99L 32 33 189 129 104 99 SP..0904
5156-685-343-102 SPD34-C32-3D-102L 32 34 192 132 107 102 SP..1104
5156-685-353-105 SPD35-C32-3D-105L 32 35 195 135 110 105 SP..1104
5156-685-363-108 SPD36-C32-3D-108L 32 36 198 138 113 108 SP..1104
5156-685-373-111 SPD37-C32-3D-111L 32 37 201 141 116 111 SP..1104
5156-685-383-114 SPD38-C32-3D-114L 32 38 204 144 119 114 SP..1104
5156-685-393-117 SPD39-C32-3D-117L 32 39 207 147 122 117 SP..1104
5156-685-404-120 SPD40-C40-3D-120L 40 40 224 154 125 120 SP..1104
5156-685-414-123 SPD41-C40-3D-123L 40 41 227 157 128 123 SP..1104
5156-685-424-126 SPD42-C40-3D-126L 40 42 230 160 131 126 SP..1405
5156-685-434-129 SPD43-C40-3D-129L 40 43 233 163 134 129 SP..1405
5156-685-444-132 SPD44-C40-3D-132L 40 44 236 166 137 132 SP..1405
5156-685-454-135 SPD45-C40-3D-135L 40 45 239 169 140 135 SP..1405
5156-685-464-138 SPD46-C40-3D-138L 40 46 242 172 143 138 SP..1405
5156-685-474-141 SPD47-C40-3D-141L 40 47 245 175 146 141 SP..1405
5156-685-484-144 SPD48-C40-3D-144L 40 48 248 178 149 144 SP..1405
5156-685-494-147 SPD49-C40-3D-147L 40 49 251 181 152 147 SP..1405
5156-685-504-150 SPD50-C40-3D-150L 40 50 254 184 155 150 SP..1405
5156-685-13.52-041 SPD13.5-C25-3D-40.5L 25 13.5 120.5 64.5 45.5 40.5 SP..0502
5156-685-14.52-044 SPD14.5-C25-3D-43.5L 25 14.5 123.5 67.5 48.5 43.5 SP..0502
5156-685-15.52-047 SPD15.5-C25-3D-46.5L 25 15.5 128.5 72.5 51.5 46.5 SP..0602
5156-685-16.52-050 SPD16.5-C25-3D-49.5L 25 16.5 1313.5 75.5 54.5 49.5 SP..0602
5156-685-17.52-053 SPD17.5-C25-3D-52.5L 25 17.5 134.5 78.5 57.5 52.5 SP..0602
5156-685-18.52-056 SPD18.5-C25-3D-55.5L 25 18.5 137.5 81.5 60.5 55.5 SP..0602
5156-685-19.52-059 SPD19.5-C25-3D-58.5L 25 19.5 140.5 84.5 63.5 58.5 SP..0602
5156-685-20.52-062 SPD20.5-C25-3D-61.5L 25 20.5 143.5 87.5 66.5 61.5 SP..0602
5156-685-21.52-065 SPD21.5-C25-3D-64.5L 25 21.5 146.5 90.5 69.5 64.5 SP..0602
5156-685-22.53-068 SPD22.5-C32-3D-67.5L 32 22.5 155.5 95.5 72.5 67.5 SP..07T3
5156-685-23.53-071 SPD23.5-C32-3D-70.5L 32 23.5 158.5 98.5 75.5 70.5 SP..07T3
5156-685-24.53-074 SPD24.5-C32-3D-73.5L 32 24.5 161.5 101.5 78.5 73.5 SP..07T3
5156-685-25.53-077 SPD25.5-C32-3D-76.5L 32 25.5 164.5 104.5 81.5 76.5 SP..07T3
5156-685-26.53-080 SPD26.5-C32-3D-79.5L 32 26.5 167.5 107.5 84.5 79.5 SP..07T3
5156-685-27.53-083 SPD27.5-C32-3D-82.5L 32 27.5 170.5 110.5 87.5 82.5 SP..07T3
5156-685-28.53-086 SPD28.5-C32-3D-85.5L 32 28.5 175.5 115.5 90.5 85.5 SP..0904
5156-685-29.53-089 SPD29.5-C32-3D-88.5L 32 29.5 178.5 118.5 93.5 88.5 SP..0904
5156-685-30.53-092 SPD30.5-C32-3D-91.5L 32 30.5 181.5 121.5 96.5 91.5 SP..0904
5156-685-31.53-095 SPD31.5-C32-3D-94.5L 32 31.5 184.5 124.5 99.5 94.5 SP..0904
5156-685-32.53-098 SPD32.5-C32-3D-97.5L 32 32.5 187.5 127.5 102.5 97.5 SP..0904
5156-685-33.53-101 SPD33.5-C32-3D-100.5L 32 33.5 190.5 130.5 105.5 100.5 SP..0904
5156-685-132-052 SPD13-C25-4D-52L 25 13 132 76 57 52 SP..0502
5156-685-142-056 SPD14-C25-4D-56L 25 14 136 80 61 56 SP..0502
5156-685-152-060 SPD15-C25-4D-60L 25 15 140 84 65 60 SP..0502
5156-685-162-064 SPD16-C25-4D-64L 25 16 146 90 69 64 SP..0602
5156-685-172-068 SPD17-C25-4D-68L 25 17 150 94 73 68 SP..0602
5156-685-182-072 SPD18-C25-4D-72L 25 18 154 98 77 72 SP..0602
5156-685-192-076 SPD19-C25-4D-76L 25 19 158 102 81 76 SP..0602
5156-685-202-080 SPD20-C25-4D-80L 25 20 162 106 85 80 SP..0602
5156-685-212-084 SPD21-C25-4D-84L 25 21 166 110 89 84 SP..0602
5156-685-223-088 SPD22-C32-4D-88L 32 22 176 116 93 88 SP..07T3
5156-685-233-092 SPD23-C32-4D-92L 32 23 180 120 97 92 SP..07T3
5156-685-243-096 SPD24-C32-4D-96L 32 24 184 124 101 96 SP..07T3
5156-685-253-100 SPD25-C32-4D-100L 32 25 188 128 105 100 SP..07T3
5156-685-263-104 SPD26-C32-4D-104L 32 26 192 132 109 104 SP..07T3
5156-685-273-108 SPD27-C32-4D-108L 32 27 196 136 113 108 SP..07T3
5156-685-283-112 SPD28-C32-4D-112L 32 28 202 142 117 112 SP..0904
5156-685-293-116 SPD29-C32-4D-116L 32 29 206 146 121 116 SP..0904
5156-685-303-120 SPD30-C32-4D-120L 32 30 210 150 125 120 SP..0904
5156-685-313-124 SPD31-C32-4D-124L 32 31 214 154 129 124 SP..0904
5156-685-323-128 SPD32-C32-4D-128L 32 32 218 158 133 128 SP..0904
5156-685-333-132 SPD33-C32-4D-132L 32 33 222 162 137 132 SP..0904
5156-685-343-136 SPD34-C32-4D-136L 32 34 226 166 141 136 SP..1104
5156-685-353-140 SPD35-C32-4D-140L 32 35 230 170 145 140 SP..1104
5156-685-363-144 SPD36-C32-4D-144L 32 36 234 174 149 144 SP..1104
5156-685-373-148 SPD37-C32-4D-148L 32 37 238 178 153 148 SP..1104
5156-685-383-152 SPD38-C32-4D-152L 32 38 2424 182 157 152 SP..1104
5156-685-393-156 SPD39-C32-4D-156L 32 39 246 186 161 156 SP..1104
5156-685-404-160 SPD40-C40-4D-160L 40 40 264 194 165 160 SP..1405
5156-685-414-164 SPD41-C40-4D-164L 40 41 268 198 169 164 SP..1405
5156-685-424-168 SPD42-C40-4D-168L 40 42 272 202 173 168 SP..1405
5156-685-434-172 SPD43-C40-4D-172L 40 43 276 206 177 172 SP..1405
5156-685-444-176 SPD44-C40-4D-176L 40 44 280 210 181 176 SP..1405
5156-685-454-180 SPD45-C40-4D-180L 40 45 284 214 185 180 SP..1405
5156-685-464-184 SPD46-C40-4D-184L 40 46 288 218 189 184 SP..1405
5156-685-474-188 SPD47-C40-4D-188L 40 47 292 222 193 188 SP..1405
5156-685-484-192 SPD48-C40-4D-192L 40 48 296 226 197 192 SP..1405
5156-685-494-196 SPD49-C40-4D-196L 40 49 300 230 201 196 SP..1405
5156-685-504-200 SPD50-C40-4D-200L 40 50 304 234 205 200 SP..1405
5156-685-162-080 SPD16-C25-5D-80L 25 16 162 106 85 80 SP..0602
5156-685-172-085 SPD17-C25-5D-85L 25 17 167 111 90 85 SP..0602
5156-685-182-090 SPD18-C25-5D-90L 25 18 172 116 95 90 SP..0602
5156-685-192-095 SPD19-C25-5D-95L 25 19 177 121 100 95 SP..0602
5156-685-202-105 SPD20-C25-5D-100L 25 20 187 131 110 105 SP..0602
5156-685-212-105 SPD21-C25-5D-105L 25 21 187 131 110 105 SP..0602
5156-685-223-110 SPD22-C32-5D-110L 32 22 198 138 115 110 SP..07T3
5156-685-233-115 SPD23-C32-5D-115L 32 23 203 143 120 115 SP..07T3
5156-685-243-120 SPD24-C32-5D-120L 32 24 208 148 125 120 SP..07T3
5156-685-253-125 SPD25-C32-5D-125L 32 25 213 153 130 125 SP..07T3
5156-685-263-130 SPD26-C32-5D-130L 32 26 218 158 135 130 SP..07T3
5156-685-273-135 SPD27-C32-5D-135L 32 27 223 163 140 135 SP..07T3
5156-685-283-140 SPD28-C32-5D-140L 32 28 230 170 147 140 SP..0904
5156-685-293-145 SPD29-C32-5D-145L 32 29 235 175 152 145 SP..0904
5156-685-303-150 SPD30-C32-5D-150L 32 30 240 180 157 150 SP..0904
5156-685-313-155 SPD31-C32-5D-155L 32 31 245 185 162 155 SP..0904
5156-685-323-160 SPD32-C32-5D-160L 32 32 250 190 167 160 SP..0904
5156-685-333-165 SPD33-C32-5D-165L 32 33 255 195 172 165 SP..0904
5156-685-343-170 SPD34-C32-5D-170L 32 34 260 200 177 170 SP..1104
5156-685-353-175 SPD35-C32-5D-175L 32 35 265 205 182 175 SP..1104
5156-685-363-180 SPD36-C32-5D-180L 32 36 270 210 187 180 SP..1104
5156-685-373-185 SPD37-C32-5D-185L 32 37 275 215 192 185 SP..1104
5156-685-383-190 SPD38-C32-5D-190L 32 38 280 220 197 190 SP..1104
5156-685-393-195 SPD39-C32-5D-195L 32 39 285 225 202 195 SP..1104
5156-685-403-200 SPD40-C32-5D-200L 32 40 304 244 221 200 SP..1104
5156-685-413-205 SPD41-C32-5D-205L 32 41 309 249 226 205 SP..1104


ACCESSORIES:

INSERTINSERT SCREWWRENCH
SP..0502 M2-4.3-2.7-60 T6
SP..0602 M2.2-5.2-3.1-60 T7
SP..07T3 M2.5-6.33-3.5-48 T8
SP..0904 M3.5-8.4-5.0-60 T10
SP..1104 M4-9.35-5.65-60 T15
SP..1405 M5-12.8-7.0-60 T20
series:
proimages/Products/Cutting_tools/High_speed_drill/SPD/SPD-TI.jpg
