Spindle Runout Test Bar (3μm) from SYIC : CAT40 Test Bar Suppliers

Product Name : Spindle Master Bar 3µm

Spindle Runout Test Bar - Critical Component for Precision

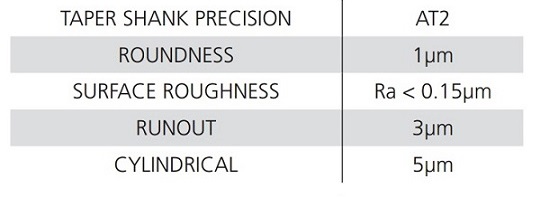

Key Features of Spindle Runout Test Bar
1. The spindle runout test bar lies in its ability to deliver precise measurements of spindle runout, allowing for real-time assessment of spindle performance. This capability is indispensable for maintaining the highest standards of accuracy in machining processes.
2. Built with durability in mind, SYIC spindle runout test bar withstands the rigors of industrial usage. Its robust construction ensures a long lifespan, providing lasting value for your investment.
3. It empowers manufacturers to identify potential issues and undertake proactive maintenance, mitigating the risk of costly downtime.
Available types: SBT, SCAT, HSK and PSC spindle runout test bars.

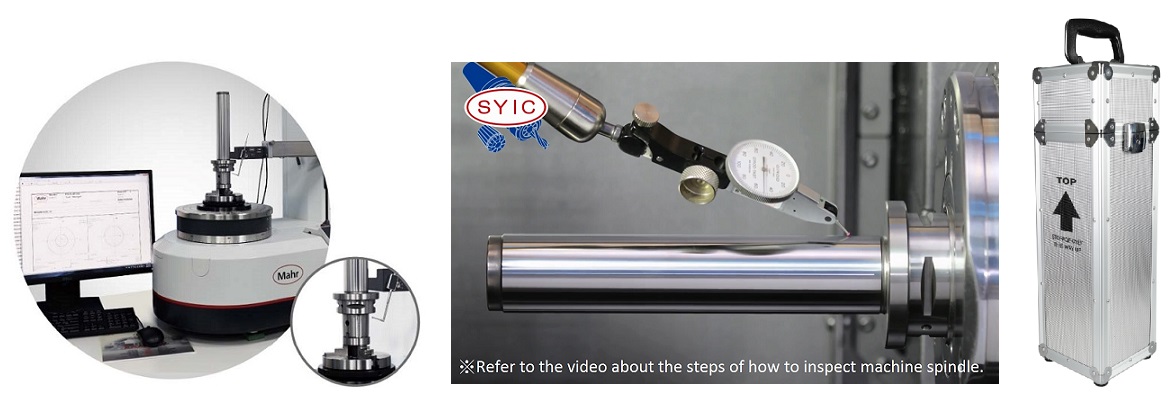

Supplied with an aluminum box for vertical storage.
It’s recommended to store in stock vertically to prevent deformation.

series:

SPINDLE MASTER BAR

SBT SERIES

MODEL NO.	TYPE	l1	l2	D	d1	WEIGHT (KGS)
5002-025-025-250	SBT30x25-250	250	225	46	25	0.91
5002-025-032-150	SBT30x32-150	150	125	46	32	1.09
5002-025-032-235	SBT30x32-235	235	210	46	32	1.57
5002-025-032-300	SBT30x32-300	300	276	46	32	1.91
5002-026-040-300	SBT40x40-300	300	270	63	40	2.52
5002-026-050-200	SBT40x50-200	200	170	63	50	2.94
5002-026-050-350	SBT40x50-350	350	320	63	50	4.64
5002-027-050-200	SBT50x50-200	200	159	100	50	5.28
5002-027-050-360	SBT50x50-360	360	319	100	50	7.1
SCAT SERIES
5002-043-050-300	SCAT40x50-300	300	277.95	63.5	50	4.03
5002-044-050-300	SCAT50x50-300	300	280	98.425	50	6.88
SDAT SERIES
5002-066-050-200	SDAT40x50-200	200	170	63.55	50	2.98
5002-066-050-340	SDAT40x50-340	340	310	63.55	50	4.96
5002-067-050-200	SDAT50x50-200	200	178	97.5	50	4.67
5002-067-050-340	SDAT50x50-340	340	318	97.5	50	6.43

SPINDLE MASTER BAR

PSC SERIES

MODEL NO.	TYPE	l1	l2	D	d1	WEIGHT (KGS)
5002-140-020-180	PSC32x20-180	180	165	32	20	0.41
5002-141-032-180	PSC40x32-180	180	160	40	32	1.08
5002-142-032-180	PSC50x32-180	180	150	63	32	1.38
5002-142-032-245	PSC50x32-245	245	215	63	32	1.7
5002-142-040-280	PSC50x40-280	280	250	63	40	2.12
5002-143-040-182	PSC63x40-182	182	150	75	40	1.93
5002-143-040-232	PSC63x40-232	232	200	75	40	4.02
5002-143-040-352	PSC63x40-352	352	320	75	40	2.93
5002-144-040-240	PSC80x40-240	240	200	75	40	3.26
5002-144-040-320	PSC80x40-320	320	280	85	40	3.74
5002-144-040-360	PSC80x40-360	360	320	85	40	3.98
5002-146-060-480	PSC100x60-480	480	420	100	60	12.35

SPINDLE MASTER BAR

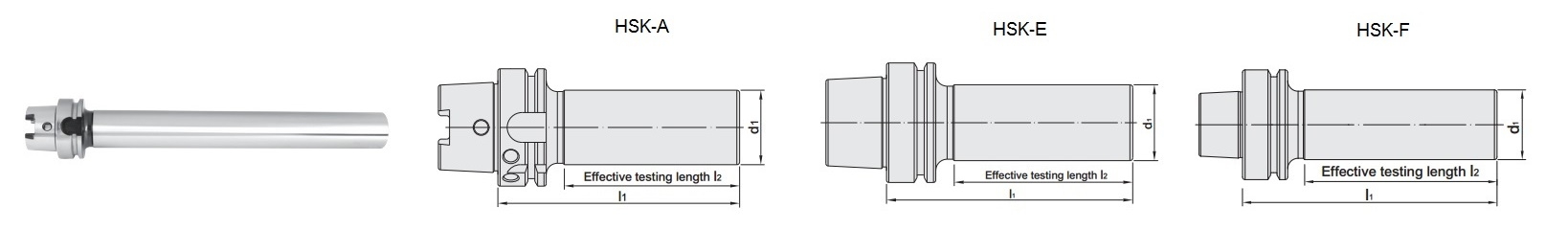

HSK-A SERIES

MODEL NO.	TYPE	l1	l2	d1	WEIGHT (KGS)
5002-069-020-150	HSK25Ax20-150	150	138	20	0.3
5002-070-024-180	HSK32Ax24-180	180	158	24	0.59
5002-070-025-150	HSK32Ax25-150	150	125	25	0.5
5002-071-032-180	HSK40Ax32-180	180	157	32	0.96
5002-071-032-200	HSK40Ax32-200	200	170	32	2.86
5002-071-032-300	HSK40Ax32-300	300	270	32	1.77
5002-072-032-150	HSK50Ax32-150	150	121	32	1.02
5002-072-032-240	HSK50Ax32-240	240	211	32	1.44
5002-072-032-300	HSK50Ax32-300	300	274	32	2.83
5002-073-040-200	HSK63Ax40-200	200	171	40	1.78
5002-073-040-346	HSK63Ax40-346	346	300	40	3.66
5002-073-050-200	HSK63Ax50-200	200	171	50	2.75
5002-073-050-350	HSK63Ax50-350	350	321	50	4.49
5002-074-040-346	HSK80Ax40-346	346	311	40	2.96
5002-074-050-200	HSK80Ax50-200	200	168	50	3.13
5002-074-050-350	HSK80Ax50-350	350	318	50	4.83
5002-075-040-349	HSK100Ax40-349	349	300	40	7.61
5002-075-050-200	HSK100Ax50-200	200	168	50	4.01
5002-075-050-329	HSK100Ax50-329	329	280	50	5.37
5002-075-050-350	HSK100Ax50-350	350	318	50	5.73
5002-076-050-349	HSK125Ax50-349	349	300	50	6.89
5002-076-063-361	HSK125Ax63-361	361	322	63	9.99

HSK-E SERIES

MODEL NO.	TYPE	l1	l2	d1	WEIGHT (KGS)
5002-097-020-175	HSK25Ex20-175	175	163	20	0.36
5002-097-025-175	HSK25Ex25-175	175	163	25	0.58
5002-098-020-180	HSK32Ex20-180	180	158	20	0.41
5002-099-032-180	HSK40Ex32-180	180	157	32	2.98
5002-100-032-180	HSK50Ex32-180	180	151	32	3.7
5002-100-032-240	HSK50Ex32-240	240	211	32	1.59
5002-101-040-335	HSK63Ex40-335	335	300	40	2.44
5002-101-050-200	HSK63Ex50-200	200	171	50	2.72
5002-101-050-350	HSK63Ex50-350	350	321	50	4.42
5002-107-050-200	HSK80Ex50-200	200	171	50	3.17
5002-107-050-350	HSK80Ex50-350	350	321	50	4.87

HSK-F SERIES

MODEL NO.	TYPE	l1	l2	d1	WEIGHT (KGS)
5002-106-032-180	HSK40Fx32-180	180	157	32	0.97
5002-102-032-240	HSK50Fx32-240	240	211	32	1.43
5002-103-040-346	HSK63Fx40-346	346	300	40	4.48
5002-103-040-335	HSK63Fx40-335	335	300	40	2.45
5002-103-050-200	HSK63Fx50-200	200	171	50	2.66
5002-103-050-350	HSK63Fx50-350	350	321	50	4.39
5002-104-050-200	HSK80Fx50-200	200	171	50	3.09
5002-104-050-350	HSK80Fx50-350	350	321	50	4.79

series:

series:

The Inspection Process of HSK40E Spindle Master Bar

3μm Spindle Master Bar-HSK

3μm Spindle Master Bar-SBT

3μm Spindle Master Bar-PSC

Measurement for PSC Test Bar and PSC Tool Holder Based on Two Datums
