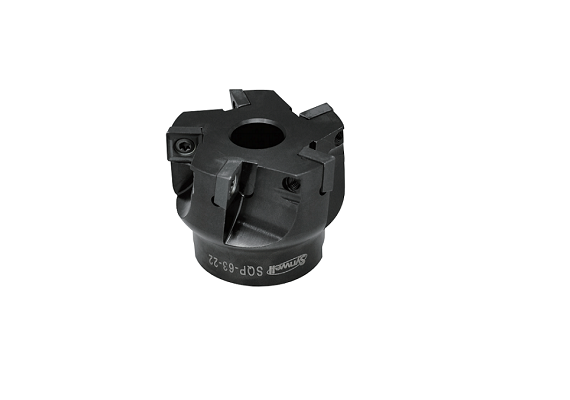

SQP Square Shoulder Milling Cutter

SQP Square Shoulder Milling Cutter
Product Name : SQP Square Shoulder Milling Cutter
Product Description

For end milling, face milling and slotting.

  • The material of SQP is superior alloy tool steel. Good rigidity and anti-vibration ability.
  • Treated with fine processing after hardening, improving machining stability.
  • Insert, SP..1204 needs to be purchased separately.

proimages/Products/Cutting_tools/Face_milling/SQP_feature.png
series:

SQP SQUARE SHOULDER MILLING CUTTER

proimages/Products/Cutting_tools/Face_milling/SQP-figure.png

  METRIC
MODEL NO.TYPEDD1d1LATEETHINSERT
5154-688-022-04 SQP-50-22 50 40 22 40 10.4 4 SP..1204
5154-688-023-05 SQP-63-22 63 50 22 50 10.4 5 SP..1204
5154-688-034-06 SQP-80-27 80 60 27 50 12.4 6 SP..1204
5154-688-045-08 SQP-100-32 100 70 32 55 14.4 8 SP..1204
5154-688-056-08 SQP-125-40 125 90 40 63 16.4 8 SP..1204
5154-688-057-10 SQP-160-40 160 130 40 63 16.4 10 SP..1204
INCHES
5154-688-123-05 SQP-63-25.4 63 50 25.4 50 9.5 5 SP..1204
5154-688-124-06 SQP-80-25.4 80 60 25.4 50 9.5 6 SP..1204
5154-688-135-08 SQP-100-31.75 100 70 31.75 55 12.7 8 SP..1204

ACCESSORIES:
INSERTINSERT SCREWWRENCH
SP..1204 M5-10-6.3-43 T20
