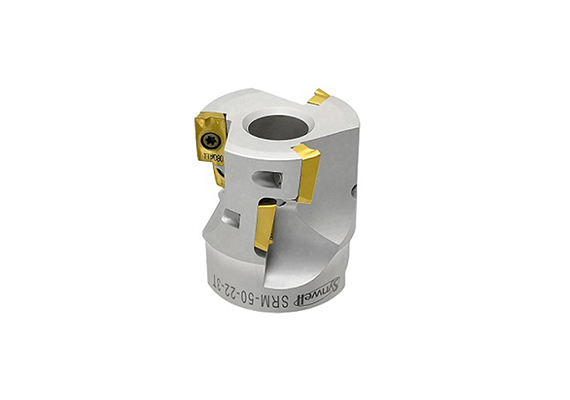

SRM Shell Rough Fixation Mill

SRM Shell Rough Fixation Mill
Product Name : SRM Shell Rough Fixation Mill
Product Description

Idea for ending milling, face milling and slotting!

  • Used with SMA face mill arbor.
  • Extended flutes improve metal chip removal.
  • 4mm thickness insert is ideal for rough milling.
  • Right hand helix design improves cutting efficiency.
  • Insert, AP..1604 need to be purchased separately.
proimages/Products/Cutting_tools/Face_milling/SRM/SRM_feature_picture1.jpg      proimages/Products/Cutting_tools/Face_milling/SRM/SRM_feature_picture2.jpg
series:

SRM SHELL ROUGH FIXATION MILL
proimages/Products/Cutting_tools/Face_milling/SRM/SRM_figure.jpg

MODEL NO.TYPEDd1Ll1ap
max.		TEETHINSERT
5154-662-022-03 SRM50-22-3T 50 22 55 31 30 3 AP..1604
5154-663-022-04 SRM50-22-4T 50 22 55 31 30 4 AP..1604
5154-663-033-04 SRM63-27-4T 63 27 55 31 30 4 AP..1604
5154-664-033-05 SRM63-27-5T 63 27 55 31 30 5 AP..1604
5154-663-044-04 SRM80-32-4T 80 32 55 31 30 4 AP..1604
5154-664-044-05 SRM80-32-5T 80 32 55 31 30 5 AP..1604

ACCESSORIES:
INSERTINSERT SCREWWRENCH
AP..1604 M4-10-5.7-60 T15
series:
proimages/Products/Cutting_tools/Face_milling/SRM/SRM-TI.jpg
