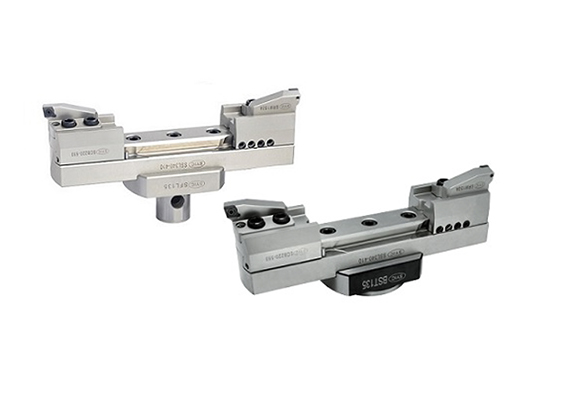

SRW Roughing Boring Head(for large diameter boring)

SRW Roughing Boring Head<span class='nor'>(for large diameter boring)</span>
Product Name : SRW Roughing Boring Head(for large diameter boring)
Product Description

For Large diameter boring

Boring range: ø150 ~ ø830mm

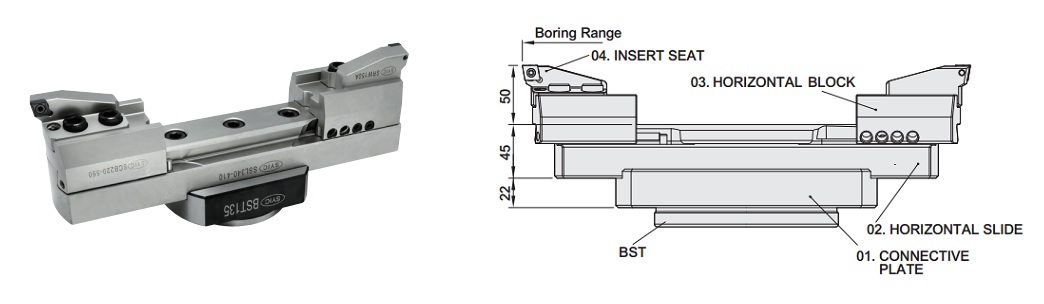

  • Connection part: MCK7 and BST two types to choose from.
series:

SRW ROUGHING BORING HEAD

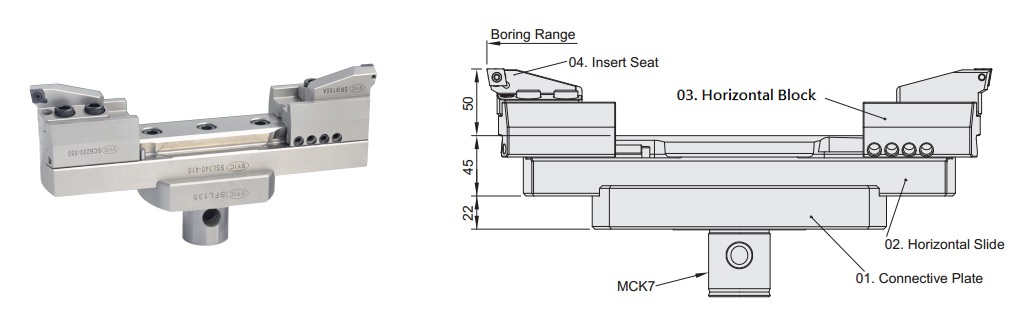

proimages/Products/Boring_head/Rough_boring_head/SRW_roughing_boring_head/SRW-figure.jpg

MODEL NO.TYPEBORING RANGE01.
CONNECTIVE
PLATE		02.
HORIZONTAL
SLIDE		03.
HORIZONTAL
BLOCK		04.
INSERT SEAT		WEIGHT
(KGS)
MIN.MAX.
5158-S18-150 SRW  150A 150 200 SFL135 SSL150 ~ 200 SCB150 ~ 200 SRW150A 7.24
5158-S18-200 SRW  200A 200 270 SFL135 SSL200 ~ 270 SCB200 ~ 550 SRW150A 8.85
5158-S18-270 SRW  270A 270 340 SFL135 SSL270 ~ 340 SCB200 ~ 550 SRW150A 10.30
5158-S18-340 SRW  340A 340 410 SFL135 SSL340 ~ 410 SCB200 ~ 550 SRW150A 11.80
5158-S18-410 SRW  410A 410 480 SFL135 SSL410 ~ 480 SCB200 ~ 550 SRW150A 13.20
5158-S18-480 SRW  480A 480 550 SFL135 SSL480 ~ 550 SCB200 ~ 550 SRW150A 14.70
5158-S18-550 SRW  550A 550 620 SFL220 SSL550 ~ 620 SCB200 ~ 550 SRW150A 18.60
5158-S18-620 SRW  620A 620 690 SFL220 SSL620 ~ 690 SCB200 ~ 550 SRW150A 20.10
5158-S18-690 SRW  690A 690 760 SFL220 SSL690 ~ 760 SCB200 ~ 550 SRW150A 21.50
5158-S18-760 SRW  760A 760 830 SFL220 SSL760 ~ 830 SCB200 ~ 550 SRW150A 22.90

ACCESSORIES
INSERTCLAMPING SCREWWRENCH
CC..1204 M5-11-7.5-60 T20
