Tool Holder Adapter | SYIC - Cutting Tool Holder Adapter Manufacturing Expert

Specification

series:

BT ADAPTER

MODEL NO.	TYPE	NO.	L	l1	d1	k1	k2	T	MAX. TORQUE		Fig.	WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	k1	k2	T	Nm	ft-lbs	Fig.	WEIGHT (KGS)
5011-692-301-075	BT40xTSA30M-75	#30	146.4	75	50	6	15.9	M12 x 1.75P	45	33	1	1.80
5011-692-303-075	BT40xTSA30U-75	#30	146.4	75	50	6	15.9	1/2" - 12	45	33	1	1.80
5011-013-140-030	BT40xPSC32-30	PSC32	95.4	30	32	-	-	M12 x 1.5P	45	33	2	1.60
5011-013-141-030	BT40xPSC40-30	PSC40	95.4	30	40	-	-	M14 x 1.5P	55	40	2	1.60
5011-013-142-030	BT40xPSC50-30	PSC50	95.4	30	50	-	-	M16 x 1.5P	95	70	2	1.60
5011-013-143-075	BT40xPSC63-75	PSC63	140.4	75	63	-	-	M20 x 2.0P	170	125	2	1.80
5011-013-144-135	BT40xPSC80-135	PSC80	200.4	135	80	-	-	M20 x 2.0P	170	125	2	3.78
5012-692-301-075	BT50xTSA30M-75	#30	182.8	75	50	6	15.9	M12 x 1.75P	45	33	1	5.00
5012-692-303-075	BT50xTSA30U-75	#30	182.8	75	50	6	15.9	1/2" - 12	45	33	1	5.00
5012-692-401-075	BT50xTSA40M-75	#40	184.8	75	85	8	15.9	M16 x 2.0P	55	40	1	4.60
5012-692-403-075	BT50xTSA40U-75	#40	184.8	75	85	8	15.9	5/8" - 11	55	40	1	4.60
5012-013-140-040	BT50xPSC32-40	PSC32	141.8	40	32	-	-	M12 x 1.5P	45	33	2	4.60
5012-013-141-040	BT50xPSC40-40	PSC40	141.8	40	40	-	-	M14 x 1.5P	55	40	2	4.60
5012-013-142-040	BT50xPSC50-40	PSC50	141.8	40	50	-	-	M16 x 1.5P	95	70	2	4.60
5012-013-143-100	BT50xPSC63-100	PSC63	201.8	100	63	-	-	M20 x 2.0P	170	125	2	5.00
5012-013-143-150	BT50xPSC63-150	PSC63	251.8	150	63	-	-	M20 x 2.0P	170	125	2	5.93
5012-013-143-200	BT50xPSC63-200	PSC63	301.8	200	63	-	-	M20 x 2.0P	170	125	2	6.99
5012-013-143-250	BT50xPSC63-250	PSC63	351.8	250	63	-	-	M20 x 2.0P	170	125	2	8.06
5012-013-143-300	BT50xPSC63-300	PSC63	401.8	300	63	-	-	M20 x 2.0P	170	125	2	8.91
5012-013-144-070	BT50xPSC80-70	PSC80	171.8	70	80	-	-	M20 x 2.0P	170	125	2	3.86
5012-013-144-120	BT50xPSC80-120	PSC80	221.8	120	80	-	-	M20 x 2.0P	170	125	2	5.67
5012-013-146-140	BT50xPSC100-140	PSC100	241.8	140	100	-	-	M24 x 2.0P	380	277	2	7.62

CAT ADAPTER
proimages/Products/Tool_holders/Others/Adapter/CAT-PSC_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5031-013-140-035	CAT40xPSC32-35	PSC32	103.249	35	44.45	M12 x 1.5P	45	33	0.99
5031-013-141-035	CAT40xPSC40-35	PSC40	103.249	35	44.45	M14 x 1.5P	55	40	0.90
5031-013-142-035	CAT40xPSC50-35	PSC50	103.249	35	44.45	M16 x 1.5P	95	70	0.82
5031-013-143-090	CAT40xPSC63-90	PSC63	158.249	90	63	M20 x 2.0P	170	125	1.83
5032-013-140-035	CAT50xPSC32-35	PSC32	136.6	35	69.85	M12 x 1.5P	45	33	3.00
5032-013-141-035	CAT50xPSC40-35	PSC40	136.6	35	69.85	M14 x 1.5P	55	40	2.95
5032-013-142-035	CAT50xPSC50-35	PSC50	136.6	35	69.85	M16 x 1.5P	95	70	2.85
5032-013-143-035	CAT50xPSC63-35	PSC63	136.6	35	69.85	M20 x 2.0P	170	125	2.63
INCHES
5032-013-143-102	CAT50xPSC63-4"	PSC63	203.2	101.6	63	M20 x 2.0P	170	125	4.05
5032-013-143-152	CAT50xPSC63-6"	PSC63	254	152.4	63	M20 x 2.0P	170	125	5.14
5032-013-143-203	CAT50xPSC63-8"	PSC63	304.8	203.2	63	M20 x 2.0P	170	125	6.23
5032-013-143-254	CAT50xPSC63-10"	PSC63	355.6	254	63	M20 x 2.0P	170	125	7.31
5032-013-143-305	CAT50xPSC63-12"	PSC63	406.4	304.8	63	M20 x 2.0P	170	125	8.40
5032-013-144-095	CAT50xPSC80-3.74"	PSC80	196.6	95	80	M20 x 2.0P	170	125	3.05

DAT ADAPTER
proimages/Products/Tool_holders/Others/Adapter/DAT_adapter_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	k1	k2	T	MAX. TORQUE		Fig.	WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	k1	k2	T	Nm	ft-lbs	Fig.	WEIGHT (KGS)
5051-692-301-075	DAT40xTSA30M-75	#30	149.4	75	50	6	16	M12 x 1.75P	45	33	1	1.80
5051-692-303-075	DAT40xTSA30U-75	#30	149.4	75	50	6	16	1/2" -12	45	33	1	1.80
5051-013-140-030	DAT40xPSC32-30	PSC32	98.4	30	32	-	-	M12 x 1.5P	45	33	2	1.40
5051-013-141-040	DAT40xPSC40-40	PSC40	108.4	40	40	-	-	M14 x 1.5P	55	40	2	1.50
5051-013-142-050	DAT40xPSC50-50	PSC50	118.4	50	50	-	-	M16 x 1.5P	95	70	2	1.60
5051-013-143-090	DAT40xPSC63-90	PSC63	158.4	90	63	-	-	M20 x 2.0P	170	125	2	2.00
5052-692-301-075	DAT50xTSA30M-75	#30	182.75	75	50	6	16	M12 x 1.75P	45	33	1	5.00
5052-692-303-075	DAT50xTSA30U-75	#30	182.75	75	50	6	16	1/2" -12	45	33	1	5.00
5052-692-401-075	DAT50xTSA40M-75	#40	184.75	75	85	8	16	M16 x 2.0P	45	33	1	4.60
5052-692-403-075	DAT50xTSA40U-75	#40	184.75	75	85	8	16	5/8" -11	45	33	1	4.60
5052-013-140-030	DAT50xPSC32-30	PSC32	131.75	30	32	-	-	M12 x 1.5P	45	33	2	4.20
5052-013-141-030	DAT50xPSC40-30	PSC40	131.75	30	40	-	-	M14 x 1.5P	55	40	2	4.30
5052-013-142-030	DAT50xPSC50-30	PSC50	131.75	30	50	-	-	M16 x 1.5P	95	70	2	4.40
5052-013-143-030	DAT50xPSC63-30	PSC63	131.75	30	63	-	-	M20 x 2.0P	170	125	2	4.50
5052-013-143-100	DAT50xPSC63-100	PSC63	201.75	100	63	-	-	M20 x 2.0P	170	125	2	5.00
5052-013-143-150	DAT50xPSC63-150	PSC63	251.75	150	63	-	-	M20 x 2.0P	170	125	2	5.20
5052-013-143-200	DAT50xPSC63-200	PSC63	301.75	200	63	-	-	M20 x 2.0P	170	125	2	5.40
5052-013-143-250	DAT50xPSC63-250	PSC63	351.75	250	63	-	-	M20 x 2.0P	170	125	2	5.80
5052-013-143-300	DAT50xPSC63-300	PSC63	401.75	300	63	-	-	M20 x 2.0P	170	125	2	6.00
5052-013-144-050	DAT50xPSC80-50	PSC80	151.75	50	80	-	-	M20 x 2.0P	170	125	2	4.80
5052-013-144-070	DAT50xPSC80-70	PSC80	171.75	70	80	-	-	M20 x 2.0P	170	125	2	4.90
5052-013-144-100	DAT50xPSC80-100	PSC80	201.75	100	80	-	-	M20 x 2.0P	170	125	2	5.10
5052-013-144-120	DAT50xPSC80-120	PSC80	221.75	120	80	-	-	M20 x 2.0P	170	125	2	5.20
5052-013-146-140	DAT50xPSC100-140	PSC100	241.75	140	100	-	-	M24 x 2.0P	380	277	2	7.40

DualDRIVE+ SBT ADAPTER
proimages/Products/Tool_holders/Others/Adapter/SBT_ADAPTER_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5026-013-140-030	SBT40xPSC32-30	PSC32	95.4	30	32	M12 x 1.5P	45	33	1.70
5026-013-141-030	SBT40xPSC40-30	PSC40	95.4	30	40	M14 x 1.5P	55	40	1.70
5026-013-142-030	SBT40xPSC50-30	PSC50	95.4	30	50	M16 x 1.5P	95	70	1.70
5026-013-143-075	SBT40xPSC63-75	PSC63	140.4	75	63	M20 x 2.0P	170	125	1.90
5026-013-144-135	SBT40xPSC80-135	PSC80	200.4	135	80	M20 x 2.0P	170	125	3.78
5027-013-140-040	SBT50xPSC32-40	PSC32	141.8	40	32	M12 x 1.5P	45	33	4.80
5027-013-141-040	SBT50xPSC40-40	PSC40	141.8	40	40	M14 x 1.5P	55	40	4.80
5027-013-142-040	SBT50xPSC50-40	PSC50	141.8	40	50	M16 x 1.5P	95	70	4.80
5027-013-143-100	SBT50xPSC63-100	PSC63	201.8	100	63	M20 x 2.0P	170	125	4.68
5027-013-143-150	SBT50xPSC63-150	PSC63	251.8	150	63	M20 x 2.0P	170	125	5.75
5027-013-143-200	SBT50xPSC63-200	PSC63	301.8	200	63	M20 x 2.0P	170	125	6.81
5027-013-143-250	SBT50xPSC63-250	PSC63	351.8	250	63	M20 x 2.0P	170	125	7.88
5027-013-143-300	SBT50xPSC63-300	PSC63	401.8	300	63	M20 x 2.0P	170	125	8.73
5027-013-144-070	SBT50xPSC80-70	PSC80	171.8	70	80	M20 x 2.0P	170	125	3.91
5027-013-144-093	SBT50xPSC80-93	PSC80	194.8	93	80	M20 x 2.0P	170	125	4.73
5027-013-144-120	SBT50xPSC80-120	PSC80	221.8	120	80	M20 x 2.0P	170	125	5.71
5027-013-144-183	SBT50xPSC80-183	PSC80	284.8	183	80	M20 x 2.0P	170	125	7.98
5027-013-144-243	SBT50xPSC80-243	PSC80	344.8	243	80	M20 x 2.0P	170	125	10.14

DualDRIVE+ SCAT ADAPTER
proimages/Products/Tool_holders/Others/Adapter/SCAT_ADAPTER_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5043-013-140-035	SCAT40xPSC32-35	PSC32	103.249	35	44.45	M12 x 1.5P	45	33	1.02
5043-013-141-035	SCAT40xPSC40-35	PSC40	103.249	35	44.45	M14 x 1.5P	55	40	0.93
5043-013-142-035	SCAT40xPSC50-35	PSC50	103.249	35	44.45	M16 x 1.5P	95	70	0.85
5043-013-143-090	SCAT40xPSC63-90	PSC63	158.249	90	63	M20 x 2.0P	170	125	1.85
5044-013-140-035	SCAT50xPSC32-35	PSC32	136.6	35	69.85	M12 x 1.5P	45	33	3.05
5044-013-141-035	SCAT50xPSC40-35	PSC40	136.6	35	69.85	M14 x 1.5P	55	40	3.00
5044-013-142-035	SCAT50xPSC50-35	PSC50	136.6	35	69.85	M16 x 1.5P	95	70	2.90
5044-013-143-035	SCAT50xPSC63-35	PSC63	136.6	35	69.85	M20 x 2.0P	170	125	2.68
INCHES
5044-013-143-102	SCAT50xPSC63-4"	PSC63	203.2	101.6	63	M20 x 2.0P	170	125	4.42
5044-013-143-152	SCAT50xPSC63-6"	PSC63	254	152.4	69.85	M20 x 2.0P	170	125	5.78
5044-013-143-203	SCAT50xPSC63-8"	PSC63	304.8	203.2	63	M20 x 2.0P	170	125	7.14
5044-013-143-254	SCAT50xPSC63-10"	PSC63	355.6	254	63	M20 x 2.0P	170	125	8.50
5044-013-143-305	SCAT50xPSC63-12"	PSC63	406.4	304.8	63	M20 x 2.0P	170	125	9.87
5044-013-144-095	SCAT50xPSC80-3.74"	PSC80	196.6	95	80	M20 x 2.0P	170	125	3.05

DualDRIVE+ SDAT ADAPTER

proimages/Products/Tool_holders/Others/Adapter/SDAT_ADAPTER_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5066-013-140-030	SDAT40xPSC32-30	PSC32	98.4	30	32	M12 x 1.5P	45	33	1.40
5066-013-141-040	SDAT40xPSC40-40	PSC40	108.4	40	40	M14 x 1.5P	55	40	1.50
5066-013-142-050	SDAT40xPSC50-50	PSC50	118.4	50	50	M16 x 1.5P	95	70	1.60
5066-013-143-090	SDAT40xPSC63-90	PSC63	158.4	90	63	M20 x 2.0P	170	125	2.00
5067-013-140-030	SDAT50xPSC32-30	PSC32	131.75	30	32	M12 x 1.5P	45	33	4.20
5067-013-141-030	SDAT50xPSC40-30	PSC40	131.75	30	40	M14 x 1.5P	55	40	4.30
5067-013-142-030	SDAT50xPSC50-30	PSC50	131.75	30	50	M16 x 1.5P	95	70	4.40
5067-013-143-030	SDAT50xPSC63-30	PSC63	131.75	30	63	M20 x 2.0P	170	125	4.50
5067-013-143-100	SDAT50xPSC63-100	PSC63	201.75	100	63	M20 x 2.0P	170	125	5.00
5067-013-143-150	SDAT50xPSC63-150	PSC63	251.75	150	63	M20 x 2.0P	170	125	5.20
5067-013-143-200	SDAT50xPSC63-200	PSC63	301.75	200	63	M20 x 2.0P	170	125	5.40
5067-013-143-250	SDAT50xPSC63-250	PSC63	351.75	250	63	M20 x 2.0P	170	125	5.80
5067-013-143-300	SDAT50xPSC63-300	PSC63	401.75	300	63	M20 x 2.0P	170	125	6.20
5067-013-144-050	SDAT50xPSC80-50	PSC80	151.75	50	80	M20 x 2.0P	170	125	2.90
5067-013-144-070	SDAT50xPSC80-70	PSC80	171.75	70	80	M20 x 2.0P	170	125	3.30
5067-013-144-100	SDAT50xPSC80-100	PSC80	201.75	100	80	M20 x 2.0P	170	125	4.00
5067-013-144-120	SDAT50xPSC80-120	PSC80	221.75	120	80	M20 x 2.0P	170	125	4.70

HSK ADAPTER

proimages/Products/Tool_holders/Others/Adapter/HSK-PSC_ADAPTER_figure.jpg

HSK-A TYPE

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5073-013-140-075	HSK63AxPSC32-75	PSC32	107	75	32	M12x1.5P	45	33	0.92
5073-013-141-080	HSK63AxPSC40-80	PSC40	112	80	40	M14x1.5P	55	40	1.06
5073-013-142-090	HSK63AxPSC50-90	PSC50	122	90	50	M16x1.5P	95	70	1.39
5075-013-140-080	HSK100AxPSC32-80	PSC32	130	80	32	M12x1.5P	45	33	2.25
5075-013-141-090	HSK100AxPSC40-90	PSC40	140	90	40	M14x1.5P	55	40	2.43
5075-013-142-100	HSK100AxPSC50-100	PSC50	150	100	50	M16x1.5P	95	70	2.80
5075-013-143-110	HSK100AxPSC63-110	PSC63	160	110	63	M20x2.0P	170	125	3.41
5075-013-143-150	HSK100AxPSC63-150	PSC63	200	150	63	M20x2.0P	170	125	4.18
5075-013-143-200	HSK100AxPSC63-200	PSC63	250	200	63	M20x2.0P	170	125	5.14
5075-013-143-250	HSK100AxPSC63-250	PSC63	300	250	63	M20x2.0P	170	125	6.10
5075-013-143-300	HSK100AxPSC63-300	PSC63	350	300	63	M20x2.0P	170	125	7.07
5075-013-144-120	HSK100AxPSC80-120	PSC80	170	120	80	M20x2.0P	170	125	4.93
5075-013-146-155	HSK100AxPSC100-155	PSC100	205	155	100	M24x2.0P	380	277	7.29

HSK-T TYPE

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5073T-013-140-075	HSK-T63xPSC32-75	PSC32	107	75	32	M12x1.5P	45	33	0.92
5073T-013-141-080	HSK-T63xPSC40-80	PSC40	112	80	40	M14x1.5P	55	40	1.06
5073T-013-142-090	HSK-T63xPSC50-90	PSC50	122	90	50	M16x1.5P	95	70	1.39
5073T-013-143-110	HSK-T63xPSC63-110	PSC63	142	110	63	M20x2.0P	170	125	2.15
5075T-013-140-080	HSK-T100xPSC32-80	PSC32	130	80	32	M12x1.5P	45	33	2.25
5075T-013-141-090	HSK-T100xPSC40-90	PSC40	140	90	40	M14x1.5P	55	40	2.43
5075T-013-142-100	HSK-T100xPSC50-100	PSC50	150	100	50	M16x1.5P	95	70	2.80
5075T-013-143-110	HSK-T100xPSC63-110	PSC63	160	110	63	M20x2.0P	170	125	3.41
5075T-013-143-150	HSK-T100xPSC63-150	PSC63	200	150	63	M20x2.0P	170	125	4.18
5075T-013-143-200	HSK-T100xPSC63-200	PSC63	250	200	63	M20x2.0P	170	125	5.14
5075T-013-143-250	HSK-T100xPSC63-250	PSC63	300	250	63	M20x2.0P	170	125	6.10
5075T-013-143-300	HSK-T100xPSC63-300	PSC63	350	300	63	M20x2.0P	170	125	7.07
5075T-013-144-120	HSK-T100xPSC80-120	PSC80	170	120	80	M20x2.0P	170	125	4.93
5075T-013-146-155	HSK-T100xPSC100-155	PSC100	205	155	100	M24x2.0P	380	277	7.29

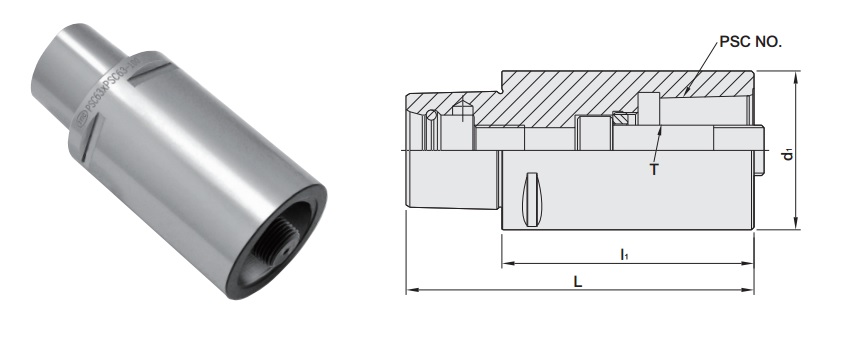

PSC EXTENSION ADAPTER (FOR SAME DIAMETER)

proimages/Products/Tool_holders/Others/Adapter/PSC_EXTENSION_ADAPTER-FOR_SAME_DIAMETER_figure.jpg

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5140-013-140-060	PSC32xPSC32-60	PSC32	79	60	32	M12 x 1.5P	45	33	0.40
5140-013-140-080	PSC32xPSC32-80	PSC32	99	80	32	M12 x 1.5P	45	33	0.50
5141-013-141-060	PSC40xPSC40-60	PSC40	84	60	40	M14 x 1.5P	55	40	0.50
5141-013-141-080	PSC40xPSC40-80	PSC40	104	80	40	M14 x 1.5P	55	40	0.70
5142-013-142-080	PSC50xPSC50-80	PSC50	110	80	50	M16 x 1.5P	95	70	1.10
5142-013-142-100	PSC50xPSC50-100	PSC50	130	100	50	M16 x 1.5P	95	70	1.40
5143-013-143-080	PSC63xPSC63-80	PSC63	118	80	63	M20 x 2.0P	170	125	2.00
5143-013-143-100	PSC63xPSC63-100	PSC63	138	100	63	M20 x 2.0P	170	125	2.20
5144-013-144-065	PSC80xPSC80-65	PSC80	113	65	80	M20 x 2.0P	170	125	3.10
5144-013-144-100	PSC80xPSC80-100	PSC80	148	100	80	M20 x 2.0P	170	125	3.60
5144-013-144-125	PSC80xPSC80-125	PSC80	173	125	80	M20 x 2.0P	170	125	4.60
5145-013-145-100	PSC80XxPSC80X-100	PSC80X	148	100	100	M20 x 2.0P	170	125	5.80
5146-013-146-200	PSC100xPSC100-200	PSC100	260	200	100	M24 x 2.0P	380	277	10.60

PSC EXTENSION ADAPTER (FOR DIFFERENT DIAMETER)

MODEL NO.	TYPE	NO.	L	l1	d1	T	MAX. TORQUE		WEIGHT (KGS)
MODEL NO.	TYPE	NO.	L	l1	d1	T	Nm	ft-lbs	WEIGHT (KGS)
5141-013-140-055	PSC40xPSC32-55	PSC32	79	55	32	M12 x 1.5P	45	33	0.50
5141-013-140-070	PSC40xPSC32-70	PSC32	94	70	32	M12 x 1.5P	45	33	0.60
5142-013-140-060	PSC50xPSC32-60	PSC32	90	60	32	M12 x 1.5P	45	33	0.60
5142-013-141-065	PSC50xPSC40-65	PSC40	95	65	40	M14 x 1.5P	55	40	0.80
5142-013-141-085	PSC50xPSC40-85	PSC40	115	85	40	M14 x 1.5P	55	40	1.10
5143-013-140-070	PSC63xPSC32-70	PSC32	108	70	32	M12 x 1.5P	45	33	1.10
5143-013-141-080	PSC63xPSC40-80	PSC40	118	80	40	M14 x 1.5P	55	40	1.20
5143-013-142-080	PSC63xPSC50-80	PSC50	118	80	50	M16 x 1.5P	95	70	1.50
5143-013-142-110	PSC63xPSC50-110	PSC50	148	110	50	M16 x 1.5P	95	70	2.20
5144-013-140-060	PSC80xPSC32-60	PSC32	108	60	32	M12 x 1.5P	45	33	1.70
5144-013-141-070	PSC80xPSC40-70	PSC40	118	70	40	M14 x 1.5P	55	40	1.90
5144-013-142-045	PSC80xPSC50-45	PSC50	93	45	50	M16 x 1.5P	95	70	1.50
5144-013-142-080	PSC80xPSC50-80	PSC50	128	80	50	M16 x 1.5P	95	70	2.20
5144-013-143-055	PSC80xPSC63-55	PSC63	103	55	63	M20 x 2.0P	170	125	2.30
5144-013-143-080	PSC80xPSC63-80	PSC63	128	80	63	M20 x 2.0P	170	125	2.50
5144-013-143-120	PSC80xPSC63-120	PSC63	168	120	63	M20 x 2.0P	170	125	4.00
5145-013-143-055	PSC80XxPSC63-55	PSC63	103	55	63	M20 x 2.0P	170	125	3.00
5145-013-143-080	PSC80XxPSC63-80	PSC63	128	80	63	M20 x 2.0P	170	125	3.40
5145-013-144-065	PSC80XxPSC80-65	PSC80	113	65	80	M20 x 2.0P	170	125	4.00
5145-013-144-100	PSC80XxPSC80-100	PSC80	148	100	80	M20 x 2.0P	170	125	4.40
5145-013-144-150	PSC80XxPSC80-150	PSC80	198	150	80	M20 x 2.0P	170	125	5.20
5146-013-143-200	PSC100xPSC63-200	PSC63	260	200	63	M20 x 2.0P	170	125	6.20
5146-013-144-200	PSC100xPSC80-200	PSC80	260	200	80	M20 x 2.0P	170	125	8.18

NT ADAPTER

MODEL NO.	TYPE	L	l1	d1	d2	k1	t1	T		WEIGHT (KGS)
5121-692-301/5-075	NT40xTSA30M-75	168.4	75	31.75	50	6	M12 x 1.75P	5/8" - 11	M16 x 2.0P	1.80
5121-692-301/5-075	NT40xTSA30U-75	168.4	75	31.75	50	6	1/2" - 12	5/8" - 11	M16 x 2.0P	1.80
5122-692-301/5-075	NT50xTSA30M-75	201.8	75	31.75	50	6	M12 x 1.75P	1" - 8	M24 x 3.0P	5.00
5122-692-301/5-075	NT50xTSA30U-75	201.8	75	31.75	50	6	1/2" - 12	1" - 8	M24 x 3.0P	5.00
5122-692-401/5-075	NT50xTSA40M-75	201.8	75	44.45	85	8	M16 x 2.0P	1" - 8	M24 x 3.0P	4.60
5122-692-401/5-075	NT50xTSA40U-75	201.8	75	44.45	85	8	5/8" - 11	1" - 8	M24 x 3.0P	4.60

Back

Adapter

Product Description
