series:

VDI BLANK
proimages/Products/Tool_holders/Turning_application(VDI)/VDI_BLANK-1_figure.jpg

MODEL NO.	TYPE d1 x l1	d1	l1	b	h
5241-A1-130-085	30x85	30	85	130	76
5242-A1-151-100	40x100	40	100	151	96
5243-A1-160-125	50x125	50	125	160	120

MODEL NO.	TYPE d1 x l2	d1	d2	l2
5241-A2-068-100	30x100	30	68	100
5241-A2-068-160	30x160	30	68	160
5241-A2-068-240	30x240	30	68	240
5242-A2-083-120	40x120	40	83	120
5242-A2-083-160	40x160	40	83	160
5242-A2-083-200	40x200	40	83	200
5242-A2-083-320	40x320	40	83	320
5243-A2-050-400	50x400	50	50	400

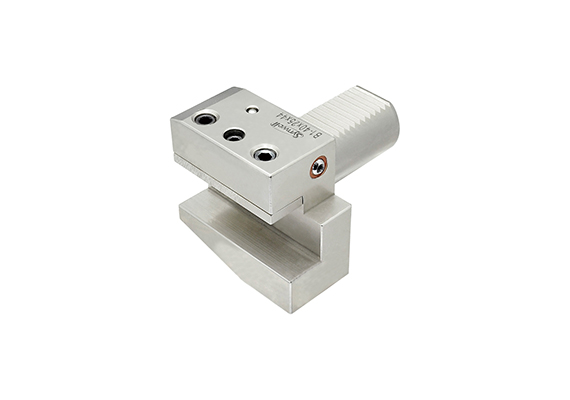

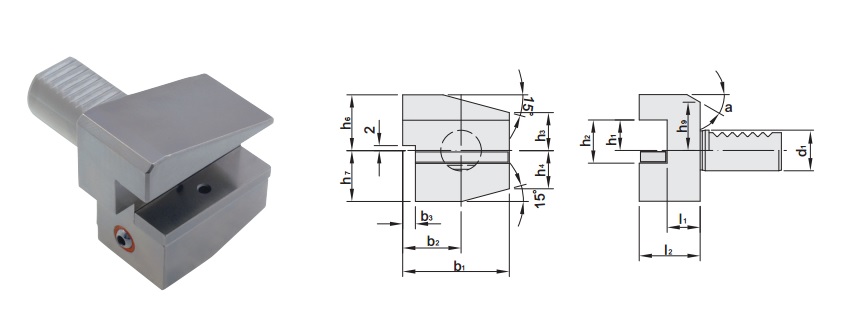

EXTERNAL TURNING TOOL HOLDER

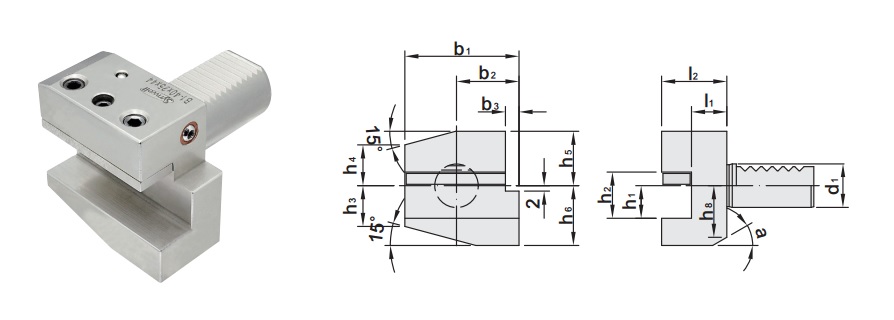

MODEL NO.	TYPE d1 x h1 x l2	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h8	l1	l2	a
5241-B1-020-040	30x20x40	30	70	35	10	20	29	26	22	28	38	30	22	40	25°
5241-B1-020-060	30x20x60	30	70	35	10	20	29	26	22	28	38	30	42	60	25°
5242-B1-025-044	40x25x44	40	85	42.5	12.5	25	34	35	30	32.5	48	-	22	44	-
5243-B1-032-055	50x32x55	50	100	50	16	32	41	42	35	35	60	-	30	55	-

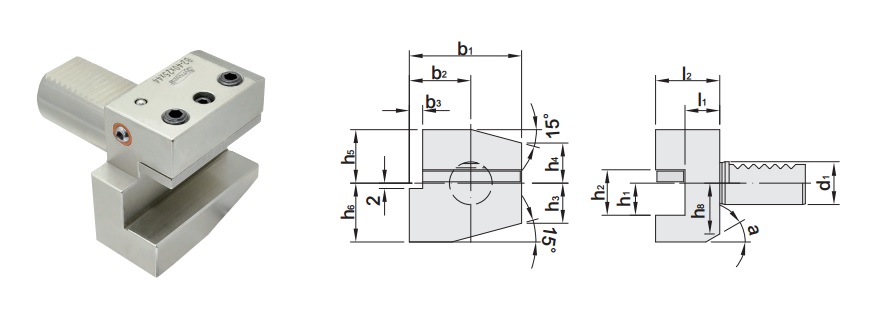

MODEL NO.	TYPE d1 x h1 x l2	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h8	l1	l2	a
5241-B2-020-040	30x20x40	30	70	35	10	20	29	26	22	28	38	30	22	40	25°
5241-B2-020-060	30x20x60	30	70	35	10	20	29	26	22	28	38	30	42	60	25°
5242-B2-025-044	40x25x44	40	85	42.5	12.5	25	34	35	30	32.5	48	-	22	44	-
5243-B2-032-055	50x32x55	50	100	50	16	32	41	42	35	35	60	-	30	55	-

MODEL NO.	TYPE d1 x h1 x l2	d1	b1	b2	b3	h1	h2	h3	h4	h6	h7	h9	l1	l2	a
5241-B3-020-040	30x20x40	30	70	35	10	20	29	26	22	38	35	28	22	40	25°
5241-B3-020-060	30x20x60	30	70	35	10	20	29	26	22	38	35	28	42	60	25°
5242-B3-025-044	40x25x44	40	85	42.5	12.5	25	34	35	30	48	42.5	-	22	44	-
5243-B3-032-055	50x32x55	50	100	50	16	32	41	42	35	60	50	-	30	55	-

MODEL NO.	TYPE d1 x h1 x l2	d1	b1	b2	b3	h1	h2	h3	h4	h6	h7	h9	l1	l2	a
5241-B4-020-040	30x20x40	30	70	35	10	20	29	26	22	38	35	28	22	40	25°
5241-B4-020-060	30x20x60	30	70	35	10	20	29	26	22	38	35	28	42	60	25°
5242-B4-025-044	40x25x44	40	85	42.5	12.5	25	34	35	30	48	42.5	-	22	44	-
5243-B4-032-055	50x32x55	50	100	50	16	32	41	42	35	60	50	-	30	55	-

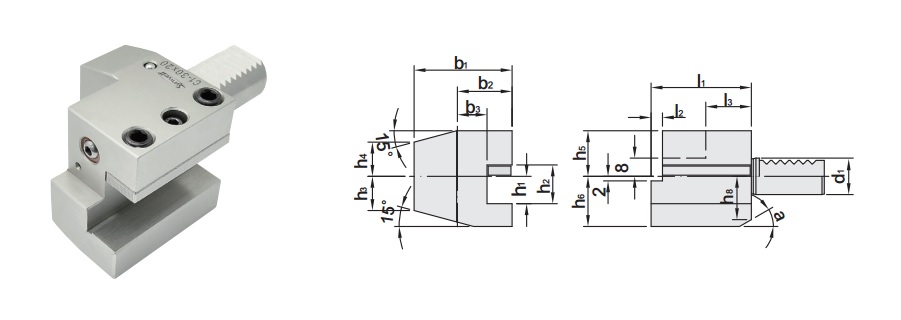

MODEL NO.	TYPE d1 x h1 x l1	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h8	l1	l2	l3	a
5241-C1-020-070	30x20x70	30	70	35	17	20	29	26	22	28	38	30	70	10	30	25°
5242-C1-025-085	40x25x85	40	85	42.5	21	25	34	35	30	32.5	48	-	85	12.5	30	-
5243-C1-032-100	50x32x100	50	100	50	26	32	41	42	35	35	60	-	100	16	40	-

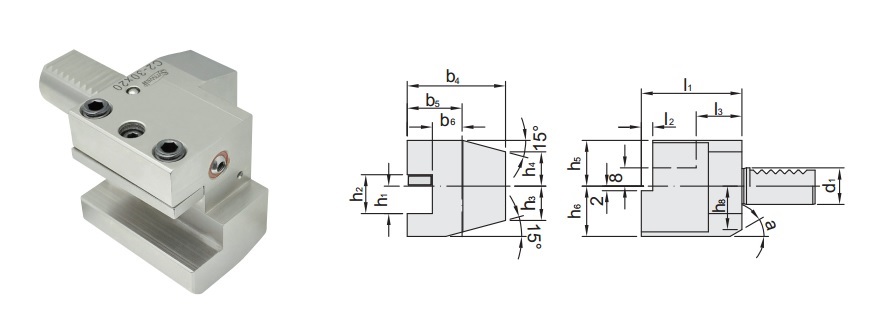

MODEL NO.	TYPE d1 x h1 x l1	d1	b4	b5	b6	h1	h2	h3	h4	h5	h6	h8	l1	l2	l3	a
5241-C2-020-070	30x20x70	30	76	41	23	20	29	26	22	28	38	30	70	10	30	25°
5242-C2-025-085	40x25x85	40	90	47.5	25.5	25	34	35	30	32.5	48	-	85	12.5	30	-
5243-C2-032-100	50x32x100	50	105	55	30.5	32	41	42	35	35	60	-	100	16	40	-

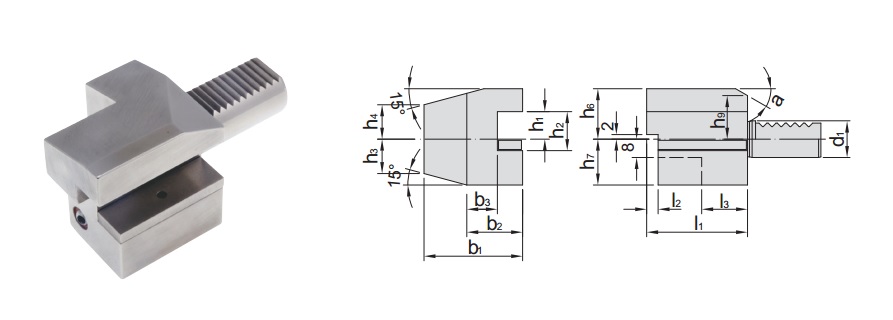

MODEL NO.	TYPE d1 x h1 x l1	d1	b1	b2	b3	h1	h2	h3	h4	h6	h7	h9	l1	l2	l3	a
5241-C3-020-070	30x20x70	30	70	35	17	20	29	26	22	28	35	28	70	10	30	25°
5242-C3-025-085	40x25x85	40	85	42.5	21	25	34	35	30	48	42.5	-	85	12.5	30	-
5243-C3-032-100	50x32x100	50	100	50	26	32	41	42	35	60	50	-	100	16	40	-

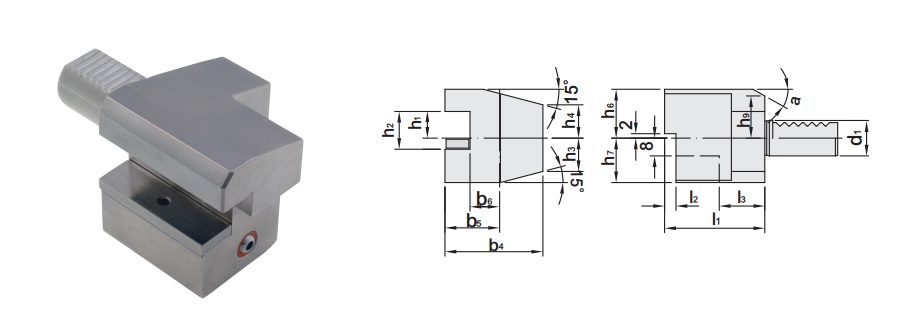

MODEL NO.	TYPE d1 x h1 x l1	d1	b4	b5	b6	h1	h2	h3	h4	h6	h7	h9	l1	l2	l3	a
5241-C4-020-070	30x20x70	30	76	41	23	20	29	26	22	38	35	28	70	10	30	25°
5242-C4-025-085	40x25x85	40	90	47.5	25.5	25	34	35	30	48	42.5	-	85	12.5	30	-
5243-C4-032-100	50x32x100	50	105	55	30.5	32	41	42	35	60	50	-	100	16	40	-

MODEL NO.	TYPE d1 x d2 - l1	d1	d2	d3	d4	d5	d6	h1	h2	l1	l2	l3	l4	l5
5241-E1-020-067	30x20-67	30	20	40	12	M10x1	68	28	30	67	54	22	15	35
5241-E1-025-071	30x25-71	30	25	45	17	M12x1	68	28	30	71	59	22	17	40
5241-E1-032-075	30x32-75	30	32	52	24	M12x1	68	28	30	75	63	22	17	44
5241-E1-040-090	30x40-90	30	40	65	24	M16x1	68	28	30	90	73	22	22	50
5242-E1-018-067	40x18-67	40	18	40	12	M10x1	83	32.5	-	67	54	22	15	35
5242-E1-020-067	40x20-67	40	20	40	12	M10x1	83	32.5	-	67	54	22	15	35
5242-E1-025-075	40x25-75	40	25	45	17	M12x1	83	32.5	-	75	59	22	17	40
5242-E1-032-075	40x32-75	40	32	52	24	M12x1	83	32.5	-	75	63	22	17	44
5242-E1-040-090	40x40-90	40	40	65	32	M16x1	83	32.5	-	90	73	22	22	50
5242-E1-050-100	40x50-100	40	50	83	32	M16x1	83	32.5	-	100	83	22	24	60
5243-E1-020-067	50x20-67	50	20	40	12	M10x1	98	35	-	67	54	30	15	35
5243-E1-025-080	50x25-80	50	25	45	17	M12x1	98	35	-	80	59	30	17	40
5243-E1-032-080	50x32-80	50	32	52	24	M12x1	98	35	-	80	63	30	17	44
5243-E1-040-090	50x40-90	50	40	65	32	M16x1	98	35	-	90	73	30	22	50
5243-E1-050-100	50x50-100	50	50	75	42	M16x1	98	35	-	100	83	30	24	60

MODEL NO.	TYPE d1 x d2 - l1	d1	d2	d3	d4	d5	d6	h1	h2	l3	l1	l2
5241-E2-008-060	30x8-60	30	8	68	6	55	M6	28	30	22	60	51
5241-E2-010-060	30x10-60	30	10	68	8	55	M6	28	30	22	60	51
5241-E2-012-060	30x12-60	30	12	68	10	55	M8	28	30	22	60	51
5241-E2-014-060	30x14-60	30	14	68	10	55	M8	28	30	22	60	52
5241-E2-016-060	30x16-60	30	16	68	12	55	M8	28	30	22	60	51
5241-E2-018-060	30x18-60	30	18	68	10	55	M8	28	30	22	60	52
5241-E2-020-060	30x20-60	30	20	68	16.5	55	M8	28	30	22	60	51
5241-E2-025-060	30x25-60	30	25	68	16	55	M8	28	30	22	60	51
5241-E2-032-075	30x32-75	30	32	68	16	68	M8	28	30	22	75	61
5242-E2-010-075	40x10-75	40	10	83	8	55	M10	32.5	-	22	75	61
5242-E2-012-075	40x12-75	40	12	83	10	55	M10	32.5	-	22	75	61
5242-E2-014-075	40x14-75	40	14	83	10	55	M8	32.5	-	22	75	61
5242-E2-016-075	40x16-75	40	16	83	16.5	55	M10	32.5	-	22	75	61
5242-E2-018-075	40x18-75	40	18	83	10	55	M8	32.5	-	22	75	61
5242-E2-020-075	40x20-75	40	20	83	16.5	55	M10	32.5	-	22	75	61
5242-E2-025-075	40x25-75	40	25	83	20.5	55	M10	32.5	-	22	75	61
5242-E2-032-075	40x32-75	40	32	83	20.5	83	M10	32.5	-	22	75	61
5242-E2-040-090	40x40-90	40	40	83	20.5	83	M10	32.5	-	22	90	76
5242-E2-050-090	40x50-90	40	50	83	20.5	83	M12	32.5	-	22	90	76
5243-E2-012-075	50x12-75	50	12	98	10	55	M8	35	-	30	75	61
5243-E2-016-090	50x16-90	50	16	98	12	68	M10	35	-	30	90	76
5243-E2-020-090	50x20-90	50	20	98	16	68	M12	35	-	30	90	76
5243-E2-025-090	50x25-90	50	25	98	20	68	M12	35	-	30	90	76
5243-E2-032-090	50x32-90	50	32	98	25	68	M12	35	-	30	90	76
5243-E2-040-090	50x40-90	50	40	98	25	98	M12	35	-	30	90	76
5243-E2-050-100	50x50-100	50	50	98	25	98	M12	35	-	30	100	86

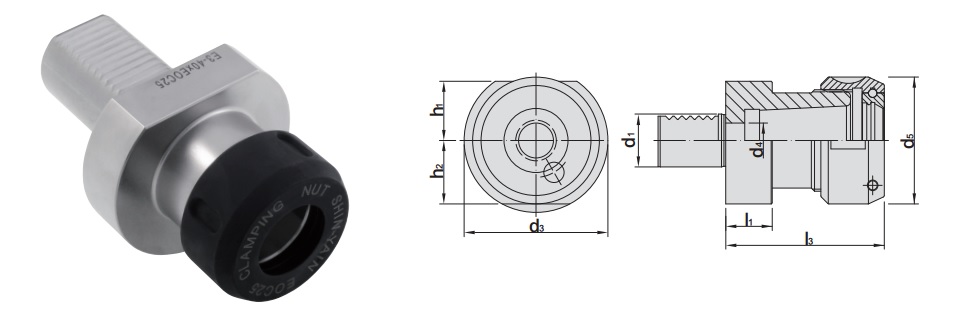

EOC COLLET CHUCK HOLDER (FOR EOC COLLET)

MODEL NO.	TYPE	d1	d3	d4 min	d5	h1	h2	l1	l3
5241-E3-025-075	30xEOC25-75	30	68	16.5	60	28	30	22	75
5242-E3-025-075	40xEOC25-75	40	83	20.5	60	32.5	-	22	75
5242-E3-032-090	40xEOC32-90	40	83	20.5	72	32.5	-	22	90
5243-E3-025-075	50xEOC25-75	50	98	25.5	60	35	-	30	75
5243-E3-032-090	50xEOC32-90	50	98	25.5	72	35	-	30	90

ER COLLET CHUCK HOLDER (FOR ER COLLET)

MODEL NO.	TYPE	d1	d2 ER	d3	d4 min	d5	h1	h2	l1	l3
5241-E4-025-057	30xER25-57	30	25	68	16.5	42	28	30	22	57
5241-E4-032-062	30xER32-62	30	32	68	16.5	50	28	30	22	62
5241-E4-040-070	30xER40-70	30	40	68	16.5	63	28	30	22	70
5242-E4-025-057	40xER25-57	40	25	83	20.5	42	32.5	-	22	57
5242-E4-032-062	40xER32-62	40	32	83	20.5	50	32.5	-	22	62
5242-E4-040-075	40xER40-75	40	40	83	20.5	63	32.5	-	22	75
5243-E4-040-075	50xER40-75	50	40	98	20.5	63	35	-	30	75

VDI DRILL CHUCK

MODEL NO.	TYPE	d1	d2	d3	d6	h3	l1
5241-669-008-075	30xSPU8-75	30	1~ 8	37	68	28	75
5241-669-013-109	30xSPU13-109	30	1 ~ 13	50	68	28	109
5241-669-016-115	30xSPU16-115	30	3 ~ 16	57	68	28	115
5242-669-008-075	40xSPU8-75	40	1 ~ 8	37	83	32.5	75
5242-669-013-090	40xSPU13-90	40	1 ~ 13	50	83	32.5	90
5242-669-016-110	40xSPU16-110	40	3 ~ 16	57	83	32.5	110
5243-669-013-100	50xSPU13-100	50	1 ~ 13	50	98	35	100
5243-669-016-090	50xSPU16-90	50	3 ~ 16	57	98	35	90

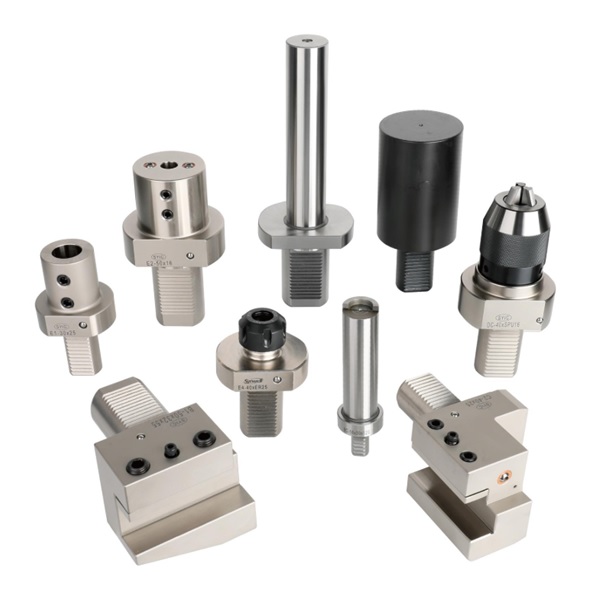

VDI Static Tool Holder
