鋁合金刀頭
series

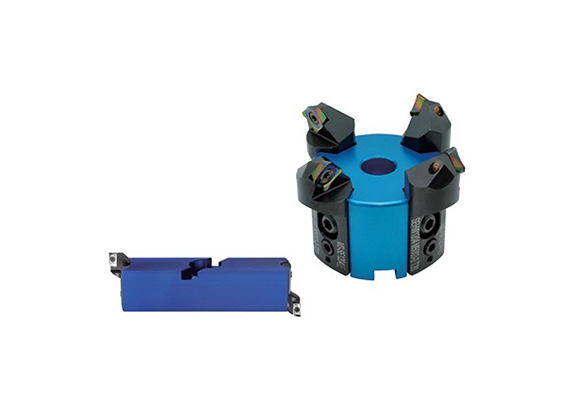

U776 鋁合金刀頭 一刀兩用
| MODEL NO. | TYPE | D | d | TEETH | INSERT HOLDERS |
|---|---|---|---|---|---|
| 154.286.77.200 | U776-200-38.1 | 200 | 38.1 | 2 | M3-SE1204 M3-APGT1604 M3-APMT1604 |
| 154.286.77.240 | U776-240-38.1 | 240 | 38.1 | 2 |
零配件：
| INSERT HOLDERS | INSERT | INSERT SCREW | WRENCH |
|---|---|---|---|
| M3-SE1204 | SE..1204 | M5003-2 | T20 |
| M3-APGT1604 | AP..1605 | M3501-1 | T15 |
| M3-APMT1604 | AP..1604 | M4001-3 | T15 |

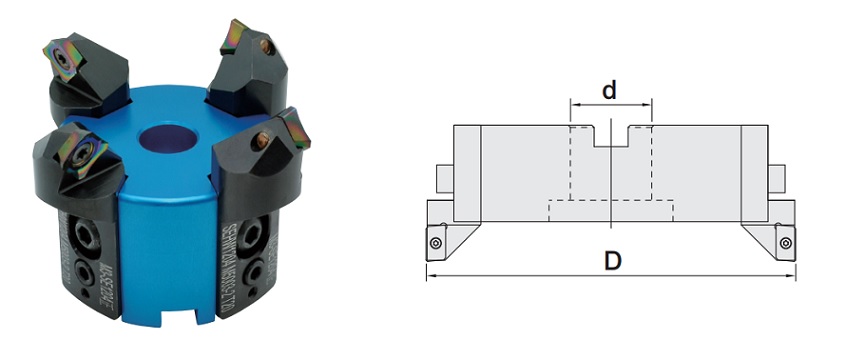

U777 鋁合金刀頭
| MODEL NO. | TYPE | D | d | TEETH | INSERT HOLDERS |
|---|---|---|---|---|---|
| 154.287.22.200 | U777-80-22 | 80 | 22 | 4 | M3-SE1204 M3-APGT1604 M3-APMT1604 |
| 154.287.68.240 | U777-110-25.4 | 110 | 25.4 | 4 | |
| 154.287.77.130 | U777-130-38.1 | 130 | 38.1 | 4 | |
| 154.287.77.170 | U777-170-38.1 | 170 | 38.1 | 4 | |
| 154.287.77.210 | U777-210-38.1 | 210 | 38.1 | 4 | |
| 154.287.77.250 | U777-250-38.1 | 250 | 38.1 | 4 | |
| 154.287.77.320 | U777-320-38.1 | 320 | 38.1 | 6 |
零配件：
| INSERT HOLDERS | INSERT | INSERT SCREW | WRENCH |
|---|---|---|---|
| M3-SE1204 | SE..1204 | M5003-2 | T20 |
| M3-APGT1604 | AP..1605 | M3501-1 | T15 |
| M3-APMT1604 | AP..1604 | M4001-3 | T15 |
