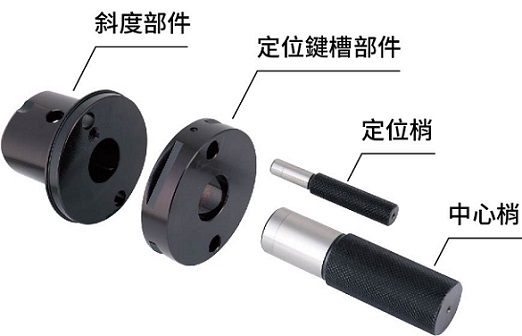

ATC校刀三件組
series
SBT/ATC法蘭加厚型校刀三件組
| MODEL NO. | TYPE | L | l1 | l2 | l3 | l4 | D | d1 | d2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 5025-009-00 | SBT30-ATC | 49.4 | 1 | 21 | 50.4 | 158.4 | 31.75 | 46 | 16 | M12x1.75P |
| 5026-009-00 | SBT40-ATC | 66.4 | 1 | 26 | 67.5 | 175.5 | 44.45 | 63 | 20 | M16x2.0P |
| 5027-009-00 | SBT50-ATC | 103.3 | 1.5 | 36.5 | 120 | 320 | 69.85 | 100 | 25 | M24x3.0P |
SCAT/ATC法蘭加厚型校刀三件組
| MODEL NO. | TYPE | L | l1 | l2 | l3 | l4 | D | d1 | d2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 5043-009-00 | SCAT40-ATC | 69.199 | 0.95 | 18.1 | 67.5 | 175.5 | 44.45 | 63.5 | 20 | 5/8-11UNC |
| 5044-009-00 | SCAT50-ATC | 103.05 | 1.45 | 17.6 | 125 | 325 | 69.85 | 98.425 | 25.4 | 1-8UNC |
SDAT/ATC法蘭加厚型校刀三件組
| MODEL NO. | TYPE | L | l1 | l2 | l3 | l4 | D | d1 | d2 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 5066-009-00 | SDAT40-ATC | 69.4 | 1 | 18.1 | 67.5 | 175.5 | 44.45 | 63.55 | 20 | M16x2.0P |
| 5067-009-00 | SDAT50-ATC | 103.25 | 1.5 | 17.6 | 120 | 320 | 69.85 | 97.5 | 25 | M24x3.0P |
HSK/ATC校刀三件組
| MODEL NO. | TYPE | L | l1 | l2 | l3 | l4 | l5 | D | d1 | d2 | d3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5069-009-00 | HSK25A-ATC | 13 | 2.5 | 7 | 17 | 22 | 70 | 19.006 | 25 | 20 | 8 |
| 5070-009-00 | HSK32A-ATC | 16 | 3.2 | 14 | 30 | 50 | 100 | 24.007 | 32 | 26 | 8 |
| 5071-009-00 | HSK40A-ATC | 20 | 4 | 14 | 37 | 61 | 141 | 30.007 | 40 | 34 | 12 |
| 5072-009-00 | HSK50A-ATC | 25 | 5 | 18 | 43 | 74 | 174 | 38.009 | 50 | 42 | 15 |
| 5073-009-00 | HSK63A-ATC | 32 | 6.3 | 18 | 52 | 90 | 190 | 48.010 | 63 | 53 | 20 |
| 5074-009-00 | HSK80A-ATC | 40 | 8 | 18 | 54.5 | 100.5 | 200.5 | 60.012 | 80 | 68 | 20 |
| 5075-009-00 | HSK100A-ATC | 50 | 10 | 19 | 67 | 125 | 275 | 75.013 | 100 | 88 | 24 |
| 5076-009-00 | HSK125A-ATC | 63 | 12.5 | 19 | 74 | 145 | 295 | 95.016 | 125 | 111 | 30 |
| 5097-009-00 | HSK25E-ATC | 13 | 2.5 | 7 | 17 | 22 | 70 | 19.006 | 25 | 20 | 8 |
| 5098-009-00 | HSK32E-ATC | 16 | 3.2 | 14 | 30 | 50 | 100 | 24.007 | 32 | 26 | 8 |
| 5099-009-00 | HSK40E-ATC | 20 | 4 | 14 | 37 | 61 | 141 | 30.007 | 40 | 34 | 12 |
| 5100-009-00 | HSK50E-ATC | 25 | 5 | 18 | 43 | 74 | 174 | 38.009 | 50 | 42 | 15 |
| 5101-009-00 | HSK63E-ATC | 32 | 6.3 | 18 | 52 | 90 | 190 | 48.010 | 63 | 53 | 20 |
| 5102-009-00 | HSK50F-ATC | 20 | 4 | 18 | 43 | 61 | 141 | 30.007 | 50 | 42 | 12 |
| 5103-009-00 | HSK63F-ATC | 25 | 5 | 18 | 52 | 71 | 174 | 38.009 | 63 | 53 | 15 |
| 5105-009-00 | HSK80F-ATC | 32 | 6.3 | 18 | 54.5 | 90 | 190 | 48.010 | 80 | 68 | 20 |
PSC/ATC校刀三件組
| MODEL NO. | TYPE | L | l1 | l2 | l3 | l5 | d1 | d2 |
|---|---|---|---|---|---|---|---|---|
| 5140-009-00 | PSC32-ATC | 22 | 19 | 12 | 20 | 60 | 32 | 8 |
| 5141-009-00 | PSC40-ATC | 28 | 24 | 16 | 28 | 78 | 40 | 12 |
| 5142-009-00 | PSC50-ATC | 35 | 30 | 15 | 29 | 79 | 50 | 16 |
| 5143-009-00 | PSC63-ATC | 45.2 | 38 | 14.8 | 32 | 82 | 63 | 21 |
| 5144-009-00 | PSC80-ATC | 54.2 | 48 | 23.8 | 49 | 109 | 80 | 21 |
| 5145-009-00 | PSC80X-ATC | 54.2 | 48 | 25.8 | 52 | 110 | 100 | 21 |
| 5146-009-00 | PSC100-ATC | 66.2 | 60 | 29.8 | 56 | 115 | 100 | 24 |
