BMT刀塔精密標準棒 C08-2

series

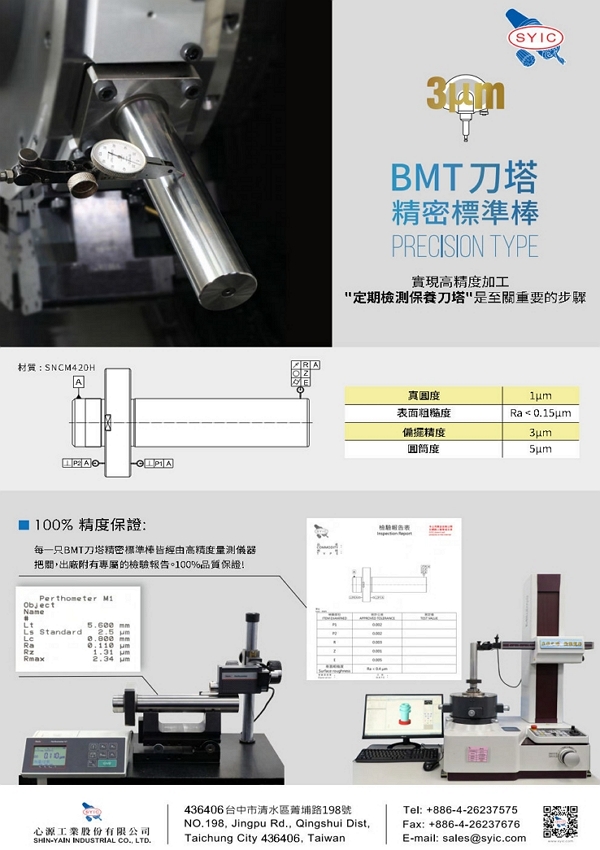

BMT刀塔精密標準棒

MODEL NO.	TYPE	l1	l2	l3	D	d1	d2	A1	A2	A3	A4	B1	B2	B3	B4	WEIGHT (KGS)
5002-370-401-200	BMT40x40-200	200	20	25	40	40	11	39	39	31	31	45	45	35	35	2.35
5002-371-405-200	BMT45x40-200	200	20	25	40	45	9	37.5	37.5	29	29	40	40	29	29	2.30
5002-372-405-200	BMT55x40-200	200	20	30	40	55	11	42.5	42.5	32	32	50	50	32	32	2.85
5002-373-501-275	BMT60x50-275	275	25	30	50	60	13	54	54	42	42	59	59	47	47	6.10
5002-374-505-275	BMT65x50-275	275	25	30	50	65	13	47.5	47.5	36.5	36.5	55	55	35	35	5.65
5002-375-505-275	BMT75x50-275	275	25	30	50	75	13	56	56	45	45	57.5	57.5	45	45	6.40
