CFB陶瓷纖維研磨刷 C05-12

產品名稱 : CFB陶瓷纖維研磨刷

產品描述

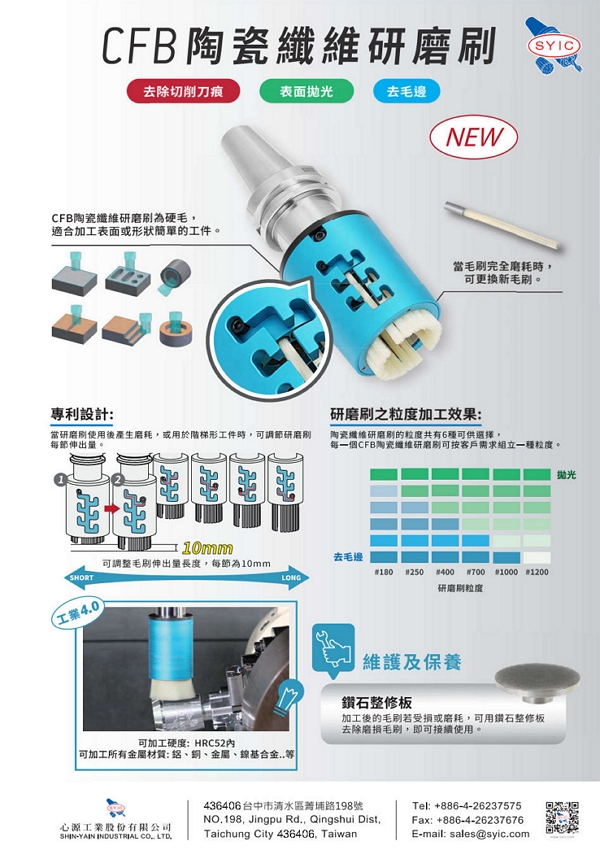

CFB陶瓷纖維研磨刷

適用於去除切削刀痕、表面拋光及去毛邊。
CFB陶瓷纖維研磨刷為硬毛，適合加工表面或形狀簡單的工件。
獨特專利設計：當研磨刷使用後產生磨耗，或用於階梯形工件時，可調節研磨刷每節伸出量。
當毛刷完全磨耗時，可更換新毛刷。
研磨刷之粒度加工效果：陶瓷纖維研磨刷的粒度共有6種可供選擇，每一個CFB陶瓷纖維研磨刷可按客戶需求組立一種粒度。

產品應用：

材質：以高強度陶瓷纖維與樹脂製成特殊硬毛，適合加工工件表面或形狀簡單工件。
適用範圍：所有金屬材質、鋁、銅、鎳基合金，硬度HRC 52°以內。
優異耐高溫性能：可耐最高研磨溫度400℃。
適合加工類型：乾式切削或濕式切削皆可，濕切削僅適用於側邊給水，不適用中心給水，會影響加工。

鑽石整修板

板面為高硬度鑽石材質，用於修整加工後磨損毛刷，即其可接續使用。
適用於CFB 陶瓷纖維研磨刷與DMB鑽石研磨刷。
本體鋁合金輕量化設計，使用簡單便易。
可濕式加工，切削液帶走粉塵與細屑，維護健康的工作環境。

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/CFB-feature.jpg

series

SBT/CFB法蘭加厚型陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SBT-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	毛刷規格	WEIGHT (KGS)
5025-802-040-125	SBT30xCFB40-125	173.4	125	45	55	36.5	12.7 ~ 40	DB - 50	1.20
5025-802-050-125	SBT30xCFB50-125	173.4	125	45	65	46	12.7 ~ 40	DB - 50	1.23
5025-802-063-125	SBT30xCFB63-125	173.4	125	45	78	59	12.7 ~ 40	DB - 50	1.66
5026-802-040-120	SBT40xCFB40-120	185.4	120	40	55	36.5	12.7 ~ 40	DB - 50	1.65
5026-802-050-120	SBT40xCFB50-120	185.4	120	40	65	46	12.7 ~ 40	DB - 50	1.69
5026-802-063-120	SBT40xCFB63-120	185.4	120	40	78	59	12.7 ~ 40	DB - 50	2.11
5026-802-063-165	SBT40xCFB63-165	230.4	165	60	78	59	15 ~ 65	DB - 75	2.55
5026-802-080-120	SBT40xCFB80-120	185.4	120	40	95	76	12.7 ~ 40	DB - 50	2.43
5026-802-080-165	SBT40xCFB80-165	230.4	165	60	95	76	15 ~ 65	DB - 75	2.90
5026-802-100-120	SBT40xCFB100-120	185.4	120	40	115	96	12.7 ~ 40	DB - 50	2.81
5026-802-100-165	SBT40xCFB100-165	230.4	165	60	115	96	15 ~ 65	DB - 75	3.34
5027-802-040-125	SBT50xCFB40-125	226.8	125	45	55	36.5	12.7 ~ 40	DB - 50	4.33
5027-802-050-125	SBT50xCFB50-125	226.8	125	45	65	46	12.7 ~ 40	DB - 50	4.36
5027-802-063-125	SBT50xCFB63-125	226.8	125	45	78	59	12.7 ~ 40	DB - 50	4.79
5027-802-063-150	SBT50xCFB63-150	251.8	150	45	78	59	15 ~ 65	DB - 75	4.98
5027-802-080-125	SBT50xCFB80-125	226.8	125	45	95	76	12.7 ~ 40	DB - 50	5.11
5027-802-080-150	SBT50xCFB80-150	251.8	150	45	95	76	15 ~ 65	DB - 75	5.34
5027-802-100-125	SBT50xCFB100-125	226.8	125	45	115	96	12.7 ~ 40	DB - 50	5.49
5027-802-100-150	SBT50xCFB100-150	251.8	150	45	115	96	15 ~ 65	DB - 75	5.78

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/Brush_for_replacement.jpg

SCAT/CFB法蘭加厚型陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SCAT-CFB_figure.jpg

MODEL NO.	TYPE	inches						毛刷規格	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	毛刷規格	WEIGHT (KGS)
5043-802-040-115	SCAT40xCFB40-4.53"	7.21	4.53	1.378	2.17	1.44	0.5 ~ 1.57	DB - 50	1.51
5043-802-050-115	SCAT40xCFB50-4.53"	7.21	4.53	1.378	2.56	1.81	0.5 ~ 1.57	DB - 50	1.54
5043-802-063-115	SCAT40xCFB63-4.53"	7.21	4.53	1.378	3.07	2.32	0.5 ~ 1.57	DB - 50	1.96
5043-802-063-155	SCAT40xCFB63-6.10"	8.79	6.10	1.969	3.07	2.32	0.59 ~ 2.56	DB - 75	2.36
5043-802-080-115	SCAT40xCFB80-4.53"	7.21	4.53	1.378	3.74	2.99	0.5 ~ 1.57	DB - 50	2.28
5043-802-080-155	SCAT40xCFB80-6.10"	8.79	6.10	1.969	3.74	2.99	0.59 ~ 2.56	DB - 75	2.72
5043-802-100-115	SCAT40xCFB100-4.53"	7.21	4.53	1.378	4.53	3.78	0.5 ~ 1.57	DB - 50	2.66
5043-802-100-155	SCAT40xCFB100-6.10"	8.79	6.10	1.969	4.53	3.78	0.59 ~ 2.56	DB - 75	3.15
5044-802-040-115	SCAT50xCFB40-4.53"	8.53	4.53	1.378	2.17	1.44	0.5 ~ 1.57	DB - 50	3.58
5044-802-050-115	SCAT50xCFB50-4.53"	8.53	4.53	1.378	2.56	1.81	0.5 ~ 1.57	DB - 50	3.61
5044-802-063-115	SCAT50xCFB63-4.53"	8.53	4.53	1.378	3.07	2.32	0.5 ~ 1.57	DB - 50	4.04
5044-802-063-140	SCAT50xCFB63-5.51"	9.51	5.51	1.378	3.07	2.32	0.59 ~ 2.56	DB - 75	4.24
5044-802-080-115	SCAT50xCFB80-4.53"	8.53	4.53	1.378	3.74	2.99	0.5 ~ 1.57	DB - 50	4.36
5044-802-080-140	SCAT50xCFB80-5.51"	9.51	5.51	1.378	3.74	2.99	0.59 ~2.56	DB - 75	4.59
5044-802-100-115	SCAT50xCFB100-4.53"	8.53	4.53	1.378	4.53	3.78	0.5 ~ 1.57	DB - 50	4.74
5044-802-100-140	SCAT50xCFB100-5.51"	9.51	5.51	1.378	4.53	3.78	0.59 ~ 2.56	DB - 75	5.03

SDAT/CFB法蘭加厚型陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SDAT-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	刷毛規格	WEIGHT (KGS)
5066-802-040-115	SDAT40xCFB40-115	183.4	115	35	55	36.5	12.7 ~ 40	DB - 50	1.55
5066-802-050-115	SDAT40xCFB50-115	183.4	115	35	65	46	12.7 ~ 40	DB - 50	1.58
5066-802-063-115	SDAT40xCFB63-115	183.4	115	35	78	59	12.7 ~ 40	DB - 50	2.01
5066-802-063-165	SDAT40xCFB63-165	233.4	165	60	78	59	15 ~ 65	DB - 75	2.51
5066-802-080-115	SDAT40xCFB80-115	183.4	115	35	95	76	12.7 ~ 40	DB - 50	2.33
5066-802-080-165	SDAT40xCFB80-165	233.4	165	60	95	76	15 ~ 65	DB - 75	2.87
5066-802-100-115	SDAT40xCFB100-115	183.4	115	35	115	96	12.7 ~ 40	DB - 50	2.71
5066-802-100-165	SDAT40xCFB100-165	233.4	165	60	115	96	15 ~ 65	DB - 75	3.31
5067-802-040-115	SDAT50xCFB40-115	216.75	115	35	55	36.5	12.7 ~ 40	DB - 50	3.67
5067-802-050-115	SDAT50xCFB50-115	216.75	115	35	65	46	12.7 ~ 40	DB - 50	3.71
5067-802-063-115	SDAT50xCFB63-115	216.75	115	35	78	59	12.7 ~ 40	DB - 50	4.13
5067-802-063-140	SDAT50xCFB63-140	241.75	140	35	78	59	15 ~ 65	DB - 75	4.33
5067-802-080-115	SDAT50xCFB80-115	216.75	115	35	95	76	12.7 ~ 40	DB - 50	4.45
5067-802-080-140	SDAT50xCFB80-140	241.75	140	35	95	76	15 ~ 65	DB - 75	4.69
5067-802-100-115	SDAT50xCFB100-115	216.75	115	35	115	96	12.7 ~ 40	DB - 50	4.83
5067-802-100-140	SDAT50xCFB100-140	241.75	140	35	115	96	15 ~ 65	DB - 75	5.13

HSK-A/CFB陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/HSK-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	刷毛規格	WEIGHT (KGS)
5073-802-040-165	HSK63AxCFB40-165	197	165	85	55	36.5	12.7 ~ 40	DB - 50	1.99
5073-802-050-165	HSK63AxCFB50-165	197	165	85	65	46	12.7 ~ 40	DB - 50	2.02
5073-802-063-165	HSK63AxCFB63-165	197	165	85	78	59	12.7 ~ 40	DB - 50	2.45
5073-802-080-165	HSK63AxCFB80-165	197	165	85	95	76	12.7 ~ 40	DB - 50	2.77
5073-802-100-165	HSK63AxCFB100-165	197	165	85	115	96	12.7 ~ 40	DB - 50	3.16
5074-802-040-170	HSK80AxCFB40-170	210	170	90	55	36.5	12.7 ~ 40	DB - 50	2.70
5074-802-050-170	HSK80AxCFB50-170	210	170	90	65	46	12.7 ~ 40	DB - 50	2.73
5074-802-063-170	HSK80AxCFB63-170	210	170	90	78	59	12.7 ~ 40	DB - 50	3.16
5074-802-063-225	HSK80AxCFB63-225	265	225	120	78	59	15 ~ 65	DB - 75	3.83
5074-802-080-170	HSK80AxCFB80-170	210	170	90	95	76	12.7 ~ 40	DB - 50	3.48
5074-802-080-225	HSK80AxCFB80-225	265	225	120	95	76	15 ~ 65	DB - 75	4.19
5074-802-100-170	HSK80AxCFB100-170	210	170	90	115	96	12.7 ~ 40	DB - 50	3.87
5074-802-100-225	HSK80AxCFB100-225	265	225	120	115	96	15 ~ 65	DB - 75	4.63
5075-802-040-175	HSK100AxCFB40-175	225	175	95	55	36.5	12.7 ~ 40	DB - 50	3.66
5075-802-050-175	HSK100AxCFB50-175	225	175	95	65	46	12.7 ~ 40	DB - 50	3.69
5075-802-063-175	HSK100AxCFB63-175	225	175	95	78	59	12.7 ~ 40	DB - 50	4.12
5075-802-063-225	HSK100AxCFB63-225	275	225	120	78	59	15 ~ 65	DB - 75	4.70
5075-802-080-175	HSK100AxCFB80-175	225	175	95	95	76	12.7 ~ 40	DB - 50	4.44
5075-802-080-225	HSK100AxCFB80-225	275	225	120	95	76	15 ~ 65	DB - 75	5.06
5075-802-100-175	HSK100AxCFB100-175	225	175	95	115	96	12.7 ~ 40	DB - 50	5.11
5075-802-100-225	HSK100AxCFB100-225	275	225	120	115	96	15 ~ 65	DB - 75	5.50
5076-802-040-180	HSK125AxCFB40-180	243	180	100	55	36.5	12.7 ~ 40	DB - 50	5.02
5076-802-050-180	HSK125AxCFB50-180	243	180	100	65	46	12.7 ~ 40	DB - 50	5.05
5076-802-063-180	HSK125AxCFB63-180	243	180	100	78	59	12.7 ~ 40	DB - 50	5.48
5076-802-063-230	HSK125AxCFB63-230	293	230	125	78	59	15 ~ 65	DB - 75	6.06
5076-802-080-180	HSK125AxCFB80-180	243	180	100	95	76	12.7 ~ 40	DB - 50	5.80
5076-802-080-230	HSK125AxCFB80-230	293	230	125	95	76	15 ~ 65	DB - 75	6.42
5076-802-100-180	HSK125AxCFB100-180	243	180	100	115	96	12.7 ~ 40	DB - 50	6.18
5076-802-100-230	HSK125AxCFB100-230	293	230	125	115	96	15 ~ 65	DB - 75	6.86

HSK-E/CFB陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/HSK-E-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	刷毛規格	WEIGHT (KGS)
5101-802-040-165	HSK63ExCFB40-165	197	165	85	55	36.5	12.7 ~ 40	DB - 50	1.99
5101-802-050-165	HSK63ExCFB50-165	197	165	85	65	46	12.7 ~ 40	DB - 50	2.02
5101-802-063-165	HSK63ExCFB63-165	197	165	85	78	59	12.7 ~ 40	DB - 50	2.45
5101-802-080-165	HSK63ExCFB80-165	197	165	85	95	76	12.7 ~ 40	DB - 50	2.77
5101-802-100-165	HSK63ExCFB100-165	197	165	85	115	96	12.7 ~ 40	DB - 50	3.16
5107-802-040-170	HSK80ExCFB40-170	210	170	90	55	36.5	12.7 ~ 40	DB - 50	2.70
5107-802-050-170	HSK80ExCFB50-170	210	170	90	65	46	12.7 ~ 40	DB - 50	2.73
5107-802-063-170	HSK80ExCFB63-170	210	170	90	78	59	12.7 ~ 40	DB - 50	3.16
5107-802-063-225	HSK80ExCFB63-225	265	225	120	78	59	15 ~ 65	DB - 75	3.83
5107-802-080-170	HSK80ExCFB80-170	210	170	90	95	76	12.7 ~ 40	DB - 50	3.48
5107-802-080-225	HSK80ExCFB80-225	265	225	120	95	76	15 ~ 65	DB - 75	4.19
5107-802-100-170	HSK80ExCFB100-170	210	170	90	115	96	12.7 ~ 40	DB - 50	3.87
5107-802-100-225	HSK80ExCFB100-225	265	225	120	115	96	15 ~ 65	DB - 75	4.63
5108-802-040-175	HSK100ExCFB40-175	225	175	95	55	36.5	12.7 ~ 40	DB - 50	3.66
5108-802-050-175	HSK100ExCFB50-175	225	175	95	65	46	12.7 ~ 40	DB - 50	3.69
5108-802-063-175	HSK100ExCFB63-175	225	175	95	78	59	12.7 ~ 40	DB - 50	4.12
5108-802-063-225	HSK100ExCFB63-225	275	225	120	78	59	15 ~ 65	DB - 75	4.70
5108-802-080-175	HSK100ExCFB80-175	225	175	95	95	76	12.7 ~ 40	DB - 50	4.44
5108-802-080-225	HSK100ExCFB80-225	275	225	120	95	76	15 ~ 65	DB - 75	5.06
5108-802-100-175	HSK100ExCFB100-175	225	175	95	115	96	12.7 ~ 40	DB - 50	5.11
5108-802-100-225	HSK100ExCFB100-225	275	225	120	115	96	15 ~ 65	DB - 75	5.50

PSC/CFB陶瓷纖維研磨刷

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/PSC-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	可調整之毛刷長度	刷毛規格	WEIGHT (KGS)
5141-802-040-150	PSC40xCFB40-150	174	150	70	55	36.5	12.7 ~ 40	DB - 50	1.46
5141-802-050-150	PSC40xCFB50-150	174	150	70	65	46	12.7 ~ 40	DB - 50	1.49
5141-802-063-150	PSC40xCFB63-150	174	150	70	78	59	12.7 ~ 40	DB - 50	1.92
5141-802-080-150	PSC40xCFB80-150	174	150	70	95	76	12.7 ~ 40	DB - 50	2.24
5141-802-100-150	PSC40xCFB100-150	174	150	70	115	96	12.7 ~ 40	DB - 50	2.62
5142-802-040-150	PSC50xCFB40-150	180	150	70	55	36.5	12.7 ~ 40	DB - 50	1.65
5142-802-050-150	PSC50xCFB50-150	180	150	70	65	46	12.7 ~ 40	DB - 50	1.68
5142-802-063-150	PSC50xCFB63-150	180	150	70	78	59	12.7 ~ 40	DB - 50	2.11
5142-802-080-150	PSC50xCFB80-150	180	150	70	95	76	12.7 ~ 40	DB - 50	2.43
5142-802-100-150	PSC50xCFB100-150	180	150	70	115	96	12.7 ~ 40	DB - 50	2.80
5143-802-040-150	PSC63xCFB40-150	188	150	70	55	36.5	12.7 ~ 40	DB - 50	1.95
5143-802-050-150	PSC63xCFB50-150	188	150	70	65	46	12.7 ~ 40	DB - 50	1.98
5143-802-063-150	PSC63xCFB63-150	188	150	70	78	59	12.7 ~ 40	DB - 50	2.41
5143-802-063-205	PSC63xCFB63-205	243	205	100	78	59	15 ~ 65	DB - 75	2.98
5143-802-080-150	PSC63xCFB80-150	188	150	70	95	76	12.7 ~ 40	DB - 50	2.73
5143-802-080-205	PSC63xCFB80-205	243	205	100	95	76	15 ~ 65	DB - 75	3.34
5143-802-100-150	PSC63xCFB100-150	188	150	70	115	96	12.7 ~ 40	DB - 50	3.11
5143-802-100-205	PSC63xCFB100-205	243	205	100	115	96	15 ~ 65	DB - 75	3.78
5144-802-040-145	PSC80xCFB40-145	193	145	65	55	36.5	12.7 ~ 40	DB - 50	2.84
5144-802-050-145	PSC80xCFB50-145	193	145	65	65	46	12.7 ~ 40	DB - 50	2.88
5144-802-063-145	PSC80xCFB63-145	193	145	65	78	59	12.7 ~ 40	DB - 50	3.30
5144-802-063-195	PSC80xCFB63-195	243	195	90	78	59	15 ~ 65	DB - 75	3.89
5144-802-080-145	PSC80xCFB80-145	193	145	65	95	76	12.7 ~ 40	DB - 50	3.62
5144-802-080-195	PSC80xCFB80-195	243	195	90	95	76	15 ~ 65	DB - 75	4.25
5144-802-100-145	PSC80xCFB100-145	193	145	65	115	96	12.7 ~ 40	DB - 50	4.00
5144-802-100-195	PSC80xCFB100-195	243	195	90	115	96	15 ~ 65	DB - 75	4.69
5145-802-040-145	PSC80XxCFB40-145	193	145	65	55	36.5	12.7 ~ 40	DB - 50	3.56
5145-802-050-145	PSC80XxCFB50-145	193	145	65	65	46	12.7 ~ 40	DB - 50	3.59
5145-802-063-145	PSC80XxCFB63-145	193	145	65	78	59	12.7 ~ 40	DB - 50	4.02
5145-802-063-195	PSC80XxCFB63-195	243	195	90	78	59	15 ~ 65	DB - 75	4.61
5145-802-080-145	PSC80XxCFB80-145	193	145	65	95	76	12.7 ~ 40	DB - 50	4.34
5145-802-080-195	PSC80XxCFB80-195	243	195	90	95	76	15 ~ 65	DB - 75	4.96
5145-802-100-145	PSC80XxCFB100-145	193	145	65	115	96	12.7 ~ 40	DB - 50	4.72
5145-802-100-195	PSC80XxCFB100-195	243	195	90	115	96	15 ~ 65	DB - 75	5.40

MODEL NO.	TYPE	L	d1	d2	WEIGHT (KGS)
5330-098-060-00	DDB120	35	50	120	0.54

series

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/Ceramic_Fiber_Brush-zh-cover.jpg

series

CFB陶瓷纖維研磨刷

CFB陶瓷纖維研磨刷加工應用
