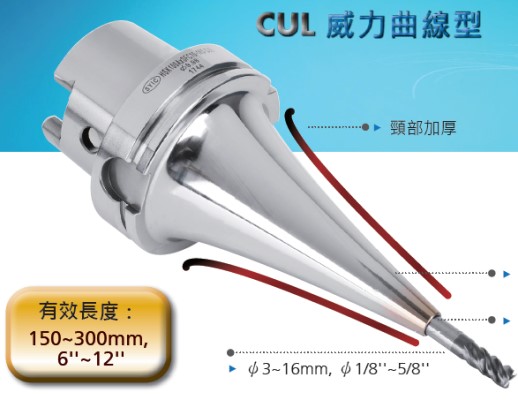

SFC熱膨脹刀桿(威力曲線型)

series

SBT/SFC法蘭加厚型熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/SBT-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5026-768-004-150	SBT40xSFC4-150CUL	215.4	150	10	123	4	10	53	3	1.4
5026-768-004-200	SBT40xSFC4-200CUL	265.4	200	10	173	4	10	53	3	1.7
5026-768-004-250	SBT40xSFC4-250CUL	315.4	250	10	223	4	10	53	3	2.2
5026-768-006-150	SBT40xSFC6-150CUL	215.4	150	26	123	6	13	53	3.5	1.5
5026-768-006-200	SBT40xSFC6-200CUL	265.4	200	26	173	6	13	53	3.5	1.7
5026-768-008-150	SBT40xSFC8-150CUL	215.4	150	26	123	8	16	53	4	1.6
5026-768-008-200	SBT40xSFC8-200CUL	265.4	200	26	173	8	16	53	4	1.8
5026-768-008-250	SBT40xSFC8-250CUL	315.4	250	26	223	8	16	53	4	2.0
5026-768-010-150	SBT40xSFC10-150CUL	215.4	150	32	123	10	19	53	4.5	1.6
5026-768-010-200	SBT40xSFC10-200CUL	265.4	200	32	173	10	19	53	4.5	1.8
5026-768-010-250	SBT40xSFC10-250CUL	315.4	250	32	223	10	19	53	4.5	2.0
5026-768-012-150	SBT40xSFC12-150CUL	215.4	150	37	123	12	22	53	5	1.7
5026-768-012-200	SBT40xSFC12-200CUL	265.4	200	37	173	12	22	53	5	1.8
5026-768-012-250	SBT40xSFC12-250CUL	315.4	250	37	223	12	22	53	5	2.0
5027-768-004-150	SBT50xSFC4-150CUL	251.8	150	10	112	4	19	85	3	5.3
5027-768-004-200	SBT50xSFC4-200CUL	301.8	200	10	162	4	19	85	3	5.8
5027-768-004-250	SBT50xSFC4-250CUL	351.8	250	10	212	4	19	85	3	6.3
5027-768-004-300	SBT50xSFC4-300CUL	401.8	300	10	262	4	19	85	3	6.7
5027-768-006-150	SBT50xSFC6-150CUL	251.8	150	26	112	6	13	85	3.5	5.3
5027-768-006-200	SBT50xSFC6-200CUL	301.8	200	26	162	6	13	85	3.5	5.9
5027-768-006-250	SBT50xSFC6-250CUL	351.8	250	26	212	6	13	85	3.5	6.4
5027-768-006-300	SBT50xSFC6-300CUL	401.8	300	26	262	6	13	85	3.5	6.8
5027-768-008-150	SBT50xSFC8-150CUL	251.8	150	26	112	8	16	85	4	4.9
5027-768-008-200	SBT50xSFC8-200CUL	301.8	200	26	162	8	16	85	4	5.5
5027-768-008-250	SBT50xSFC8-250CUL	351.8	250	26	212	8	16	85	4	5.8
5027-768-008-300	SBT50xSFC8-300CUL	401.8	300	26	262	8	16	85	4	6.1
5027-768-010-150	SBT50xSFC10-150CUL	251.8	150	32	112	10	19	85	4.5	5.1
5027-768-010-200	SBT50xSFC10-200CUL	301.8	200	32	162	10	19	85	4.5	5.4
5027-768-010-250	SBT50xSFC10-250CUL	351.8	250	32	212	10	19	85	4.5	6.1
5027-768-010-300	SBT50xSFC10-300CUL	401.8	300	32	262	10	19	85	4.5	6.4
5027-768-012-150	SBT50xSFC12-150CUL	251.8	150	37	112	12	22	85	5	5.1
5027-768-012-200	SBT50xSFC12-200CUL	301.8	200	37	162	12	22	85	5	5.6
5027-768-012-250	SBT50xSFC12-250CUL	351.8	250	37	212	12	22	85	5	5.8
5027-768-012-300	SBT50xSFC12-300CUL	401.8	300	37	262	12	22	85	5	6.3

SCAT/SFC法蘭加厚型熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/SCAT-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5043-768-A12-600	SCAT40xSFC3/16"-6"CUL	8.687	6	0.394	4.63	0.1875	0.42	1.75	0.118	1.5
5043-768-A12-800	SCAT40xSFC3/16"-8"CUL	10.687	8	0.394	6.63	0.1875	0.42	1.75	0.118	1.6
5043-768-A16-600	SCAT40xSFC1/4"-6"CUL	8.687	6	1.024	4.63	0.25	0.53	1.75	0.138	1.5
5043-768-A16-800	SCAT40xSFC1/4"-8"CUL	10.687	8	1.024	6.63	0.25	0.53	1.75	0.138	1.7
5043-768-A20-600	SCAT40xSFC5/16"-6"CUL	8.687	6	1.026	4.63	0.3125	0.63	1.75	0.157	1.6
5043-768-A20-800	SCAT40xSFC5/16"-8"CUL	10.687	8	1.026	6.63	0.3125	0.63	1.75	0.157	1.7
5043-768-A20-1000	SCAT40xSFC5/16"-10"CUL	12.687	10	1.026	8.63	0.3125	0.63	1.75	0.157	1.8
5043-768-A24-600	SCAT40xSFC3/8"-6"CUL	8.687	6	1.259	4.63	0.375	0.73	1.75	0.177	1.6
5043-768-A24-800	SCAT40xSFC3/8"-8"CUL	10.687	8	1.259	6.63	0.375	0.73	1.75	0.177	1.8
5043-768-A24-1000	SCAT40xSFC3/8"-10"CUL	12.687	10	1.259	8.63	0.375	0.73	1.75	0.177	1.9
5043-768-A32-600	SCAT40xSFC1/2"-6"CUL	8.687	6	1.457	4.63	0.5	0.89	1.75	0.196	1.7
5043-768-A32-800	SCAT40xSFC1/2"-8"CUL	10.687	8	1.457	6.63	0.5	0.89	1.75	0.196	1.9
5043-768-A32-1000	SCAT40xSFC1/2"-10"CUL	12.687	10	1.457	8.63	0.5	0.89	1.75	0.196	2.0
5044-768-A12-600	SCAT50xSFC3/16"-6"CUL	10	6	0.394	4.63	0.1875	0.42	2.75	0.118	4.3
5044-768-A12-800	SCAT50xSFC3/16"-8"CUL	12	8	0.394	6.63	0.1875	0.42	2.75	0.118	4.6
5044-768-A12-1000	SCAT50xSFC3/16"-10"CUL	14	10	0.394	8.63	0.1875	0.42	2.75	0.118	4.9
5044-768-A12-1200	SCAT50xSFC3/16"-12"CUL	16	12	0.394	10.63	0.1875	0.42	2.75	0.118	5.1
5044-768-A16-600	SCAT50xSFC1/4"-6"CUL	10	6	1.024	4.63	0.25	0.53	2.75	0.138	4.3
5044-768-A16-800	SCAT50xSFC1/4"-8"CUL	12	8	1.024	6.63	0.25	0.53	2.75	0.138	4.7
5044-768-A16-1000	SCAT50xSFC1/4"-10"CUL	14	10	1.024	8.63	0.25	0.53	2.75	0.138	5.0
5044-768-A16-1200	SCAT50xSFC1/4"-12"CUL	16	12	1.024	10.63	0.25	0.53	2.75	0.138	5.2
5044-768-A20-600	SCAT50xSFC5/16"-6"CUL	10	6	1.026	4.63	0.3125	0.63	2.75	0.157	4.4
5044-768-A20-800	SCAT50xSFC5/16"-8"CUL	12	8	1.026	6.63	0.3125	0.63	2.75	0.157	4.8
5044-768-A20-1000	SCAT50xSFC5/16"-10"CUL	14	10	1.026	8.63	0.3125	0.63	2.75	0.157	5.1
5044-768-A20-1200	SCAT50xSFC5/16"-12"CUL	16	12	1.026	10.63	0.3125	0.63	2.75	0.157	5.3
5044-768-A24-600	SCAT50xSFC3/8"-6"CUL	10	6	1.259	4.63	0.375	0.73	2.75	0.177	4.4
5044-768-A24-800	SCAT50xSFC3/8"-8"CUL	12	8	1.259	6.63	0.375	0.73	2.75	0.177	4.8
5044-768-A24-1000	SCAT50xSFC3/8"-10"CUL	14	10	1.259	8.63	0.375	0.73	2.75	0.177	5.2
5044-768-A24-1200	SCAT50xSFC3/8"-12"CUL	16	12	1.259	10.63	0.375	0.73	2.75	0.177	5.4
5044-768-A32-600	SCAT50xSFC1/2"-6"CUL	10	6	1.457	4.63	0.5	0.89	2.75	0.196	4.5
5044-768-A32-800	SCAT50xSFC1/2"-8"CUL	12	8	1.457	6.63	0.5	0.89	2.75	0.196	5.0
5044-768-A32-1000	SCAT50xSFC1/2"-10"CUL	14	10	1.457	8.63	0.5	0.89	2.75	0.196	5.3
5044-768-A32-1200	SCAT50xSFC1/2"-12"CUL	16	12	1.457	10.63	0.5	0.89	2.75	0.196	5.6

SDAT/SFC法蘭加厚型熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/SDAT-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5066-768-004-150	SDAT40xSFC4-150CUL	218.4	150	10	130.9	4	10	53	3	1.5
5066-768-004-200	SDAT40xSFC4-200CUL	268.4	200	10	180.9	4	10	53	3	1.7
5066-768-004-250	SDAT40xSFC4-250CUL	318.4	250	10	230.9	4	10	53	3	1.8
5066-768-006-150	SDAT40xSFC6-150CUL	218.4	150	26	130.9	6	13	53	3.5	1.6
5066-768-006-200	SDAT40xSFC6-200CUL	268.4	200	26	180.9	6	13	53	3.5	1.8
5066-768-008-150	SDAT40xSFC8-150CUL	218.4	150	26	130.9	8	16	53	4	1.7
5066-768-008-200	SDAT40xSFC8-200CUL	268.4	200	26	180.9	8	16	53	4	1.8
5066-768-008-250	SDAT40xSFC8-250CUL	318.4	250	26	230.9	8	16	53	4	2.0
5066-768-010-150	SDAT40xSFC10-150CUL	218.4	150	32	130.9	10	19	53	4.5	1.7
5066-768-010-200	SDAT40xSFC10-200CUL	268.4	200	32	180.9	10	19	53	4.5	1.9
5066-768-010-250	SDAT40xSFC10-250CUL	318.4	250	32	230.9	10	19	53	4.5	2.1
5066-768-012-150	SDAT40xSFC12-150CUL	218.4	150	37	130.9	12	22	53	5	1.8
5066-768-012-200	SDAT40xSFC12-200CUL	268.4	200	37	180.9	12	22	53	5	2.0
5066-768-012-250	SDAT40xSFC12-250CUL	318.4	250	37	230.9	12	22	53	5	2.2
5067-768-004-150	SDAT50xSFC4-150CUL	251.75	150	10	130.9	4	10	85	3	1.5
5067-768-004-200	SDAT50xSFC4-200CUL	301.75	200	10	180.9	4	10	85	3	1.7
5067-768-004-250	SDAT50xSFC4-250CUL	351.75	250	10	230.9	4	10	85	3	1.8
5067-768-004-300	SDAT50xSFC4-300CUL	401.75	300	10	280.9	4	10	85	3	1.9
5067-768-006-150	SDAT50xSFC6-150CUL	251.75	150	26	130.9	6	13	85	3.5	1.6
5067-768-006-200	SDAT50xSFC6-200CUL	301.75	200	26	180.9	6	13	85	3.5	1.8
5067-768-006-250	SDAT50xSFC6-250CUL	351.75	250	26	230.9	6	13	85	3.5	1.9
5067-768-006-300	SDAT50xSFC6-300CUL	401.75	300	26	280.9	6	13	85	3.5	2.0
5067-768-008-200	SDAT50xSFC8-200CUL	301.75	200	26	180.9	8	16	85	4	1.8
5067-768-008-250	SDAT50xSFC8-250CUL	351.75	250	26	230.9	8	16	85	4	2.0
5067-768-008-300	SDAT50xSFC8-300CUL	401.75	300	26	280.9	8	16	85	4	2.1
5067-768-010-150	SDAT50xSFC10-150CUL	251.75	150	32	130.9	10	19	85	4.5	1.7
5067-768-010-200	SDAT50xSFC10-200CUL	301.75	200	32	180.9	10	19	85	4.5	2.0
5067-768-010-250	SDAT50xSFC10-250CUL	351.75	250	32	230.9	10	19	85	4.5	2.1
5067-768-010-300	SDAT50xSFC10-300CUL	401.75	300	32	280.9	10	19	85	4.5	2.2
5067-768-012-150	SDAT50xSFC12-150CUL	251.75	150	37	130.9	12	22	85	5	1.8
5067-768-012-200	SDAT50xSFC12-200CUL	301.75	200	37	180.9	12	22	85	5	2.0
5067-768-012-250	SDAT50xSFC12-250CUL	351.75	250	37	230.9	12	22	85	5	2.2
5067-768-012-300	SDAT50xSFC12-300CUL	401.75	300	37	280.9	12	22	85	5	2.3

HSK-A/SFC熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/HSK-A-SFC-CUL_fugure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5073-768-004-150	HSK63AxSFC4-150CUL	182	150	10	124	4	10	53	3	0.9
5073-768-004-200	HSK63AxSFC4-200CUL	232	200	10	174	4	10	53	3	1.1
5073-768-004-250	HSK63AxSFC4-250CUL	282	250	10	224	4	10	53	3	1.6
5073-768-004-300	HSK63AxSFC4-300CUL	332	300	10	274	4	10	53	3	2.3
5073-768-006-150	HSK63AxSFC6-150CUL	182	150	20	124	6	13	53	3.5	1.3
5073-768-006-200	HSK63AxSFC6-200CUL	232	200	20	174	6	13	53	3.5	1.4
5073-768-006-250	HSK63AxSFC6-250CUL	282	250	20	224	6	13	53	3.5	1.8
5073-768-006-300	HSK63AxSFC6-300CUL	332	300	20	274	6	13	53	3.5	2.3
5073-768-008-150	HSK63AxSFC8-150CUL	182	150	26	124	8	16	53	4	1.4
5073-768-008-200	HSK63AxSFC8-200CUL	232	200	26	174	8	16	53	4	1.6
5073-768-008-250	HSK63AxSFC8-250CUL	282	250	26	224	8	16	53	4	1.9
5073-768-008-300	HSK63AxSFC8-300CUL	332	300	26	274	8	16	53	4	2.3
5073-768-010-150	HSK63AxSFC10-150CUL	182	150	32	124	10	19	53	4.5	1.3
5073-768-010-200	HSK63AxSFC10-200CUL	232	200	32	174	10	19	53	4.5	1.6
5073-768-010-250	HSK63AxSFC10-250CUL	282	250	32	224	10	19	53	4.5	2.1
5073-768-010-300	HSK63AxSFC10-300CUL	332	300	32	274	10	19	53	4.5	2.3
5073-768-012-150	HSK63AxSFC12-150CUL	182	150	37	124	12	22	53	5	1.5
5073-768-012-200	HSK63AxSFC12-200CUL	232	200	37	174	12	22	53	5	1.6
5073-768-012-250	HSK63AxSFC12-250CUL	282	250	37	224	12	22	53	5	2.3
5073-768-012-300	HSK63AxSFC12-300CUL	332	300	37	274	12	22	53	5	2.5
5075-768-004-150	HSK100AxSFC4-150CUL	200	150	10	121	4	10	85	3	3.6
5075-768-004-200	HSK100AxSFC4-200CUL	250	200	10	171	4	10	85	3	4.1
5075-768-004-250	HSK100AxSFC4-250CUL	300	250	10	221	4	10	85	3	4.5
5075-768-004-300	HSK100AxSFC4-300CUL	350	300	10	271	4	10	85	3	4.8
5075-768-006-150	HSK100AxSFC6-150CUL	200	150	20	121	6	13	85	3.5	6.6
5075-768-006-200	HSK100AxSFC6-200CUL	250	200	20	171	6	13	85	3.5	4.7
5075-768-006-250	HSK100AxSFC6-250CUL	300	250	20	221	6	13	85	3.5	5.4
5075-768-006-300	HSK100AxSFC6-300CUL	350	300	20	271	6	13	85	3.5	6.1
5075-768-008-150	HSK100AxSFC8-150CUL	200	150	26	121	8	16	85	4	6.5
5075-768-008-200	HSK100AxSFC8-200CUL	250	200	26	171	8	16	85	4	6.9
5075-768-008-250	HSK100AxSFC8-250CUL	300	250	26	221	8	16	85	4	4.6
5075-768-008-300	HSK100AxSFC8-300CUL	350	300	26	271	8	16	85	4	4.9
5075-768-010-150	HSK100AxSFC10-150CUL	200	150	32	121	10	19	85	4.5	3.5
5075-768-010-200	HSK100AxSFC10-200CUL	250	200	32	171	10	19	85	4.5	4.1
5075-768-010-250	HSK100AxSFC10-250CUL	300	250	32	221	10	19	85	4.5	4.9
5075-768-010-300	HSK100AxSFC10-300CUL	350	300	32	271	10	19	85	4.5	5.2
5075-768-012-150	HSK100AxSFC12-150CUL	200	150	37	121	12	22	85	5	3.6
5075-768-012-200	HSK100AxSFC12-200CUL	250	200	37	171	12	22	85	5	4.4
5075-768-012-250	HSK100AxSFC12-250CUL	300	250	37	221	12	22	85	5	4.6
5075-768-012-300	HSK100AxSFC12-300CUL	350	300	37	271	12	22	85	5	4.8

HSK-E/SFC熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/HSK-E-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5100-768-004-150	HSK50ExSFC4-150CUL	175	150	10	124	4	10	42	3	0.8
5100-768-006-150	HSK50ExSFC6-150CUL	175	150	26	124	6	13	42	3.5	0.9
5100-768-008-150	HSK50ExSFC8-150CUL	175	150	26	124	8	16	42	4	0.9
5100-768-010-150	HSK50ExSFC10-150CUL	175	150	32	124	10	19	42	4.5	0.9

HSK-F/SFC熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/HSK-F-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5103-768-004-120	HSK63FxSFC4-120CUL	145	120	10	94	4	10	53	3	1.04
5103-768-004-150	HSK63FxSFC4-150CUL	175	150	10	124	4	10	53	3	1.1
5103-768-004-200	HSK63FxSFC4-200CUL	225	200	10	174	4	10	53	3	1.5
5103-768-004-250	HSK63FxSFC4-250CUL	275	250	10	224	4	10	53	3	1.7
5103-768-006-120	HSK63FxSFC6-120CUL	145	120	36	94	6	13	53	3.5	1.07
5103-768-006-150	HSK63FxSFC6-150CUL	175	150	26	124	6	13	53	3.5	1.3
5103-768-006-200	HSK63FxSFC6-200CUL	225	200	26	174	6	13	53	3.5	1.5
5103-768-006-250	HSK63FxSFC6-250CUL	275	250	26	224	6	13	53	3.5	2.0
5103-768-008-150	HSK63FxSFC8-150CUL	175	150	26	124	8	16	53	4	1.4
5103-768-008-200	HSK63FxSFC8-200CUL	225	200	26	174	8	16	53	4	1.6
5103-768-008-250	HSK63FxSFC8-250CUL	275	250	26	224	8	16	53	4	1.8
5103-768-010-120	HSK63FxSFC10-120CUL	145	120	42	94	10	19	53	4.5	1.13
5103-768-010-150	HSK63FxSFC10-150CUL	175	150	32	124	10	19	53	4.5	1.4
5103-768-010-200	HSK63FxSFC10-200CUL	225	200	32	174	10	19	53	4.5	1.6
5103-768-010-250	HSK63FxSFC10-250CUL	275	250	32	224	10	19	53	4.5	2.1
5103-768-012-150	HSK63FxSFC12-150CUL	175	150	37	124	12	22	53	5	1.5
5103-768-012-200	HSK63FxSFC12-200CUL	225	200	37	174	12	22	53	5	1.7
5103-768-012-250	HSK63FxSFC12-250CUL	275	250	37	224	12	22	53	5	1.9

PSC/SFC熱膨脹刀桿 (CUL威力曲線型)

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/PSC-SFC-CUL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	t	WEIGHT (KGS)
5143-768-004-150	PSC63xSFC4-150CUL	188	150	10	128	4	10	53	3	1.5
5143-768-004-200	PSC63xSFC4-200CUL	238	200	10	178	4	10	53	3	1.6
5143-768-004-250	PSC63xSFC4-250CUL	288	250	10	228	4	10	53	3	1.7
5143-768-004-300	PSC63xSFC4-300CUL	338	300	10	278	4	10	53	3	1.8
5143-768-006-150	PSC63xSFC6-150CUL	188	150	26	128	6	13	53	3.5	1.5
5143-768-006-200	PSC63xSFC6-200CUL	238	200	26	178	6	13	53	3.5	1.7
5143-768-006-250	PSC63xSFC6-250CUL	288	250	26	228	6	13	53	3.5	1.8
5143-768-006-300	PSC63xSFC6-300CUL	338	300	26	278	6	13	53	3.5	1.9
5143-768-008-150	PSC63xSFC8-150CUL	188	150	26	128	8	16	53	4	1.6
5143-768-008-200	PSC63xSFC8-200CUL	238	200	26	178	8	16	53	4	1.7
5143-768-008-250	PSC63xSFC8-250CUL	288	250	26	228	8	16	53	4	1.9
5143-768-008-300	PSC63xSFC8-300CUL	338	300	26	278	8	16	53	4	2.0
5143-768-010-150	PSC63xSFC10-150CUL	188	150	32	128	10	19	53	4.5	1.6
5143-768-010-200	PSC63xSFC10-200CUL	238	200	32	178	10	19	53	4.5	1.8
5143-768-010-250	PSC63xSFC10-250CUL	288	250	32	228	10	19	53	4.5	2.0
5143-768-010-300	PSC63xSFC10-300CUL	338	300	32	278	10	19	53	4.5	2.1
5143-768-012-150	PSC63xSFC12-150CUL	188	150	37	128	12	22	53	5	1.7
5143-768-012-200	PSC63xSFC12-200CUL	238	200	37	178	12	22	53	5	1.9
5143-768-012-250	PSC63xSFC12-250CUL	288	250	37	228	12	22	53	5	2.1
5143-768-012-300	PSC63xSFC12-300CUL	338	300	37	278	12	22	53	5	2.2

series

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC-CUL/SFC-CUL技術資訊..jpg

series

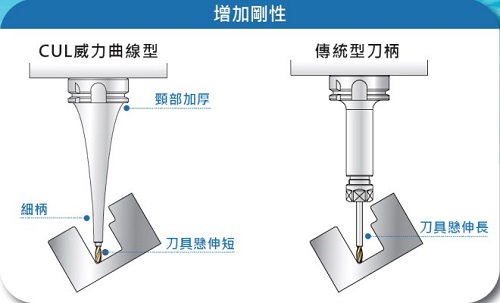

SFC-CUL 威力曲線高強度熱脹冷縮刀柄

SFC熱膨脹刀桿(威力曲線型)

產品描述
