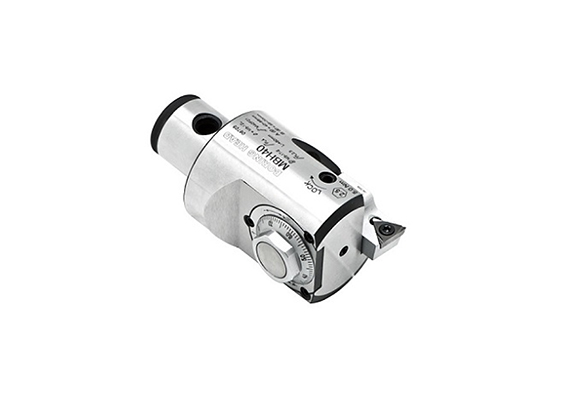

MBH微調精搪孔頭

series

MBH微調精搪孔頭

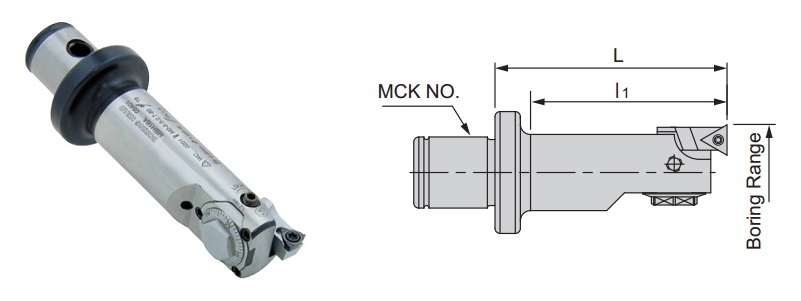

MODEL NO.	TYPE	MCK NO.	L	l1	BORING RANGE	INSERT	Torque (N.m)	WEIGHT (KGS)
405-012-16A	MBH16A	MCK2	55	50	16 ~ 20	WC..02	0.6	0.09
405-012-16B	MBH16B	MCK2	80	75	16 ~ 20	WC..02	0.6	0.12

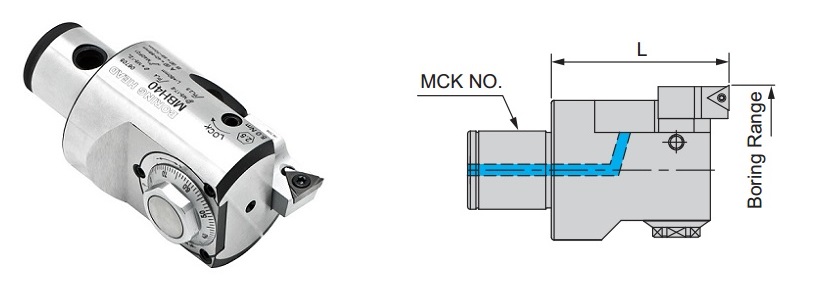

MODEL NO.	TYPE	MCK NO.	L	BORING RANGE	INSERT	Torque (N.m)	WEIGHT (KGS)
405-012-020	MBH20 - WC02	MCK1	35	20 ~ 26	WC..02	0.6	0.07
405-012-025	MBH25 - WC02	MCK2	40	25 ~ 32	WC..02	0.6	0.12
405-012-032	MBH32 - TP09	MCK3	40	32 ~ 42	TP..0902	1.2	0.23
405-012-032	MBH32 - TC09	MCK3	40	32 ~ 42	TC..0902	0.6	0.23
405-012-032	MBH32 - CC06	MCK3	40	32 ~ 42	CC..0602	1.2	0.23
405-012-40A	MBH40A	MCK4	50	40 ~ 55	TP..1103	1.4	0.43
405-012-40A	MBH40A	MCK4	50	40 ~ 55	TC..1102 / CC..0602	1.2	0.43
405-012-40B	MBH40B	MCK4	50	55 ~ 70	TP..1103	1.4	0.43
405-012-40B	MBH40B	MCK4	50	55 ~ 70	TC..1102 / CC..0602	1.2	0.43
405-012-52A	MBH52A	MCK5	60	52 ~ 70	TP..1103	1.4	0.90
405-012-52A	MBH52A	MCK5	60	52 ~ 70	TC..1102 / CC..0602	1.2	0.90
405-012-52B	MBH52B	MCK5	60	67 ~ 85	TP..1103	1.4	0.90
405-012-52B	MBH52B	MCK5	60	67 ~ 85	TC..1102 / CC..0602	1.2	0.90
405-012-68A	MBH68A	MCK6	75	68 ~ 88	TP..1103	1.4	1.86
405-012-68A	MBH68A	MCK6	75	68 ~ 88	TC..1102	1.2	1.86
405-012-68A	MBH68A	MCK6	75	68 ~ 88	CC..09T3	3.0	1.86
405-012-68B	MBH68B	MCK6	75	85 ~ 105	TP..1103	1.4	1.86
405-012-68B	MBH68B	MCK6	75	85 ~ 105	TC..1102	1.2	1.86
405-012-68B	MBH68B	MCK6	75	85 ~ 105	CC..09T3	3.0	1.86
