斜柄鑽頭套筒

規格表

series

BT/MTA斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/BT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	FIG	WEIGHT (KGS)
5010-465-001-045	BT30xMTA1-45	93.4	45	20	25	12.065	1	0.50
5010-465-001-105	BT30xMTA1-105	153.4	105	78	25	12.065	2	0.70
5010-465-002-060	BT30xMTA2-60	108.4	60	35	32	17.78	1	0.54
5010-465-002-120	BT30xMTA2-120	168.4	120	95	32	17.78	2	0.90
5010-465-003-080	BT30xMTA3-80	128.4	80	56	40	23.825	1	0.72
5011-465-001-045	BT40xMTA1-45	110.4	45	15	25	12.065	1	1.05
5011-465-001-120	BT40xMTA1-120	185.4	120	83	25	12.065	2	1.32
5011-465-002-050	BT40xMTA2-50	115.4	50	20	32	17.78	1	1.10
5011-465-002-120	BT40xMTA2-120	185.4	120	88	32	17.78	2	1.42
5011-465-003-070	BT40xMTA3-70	135.4	70	38	40	23.825	1	1.20
5011-465-003-135	BT40xMTA3-135	200.4	135	102	40	23.825	2	1.70
5011-465-004-095	BT40xMTA4-95	160.4	95	63	48	31.267	1	1.40
5011-465-004-165	BT40xMTA4-165	230.4	165	133	48	31.267	2	2.50
5012-465-001-045	BT50xMTA1-45	146.8	45	2	25	12.065	1	3.80
5012-465-001-120	BT50xMTA1-120	221.8	120	74	25	12.065	2	4.30
5012-465-001-180	BT50xMTA1-180	281.8	180	132	25	12.065	2	5.00
5012-465-002-060	BT50xMTA2-60	161.8	60	17	32	17.78	1	4.00
5012-465-002-135	BT50xMTA2-135	236.8	135	89	32	17.78	2	4.70
5012-465-002-180	BT50xMTA2-180	281.8	180	132	32	17.78	2	5.00
5012-465-003-065	BT50xMTA3-65	166.8	65	22	40	23.825	1	3.90
5012-465-003-150	BT50xMTA3-150	251.8	150	107	40	23.825	2	5.00
5012-465-003-180	BT50xMTA3-180	281.8	180	132	40	23.825	2	5.50
5012-465-004-095	BT50xMTA4-95	196.8	95	52	48	31.267	1	4.20
5012-465-004-180	BT50xMTA4-180	281.8	180	132	48	31.267	2	5.50
5012-465-005-105	BT50xMTA5-105	206.8	105	62	63	44.399	2	4.30

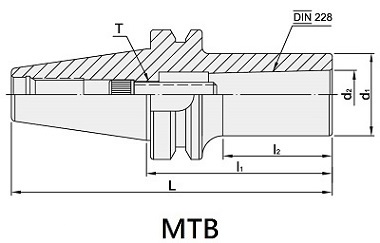

BT/MTB斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/BT-MTB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T		WEIGHT (KGS)
5010-466-011/5-045	BT30xMTB1-45	93.4	45	20	25	12.065	M6 x 1.0P	1/4" - 20	0.55
5010-466-021/5-060	BT30xMTB2-60	108.4	60	36	32	17.78	M10 x 1.5P	3/8" - 16	0.60
5011-466-011/5-045	BT40xMTB1-45	110.4	45	13	25	12.065	M6 x 1.0P	1/4" - 20	1.10
5011-466-021/5-045	BT40xMTB2-45	110.4	45	13	32	17.78	M10 x 1.5P	3/8" - 16	1.10
5011-466-021/5-185	BT40xMTB2-185	250.4	185	148	32	17.78	M10 x 1.5P	3/8" - 16	1.90
5011-466-031/5-075	BT40xMTB3-75	140.4	75	45	40	23.825	M12 x 1.75P	1/2" - 12	1.30
5011-466-031/5-090	BT40xMTB3-90	155.4	90	53	40	23.825	M12 x 1.75P	1/2" - 12	1.40
5011-466-031/5-120	BT40xMTB3-120	185.4	120	83	40	23.825	M12 x 1.75P	1/2" - 12	1.80
5011-466-031/5-180	BT40xMTB3-180	245.4	180	143	40	23.825	M12 x 1.75P	1/2" - 12	2.40
5011-466-041/5-100	BT40xMTB4-100	165.4	100	67	48	31.267	M16 x 2.0P	5/8" - 11	1.60
5011-466-041/5-120	BT40xMTB4-120	185.4	120	87	48	31.267	M16 x 2.0P	5/8" - 11	1.80
5011-466-041/5-180	BT40xMTB4-180	245.4	180	147	48	31.267	M16 x 2.0P	5/8" - 11	2.60
5012-466-011/5-045	BT50xMTB1-45	146.8	45	6	25	12.065	M6 x 1.0P	1/4" - 20	3.80
5012-466-021/5-045	BT50xMTB2-45	146.8	45	5	32	17.78	M10 x 1.5P	3/8" - 16	3.90
5012-466-031/5-060	BT50xMTB3-60	161.8	60	12	40	23.825	M12 x 1.75P	1/2" - 12	3.90
5012-466-041/5-075	BT50xMTB4-75	176.8	75	32	48	31.267	M16 x 2.0P	5/8" - 11	4.20
5012-466-051/5-120	BT50xMTB5-120	221.8	120	77	63	44.399	M24 x 3.0P	1" - 8	4.30

CAT/MTA斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/CAT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	WEIGHT (KGS)
5031-465-001-041	CAT40xMTA1-1.6"	4.287	1.6	2.205	0.124	1	0.475	1.30
5031-465-002-051	CAT40xMTA2-2"	4.687	2	2.638	0.323	1.25	0.7	1.50
5031-465-003-070	CAT40xMTA3-2.75"	5.437	2.75	3.307	1.287	1.575	0.938	1.15
5031-465-004-095	CAT40xMTA4-3.75"	6.437	3.75	4.213	2.372	1.75	1.23	1.20
5032-465-001-051	CAT50xMTA1-2"	6	2	2.205	0.622	1	0.475	4.05
5032-465-002-051	CAT50xMTA2-2"	6	2	2.638	0.504	1.25	0.7	4.40
5032-465-003-064	CAT50xMTA3-2.5"	6.5	2.5	3.307	1.004	1.55	0.938	4.50
5032-465-004-084	CAT50xMTA4-3.3"	7.3	3.3	4.213	1.804	1.75	1.23	4.90
5032-465-005-104	CAT50xMTA5-4.1"	8.1	4.1	5.315	2.587	2.48	1.748	5.15

DAT/MTA斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/DAT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	WEIGHT (KGS)
5050-465-001-050	DAT30xMTA1-50	97.8	50	56	27	25	12.065	0.55
5050-465-002-060	DAT30xMTA2-60	107.8	60	67	37	32	17.78	0.80
5050-465-003-075	DAT30xMTA3-75	122.8	75	84	53	40	23.825	1.00
5051-465-001-050	DAT40xMTA1-50	118.4	50	56	22	25	12.065	0.95
5051-465-002-050	DAT40xMTA2-50	118.4	50	67	27	32	17.78	0.95
5051-465-003-070	DAT40xMTA3-70	138.4	70	84	47	40	23.825	1.10
5051-465-004-095	DAT40xMTA4-95	163.4	95	107	74	48	31.267	1.35
5052-465-001-045	DAT50xMTA1-45	146.75	45	56	22	25	12.065	3.00
5052-465-002-060	DAT50xMTA2-60	161.75	60	67	35	32	17.78	3.10
5052-465-003-065	DAT50xMTA3-65	166.75	65	84	40	40	23.825	3.20
5052-465-004-095	DAT50xMTA4-95	196.75	95	107	70	48	31.267	3.40
5052-465-005-105	DAT50xMTA5-105	206.75	105	135	80	63	44.399	3.60

SBT/MTA法蘭加厚型斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/SBT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	WEIGHT (KGS)
5025-465-001-045	SBT30xMTA1-45	93.4	45	20	25	12.065	0.55
5025-465-001-105	SBT30xMTA1-105	153.4	105	78	25	12.065	0.80
5025-465-002-060	SBT30xMTA2-60	108.4	60	35	32	17.78	0.60
5025-465-002-120	SBT30xMTA2-120	168.4	120	95	32	17.78	0.90
5025-465-003-080	SBT30xMTA3-80	128.4	80	56	40	23.825	0.80
5026-465-001-045	SBT40xMTA1-45	110.4	45	15	25	12.065	1.05
5026-465-001-120	SBT40xMTA1-120	185.4	120	83	25	12.065	1.40
5026-465-002-050	SBT40xMTA2-50	115.4	50	20	32	17.78	1.10
5026-465-002-120	SBT40xMTA2-120	185.4	120	88	32	17.78	1.45
5026-465-003-070	SBT40xMTA3-70	135.4	70	38	40	23.825	1.20
5026-465-003-135	SBT40xMTA3-135	200.4	135	102	40	23.825	1.90
5026-465-004-095	SBT40xMTA4-95	160.4	95	63	48	31.267	1.40
5026-465-004-165	SBT40xMTA4-165	230.4	165	133	48	31.267	2.50
5027-465-001-045	SBT50xMTA1-45	146.8	45	2	25	12.065	3.80
5027-465-001-120	SBT50xMTA1-120	221.8	120	74	25	12.065	4.30
5027-465-001-180	SBT50xMTA1-180	281.8	180	132	25	12.065	5.00
5027-465-002-060	SBT50xMTA2-60	161.8	60	17	32	17.78	4.00
5027-465-002-135	SBT50xMTA2-135	236.8	135	89	32	17.78	4.70
5027-465-002-180	SBT50xMTA2-180	281.8	180	132	32	17.78	5.00
5027-465-003-065	SBT50xMTA3-65	166.8	65	22	40	23.825	3.90
5027-465-003-150	SBT50xMTA3-150	251.8	150	107	40	23.825	5.00
5027-465-003-180	SBT50xMTA3-180	281.8	180	132	40	23.825	5.50
5027-465-004-095	SBT50xMTA4-95	196.8	95	52	48	31.267	4.20
5027-465-004-180	SBT50xMTA4-180	281.8	180	132	48	31.267	5.50
5027-465-005-105	SBT50xMTA5-105	206.8	105	62	63	44.399	4.30

SBT/MTB法蘭加厚型斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/SBT-MTB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T		WEIGHT (KGS)
5025-466-011/5-045	SBT30xMTB1-45	93.4	45	20	25	12.065	M6 x 1.0P	1/4" - 20	0.55
5025-466-021/5-060	SBT30xMTB2-60	108.4	60	36.5	32	17.78	M10 x 1.5P	3/8" - 16	0.60
5026-466-011/5-045	SBT40xMTB1-45	110.4	45	13	25	12.065	M6 x 1.0P	1/4" - 20	1.10
5026-466-021/5-045	SBT40xMTB2-45	110.4	45	13	32	17.78	M10 x 1.5P	3/8" - 16	1.10
5026-466-021/5-185	SBT40xMTB2-185	250.4	185	148	32	17.78	M10 x 1.5P	3/8" - 16	1.86
5026-466-031/5-075	SBT40xMTB3-75	140.4	75	45	40	23.825	M12 x 1.75P	1/2" - 12	1.30
5026-466-031/5-090	SBT40xMTB3-90	155.4	90	53	40	23.825	M12 x 1.75P	1/2" - 12	1.40
5026-466-031/5-120	SBT40xMTB3-120	185.4	120	83	40	23.825	M12 x 1.75P	1/2" - 12	1.80
5026-466-031/5-180	SBT40xMTB3-180	245.4	180	143	40	23.825	M12 x 1.75P	1/2" - 12	2.40
5026-466-041/5-100	SBT40xMTB4-100	165.4	100	67	48	31.267	M16 x 2.0P	5/8" - 11	1.60
5026-466-041/5-120	SBT40xMTB4-120	185.4	120	87	48	31.267	M16 x 2.0P	5/8" - 11	1.80
5026-466-041/5-180	SBT40xMTB4-180	245.4	180	147	48	31.267	M16 x 2.0P	5/8" - 11	2.60
5027-466-011/5-045	SBT50xMTB1-45	146.8	45	6	25	12.065	M6 x 1.0P	1/4" - 20	3.80
5027-466-021/5-045	SBT50xMTB2-45	146.8	45	5	32	17.78	M10 x 1.5P	3/8" - 16	3.90
5027-466-031/5-060	SBT50xMTB3-60	161.8	60	12	40	23.825	M12 x 1.75P	1/2" - 12	3.90
5027-466-041/5-075	SBT50xMTB4-75	176.8	75	32	48	31.267	M16 x 2.0P	5/8" - 11	4.20
5027-466-051/5-120	SBT50xMTB5-120	221.8	120	77	63	44.399	M24 x 3.0P	1" - 8	4.30

SCAT/MTA法蘭加厚型斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/SCAT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	WEIGHT (KGS)
5043-465-001-041	SCAT40xMTA1-1.6"	4.287	1.6	2.205	0.12	1	0.475	1.30
5043-465-002-051	SCAT40xMTA2-2"	4.687	2	2.638	0.32	1.25	0.7	1.50
5043-465-003-070	SCAT40xMTA3-2.75"	5.437	2.75	3.307	1.29	1.57	0.938	1.14
5043-465-004-095	SCAT40xMTA4-3.75"	6.437	3.75	4.213	2.37	1.75	1.23	1.20
5044-465-001-051	SCAT50xMTA1-2"	6	2	2.205	0.62	1	0.475	4.05
5044-465-002-051	SCAT50xMTA2-2"	6	2	2.638	0.5	1.25	0.7	4.40
5044-465-003-064	SCAT50xMTA3-2.5"	6.5	2.5	3.307	1	1.55	0.938	4.50
5044-465-004-084	SCAT50xMTA4-3.3"	7.3	3.3	4.213	1.8	1.75	1.23	4.90
5044-465-005-104	SCAT50xMTA5-4.1"	8.1	4.1	5.315	2.59	2.48	1.748	5.15

SDAT/MTA法蘭加厚型斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/SDAT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	WEIGHT (KGS)
5066-465-001-050	SDAT40xMTA1-50	118.4	50	56	22	25	12.065	1.20
5066-465-002-050	SDAT40xMTA2-50	118.4	50	67	27	32	17.78	1.00
5066-465-003-070	SDAT40xMTA3-70	138.4	70	84	47	40	23.825	1.10
5066-465-004-095	SDAT40xMTA4-95	163.4	95	107	74	48	31.267	1.35
5067-465-001-045	SDAT50xMTA1-45	146.75	45	56	22	25	12.065	3.00
5067-465-002-060	SDAT50xMTA2-60	161.75	60	67	35	32	17.78	3.10
5067-465-003-065	SDAT50xMTA3-65	166.75	65	84	40	40	23.825	3.20
5067-465-004-095	SDAT50xMTA4-95	196.75	95	107	70	48	31.267	3.40
5067-465-005-105	SDAT50xMTA5-105	206.75	105	135	80	63	44.399	3.60

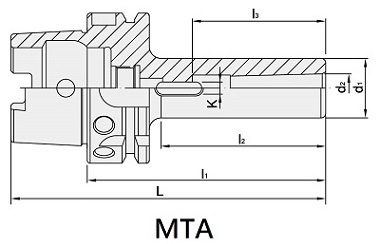

HSK-A/MTA斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/HSK-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	K	WEIGHT (KGS)
5072-465-001-100	HSK50AxMTA1-100	125	100	69	56	25	12.065	5.2	1.50
5072-465-002-120	HSK50AxMTA2-120	145	120	89	67	32	17.78	6.3	1.80
5072-465-003-140	HSK50AxMTA3-140	165	140	113	84	40	23.825	7.9	1.90
5073-465-001-100	HSK63AxMTA1-100	132	100	69	56	25	12.065	5.2	1.90
5073-465-002-120	HSK63AxMTA2-120	152	120	89	67	32	17.78	6.3	2.00
5073-465-003-140	HSK63AxMTA3-140	172	140	109	84	40	23.825	7.9	2.20
5073-465-004-160	HSK63AxMTA4-160	192	160	132	107	48	31.267	11.9	2.50
5075-465-001-110	HSK100AxMTA1-110	160	110	71	56	25	12.065	5.2	3.40
5075-465-002-120	HSK100AxMTA2-120	170	120	81	67	32	17.78	6.3	3.80
5075-465-003-150	HSK100AxMTA3-150	200	150	111	84	40	23.825	7.9	4.00
5075-465-004-170	HSK100AxMTA4-170	220	170	131	107	48	31.267	11.9	4.60
5075-465-005-200	HSK100AxMTA5-200	250	200	166	135	63	44.399	15.9	5.20

NT/MTA斜柄鑽頭套筒

proimages/Products/Tool_holders/Others/Morse_Taper_Adapter_/NT-MTA_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T		WEIGHT (KGS)
5120-465-021/5-056	NT30xMTA2-55.5	123.9	55.5	42	17.78	32	1/2" - 12	M12 x 1.75P	0.50
5120-465-031/5-076	NT30xMTA3-75.6	144	75.6	63	23.825	36	1/2" - 12	M12 x 1.75P	0.55
5121-465-021/5-025	NT40xMTA2-25	118.4	25	11	17.78	32	5/8" - 11	M16 x 2.0P	0.80
5121-465-031/5-049	NT40xMTA3-48.6	142	48.6	35	23.825	40	5/8" - 11	M16 x 2.0P	0.85
5121-465-041/5-084	NT40xMTA4-83.6	177	83.6	69	31.267	48	5/8" - 11	M16 x 2.0P	1.25
5121-465-051/5-170	NT40xMTA5-170	263.4	170	156	44.399	63	5/8" - 11	M16 x 2.0P	1.45
5122-465-021/5-023	NT50xMTA2-23.2	150	23.2	5.5	17.78	32	1" - 8	M24 x 3.0P	2.80
5122-465-031/5-033	NT50xMTA3-33.2	160	33.2	13	23.825	40	1" - 8	M24 x 3.0P	2.90
5122-465-041/5-063	NT50xMTA4-63.2	190	63.2	43	31.267	48	1" - 8	M24 x 3.0P	3.00
5122-465-051/5-086	NT50xMTA5-86.2	213	86.2	66	44.399	63	1" - 8	M24 x 3.0P	3.10
