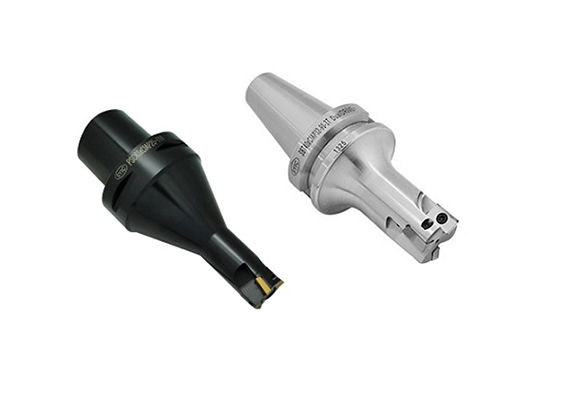

一體式鋼體模霸刀桿

規格表

series

SBT/CIAP一體式鋼體模霸刀桿

proimages/Products/Cutting_tools/End_mill_cutter/One-piece_Indexable_End_Mill_Cutter/SBT-CIAP_figure.jpg

MODEL NO.	TYPE	d1	d2	L	l1	l2	TEETH	INSERT
5025-052-016-065	SBT30xCIAP16-65-2T	16	15.5	113.4	65	33	2	AP..1003
5025-053-020-065	SBT30xCIAP20-65-3T	20	19.2	113.4	65	33	3	AP..1003
5025-054-025-065	SBT30xCIAP25-65-4T	25	23.6	113.4	65	35	4	AP..1003
5025-055-032-065	SBT30xCIAP32-65-5T	32	31.5	113.4	65	38	5	AP..1003
5026-052-016-090	SBT40xCIAP16-90-2T	16	15.3	155.4	90	39	2	AP..1003
5026-053-020-090	SBT40xCIAP20-90-3T	20	19.2	155.4	90	33	3	AP..1003
5026-054-025-090	SBT40xCIAP25-90-4T	25	23.6	155.4	90	45	4	AP..1003
5026-052-025-090	SBT40xCIAP25-90-2T	25	23.8	155.4	90	45	2	AP..1604
5026-055-032-090	SBT40xCIAP32-90-5T	32	30.5	155.4	90	45	5	AP..1003
5026-053-032-090	SBT40xCIAP32-90-3T	32	30.8	155.4	90	45	3	AP..1604
5026-056-040-090	SBT40xCIAP40-90-6T	40	38.5	155.4	90	45	6	AP..1003
5026-054-040-090	SBT40xCIAP40-90-4T	40	38.6	155.4	90	45	4	AP..1604
5026-054-050-090	SBT40xCIAP50-90-4T	50	48.6	155.4	90	47	4	AP..1604
5026-055-063-090	SBT40xCIAP63-90-5T	63	61.6	155.4	90	63	5	AP..1604
5027-052-025-090	SBT50xCIAP25-90-2T	25	23.8	191.8	90	40	2	AP..1604
5027-053-032-090	SBT50xCIAP32-90-3T	32	30.8	191.8	90	40	3	AP..1604
5027-054-040-090	SBT50xCIAP40-90-4T	40	38.6	191.8	90	40	4	AP..1604
5027-054-050-090	SBT50xCIAP50-90-4T	50	48.6	191.8	90	40	4	AP..1604
5027-055-063-090	SBT50xCIAP63-90-5T	63	61.6	191.8	90	40	5	AP..1604

零配件：

INSERT	INSERT SCREW	WRENCH
AP..1003	M2.5-6.45-3.7-43	T8
AP..1604	M4-10-5.7-60	T15

PSC/IAP直角高速銑刀

proimages/Products/Cutting_tools/End_mill_cutter/One-piece_Indexable_End_Mill_Cutter/PSC-IAP_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	TEETH	INSERT	WEIGHT
5140-244-016-050	PSC32xIAP16-50-2T	69	50	25	16	2	AP..1003	0.20
5140-244-020-050	PSC32xIAP20-50-2T	69	50	25	20	2	AP..1003	0.20
5140-245-020-050	PSC32xIAP20-50-3T	69	50	25	20	3	AP..1003	0.30
5140-244-025-050	PSC32xIAP25-50-2T	69	50	32	25	2	AP..1003	0.20
5140-245-025-050	PSC32xIAP25-50-3T	69	50	32	25	3	AP..1003	0.30
5140-245-032-050	PSC32xIAP32-50-3T	69	50	35	32	3	AP..1003	0.20
5141-244-016-050	PSC40xIAP16-50-2T	74	50	25	16	2	AP..1003	0.50
5141-244-020-050	PSC40xIAP20-50-2T	74	50	25	20	2	AP..1003	0.50
5141-244-025-055	PSC40xIAP25-55-2T	79	55	32	25	2	AP..1003	0.50
5141-245-025-055	PSC40xIAP25-55-3T	79	55	32	25	3	AP..1003	0.50
5141-245-032-065	PSC40xIAP32-65-3T	89	65	40	32	3	AP..1003	0.60
5142-245-020-095	PSC50xIAP20-95-3T	125	95	40	20	3	AP..1003	1.00
5142-245-025-095	PSC50xIAP25-95-3T	125	95	45	25	3	AP..1003	1.10
5142-245-032-065	PSC50xIAP32-65-3T	95	65	40	32	3	AP..1003	1.50
5142-245-040-080	PSC50xIAP40-80-3T	110	80	40	40	3	AP..1604	1.10
5142-247-050-060	PSC50xIAP50-60-5T	90	60	60	50	5	AP..1604	1.00
5142-247-063-060	PSC50xIAP63-60-5T	90	60	60	63	5	AP..1604	1.40
5143-245-020-110	PSC63xIAP20-110-3T	148	110	40	20	3	AP..1003	1.60
5143-244-020-165	PSC63xIAP20-165-2T	203	165	60	20	2	AP..1003	1.60
5143-245-025-110	PSC63xIAP25-110-3T	148	110	45	25	3	AP..1003	1.60
5143-245-032-080	PSC63xIAP32-80-3T	118	80	40	32	3	AP..1003	1.50
5143-245-032-110	PSC63xIAP32-110-3T	148	110	50	32	3	AP..1003	1.70
5143-246-040-080	PSC63xIAP40-80-4T	118	80	40	40	4	AP..1003	1.60
5143-247-040-080	PSC63xIAP40-80-5T	118	80	40	40	5	AP..1003	1.60
5143-245-040-100	PSC63xIAP40-100-3T	138	100	50	40	3	AP..1604	1.80
5143-246-050-080	PSC63xIAP50-80-4T	118	80	40	50	4	AP..1604	1.80
5143-247-063-060	PSC63xIAP63-60-5T	98	60	38	63	5	AP..1604	2.20
5143-247-066-060	PSC63xIAP66-60-5T	98	60	60	66	5	AP..1604	1.90
5143-247-066-080	PSC63xIAP66-80-5T	118	80	80	66	5	AP..1604	2.30
5143-248-080-060	PSC63xIAP80-60-6T	98	60	60	80	6	AP..1604	2.20

零配件：

INSERT	INSERT SCREW	WRENCH
AP..1003	M2.5-6.45-3.7-60	T8
AP..1604	M4-10-5.7-60	T15

PSC/CIAP直角高速銑刀

proimages/Products/Cutting_tools/End_mill_cutter/One-piece_Indexable_End_Mill_Cutter/PSC-CIAP_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	TEETH	INSERT	WEIGHT
5140-052-016-050	PSC32xCIAP16-50-2T	69	50	25	16	2	AP..1003	0.20
5140-052-020-050	PSC32xCIAP20-50-2T	69	50	25	20	2	AP..1003	0.20
5140-053-020-050	PSC32xCIAP20-50-3T	69	50	25	20	3	AP..1003	0.30
5140-052-025-050	PSC32xCIAP25-50-2T	69	50	32	25	2	AP..1003	0.20
5140-053-025-050	PSC32xCIAP25-50-3T	69	50	32	25	3	AP..1003	0.30
5140-053-032-050	PSC32xCIAP32-50-3T	69	50	35	32	3	AP..1003	0.20
5141-052-016-050	PSC40xCIAP16-50-2T	74	50	25	16	2	AP..1003	0.50
5141-052-020-050	PSC40xCIAP20-50-2T	74	50	25	20	2	AP..1003	0.50
5141-052-025-055	PSC40xCIAP25-55-2T	79	55	32	25	2	AP..1003	0.50
5141-053-025-055	PSC40xCIAP25-55-3T	79	55	32	25	3	AP..1003	0.50
5141-053-032-065	PSC40xCIAP32-65-3T	89	65	40	32	3	AP..1003	0.60
5142-053-020-095	PSC50xCIAP20-95-3T	125	95	40	20	3	AP..1003	1.00
5142-053-025-095	PSC50xCIAP25-95-3T	125	95	45	25	3	AP..1003	1.10
5142-053-032-065	PSC50xCIAP32-65-3T	95	65	40	32	3	AP..1003	1.50
5142-053-040-080	PSC50xCIAP40-80-3T	110	80	40	40	3	AP..1604	1.10
5142-055-050-060	PSC50xCIAP50-60-5T	90	60	60	50	5	AP..1604	1.00
5142-055-063-060	PSC50xCIAP63-60-5T	90	60	60	63	5	AP..1604	1.40
5143-053-020-110	PSC63xCIAP20-110-3T	148	110	40	20	3	AP..1003	1.60
5143-052-020-165	PSC63xCIAP20-165-2T	203	165	60	20	2	AP..1003	1.60
5143-053-025-110	PSC63xCIAP25-110-3T	148	110	45	25	3	AP..1003	1.60
5143-053-032-080	PSC63xCIAP32-80-3T	118	80	40	32	3	AP..1003	1.50
5143-053-032-110	PSC63xCIAP32-110-3T	148	110	50	32	3	AP..1003	1.70
5143-054-040-080	PSC63xCIAP40-80-4T	118	80	40	40	4	AP..1003	1.60
5143-055-040-080	PSC63xCIAP40-80-5T	118	80	40	40	5	AP..1003	1.60
5143-053-040-100	PSC63xCIAP40-100-3T	138	100	50	40	3	AP..1604	1.80
5143-054-050-080	PSC63xCIAP50-80-4T	118	80	40	50	4	AP..1604	1.80
5143-055-063-060	PSC63xCIAP63-60-5T	98	60	38	63	5	AP..1604	2.20
5143-055-066-060	PSC63xCIAP66-60-5T	98	60	60	66	5	AP..1604	1.90
5143-055-066-080	PSC63xCIAP66-80-5T	118	80	80	66	5	AP..1604	2.30
5143-056-080-060	PSC63xCIAP80-60-6T	98	60	60	80	6	AP..1604	2.20

零配件：

INSERT	INSERT SCREW	WRENCH
AP..1003	M2.5-6.45-3.7-60	T8
AP..1604	M4-10-5.7-60	T15

PSC/MAP直角高速銑刀

proimages/Products/Cutting_tools/End_mill_cutter/One-piece_Indexable_End_Mill_Cutter/PSC-MAP_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	TEETH	INSERT	WEIGHT
5140-468-016-050	PSC32xMAP16-50-2T	69	50	25	16	2	AP..1135	0.20
5140-468-020-050	PSC32xMAP20-50-2T	69	50	25	20	2	AP..1135	0.20
5140-469-020-050	PSC32xMAP20-50-3T	69	50	25	20	3	AP..1135	0.30
5140-468-025-050	PSC32xMAP25-50-2T	69	50	32	25	2	AP..1604	0.20
5140-469-025-050	PSC32xMAP25-50-3T	69	50	32	25	3	AP..1135	0.30
5140-468-032-050	PSC32xMAP32-50-2T	69	50	35	32	2	AP..1604	0.20
5141-468-016-050	PSC40xMAP16-50-2T	74	50	25	16	2	AP..1135	0.50
5141-468-020-050	PSC40xMAP20-50-2T	74	50	25	20	2	AP..1135	0.50
5141-468-025-055	PSC40xMAP25-55-2T	79	55	32	25	2	AP..1604	0.50
5141-469-025-055	PSC40xMAP25-55-3T	79	55	32	25	3	AP..1135	0.50
5141-468-032-065	PSC40xMAP32-65-2T	89	65	40	32	2	AP..1604	0.60
5142-469-020-095	PSC50xMAP20-95-3T	125	95	40	20	3	AP..1135	1.00
5142-469-025-095	PSC50xMAP25-95-3T	125	95	45	25	3	AP..1135	1.10
5142-468-032-065	PSC50xMAP32-65-2T	95	65	40	32	2	AP..1604	1.50
5142-472-050-060	PSC50xMAP50-60-5T	90	60	60	50	5	AP..1604	1.00
5142-472-063-060	PSC50xMAP63-60-5T	90	60	60	63	5	AP..1604	1.40
5143-469-020-110	PSC63xMAP20-110-3T	148	110	40	20	3	AP..1135	1.60
5143-468-020-165	PSC63xMAP20-165-2T	203	165	60	20	2	AP..1135	1.60
5143-469-025-110	PSC63xMAP25-110-3T	148	110	45	25	3	AP..1135	1.60
5143-469-032-080	PSC63xMAP32-80-3T	118	80	40	32	3	AP..1135	1.50
5143-469-032-110	PSC63xMAP32-110-3T	148	110	50	32	3	AP..1135	1.70
5143-471-040-080	PSC63xMAP40-80-4T	118	80	40	40	4	AP..1135	1.60
5143-472-040-080	PSC63xMAP40-80-5T	118	80	40	40	5	AP..1135	1.60
5143-469-040-100	PSC63xMAP40-100-3T	138	100	50	40	3	AP..1604	1.80
5143-471-050-080	PSC63xMAP50-80-4T	118	80	40	50	4	AP..1604	1.80
5143-472-063-060	PSC63xMAP63-60-5T	98	60	38	63	5	AP..1604	2.20
5143-472-066-060	PSC63xMAP66-60-5T	98	60	60	66	5	AP..1604	1.90
5143-472-066-080	PSC63xMAP66-80-5T	118	80	80	66	5	AP..1604	2.30
5143-493-080-060	PSC63xMAP80-60-6T	98	60	60	80	6	AP..1604	2.20

零配件：

INSERT	INSERT SCREW	WRENCH
AP..1135	M2.5-6.0-3.5-60	T8
AP..1604	M4-10-5.7-60	T15

PSC/CMAP直角高速銑刀

proimages/Products/Cutting_tools/End_mill_cutter/One-piece_Indexable_End_Mill_Cutter/PSC-CMAP_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	TEETH	INSERT	WEIGHT
5140-042-016-050	PSC32xCMAP16-50-2T	69	50	25	16	2	AP..1135	0.20
5140-042-020-050	PSC32xCMAP20-50-2T	69	50	25	20	2	AP..1135	0.20
5140-043-020-050	PSC32xCMAP20-50-3T	69	50	25	20	3	AP..1135	0.30
5140-042-025-050	PSC32xCMAP25-50-2T	69	50	32	25	2	AP..1604	0.20
5140-043-025-050	PSC32xCMAP25-50-3T	69	50	32	25	3	AP..1135	0.30
5140-042-032-050	PSC32xCMAP32-50-2T	69	50	35	32	2	AP..1604	0.20
5141-042-016-050	PSC40xCMAP16-50-2T	74	50	25	16	2	AP..1135	0.50
5141-042-020-050	PSC40xCMAP20-50-2T	74	50	25	20	2	AP..1135	0.50
5141-042-025-055	PSC40xCMAP25-55-2T	79	55	32	25	2	AP..1604	0.50
5141-043-025-055	PSC40xCMAP25-55-3T	79	55	32	25	3	AP..1135	0.50
5141-042-032-065	PSC40xCMAP32-65-2T	89	65	40	32	2	AP..1604	0.60
5142-043-020-095	PSC50xCMAP20-95-3T	125	95	40	20	3	AP..1135	1.00
5142-043-025-095	PSC50xCMAP25-95-3T	125	95	45	25	3	AP..1135	1.10
5142-042-032-065	PSC50xCMAP32-65-2T	95	65	40	32	2	AP..1604	1.50
5142-045-050-060	PSC50xCMAP50-60-5T	90	60	60	50	5	AP..1604	1.00
5142-045-063-060	PSC50xCMAP63-60-5T	90	60	60	63	5	AP..1604	1.40
5143-043-020-110	PSC63xCMAP20-110-3T	148	110	40	20	3	AP..1135	1.60
5143-042-020-165	PSC63xCMAP20-165-2T	203	165	60	20	2	AP..1135	1.60
5143-043-025-110	PSC63xCMAP25-110-3T	148	110	45	25	3	AP..1135	1.60
5143-043-032-080	PSC63xCMAP32-80-3T	118	80	40	32	3	AP..1135	1.50
5143-043-032-110	PSC63xCMAP32-110-3T	148	110	50	32	3	AP..1135	1.70
5143-044-040-080	PSC63xCMAP40-80-4T	118	80	40	40	4	AP..1135	1.60
5143-045-040-080	PSC63xCMAP40-80-5T	118	80	40	40	5	AP..1135	1.60
5143-043-040-100	PSC63xCMAP40-100-3T	138	100	50	40	3	AP..1604	1.80
5143-044-050-080	PSC63xCMAP50-80-4T	118	80	40	50	4	AP..1604	1.80
5143-045-063-060	PSC63xCMAP63-60-5T	98	60	38	63	5	AP..1604	2.20
5143-045-066-060	PSC63xCMAP66-60-5T	98	60	60	66	5	AP..1604	1.90
5143-045-066-080	PSC63xCMAP66-80-5T	118	80	80	66	5	AP..1604	2.30
5143-046-080-060	PSC63xCMAP80-60-6T	98	60	60	80	6	AP..1604	2.20

零配件：

INSERT	INSERT SCREW	WRENCH
AP..1135	M2.5-6.0-3.5-60	T8
AP..1604	M4-10-5.7-60	T15
