PSC一體式粗搪孔頭
/PSC-PCK_Rough_Boring_Head_(one-piece).jpg "PSC一體式粗搪孔頭")
series
PSC/PCK可調整式雙刃粗搪孔頭(一體式)
/PSC-PCK_figure.jpg "proimages/Products/Boring_head/Rough_boring_head/PSC_rough_boring_head_(one-piece)/PSC-PCK_figure.jpg")
| MODEL NO. | TYPE | 搪孔範圍 | L | l1 | D | 刀片 | 螺絲 | 扳手 | WEIGHT (KGS) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 最小 | 最大 | |||||||||
| 5140-543-039-080 | PSC32xPCK3950-80 | 39 | 50 | 99 | 80 | 32 | CC..09T3 | M4 - 10 - 5.7 - 60 | T15 | 0.49 |
| 5141-543-049-082 | PSC40xPCK4965-82 | 49 | 65 | 106 | 82 | 42 | CC..1204 | M5 - 11 - 7.5 - 60 | T20 | 0.49 |
| 5142-543-063-092 | PSC50xPCK6382-92 | 63 | 82 | 122 | 92 | 54 | CC..1204 | M5 - 11 - 7.5 - 60 | T20 | 0.7 |
| 5143-543-080-140 | PSC63xPCK80102-140 | 80 | 102 | 178 | 140 | 68 | CC..1204 | M5 - 9.2 - 7.6 - 60 | T20 | 3.6 |
series

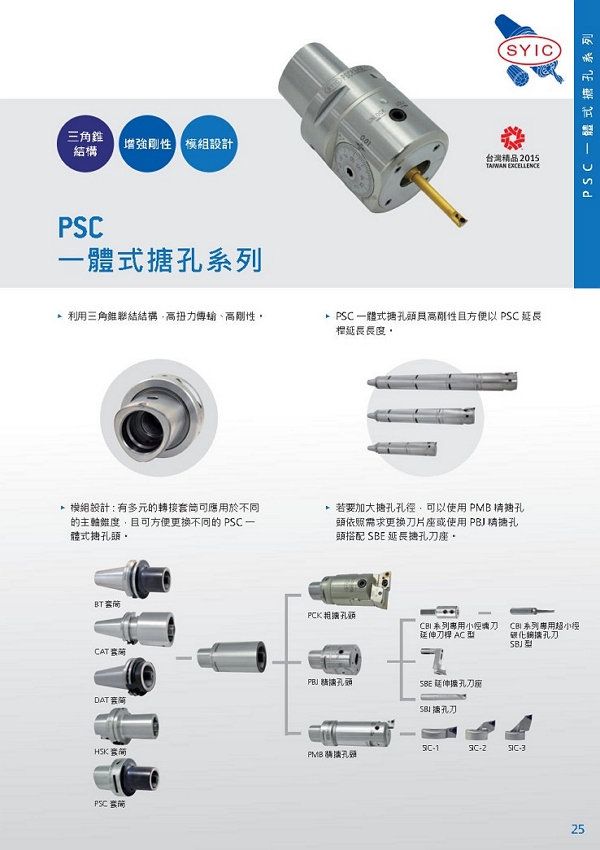

/PSC_One-Piece_Boring_System-zh-cover.jpg "proimages/Products/Boring_head/Rough_boring_head/PSC_rough_boring_head_(one-piece)/PSC_One-Piece_Boring_System-zh-cover.jpg")
