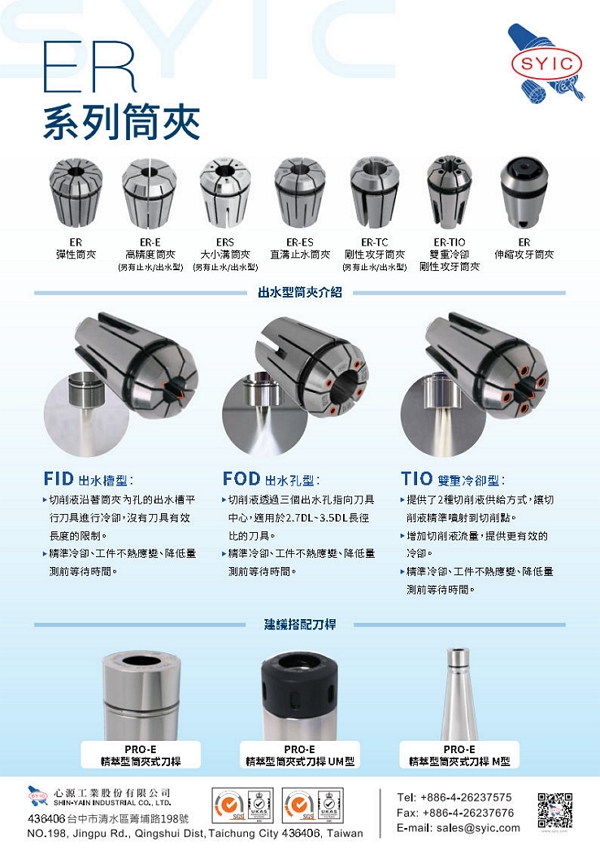

ERS大小溝止水/出水筒夾(FOD&FID型)
series
ERS大小溝止水筒夾
| MODEL NO. | TYPE | d1 | d2 | L | l1 | l2 | l3 | SIZE RANGE | |
|---|---|---|---|---|---|---|---|---|---|
| METRIC | INCHES | ||||||||
| 5250-111-011 | ERS11 | 11 | 11.2 | 18 | 13.5 | 3.8 | 2.5 | 3 ~ 7mm | 3/32" ~ 1/4" |
| 5250-111-016 | ERS16 | 16 | 16.75 | 27.5 | 20.8 | 6.26 | 4 | 3 ~ 10mm | 3/32" ~ 13/32" |
| 5250-111-020 | ERS20 | 20 | 20.7 | 31.5 | 23.9 | 6.36 | 4.8 | 3 ~ 13mm | 1/8" ~ 1/2" |
| 5250-111-025 | ERS25 | 25 | 25.7 | 34 | 25.9 | 6.66 | 5 | 3 ~ 16mm | 7/32" ~ 5/8" |
| 5250-111-032 | ERS32 | 32 | 32.7 | 40 | 30.9 | 7.16 | 5.5 | 3 ~ 20mm | 7/32" ~ 3/4" |
| 5250-111-040 | ERS40 | 40 | 40.7 | 46 | 34.9 | 7.66 | 7 | 3 ~ 26mm | 7/32" ~ 1" |
ERS大小溝出水筒夾 (FID型)
| MODEL NO. | TYPE | d1 | d2 | L | l1 | l2 | l3 | SIZE RANGE | |
|---|---|---|---|---|---|---|---|---|---|
| METRIC | INCHES | ||||||||
| 5250-188-011 | ERS11-FID | 11 | 11.2 | 18 | 13.5 | 3.8 | 2.5 | 3 ~ 7mm | 3/32" ~ 1/4" |
| 5250-188-016 | ERS16-FID | 16 | 16.75 | 27.5 | 20.8 | 6.26 | 4 | 3 ~ 10mm | 3/32" ~ 13/32" |
| 5250-188-020 | ERS20-FID | 20 | 20.7 | 31.5 | 23.9 | 6.36 | 4.8 | 3 ~ 13mm | 1/8" ~ 3/8" |
| 5250-188-025 | ERS25-FID | 25 | 25.7 | 34 | 25.9 | 6.66 | 5 | 3 ~ 16mm | 7/32" ~ 5/8" |
| 5250-188-032 | ERS32-FID | 32 | 32.7 | 40 | 30.9 | 7.16 | 5.5 | 3 ~ 20mm | 7/32" ~ 3/4" |
| 5250-188-040 | ERS40-FID | 40 | 40.7 | 46 | 34.9 | 7.66 | 7 | 3 ~ 26mm | 7/32" ~ 1" |
ERS大小溝出水筒夾 (FOD型)
| MODEL NO. | TYPE | d1 | d2 | L | l1 | l2 | l3 | SIZE RANGE | |
|---|---|---|---|---|---|---|---|---|---|
| METRIC | INCHES | ||||||||
| 5250-112-011 | ERS11-FOD | 11 | 11.2 | 18 | 13.5 | 3.8 | 2.5 | 3 ~ 5mm | 3/32" ~ 1/4" |
| 5250-112-016 | ERS16-FOD | 16 | 16.75 | 27.5 | 20.8 | 6.26 | 4 | 3 ~ 7mm | 3/32" ~ 5/16" |
| 5250-112-020 | ERS20-FOD | 20 | 20.7 | 31.5 | 23.9 | 6.36 | 4.8 | 3 ~ 9mm | 1/8" ~ 3/8" |
| 5250-112-025 | ERS25-FOD | 25 | 25.7 | 34 | 25.9 | 6.66 | 5 | 3 ~ 14mm | 7/32" ~ 9/16" |
| 5250-112-032 | ERS32-FOD | 32 | 32.7 | 40 | 30.9 | 7.16 | 5.5 | 3 ~ 20mm | 7/32" ~ 3/4" |
| 5250-112-040 | ERS40-FOD | 40 | 40.7 | 46 | 34.9 | 7.66 | 7 | 3 ~ 26mm | 7/32" ~ 1" |
