series

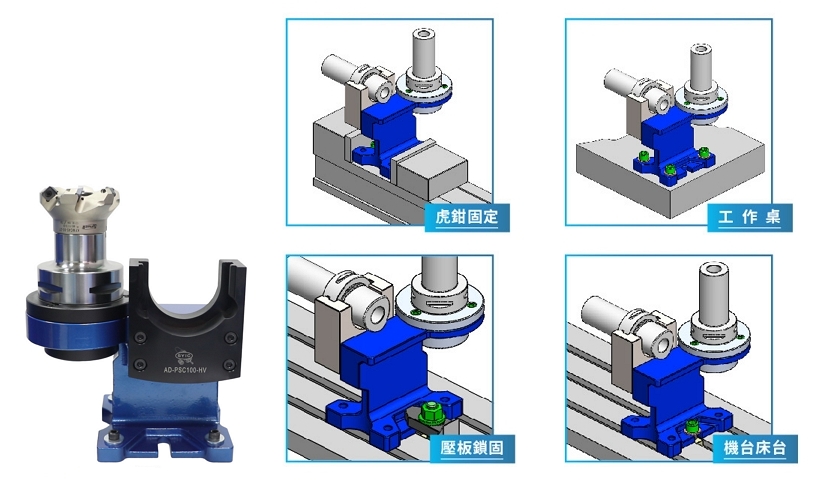

立臥式鎖刀座- PSC
/Two-way_type/Two-way_type_of_PSC-figure.jpg)
MODEL NO. | TYPE | 適用刀桿 | D | H | W | P1 | P2 | T | WEIGHT (KGS) |
5300-020-140-02 |
AD-PSC32-HV |
PSC32 |
105 |
134.5 |
186 |
71 |
91 |
M8 |
5.63 |
5300-020-141-02 |
AD-PSC40-HV |
PSC40 |
110 |
140.5 |
186 |
71 |
91 |
M8 |
5.90 |
5300-020-142-02 |
AD-PSC50-HV |
PSC50 |
110 |
144.5 |
186 |
71 |
91 |
M8 |
5.83 |
5300-020-143-02 |
AD-PSC63-HV |
PSC63 |
115 |
153.5 |
186 |
71 |
91 |
M8 |
5.20 |
5300-020-144-02 |
AD-PSC80-HV |
PSC80 |
139.5 |
201.5 |
242 |
112 |
116 |
M12 |
13.3 |
5300-020-146-02 |
AD-PSC100-HV |
PSC100 |
146.5 |
227.5 |
242 |
112 |
116 |
M12 |
13.4 |
