RBH-LA新型可調整式雙刃粗搪孔頭

RBH-LA新型可調整式雙刃粗搪孔頭
產品名稱 : RBH-LA新型可調整式雙刃粗搪孔頭
產品描述

搪孔範圍：ø25 ~ ø130mm

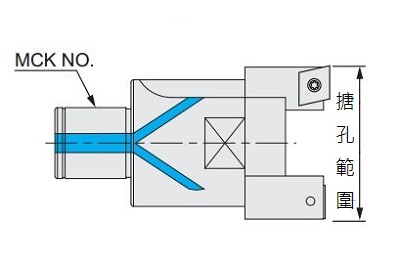

  • 刀片支持座厚度增加，剛性增強。
  • 內藏式水孔直接冷卻，延長刀片壽命。
  • 獨特高低段差設計，可適用平刃或高低刃加工。
  • 優良的排屑槽設計提升深孔排屑功能。
proimages/Products/Boring_head/Rough_boring_head/RBH-LA_indexable_twin-bit_rough_boring_head/RBH-LA-fature_picture-ZH.jpg
series

RBH-LA新型可調整式雙刃粗搪孔頭
proimages/Products/Boring_head/Rough_boring_head/RBH-LA_indexable_twin-bit_rough_boring_head/RBH-LA_figure.jpg

MODEL NO.TYPEMCK NO.LDBORING RANGEINSERTWEIGHT
(KGS)
405-010-025-000 RBH - 25-35LA - C MCK2 50 24 25 ~ 35 CC.0602 0.18
405-010-032-000 RBH - 32-45LA - C MCK3 60 31 32 ~ 45 CC.0602 0.34
405-010-032-001 RBH - 32-45LA - T MCK3 60 31 32 ~ 45 TC..1102 0.35
405-010-040-000 RBH - 40-55LA - C MCK4 74 39 40 ~ 55 CC..09T3 0.62
405-010-040-001 RBH - 40-55LA - T MCK4 74 39 40 ~ 55 TC..16T3 0.61
405-010-052-000 RBH - 52-75LA - C MCK5 80 50 52 ~ 75 CC..09T3 1.13
405-010-052-001 RBH - 52-75LA - T MCK5 80 50 52 ~ 75 TC..16T3 1.11
405-010-068-000 RBH - 68-100LA - C MCK6 90 66 68 ~ 100 CC..1204 2.20
405-010-068-001 RBH - 68-100LA - T MCK6 90 66 68 ~ 100 TC..16T3 2.21
405-010-090-000 RBH - 90-130LA - C MCK6 100 88 90 ~ 130 CC..1204 3.10
405-010-090-001 RBH - 90-130LA - T MCK6 100 88 90 ~ 130 TC..16T3 2.99

零配件：
INSERTCLAMPING SCREWWRENCH
CC..0602 M2.5-6.0-3.5-60 T8
CC..09T3 M4-10-5.7-60 T15
CC..1204 M5-11-7.5-60 T20
TC..1102 M2.5-6.0-3.5-60 T8
TC..16T3 M4-10-5.7-60 T15
