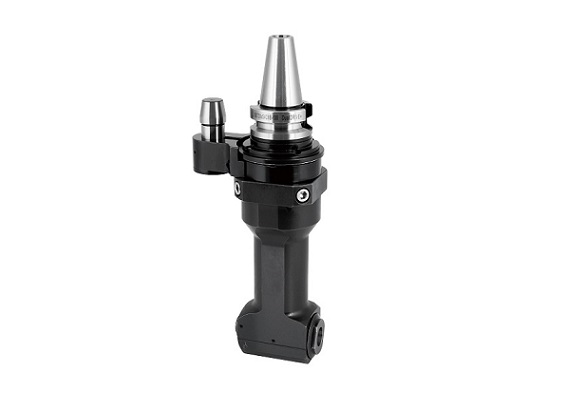

SAD小徑銷削頭
..jpg "SAD小徑銷削頭")
series

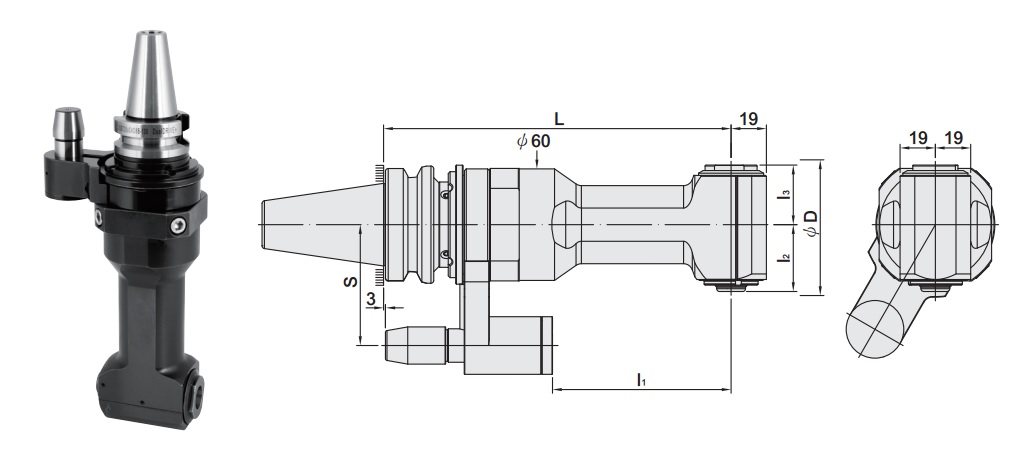

SAD小徑銷削頭 (EBL TYPE)
| MODEL NO. | TYPE | L | l1 | l2 | l3 | ΦD | S | TORQUE | COLLET | SIZE RANGE | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5025-791-084-130 | SBT30xSAD8B-130 | 130 | 74.5 | 36 | 32.1 | 76 | 55 | 10 N-m | EBL8 | 3 ~ 8 | 2.60 |
| 5025-791-084-182 | SBT30xSAD8B-182 | 182 | 126.5 | 36 | 32.1 | 76 | 55 | 10 N-m | EBL8 | 3 ~ 8 | 3.00 |
| 5026-791-081-135 | SBT40xSAD8B-135 | 135 | 44 | 36 | 32.1 | 76 | 65 | 10 N-m | EBL8 | 3 ~ 8 | 3.40 |
| 5026-791-081-187 | SBT40xSAD8B-187 | 187 | 96 | 36 | 32.1 | 76 | 65 | 10 N-m | EBL8 | 3 ~ 8 | 3.70 |
| 5073-S41-081-195 | HSK63AxSAD8B-195 | 195 | 96 | 36 | 32.1 | 76 | 65 | 10 N-m | EBL8 | 3 ~ 8 | 3.50 |

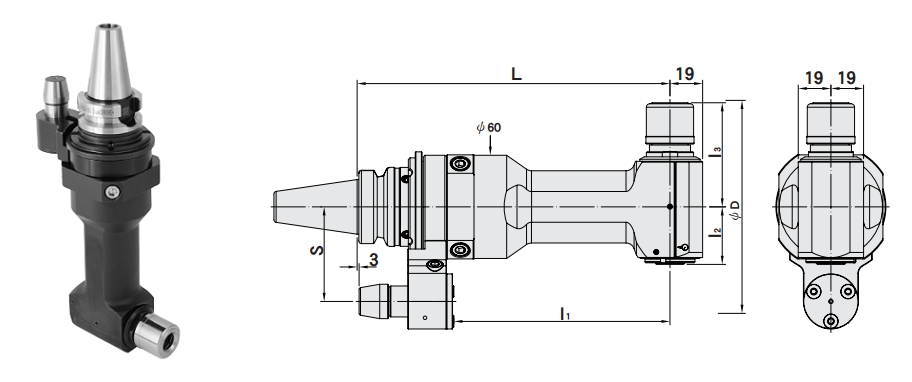

SAD小徑銷削頭 (SK3 TYPE)
| MODEL NO. | TYPE | L | l1 | l2 | l3 | ΦD | S | TORQUE | COLLET | SIZE RANGE | WEIGHT (KGS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5025-724-104-130 | SBT30xSAD10S-130 | 130 | 74.5 | 34 | 60.55 | 125 | 55 | 10 N-m | SKX10 | 3 ~ 10 | 2.66 |
| 5025-724-104-182 | SBT30xSAD10S-182 | 182 | 126.5 | 34 | 60.55 | 125 | 55 | 10 N-m | SKX10 | 3 ~ 10 | 3.10 |
| 5026-724-101-135 | SBT40xSAD10S-135 | 135 | 44 | 34 | 60.55 | 125 | 65 | 10 N-m | SKX10 | 3 ~ 10 | 3.50 |
| 5026-724-101-187 | SBT40xSAD10S-187 | 187 | 96 | 34 | 60.55 | 125 | 65 | 10 N-m | SKX10 | 3 ~ 10 | 3.75 |
| 5073-724-101-195 | HSK63AxSAD10S-195 | 195 | 96 | 34 | 60.55 | 125 | 65 | 10 N-m | SKX10 | 3 ~ 10 | 3.80 |
series
series
SAD小徑銑削頭安裝演示
