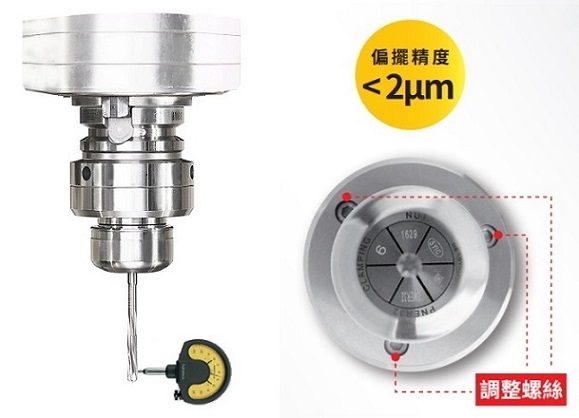

SBF徑向歸零刀桿 C01-7-2

規格表
技術資訊

series

SBT/SBF法蘭加厚型可調式徑向歸零刀桿(PRO-E)

proimages/Products/Tool_holders/SBF/SBT-SBF.PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
5025-S10-016-090	SBT30xSBF16PE-90	138.4	90	27	30	32	58	PRO-E16	1.16
5025-S10-020-100	SBT30xSBF20PE-100	148.4	100	37	35	32	58	PRO-E20	1.23
5026-S10-016-100	SBT40xSBF16PE-100	165.4	100	42	30	32	58	PRO-E16	1.70
5026-S10-016-150	SBT40xSBF16PE-150	215.4	150	92	30	32	58	PRO-E16	1.96
5026-S10-020-100	SBT40xSBF20PE-100	165.4	100	42	35	32	58	PRO-E20	1.72
5026-S10-020-150	SBT40xSBF20PE-150	215.4	150	92	35	32	58	PRO-E20	1.97
5026-S10-025-100	SBT40xSBF25PE-100	165.4	100	32	42	42	75	PRO-E25	2.34
5026-S10-025-150	SBT40xSBF25PE-150	215.4	150	82	42	42	75	PRO-E25	2.82
5026-S10-032-110	SBT40xSBF32PE-110	175.4	110	42	50	42	75	PRO-E32	2.44
5026-S10-032-150	SBT40xSBF32PE-150	215.4	150	82	50	42	75	PRO-E32	2.82
5027-S10-016-110	SBT50xSBF16PE-110	211.8	110	42	30	32	58	PRO-E16	4.29
5027-S10-016-160	SBT50xSBF16PE-160	261.8	160	92	30	32	58	PRO-E16	4.54
5027-S10-020-110	SBT50xSBF20PE-110	211.8	110	42	35	32	58	PRO-E20	4.26
5027-S10-020-160	SBT50xSBF20PE-160	261.8	160	92	35	32	58	PRO-E20	4.57
5027-S10-025-110	SBT50xSBF25PE-110	211.8	110	37	42	42	75	PRO-E25	4.85
5027-S10-025-160	SBT50xSBF25PE-160	261.8	160	87	42	42	75	PRO-E25	5.25
5027-S10-032-120	SBT50xSBF32PE-120	221.8	120	47	50	42	75	PRO-E32	4.95
5027-S10-032-160	SBT50xSBF32PE-160	261.8	160	87	50	42	75	PRO-E32	5.27

SCAT/SBF法蘭加厚型可調式徑向歸零刀桿(PRO-E)

proimages/Products/Tool_holders/SBF/SCAT-SBF.PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
5043-S10-016-150	SCAT40xSBF16PE-150	218.249	150	82	30	32	58	PRO-E16	1.97
5043-S10-020-100	SCAT40xSBF20PE-100	168.249	100	32	35	32	58	PRO-E20	1.73
5043-S10-020-150	SCAT40xSBF20PE-150	218.249	150	82	35	32	58	PRO-E20	1.99
5043-S10-025-110	SCAT40xSBF25PE-110	178.249	110	37	42	42	75	PRO-E25	2.36
5043-S10-025-150	SCAT40xSBF25PE-150	218.249	150	77	42	42	75	PRO-E25	2.74
5043-S10-032-110	SCAT40xSBF32PE-110	178.249	110	37	50	42	75	PRO-E32	2.32
5043-S10-032-150	SCAT40xSBF32PE-150	218.249	150	77	50	42	75	PRO-E32	2.76
5044-S10-016-110	SCAT50xSBF16PE-110	211.6	110	42	30	32	58	PRO-E16	3.86
5044-S10-016-160	SCAT50xSBF16PE-160	261.6	160	92	30	32	58	PRO-E16	4.06
5044-S10-020-110	SCAT50xSBF20PE-110	211.6	110	42	35	32	58	PRO-E20	3.88
5044-S10-020-160	SCAT50xSBF20PE-160	261.6	160	92	35	32	58	PRO-E20	4.08
5044-S10-025-110	SCAT50xSBF25PE-110	211.6	110	42	42	42	75	PRO-E25	4.31
5044-S10-025-160	SCAT50xSBF25PE-160	261.6	160	92	42	42	75	PRO-E25	4.77
5044-S10-032-120	SCAT50xSBF32PE-120	221.6	120	52	50	42	75	PRO-E32	4.38
5044-S10-032-160	SCAT50xSBF32PE-160	261.6	160	92	50	42	75	PRO-E32	4.79

SDAT/SBF法蘭加厚型可調式徑向歸零刀桿(PRO-E)

proimages/Products/Tool_holders/SBF/SDAT-SBF.PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
5066-S10-016-150	SDAT40xSBF16PE-150	218.4	150	82	30	32	58	PRO-E16	2.02
5066-S10-020-100	SDAT40xSBF20PE-100	168.4	100	32	35	32	58	PRO-E20	1.78
5066-S10-020-150	SDAT40xSBF20PE-150	218.4	150	82	35	32	58	PRO-E20	2.03
5066-S10-025-110	SDAT40xSBF25PE-110	178.4	110	32	42	42	75	PRO-E25	2.21
5066-S10-025-150	SDAT40xSBF25PE-150	218.4	150	77	42	42	75	PRO-E25	2.81
5066-S10-032-120	SDAT40xSBF32PE-120	188.4	120	37	50	42	75	PRO-E32	2.43
5066-S10-032-150	SDAT40xSBF32PE-150	218.4	150	77	50	42	75	PRO-E32	2.81
5067-S10-016-110	SDAT50xSBF16PE-110	211.75	110	57	30	32	58	PRO-E16	3.44
5067-S10-016-160	SDAT50xSBF16PE-160	261.75	160	107	30	32	58	PRO-E16	3.68
5067-S10-020-110	SDAT50xSBF20PE-110	211.75	110	57	35	32	58	PRO-E20	3.43
5067-S10-020-160	SDAT50xSBF20PE-160	261.75	160	107	35	32	58	PRO-E20	3.68
5067-S10-025-110	SDAT50xSBF25PE-110	211.75	110	57	42	42	75	PRO-E25	4.01
5067-S10-025-160	SDAT50xSBF25PE-160	261.75	160	107	42	42	75	PRO-E25	4.42
5067-S10-032-120	SDAT50xSBF32PE-120	221.75	120	67	50	42	75	PRO-E32	4.07
5067-S10-032-160	SDAT50xSBF32PE-160	261.75	160	107	50	42	75	PRO-E32	4.44

HSK/SBF可調式徑向歸零刀桿(PRO-E)

proimages/Products/Tool_holders/SBF/HSK-SBF.PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
5071-S10-016-160	HSK40AxSBF16PE-160	180	160	92	30	32	58	PRO-E16	1.37
5071-S10-020-110	HSK40AxSBF20PE-110	130	110	42	35	32	58	PRO-E20	1.07
5071-S10-020-160	HSK40AxSBF20PE-160	180	160	92	35	32	58	PRO-E20	1.38
5072-S10-016-110	HSK50AxSBF16PE-110	135	110	37	30	32	58	PRO-E16	1.27
5072-S10-016-160	HSK50AxSBF16PE-160	185	160	87	30	32	58	PRO-E16	1.57
5072-S10-020-110	HSK50AxSBF20PE-110	135	110	37	35	32	58	PRO-E20	1.28
5072-S10-020-160	HSK50AxSBF20PE-160	185	160	87	35	32	58	PRO-E20	1.58
5073-S10-016-110	HSK63AxSBF16PE-110	142	110	37	30	32	58	PRO-E16	1.62
5073-S10-016-160	HSK63AxSBF16PE-160	192	160	87	30	32	58	PRO-E16	1.91
5073-S10-020-110	HSK63AxSBF20PE-110	142	110	37	35	32	58	PRO-E20	1.63
5073-S10-020-160	HSK63AxSBF20PE-160	192	160	87	35	32	58	PRO-E20	1.92
5073-S10-025-110	HSK63AxSBF25PE-110	142	110	32	42	42	75	PRO-E25	2.18
5073-S10-025-160	HSK63AxSBF25PE-160	192	160	82	42	42	75	PRO-E25	2.70
5073-S10-032-120	HSK63AxSBF32PE-120	152	120	42	50	42	75	PRO-E32	2.24
5073-S10-032-160	HSK63AxSBF32PE-160	192	160	82	50	42	75	PRO-E32	2.70
5074-S10-016-100	HSK80AxSBF16PE-100	140	100	44	30	32	58	PRO-E16	1.82
5074-S10-016-150	HSK80AxSBF16PE-150	190	150	94	30	32	58	PRO-E16	2.10
5074-S10-020-100	HSK80AxSBF20PE-100	140	100	44	35	32	58	PRO-E20	1.83
5074-S10-020-150	HSK80AxSBF20PE-150	190	150	94	35	32	58	PRO-E20	2.11
5074-S10-025-110	HSK80AxSBF25PE-110	150	110	32	42	42	75	PRO-E25	2.83
5074-S10-025-160	HSK80AxSBF25PE-160	200	160	82	42	42	75	PRO-E25	3.34
5074-S10-032-120	HSK80AxSBF32PE-120	160	120	42	50	42	75	PRO-E32	2.88
5074-S10-032-160	HSK80AxSBF32PE-160	200	160	82	50	42	75	PRO-E32	3.34
5075-S10-016-105	HSK100AxSBF16PE-105	155	105	47	30	32	58	PRO-E16	2.72
5075-S10-016-155	HSK100AxSBF16PE-155	205	155	97	30	32	58	PRO-E16	2.30
5075-S10-020-105	HSK100AxSBF20PE-105	200	150	47	35	32	58	PRO-E20	2.73
5075-S10-020-155	HSK100AxSBF20PE-155	205	155	97	35	32	58	PRO-E20	3.01
5075-S10-025-105	HSK100AxSBF25PE-105	155	105	42	42	42	75	PRO-E25	3.34
5075-S10-025-155	HSK100AxSBF25PE-155	205	155	92	42	42	75	PRO-E25	3.83
5075-S10-032-115	HSK100AxSBF32PE-115	165	115	52	50	42	75	PRO-E32	3.41
5075-S10-032-155	HSK100AxSBF32PE-155	205	155	92	50	42	75	PRO-E32	3.83

PSC/SBF可調式徑向歸零刀桿(PRO-E)

proimages/Products/Tool_holders/SBF/PSC-SBF.PRO-E_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	筒夾	WEIGHT (KGS)
5141-S10-016-155	PSC40xSBF16PE-155	179	155	97	30	32	58	PRO-E16	1.38
5141-S10-020-105	PSC40xSBF20PE-105	129	105	47	35	32	58	PRO-E20	1.12
5141-S10-020-155	PSC40xSBF20PE-155	179	155	97	35	32	58	PRO-E20	1.39
5142-S10-016-110	PSC50xSBF16PE-110	140	110	57	30	32	58	PRO-E16	1.26
5142-S10-016-160	PSC50xSBF16PE-160	190	160	107	30	32	58	PRO-E16	1.51
5142-S10-020-110	PSC50xSBF20PE-110	140	110	57	35	32	58	PRO-E20	1.28
5142-S10-020-160	PSC50xSBF20PE-160	190	160	107	35	32	58	PRO-E20	1.53
5143-S10-016-110	PSC63xSBF16PE-110	148	110	52	30	32	58	PRO-E16	1.65
5143-S10-016-160	PSC63xSBF16PE-160	198	160	102	30	32	58	PRO-E16	1.86
5143-S10-020-110	PSC63xSBF20PE-110	148	110	52	35	32	58	PRO-E20	1.67
5143-S10-020-160	PSC63xSBF20PE-160	198	160	102	35	32	58	PRO-E20	1.88
5143-S10-025-110	PSC63xSBF25PE-110	148	110	52	42	42	75	PRO-E25	2.20
5143-S10-025-160	PSC63xSBF25PE-160	198	160	102	42	42	75	PRO-E25	2.62
5143-S10-032-120	PSC63xSBF32PE-120	158	120	62	50	42	75	PRO-E32	2.26
5143-S10-032-160	PSC63xSBF32PE-160	198	160	102	50	42	75	PRO-E32	2.58
5144-S10-016-100	PSC80xSBF16PE-100	148	100	37	30	32	58	PRO-E16	2.50
5144-S10-016-150	PSC80xSBF16PE-150	198	150	87	30	32	58	PRO-E16	2.71
5144-S10-020-100	PSC80xSBF20PE-100	148	100	37	35	32	58	PRO-E20	2.52
5144-S10-020-150	PSC80xSBF20PE-150	198	150	87	35	32	58	PRO-E20	2.73
5144-S10-025-110	PSC80xSBF25PE-110	158	110	47	42	42	75	PRO-E25	3.05
5144-S10-025-160	PSC80xSBF25PE-160	208	160	97	42	42	75	PRO-E25	3.49
5144-S10-032-120	PSC80xSBF32PE-120	168	120	57	50	42	75	PRO-E32	3.10
5144-S10-032-160	PSC80xSBF32PE-160	208	160	97	50	42	75	PRO-E32	3.52

series

proimages/Products/Tool_holders/SBF/SBF-技術資訊.jpg

SBF徑向歸零刀桿

產品描述
