SBL後拉式立銑刀夾頭

series

BT/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/BT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5010-648-006-070	BT30xSBL6-70	118.4	70	38	14	18.1	M6 x 1.0P	12	9	3 ~ 6	1
5010-648-006-100	BT30xSBL6-100	148.4	100	68	14	21.2	M6 x 1.0P	12	9	3 ~ 6	1.25
5010-648-012-070	BT30xSBL12-70	118.4	70	47	26	33.4	M10 x 1.5P	45	33	3 ~ 12	1.2
5010-648-012-100	BT30xSBL12-100	148.4	100	77	26	38.1	M10 x 1.5P	45	33	3 ~ 12	1.45
5010-648-012-130	BT30xSBL12-130	178.4	130	106	26	35.2	M10 x 1.5P	45	33	3 ~ 12	1.65
5010-648-020-080	BT30xSBL20-80	128.4	80	55	34	37.7	M12 x 1.75P	60	44	3 ~ 20	1.2
5010-648-020-100	BT30xSBL20-100	148.4	100	77	34	39.2	M12 x 1.75P	60	44	3 ~ 20	1.45
5011-648-006-070	BT40xSBL6-70	135.4	70	28	14	17.1	M6 x 1.0P	12	9	3 ~ 6	1.2
5011-648-006-100	BT40xSBL6-100	165.4	100	58	14	20.1	M6 x 1.0P	12	9	3 ~ 6	1.6
5011-648-006-130	BT40xSBL6-130	195.4	130	88	14	23.3	M6 x 1.0P	12	9	3 ~ 6	1.8
5011-648-006-200	BT40xSBL6-200	265.4	200	161	14	30.9	M6 x 1.0P	12	9	3 ~ 6	2
5011-648-008-100	BT40xSBL8-100	165.4	100	58.7	20	26.1	M8 x 1.25P	29	21	3 ~ 8	1.25
5011-648-008-130	BT40xSBL8-130	195.4	130	93.5	20	29.8	M8 x 1.25P	29	21	3 ~ 8	1.38
5011-648-008-150	BT40xSBL8-150	215.4	150	113.5	20	31.8	M8 x 1.25P	29	21	3 ~ 8	1.5
5011-648-012-070	BT40xSBL12-70	135.4	70	33	26	31	M10 x 1.5P	45	33	3 ~ 12	1.5
5011-648-012-100	BT40xSBL12-100	165.4	100	63	26	31.6	M10 x 1.5P	45	33	3 ~ 12	1.7
5011-648-012-130	BT40xSBL12-130	195.4	130	93	26	34.2	M10 x 1.5P	45	33	3 ~ 12	1.9
5011-648-012-150	BT40xSBL12-150	215.4	150	113	26	36	M10 x 1.5P	45	33	3 ~ 12	2.1
5011-648-012-170	BT40xSBL12-170	235.4	170	133	26	37.7	M10 x 1.5P	45	33	3 ~ 12	2.3
5011-648-020-070	BT40xSBL20-70	135.4	70	33	35	38.1	M12 x 1.75P	60	44	3 ~ 20	1.5
5011-648-020-100	BT40xSBL20-100	165.4	100	68	35	41	M12 x 1.75P	60	44	3 ~ 20	1.7
5011-648-020-130	BT40xSBL20-130	195.4	130	98	35	43.6	M12 x 1.75P	60	44	3 ~ 20	1.9
5011-648-020-150	BT40xSBL20-150	215.4	150	118	35	45.3	M12 x 1.75P	60	44	3 ~ 20	2.1
5011-648-020-170	BT40xSBL20-170	235.4	170	138	35	47.1	M12 x 1.75P	60	44	3 ~ 20	2.3
5011-648-025-080	BT40xSBL25-80	145.4	80	50.1	40	44.3	M16 x 1.5P	90	66	6 ~ 25.4	1.7
5011-648-025-100	BT40xSBL25-100	165.4	100	70.1	40	46.1	M16 x 1.5P	90	66	6 ~ 25.4	1.9
5012-648-006-070	BT50xSBL6-70	171.8	70	17	14	15.9	M6 x 1.0P	12	9	3 ~ 6	4
5012-648-006-100	BT50xSBL6-100	201.8	100	47	14	19.1	M6 x 1.0P	12	9	3 ~ 6	4.1
5012-648-006-150	BT50xSBL6-150	251.8	150	97.7	14	24.2	M6 x 1.0P	12	9	3 ~ 6	4.3
5012-648-006-200	BT50xSBL6-200	301.8	200	147.7	14	29.4	M6 x 1.0P	12	9	3 ~ 6	4.6
5012-648-008-100	BT50xSBL8-100	201.8	100	47.7	20	25	M8 x 1.25P	29	21	3 ~ 8	3.78
5012-648-008-130	BT50xSBL8-130	231.8	130	77.7	20	28.1	M8 x 1.25P	29	21	3 ~ 8	3.92
5012-648-008-150	BT50xSBL8-150	251.8	150	97.7	20	30.2	M8 x 1.25P	29	21	3 ~ 8	4.04
5012-648-012-070	BT50xSBL12-70	171.8	70	22	26	28.1	M10 x 1.5P	45	33	3 ~ 12	4.2
5012-648-012-100	BT50xSBL12-100	201.8	100	52	26	30.6	M10 x 1.5P	45	33	3 ~ 12	4.3
5012-648-012-125	BT50xSBL12-125	226.8	125	77	26	32.9	M10 x 1.5P	45	33	3 ~ 12	4.5
5012-648-012-150	BT50xSBL12-150	251.8	150	102	26	35	M10 x 1.5P	45	33	3 ~ 12	4.8
5012-648-012-170	BT50xSBL12-170	271.8	170	122	26	36.7	M10 x 1.5P	45	33	3 ~ 12	5
5012-648-020-070	BT50xSBL20-70	171.8	70	22	35	36.9	M12 x 1.75P	60	44	3 ~ 20	4.6
5012-648-020-100	BT50xSBL20-100	201.8	100	52	35	39.6	M12 x 1.75P	60	44	3 ~ 20	4.7
5012-648-020-125	BT50xSBL20-125	226.8	125	77	35	41.8	M12 x 1.75P	60	44	3 ~ 20	4.9
5012-648-020-170	BT50xSBL20-170	271.8	170	122	35	45.6	M12 x 1.75P	60	44	3 ~ 20	5.3
5012-648-020-200	BT50xSBL20-200	301.8	200	152	35	48.3	M12 x 1.75P	60	44	3 ~ 20	5.6
5012-648-025-070	BT50xSBL25-70	171.8	70	22.4	40	41.9	M16 x 1.5P	90	66	6 ~ 25.4	4.8
5012-648-025-100	BT50xSBL25-100	201.8	100	52.4	40	44.5	M16 x 1.5P	90	66	6 ~ 25.4	5

CAT/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/CAT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5031-648-006-076	CAT40xSBL6-3"	5.687	3	1.09	0.55	0.64	M6 x 1.0P	12	9	0.125 ~ 0.25	1
5031-648-006-102	CAT40xSBL6-4"	6.687	4	2.11	0.55	0.73	M6 x 1.0P	12	9	0.125 ~ 0.25	1.25
5031-648-006-152	CAT40xSBL6-6"	8.687	6	4.17	0.55	0.91	M6 x 1.0P	12	9	0.125 ~ 0.25	1.2
5031-648-008-102	CAT40xSBL8-4"	6.687	4	2.18	0.787	1.02	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.13
5031-648-008-127	CAT40xSBL8-5"	7.687	5	3.43	0.787	1.14	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.24
5031-648-008-152	CAT40xSBL8-6"	8.687	6	4.43	0.787	1.25	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.39
5031-648-012-064	CAT40xSBL12-2.5"	5.187	2.5	0.82	1.02	1.15	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5031-648-012-102	CAT40xSBL12-4"	6.687	4	2.23	1.02	1.25	M10 x 1.5P	45	33	0.125 ~ 0.5	1.2
5031-648-012-152	CAT40xSBL12-6"	8.687	6	4.49	1.02	1.49	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5031-648-020-064	CAT40xSBL20-2.5"	5.187	2.5	0.97	1.38	1.46	M12 x 1.75P	60	44	0.125 ~ 0.75	1.2
5031-648-020-102	CAT40xSBL20-4"	6.687	4	2.54	1.37	1.6	M12 x 1.75P	60	44	0.125 ~ 0.75	1.6
5031-648-020-152	CAT40xSBL20-6"	8.687	6	4.26	1.37	-	M12 x 1.75P	60	44	0.125 ~ 0.75	1.5
5031-648-025-083	CAT40xSBL25-3.25"	5.937	3.25	1.86	1.57	1.73	M16 x 2.0P	90	66	0.125 ~ 1	1.4
5031-648-025-102	CAT40xSBL25-4"	6.687	4	2.61	1.57	1.75	M16 x 2.0P	90	66	0.125 ~ 1	1.6
5032-648-006-089	CAT50xSBL6-3.5"	7.5	3.5	1.56	0.55	0.71	M6 x 1.0P	12	9	0.125 ~ 0.25	1.7
5032-648-006-114	CAT50xSBL6-4.5"	8.5	4.5	2.37	0.55	0.8	M6 x 1.0P	12	9	0.125 ~ 0.25	1.5
5032-648-006-152	CAT50xSBL6-6"	10	6	3.96	0.55	0.96	M6 x 1.0P	12	9	0.125 ~ 0.25	1.7
5032-648-008-102	CAT50xSBL8-4"	8	4	2.24	0.787	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.23
5032-648-008-127	CAT50xSBL8-5"	9	5	3.25	0.787	1.12	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.36
5032-648-008-152	CAT50xSBL8-6"	10	6	4.24	0.787	1.23	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.51
5032-648-012-064	CAT50xSBL12-2.5"	6.5	2.5	0.93	1.02	1.11	M10 x 1.5P	45	33	0.125 ~ 0.5	4
5032-648-012-114	CAT50xSBL12-4.5"	8.5	4.5	2.74	1.02	1.26	M10 x 1.5P	45	33	0.125 ~ 0.5	4.1
5032-648-012-152	CAT50xSBL12-6"	10	6	4.24	1.02	1.39	M10 x 1.5P	45	33	0.125 ~ 0.5	4.2
5032-648-020-064	CAT50xSBL20-2.5"	6.5	2.5	0.74	1.37	1.44	M12 x 1.75P	60	44	0.125 ~ 0.75	4.3
5032-648-020-114	CAT50xSBL20-4.5"	8.5	4.5	2.74	1.37	1.61	M12 x 1.75P	60	44	0.125 ~ 0.75	4.6
5032-648-020-152	CAT50xSBL20-6"	10	6	4.11	1.37	1.73	M12 x 1.75P	60	44	0.125 ~ 0.75	4.7
5032-648-025-070	CAT50xSBL25-2.75"	6.75	2.75	1.33	1.57	1.69	M16 x 2.0P	90	66	0.125 ~ 1	4.4
5032-648-025-114	CAT50xSBL25-4.5"	8.5	4.5	3.06	1.57	1.84	M16 x 2.0P	90	66	0.125 ~ 1	4.6

DAT/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/DAT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5050-648-006-070	DAT30xSBL6-70	117.8	70	41	14	18	M6 x 1.0P	12	9	3 ~ 6	0.39
5050-648-006-100	DAT30xSBL6-100	147.8	100	71	14	21	M6 x 1.0P	12	9	3 ~ 6	0.4
5050-648-012-070	DAT30xSBL12-70	117.8	70	48	26	31	M10 x 1.5P	45	33	3 ~ 12	0.42
5050-648-012-100	DAT30xSBL12-100	147.8	100	78	26	34	M10 x 1.5P	45	33	3 ~ 12	0.43
5050-648-020-080	DAT30xSBL20-80	127.8	80	58	34	38	M12 x 1.75P	60	44	3 ~ 20	0.44
5050-648-020-100	DAT30xSBL20-100	147.8	100	79	34	39	M12 x 1.75P	60	44	3 ~ 20	0.45
5051-648-006-070	DAT40xSBL6-70	138.4	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	1
5051-648-006-100	DAT40xSBL6-100	168.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.1
5051-648-008-100	DAT40xSBL8-100	168.4	100	66.6	20	26.9	M8 x 1.25P	29	21	3 ~ 8	1.25
5051-648-008-130	DAT40xSBL8-130	198.4	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	1.19
5051-648-008-150	DAT40xSBL8-150	218.4	150	126	20	33	M8 x 1.25P	29	21	3 ~ 8	1.32
5051-648-012-070	DAT40xSBL12-70	138.4	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	1.2
5051-648-012-100	DAT40xSBL12-100	168.4	100	71	26	32	M10 x 1.5P	45	33	3 ~ 12	1.3
5051-648-012-170	DAT40xSBL12-170	238.4	170	146	26	38	M10 x 1.5P	45	33	3 ~ 12	2
5051-648-020-070	DAT40xSBL20-70	138.4	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	1.3
5051-648-020-100	DAT40xSBL20-100	168.4	100	78	35	41	M12 x 1.75P	60	44	3 ~ 20	1.4
5051-648-025-080	DAT40xSBL25-80	148.4	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	1.5
5051-648-025-100	DAT40xSBL25-100	168.4	100	79	40	46	M16 x 1.5P	90	66	6 ~ 25.4	1.6
5052-648-006-070	DAT50xSBL6-70	171.75	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	2.8
5052-648-006-100	DAT50xSBL6-100	201.75	100	66	14	20	M6 x 1.0P	12	9	3 ~ 6	2.9
5052-648-008-100	DAT50xSBL8-100	201.75	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	2.81
5052-648-008-130	DAT50xSBL8-130	231.75	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	2.98
5052-648-008-150	DAT50xSBL8-150	251.75	150	121.4	20	32.7	M8 x 1.25P	29	21	3 ~ 8	3.11
5052-648-012-070	DAT50xSBL12-70	171.75	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	3
5052-648-012-100	DAT50xSBL12-100	201.75	100	71	26	32	M10 x 1.5P	45	33	3 ~ 12	3.1
5052-648-020-070	DAT50xSBL20-70	171.75	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	3.2
5052-648-020-100	DAT50xSBL20-100	201.75	100	71	35	41	M12 x 1.75P	60	44	3 ~ 20	3.3
5052-648-020-170	DAT50xSBL20-170	271.75	170	139	35	47	M12 x 1.75P	60	44	3 ~ 20	3.9
5052-648-025-070	DAT50xSBL25-70	171.75	70	39	40	43	M16 x 1.5P	90	66	6 ~ 25.4	3.2
5052-648-025-100	DAT50xSBL25-100	201.75	100	71	40	46	M16 x 1.5P	90	66	6 ~ 25.4	3.4

SBT/SBL法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/SBT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5025-648-006-070	SBT30xSBL6-70	118.4	70	38	14	18	M6 x 1.0P	12	9	3 ~ 6	0.60
5025-648-006-100	SBT30xSBL6-100	148.4	100	68	14	21	M6 x 1.0P	12	9	3 ~ 6	1.25
5025-648-012-070	SBT30xSBL12-70	118.4	70	47	26	33	M10 x 1.5P	45	33	3 ~ 12	1.20
5025-648-012-100	SBT30xSBL12-100	148.4	100	77	26	38	M10 x 1.5P	45	33	3 ~ 12	1.45
5025-648-020-080	SBT30xSBL20-80	128.4	80	55	34	37	M12 x 1.75P	60	44	3 ~ 20	1.20
5025-648-020-100	SBT30xSBL20-100	148.4	100	77	34	39	M12 x 1.75P	60	44	3 ~ 20	1.45
5026-648-006-070	SBT40xSBL6-70	135.4	70	28	14	17	M6 x 1.0P	12	9	3 ~ 6	1.07
5026-648-006-100	SBT40xSBL6-100	165.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.14
5026-648-006-130	SBT40xSBL6-130	195.4	130	88	14	23	M6 x 1.0P	12	9	3 ~ 6	1.23
5026-648-008-100	SBT40xSBL8-100	165.4	100	58.7	20	26.1	M8 x 1.25P	29	21	3 ~ 8	1.25
5026-648-008-130	SBT40xSBL8-130	195.4	130	93.5	20	29.8	M8 x 1.25P	29	21	3 ~ 8	1.38
5026-648-008-150	SBT40xSBL8-150	215.4	150	113.5	20	31.8	M8 x 1.25P	29	21	3 ~ 8	1.50
5026-648-012-070	SBT40xSBL12-70	135.4	70	33	26	31	M10 x 1.5P	45	33	3 ~ 12	1.14
5026-648-012-100	SBT40xSBL12-100	165.4	100	63	26	31	M10 x 1.5P	45	33	3 ~ 12	1.29
5026-648-012-130	SBT40xSBL12-130	195.4	130	93	26	34	M10 x 1.5P	45	33	3 ~ 12	1.47
5026-648-012-170	SBT40xSBL12-170	235.4	170	133	26	37	M10 x 1.5P	45	33	3 ~ 12	1.76
5026-648-020-070	SBT40xSBL20-70	135.4	70	33	35	38	M12 x 1.75P	60	44	3 ~ 20	1.50
5026-648-020-100	SBT40xSBL20-100	165.4	100	68	35	40	M12 x 1.75P	60	44	3 ~ 20	1.70
5026-648-020-130	SBT40xSBL20-130	195.4	130	98	35	43	M12 x 1.75P	60	44	3 ~ 20	1.74
5026-648-025-080	SBT40xSBL25-80	145.4	80	50.1	40	44.3	M16 x 1.5P	90	66	6 ~ 25.4	1.70
5026-648-025-100	SBT40xSBL25-100	165.4	100	70.1	40	46.1	M16 x 1.5P	90	66	6 ~ 25.4	1.90
5027-648-006-070	SBT50xSBL6-70	171.8	70	17	14	15	M6 x 1.0P	12	9	3 ~ 6	4.00
5027-648-006-100	SBT50xSBL6-100	201.8	100	47	14	19	M6 x 1.0P	12	9	3 ~ 6	4.10
5027-648-008-100	SBT50xSBL8-100	201.8	100	47.7	20	25	M8 x 1.25P	29	21	3 ~ 8	3.78
5027-648-008-130	SBT50xSBL8-130	231.8	130	77.7	20	28.1	M8 x 1.25P	29	21	3 ~ 8	3.92
5027-648-008-150	SBT50xSBL8-150	251.8	150	97.7	20	30.2	M8 x 1.25P	29	21	3 ~ 8	4.04
5027-648-012-070	SBT50xSBL12-70	171.8	70	22	26	28	M10 x 1.5P	45	33	3 ~ 12	4.20
5027-648-012-100	SBT50xSBL12-100	201.8	100	52	26	30	M10 x 1.5P	45	33	3 ~ 12	4.30
5027-648-012-125	SBT50xSBL12-125	226.8	125	77	26	32	M10 x 1.5P	45	33	3 ~ 12	4.40
5027-648-020-070	SBT50xSBL20-70	171.8	70	22	35	36	M12 x 1.75P	60	44	3 ~ 20	4.60
5027-648-020-100	SBT50xSBL20-100	201.8	100	52	35	39	M12 x 1.75P	60	44	3 ~ 20	4.70
5027-648-020-125	SBT50xSBL20-125	226.8	125	77	35	41	M12 x 1.75P	60	44	3 ~ 20	4.22
5027-648-025-070	SBT50xSBL25-70	171.8	70	22.4	40	41.9	M16 x 1.5P	90	66	6 ~ 25.4	4.80
5027-648-025-100	SBT50xSBL25-100	201.8	100	52.4	40	44.5	M16 x 1.5P	90	66	6 ~ 25.4	5.00

SCAT/SBL法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/SCAT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5043-648-006-076	SCAT40xSBL6-3"	5.687	3	1.09	0.55	0.65	M6 x 1.0P	12	9	0.125 ~ 0.25	1.00
5043-648-006-102	SCAT40xSBL6-4"	6.687	4	2.12	0.55	0.74	M6 x 1.0P	12	9	0.125 ~ 0.25	1.25
5043-648-006-152	SCAT40xSBL6-6"	8.687	6	4.17	0.55	0.92	M6 x 1.0P	12	9	0.125 ~ 0.25	1.20
5043-648-008-102	SCAT40xSBL8-4"	6.687	4	2.18	0.787	1.02	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.13
5043-648-008-127	SCAT40xSBL8-5"	7.687	5	3.43	0.787	1.14	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.24
5043-648-008-152	SCAT40xSBL8-6"	8.687	6	4.43	0.787	1.25	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.39
5043-648-012-064	SCAT40xSBL12-2.5"	5.187	2.5	0.82	1.02	1.15	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5043-648-012-102	SCAT40xSBL12-4"	6.687	4	2.23	1.02	1.26	M10 x 1.5P	45	33	0.125 ~ 0.5	1.20
5043-648-012-152	SCAT40xSBL12-6"	8.687	6	4.49	1.02	1.49	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5043-648-020-064	SCAT40xSBL20-2.5"	5.187	2.5	0.98	1.38	1.46	M12 x 1.75P	60	44	0.125 ~ 0.75	1.20
5043-648-020-102	SCAT40xSBL20-4"	6.687	4	2.55	1.37	1.6	M12 x 1.75P	60	44	0.125 ~ 0.75	1.60
5043-648-020-152	SCAT40xSBL20-6"	8.687	6	4.62	1.37	-	M12 x 1.75P	60	44	0.125 ~ 0.75	1.50
5043-648-025-083	SCAT40xSBL25-3.25"	5.937	3.25	1.86	1.57	1.73	M16 x 1.5P	90	66	0.125 ~ 1	1.40
5043-648-025-102	SCAT40xSBL25-4"	6.687	4	2.61	1.57	1.75	M16 x 1.5P	90	66	0.125 ~ 1	1.60
5044-648-006-089	SCAT50xSBL6-3.5"	7.5	3.5	1.56	0.55	0.71	M6 x 1.0P	12	9	0.125 ~ 0.25	1.70
5044-648-006-114	SCAT50xSBL6-4.5"	8.5	4.5	2.38	0.55	0.8	M6 x 1.0P	12	9	0.125 ~ 0.25	1.50
5044-648-006-152	SCAT50xSBL6-6"	10	6	3.96	0.55	0.97	M6 x 1.0P	12	9	0.125 ~ 0.25	1.70
5044-648-008-102	SCAT50xSBL8-4"	8	4	2.24	0.787	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.23
5044-648-008-127	SCAT50xSBL8-5"	9	5	3.25	0.787	1.12	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.36
5044-648-008-152	SCAT50xSBL8-6"	10	6	4.24	0.787	1.23	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.51
5044-648-012-064	SCAT50xSBL12-2.5"	6.5	2.5	0.93	1.02	1.11	M10 x 1.5P	45	33	0.125 ~ 0.5	4.00
5044-648-012-114	SCAT50xSBL12-4.5"	8.5	4.5	2.75	1.02	1.27	M10 x 1.5P	45	33	0.125 ~ 0.5	4.10
5044-648-012-152	SCAT50xSBL12-6"	10	6	4.25	1.02	1.4	M10 x 1.5P	45	33	0.125 ~ 0.5	4.20
5044-648-020-064	SCAT50xSBL20-2.5"	6.5	2.5	0.75	1.37	1.44	M12 x 1.75P	60	44	0.125 ~ 0.75	4.30
5044-648-020-114	SCAT50xSBL20-4.5"	8.5	4.5	2.75	1.37	1.62	M12 x 1.75P	60	44	0.125 ~ 0.75	4.60
5044-648-020-152	SCAT50xSBL20-6"	10	6	4.12	1.37	1.74	M12 x 1.75P	60	44	0.125 ~ 0.75	4.70
5044-648-025-070	SCAT50xSBL25-2.75"	6.75	2.75	1.33	1.69	1.57	M16 x 1.5P	90	66	0.125 ~ 1	4.40
5044-648-025-114	SCAT50xSBL25-4.5"	8.5	4.5	3.06	1.84	1.57	M16 x 1.5P	90	66	0.125 ~ 1	4.60

SDAT/SBL法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/SDAT-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5066-648-006-070	SDAT40xSBL6-70	138.4	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	1.00
5066-648-006-100	SDAT40xSBL6-100	168.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.10
5066-648-008-100	SDAT40xSBL8-100	168.4	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	1.25
5066-648-008-130	SDAT40xSBL8-130	198.4	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	1.19
5066-648-008-150	SDAT40xSBL8-150	218.4	150	121.4	20	32.6	M8 x 1.25P	29	21	3 ~ 8	1.32
5066-648-012-070	SDAT40xSBL12-70	138.4	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	1.20
5066-648-012-100	SDAT40xSBL12-100	168.4	100	73	26	32	M10 x 1.5P	45	33	3 ~ 12	1.30
5066-648-020-070	SDAT40xSBL20-70	138.4	70	46	35	39	M12 x 1.75P	60	44	3 ~ 20	1.30
5066-648-020-100	SDAT40xSBL20-100	168.4	100	78	35	41	M12 x 1.75P	60	44	3 ~ 20	1.40
5066-648-025-080	SDAT40xSBL25-80	148.4	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	1.50
5066-648-025-100	SDAT40xSBL25-100	168.4	100	79	40	46	M16 x 1.5P	90	66	6 ~ 25.4	1.60
5067-648-006-070	SDAT50xSBL6-70	171.75	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6.	2.80
5067-648-006-100	SDAT50xSBL6-100	201.75	100	66	14	20	M6 x 1.0P	12	9	3 ~ 6	2.90
5067-648-008-100	SDAT50xSBL8-100	201.75	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	2.81
5067-648-008-130	SDAT50xSBL8-130	231.75	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	2.98
5067-648-008-150	SDAT50xSBL8-150	251.75	150	121.4	20	32.7	M8 x 1.25P	29	21	3 ~ 8	3.11
5067-648-012-070	SDAT50xSBL12-70	171.75	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	3.00
5067-648-012-100	SDAT50xSBL12-100	201.75	100	73	26	32	M10 x 1.5P	45	33	3 ~ 12	3.10
5067-648-020-070	SDAT50xSBL20-70	171.75	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	3.20
5067-648-020-100	SDAT50xSBL20-100	201.75	100	76	35	41	M12 x 1.75P	60	44	3 ~ 20	3.30
5067-648-025-080	SDAT50xSBL25-80	181.75	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	3.20
5067-648-025-100	SDAT50xSBL25-100	201.75	100	78	40	46	M16 x 1.5P	90	66	6 ~ 25.4	3.40

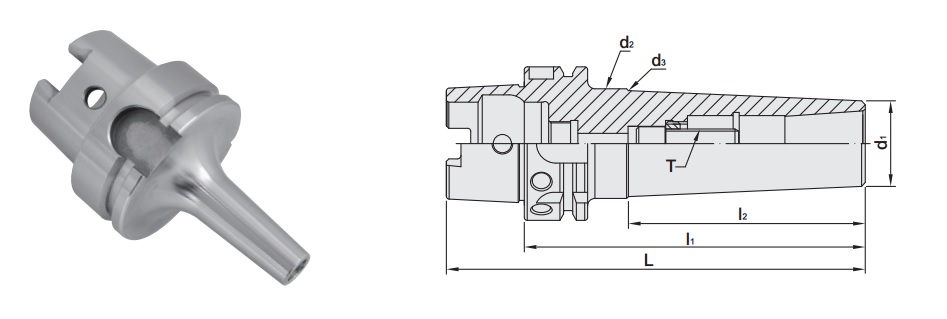

HSK-A/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/HSK-SBL_(A_type)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5072-648-006-080	HSK50AxSBL6-80	105	80	44	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.40
5072-648-006-120	HSK50AxSBL6-120	145	120	84	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.50
5072-648-012-110	HSK50AxSBL12-110	135	110	65	26	42	36	M10 x 1.5P	45	33	3 ~ 12	1.50
5072-648-012-130	HSK50AxSBL12-130	155	130	86	26	42	39	M10 x 1.5P	45	33	3 ~ 12	1.85
5072-648-020-120	HSK50AxSBL20-120	145	120	93	35	42	-	M12 x 1.75P	60	44	3 ~ 20	1.80
5072-648-020-150	HSK50AxSBL20-150	175	150	123	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5073-648-006-080	HSK63AxSBL6-80	112	80	39	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.70
5073-648-006-120	HSK63AxSBL6-120	152	120	79	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.90
5073-648-008-130	HSK63AxSBL8-130	162	130	94	20	29	-	M8 x 1.25P	29	21	3 ~ 8	1.99
5073-648-008-150	HSK63AxSBL8-150	182	150	114	20	32	-	M8 x 1.25P	29	21	3 ~ 8	1.11
5073-648-012-110	HSK63AxSBL12-110	142	110	79	26	37	-	M10 x 1.5P	45	33	3 ~ 12	1.80
5073-648-012-150	HSK63AxSBL12-150	182	150	119	26	42	-	M10 x 1.5P	45	33	3 ~ 12	2.00
5073-648-020-120	HSK63AxSBL20-120	152	120	89	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5073-648-020-140	HSK63AxSBL20-140	172	140	97	35	45	43	M12 x 1.75P	60	44	3 ~ 20	2.45
5075-648-006-120	HSK100AxSBL6-120	170	120	76	14	22	-	M6 x 1.0P	12	9	3 ~ 6	2.15
5075-648-008-130	HSK100AxSBL8-130	180	130	86	20	29	-	M8 x 1.25P	29	21	3 ~ 8	2.31
5075-648-008-150	HSK100AxSBL8-150	200	150	106	20	31	-	M8 x 1.25P	29	21	3 ~ 8	2.43
5075-648-012-120	HSK100AxSBL12-120	170	120	81	26	37	-	M10 x 1.5P	45	33	3 ~ 12	2.40
5075-648-020-135	HSK100AxSBL20-135	185	135	88	35	45	42	M12 x 1.75P	60	44	3 ~ 20	2.74
5075-648-025-150	HSK100AxSBL25-150	200	150	111	40	49	-	M16 x 1.5P	90	66	6 ~ 25.4	2.80

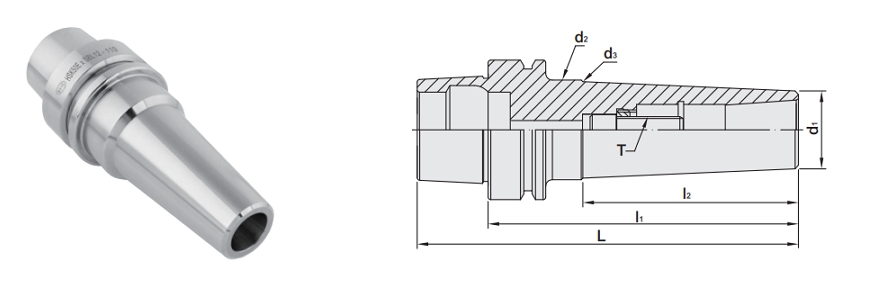

HSK-E/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/HSK-SBL_(E_type)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5100-648-006-080	HSK50ExSBL6-80	105	80	44	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.40
5100-648-006-120	HSK50ExSBL6-120	145	120	84	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.50
5100-648-012-110	HSK50ExSBL12-110	135	110	65	26	42	36	M10 x 1.5P	45	33	3 ~ 12	1.50
5100-648-012-130	HSK50ExSBL12-130	155	130	86	26	42	39	M10 x 1.5P	45	33	3 ~ 12	1.85
5100-648-020-120	HSK50ExSBL20-120	145	120	93	35	42	-	M12 x 1.75P	60	44	3 ~ 20	1.80
5100-648-020-150	HSK50ExSBL20-150	175	150	123	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5101-648-006-080	HSK63ExSBL6-80	112	80	39	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.70
5101-648-006-120	HSK63ExSBL6-120	152	120	79	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.90
5101-648-008-130	HSK63ExSBL8-130	162	130	94	20	29	-	M8 x 1.25P	29	21	3 ~ 8	0.99
5101-648-008-150	HSK63ExSBL8-150	182	150	114	20	32	-	M8 x 1.25P	29	21	3 ~ 8	1.11
5101-648-012-110	HSK63ExSBL12-110	142	110	79	26	37	-	M10 x 1.5P	45	33	3 ~ 12	1.80
5101-648-012-150	HSK63ExSBL12-150	182	150	119	26	42	-	M10 x 1.5P	45	33	3 ~ 12	2.00
5101-648-020-120	HSK63ExSBL20-120	152	120	89	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5101-648-020-140	HSK63ExSBL20-140	172	140	97	35	45	43	M12 x 1.75P	60	44	3 ~ 20	2.45
5108-648-006-120	HSK100ExSBL6-120	170	120	76	14	22	-	M6 x 1.0P	12	9	3 ~ 6	2.15
5108-648-008-130	HSK100ExSBL8-130	180	130	86	20	29	-	M8 x 1.25P	29	21	3 ~ 8	2.31
5108-648-008-150	HSK100ExSBL8-150	200	150	106	20	31	-	M8 x 1.25P	29	21	3 ~ 8	2.43
5108-648-012-120	HSK100ExSBL12-120	170	120	81	26	37	-	M10 x 1.5P	45	33	3 ~ 12	2.40
5108-648-020-135	HSK100ExSBL20-135	185	135	88	35	45	42	M12 x 1.75P	60	44	3 ~ 20	2.74
5108-648-025-150	HSK100ExSBL25-150	200	150	111	40	49	-	M16 x 1.5P	90	66	3 ~ 25	2.80

PSC/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/PSC-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5140-648-006-075	PSC32xSBL6-75	94	75	58	14	20.1	M6 x 1.0P	12	9	3 ~ 6	0.50
5140-648-012-090	PSC32xSBL12-90	109	90	74	26	31.2	M10 x 1.5P	45	33	3 ~ 12	0.70
5141-648-006-075	PSC40xSBL6-75	99	75	43	14	18.5	M6 x 1.0P	12	9	3 ~ 6	0.60
5141-648-012-090	PSC40xSBL12-90	114	90	68	26	31.9	M10 x 1.5P	45	33	3 ~ 12	0.70
5141-648-020-105	PSC40xSBL20-105	129	105	57	35	40	M12 x 1.75P	60	44	3 ~ 20	0.80
5142-648-006-080	PSC50xSBL6-80	110	80	45	14	18.8	M6 x 1.0P	12	9	3 ~ 6	0.60
5142-648-008-100	PSC50xSBL8-100	130	100	70.5	20	27.3	M8 x 1.25P	29	21	3 ~ 8	0.65
5142-648-012-105	PSC50xSBL12-105	135	105	80	26	33	M10 x 1.5P	45	33	3 ~ 12	0.70
5142-648-020-115	PSC50xSBL20-115	145	115	94	35	43.2	M12 x 1.75P	60	44	3 ~ 20	0.80
5143-648-006-080	PSC63xSBL6-80	118	80	43	14	18.5	M6 x 1.0P	12	9	3 ~ 6	1.00
5143-648-008-100	PSC63xSBL8-100	138	100	68.5	20	27.1	M8 x 1.25P	29	21	3 ~ 8	0.98
5143-648-012-100	PSC63xSBL12-100	138	100	69	26	32	M10 x 1.5P	45	33	3 ~ 12	1.20
5143-648-020-120	PSC63xSBL20-120	158	120	91	35	42.9	M12 x 1.75P	60	44	3 ~ 20	1.40
5144-648-006-080	PSC80xSBL6-80	128	80	40.5	14	18.2	M6 x 1.0P	12	9	3 ~ 6	2.10
5144-648-008-100	PSC80xSBL8-100	148	100	60.5	20	26.3	M8 x 1.25P	29	21	3 ~ 8	1.90
5144-648-012-100	PSC80xSBL12-100	148	100	31.2	26	60.4	M10 x 1.5P	45	33	3 ~ 12	2.40
5144-648-020-120	PSC80xSBL20-120	168	120	42	35	80.4	M12 x 1.75P	60	44	3 ~ 20	2.60

ISO/SBL後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/ISO-SBL_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5113-648-006-070	ISO30xSBL6-70	117.8	70	39	14	18	M6	12	9	3 ~ 6	0.70
5113-648-012-070	ISO30xSBL12-70	117.8	70	46	26	30	M10	45	33	3 ~ 12	0.80
5113-648-020-080	ISO30xSBL20-80	127.8	80	58	35	37	M12	60	44	3 ~ 20	0.85

直柄SBL小徑延長桿

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBL/C-SBL.jpg

MODEL NO.	TYPE	L	l1	D	d2	T	WEIGHT (KGS)
5272-648-01206-120	C12xSBL6-120	120	-	12	12	M6 x 1.0P	0.16
5272-648-01206-150	C12xSBL6-150	150	-	12	12	M6 x 1.0P	0.18
5272-648-01606-120	C16xSBL6-120	120	48	16	12	M6 x 1.0P	0.21
5272-648-01606-150	C16xSBL6-150	150	48	16	12	M6 x 1.0P	0.22
5272-648-01606-200	C16xSBL6-200	200	48	16	12	M6 x 1.0P	0.24
5272-648-02006-120	C20xSBL6-120	120	76.5	20	12	M6 x 1.0P	0.36
5272-648-02006-150	C20xSBL6-150	150	86	20	12	M6 x 1.0P	0.23
5272-648-02006-200	C20xSBL6-200	200	76.5	20	12	M6 x 1.0P	0.25
5272-648-02506-120	C25xSBL6-120	120	60	25	14	M6 x 1.0P	0.33
5272-648-02506-150	C25xSBL6-150	150	60	25	14	M6 x 1.0P	0.34
5272-648-02506-200	C25xSBL6-200	200	60	25	14	M6 x 1.0P	0.36
5272-648-02512-120	C25xSBL12-120	120	50	25	22	M10 x 1.5P	0.34
5272-648-02512-150	C25xSBL12-150	150	50	25	22	M10 x 1.5P	0.35
5272-648-02512-200	C25xSBL12-200	200	50	25	22	M10 x 1.5P	0.37
5272-648-A3206-127	C1/2"xSBL6-5"	127	48	12.7	12	M6 x 1.0P	0.16
5272-648-A3206-152	C1/2"xSBL6-6"	152.4	48	12.7	12	M6 x 1.0P	0.18
5272-648-A4006-127	C5/8"xSBL6-5"	127	48	15.875	12	M6 x 1.0P	0.21
5272-648-A4006-152	C5/8"xSBL6-6"	152.4	48	15.875	12	M6 x 1.0P	0.22
5272-648-A4006-203	C5/8"xSBL6-8"	203.2	48	15.875	12	M6 x 1.0P	0.24
5272-648-A4806-127	C3/4"xSBL6-5"	127	76.5	19.05	12	M6 x 1.0P	0.22
5272-648-A4806-152	C3/4"xSBL6-6"	152.4	86	19.05	12	M6 x 1.0P	0.23
5272-648-A4806-203	C3/4"xSBL6-8"	203.2	76.5	19.05	12	M6 x 1.0P	0.25
5272-648-A6406-127	C1"xSBL6-5"	127	60	25.4	14	M6 x 1.0P	0.33
5272-648-A6406-152	C1"xSBL6-6"	152.4	60	25.4	14	M6 x 1.0P	0.34
5272-648-A6406-203	C1"xSBL6-8"	203.2	60	25.4	14	M6 x 1.0P	0.36
5272-648-A6412-127	C1"xSBL12-5"	127	56	25.4	22	M10 x 1.5P	0.34
5272-648-A6412-152	C1"xSBL12-6"	152.4	56	25.4	22	M10 x 1.5P	0.35
5272-648-A6412-203	C1"xSBL12-8"	203.2	56	25.4	22	M10 x 1.5P	0.37

series

proimages/Technical_information/SBL-TI.jpg

series

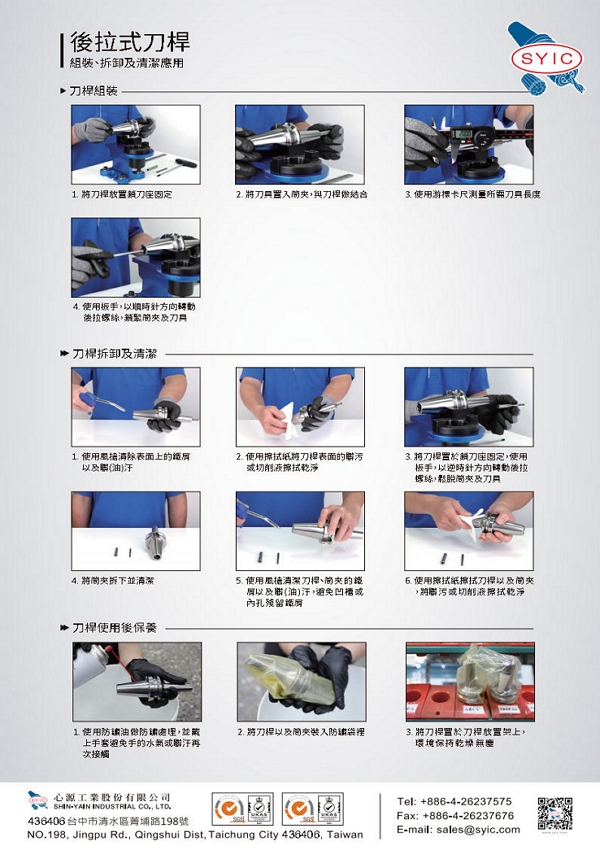

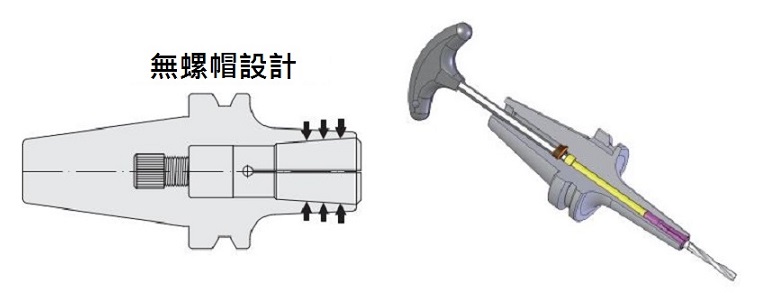

SBL後拉式刀桿鎖固應用

SBL後拉式立銑刀夾頭扭力扳手鎖固應用

EBL延長筒夾型刀桿及標準型SBL刀桿比較

SBL後拉式立銑刀夾頭

產品描述
