SBLC後拉式立銑刀夾頭(出水型)

SBLC Slim-Fit Collet Chuck (With Coolant Through)

series

BT/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/BT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5010-623-006-070	BT30xSBLC6-70	118.4	70	38	14	18.1	M6 x 1.0P	12	9	3 ~ 6	1
5010-623-006-100	BT30xSBLC6-100	148.4	100	68	14	21.2	M6 x 1.0P	12	9	3 ~ 6	1.25
5010-623-012-070	BT30xSBLC12-70	118.4	70	47	26	33.4	M10 x 1.5P	45	33	3 ~ 12	1.2
5010-623-012-100	BT30xSBLC12-100	148.4	100	77	26	38.1	M10 x 1.5P	45	33	3 ~ 12	1.45
5010-623-012-130	BT30xSBLC12-130	178.4	130	106	26	35.2	M10 x 1.5P	45	33	3 ~ 12	1.65
5010-623-020-080	BT30xSBLC20-80	128.4	80	55	34	37.7	M12 x 1.75P	60	44	3 ~ 20	1.2
5010-623-020-100	BT30xSBLC20-100	148.4	100	77	34	39.2	M12 x 1.75P	60	44	3 ~ 20	1.45
5011-623-006-070	BT40xSBLC6-70	135.4	70	28	14	17.1	M6 x 1.0P	12	9	3 ~ 6	1.2
5011-623-006-100	BT40xSBLC6-100	165.4	100	58	14	20.1	M6 x 1.0P	12	9	3 ~ 6	1.6
5011-623-006-130	BT40xSBLC6-130	195.4	130	88	14	23.3	M6 x 1.0P	12	9	3 ~ 6	1.8
5011-623-006-200	BT40xSBLC6-200	265.4	200	161	14	30.9	M6 x 1.0P	12	9	3 ~ 6	2
5011-623-008-100	BT40xSBLC8-100	165.4	100	58.7	20	26.1	M8 x 1.25P	29	21	3 ~ 8	1.25
5011-623-008-130	BT40xSBLC8-130	195.4	130	93.5	20	29.8	M8 x 1.25P	29	21	3 ~ 8	1.38
5011-623-008-150	BT40xSBLC8-150	215.4	150	113.5	20	31.8	M8 x 1.25P	29	21	3 ~ 8	1.5
5011-623-012-070	BT40xSBLC12-70	135.4	70	33	26	31	M10 x 1.5P	45	33	3 ~ 12	1.5
5011-623-012-100	BT40xSBLC12-100	165.4	100	63	26	31.6	M10 x 1.5P	45	33	3 ~ 12	1.7
5011-623-012-130	BT40xSBLC12-130	195.4	130	93	26	34.2	M10 x 1.5P	45	33	3 ~ 12	1.9
5011-623-012-150	BT40xSBLC12-150	215.4	150	113	26	36	M10 x 1.5P	45	33	3 ~ 12	2.1
5011-623-012-170	BT40xSBLC12-170	235.4	170	133	26	37.7	M10 x 1.5P	45	33	3 ~ 12	2.3
5011-623-020-070	BT40xSBLC20-70	135.4	70	33	35	38.1	M12 x 1.75P	60	44	3 ~ 20	1.5
5011-623-020-100	BT40xSBLC20-100	165.4	100	68	35	41	M12 x 1.75P	60	44	3 ~ 20	1.7
5011-623-020-130	BT40xSBLC20-130	195.4	130	98	35	43.6	M12 x 1.75P	60	44	3 ~ 20	1.9
5011-623-020-150	BT40xSBLC20-150	215.4	150	118	35	45.3	M12 x 1.75P	60	44	3 ~ 20	2.1
5011-623-020-170	BT40xSBLC20-170	235.4	170	138	35	47.1	M12 x 1.75P	60	44	3 ~ 20	2.3
5011-623-025-080	BT40xSBLC25-80	145.4	80	50.1	40	44.3	M16 x 1.5P	90	66	6 ~ 25.4	1.7
5011-623-025-100	BT40xSBLC25-100	165.4	100	70.1	40	46.1	M16 x 1.5P	90	66	6 ~ 25.4	1.9
5012-623-006-070	BT50xSBLC6-70	171.8	70	17	14	15.9	M6 x 1.0P	12	9	3 ~ 6	4
5012-623-006-100	BT50xSBLC6-100	201.8	100	47	14	19.1	M6 x 1.0P	12	9	3 ~ 6	4.1
5012-623-006-150	BT50xSBLC6-150	251.8	150	97.7	14	24.2	M6 x 1.0P	12	9	3 ~ 6	4.3
5012-623-006-200	BT50xSBLC6-200	301.8	200	147.7	14	29.4	M6 x 1.0P	12	9	3 ~ 6	4.6
5012-623-008-100	BT50xSBLC8-100	201.8	100	47.7	20	25	M8 x 1.25P	29	21	3 ~ 8	3.78
5012-623-008-130	BT50xSBLC8-130	231.8	130	77.7	20	28.1	M8 x 1.25P	29	21	3 ~ 8	3.92
5012-623-008-150	BT50xSBLC8-150	251.8	150	97.7	20	30.2	M8 x 1.25P	29	21	3 ~ 8	4.04
5012-623-012-070	BT50xSBLC12-70	171.8	70	22	26	28.1	M10 x 1.5P	45	33	3 ~ 12	4.2
5012-623-012-100	BT50xSBLC12-100	201.8	100	52	26	30.6	M10 x 1.5P	45	33	3 ~ 12	4.3
5012-623-012-125	BT50xSBLC12-125	226.8	125	77	26	32.9	M10 x 1.5P	45	33	3 ~ 12	4.5
5012-623-012-150	BT50xSBLC12-150	251.8	150	102	26	35	M10 x 1.5P	45	33	3 ~ 12	4.8
5012-623-012-170	BT50xSBLC12-170	271.8	170	122	26	36.7	M10 x 1.5P	45	33	3 ~ 12	5
5012-623-020-070	BT50xSBLC20-70	171.8	70	22	35	36.9	M12 x 1.75P	60	44	3 ~ 20	4.6
5012-623-020-100	BT50xSBLC20-100	201.8	100	52	35	39.6	M12 x 1.75P	60	44	3 ~ 20	4.7
5012-623-020-125	BT50xSBLC20-125	226.8	125	77	35	41.8	M12 x 1.75P	60	44	3 ~ 20	4.9
5012-623-020-170	BT50xSBLC20-170	271.8	170	122	35	45.6	M12 x 1.75P	60	44	3 ~ 20	5.3
5012-623-020-200	BT50xSBLC20-200	301.8	200	152	35	48.3	M12 x 1.75P	60	44	3 ~ 20	5.6
5012-623-025-070	BT50xSBLC25-70	171.8	70	22.4	40	41.9	M16 x 1.5P	90	66	6 ~ 25.4	4.8
5012-623-025-100	BT50xSBLC25-100	201.8	100	52.4	40	44.5	M16 x 1.5P	90	66	6 ~ 25.4	5

CAT/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/CAT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5031-623-006-076	CAT40xSBLC6-3"	5.687	3	1.09	0.55	0.64	M6 x 1.0P	12	9	0.125 ~ 0.25	1
5031-623-006-102	CAT40xSBLC6-4"	6.687	4	2.11	0.55	0.73	M6 x 1.0P	12	9	0.125 ~ 0.25	1.25
5031-623-006-152	CAT40xSBLC6-6"	8.687	6	4.17	0.55	0.91	M6 x 1.0P	12	9	0.125 ~ 0.25	1.2
5031-623-008-102	CAT40xSBLC8-4"	6.687	4	2.18	0.787	1.02	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.13
5031-623-008-127	CAT40xSBLC8-5"	7.687	5	3.43	0.787	1.14	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.24
5031-623-008-152	CAT40xSBLC8-6"	8.687	6	4.43	0.787	1.25	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.39
5031-623-012-064	CAT40xSBLC12-2.5"	5.187	2.5	0.82	1.02	1.15	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5031-623-012-102	CAT40xSBLC12-4"	6.687	4	2.23	1.02	1.25	M10 x 1.5P	45	33	0.125 ~ 0.5	1.2
5031-623-012-152	CAT40xSBLC12-6"	8.687	6	4.49	1.02	1.49	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5031-623-020-064	CAT40xSBLC20-2.5"	5.187	2.5	0.97	1.38	1.46	M12 x 1.75P	60	44	0.125 ~ 0.75	1.2
5031-623-020-102	CAT40xSBLC20-4"	6.687	4	2.54	1.37	1.6	M12 x 1.75P	60	44	0.125 ~ 0.75	1.6
5031-623-020-152	CAT40xSBLC20-6"	8.687	6	4.26	1.37	-	M12 x 1.75P	60	44	0.125 ~ 0.75	1.5
5031-623-025-083	CAT40xSBLC25-3.25"	5.937	3.25	1.86	1.57	1.73	M16 x 2.0P	90	66	0.125 ~ 1	1.4
5031-623-025-102	CAT40xSBLC25-4"	6.687	4	2.61	1.57	1.75	M16 x 2.0P	90	66	0.125 ~ 1	1.6
5032-623-006-089	CAT50xSBLC6-3.5"	7.5	3.5	1.56	0.55	0.71	M6 x 1.0P	12	9	0.125 ~ 0.25	1.7
5032-623-006-114	CAT50xSBLC6-4.5"	8.5	4.5	2.37	0.55	0.8	M6 x 1.0P	12	9	0.125 ~ 0.25	1.5
5032-623-006-152	CAT50xSBLC6-6"	10	6	3.96	0.55	0.96	M6 x 1.0P	12	9	0.125 ~ 0.25	1.7
5032-623-008-102	CAT50xSBLC8-4"	8	4	2.24	0.787	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.23
5032-623-008-127	CAT50xSBLC8-5"	9	5	3.25	0.787	1.12	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.36
5032-623-008-152	CAT50xSBLC8-6"	10	6	4.24	0.787	1.23	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.51
5032-623-012-064	CAT50xSBLC12-2.5"	6.5	2.5	0.93	1.02	1.11	M10 x 1.5P	45	33	0.125 ~ 0.5	4
5032-623-012-114	CAT50xSBLC12-4.5"	8.5	4.5	2.74	1.02	1.26	M10 x 1.5P	45	33	0.125 ~ 0.5	4.1
5032-623-012-152	CAT50xSBLC12-6"	10	6	4.24	1.02	1.39	M10 x 1.5P	45	33	0.125 ~ 0.5	4.2
5032-623-020-064	CAT50xSBLC20-2.5"	6.5	2.5	0.74	1.37	1.44	M12 x 1.75P	60	44	0.125 ~ 0.75	4.3
5032-623-020-114	CAT50xSBLC20-4.5"	8.5	4.5	2.74	1.37	1.61	M12 x 1.75P	60	44	0.125 ~ 0.75	4.6
5032-623-020-152	CAT50xSBLC20-6"	10	6	4.11	1.37	1.73	M12 x 1.75P	60	44	0.125 ~ 0.75	4.7
5032-623-025-070	CAT50xSBLC25-2.75"	6.75	2.75	1.33	1.57	1.69	M16 x 2.0P	90	66	0.125 ~ 1	4.4
5032-623-025-114	CAT50xSBLC25-4.5"	8.5	4.5	3.06	1.57	1.84	M16 x 2.0P	90	66	0.125 ~ 1	4.6

DAT/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/DAT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5050-623-006-070	DAT30xSBLC6-70	117.8	70	41	14	18	M6 x 1.0P	12	9	3 ~ 6	0.39
5050-623-006-100	DAT30xSBLC6-100	147.8	100	71	14	21	M6 x 1.0P	12	9	3 ~ 6	0.4
5050-623-012-070	DAT30xSBLC12-70	117.8	70	48	26	31	M10 x 1.5P	45	33	3 ~ 12	0.42
5050-623-012-100	DAT30xSBLC12-100	147.8	100	78	26	34	M10 x 1.5P	45	33	3 ~ 12	0.43
5050-623-020-080	DAT30xSBLC20-80	127.8	80	58	34	38	M12 x 1.75P	60	44	3 ~ 20	0.44
5050-623-020-100	DAT30xSBLC20-100	147.8	100	79	34	39	M12 x 1.75P	60	44	3 ~ 20	0.45
5051-623-006-070	DAT40xSBLC6-70	138.4	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	1
5051-623-006-100	DAT40xSBLC6-100	168.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.1
5051-623-008-100	DAT40xSBLC8-100	168.4	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	1.25
5051-623-008-130	DAT40xSBLC8-130	198.4	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	1.19
5051-623-008-150	DAT40xSBLC8-150	218.4	150	121.4	20	32.6	M8 x 1.25P	29	21	3 ~ 8	1.32
5051-623-012-070	DAT40xSBLC12-70	138.4	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	1.2
5051-623-012-100	DAT40xSBLC12-100	168.4	100	71	26	32	M10 x 1.5P	45	33	3 ~ 12	1.3
5051-623-012-170	DAT40xSBLC12-170	238.4	170	146	26	38	M10 x 1.5P	45	33	3 ~ 12	2
5051-623-020-070	DAT40xSBLC20-70	138.4	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	1.3
5051-623-020-100	DAT40xSBLC20-100	168.4	100	78	35	41	M12 x 1.75P	60	44	3 ~ 20	1.4
5051-623-025-080	DAT40xSBLC25-80	148.4	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	1.5
5051-623-025-100	DAT40xSBLC25-100	168.4	100	79	40	46	M16 x 1.5P	90	66	6 ~ 25.4	1.6
5052-623-006-070	DAT50xSBLC6-70	171.75	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	2.8
5052-623-006-100	DAT50xSBLC6-100	201.75	100	66	14	20	M6 x 1.0P	12	9	3 ~ 6	2.9
5052-623-008-100	DAT50xSBLC8-100	201.75	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	2.81
5052-623-008-130	DAT50xSBLC8-130	231.75	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	2.98
5052-623-008-150	DAT50xSBLC8-150	251.75	150	121.4	20	32.7	M8 x 1.25P	29	21	3 ~ 8	3.11
5052-623-012-070	DAT50xSBLC12-70	171.75	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	3
5052-623-012-100	DAT50xSBLC12-100	201.75	100	71	26	32	M10 x 1.5P	45	33	3 ~ 12	3.1
5052-623-020-070	DAT50xSBLC20-70	171.75	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	3.2
5052-623-020-100	DAT50xSBLC20-100	201.75	100	71	35	41	M12 x 1.75P	60	44	3 ~ 20	3.3
5052-623-020-170	DAT50xSBLC20-170	271.75	170	139	35	47	M12 x 1.75P	60	44	3 ~ 20	3.9
5052-623-025-070	DAT50xSBLC25-70	171.75	70	39	40	43	M16 x 1.5P	90	66	6 ~ 25.4	3.2
5052-623-025-100	DAT50xSBLC25-100	201.75	100	71	40	46	M16 x 1.5P	90	66	6 ~ 25.4	3.4

SBT/SBLC法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/SBT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5025-623-006-070	SBT30xSBLC6-70	118.4	70	38	14	18	M6 x 1.0P	12	9	3 ~ 6	0.60
5025-623-006-100	SBT30xSBLC6-100	148.4	100	68	14	21	M6 x 1.0P	12	9	3 ~ 6	1.25
5025-623-012-070	SBT30xSBLC12-70	118.4	70	47	26	33	M10 x 1.5P	45	33	3 ~ 12	1.20
5025-623-012-100	SBT30xSBLC12-100	148.4	100	77	26	38	M10 x 1.5P	45	33	3 ~ 12	1.45
5025-623-020-080	SBT30xSBLC20-80	128.4	80	55	34	37	M12 x 1.75P	60	44	3 ~ 20	1.20
5025-623-020-100	SBT30xSBLC20-100	148.4	100	77	34	39	M12 x 1.75P	60	44	3 ~ 20	1.45
5026-623-006-070	SBT40xSBLC6-70	135.4	70	28	14	17	M6 x 1.0P	12	9	3 ~ 6	1.07
5026-623-006-100	SBT40xSBLC6-100	165.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.14
5026-623-006-130	SBT40xSBLC6-130	195.4	130	88	14	23	M6 x 1.0P	12	9	3 ~ 6	1.23
5026-623-008-100	SBT40xSBLC8-100	165.4	100	58.7	20	26.1	M8 x 1.25P	29	21	3 ~ 8	1.25
5026-623-008-130	SBT40xSBLC8-130	195.4	130	93.5	20	29.8	M8 x 1.25P	29	21	3 ~ 8	1.38
5026-623-008-150	SBT40xSBLC8-150	215.4	150	113.5	20	31.8	M8 x 1.25P	29	21	3 ~ 8	1.50
5026-623-012-070	SBT40xSBLC12-70	135.4	70	33	26	31	M10 x 1.5P	45	33	3 ~ 12	1.14
5026-623-012-100	SBT40xSBLC12-100	165.4	100	63	26	31	M10 x 1.5P	45	33	3 ~ 12	1.29
5026-623-012-130	SBT40xSBLC12-130	195.4	130	93	26	34	M10 x 1.5P	45	33	3 ~ 12	1.47
5026-623-012-170	SBT40xSBLC12-170	235.4	170	133	26	37	M10 x 1.5P	45	33	3 ~ 12	1.76
5026-623-012-200	SBT40xSBLC12-200	265.4	200	168	26	40	M10 x 1.5P	45	33	3 ~ 12	1.92
5026-623-020-070	SBT40xSBLC20-70	135.4	70	33	35	38	M12 x 1.75P	60	44	3 ~ 20	1.50
5026-623-020-100	SBT40xSBLC20-100	165.4	100	68	35	40	M12 x 1.75P	60	44	3 ~ 20	1.70
5026-623-020-130	SBT40xSBLC20-130	195.4	130	98	35	43	M12 x 1.75P	60	44	3 ~ 20	1.74
5026-623-025-080	SBT40xSBLC25-80	145.4	80	50.1	40	44.3	M16 x 1.5P	90	66	6 ~ 25.4	1.70
5026-623-025-100	SBT40xSBLC25-100	165.4	100	70.1	40	46.1	M16 x 1.5P	90	66	6 ~ 25.4	1.90
5027-623-006-070	SBT50xSBLC6-70	171.8	70	17	14	15	M6 x 1.0P	12	9	3 ~ 6	4.00
5027-623-006-100	SBT50xSBLC6-100	201.8	100	47	14	19	M6 x 1.0P	12	9	3 ~ 6	4.10
5027-623-008-100	SBT50xSBLC8-100	201.8	100	47.7	20	25	M8 x 1.25P	29	21	3 ~ 8	3.78
5027-623-008-130	SBT50xSBLC8-130	231.8	130	77.7	20	28.1	M8 x 1.25P	29	21	3 ~ 8	3.92
5027-623-008-150	SBT50xSBLC8-150	251.8	150	97.7	20	30.2	M8 x 1.25P	29	21	3 ~ 8	4.04
5027-623-012-070	SBT50xSBLC12-70	171.8	70	22	26	28	M10 x 1.5P	45	33	3 ~ 12	4.20
5027-623-012-100	SBT50xSBLC12-100	201.8	100	52	26	30	M10 x 1.5P	45	33	3 ~ 12	4.30
5027-623-012-125	SBT50xSBLC12-125	226.8	125	77	26	32	M10 x 1.5P	45	33	3 ~ 12	4.40
5027-623-020-070	SBT50xSBLC20-70	171.8	70	22	35	36	M12 x 1.75P	60	44	3 ~ 20	4.60
5027-623-020-100	SBT50xSBLC20-100	201.8	100	52	35	39	M12 x 1.75P	60	44	3 ~ 20	4.70
5027-623-020-125	SBT50xSBLC20-125	226.8	125	77	35	41	M12 x 1.75P	60	44	3 ~ 20	4.22
5027-623-025-070	SBT50xSBLC25-70	171.8	70	22.4	40	41.9	M16 x 1.5P	90	66	6 ~ 25.4	4.80
5027-623-025-100	SBT50xSBLC25-100	201.8	100	52.4	40	44.5	M16 x 1.5P	90	66	6 ~ 25.4	5.00

SCAT/SBLC法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/SCAT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5043-623-006-076	SCAT40xSBLC6-3"	5.687	3	1.09	0.55	0.65	M6 x 1.0P	12	9	0.125 ~ 0.25	1.00
5043-623-006-102	SCAT40xSBLC6-4"	6.687	4	2.12	0.55	0.74	M6 x 1.0P	12	9	0.125 ~ 0.25	1.25
5043-623-006-152	SCAT40xSBLC6-6"	8.687	6	4.17	0.55	0.92	M6 x 1.0P	12	9	0.125 ~ 0.25	1.20
5043-623-008-102	SCAT40xSBLC8-4"	6.687	4	2.18	0.787	1.02	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.13
5043-623-008-127	SCAT40xSBLC8-5"	7.687	5	3.43	0.787	1.14	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.24
5043-623-008-152	SCAT40xSBLC8-6"	8.687	6	4.43	0.787	1.25	M8 x 1.25P	29	21	0.125 ~ 0.3125	1.39
5043-623-012-064	SCAT40xSBLC12-2.5"	5.187	2.5	0.82	1.02	1.15	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5043-623-012-102	SCAT40xSBLC12-4"	6.687	4	2.23	1.02	1.26	M10 x 1.5P	45	33	0.125 ~ 0.5	1.20
5043-623-012-152	SCAT40xSBLC12-6"	8.687	6	4.49	1.02	1.49	M10 x 1.5P	45	33	0.125 ~ 0.5	1.45
5043-623-020-064	SCAT40xSBLC20-2.5"	5.187	2.5	0.98	1.38	1.46	M12 x 1.75P	60	44	0.125 ~ 0.75	1.20
5043-623-020-102	SCAT40xSBLC20-4"	6.687	4	2.55	1.37	1.6	M12 x 1.75P	60	44	0.125 ~ 0.75	1.60
5043-623-020-152	SCAT40xSBLC20-6"	8.687	6	4.62	1.37	-	M12 x 1.75P	60	44	0.125 ~ 0.75	1.50
5043-623-025-083	SCAT40xSBLC25-3.25"	5.937	3.25	1.86	1.57	1.73	M16 x 1.5P	90	66	0.125 ~ 1	1.40
5043-623-025-102	SCAT40xSBLC25-4"	6.687	4	2.61	1.57	1.75	M16 x 1.5P	90	66	0.125 ~ 1	1.60
5044-623-006-089	SCAT50xSBLC6-3.5"	7.5	3.5	1.56	0.55	0.71	M6 x 1.0P	12	9	0.125 ~ 0.25	1.70
5044-623-006-114	SCAT50xSBLC6-4.5"	8.5	4.5	2.38	0.55	0.8	M6 x 1.0P	12	9	0.125 ~ 0.25	1.50
5044-623-006-152	SCAT50xSBLC6-6"	10	6	3.96	0.55	0.97	M6 x 1.0P	12	9	0.125 ~ 0.25	1.70
5044-623-008-102	SCAT50xSBLC8-4"	8	4	2.24	0.787	1.01	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.23
5044-623-008-127	SCAT50xSBLC8-5"	9	5	3.25	0.787	1.12	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.36
5044-623-008-152	SCAT50xSBLC8-6"	10	6	4.24	0.787	1.23	M8 x 1.25P	29	21	0.125 ~ 0.3125	3.51
5044-623-012-064	SCAT50xSBLC12-2.5"	6.5	2.5	0.93	1.02	1.11	M10 x 1.5P	45	33	0.125 ~ 0.5	4.00
5044-623-012-114	SCAT50xSBLC12-4.5"	8.5	4.5	2.75	1.02	1.27	M10 x 1.5P	45	33	0.125 ~ 0.5	4.10
5044-623-012-152	SCAT50xSBLC12-6"	10	6	4.25	1.02	1.4	M10 x 1.5P	45	33	0.125 ~ 0.5	4.20
5044-623-020-064	SCAT50xSBLC20-2.5"	6.5	2.5	0.75	1.37	1.44	M12 x 1.75P	60	44	0.125 ~ 0.75	4.30
5044-623-020-114	SCAT50xSBLC20-4.5"	8.5	4.5	2.75	1.37	1.62	M12 x 1.75P	60	44	0.125 ~ 0.75	4.60
5044-623-020-152	SCAT50xSBLC20-6"	10	6	4.12	1.37	1.74	M12 x 1.75P	60	44	0.125 ~ 0.75	4.70
5044-623-025-070	SCAT50xSBLC25-2.75"	6.75	2.75	1.33	1.57	1.69	M16 x 1.5P	90	66	0.125 ~ 1	4.40
5044-623-025-114	SCAT50xSBLC25-4.5"	8.5	4.5	3.06	1.57	1.84	M16 x 1.5P	90	66	0.125 ~ 1	4.60

SDAT/SBLC法蘭加厚型後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/SDAT-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5066-623-006-070	SDAT40xSBLC6-70	138.4	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	1.00
5066-623-006-100	SDAT40xSBLC6-100	168.4	100	58	14	20	M6 x 1.0P	12	9	3 ~ 6	1.10
5066-623-008-100	SDAT40xSBLC8-100	168.4	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	1.25
5066-623-008-130	SDAT40xSBLC8-130	198.4	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	1.19
5066-623-008-150	SDAT40xSBLC8-150	218.4	150	121.4	20	32.6	M8 x 1.25P	29	21	3 ~ 8	1.32
5066-623-012-070	SDAT40xSBLC12-70	138.4	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	1.20
5066-623-012-100	SDAT40xSBLC12-100	168.4	100	73	26	32	M10 x 1.5P	45	33	3 ~ 12	1.30
5066-623-020-070	SDAT40xSBLC20-70	138.4	70	46	35	39	M12 x 1.75P	60	44	3 ~ 20	1.30
5066-623-020-100	SDAT40xSBLC20-100	168.4	100	78	35	41	M12 x 1.75P	60	44	3 ~ 20	1.40
5066-623-025-080	SDAT40xSBLC25-80	148.4	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	1.50
5066-623-025-100	SDAT40xSBLC25-100	168.4	100	79	40	46	M16 x 1.5P	90	66	6 ~ 25.4	1.60
5067-623-006-070	SDAT50xSBLC6-70	171.75	70	36	14	17	M6 x 1.0P	12	9	3 ~ 6	2.80
5067-623-006-100	SDAT50xSBLC6-100	201.75	100	66	14	20	M6 x 1.0P	12	9	3 ~ 6	2.90
5067-623-008-100	SDAT50xSBLC8-100	201.75	100	71.4	20	27.4	M8 x 1.25P	29	21	3 ~ 8	2.81
5067-623-008-130	SDAT50xSBLC8-130	231.75	130	101.4	20	30.6	M8 x 1.25P	29	21	3 ~ 8	2.98
5067-623-008-150	SDAT50xSBLC8-150	251.75	150	121.4	20	32.7	M8 x 1.25P	29	21	3 ~ 8	3.11
5067-623-012-070	SDAT50xSBLC12-70	171.75	70	41	26	29	M10 x 1.5P	45	33	3 ~ 12	3.00
5067-623-012-100	SDAT50xSBLC12-100	201.75	100	73	26	32	M10 x 1.5P	45	33	3 ~ 12	3.10
5067-623-020-070	SDAT50xSBLC20-70	171.75	70	41	35	38	M12 x 1.75P	60	44	3 ~ 20	3.20
5067-623-020-100	SDAT50xSBLC20-100	201.75	100	76	35	41	M12 x 1.75P	60	44	3 ~ 20	3.30
5067-623-025-080	SDAT50xSBLC25-80	181.75	80	58	40	45	M16 x 1.5P	90	66	6 ~ 25.4	3.20
5067-623-025-100	SDAT50xSBLC25-100	201.75	100	78	40	46	M16 x 1.5P	90	66	6 ~ 25.4	3.40

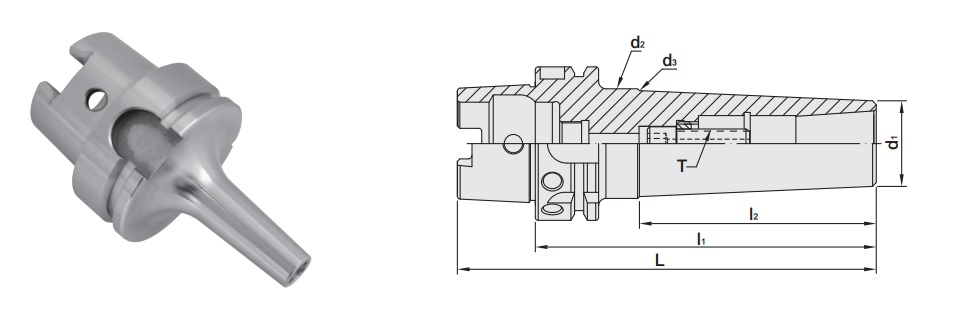

HSK-A/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/HSK-SBLC_(A_type)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5072-623-006-080	HSK50AxSBLC6-80	105	80	44	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.40
5072-623-006-120	HSK50AxSBLC6-120	145	120	84	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.50
5072-623-012-110	HSK50AxSBLC12-110	135	110	65	26	42	36	M10 x 1.5P	45	33	3 ~ 12	1.50
5072-623-012-130	HSK50AxSBLC12-130	155	130	86	26	42	39	M10 x 1.5P	45	33	3 ~ 12	1.85
5072-623-020-120	HSK50AxSBLC20-120	145	120	93	35	42	-	M12 x 1.75P	60	44	3 ~ 20	1.80
5072-623-020-150	HSK50AxSBLC20-150	175	150	123	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5073-623-006-080	HSK63AxSBLC6-80	112	80	39	14	18	-	M6 x 1.0P	12	9	3 ~ 6	1.70
5073-623-006-120	HSK63AxSBLC6-120	152	120	79	14	22	-	M6 x 1.0P	12	9	3 ~ 6	1.90
5073-623-008-130	HSK63AxSBLC8-130	162	130	94	20	29	-	M8 x 1.25P	29	21	3 ~ 8	0.99
5073-623-008-150	HSK63AxSBLC8-150	182	150	114	20	32	-	M8 x 1.25P	29	21	3 ~ 8	1.11
5073-623-012-110	HSK63AxSBLC12-110	142	110	79	26	37	-	M10 x 1.5P	45	33	3 ~ 12	1.80
5073-623-012-150	HSK63AxSBLC12-150	182	150	119	26	42	-	M10 x 1.5P	45	33	3 ~ 12	2.00
5073-623-020-120	HSK63AxSBLC20-120	152	120	89	35	42	-	M12 x 1.75P	60	44	3 ~ 20	2.00
5073-623-020-140	HSK63AxSBLC20-140	172	140	97	35	45	43	M12 x 1.75P	60	44	3 ~ 20	2.45
5075-623-006-120	HSK100AxSBLC6-120	170	120	76	14	22	-	M6 x 1.0P	12	9	3 ~ 6	2.15
5075-623-008-130	HSK100AxSBLC8-130	180	130	86	20	29	-	M8 x 1.25P	29	21	3 ~ 8	2.31
5075-623-008-150	HSK100AxSBLC8-150	200	150	106	20	31	-	M8 x 1.25P	29	21	3 ~ 8	2.43
5075-623-012-120	HSK100AxSBLC12-120	170	120	81	26	37	-	M10 x 1.5P	45	33	3 ~ 12	2.40
5075-623-020-135	HSK100AxSBLC20-135	185	135	88	35	45	42	M12 x 1.75P	60	44	3 ~ 20	2.74
5075-623-025-150	HSK100AxSBLC25-150	200	150	111	40	49	-	M16 x 1.5P	90	66	6 ~ 25.4	2.80

PSC/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/PSC-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5140-623-006-075	PSC32xSBLC6-75	94	75	58	14	20.1	M6 x 1.0P	12	9	3 ~ 6	0.50
5140-623-012-090	PSC32xSBLC12-90	109	90	74	26	31.2	M10 x 1.5P	45	33	3 ~ 12	0.70
5141-623-006-075	PSC40xSBLC6-75	99	75	43	14	18.5	M6 x 1.0P	12	9	3 ~ 6	0.60
5141-623-012-090	PSC40xSBLC12-90	114	90	68	26	31.9	M10 x 1.5P	45	33	3 ~ 12	0.70
5141-623-020-105	PSC40xSBLC20-105	129	105	57	35	40	M12 x 1.75P	60	44	3 ~ 20	0.80
5142-623-006-080	PSC50xSBLC6-80	110	80	45	14	18.8	M6 x 1.0P	12	9	3 ~ 6	0.60
5142-623-008-100	PSC50xSBLC8-100	130	100	70.5	20	27.3	M8 x 1.25P	29	21	3 ~ 8	0.65
5142-623-012-105	PSC50xSBLC12-105	135	105	80	26	33	M10 x 1.5P	45	33	3 ~ 12	0.70
5142-623-020-115	PSC50xSBLC20-115	145	115	94	35	43.2	M12 x 1.75P	60	44	3 ~ 20	0.80
5143-623-006-080	PSC63xSBLC6-80	118	80	43	14	18.5	M6 x 1.0P	12	9	3 ~ 6	1.00
5143-623-008-100	PSC63xSBLC8-100	138	100	68.5	20	27.1	M8 x 1.25P	29	21	3 ~ 8	0.98
5143-623-012-100	PSC63xSBLC12-100	138	100	69	26	32	M10 x 1.5P	45	33	3 ~ 12	1.20
5143-623-020-120	PSC63xSBLC20-120	158	120	91	35	42.9	M12 x 1.75P	60	44	3 ~ 20	1.40
5144-623-006-080	PSC80xSBLC6-80	128	80	40.5	14	18.2	M6 x 1.0P	12	9	3 ~ 6	2.10
5144-623-008-100	PSC80xSBLC8-100	148	100	60.5	20	26.3	M8 x 1.25P	29	21	3 ~ 8	1.90
5144-623-012-100	PSC80xSBLC12-100	148	100	31.2	26	60.4	M10 x 1.5P	45	33	3 ~ 12	2.40
5144-623-020-120	PSC80xSBLC20-120	168	120	42	35	80.4	M12 x 1.75P	60	44	3 ~ 20	2.60

ISO/SBLC後拉式立銑刀夾頭

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/ISO-SBLC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	T	RECOMMENDED TORQUE		SIZE RANGE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	d1	d2	T	N.m	Ibf-ft	SIZE RANGE	WEIGHT (KGS)
5113-623-006-070	ISO30xSBLC6-70	117.8	70	39	14	18	M6	12	9	3 ~ 6	0.70
5113-623-012-070	ISO30xSBLC12-70	117.8	70	46	26	30	M10	45	33	3 ~ 12	0.80
5113-623-020-080	ISO30xSBLC20-80	127.8	80	58	35	37	M12	60	44	3 ~ 20	0.85

series

proimages/Products/Tool_holders/Slim-Fit_collet_chuck/SBLC/SBLC技術資訊.jpg

series

SBLC後拉式立銑刀夾頭安裝方式及出水應用

SBLC後拉式立銑刀夾頭(出水型)

產品描述
