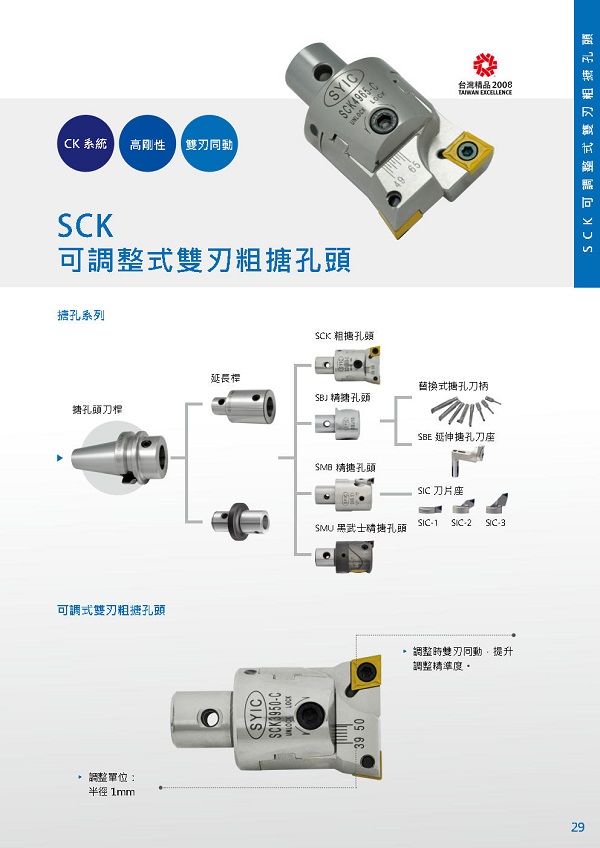

SCK可調整式雙刃粗搪孔頭
series
SCK可調整式雙刃粗搪孔頭
| MODEL NO. | TYPE | 組合刀柄 | 搪孔範圍 | d1 | L | D | 刀片 | 螺絲 | 扳手 | WEIGHT (KGS) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN. | MAX. | ||||||||||
| 5158-687-024 | SCK2430 - C | MCK2 | 24 | 30 | 14 | 34 | 22 | CC..0602 | M2.5-6.45-3.7 | T8 | 0.19 |
| 5158-687-029 | SCK2940 - C | MCK2 | 29 | 40 | 14 | 42 | 27 | CC..09T3 | M4-10-5.7-60 | T15 | 0.19 |
| 5158-687-039 | SCK3950 - C | MCK3 | 39 | 50 | 18 | 45 | 32 | CC..09T3 | M4-10-5.7-60 | T15 | 0.19 |
| 5158-687-049 | SCK4965 - C | MCK4 | 49 | 65 | 22 | 56 | 42 | CC..1204 | M5-11-7.5-60 | T20 | 0.10 |
| 5158-687-063 | SCK6382 - C | MCK5 | 63 | 82 | 28 | 66 | 54 | CC..1204 | M5-11-7.5-60 | T20 | 0.20 |
| 5158-687-080 | SCK80102 - C | MCK6 | 80 | 102 | 36 | 86 | 68 | CC..1204 | M5-9.2-7.6-60 | T20 | 2.30 |
| 5158-687-100 | SCK100125 - C | MCK7 | 100 | 125 | 46 | 100 | 85 | CC..1204 | M5-9.2-7.6-60 | T20 | 4.00 |
| 5158-687-125 | SCK125160 - C | MCK7 | 125 | 160 | 46 | 100 | 110 | CC..1204 | M5-9.2-7.6-60 | T20 | 6.16 |
| 5158-687-160 | SCK160220 - C | MCK7 | 160 | 220 | 46 | 100 | 145 | CC..1204 | M5-11-7.5-60 | T20 | 8.10 |
series
