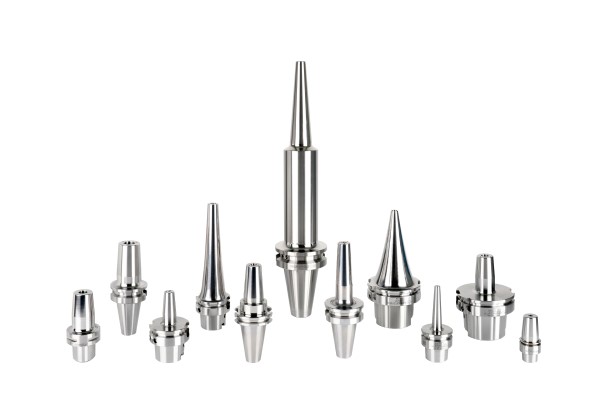

SFC熱膨脹刀桿

規格表
影片

series

BT/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/BT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5010-651-003-060	BT30xSFC3-60	108.4	60	18	33	3	10	15.2	M6	18	0.43
5010-651-003-080	BT30xSFC3-80	128.4	80	18	53	3	10	17.6	M6	18	0.53
5010-651-004-060	BT30xSFC4-60	108.4	60	20	33	4	10	15.2	M6	18	0.55
5010-651-004-080	BT30xSFC4-80	128.4	80	20	53	4	10	17.6	M6	18	0.62
5010-651-005-060	BT30xSFC5-60	108.4	60	20	33	5	10	15.2	M6	18	0.67
5010-651-005-080	BT30xSFC5-80	128.4	80	20	53	5	10	17.6	M6	18	0.61
5010-651-006-060	BT30xSFC6-60	108.4	60	36	33	6	23	28.2	M5	18	0.70
5010-651-006-080	BT30xSFC6-80	128.4	80	36	53	6	21	27	M5	18	0.86
5010-651-008-060	BT30xSFC8-60	108.4	60	36	33	8	23	28.2	M6	35	0.52
5010-651-008-080	BT30xSFC8-80	128.4	80	36	53	8	21	27	M6	35	0.58
5010-651-010-060	BT30xSFC10-60	108.4	60	42	35	10	27	32.5	M8	65	0.52
5010-651-010-080	BT30xSFC10-80	128.4	80	42	53	10	24	32	M8	65	0.64
5010-651-012-060	BT30xSFC12-60	108.4	60	47	36	12	27	32.6	M10	110	0.52
5010-651-012-080	BT30xSFC12-80	128.4	80	47	53	12	24	32	M10	110	0.62
5010-651-014-065	BT30xSFC14-65	113.4	65	47	41	14	30	36.4	M10	150	0.57
5010-651-014-080	BT30xSFC14-80	128.4	80	47	55	14	27	34	M10	150	0.69
5010-651-016-065	BT30xSFC16-65	113.4	65	50	41	16	30	36.4	M12	200	0.55
5010-651-016-080	BT30xSFC16-80	128.4	80	50	55	16	27	34	M12	200	0.65
5010-651-018-070	BT30xSFC18-70	118.4	70	50	46	18	35.5	40.5	M12	250	0.72
5010-651-018-090	BT30xSFC18-90	138.4	90	50	66	18	33	40.5	M12	250	0.87
5010-651-020-070	BT30xSFC20-70	118.4	70	52	46	20	35.5	40.5	M16	320	0.70
5010-651-020-090	BT30xSFC20-90	138.4	90	52	66	20	33	40.5	M16	320	0.81
5011-651-003-090	BT40xSFC3-90	155.4	90	18	53.8	3	10	18.4	M6	18	1.07
5011-651-004-090	BT40xSFC4-90	155.4	90	20	53.8	4	10	18.4	M6	18	1.07
5011-651-005-090	BT40xSFC5-90	155.4	90	20	53.8	5	10	18.4	M6	18	1.07
5011-651-006-090	BT40xSFC6-90	155.4	90	36	53	6	21	27	M5	18	1.23
5011-651-006-130	BT40xSFC6-130	195.4	130	36	93	6	21	27	M5	18	1.41
5011-651-006-160	BT40xSFC6-160	225.4	160	36	123	6	21	27	M5	18	1.54
5011-651-006-200	BT40xSFC6-200	265.4	200	36	163	6	21	27	M5	18	1.72
5011-651-008-090	BT40xSFC8-90	155.4	90	36	53	8	21	27	M6	35	1.23
5011-651-008-130	BT40xSFC8-130	195.4	130	36	93	8	21	27	M6	35	1.41
5011-651-008-160	BT40xSFC8-160	225.4	160	36	123	8	21	27	M6	35	1.54
5011-651-008-200	BT40xSFC8-200	265.4	200	36	163	8	21	27	M6	35	1.72
5011-651-010-090	BT40xSFC10-90	155.4	90	42	58	10	24	32	M8	65	1.48
5011-651-010-130	BT40xSFC10-130	195.4	130	42	93	10	24	32	M8	65	1.66
5011-651-010-160	BT40xSFC10-160	225.4	160	42	123	10	24	32	M8	65	1.79
5011-651-010-200	BT40xSFC10-200	265.4	200	42	163	10	24	32	M8	65	1.97
5011-651-012-090	BT40xSFC12-90	155.4	90	47	58	12	24	32	M10	110	1.68
5011-651-012-130	BT40xSFC12-130	195.4	130	47	93	12	24	32	M10	110	1.86
5011-651-012-160	BT40xSFC12-160	225.4	160	47	123	12	24	32	M10	110	1.99
5011-651-012-200	BT40xSFC12-200	265.4	200	47	163	12	24	32	M10	110	2.17
5011-651-014-090	BT40xSFC14-90	155.4	90	47	53	14	27	34	M10	150	1.76
5011-651-014-130	BT40xSFC14-130	195.4	130	47	93	14	27	34	M10	150	1.94
5011-651-014-160	BT40xSFC14-160	225.4	160	47	123	14	27	34	M10	150	2.07
5011-651-014-200	BT40xSFC14-200	265.4	200	47	163	14	27	34	M10	150	2.25
5011-651-016-090	BT40xSFC16-90	155.4	90	50	58	16	27	34	M12	200	1.57
5011-651-016-130	BT40xSFC16-130	195.4	130	50	93	16	27	34	M12	200	1.75
5011-651-016-160	BT40xSFC16-160	225.4	160	50	123	16	27	34	M12	200	1.91
5011-651-016-200	BT40xSFC16-200	265.4	200	50	165	16	27	34	M12	200	2.06
5011-651-018-090	BT40xSFC18-90	155.4	90	50	58	18	33	42	M12	250	2.12
5011-651-018-130	BT40xSFC18-130	195.4	130	50	98	18	33	42	M12	250	2.31
5011-651-018-160	BT40xSFC18-160	225.4	160	50	128	18	33	42	M12	250	2.46
5011-651-018-200	BT40xSFC18-200	265.4	200	50	168	18	33	42	M12	250	2.61
5011-651-020-090	BT40xSFC20-90	155.4	90	52	58	20	33	42	M16	320	2.09
5011-651-020-130	BT40xSFC20-130	195.4	130	52	98	20	33	42	M16	320	2.28
5011-651-020-160	BT40xSFC20-160	225.4	160	52	128	20	33	42	M16	320	2.43
5011-651-020-200	BT40xSFC20-200	265.4	200	52	168	20	33	42	M16	320	2.57
5011-651-025-100	BT40xSFC25-100	165.4	100	58	71	25	44	53	M20	500	1.83
5011-651-025-130	BT40xSFC25-130	195.4	130	58	101	25	44	53	M20	500	2.34
5011-651-025-160	BT40xSFC25-160	225.4	160	58	131	25	44	53	M20	500	2.85
5011-651-025-200	BT40xSFC25-200	265.4	200	58	171	25	44	53	M20	500	3.53
5011-651-032-100	BT40xSFC32-100	165.4	100	58	71	32	44	53	M20	550	1.69
5011-651-032-130	BT40xSFC32-130	195.4	130	58	101	32	44	53	M20	550	2.21
5011-651-032-160	BT40xSFC32-160	225.4	160	58	131	32	44	53	M20	550	2.71
5011-651-032-200	BT40xSFC32-200	265.4	200	58	171	32	44	53	M20	550	3.39
5012-651-004-100	BT50xSFC4-100	201.8	100	20	52	4	10	18.4	M6	18	3.52
5012-651-004-130	BT50xSFC4-130	231.8	130	20	82	4	10	18.4	-	18	3.57
5012-651-004-160	BT50xSFC4-160	261.8	160	20	112	4	10	18.4	-	18	3.62
5012-651-004-200	BT50xSFC4-200	301.8	200	20	152	4	10	18.4	-	18	3.69
5012-651-006-100	BT50xSFC6-100	201.8	100	36	52	6	21	27	M5	18	3.75
5012-651-006-130	BT50xSFC6-130	231.8	130	36	82	6	21	27	M5	18	3.94
5012-651-006-160	BT50xSFC6-160	261.8	160	36	112	6	21	27	M5	18	4.07
5012-651-006-200	BT50xSFC6-200	301.8	200	36	152	6	21	27	M5	18	4.24
5012-651-008-100	BT50xSFC8-100	201.8	100	36	52	8	21	27	M6	35	3.74
5012-651-008-130	BT50xSFC8-130	231.8	130	36	82	8	21	27	M6	35	3.93
5012-651-008-160	BT50xSFC8-160	261.8	160	36	112	8	21	27	M6	35	4.06
5012-651-008-200	BT50xSFC8-200	301.8	200	36	152	8	21	27	M6	35	4.23
5012-651-010-100	BT50xSFC10-100	201.8	100	42	52	10	24	32	M8	65	3.82
5012-651-010-130	BT50xSFC10-130	231.8	130	42	82	10	24	32	M8	65	4.05
5012-651-010-160	BT50xSFC10-160	261.8	160	42	112	10	24	32	M8	65	4.18
5012-651-010-200	BT50xSFC10-200	301.8	200	42	152	10	24	32	M8	65	4.35
5012-651-012-100	BT50xSFC12-100	201.8	100	47	52	12	24	32	M10	110	3.81
5012-651-012-130	BT50xSFC12-130	231.8	130	47	82	12	24	32	M10	110	4.04
5012-651-012-160	BT50xSFC12-160	261.8	160	47	112	12	24	32	M10	110	4.17
5012-651-012-200	BT50xSFC12-200	301.8	200	47	152	12	24	32	M10	110	4.34
5012-651-014-100	BT50xSFC14-100	201.8	100	47	52	14	27	34	M10	150	3.88
5012-651-014-130	BT50xSFC14-130	231.8	130	47	82	14	27	34	M10	150	4.11
5012-651-014-160	BT50xSFC14-160	261.8	160	47	112	14	27	34	M10	150	4.24
5012-651-014-200	BT50xSFC14-200	301.8	200	47	152	14	27	34	M10	150	4.41
5012-651-016-100	BT50xSFC16-100	201.8	100	50	52	16	27	34	M12	200	3.90
5012-651-016-130	BT50xSFC16-130	231.8	130	50	82	16	27	34	M12	200	4.09
5012-651-016-160	BT50xSFC16-160	261.8	160	50	112	16	27	34	M12	200	4.26
5012-651-016-200	BT50xSFC16-200	301.8	200	50	152	16	27	34	M12	200	4.43
5012-651-018-100	BT50xSFC18-100	201.8	100	50	52	18	33	42	M12	250	4.15
5012-651-018-130	BT50xSFC18-130	231.8	130	50	82	18	33	42	M12	250	4.34
5012-651-018-160	BT50xSFC18-160	261.8	160	50	112	18	33	42	M12	250	4.51
5012-651-018-200	BT50xSFC18-200	301.8	200	50	152	18	33	42	M12	250	4.68
5012-651-020-100	BT50xSFC20-100	201.8	100	52	52	20	33	42	M16	320	4.07
5012-651-020-130	BT50xSFC20-130	231.8	130	52	82	20	33	42	M16	320	4.32
5012-651-020-160	BT50xSFC20-160	261.8	160	52	112	20	33	42	M16	320	4.53
5012-651-020-200	BT50xSFC20-200	301.8	200	52	152	20	33	42	M16	320	4.70
5012-651-025-100	BT50xSFC25-100	201.8	100	58	52	25	44	53	M20	500	4.53
5012-651-025-130	BT50xSFC25-130	231.8	130	58	82	25	44	53	M20	500	4.78
5012-651-025-160	BT50xSFC25-160	261.8	160	58	112	25	44	53	M20	500	4.99
5012-651-025-200	BT50xSFC25-200	301.8	200	58	152	25	44	53	M20	500	5.16
5012-651-032-100	BT50xSFC32-100	201.8	100	58	52	32	44	53	M20	550	4.38
5012-651-032-130	BT50xSFC32-130	231.8	130	58	82	32	44	53	M20	550	4.63
5012-651-032-160	BT50xSFC32-160	261.8	160	58	112	32	44	53	M20	550	4.84
5012-651-032-200	BT50xSFC32-200	301.8	200	58	152	32	44	53	M20	550	5.01

BT/SFCT熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/BT-SFCT_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5010-793-004-080	BT30xSFCT4-80	128.4	80	20	48	4	10	15	M6	18	0.42
5010-793-005-080	BT30xSFCT5-80	128.4	80	20	53	5	16	19	M6	18	0.54
5010-793-006-080	BT30xSFCT6-80	128.4	80	36	53	6	21	26	M5	18	0.64
5010-793-008-080	BT30xSFCT8-80	128.4	80	36	53	8	21	26	M6	35	0.56
5010-793-010-080	BT30xSFCT10-80	128.4	80	42	53	10	24	29	M8	65	0.66
5010-793-012-080	BT30xSFCT12-80	128.4	80	47	53	12	24	29	M10	110	0.66
5010-793-014-080	BT30xSFCT14-80	128.4	80	47	46	14	24	32	M10	150	0.58
5010-793-016-080	BT30xSFCT16-80	128.4	80	50	55	16	27	32	M12	200	0.60
5010-793-018-090	BT30xSFCT18-90	138.4	90	50	66	18	33	38	M12	250	0.80
5010-793-020-090	BT30xSFCT20-90	138.4	90	52	66	20	33	38	M16	320	0.76
5010-793-025-100	BT30xSFCT25-100	148.4	100	58	78	25	44	49	M20	500	1.17
5011-793-003-090	BT40xSFCT3-90	155.4	90	18	53	3	9	14.6	M6	18	0.98
5011-793-004-090	BT40xSFCT4-90	155.4	90	20	53	4	10	15.6	M6	18	1.01
5011-793-005-090	BT40xSFCT5-90	155.4	90	20	58	5	16	21	M6	18	1.07
5011-793-006-090	BT40xSFCT6-90	155.4	90	36	58	6	21	26	M5	18	1.15
5011-793-008-090	BT40xSFCT8-90	155.4	90	36	58	8	21	26	M6	35	1.15
5011-793-010-090	BT40xSFCT10-90	155.4	90	42	58	10	24	29	M8	65	1.20
5011-793-012-090	BT40xSFCT12-90	155.4	90	47	58	12	24	29	M10	110	1.19
5011-793-014-090	BT40xSFCT14-90	155.4	90	47	58	14	27	32	M10	150	1.24
5011-793-016-090	BT40xSFCT16-90	155.4	90	50	58	16	27	32	M12	200	1.21
5011-793-018-100	BT40xSFCT18-100	165.4	100	50	68	18	33	38	M12	250	1.42
5011-793-019-090	BT40xSFCT19-90	155.4	90	60	58	19	33	38	M16	250	1.40
5011-793-020-100	BT40xSFCT20-100	165.4	100	52	68	20	33	38	M16	320	1.38
5011-793-024-090	BT40xSFCT24-90	155.4	90	72	61	24	44	49	M20	500	1.36
5011-793-025-100	BT40xSFCT25-100	165.4	100	58	71	25	44	49	M20	500	1.66
5011-793-032-100	BT40xSFCT32-100	165.4	100	58	71	32	44	49	M20	550	1.52
5012-793-004-100	BT50xSFCT4-100	201.8	100	20	52	4	10	15.6	M6	18	3.86
5012-793-005-100	BT50xSFCT5-100	201.8	100	20	57	5	16	21	M6	18	3.86
5012-793-006-100	BT50xSFCT6-100	201.8	100	36	57	6	21	26	M5	18	3.92
5012-793-008-100	BT50xSFCT8-100	201.8	100	36	52	8	21	26	M6	35	3.92
5012-793-010-100	BT50xSFCT10-100	201.8	100	42	58	10	24	29	M8	65	3.90
5012-793-012-100	BT50xSFCT12-100	201.8	100	47	52	12	24	29	M10	110	3.94
5012-793-014-100	BT50xSFCT14-100	201.8	100	47	57	14	27	32	M10	150	4.02
5012-793-016-100	BT50xSFCT16-100	201.8	100	50	52	16	27	32	M12	200	3.96
5012-793-018-110	BT50xSFCT18-110	211.8	110	50	62	18	33	38	M12	250	4.18
5012-793-020-110	BT50xSFCT20-110	211.8	110	52	67	20	33	38	M16	320	4.14
5012-793-025-110	BT50xSFCT25-110	211.8	110	58	67	25	44	49	M20	500	4.46
5012-793-032-110	BT50xSFCT32-110	211.8	110	58	67	32	44	49	M20	550	4.30

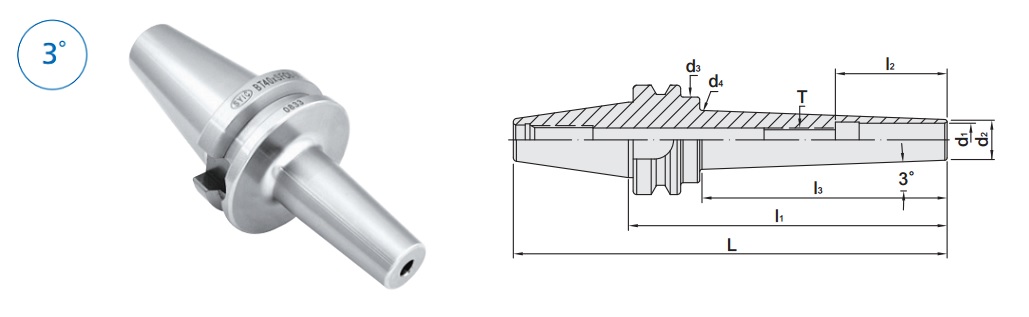

BT/SFCT SHRINK FIT CHUCK LENGTHENED TYPE

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/BT-SFCT_(lengthened_type).jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	d4	T	最小扭力 N.m	WEIGHT (KGS)
5010-793-004-135	BT30xSFCT4-135	183.4	135	20	102	4	10	26	20.6	-	18	0.54
5010-793-005-135	BT30xSFCT5-135	183.4	135	20	102	5	11	26	21.6	-	18	0.56
5010-793-006-135	BT30xSFCT6-135	183.4	135	36	101	6	12	26	22.6	M5	18	0.58
5010-793-008-135	BT30xSFCT8-135	183.4	135	36	103	8	14	26	24.7	M6	35	0.62
5010-793-010-135	BT30xSFCT10-135	183.4	135	42	108	10	16	26	-	M8	65	0.65
5010-793-012-135	BT30xSFCT12-135	183.4	135	47	108	12	18	26	-	M10	110	0.68
5010-793-014-135	BT30xSFCT14-135	183.4	135	47	102	14	20	36	30.6	M10	150	0.77
5010-793-016-135	BT30xSFCT16-135	183.4	135	50	101	16	22	36	32.6	M12	200	0.81
5010-793-018-135	BT30xSFCT18-135	183.4	135	50	102	18	24	36	34.7	M12	250	0.86
5010-793-020-135	BT30xSFCT20-135	183.4	135	52	111	20	26	36	-	M16	320	0.89
5010-793-025-160	BT30xSFCT25-160	208.4	160	58	136	25	31	36	-	M20	500	1.10
5011-793-004-135	BT40xSFCT4-135	200.4	135	20	97	4	10	26	20	-	18	1.10
5011-793-005-135	BT40xSFCT5-135	200.4	135	20	97	5	11	26	21	-	18	1.12
5011-793-005-165	BT40xSFCT5-165	230.4	165	20	127	5	11	26	24	-	18	1.20
5011-793-005-200	BT40xSFCT5-200	265.4	200	20	168	5	11	26	-	-	18	1.33
5011-793-006-135	BT40xSFCT6-135	200.4	135	36	96	6	12	26	22	M5	18	1.12
5011-793-006-165	BT40xSFCT6-165	230.4	165	36	127	6	12	26	25	M5	18	1.22
5011-793-006-200	BT40xSFCT6-200	265.4	200	36	168	6	12	26	-	M5	18	1.33
5011-793-008-135	BT40xSFCT8-135	200.4	135	36	97	8	14	36	24	M6	35	1.20
5011-793-008-165	BT40xSFCT8-165	230.4	165	36	127	8	14	36	27	M6	35	1.30
5011-793-008-200	BT40xSFCT8-200	265.4	200	36	162	8	14	36	30	M6	35	1.47
5011-793-010-135	BT40xSFCT10-135	200.4	135	42	97	10	16	36	26	M8	65	1.22
5011-793-010-165	BT40xSFCT10-165	230.4	165	42	127	10	16	36	26	M8	65	1.32
5011-793-010-200	BT40xSFCT10-200	265.4	200	42	161	10	16	36	32	M8	65	1.49
5011-793-012-135	BT40xSFCT12-135	200.4	135	47	97	12	18	36	28	M10	110	1.26
5011-793-012-165	BT40xSFCT12-165	230.4	165	47	125	12	18	36	31	M10	110	1.39
5011-793-012-200	BT40xSFCT12-200	265.4	200	47	162	12	18	36	35	M10	110	1.58
5011-793-014-135	BT40xSFCT14-135	200.4	135	47	97	14	20	36	30	M10	150	1.30
5011-793-014-165	BT40xSFCT14-165	230.4	165	47	126	14	20	36	33	M10	150	1.45
5011-793-014-200	BT40xSFCT14-200	265.4	200	47	168	14	20	36	-	M10	150	1.67
5011-793-016-135	BT40xSFCT16-135	200.4	135	50	96	16	22	36	32	M12	200	1.34
5011-793-016-165	BT40xSFCT16-165	230.4	165	50	127	16	22	36	35	M12	200	1.51
5011-793-016-200	BT40xSFCT16-200	265.4	200	50	168	16	22	36	-	M12	200	1.75
5011-793-018-135	BT40xSFCT18-135	200.4	135	52	97	18	24	36	34	M12	250	1.38
5011-793-018-165	BT40xSFCT18-165	230.4	165	52	133	18	24	36	-	M12	250	1.76
5011-793-018-200	BT40xSFCT18-200	265.4	200	52	168	18	24	36	-	M12	250	1.82
5011-793-020-135	BT40xSFCT20-135	200.4	135	52	103	20	26	36	-	M16	320	1.41
5011-793-020-165	BT40xSFCT20-165	230.4	165	52	133	20	26	36	-	M16	320	1.62
5011-793-020-200	BT40xSFCT20-200	265.4	200	52	168	20	26	36	-	M16	320	1.85
5011-793-025-135	BT40xSFCT25-135	200.4	135	58	97	25	31	49	41	M20	500	1.56
5011-793-025-165	BT40xSFCT25-165	230.4	165	58	127	25	31	49	44	M20	500	1.86
5011-793-025-200	BT40xSFCT25-200	265.4	200	58	162	25	31	49	48	M20	500	2.28
5011-793-032-135	BT40xSFCT32-135	200.4	135	58	97	32	38	49	48	M20	550	1.75
5011-793-032-165	BT40xSFCT32-165	230.4	165	58	136	32	38	49	-	M20	550	2.15
5011-793-032-200	BT40xSFCT32-200	265.4	200	58	171	32	38	49	-	M20	550	2.63
5012-793-004-135	BT50xSFCT4-135	236.8	135	20	86	4	10	26	19	-	18	3.56
5012-793-005-135	BT50xSFCT5-135	236.8	135	20	86	5	11	26	20	-	18	3.56
5012-793-005-165	BT50xSFCT5-165	266.8	165	20	115	5	11	26	23	-	18	3.73
5012-793-005-200	BT50xSFCT5-200	301.8	200	20	157	5	11	26	-	-	18	3.86
5012-793-006-135	BT50xSFCT6-135	236.8	135	36	86	6	12	26	21	M5	18	3.62
5012-793-006-165	BT50xSFCT6-165	266.8	165	36	116	6	12	26	24	M5	18	3.76
5012-793-006-200	BT50xSFCT6-200	301.8	200	36	157	6	12	26	-	M5	18	3.89
5012-793-008-135	BT50xSFCT8-135	236.8	135	36	86	8	14	36	23	M6	35	3.74
5012-793-008-165	BT50xSFCT8-165	266.8	165	36	116	8	14	36	26	M6	35	3.85
5012-793-008-200	BT50xSFCT8-200	301.8	200	36	151	8	14	36	29	M6	35	4.02
5012-793-010-135	BT50xSFCT10-135	236.8	135	42	86	10	16	36	25	M8	65	3.68
5012-793-010-165	BT50xSFCT10-165	266.8	165	42	116	10	16	36	28	M8	65	3.86
5012-793-010-200	BT50xSFCT10-200	301.8	200	42	151	10	16	36	31	M8	65	4.02
5012-793-012-135	BT50xSFCT12-135	236.8	135	47	86	12	18	36	27	M10	110	3.77
5012-793-012-165	BT50xSFCT12-165	266.8	165	47	116	12	18	36	30	M10	110	3.89
5012-793-012-200	BT50xSFCT12-200	301.8	200	47	150	12	18	36	33	M10	110	4.07
5012-793-014-135	BT50xSFCT14-135	236.8	135	47	86	14	20	36	29	M10	150	3.81
5012-793-014-165	BT50xSFCT14-165	266.8	165	47	116	14	20	36	32	M10	150	3.86
5012-793-014-200	BT50xSFCT14-200	301.8	200	47	157	14	20	36	-	M10	150	4.16
5012-793-016-135	BT50xSFCT16-135	236.8	135	50	86	16	22	36	31	M12	200	3.82
5012-793-016-165	BT50xSFCT16-165	266.8	165	50	116	16	22	36	34	M12	200	3.97
5012-793-016-200	BT50xSFCT16-200	301.8	200	50	157	16	22	36	-	M12	200	4.19
5012-793-018-135	BT50xSFCT18-135	236.8	135	50	85	18	24	36	32	M12	250	3.88
5012-793-018-165	BT50xSFCT18-165	266.8	165	50	122	18	24	36	-	M12	250	4.06
5012-793-018-200	BT50xSFCT18-200	301.8	200	50	157	18	24	36	-	M12	250	4.30
5012-793-020-135	BT50xSFCT20-135	236.8	135	52	86	20	26	36	35	M16	320	3.86
5012-793-020-165	BT50xSFCT20-165	266.8	165	52	117	20	26	36	-	M16	320	4.03
5012-793-020-200	BT50xSFCT20-200	301.8	200	52	152	20	26	36	-	M16	320	4.22
5012-793-025-135	BT50xSFCT25-135	236.8	135	58	86	25	31	49	40	M20	500	4.03
5012-793-025-165	BT50xSFCT25-165	266.8	165	58	116	25	31	49	43	M20	500	4.30
5012-793-025-200	BT50xSFCT25-200	301.8	200	58	150	25	31	49	46	M20	500	4.67
5012-793-032-135	BT50xSFCT32-135	236.8	135	58	86	32	38	49	47	M20	550	4.18
5012-793-032-165	BT50xSFCT32-165	266.8	165	58	122	32	38	49	-	M20	550	4.56
5012-793-032-200	BT50xSFCT32-200	301.8	200	58	157	32	38	49	-	M20	550	5.01

CAT/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/CAT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5031-651-003-100	CAT40xSFC3-100	168.249	100	18	55	3	9	17.7	M6	18	1.04
5031-651-004-100	CAT40xSFC4-100	168.249	100	20	55	4	10	18.7	M6	18	1.06
5031-651-005-100	CAT40xSFC5-100	168.249	100	20	60	5	16	22	M8	18	1.12
5031-651-006-100	CAT40xSFC6-100	168.249	100	36	54	6	21	27	M5	18	1.23
5031-651-006-150	CAT40xSFC6-150	218.249	150	36	104	6	21	27	M5	18	1.39
5031-651-008-100	CAT40xSFC8-100	168.249	100	36	54	8	21	27	M6	35	1.22
5031-651-008-150	CAT40xSFC8-150	218.249	150	36	104	8	21	27	M6	35	1.39
5031-651-010-100	CAT40xSFC10-100	168.249	100	42	56	10	24	32	M8	65	1.28
5031-651-010-150	CAT40xSFC10-150	218.249	150	42	106	10	24	32	M8	65	1.53
5031-651-012-100	CAT40xSFC12-100	168.249	100	47	59	12	24	33.3	M10	110	1.27
5031-651-012-150	CAT40xSFC12-150	218.249	150	47	104	12	24	32	M10	110	1.52
5031-651-014-095	CAT40xSFC14-95.3	163.549	95.3	47	59	14	27	34	M10	150	1.27
5031-651-014-100	CAT40xSFC14-100	168.249	100	47	59	14	27	34	M10	150	1.31
5031-651-014-152	CAT40xSFC14-152.4	220.649	152.4	47	112	14	27	34	M10	150	1.62
5031-651-016-095	CAT40xSFC16-95.3	163.549	95.3	50	54	16	27	34	M12	200	1.25
5031-651-016-100	CAT40xSFC16-100	168.249	100	50	59	16	27	34	M12	200	1.28
5031-651-016-160	CAT40xSFC16-160	228.249	160	50	119	16	27	34	M12	200	1.64
5031-651-018-100	CAT40xSFC18-100	168.249	100	50	63	18	33	42	M12	250	1.43
5031-651-020-080	CAT40xSFC20-80	148.249	80	52	42	20	33	39	M16	320	1.20
5032-651-006-100	CAT50xSFC6-100	201.6	100	36	62	6	21	27	M5	18	3.21
5032-651-006-150	CAT50xSFC6-150	251.6	150	36	101	6	21	27	M5	18	3.42
5032-651-008-100	CAT50xSFC8-100	201.6	100	36	60	8	21	27	M6	35	3.21
5032-651-008-150	CAT50xSFC8-150	251.6	150	36	101	8	21	27	M6	35	3.41
5032-651-010-100	CAT50xSFC10-100	201.6	100	42	60	10	24	32	M8	65	3.27
5032-651-010-150	CAT50xSFC10-150	251.6	150	42	91	10	24	32	M8	65	3.74
5032-651-012-100	CAT50xSFC12-100	201.6	100	47	62	12	24	32	M10	110	3.26
5032-651-012-150	CAT50xSFC12-150	251.6	150	47	91	12	24	32	M10	110	3.71
5032-651-014-100	CAT50xSFC14-100	201.6	100	47	62	14	27	34	M10	150	3.31
5032-651-014-150	CAT50xSFC14-150	251.6	150	47	92	14	27	34	M10	150	3.79
5032-651-016-100	CAT50xSFC16-100	201.6	100	50	62	16	27	34	M12	200	3.29
5032-651-016-160	CAT50xSFC16-160	261.6	160	50	102	16	27	34	M12	200	3.83
5032-651-018-100	CAT50xSFC18-100	201.6	100	50	62	18	33	42	M12	250	3.45
5032-651-020-080	CAT50xSFC20-80	181.6	80	52	35	20	33	42	M16	320	3.26
5032-651-025-100	CAT50xSFC25-100	201.6	100	58	62	25	44	53	M20	500	3.69
5032-651-032-100	CAT50xSFC32-100	201.6	100	58	62	32	44	53	M20	550	3.55
英制
5031-651-A08-350	CAT40xSFC1/8"-3.5"	6.187	3.5	0.79	1.75	0.125	0.36	0.63	M6	18	1.03
5031-651-A08-500	CAT40xSFC1/8"-5"	7.687	5	0.79	3.56	0.125	0.36	0.87	-	18	1.11
5031-651-A12-350	CAT40xSFC3/16"-3.5"	6.187	3.5	0.79	1.75	0.1875	0.43	0.7	M6	18	1.04
5031-651-A12-500	CAT40xSFC3/16"-5"	7.687	5	0.79	3.22	0.1875	0.43	0.71	-	18	1.10
5031-651-A16-300	CAT40xSFC1/4"-3"	5.687	3	1.42	1.56	0.25	0.71	0.94	M5	18	1.09
5031-651-A16-350	CAT40xSFC1/4"-3.5"	6.187	3.5	1.42	2	0.25	0.71	0.94	M5	18	1.12
5031-651-A16-500	CAT40xSFC1/4"-5"	7.687	5	1.42	3.12	0.25	0.71	1.06	M5	18	1.29
5031-651-A16-600	CAT40xSFC1/4"-6"	8.687	6	1.42	4.44	0.25	0.71	1.37	M5	18	1.49
5031-651-A20-350	CAT40xSFC5/16"-3.5"	6.187	3.5	1.42	2.06	0.3125	0.79	1.06	M6	35	1.14
5031-651-A20-500	CAT40xSFC5/16"-5"	7.687	5	1.42	3.12	0.3125	0.79	1.06	M6	35	1.30
5031-651-A24-300	CAT40xSFC3/8"-3"	5.687	3	1.65	1.56	0.375	0.94	1.18	M8	65	1.15
5031-651-A24-375	CAT40xSFC3/8"-3.75"	6.437	3.75	1.65	2.31	0.375	0.94	1.26	M8	65	1.24
5031-651-A24-500	CAT40xSFC3/8"-5"	7.687	5.	1.65	3.27	0.375	0.94	1.37	M8	65	1.46
5031-651-A24-600	CAT40xSFC3/8"-6"	8.687	6	1.65	4.44	0.375	0.94	1.37	M8	65	1.66
5031-651-A32-300	CAT40xSFC1/2"-3"	5.687	3	1.85	1.56	0.5	1.1	1.34	M10	110	1.19
5031-651-A32-375	CAT40xSFC1/2"-3.75"	6.437	3.75	1.85	2.31	0.5	1.1	1.34	M10	110	1.30
5031-651-A32-500	CAT40xSFC1/2"-5"	7.687	5	1.85	3.44	0.5	1.1	1.37	M10	110	1.52
5031-651-A32-600	CAT40xSFC1/2"-6"	8.687	6	1.85	4.35	0.5	1.1	1.37	M10	110	1.68
5031-651-A40-375	CAT40xSFC5/8"-3.75"	6.437	3.75	1.97	2.17	0.625	1.06	1.34	M12	200	1.27
5031-651-A48-300	CAT40xSFC3/4"-3"	5.687	3	2.04	1.62	0.75	1.42	1.65	M16	320	1.24
5031-651-A48-400	CAT40xSFC3/4"-4"	6.687	4	2.04	2.62	0.75	1.42	1.65	M16	320	1.49
5031-651-A48-500	CAT40xSFC3/4"-5"	7.687	5	2.04	3.44	0.75	1.26	1.37	M16	320	1.48
5031-651-A48-600	CAT40xSFC3/4"-6"	8.687	6	2.04	4.44	0.75	1.26	1.37	M16	320	1.64
5031-651-A64-300	CAT40xSFC1"-3"	5.687	3	2.09	1.62	1	1.81	2.04	M20	500	1.34
5031-651-A64-400	CAT40xSFC1"-4"	6.687	4	2.28	2.62	1	1.81	2.09	M20	500	1.73
5031-651-A64-600	CAT40xSFC1"-6"	8.687	6	2.28	4.54	1	1.81	2.09	M20	500	2.51
5031-651-A72-400	CAT40xSFC1-1/4"-4"	6.687	4	2.28	2.62	1.25	1.81	2.09	M20	500	1.60
5032-651-A12-354	CAT50xSFC3/16"-3.54"	7.54	3.54	0.79	1.98	0.1875	0.43	0.74	M6	18	3.04
5032-651-A16-354	CAT50xSFC1/4"-3.54"	7.54	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	3.13
5032-651-A20-354	CAT50xSFC5/16"-3.54"	7.54	3.54	1.42	2.04	0.3125	0.79	1.06	M6	35	3.15
5032-651-A24-394	CAT50xSFC3/8"-3.94"	7.94	3.94	1.65	2.36	0.375	0.94	1.26	M8	65	3.27
5032-651-A32-394	CAT50xSFC1/2"-3.94"	7.94	3.94	1.85	2.36	0.5	1.1	1.34	M10	110	3.33
5032-651-A40-394	CAT50xSFC5/8"-3.94"	7.94	3.94	1.97	2.36	0.625	1.06	1.34	M12	200	3.29
5032-651-A48-413	CAT50xSFC3/4"-4.13"	8.13	4.13	2.04	2.71	0.75	1.42	1.65	M16	320	3.52
5032-651-A48-600	CAT50xSFC3/4"-6"	10	6	2.04	3.91	0.75	1.42	1.65	M16	320	4.03
5032-651-A64-413	CAT50xSFC1"-4.13"	8.13	4.13	2.28	2.71	1	1.81	2.09	M20	500	3.81
5032-651-A64-600	CAT50xSFC1"-6"	10	6	2.28	4.12	1	1.81	2.09	M20	500	4.56
5032-651-A72-413	CAT50xSFC1-1/4"-4.13"	8.13	4.13	2.28	2.63	1.25	1.81	2.09	M20	500	3.68
5032-651-A72-472	CAT50xSFC1-1/4"-4.72"	8.72	4.72	2.28	3.22	1.25	1.81	2.09	M20	550	3.90
5032-651-A72-600	CAT50xSFC1-1/4"-6"	10	6	2.28	4.12	1.25	1.81	2.09	M20	550	4.43

DAT/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/DAT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5050-651-003-060	DAT30xSFC3-60	107.8	60	18	36.2	3	10	15.6	M6	18	0.41
5050-651-003-080	DAT30xSFC3-80	127.8	80	18	51	3	10	17.1	M6	18	0.43
5050-651-004-060	DAT30xSFC4-60	107.8	60	20	36.2	4	10	15.6	M6	18	0.41
5050-651-004-080	DAT30xSFC4-80	127.8	80	20	51	4	10	18.1	M6	18	0.44
5050-651-005-080	DAT30xSFC5-80	127.8	80	20	55	5	10	22	M6	18	0.49
5050-651-006-060	DAT30xSFC6-60	1107.8	60	36	38.1	6	23	29	M5	18	0.53
5050-651-006-080	DAT30xSFC6-80	127.8	80	36	55	6	21	27	M5	18	0.58
5050-651-008-060	DAT30xSFC8-60	107.8	60	36	38.1	8	23	29	M6	35	0.52
5050-651-008-080	DAT30xSFC8-80	127.8	80	36	55	8	21	27	M6	35	0.58
5050-651-010-060	DAT30xSFC10-60	107.8	60	42	38.1	10	27	29	M8	65	0.56
5050-651-010-080	DAT30xSFC10-80	127.8	80	42	55	10	24	32	M8	65	0.64
5050-651-012-060	DAT30xSFC12-60	107.8	60	47	38.1	12	27	33	M10	110	0.56
5050-651-012-080	DAT30xSFC12-80	127.8	80	47	55	12	24	32	M10	110	0.62
5050-651-016-065	DAT30xSFC16-65	112.8	65	50	44.9	16	30	37	M12	200	0.64
5050-651-016-080	DAT30xSFC16-80	127.8	80	50	55	16	27	34	M12	200	0.64
5050-651-020-070	DAT30xSFC20-70	117.8	70	52	50	20	35.5	40.5	M16	320	0.70
5051-651-003-080	DAT40xSFC3-80	148.4	80	18	51.7	3	10	19.3	M6	18	0.89
5051-651-004-080	DAT40xSFC4-80	148.4	80	20	51.7	4	10	19.3	M6	18	0.89
5051-651-005-080	DAT40xSFC5-80	148.4	80	20	51.7	5	10	19.3	M6	18	0.89
5051-651-006-080	DAT40xSFC6-80	148.4	80	36	55.9	6	21	27	M5	18	1.03
5051-651-006-130	DAT40xSFC6-130	198.4	130	36	105.9	6	21	27	M5	18	1.25
5051-651-006-160	DAT40xSFC6-160	228.4	160	36	105.9	6	21	27	M5	18	1.38
5051-651-006-200	DAT40xSFC6-200	268.4	200	36	146	6	21	27	M5	18	1.56
5051-651-008-080	DAT40xSFC8-80	148.4	80	36	55.9	8	21	27	M6	35	0.93
5051-651-008-130	DAT40xSFC8-130	198.4	130	36	105.9	8	21	27	M6	35	1.24
5051-651-008-160	DAT40xSFC8-160	228.4	160	36	105.9	8	21	27	M6	35	1.37
5051-651-008-200	DAT40xSFC8-200	268.4	200	36	146	8	21	27	M6	35	1.55
5051-651-010-080	DAT40xSFC10-80	148.4	80	42	55.9	10	24	32	M8	65	1.21
5051-651-010-130	DAT40xSFC10-130	198.4	130	42	105.9	10	24	32	M8	65	1.52
5051-651-010-160	DAT40xSFC10-160	228.4	160	42	105.9	10	24	32	M8	65	1.65
5051-651-010-200	DAT40xSFC10-200	268.4	200	42	146	10	24	32	M8	65	1.83
5051-651-012-080	DAT40xSFC12-80	148.4	80	47	55.9	12	24	32	M10	110	1.01
5051-651-012-130	DAT40xSFC12-130	198.4	130	47	105.9	12	24	32	M10	110	1.50
5051-651-012-160	DAT40xSFC12-160	228.4	160	47	105.9	12	24	32	M10	110	1.45
5051-651-012-200	DAT40xSFC12-200	268.4	200	47	146	12	24	32	M10	110	1.81
5051-651-014-080	DAT40xSFC14-80	148.4	80	47	55.9	14	27	34	M10	150	0.89
5051-651-014-130	DAT40xSFC14-130	198.4	130	47	105.9	14	27	34	M10	150	1.38
5051-651-014-160	DAT40xSFC14-160	228.4	160	47	105.9	14	27	34	M10	150	1.33
5051-651-014-200	DAT40xSFC14-200	268.4	200	47	146	14	27	34	M10	150	1.93
5051-651-016-080	DAT40xSFC16-80	148.4	80	50	55.8	16	27	34	M12	200	1.09
5051-651-016-130	DAT40xSFC16-130	198.4	130	50	105.9	16	27	34	M12	200	1.44
5051-651-016-160	DAT40xSFC16-160	228.4	160	50	105.9	16	27	34	M12	200	1.65
5051-651-016-200	DAT40xSFC16-200	268.4	200	50	146	16	27	34	M12	200	1.93
5051-651-018-080	DAT40xSFC18-80	148.4	80	50	57.9	18	33	42	M12	250	1.23
5051-651-018-130	DAT40xSFC18-130	198.4	130	50	107.9	18	33	42	M12	250	1.76
5051-651-018-160	DAT40xSFC18-160	228.4	160	50	107.9	18	33	42	M12	250	2.08
5051-651-018-200	DAT40xSFC18-200	268.4	200	50	147.9	18	33	42	M12	250	2.51
5051-651-020-080	DAT40xSFC20-80	148.4	80	52	57.9	20	33	42	M16	320	1.21
5051-651-020-130	DAT40xSFC20-130	198.4	130	52	107.9	20	33	42	M16	320	1.73
5051-651-020-160	DAT40xSFC20-160	228.4	160	52	107.9	20	33	42	M16	320	2.06
5051-651-020-200	DAT40xSFC20-200	268.4	200	52	147.9	20	33	42	M16	320	2.48
5051-651-025-100	DAT40xSFC25-100	168.4	100	58	80.9	25	44	53	M20	500	1.79
5051-651-025-130	DAT40xSFC25-130	198.4	130	58	110.9	25	44	53	M20	500	2.31
5051-651-025-160	DAT40xSFC25-160	228.4	160	58	140.9	25	44	53	M20	500	2.81
5051-651-025-200	DAT40xSFC25-200	268.4	200	58	180.9	25	44	53	M20	500	3.49
5051-651-032-100	DAT40xSFC32-100	168.4	100	58	80.9	32	44	53	M20	550	1.65
5052-651-006-080	DAT50xSFC6-80	181.75	80	36	50.9	6	21	27	M5	18	2.81
5052-651-006-130	DAT50xSFC6-130	231.75	130	36	100.9	6	21	27	M5	18	3.03
5052-651-006-160	DAT50xSFC6-160	261.75	160	36	100.9	6	21	27	M5	18	3.17
5052-651-006-200	DAT50xSFC6-200	301.75	200	36	141	6	21	27	M5	18	3.34
5052-651-008-080	DAT50xSFC8-80	181.75	80	36	50.9	8	21	27	M6	35	2.80
5052-651-008-130	DAT50xSFC8-130	231.75	130	36	100.9	8	21	27	M6	35	3.02
5052-651-008-160	DAT50xSFC8-160	261.75	160	36	100.9	8	21	27	M6	35	3.16
5052-651-008-200	DAT50xSFC8-200	301.75	200	36	141	8	21	27	M6	35	3.33
5052-651-010-080	DAT50xSFC10-80	181.75	80	42	50.9	10	24	32	M8	65	2.53
5052-651-010-130	DAT50xSFC10-130	231.75	130	42	100.9	10	24	32	M8	65	2.75
5052-651-010-160	DAT50xSFC10-160	261.75	160	42	100.9	10	24	32	M8	65	2.89
5052-651-010-200	DAT50xSFC10-200	301.75	200	42	141	10	24	32	M8	65	3.60
5052-651-012-080	DAT50xSFC12-80	181.75	80	47	50.9	12	24	32	M10	110	2.52
5052-651-012-130	DAT50xSFC12-130	231.75	130	47	100.9	12	24	32	M10	110	2.74
5052-651-012-160	DAT50xSFC12-160	261.75	160	47	130.9	12	24	32	M10	110	2.88
5052-651-012-200	DAT50xSFC12-200	301.75	200	47	141	12	24	32	M10	110	3.59
5052-651-014-080	DAT50xSFC14-80	181.75	80	47	50.9	14	27	34	M10	150	2.38
5052-651-014-130	DAT50xSFC14-130	231.75	130	47	100.9	14	27	34	M10	150	2.60
5052-651-014-160	DAT50xSFC14-160	261.75	160	47	100.9	14	27	34	M10	150	2.74
5052-651-014-200	DAT50xSFC14-200	301.75	200	47	141	14	27	34	M10	150	3.73
5052-651-016-080	DAT50xSFC16-80	181.75	80	50	50.9	16	27	34	M12	200	2.87
5052-651-016-130	DAT50xSFC16-130	231.75	130	50	100.9	16	27	34	M12	200	3.22
5052-651-016-160	DAT50xSFC16-160	261.75	160	50	100.9	16	27	34	M12	200	3.43
5052-651-016-200	DAT50xSFC16-200	301.75	200	50	141	16	27	34	M12	200	3.71
5052-651-018-080	DAT50xSFC18-80	181.75	80	50	57.9	18	33	42	M12	250	2.99
5052-651-018-130	DAT50xSFC18-130	231.75	130	50	100.9	18	33	42	M12	250	3.55
5052-651-018-160	DAT50xSFC18-160	261.75	160	50	100.9	18	33	42	M12	250	3.87
5052-651-018-200	DAT50xSFC18-200	301.75	200	50	141	18	33	42	M12	250	4.30
5052-651-020-080	DAT50xSFC20-80	181.75	80	52	57.9	20	33	42	M16	320	2.91
5052-651-020-130	DAT50xSFC20-130	231.75	130	52	100.9	20	33	42	M16	320	3.25
5052-651-020-160	DAT50xSFC20-160	261.75	160	52	100.9	20	33	42	M16	320	3.57
5052-651-020-200	DAT50xSFC20-200	301.75	200	52	141	20	33	42	M16	320	4.27
5052-651-025-100	DAT50xSFC25-100	201.75	100	58	70.9	25	44	53	M20	500	3.59
5052-651-025-130	DAT50xSFC25-130	231.75	130	58	100.9	25	44	53	M20	500	4.10
5052-651-025-160	DAT50xSFC25-160	261.75	160	58	100.9	25	44	53	M20	500	4.61
5052-651-025-200	DAT50xSFC25-200	301.75	200	58	141	25	44	53	M20	500	5.29
5052-651-032-100	DAT50xSFC32-100	201.75	100	58	70.9	32	44	53	M20	550	3.45

SBT/SFC法蘭加厚型熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SBT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5025-651-006-060	SBT30xSFC6-60	108.4	60	36	33	6	23	-	M5	18	0.70
5025-651-006-080	SBT30xSFC6-80	128.4	80	36	53	6	21	27	M5	18	0.86
5025-651-008-060	SBT30xSFC8-60	108.4	60	36	33	8	23	-	M6	35	0.52
5025-651-008-080	SBT30xSFC8-80	128.4	80	36	53	8	21	27	M6	35	0.58
5025-651-010-060	SBT30xSFC10-60	108.4	60	42	35	10	27	-	M8	65	0.52
5025-651-010-080	SBT30xSFC10-80	128.4	80	42	53	10	24	32	M8	65	0.64
5025-651-012-060	SBT30xSFC12-60	108.4	60	47	36	12	27	-	M10	110	0.52
5025-651-012-080	SBT30xSFC12-80	128.4	80	47	53	12	24	32	M10	110	0.62
5025-651-014-065	SBT30xSFC14-65	113.4	65	47	41	14	30	-	M10	150	0.57
5025-651-014-080	SBT30xSFC14-80	128.4	80	47	55	14	27	34	M10	150	0.69
5025-651-016-065	SBT30xSFC16-65	113.4	65	50	41	16	30	-	M12	200	0.55
5025-651-016-080	SBT30xSFC16-80	128.4	80	50	55	16	27	34	M12	200	0.65
5025-651-018-070	SBT30xSFC18-70	118.4	70	50	46	18	35.5	40.5	M12	250	0.72
5025-651-018-090	SBT30xSFC18-90	138.4	90	50	66	18	33	40.5	M12	250	0.87
5025-651-020-070	SBT30xSFC20-70	118.4	70	52	46	20	35.5	40.5	M16	320	0.70
5025-651-020-090	SBT30xSFC20-90	138.4	90	52	66	20	33	40.5	M16	320	0.81
5026-651-003-090	SBT40xSFC3-90	155.4	90	18	53	3	10	18.4	M6	18	0.98
5026-651-004-090	SBT40xSFC4-90	155.4	90	20	53	4	10	18.4	M6	18	1.01
5026-651-006-090	SBT40xSFC6-90	155.4	90	36	53	6	21	27	M5	18	1.23
5026-651-006-130	SBT40xSFC6-130	195.4	130	36	93	6	21	27	M5	18	1.41
5026-651-006-160	SBT40xSFC6-160	225.4	160	36	123	6	21	27	M5	18	1.54
5026-651-006-200	SBT40xSFC6-200	265.4	200	36	163	6	21	27	M5	18	1.72
5026-651-008-090	SBT40xSFC8-90	155.4	90	36	53	8	21	27	M6	35	1.23
5026-651-008-130	SBT40xSFC8-130	195.4	130	36	93	8	21	27	M6	35	1.41
5026-651-008-160	SBT40xSFC8-160	225.4	160	36	123	8	21	27	M6	35	1.54
5026-651-008-200	SBT40xSFC8-200	265.4	200	36	163	8	21	27	M6	35	1.72
5026-651-010-090	SBT40xSFC10-90	155.4	90	42	58	10	24	32	M8	65	1.48
5026-651-010-130	SBT40xSFC10-130	195.4	130	42	93	10	24	32	M8	65	1.66
5026-651-010-160	SBT40xSFC10-160	225.4	160	42	123	10	24	32	M8	65	1.79
5026-651-010-200	SBT40xSFC10-200	265.4	200	42	163	10	24	32	M8	65	1.97
5026-651-012-090	SBT40xSFC12-90	155.4	90	47	58	12	24	32	M10	110	1.68
5026-651-012-130	SBT40xSFC12-130	195.4	130	47	93	12	24	32	M10	110	1.86
5026-651-012-160	SBT40xSFC12-160	225.4	160	47	123	12	24	32	M10	110	1.99
5026-651-012-200	SBT40xSFC12-200	265.4	200	47	163	12	24	32	M10	110	2.17
5026-651-014-090	SBT40xSFC14-90	155.4	90	47	53	14	27	34	M10	150	1.76
5026-651-014-130	SBT40xSFC14-130	195.4	130	47	93	14	27	34	M10	150	1.94
5026-651-014-160	SBT40xSFC14-160	225.4	160	47	123	14	27	34	M10	150	2.07
5026-651-014-200	SBT40xSFC14-200	265.4	200	47	163	14	27	34	M10	150	2.25
5026-651-016-090	SBT40xSFC16-90	155.4	90	50	58	16	27	34	M12	200	1.57
5026-651-016-130	SBT40xSFC16-130	195.4	130	50	93	16	27	34	M12	200	1.75
5026-651-016-160	SBT40xSFC16-160	225.4	160	50	123	16	27	34	M12	200	1.91
5026-651-016-200	SBT40xSFC16-200	265.4	200	50	163	16	27	34	M12	200	2.06
5026-651-018-090	SBT40xSFC18-90	155.4	90	50	58	18	33	42	M12	250	2.12
5026-651-018-130	SBT40xSFC18-130	195.4	130	50	98	18	33	42	M12	250	2.31
5026-651-018-160	SBT40xSFC18-160	225.4	160	50	128	18	33	42	M12	250	2.46
5026-651-018-200	SBT40xSFC18-200	265.4	200	50	168	18	33	42	M12	250	2.61
5026-651-019-090	SBT40xSFC19-90	155.4	90	60	61.5	19	33	42	M16	250	1.35
5026-651-020-090	SBT40xSFC20-90	155.4	90	52	58	20	33	42	M16	320	2.09
5026-651-020-130	SBT40xSFC20-130	195.4	130	52	98	20	33	42	M16	320	2.28
5026-651-020-160	SBT40xSFC20-160	225.4	160	52	128	20	33	42	M16	320	2.43
5026-651-020-200	SBT40xSFC20-200	265.4	200	52	168	20	33	42	M16	320	2.57
5026-651-024-090	SBT40xSFC24-90	155.4	90	72	61.5	24	44	53	M20	500	1.59
5026-651-025-100	SBT40xSFC25-100	165.4	100	58	71	25	44	53	M20	500	1.83
5026-651-025-130	SBT40xSFC25-130	195.4	130	58	101	25	44	53	M20	500	2.34
5026-651-025-160	SBT40xSFC25-160	225.4	160	58	131	25	44	53	M20	500	2.85
5026-651-025-200	SBT40xSFC25-200	265.4	200	58	171	25	44	53	M20	500	3.53
5026-651-032-100	SBT40xSFC32-100	165.4	100	58	71	32	44	53	M20	550	1.69
5026-651-032-130	SBT40xSFC32-130	195.4	130	58	101	32	44	53	M20	550	2.21
5026-651-032-160	SBT40xSFC32-160	225.4	160	58	131	32	44	53	M20	550	2.71
5026-651-032-200	SBT40xSFC32-200	265.4	200	58	171	32	44	53	M20	550	3.39
5027-651-006-100	SBT50xSFC6-100	201.8	100	36	52	6	21	27	M5	18	3.75
5027-651-006-130	SBT50xSFC6-130	231.8	130	36	82	6	21	27	M5	18	3.94
5027-651-006-160	SBT50xSFC6-160	261.8	160	36	82	6	21	27	M5	18	4.07
5027-651-006-200	SBT50xSFC6-200	301.8	200	36	122	6	21	27	M5	18	4.24
5027-651-008-100	SBT50xSFC8-100	201.8	100	36	52	8	21	27	M6	35	3.74
5027-651-008-130	SBT50xSFC8-130	231.8	130	36	82	8	21	27	M6	35	3.93
5027-651-008-160	SBT50xSFC8-160	261.8	160	36	82	8	21	27	M6	35	4.06
5027-651-008-200	SBT50xSFC8-200	301.8	200	36	122	8	21	27	M6	35	4.23
5027-651-010-100	SBT50xSFC10-100	201.8	100	42	52	10	24	32	M8	65	3.82
5027-651-010-130	SBT50xSFC10-130	231.8	130	42	82	10	24	32	M8	65	4.05
5027-651-010-160	SBT50xSFC10-160	261.8	160	42	82	10	24	32	M8	65	4.18
5027-651-010-200	SBT50xSFC10-200	301.8	200	42	122	10	24	32	M8	65	4.35
5027-651-012-100	SBT50xSFC12-100	201.8	100	47	52	12	24	32	M10	110	3.81
5027-651-012-130	SBT50xSFC12-130	231.8	130	47	82	12	24	32	M10	110	4.04
5027-651-012-160	SBT50xSFC12-160	261.8	160	47	82	12	24	32	M10	110	4.17
5027-651-012-200	SBT50xSFC12-200	301.8	200	47	122	12	24	32	M10	110	4.34
5027-651-014-100	SBT50xSFC14-100	201.8	100	47	52	14	27	34	M10	150	3.88
5027-651-014-130	SBT50xSFC14-130	231.8	130	47	82	14	27	34	M10	150	4.11
5027-651-014-160	SBT50xSFC14-160	261.8	160	47	82	14	27	34	M10	150	4.24
5027-651-014-200	SBT50xSFC14-200	301.8	200	47	122	14	27	34	M10	150	4.41
5027-651-016-100	SBT50xSFC16-100	201.8	100	50	52	16	27	34	M12	200	3.90
5027-651-016-130	SBT50xSFC16-130	231.8	130	50	82	16	27	34	M12	200	4.09
5027-651-016-160	SBT50xSFC16-160	261.8	160	50	82	16	27	34	M12	200	4.26
5027-651-016-200	SBT50xSFC16-200	301.8	200	50	122	16	27	34	M12	200	4.43
5027-651-018-100	SBT50xSFC18-100	201.8	100	50	52	18	33	42	M12	250	4.15
5027-651-018-130	SBT50xSFC18-130	231.8	130	50	82	18	33	42	M12	250	4.34
5027-651-018-160	SBT50xSFC18-160	261.8	160	50	82	18	33	42	M12	250	4.51
5027-651-018-200	SBT50xSFC18-200	301.8	200	50	122	18	33	42	M12	250	4.68
5027-651-019-100	SBT50xSFC19-100	201.8	100	60	60	19	33	42	M16	250	4.00
5027-651-020-100	SBT50xSFC20-100	201.8	100	52	52	20	33	42	M16	320	4.07
5027-651-020-130	SBT50xSFC20-130	231.8	130	52	82	20	33	42	M16	320	4.32
5027-651-020-160	SBT50xSFC20-160	261.8	160	52	82	20	33	42	M16	320	4.53
5027-651-020-200	SBT50xSFC20-200	301.8	200	52	122	20	33	42	M16	320	4.70
5027-651-024-100	SBT50xSFC24-100	201.8	100	72	60	24	44	53	M20	500	4.21
5027-651-025-100	SBT50xSFC25-100	201.8	100	58	52	25	44	53	M20	500	4.53
5027-651-025-130	SBT50xSFC25-130	231.8	130	58	82	25	44	53	M20	500	4.78
5027-651-025-160	SBT50xSFC25-160	261.8	160	58	82	25	44	53	M20	500	4.99
5027-651-025-200	SBT50xSFC25-200	301.8	200	58	122	25	44	53	M20	500	5.16
5027-651-032-100	SBT50xSFC32-100	201.8	100	58	52	32	44	53	M20	550	4.38
5027-651-032-130	SBT50xSFC32-130	231.8	130	58	82	32	44	53	M20	550	4.63
5027-651-032-160	SBT50xSFC32-160	261.8	160	58	82	32	44	53	M20	550	4.84
5027-651-032-200	SBT50xSFC32-200	301.8	200	58	122	32	44	53	M20	550	5.01

SBT/SFCT法蘭加厚型熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SBT-SFCT_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5025-793-004-080	SBT30xSFCT4-80	128.4	80	20	48	4	10	15	M6	18	0.42
5025-793-005-080	SBT30xSFCT5-80	128.4	80	20	53	5	16	19	M6	18	0.54
5025-793-006-080	SBT30xSFCT6-80	128.4	80	36	53	6	21	26	M5	18	0.64
5025-793-008-080	SBT30xSFCT8-80	128.4	80	36	53	8	21	26	M6	35	0.56
5025-793-010-080	SBT30xSFCT10-80	128.4	80	42	53	10	24	29	M8	65	0.66
5025-793-012-080	SBT30xSFCT12-80	128.4	80	47	53	12	24	29	M10	110	0.66
5025-793-014-080	SBT30xSFCT14-80	128.4	80	47	46	14	24	32	M10	150	0.58
5025-793-016-080	SBT30xSFCT16-80	128.4	80	50	55	16	27	32	M12	200	0.60
5025-793-018-090	SBT30xSFCT18-90	138.4	90	50	66	18	33	38	M12	250	0.80
5025-793-020-090	SBT30xSFCT20-90	138.4	90	52	66	20	33	38	M16	320	0.76
5025-793-025-100	SBT30xSFCT25-100	148.4	100	58	78	25	44	49	M20	500	1.17
5026-793-003-090	SBT40xSFCT3-90	155.4	90	18	53	3	9	14.6	M6	18	0.99
5026-793-004-090	SBT40xSFCT4-90	155.4	90	20	53	4	10	15.6	M6	18	1.01
5026-793-005-090	SBT40xSFCT5-90	155.4	90	20	58	5	16	21	M6	18	1.07
5026-793-006-090	SBT40xSFCT6-90	155.4	90	36	58	6	21	26	M5	18	1.15
5026-793-008-090	SBT40xSFCT8-90	155.4	90	36	58	8	21	26	M6	35	1.15
5026-793-010-090	SBT40xSFCT10-90	155.4	90	42	58	10	24	29	M8	65	1.20
5026-793-012-090	SBT40xSFCT12-90	155.4	90	47	58	12	24	29	M10	110	1.19
5026-793-014-090	SBT40xSFCT14-90	155.4	90	47	58	14	27	32	M10	150	1.24
5026-793-016-090	SBT40xSFCT16-90	155.4	90	50	58	16	27	32	M12	200	1.21
5026-793-018-100	SBT40xSFCT18-100	165.4	100	50	68	18	33	38	M12	250	1.42
5026-793-020-100	SBT40xSFCT20-100	165.4	100	52	68	20	33	38	M16	320	1.38
5026-793-025-100	SBT40xSFCT25-100	165.4	100	58	71	25	44	49	M20	500	1.66
5026-793-032-100	SBT40xSFCT32-100	165.4	100	58	71	32	44	49	M20	550	1.52
5027-793-004-100	SBT50xSFCT4-100	201.8	100	20	52	4	10	15.6	M6	18	3.86
5027-793-005-100	SBT50xSFCT5-100	201.8	100	20	57	5	16	21	M6	18	3.86
5027-793-006-100	SBT50xSFCT6-100	201.8	100	36	57	6	21	26	M5	18	3.92
5027-793-008-100	SBT50xSFCT8-100	201.8	100	36	52	8	21	26	M6	35	3.92
5027-793-010-100	SBT50xSFCT10-100	201.8	100	42	58	10	24	29	M8	65	3.90
5027-793-012-100	SBT50xSFCT12-100	201.8	100	47	52	12	24	29	M10	110	3.94
5027-793-014-100	SBT50xSFCT14-100	201.8	100	47	57	14	27	32	M10	150	4.02
5027-793-016-100	SBT50xSFCT16-100	201.8	100	50	52	16	27	32	M12	200	3.96
5027-793-018-110	SBT50xSFCT18-110	211.8	110	50	62	18	33	38	M12	250	4.18
5027-793-020-110	SBT50xSFCT20-110	211.8	110	52	67	20	33	38	M16	320	4.14
5027-793-025-110	SBT50xSFCT25-110	211.8	110	58	67	25	44	49	M20	500	4.46
5027-793-032-110	SBT50xSFCT32-110	211.8	110	58	67	32	44	49	M20	550	4.30

SCAT/SFC法蘭加厚型熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SCAT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	WEIGHT (KGS)
5043-651-003-100	SCAT40xSFC3-100	168.249	100	18	55	3	9	17	M6	1.04
5043-651-004-100	SCAT40xSFC4-100	168.249	100	20	55	4	10	18	M6	1.06
5043-651-005-100	SCAT40xSFC5-100	168.249	100	20	60	5	16	22	M8	1.12
5043-651-006-100	SCAT40xSFC6-100	168.249	100	36	54	6	21	27	M5	1.23
5043-651-006-150	SCAT40xSFC6-150	218.249	150	36	104	6	21	27	M5	1.39
5043-651-008-100	SCAT40xSFC8-100	168.249	100	36	54	8	21	27	M6	1.22
5043-651-008-150	SCAT40xSFC8-150	218.249	150	36	104	8	21	27	M6	1.39
5043-651-010-100	SCAT40xSFC10-100	168.249	100	42	56	10	24	32	M8	1.28
5043-651-010-150	SCAT40xSFC10-150	218.249	150	42	107	10	24	32	M8	1.52
5043-651-012-100	SCAT40xSFC12-100	168.249	100	47	59	12	24	33	M10	1.27
5043-651-012-150	SCAT40xSFC12-150	218.249	150	47	104	12	24	32	M10	1.31
5043-651-014-095	SCAT40xSFC14-95.3	163.549	95.3	47	59	14	27	34	M10	1.62
5043-651-014-152	SCAT40xSFC14-152.4	220.649	152.4	47	112	14	27	34	M10	1.25
5043-651-016-095	SCAT40xSFC16-95.3	163.549	95.3	50	54	16	27	34	M12	1.28
5043-651-016-160	SCAT40xSFC16-160	228.249	160	50	59	16	27	34	M12	1.64
5043-651-018-100	SCAT40xSFC18-100	168.249	100	50	63	18	33	42	M12	1.43
5043-651-020-080	SCAT40xSFC20-80	148.249	80	52	42	20	33	39	M16	1.20
5044-651-006-100	SCAT50xSFC6-100	201.6	100	36	62	6	21	27	M5	3.21
5044-651-006-150	SCAT50xSFC6-150	251.6	150	36	101	6	21	27	M5	3.42
5044-651-008-100	SCAT50xSFC8-100	201.6	100	36	60	8	21	27	M6	3.21
5044-651-008-150	SCAT50xSFC8-150	251.6	150	36	101	8	21	27	M6	3.41
5044-651-010-100	SCAT50xSFC10-100	201.6	100	42	60	10	24	32	M8	3.27
5044-651-010-150	SCAT50xSFC10-150	251.6	150	42	91	10	24	32	M8	3.74
5044-651-012-100	SCAT50xSFC12-100	201.6	100	47	62	12	24	32	M10	3.26
5044-651-012-150	SCAT50xSFC12-150	251.6	150	47	91	12	24	32	M10	3.71
5044-651-014-100	SCAT50xSFC14-100	201.6	100	47	62	14	27	34	M10	3.31
5044-651-014-150	SCAT50xSFC14-150	251.6	150	47	92	14	27	34	M10	3.79
5044-651-016-100	SCAT50xSFC16-100	201.6	100	50	62	16	27	34	M12	3.29
5044-651-016-160	SCAT50xSFC16-160	261.6	160	50	102	16	27	34	M12	3.83
5044-651-018-100	SCAT50xSFC18-100	201.6	100	50	62	18	33	42	M12	3.45
5044-651-020-080	SCAT50xSFC20-80	181.6	80	52	42	20	33	42	M16	3.26
5044-651-025-100	SCAT50xSFC25-100	201.6	100	58	62	25	44	53	M20	3.69
5044-651-032-100	SCAT50xSFC32-100	201.6	100	58	62	32	44	53	M20	3.55
英制
5043-651-A08-350	SCAT40xSFC1/8"-3.5"	6.187	3.5	0.79	1.76	0.125	0.36	0.64	M6	1.03
5043-651-A08-500	SCAT40xSFC1/8"-5"	7.687	5	0.79	3.56	0.125	0.36	0.87	-	1.11
5043-651-A12-350	SCAT40xSFC3/16"-3.5"	6.187	3.5	0.79	1.76	0.1875	0.43	0.7	M6	1.04
5043-651-A12-500	SCAT40xSFC3/16"-5"	7.687	5	0.79	3.23	0.1875	0.43	0.71	-	1.10
5043-651-A16-300	SCAT40xSFC1/4"-3"	5.687	3	1.42	1.56	0.25	0.71	0.95	M5	1.09
5043-651-A16-350	SCAT40xSFC1/4"-3.5"	6.187	3.5	1.42	2	0.25	0.71	0.95	M5	1.12
5043-651-A16-500	SCAT40xSFC1/4"-5"	7.687	5	1.42	3.12	0.25	0.71	1.06	M5	1.29
5043-651-A16-600	SCAT40xSFC1/4"-6"	8.687	6	1.42	4.44	0.25	0.71	1.38	M5	1.49
5043-651-A20-350	SCAT40xSFC5/16"-3.5"	6.187	3.5	1.42	2.06	0.3125	0.78	1.06	M6	1.14
5043-651-A20-500	SCAT40xSFC5/16"-5"	7.687	5	1.42	3.12	0.3125	0.78	1.06	M6	1.30
5043-651-A24-300	SCAT40xSFC3/8"-3"	5.687	3	1.65	1.56	0.375	0.94	1.18	M8	1.15
5043-651-A24-375	SCAT40xSFC3/8"-3.75"	6.437	3.75	1.65	2.31	0.375	0.94	1.26	M8	1.24
5043-651-A24-500	SCAT40xSFC3/8"-5"	7.687	5	1.65	3.5	0.375	0.94	1.38	M8	1.46
5043-651-A24-600	SCAT40xSFC3/8"-6"	8.687	6	1.65	4.44	0.375	0.94	1.38	M8	1.66
5043-651-A32-300	SCAT40xSFC1/2"-3"	5.687	3	1.85	1.56	0.5	1.1	1.34	M10	1.19
5043-651-A32-375	SCAT40xSFC1/2"-3.75"	6.437	3.75	1.85	2.31	0.5	1.1	1.34	M10	1.30
5043-651-A32-500	SCAT40xSFC1/2"-5"	7.687	5	1.85	3.44	0.5	1.1	1.38	M10	1.52
5043-651-A32-600	SCAT40xSFC1/2"-6"	8.687	6	1.85	4.36	0.5	1.1	1.38	M10	1.68
5043-651-A40-375	SCAT40xSFC5/8"-3.75"	6.437	3.75	1.97	2.17	0.625	1.06	1.34	M12	1.27
5043-651-A48-300	SCAT40xSFC3/4"-3"	5.687	3	2.04	1.62	0.75	1.42	1.65	M16	1.24
5043-651-A48-400	SCAT40xSFC3/4"-4"	6.687	4	2.04	2.62	0.75	1.42	1.65	M16	1.49
5043-651-A48-500	SCAT40xSFC3/4"-5"	7.687	5	2.04	3.44	0.75	1.42	1.38	M16	1.48
5043-651-A48-600	SCAT40xSFC3/4"-6"	8.687	6	2.04	4.44	0.75	1.42	1.38	M16	1.64
5043-651-A64-300	SCAT40xSFC1"-3"	5.687	3	2.28	1.47	1	1.81	2.04	M20	1.34
5043-651-A64-400	SCAT40xSFC1"-4"	6.687	4	2.28	2.45	1	1.81	2.09	M20	1.73
5043-651-A64-600	SCAT40xSFC1"-6"	8.687	6	2.28	4.37	1	1.81	2.09	M20	2.51
5043-651-A72-400	SCAT40xSFC1-1/4"-4"	6.687	4	2.28	2.45	1.25	1.81	2.09	M20	1.60
5044-651-A12-354	SCAT50xSFC3/16"-3.54"	7.54	3.54	0.79	1.98	0.1875	0.43	0.74	M6	3.04
5044-651-A16-354	SCAT50xSFC1/4"-3.54"	7.54	3.54	1.42	2.04	0.25	0.71	1.03	M5	3.13
5044-651-A20-354	SCAT50xSFC5/16"-3.54"	7.54	3.54	1.42	2.04	0.3125	0.79	1.06	M6	3.15
5044-651-A24-394	SCAT50xSFC3/8"-3.94"	7.94	3.94	1.65	2.36	0.375	0.94	1.26	M8	3.27
5044-651-A32-394	SCAT50xSFC1/2"-3.94"	7.94	3.94	1.85	2.36	0.5	1.1	1.34	M10	3.33
5044-651-A40-394	SCAT50xSFC5/8"-3.94"	7.94	3.94	1.97	2.36	0.625	1.06	1.34	M12	3.29
5044-651-A48-413	SCAT50xSFC3/4"-4.13"	8.13	4.13	2.04	2.71	0.75	1.42	1.65	M16	3.52
5044-651-A48-600	SCAT50xSFC3/4"-6"	10	6	2.04	3.91	0.75	1.42	1.65	M16	4.03
5044-651-A64-413	SCAT50xSFC1"-4.13"	8.13	4.13	2.28	2.71	1	1.81	2.09	M20	3.81
5044-651-A64-600	SCAT50xSFC1"-6"	10	6	2.28	4.12	1	1.81	2.09	M20	4.56
5044-651-A72-413	SCAT50xSFC1-1/4"-4.13"	8.13	4.13	2.28	2.63	1.25	1.81	2.09	M20	3.68
5044-651-A72-472	SCAT50xSFC1-1/4"-4.72"	8.72	4.72	2.28	3.22	1.25	1.81	2.09	M20	3.90
5044-651-A72-600	SCAT50xSFC1-1/4"-6"	10	6	2.28	4.12	1.25	1.81	2.09	M20	4.43

SDAT/SFC法蘭加厚型熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SDAT-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5066-651-003-080	SDAT40xSFC3-80	148.4	80	18	51.7	3	10	19.3	M6	18	0.89
5066-651-004-080	SDAT40xSFC4-80	148.4	80	20	51.7	4	10	19.3	M6	18	0.89
5066-651-005-080	SDAT40xSFC5-80	148.4	80	20	51.7	5	10	19.3	M6	18	0.89
5066-651-006-080	SDAT40xSFC6-80	148.4	80	36	55.9	6	21	27	M5	18	1.03
5066-651-006-130	SDAT40xSFC6-130	198.4	130	36	105.9	6	21	27	M5	18	1.25
5066-651-006-160	SDAT40xSFC6-160	228.4	160	36	105.9	6	21	27	M5	18	1.38
5066-651-006-200	SDAT40xSFC6-200	268.4	200	36	146	6	21	27	M5	18	1.56
5066-651-008-080	SDAT40xSFC8-80	148.4	80	36	55.9	8	21	27	M6	35	0.93
5066-651-008-130	SDAT40xSFC8-130	198.4	130	36	105.9	8	21	27	M6	35	1.24
5066-651-008-160	SDAT40xSFC8-160	228.4	160	36	105.9	8	21	27	M6	35	1.37
5066-651-008-200	SDAT40xSFC8-200	268.4	200	36	146	8	21	27	M6	35	1.55
5066-651-010-080	SDAT40xSFC10-80	148.4	80	42	55.9	10	24	32	M8	65	1.21
5066-651-010-130	SDAT40xSFC10-130	198.4	130	42	105.9	10	24	32	M8	65	1.52
5066-651-010-160	SDAT40xSFC10-160	228.4	160	42	105.9	10	24	32	M8	65	1.65
5066-651-010-200	SDAT40xSFC10-200	268.4	200	42	146	10	24	32	M8	65	1.83
5066-651-012-080	SDAT40xSFC12-80	148.4	80	47	55.9	12	24	32	M10	110	1.01
5066-651-012-130	SDAT40xSFC12-130	198.4	130	47	105.9	12	24	32	M10	110	1.50
5066-651-012-160	SDAT40xSFC12-160	228.4	160	47	105.9	12	24	32	M10	110	1.45
5066-651-012-200	SDAT40xSFC12-200	268.4	200	47	146	12	24	32	M10	110	1.81
5066-651-014-080	SDAT40xSFC14-80	148.4	80	47	55.9	14	27	34	M10	150	0.89
5066-651-014-130	SDAT40xSFC14-130	198.4	130	47	105.9	14	27	34	M10	150	1.38
5066-651-014-160	SDAT40xSFC14-160	228.4	160	47	105.9	14	27	34	M10	150	1.33
5066-651-014-200	SDAT40xSFC14-200	268.4	200	47	146	14	27	34	M10	150	1.93
5066-651-016-080	SDAT40xSFC16-80	148.4	80	50	55.8	16	27	34	M12	200	1.09
5066-651-016-130	SDAT40xSFC16-130	198.4	130	50	105.9	16	27	34	M12	200	1.44
5066-651-016-160	SDAT40xSFC16-160	228.4	160	50	105.9	16	27	34	M12	200	1.65
5066-651-016-200	SDAT40xSFC16-200	268.4	200	50	146	16	27	34	M12	200	1.93
5066-651-018-080	SDAT40xSFC18-80	148.4	80	50	57.9	18	33	42	M12	250	1.23
5066-651-018-130	SDAT40xSFC18-130	198.4	130	50	107.9	18	33	42	M12	250	1.76
5066-651-018-160	SDAT40xSFC18-160	228.4	160	50	107.9	18	33	42	M12	250	2.08
5066-651-018-200	SDAT40xSFC18-200	268.4	200	50	147.9	18	33	42	M12	250	2.51
5066-651-020-080	SDAT40xSFC20-80	148.4	80	52	57.9	20	33	42	M16	320	1.21
5066-651-020-130	SDAT40xSFC20-130	198.4	130	52	107.9	20	33	42	M16	320	1.73
5066-651-020-160	SDAT40xSFC20-160	228.4	160	52	107.9	20	33	42	M16	320	2.06
5066-651-020-200	SDAT40xSFC20-200	268.4	200	52	147.9	20	33	42	M16	320	2.48
5066-651-025-100	SDAT40xSFC25-100	168.4	100	58	80.9	25	44	53	M20	500	1.79
5066-651-025-130	SDAT40xSFC25-130	198.4	130	58	110.9	25	44	53	M20	500	2.31
5066-651-025-160	SDAT40xSFC25-160	228.4	160	58	140.9	25	44	53	M20	500	2.81
5066-651-025-200	SDAT40xSFC25-200	268.4	200	58	180.9	25	44	53	M20	500	3.49
5066-651-032-100	SDAT40xSFC32-100	168.4	100	58	80.9	32	44	53	M20	550	1.65
5067-651-006-080	SDAT50xSFC6-80	181.75	80	36	50.9	6	21	27	M5	18	2.81
5067-651-006-130	SDAT50xSFC6-130	231.75	130	36	100.9	6	21	27	M5	18	3.03
5067-651-006-160	SDAT50xSFC6-160	261.75	160	36	100.9	6	21	27	M5	18	3.17
5067-651-006-200	SDAT50xSFC6-200	301.75	200	36	141	6	21	27	M5	18	3.34
5067-651-008-080	SDAT50xSFC8-80	181.75	80	36	50.9	8	21	27	M6	35	2.80
5067-651-008-130	SDAT50xSFC8-130	231.75	130	36	100.9	8	21	27	M6	35	3.02
5067-651-008-160	SDAT50xSFC8-160	261.75	160	36	100.9	8	21	27	M6	35	3.16
5067-651-008-200	SDAT50xSFC8-200	301.75	200	36	141	8	21	27	M6	35	3.33
5067-651-010-080	SDAT50xSFC10-80	181.75	80	42	50.9	10	24	32	M8	65	2.53
5067-651-010-130	SDAT50xSFC10-130	231.75	130	42	100.9	10	24	32	M8	65	2.75
5067-651-010-160	SDAT50xSFC10-160	261.75	160	42	100.9	10	24	32	M8	65	2.89
5067-651-010-200	SDAT50xSFC10-200	301.75	200	42	141	10	24	32	M8	65	3.60
5067-651-012-080	SDAT50xSFC12-80	181.75	80	47	50.9	12	24	32	M10	110	2.52
5067-651-012-130	SDAT50xSFC12-130	231.75	130	47	100.9	12	24	32	M10	110	2.74
5067-651-012-160	SDAT50xSFC12-160	261.75	160	47	100.9	12	24	32	M10	110	2.88
5067-651-012-200	SDAT50xSFC12-200	301.75	200	47	141	12	24	32	M10	110	3.59
5067-651-014-080	SDAT50xSFC14-80	181.75	80	47	50.9	14	27	34	M10	150	2.38
5067-651-014-130	SDAT50xSFC14-130	231.75	130	47	100.9	14	27	34	M10	150	2.60
5067-651-014-160	SDAT50xSFC14-160	261.75	160	47	100.9	14	27	34	M10	150	2.74
5067-651-014-200	SDAT50xSFC14-200	301.75	200	47	141	14	27	34	M10	150	3.73
5067-651-016-080	SDAT50xSFC16-80	181.75	80	50	50.9	16	27	34	M12	200	2.87
5067-651-016-130	SDAT50xSFC16-130	231.75	130	50	100.9	16	27	34	M12	200	3.22
5067-651-016-160	SDAT50xSFC16-160	261.75	160	50	100.9	16	27	34	M12	200	3.43
5067-651-016-200	SDAT50xSFC16-200	301.75	200	50	141	16	27	34	M12	200	3.71
5067-651-018-080	SDAT50xSFC18-80	181.75	80	50	57.9	18	33	42	M12	250	2.99
5067-651-018-130	SDAT50xSFC18-130	231.75	130	50	100.9	18	33	42	M12	250	3.55
5067-651-018-160	SDAT50xSFC18-160	261.75	160	50	100.9	18	33	42	M12	250	3.87
5067-651-018-200	SDAT50xSFC18-200	301.75	200	50	141	18	33	42	M12	250	4.30
5067-651-020-080	SDAT50xSFC20-80	181.75	80	52	57.9	20	33	42	M16	320	2.91
5067-651-020-130	SDAT50xSFC20-130	231.75	130	52	100.9	20	33	42	M16	320	3.25
5067-651-020-160	SDAT50xSFC20-160	261.75	160	52	100.9	20	33	42	M16	320	3.57
5067-651-020-200	SDAT50xSFC20-200	301.75	200	52	141	20	33	42	M16	320	4.27
5067-651-025-100	SDAT50xSFC25-100	201.75	100	58	70.9	25	44	53	M20	500	3.59
5067-651-025-130	SDAT50xSFC25-130	231.75	130	58	100.9	25	44	53	M20	500	4.10
5067-651-025-160	SDAT50xSFC25-160	261.75	160	58	100.9	25	44	53	M20	500	4.61
5067-651-025-200	SDAT50xSFC25-200	301.75	200	58	141	25	44	53	M20	500	5.29
5067-651-032-100	SDAT50xSFC32-100	201.75	100	58	70.9	32	44	53	M20	550	3.45

HSK-A/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-A-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5070-651-003-060	HSK32AxSFC3-60	76	60	18	38.1	3	10	16	-	18	0.14
5070-651-004-060	HSK32AxSFC4-60	76	60	20	38.1	4	10	16	-	18	0.14
5070-651-005-060	HSK32AxSFC5-60	76	60	20	38.1	5	10	16	-	18	0.14
5070-651-006-070	HSK32AxSFC6-70	86	70	36	50	6	21	26	M5	18	0.27
5070-651-008-070	HSK32AxSFC8-70	86	70	36	50	8	21	26	M6	35	0.27
5070-651-010-080	HSK32AxSFC10-80	96	80	42	50	10	24	26	M8	65	0.28
5071-651-003-060	HSK40AxSFC3-60	80	60	19	35.3	3	10	15.5	-	18	0.22
5071-651-003-080	HSK40AxSFC3-80	100	80	18	55	3	9	17.7	-	18	0.25
5071-651-004-060	HSK40AxSFC4-60	80	60	22	35.3	4	10	15.5	-	18	0.22
5071-651-004-080	HSK40AxSFC4-80	100	80	20	55	4	10	18.7	-	18	0.26
5071-651-005-060	HSK40AxSFC5-60	80	60	25	35.3	5	10	15.5	-	18	0.22
5071-651-005-080	HSK40AxSFC5-80	100	80	20	55	5	16	22	-	18	0.33
5071-651-006-080	HSK40AxSFC6-80	100	80	36	57	6	21	27	M5	18	0.41
5071-651-006-130	HSK40AxSFC6-130	150	130	36	108	6	21	27	M5	18	0.62
5071-651-008-080	HSK40AxSFC8-80	100	80	36	57	8	21	27	M6	35	0.40
5071-651-008-130	HSK40AxSFC8-130	150	130	36	108	8	21	27	M6	35	0.61
5071-651-010-080	HSK40AxSFC10-80	100	80	42	59	10	24	32	M8	65	0.45
5071-651-010-085	HSK40AxSFC10-85	105	85	42	64	10	24	32	M8	65	0.49
5071-651-010-130	HSK40AxSFC10-130	150	130	42	109	10	24	32	M8	65	0.76
5071-651-012-090	HSK40AxSFC12-90	110	90	47	69	12	24	32	M10	110	0.50
5071-651-012-130	HSK40AxSFC12-130	150	130	47	109	12	24	32	M10	110	0.75
5071-651-014-090	HSK40AxSFC14-90	110	90	47	69	14	27	34	M10	150	0.56
5071-651-016-090	HSK40AxSFC16-90	110	90	47	69	16	27	34	M12	200	0.53
5072-651-003-060	HSK50AxSFC3-60	85	60	18	24.7	3	10	13.9	M6	18	0.41
5072-651-003-080	HSK50AxSFC3-80	105	80	18	49	3	9	16.7	-	18	0.43
5072-651-004-060	HSK50AxSFC4-60	85	60	20	24.7	4	10	13.9	M6	18	0.41
5072-651-004-080	HSK50AxSFC4-80	105	80	20	49	4	10	17.7	-	18	0.44
5072-651-005-060	HSK50AxSFC5-60	85	60	20	24.7	5	10	13.9	M6	18	0.41
5072-651-005-080	HSK50AxSFC5-80	105	80	20	49	5	16	22	-	18	0.50
5072-651-006-080	HSK50AxSFC6-80	105	80	36	49	6	21	27	M5	18	0.58
5072-651-006-130	HSK50AxSFC6-130	155	130	36	99	6	21	27	M5	18	0.79
5072-651-008-080	HSK50AxSFC8-80	105	80	36	49	8	21	27	M6	35	0.57
5072-651-008-130	HSK50AxSFC8-130	155	130	36	99	8	21	27	M6	35	0.78
5072-651-010-085	HSK50AxSFC10-85	110	85	42	54	10	24	32	M8	65	0.65
5072-651-010-130	HSK50AxSFC10-130	155	130	42	101.7	10	24	32	M8	65	0.92
5072-651-012-090	HSK50AxSFC12-90	115	90	47	59	12	24	32	M10	110	0.66
5072-651-012-130	HSK50AxSFC12-130	155	130	47	101.7	12	24	32	M10	110	0.90
5072-651-014-090	HSK50AxSFC14-90	115	90	47	59	14	24	32	M10	150	0.65
5072-651-016-095	HSK50AxSFC16-95	120	95	50	64	16	27	34	M12	200	0.72
5072-651-016-130	HSK50AxSFC16-130	155	130	50	101.7	16	27	34	M12	150	0.96
5072-651-018-095	HSK50AxSFC18-95	120	95	52	67	18	33	42	M12	250	0.89
5072-651-020-100	HSK50AxSFC20-100	125	100	52	73	20	33	42	M16	320	0.90
5072-651-025-115	HSK50AxSFC25-115	140	115	47	88	25	44	53	M20	500	1.39
5073-651-003-080	HSK63AxSFC3-80	112	80	18	40	3	9	18	M6	18	0.69
5073-651-004-080	HSK63AxSFC4-80	112	80	18	44	4	10	17.05	M6	18	0.70
5073-651-005-080	HSK63AxSFC5-80	112	80	20	51	5	16	22	M6	18	0.76
5073-651-006-080	HSK63AxSFC6-80	112	80	36	51	6	21	27	M5	18	0.83
5073-651-006-130	HSK63AxSFC6-130	162	130	36	94	6	21	27	M5	18	1.06
5073-651-006-160	HSK63AxSFC6-160	192	160	36	124	6	21	27	M5	18	1.19
5073-651-006-200	HSK63AxSFC6-200	232	200	36	164	6	21	27	M5	18	1.37
5073-651-008-080	HSK63AxSFC8-80	112	80	36	51	8	21	27	M6	35	0.83
5073-651-008-130	HSK63AxSFC8-130	162	130	36	94	8	21	27	M6	35	1.05
5073-651-008-160	HSK63AxSFC8-160	192	160	36	124	8	21	27	M6	35	1.18
5073-651-008-200	HSK63AxSFC8-200	232	200	36	164	8	21	27	M6	35	1.36
5073-651-010-085	HSK63AxSFC10-85	117	85	42	54	10	24	32	M8	65	0.91
5073-651-010-130	HSK63AxSFC10-130	162	130	42	94	10	24	32	M8	65	1.18
5073-651-010-160	HSK63AxSFC10-160	192	160	42	124	10	24	32	M8	65	1.36
5073-651-010-200	HSK63AxSFC10-200	232	200	42	164	10	24	32	M8	65	1.61
5073-651-012-090	HSK63AxSFC12-90	122	90	47	59	12	24	32	M10	110	0.92
5073-651-012-130	HSK63AxSFC12-130	162	130	47	94	12	24	32	M10	110	1.17
5073-651-012-160	HSK63AxSFC12-160	192	160	47	124	12	24	32	M10	110	1.35
5073-651-012-200	HSK63AxSFC12-200	232	200	47	164	12	24	32	M10	110	1.60
5073-651-014-090	HSK63AxSFC14-90	122	90	47	59	14	27	34	M10	150	0.97
5073-651-014-130	HSK63AxSFC14-130	162	130	47	99	14	27	34	M10	150	1.23
5073-651-014-160	HSK63AxSFC14-160	192	160	47	129	14	27	34	M10	150	1.44
5073-651-014-200	HSK63AxSFC14-200	232	200	47	169	14	27	34	M10	150	1.72
5073-651-016-095	HSK63AxSFC16-95	127	95	50	64	16	27	34	M12	200	0.98
5073-651-016-130	HSK63AxSFC16-130	162	130	50	99	16	27	34	M12	200	1.21
5073-651-016-160	HSK63AxSFC16-160	192	160	50	129	16	27	34	M12	200	1.42
5073-651-016-200	HSK63AxSFC16-200	232	200	50	169	16	27	34	M12	200	1.70
5073-651-018-095	HSK63AxSFC18-95	127	95	50	64	18	33	42	M12	250	1.15
5073-651-018-130	HSK63AxSFC18-130	162	130	50	89	18	33	42	M12	250	1.51
5073-651-018-160	HSK63AxSFC18-160	192	160	50	89	18	33	42	M12	250	1.83
5073-651-018-200	HSK63AxSFC18-200	232	200	50	129	18	33	42	M12	250	2.26
5073-651-019-100	HSK63AxSFC19-100	132	100	60	69	19	33	42	-	320	1.16
5073-651-020-100	HSK63AxSFC20-100	132	100	52	69	20	33	42	M16	320	1.17
5073-651-020-130	HSK63AxSFC20-130	162	130	52	99	20	33	42	M16	320	1.48
5073-651-020-160	HSK63AxSFC20-160	192	160	52	129	20	33	42	M16	320	1.80
5073-651-020-200	HSK63AxSFC20-200	232	200	52	169	20	33	42	M16	320	2.23
5073-651-024-115	HSK63AxSFC24-115	147	115	72	88.6	24	44	53	-	500	1.71
5073-651-025-115	HSK63AxSFC25-115	147	115	58	88	25	44	53	M20	500	1.67
5073-651-025-130	HSK63AxSFC25-130	162	130	58	104	25	44	53	M20	500	2.00
5073-651-025-160	HSK63AxSFC25-160	192	160	58	134	25	44	53	M20	500	2.51
5073-651-025-200	HSK63AxSFC25-200	232	200	58	174	25	44	53	M20	500	3.19
5073-651-032-120	HSK63AxSFC32-120	152	120	58	93	32	44	53	M20	550	1.67
5073-651-032-160	HSK63AxSFC32-160	192	160	58	134	32	44	53	M20	550	2.37
5073-651-032-200	HSK63AxSFC32-200	232	200	58	174	32	44	53	M20	550	3.05
5075-651-006-085	HSK100AxSFC6-85	135	85	36	46	6	21	27	M5	18	2.21
5075-651-006-130	HSK100AxSFC6-130	180	130	36	91	6	21	27	M5	18	2.36
5075-651-006-160	HSK100AxSFC6-160	210	160	36	91	6	21	27	M5	18	2.50
5075-651-006-200	HSK100AxSFC6-200	250	200	36	131	6	21	27	M5	18	2.67
5075-651-008-085	HSK100AxSFC8-85	135	85	36	46	8	21	27	M6	35	2.20
5075-651-008-130	HSK100AxSFC8-130	180	130	36	91	8	21	27	M6	35	2.35
5075-651-008-160	HSK100AxSFC8-160	210	160	36	91	8	21	27	M6	35	2.49
5075-651-008-200	HSK100AxSFC8-200	250	200	36	131	8	21	27	M6	35	2.66
5075-651-010-090	HSK100AxSFC10-90	140	90	42	51	10	24	32	M8	65	2.28
5075-651-010-130	HSK100AxSFC10-130	180	130	42	91	10	24	32	M8	65	2.49
5075-651-010-160	HSK100AxSFC10-160	210	160	42	91	10	24	32	M8	65	2.68
5075-651-010-200	HSK100AxSFC10-200	250	200	42	131	10	24	32	M8	65	2.92
5075-651-012-095	HSK100AxSFC12-95	145	95	47	56	12	24	32	M10	110	2.30
5075-651-012-130	HSK100AxSFC12-130	180	130	47	91	12	24	32	M10	65	2.47
5075-651-012-160	HSK100AxSFC12-160	210	160	47	91	12	24	32	M10	110	2.66
5075-651-012-200	HSK100AxSFC12-200	250	200	47	131	12	24	32	M10	110	2.91
5075-651-014-095	HSK100AxSFC14-95	145	95	47	56	14	27	34	M10	150	2.35
5075-651-014-130	HSK100AxSFC14-130	180	130	47	91	14	27	34	M10	150	2.55
5075-651-014-160	HSK100AxSFC14-160	210	160	47	91	14	27	34	M10	150	2.76
5075-651-014-200	HSK100AxSFC14-200	250	200	47	131	14	27	34	M10	150	3.04
5075-651-016-100	HSK100AxSFC16-100	150	100	50	61	16	27	34	M12	200	2.36
5075-651-016-130	HSK100AxSFC16-130	180	130	50	91	16	27	34	M12	200	2.53
5075-651-016-160	HSK100AxSFC16-160	210	160	50	91	16	27	34	M12	200	2.74
5075-651-016-200	HSK100AxSFC16-200	250	200	50	131	16	27	34	M12	200	3.02
5075-651-018-100	HSK100AxSFC18-100	150	100	50	66	18	33	42	M12	250	2.52
5075-651-018-130	HSK100AxSFC18-130	180	130	50	91	18	33	42	M12	250	2.82
5075-651-018-160	HSK100AxSFC18-160	210	160	50	91	18	33	42	M12	250	3.14
5075-651-018-200	HSK100AxSFC18-200	250	200	50	131	18	33	42	M12	250	3.57
5075-651-019-105	HSK100AxSFC19-105	155	105	60	71	19	33	42	-	320	2.50
5075-651-020-105	HSK100AxSFC20-105	155	105	52	71	20	33	42	M16	320	2.53
5075-651-020-130	HSK100AxSFC20-130	180	130	52	96	20	33	42	M16	320	2.79
5075-651-020-160	HSK100AxSFC20-160	210	160	52	91	20	33	42	M16	320	3.11
5075-651-020-200	HSK100AxSFC20-200	250	200	52	131	20	33	42	M16	320	3.54
5075-651-024-115	HSK100AxSFC24-115	165	115	72	81	24	44	53	-	500	2.99
5075-651-025-115	HSK100AxSFC25-115	165	115	58	81	25	44	53	M20	500	3.04
5075-651-025-160	HSK100AxSFC25-160	210	160	58	91	25	44	53	M20	500	3.82
5075-651-025-200	HSK100AxSFC25-200	250	200	58	131	25	44	53	M20	500	4.50
5075-651-032-120	HSK100AxSFC32-120	170	120	58	86	32	44	53	M20	550	2.98
5075-651-032-160	HSK100AxSFC32-160	210	160	58	126	32	44	53	M20	550	3.68
5075-651-032-200	HSK100AxSFC32-200	250	200	58	131	32	44	53	M20	550	4.36
5076-651-010-130	HSK125AxSFC10-130	193	130	42	75	10	24	32	M8	65	4.39
5076-651-010-160	HSK125AxSFC10-160	223	160	42	75	10	24	32	M8	65	5.25
5076-651-010-200	HSK125AxSFC10-200	263	200	42	75	10	24	32	M8	65	6.37
5076-651-012-130	HSK125AxSFC12-130	193	130	47	75	12	24	32	M10	110	4.37
5076-651-012-160	HSK125AxSFC12-160	223	160	47	75	12	24	32	M10	110	5.24
5076-651-012-200	HSK125AxSFC12-200	263	200	47	75	12	24	32	M10	110	6.36
5076-651-016-130	HSK125AxSFC16-130	193	130	50	75	16	27	34	M12	200	4.65
5076-651-016-160	HSK125AxSFC16-160	223	160	50	75	16	27	34	M12	200	5.61
5076-651-016-200	HSK125AxSFC16-200	263	200	50	75	16	27	34	M12	200	6.45
5076-651-020-115	HSK125AxSFC20-115	178	115	52	60	20	33	42	M16	320	4.51
5076-651-020-130	HSK125AxSFC20-130	193	130	52	75	20	33	42	M16	320	4.65
5076-651-020-160	HSK125AxSFC20-160	223	160	52	75	20	33	42	M16	320	5.61
5076-651-020-200	HSK125AxSFC20-200	263	200	52	75	20	33	42	M16	320	6.87
5076-651-025-115	HSK125AxSFC25-115	178	115	58	60	25	44	53	M20	500	4.86
5076-651-025-130	HSK125AxSFC25-130	193	130	58	75	25	44	53	M20	500	5.09
5076-651-025-160	HSK125AxSFC25-160	223	160	58	75	25	44	53	M20	500	6.18
5076-651-025-200	HSK125AxSFC25-200	263	200	58	75	25	44	53	M20	500	7.60
5076-651-032-120	HSK125AxSFC32-120	183	120	58	65	32	44	53	M20	550	4.80
英制
5071-651-A12-354	HSK40AxSFC3/16"-3.54"	4.33	3.54	0.79	2.55	0.1875	0.43	0.79	-	18	0.29
5071-651-A16-354	HSK40AxSFC1/4"-3.54"	4.33	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	0.41
5071-651-A20-354	HSK40AxSFC5/16"-3.54"	4.33	3.54	1.42	2.63	0.3125	0.79	1.06	M6	35	0.43
5071-651-A24-354	HSK40AxSFC3/8"-3.54"	4.33	3.54	1.53	2.67	0.375	0.94	1.26	M8	65	0.52
5071-651-A32-354	HSK40AxSFC1/2"-3.54"	4.33	3.54	1.85	2.71	0.5	1.1	1.34	M10	110	0.58
5072-651-A12-354	HSK50AxSFC3/16"-3.54"	4.53	3.54	0.79	2.15	0.1875	0.43	0.76	M6	18	0.48
5072-651-A16-354	HSK50AxSFC1/4"-3.54"	4.53	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	0.58
5072-651-A20-354	HSK50AxSFC5/16"-3.54"	4.53	3.54	1.42	2.32	0.3125	0.79	1.06	M6	35	0.60
5072-651-A24-354	HSK50AxSFC3/8"-3.54"	4.53	3.54	1.53	2.32	0.375	0.94	1.26	M8	65	0.69
5072-651-A32-354	HSK50AxSFC1/2"-3.54"	4.53	3.54	1.85	2.4	0.5	1.1	1.34	M10	110	0.74
5072-651-A40-354	HSK50AxSFC5/8"-3.54"	4.53	3.54	1.97	2.4	0.625	1.06	1.34	M12	200	0.69
5072-651-A48-394	HSK50AxSFC3/4"-3.94"	4.93	3.94	2.04	2.89	0.75	1.42	1.65	M16	320	0.91
5073-651-A12-394	HSK63AxSFC3/16"-3.94"	5.2	3.94	0.79	2.71	0.1875	0.43	0.79	M6	18	0.74
5073-651-A16-394	HSK63AxSFC1/4"-3.94"	5.2	3.94	1.42	2.71	0.25	0.71	1.06	M5	18	0.88
5073-651-A20-394	HSK63AxSFC5/16"-3.94"	5.2	3.94	1.42	2.71	0.3125	0.79	1.06	M6	35	0.90
5073-651-A24-394	HSK63AxSFC3/8"-3.94"	5.2	3.94	1.65	2.71	0.375	0.94	1.26	M8	65	1.00
5073-651-A32-394	HSK63AxSFC1/2"-3.94"	5.2	3.94	1.85	2.71	0.5	1.1	1.38	M10	110	1.08
5073-651-A40-394	HSK63AxSFC5/8"-3.94"	5.2	3.94	1.97	2.71	0.625	1.06	1.34	M12	200	1.01
5073-651-A48-394	HSK63AxSFC3/4"-3.94"	5.2	3.94	2.04	2.71	0.75	1.42	1.65	M16	320	1.25
5073-651-A64-394	HSK63AxSFC1"-3.94"	5.2	3.94	2.28	2.71	1	1.42	1.65	M20	500	1.12
5075-651-A16-354	HSK100AxSFC1/4"-3.54"	5.51	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	2.17
5075-651-A20-335	HSK100AxSFC5/16"-3.35"	5.51	3.35	1.42	2	0.3125	0.79	1.06	M6	18	2.17
5075-651-A24-354	HSK100AxSFC3/8"-3.54"	5.51	3.54	1.53	2.2	0.375	0.94	1.26	M8	35	2.27
5075-651-A32-374	HSK100AxSFC1/2"-3.74"	5.71	3.74	1.85	2.4	0.5	1.1	1.34	M10	65	2.36
5075-651-A40-394	HSK100AxSFC5/8"-3.94"	5.91	3.94	1.97	2.59	0.625	1.06	1.34	M12	110	2.34
5075-651-A48-413	HSK100AxSFC3/4"-4.13"	6.1	4.13	2.04	2.79	0.75	1.42	1.65	M16	320	2.62
5075-651-A64-453	HSK100AxSFC1"-4.53"	6.5	4.53	2.28	3.18	1	2.09	1.81	M20	500	3.13
5075-651-A72-472	HSK100AxSFC1-1/4"-4.72"	6.69	4.72	2.28	3.18	1.25	2.09	1.81	M20	550	3.07
5076-651-A48-453	HSK125AxSFC3/4"-4.53"	7.01	4.53	2.04	2.36	0.75	1.42	1.65	M16	320	4.59
5076-651-A64-453	HSK125AxSFC1"-4.53"	7.01	4.53	2.28	2.36	1	1.81	2.09	M20	500	4.92
5076-651-A72-472	HSK125AxSFC1-1/4"-4.72"	7.2	4.72	2.28	2.56	1.25	1.81	2.09	M20	550	4.87
5076-651-A80-550	HSK125AxSFC1-1/2"-5.5"	7.98	5.5	2.28	3.33	1.5	1.81	2.09	M20	-	5.01
5076-651-A96-551	HSK125AxSFC2"-5.51"	7.99	5.51	2.6	3.34	2	2.72	3.11	M20	-	6.37

HSK-A/SFCT熱膨脹刀桿 (加長型) proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-A-SFCT_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5071-793-003-120	HSK40AxSFCT3-120	140	120	18	95	3	9	18	-	18	0.30
5071-793-004-120	HSK40AxSFCT4-120	140	120	20	95	4	10	18	-	18	0.32
5071-793-005-120	HSK40AxSFCT5-120	140	120	20	95	5	11	20	-	18	0.34
5071-793-006-120	HSK40AxSFCT6-120	140	120	36	95	6	12	20	M5	18	0.35
5071-793-008-120	HSK40AxSFCT8-120	140	120	36	89	8	14	24	M6	35	0.40
5071-793-010-120	HSK40AxSFCT10-120	140	120	42	89	10	16	26	M8	65	0.44
5071-793-012-120	HSK40AxSFCT12-120	140	120	47	89	12	18	28	M10	110	0.47
5072-793-003-120	HSK50AxSFCT3-120	145	120	18	89	3	9	18	-	18	0.49
5072-793-004-120	HSK50AxSFCT4-120	145	120	20	89	4	10	18	-	18	0.49
5072-793-005-120	HSK50AxSFCT5-120	145	120	20	89	5	11	20	-	18	0.51
5072-793-006-120	HSK50AxSFCT6-120	145	120	36	89	6	12	20	M5	18	0.53
5072-793-008-120	HSK50AxSFCT8-120	145	120	36	83	8	14	24	M6	35	0.57
5072-793-010-120	HSK50AxSFCT10-120	145	120	42	83	10	16	26	M8	65	0.60
5072-793-012-120	HSK50AxSFCT12-120	145	120	47	83	12	18	28	M10	110	0.64
5072-793-014-120	HSK50AxSFCT14-120	145	120	47	83	14	20	30	M10	150	0.68
5072-793-016-120	HSK50AxSFCT16-120	145	120	50	83	16	22	32	M12	200	0.71
5072-793-018-120	HSK50AxSFCT18-120	145	120	52	89	18	24	32	M12	250	0.74
5072-793-020-160	HSK50AxSFCT20-160	185	160	52	129	20	26	35	M16	320	1.07
5072-793-025-160	HSK50AxSFCT25-160	185	160	47	132	25	31	40	M20	500	1.26
5073-793-003-120	HSK63AxSFCT3-120	152	120	18	84	3	9	18	-	18	0.73
5073-793-003-160	HSK63AxSFCT3-160	192	160	18	129	3	9	20	-	18	0.81
5073-793-004-120	HSK63AxSFCT4-120	152	120	20	89	4	10	18	-	18	0.75
5073-793-004-160	HSK63AxSFCT4-160	192	160	20	129	4	10	20	-	18	0.85
5073-793-005-120	HSK63AxSFCT5-120	152	120	20	91	5	11	20	M6	18	0.76
5073-793-005-160	HSK63AxSFCT5-160	192	160	20	123	5	11	25	-	18	0.87
5073-793-006-120	HSK63AxSFCT6-120	152	120	36	89	6	12	20	M5	18	0.78
5073-793-006-160	HSK63AxSFCT6-160	192	160	36	124	6	12	25	M5	18	0.92
5073-793-008-120	HSK63AxSFCT8-120	152	120	36	83	8	14	24	M6	35	0.82
5073-793-008-160	HSK63AxSFCT8-160	192	160	36	122	8	14	29	M6	35	0.97
5073-793-010-120	HSK63AxSFCT10-120	152	120	42	78	10	16	26	M8	65	0.86
5073-793-010-160	HSK63AxSFCT10-160	192	160	42	122	10	16	31	M8	65	1.04
5073-793-012-120	HSK63AxSFCT12-120	152	120	47	78	12	18	28	M10	110	0.89
5073-793-012-160	HSK63AxSFCT12-160	192	160	47	122	12	18	33	M10	110	1.10
5073-793-014-120	HSK63AxSFCT14-120	152	120	47	83	14	20	30	M10	150	0.93
5073-793-014-160	HSK63AxSFCT14-160	192	160	47	122	14	20	35	M10	150	1.17
5073-793-016-120	HSK63AxSFCT16-120	152	120	50	83	16	22	32	M12	200	0.96
5073-793-016-160	HSK63AxSFCT16-160	192	160	50	122	16	22	37	M12	200	1.23
5073-793-018-120	HSK63AxSFCT18-120	152	120	50	89	18	24	32	M12	250	1.00
5073-793-018-160	HSK63AxSFCT18-160	192	160	50	122	18	24	39	M12	250	1.31
5073-793-020-160	HSK63AxSFCT20-160	192	160	52	129	20	26	39	M16	320	1.37
5073-793-025-160	HSK63AxSFCT25-160	192	160	58	123	25	31	45	M20	500	1.55
5073-793-032-160	HSK63AxSFCT32-160	192	160	58	129	32	38	49	M20	550	1.85

HSK-E/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-E-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5097-651-003-050	HSK25ExSFC3-50	63	50	18	37	3	9	13	-	18	0.07
5097-651-004-050	HSK25ExSFC4-50	63	50	20	38	4	10	16.079	-	18	0.08
5097-651-005-050	HSK25ExSFC5-50	63	50	20	39	5	16	20	-	18	0.12
5098-651-003-050	HSK32ExSFC3-50	66	50	18	27	3	9	13.287	-	18	0.14
5098-651-003-060	HSK32ExSFC3-60	76	60	18	35.3	3	10	15.5	-	18	0.16
5098-651-004-050	HSK32ExSFC4-50	66	50	20	27	4	10	14.287	-	18	0.14
5098-651-004-060	HSK32ExSFC4-60	76	60	20	35.3	4	10	15.5	-	18	0.16
5098-651-005-050	HSK32ExSFC5-50	66	50	20	29	5	16	20	-	18	0.17
5098-651-005-060	HSK32ExSFC5-60	76	60	20	35.3	5	10	15.5	-	18	0.16
5098-651-006-050	HSK32ExSFC6-50	66	50	36	29	6	21	25	-	18	0.21
5098-651-006-070	HSK32ExSFC6-70	86	70	36	50	6	21	26	M5	18	0.29
5098-651-008-060	HSK32ExSFC8-60	76	60	36	39	8	21	26	M6	35	0.24
5098-651-008-070	HSK32ExSFC8-70	86	70	36	50	8	21	26	M6	35	0.28
5098-651-010-060	HSK32ExSFC10-60	76	60	42	39	10	21	26	M8	65	0.23
5098-651-010-080	HSK32ExSFC10-80	96	80	42	50	10	24	32	M8	65	0.36
5098-651-012-070	HSK32ExSFC12-70	86	70	47	49	12	21	26	M10	110	0.26
5099-651-003-050	HSK40ExSFC3-50	70	50	18	25	3	9	12.997	-	18	0.22
5099-651-003-060	HSK40ExSFC3-60	80	60	18	35.3	3	10	15.5	-	18	0.24
5099-651-003-080	HSK40ExSFC3-80	100	80	18	49	3	9	18	-	18	0.27
5099-651-004-050	HSK40ExSFC4-50	70	50	20	25	4	10	13.997	-	18	0.24
5099-651-004-060	HSK40ExSFC4-60	80	60	20	35.3	4	10	15.5	-	18	0.24
5099-651-004-080	HSK40ExSFC4-80	100	80	20	49	4	10	22	-	18	0.29
5099-651-005-050	HSK40ExSFC5-50	70	50	20	25	5	16	19.997	-	18	0.26
5099-651-005-060	HSK40ExSFC5-60	80	60	20	35.3	5	10	15.5	-	18	0.24
5099-651-005-080	HSK40ExSFC5-80	100	80	20	55	5	16	22	-	18	0.35
5099-651-006-050	HSK40ExSFC6-50	70	50	36	29	6	21	25.577	-	18	0.30
5099-651-006-060	HSK40ExSFC6-60	80	60	36	39	6	21	27	-	18	0.32
5099-651-006-080	HSK40ExSFC6-80	100	80	36	59	6	21	27	M5	18	0.43
5099-651-008-050	HSK40ExSFC8-50	70	50	36	29	8	21	25.577	-	35	0.32
5099-651-008-060	HSK40ExSFC8-60	80	60	36	39	8	21	27	-	35	0.31
5099-651-008-080	HSK40ExSFC8-80	100	80	36	59	8	21	27	M6	35	0.42
5099-651-010-060	HSK40ExSFC10-60	80	60	42	38.1	10	24	30	M8	65	0.35
5099-651-010-080	HSK40ExSFC10-80	100	80	42	59	10	24	32	M8	65	0.47
5099-651-010-085	HSK40ExSFC10-85	105	85	42	64	10	24	32	M8	65	0.51
5099-651-012-060	HSK40ExSFC12-60	80	60	47	39	12	24	30	-	110	0.30
5099-651-012-090	HSK40ExSFC12-90	110	90	47	69	12	24	32	M10	110	0.52
5099-651-014-060	HSK40ExSFC14-60	80	60	47	40	14	27	34	M10	150	0.37
5099-651-014-090	HSK40ExSFC14-90	110	90	47	70	14	27	34	M10	150	0.57
5099-651-016-060	HSK40ExSFC16-60	80	60	50	40	16	27	34	M12	200	0.36
5099-651-016-090	HSK40ExSFC16-90	110	90	50	70	16	27	34	M12	200	0.56
5100-651-003-060	HSK50ExSFC3-60	85	60	18	24.7	3	10	13.9	M6	18	0.44
5100-651-003-080	HSK50ExSFC3-80	105	80	18	42	3	9	18	M6	18	0.47
5100-651-004-060	HSK50ExSFC4-60	85	60	20	24.7	4	10	13.9	M6	18	0.44
5100-651-004-080	HSK50ExSFC4-80	105	80	20	49	4	10	17.7	M6	18	0.40
5100-651-005-060	HSK50ExSFC5-60	85	60	20	24.7	5	10	13.9	M6	18	0.44
5100-651-005-080	HSK50ExSFC5-80	105	80	20	49	5	16	22	M6	18	0.54
5100-651-006-080	HSK50ExSFC6-80	105	80	36	49	6	21	27	M5	18	0.62
5100-651-006-130	HSK50ExSFC6-130	155	130	36	99	6	21	27	M5	18	0.82
5100-651-008-080	HSK50ExSFC8-80	105	80	36	49	8	21	27	M6	35	0.61
5100-651-008-130	HSK50ExSFC8-130	155	130	36	99	8	21	27	M6	35	0.82
5100-651-010-080	HSK50ExSFC10-80	105	80	42	52	10	24	32	M8	65	0.65
5100-651-010-085	HSK50ExSFC10-85	110	85	42	57.5	10	24	32	M8	65	0.67
5100-651-010-130	HSK50ExSFC10-130	155	130	42	99	10	24	32	M8	65	0.95
5100-651-012-080	HSK50ExSFC12-80	105	80	47	52	12	24	32	M10	110	0.64
5100-651-012-090	HSK50ExSFC12-90	115	90	47	59	12	24	32	M10	110	0.69
5100-651-012-130	HSK50ExSFC12-130	155	130	47	99	12	24	32	M10	110	0.94
5100-651-014-090	HSK50ExSFC14-90	115	90	47	59	14	24	32	M10	150	0.68
5100-651-014-130	HSK50ExSFC14-130	155	130	47	130	14	27	34	M10	150	1.22
5100-651-016-095	HSK50ExSFC16-95	120	95	50	67	16	27	34	M12	200	0.75
5100-651-016-130	HSK50ExSFC16-130	155	130	50	130	16	27	34	M12	200	1.20
5100-651-018-095	HSK50ExSFC18-95	120	95	50	68	18	33	42	M12	250	0.93
5100-651-020-100	HSK50ExSFC20-100	125	100	52	73	20	33	42	M16	320	0.93
5100-651-025-115	HSK50ExSFC25-115	140	115	47	88	25	44	53	M20	500	1.39
5101-651-003-080	HSK63ExSFC3-80	112	80	18	49	3	9	15	M6	18	0.74
5101-651-004-080	HSK63ExSFC4-80	112	80	20	44	4	10	17	M6	18	0.76
5101-651-005-080	HSK63ExSFC5-80	112	80	20	51	5	16	22	M6	18	0.81
5101-651-006-080	HSK63ExSFC6-80	112	80	36	51	6	21	27	M5	18	0.89
5101-651-008-080	HSK63ExSFC8-80	112	80	36	51	8	21	27	M6	35	0.88
5101-651-010-085	HSK63ExSFC10-85	117	85	42	57	10	24	32	M8	65	0.96
5101-651-012-090	HSK63ExSFC12-90	122	90	47	59	12	24	32	M10	110	0.98
5101-651-014-090	HSK63ExSFC14-90	122	90	47	59	14	24	32	M10	150	0.96
5101-651-016-095	HSK63ExSFC16-95	127	95	50	64	16	27	34	M12	200	1.04
5101-651-018-095	HSK63ExSFC18-95	127	95	52	64	18	33	42	M12	250	1.21
5101-651-020-100	HSK63ExSFC20-100	132	100	58	69	20	33	42	M16	320	1.21
5101-651-025-115	HSK63ExSFC25-115	147	115	58	88	25	44	53	M20	500	1.79
英制
5097-651-A08-197	HSK25ExSFC1/8"-1.97"	2.48	1.97	0.71	1.45	0.125	0.36	0.51	-	18	0.07
5097-651-A12-197	HSK25ExSFC3/16"-1.97"	2.48	1.97	0.79	1.12	0.1875	0.43	0.71	-	18	0.09
5097-651-A16-197	HSK25ExSFC1/4"-1.97"	2.48	1.97	0.79	1.49	0.25	0.55	0.71	-	18	0.10
5098-651-A08-197	HSK32ExSFC1/8"-1.97"	2.6	1.97	0.71	1.07	0.125	0.36	0.53	-	18	0.14
5098-651-A12-197	HSK32ExSFC3/16"-1.97"	2.6	1.97	0.79	1.07	0.1875	0.43	0.59	-	18	0.15
5098-651-A16-197	HSK32ExSFC1/4"-1.97"	2.6	1.97	1.42	1.07	0.25	0.71	0.88	-	18	0.19
5098-651-A20-236	HSK32ExSFC5/16"-2.36"	2.99	2.36	1.42	1.53	0.3125	0.79	1.02	-	35	0.23
5098-651-A24-236	HSK32ExSFC3/8"-2.36"	2.99	2.36	1.53	1.53	0.375	0.94	1.02	-	65	0.26
5099-651-A12-354	HSK40ExSFC3/16"-3.54"	4.33	3.54	0.79	2.67	0.1875	0.43	0.71	-	18	0.30
5099-651-A16-354	HSK40ExSFC1/4"-3.54"	4.33	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	0.43
5099-651-A20-354	HSK40ExSFC5/16"-3.54"	4.33	3.54	1.42	2.63	0.3125	0.83	1.06	M6	35	0.47
5099-651-A24-354	HSK40ExSFC3/8"-3.54"	4.33	3.54	1.65	2.71	0.375	0.94	1.26	M8	65	0.54
5099-651-A32-354	HSK40ExSFC1/2"-3.54"	4.33	3.54	1.85	2.71	0.5	1.1	1.34	M10	110	0.62
5100-651-A08-315	HSK50ExSFC1/8"-3.15"	4.14	3.15	0.79	1.94	0.125	0.36	0.67	M6	18	0.51
5100-651-A12-354	HSK50ExSFC3/16"-3.54"	4.53	3.54	0.79	2.33	0.1875	0.43	0.79	M6	18	0.51
5100-651-A16-354	HSK50ExSFC1/4"-3.54"	4.53	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	0.61
5100-651-A20-354	HSK50ExSFC5/16"-3.54"	4.53	3.54	1.42	2.4	0.3125	0.83	1.06	M6	35	0.65
5100-651-A24-354	HSK50ExSFC3/8"-3.54"	4.53	3.54	1.65	2.4	0.375	0.94	1.26	M8	65	0.72
5100-651-A32-354	HSK50ExSFC1/2"-3.54"	4.53	3.54	1.85	2.48	0.5	1.1	1.34	M10	110	0.77
5100-651-A40-354	HSK50ExSFC5/8"-3.54"	4.53	3.54	1.97	2.44	0.625	1.06	1.34	M12	200	0.72
5100-651-A48-394	HSK50ExSFC3/4"-3.94"	4.93	3.94	2.04	2.83	0.75	1.42	1.65	M16	320	1.04
5101-651-A12-394	HSK63ExSFC3/16"-3.94"	5.2	3.94	0.79	2.71	0.1875	0.43	0.79	M6	18	0.81
5101-651-A16-394	HSK63ExSFC1/4"-3.94"	5.2	3.94	1.42	2.71	0.25	0.71	1.06	M5	18	0.93
5101-651-A20-394	HSK63ExSFC5/16"-3.94"	5.2	3.94	1.42	2.71	0.3125	0.79	1.06	M6	35	0.96
5101-651-A24-394	HSK63ExSFC3/8"-3.94"	5.2	3.94	1.65	2.71	0.375	0.94	1.26	M8	65	1.06
5101-651-A32-394	HSK63ExSFC1/2"-3.94"	5.2	3.94	1.85	2.71	0.5	1.1	1.34	M10	110	1.12
5101-651-A40-394	HSK63ExSFC5/8"-3.94"	5.2	3.94	1.97	2.71	0.625	1.06	1.34	M12	200	1.07
5101-651-A48-394	HSK63ExSFC3/4"-3.94"	5.2	3.94	2.04	2.71	0.75	1.42	1.65	M16	320	1.31
5101-651-A64-394	HSK63ExSFC1"-3.94"	5.2	3.94	2.04	2.71	1	1.42	1.65	M20	500	1.20

HSK-E/SFCT熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-E-SFCT_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5097-793-003-035	HSK25ExSFCT3-35	48	35	18	21.2	3	9	11.2	-	18	0.05
5097-793-003-045	HSK25ExSFCT3-45	58	45	18	31.2	3	9	12.2	-	18	0.06
5097-793-003-100	HSK25ExSFCT3-100	113	100	18	89	3	9	18	-	18	0.14
5097-793-004-035	HSK25ExSFCT4-35	48	35	20	21.2	4	10	12.2	-	18	0.05
5097-793-004-045	HSK25ExSFCT4-45	58	45	20	33.1	4	10	13.4	-	18	0.06
5097-793-004-100	HSK25ExSFCT4-100	113	100	20	89	4	10	18	-	18	0.15
5097-793-005-035	HSK25ExSFCT5-35	48	35	20	23.1	5	11	13.4	-	18	0.05
5097-793-005-045	HSK25ExSFCT5-45	58	45	20	33.1	5	11	14.4	-	18	0.06
5097-793-005-100	HSK25ExSFCT5-100	113	100	20	89	5	11	20	-	18	0.17
5097-793-006-040	HSK25ExSFCT6-40	53	40	26	28.1	6	12	14.9	-	18	0.06
5097-793-006-045	HSK25ExSFCT6-45	58	45	31	33.1	6	12	15.4	-	18	0.07
5097-793-008-040	HSK25ExSFCT8-40	53	40	26	28.1	8	14	16.9	-	35	0.07
5097-793-008-050	HSK25ExSFCT8-50	63	50	36	39	8	14	18	-	35	0.08
5097-793-010-050	HSK25ExSFCT10-50	63	50	37	39	10	16	18	-	65	0.09
5097-793-012-060	HSK25ExSFCT12-60	73	60	47	49	12	18	20	-	110	0.09
5098-793-003-100	HSK32ExSFCT3-100	116	100	18	77	3	9	18	-	18	0.22
5098-793-004-100	HSK32ExSFCT4-100	116	100	20	75	4	10	18	-	18	0.21
5098-793-005-100	HSK32ExSFCT5-100	116	100	20	77	5	11	20	-	18	0.23
5098-793-006-100	HSK32ExSFCT6-100	116	100	36	78	6	12	20	M5	18	0.24
5098-793-008-100	HSK32ExSFCT8-100	116	100	36	79	8	14	24	-	35	0.27
5098-793-010-100	HSK32ExSFCT10-100	116	100	42	79	10	16	26	M8	65	0.29
5098-793-012-100	HSK32ExSFCT12-100	116	100	47	79	12	18	26	M10	110	0.31
5099-793-003-060	HSK40ExSFCT3-60	80	60	18	35.4	3	9	14.5	-	18	0.23
5099-793-003-070	HSK40ExSFCT3-70	90	70	18	42.4	3	9	13.4	-	18	0.25
5099-793-003-080	HSK40ExSFCT3-80	100	80	18	55.4	3	9	17.7	-	18	0.27
5099-793-003-120	HSK40ExSFCT3-120	140	120	18	95	3	9	18	-	18	0.32
5099-793-004-060	HSK40ExSFCT4-60	80	60	20	35.2	4	10	13.6	-	18	0.23
5099-793-004-070	HSK40ExSFCT4-70	90	70	20	45.2	4	10	14.7	-	18	0.26
5099-793-004-080	HSK40ExSFCT4-80	100	80	20	55.2	4	10	15.7	-	18	0.28
5099-793-004-120	HSK40ExSFCT4-120	140	120	20	95	4	10	18	-	18	0.34
5099-793-005-060	HSK40ExSFCT5-60	80	60	20	35.2	5	11	16.5	-	18	0.25
5099-793-005-070	HSK40ExSFCT5-70	90	70	20	45.4	5	11	18.1	-	18	0.27
5099-793-005-080	HSK40ExSFCT5-80	100	80	20	55.2	5	11	19.7	-	18	0.29
5099-793-005-120	HSK40ExSFCT5-120	140	120	20	95	5	11	20	-	18	0.36
5099-793-006-060	HSK40ExSFCT6-60	80	60	36	35.4	6	12	17.5	M5	18	0.25
5099-793-006-070	HSK40ExSFCT6-70	90	70	36	45.2	6	12	16.7	M5	18	0.27
5099-793-006-080	HSK40ExSFCT6-80	100	80	36	55.4	6	12	20.7	M5	18	0.29
5099-793-006-120	HSK40ExSFCT6-120	140	120	36	95	6	12	20	M5	18	0.37
5099-793-008-060	HSK40ExSFCT8-60	80	60	36	35.2	8	14	17.6	-	35	0.27
5099-793-008-070	HSK40ExSFCT8-70	90	70	36	45.2	8	14	18.7	M6	35	0.29
5099-793-008-080	HSK40ExSFCT8-80	100	80	36	55.4	8	14	22.7	M6	35	0.31
5099-793-008-120	HSK40ExSFCT8-120	140	120	36	89	8	14	24	M6	35	0.41
5099-793-010-060	HSK40ExSFCT10-60	80	60	42	35.4	10	16	21.5	-	65	0.29
5099-793-010-070	HSK40ExSFCT10-70	90	70	42	45.2	10	16	20.7	-	65	0.31
5099-793-010-080	HSK40ExSFCT10-80	100	80	42	55.4	10	16	24.7	M8	65	0.33
5099-793-010-120	HSK40ExSFCT10-120	140	120	42	89	10	16	26	M8	65	0.45
5099-793-012-060	HSK40ExSFCT12-60	80	60	47	39.1	12	18	24.1	M10	110	0.27
5099-793-012-070	HSK40ExSFCT12-70	90	70	47	49.1	12	18	25.7	M10	110	0.32
5099-793-012-080	HSK40ExSFCT12-80	100	80	47	59.1	12	18	27.3	M10	110	0.34
5099-793-012-120	HSK40ExSFCT12-120	140	120	47	89	12	18	28	M10	110	0.49
5100-793-003-070	HSK50ExSFCT3-70	95	70	19	34.5	3	9	12.6	M6	18	0.44
5100-793-003-080	HSK50ExSFCT3-80	105	80	19	44.5	3	9	13.6	M6	18	0.46
5100-793-003-120	HSK50ExSFCT3-120	145	120	20	89	3	9	18	-	18	0.51
5100-793-004-070	HSK50ExSFCT4-70	95	70	22	34.5	4	10	13.6	M6	18	0.45
5100-793-004-080	HSK50ExSFCT4-80	105	80	22	44.5	4	10	14.6	M6	18	0.46
5100-793-004-120	HSK50ExSFCT4-120	145	120	20	89	4	10	18	-	18	0.53
5100-793-005-070	HSK50ExSFCT5-70	95	70	25	34.5	5	11	14.6	M6	18	0.45
5100-793-005-080	HSK50ExSFCT5-80	105	80	25	44.5	5	11	15.6	M6	18	0.47
5100-793-005-100	HSK50ExSFCT5-100	125	100	25	64.5	5	11	17.7	M6	18	0.51
5100-793-005-120	HSK50ExSFCT5-120	145	120	20	89	5	11	20	-	18	0.55
5100-793-006-070	HSK50ExSFCT6-70	95	70	36	34.5	6	12	15.6	M5	18	0.46
5100-793-006-080	HSK50ExSFCT6-80	105	80	36	44.5	6	12	16.6	M5	18	0.48
5100-793-006-100	HSK50ExSFCT6-100	125	100	36	64.5	6	12	18.7	M5	18	0.52
5100-793-006-120	HSK50ExSFCT6-120	145	120	36	89	6	12	20	M5	18	0.56
5100-793-008-070	HSK50ExSFCT8-70	95	70	36	34.5	8	14	17.6	M6	35	0.47
5100-793-008-080	HSK50ExSFCT8-80	105	80	36	44.5	8	14	18.6	M6	35	0.49
5100-793-008-100	HSK50ExSFCT8-100	125	100	36	64.5	8	14	20.7	M6	35	0.54
5100-793-008-120	HSK50ExSFCT8-120	145	120	36	78	8	14	24	M6	35	0.61
5100-793-010-070	HSK50ExSFCT10-70	95	70	42	35.9	10	16	19.8	M8	65	0.48
5100-793-010-080	HSK50ExSFCT10-80	105	80	42	46.4	10	16	20.8	M8	65	0.50
5100-793-010-100	HSK50ExSFCT10-100	125	100	42	66.4	10	16	22.9	M8	65	0.57
5100-793-010-120	HSK50ExSFCT10-120	145	120	42	78	10	16	26	M8	65	0.64
5100-793-012-070	HSK50ExSFCT12-70	95	70	47	35.7	12	18	21.8	M10	110	0.48
5100-793-012-080	HSK50ExSFCT12-80	105	80	47	46.4	12	18	22.8	M10	110	0.51
5100-793-012-100	HSK50ExSFCT12-100	125	100	47	66.4	12	18	24.9	M10	110	0.59
5100-793-012-120	HSK50ExSFCT12-120	145	120	47	78	12	18	28	M10	110	0.67
5100-793-014-120	HSK50ExSFCT14-120	145	120	47	78	14	20	30	M10	150	0.72
5100-793-016-120	HSK50ExSFCT16-120	145	120	50	78	16	22	32	M12	200	0.75
5100-793-018-120	HSK50ExSFCT18-120	145	120	52	91	18	24	32	M12	250	0.77
5100-793-020-160	HSK50ExSFCT20-160	185	160	52	131	20	26	35	M16	320	1.10
5100-793-025-160	HSK50ExSFCT25-160	185	160	47	132	25	31	40	M20	500	1.30
5101-793-003-120	HSK63ExSFCT3-120	152	120	18	91	3	9	18	-	18	0.79
5101-793-004-120	HSK63ExSFCT4-120	152	120	20	91	4	10	18	-	18	0.80
5101-793-005-120	HSK63ExSFCT5-120	152	120	20	91	5	11	20	-	18	0.81
5101-793-006-120	HSK63ExSFCT6-120	152	120	36	89	6	12	20	M5	18	0.83
5101-793-008-120	HSK63ExSFCT8-120	152	120	36	83	8	14	24	M6	35	0.87
5101-793-010-120	HSK63ExSFCT10-120	152	120	42	83	10	16	26	M8	65	0.91
5101-793-012-120	HSK63ExSFCT12-120	152	120	47	83	12	18	28	M10	110	0.94
5101-793-014-120	HSK63ExSFCT14-120	152	120	47	83	14	20	30	M10	150	0.98
5101-793-016-120	HSK63ExSFCT16-120	152	120	50	83	16	22	32	M12	200	1.02
5101-793-018-120	HSK63ExSFCT18-120	152	120	52	89	18	24	32	M12	250	1.05
5101-793-020-160	HSK63ExSFCT20-160	192	160	58	129	20	26	39	M16	320	1.41
5101-793-025-160	HSK63ExSFCT25-160	192	160	58	123	25	31	45	M20	500	1.60

HSK-F/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-F-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	最小扭力 N.m	WEIGHT (KGS)
5102-651-003-080	HSK50FxSFC3-80	100	80	18	49	3	9	16.78	-	18	0.45
5102-651-004-080	HSK50FxSFC4-80	100	80	20	49	4	10	17.78	-	18	0.45
5102-651-005-080	HSK50FxSFC5-80	100	80	20	49	5	16	22	-	18	0.52
5102-651-006-080	HSK50FxSFC6-80	100	80	36	49	6	21	27	M5	18	0.59
5102-651-008-080	HSK50FxSFC8-80	100	80	36	49	8	21	27	M6	35	0.58
5102-651-010-085	HSK50FxSFC10-85	105	85	42	54	10	24	32	M8	65	0.66
5102-651-012-090	HSK50FxSFC12-90	110	90	47	59	12	24	32	M10	110	0.67
5102-651-014-090	HSK50FxSFC14-90	110	90	47	59	14	24	32	M10	150	0.66
5102-651-016-095	HSK50FxSFC16-95	115	95	50	67	16	27	34	M12	200	0.73
5102-651-018-095	HSK50FxSFC18-95	115	95	50	68	18	33	42	M12	250	0.90
5102-651-020-100	HSK50FxSFC20-100	120	100	52	73	20	33	42	M16	320	0.91
5103-651-003-080	HSK63FxSFC3-80	105	80	18	45	3	9	18	-	18	0.69
5103-651-004-080	HSK63FxSFC4-80	105	80	20	44	4	10	17.05	-	18	0.71
5103-651-004-095	HSK63FxSFC4-95	120	95	10	59	4	10	19.4	-	18	0.73
5103-651-005-080	HSK63FxSFC5-80	105	80	20	49	5	16	22	-	18	0.77
5103-651-006-080	HSK63FxSFC6-80	105	80	36	49	6	21	27	M5	18	0.84
5103-651-006-095	HSK63FxSFC6-95	120	95	36	64	6	21	31.1	M5	18	0.89
5103-651-006-130	HSK63FxSFC6-130	155	130	36	94	6	21	27	M5	18	1.04
5103-651-008-080	HSK63FxSFC8-80	105	80	36	49	8	21	27	M6	35	0.83
5103-651-008-130	HSK63FxSFC8-130	155	130	36	94	8	21	27	M6	35	1.03
5103-651-010-080	HSK63FxSFC10-80	105	80	42	49	10	24	31.7	M8	65	0.90
5103-651-010-085	HSK63FxSFC10-85	110	85	42	57	10	24	32	M8	65	0.91
5103-651-010-095	HSK63FxSFC10-95	120	95	42	64	10	24	34.1	M8	65	0.97
5103-651-010-130	HSK63FxSFC10-130	155	130	42	94	10	24	32	M8	65	1.15
5103-651-012-090	HSK63FxSFC12-90	115	90	47	59	12	24	32	M10	110	0.93
5103-651-012-130	HSK63FxSFC12-130	155	130	47	94	12	24	32	M10	110	1.13
5103-651-014-090	HSK63FxSFC14-90	115	90	47	59	14	27	34	M10	150	0.97
5103-651-016-095	HSK63FxSFC16-95	120	95	50	64	16	27	34	M12	200	0.98
5103-651-016-130	HSK63FxSFC16-130	155	130	50	89	16	27	34	M12	200	1.18
5103-651-018-095	HSK63FxSFC18-95	120	95	50	64	18	33	42	M12	250	1.16
5103-651-020-100	HSK63FxSFC20-100	125	100	52	71	20	33	42	M16	320	1.16
5103-651-020-130	HSK63FxSFC20-130	155	130	52	89	20	33	42	M16	320	1.45
5103-651-025-115	HSK63FxSFC25-115	140	115	58	88	25	44	53	M20	500	1.74
5103-651-025-130	HSK63FxSFC25-130	155	130	58	104	25	44	53	M20	500	1.98
5103-651-032-120	HSK63FxSFC32-120	145	120	58	93	32	44	53	M20	550	1.68
英制
5102-651-A12-354	HSK50FxSFC3/16"-3.54"	4.33	3.54	0.79	2.34	0.1875	0.43	0.79	-	18	0.48
5102-651-A16-354	HSK50FxSFC1/4"-3.54"	4.33	3.54	1.42	2.04	0.25	0.71	1.03	M5	18	0.59
5102-651-A20-354	HSK50FxSFC5/16"-3.54"	4.33	3.54	1.42	2.32	0.3125	0.79	1.06	M6	35	0.61
5102-651-A24-354	HSK50FxSFC3/8"-3.54"	4.33	3.54	1.53	2.32	0.375	0.94	1.26	M8	65	0.69
5102-651-A32-354	HSK50FxSFC1/2"-3.54"	4.33	3.54	1.85	2.32	0.5	1.1	1.34	M10	110	0.75
5102-651-A40-354	HSK50FxSFC5/8"-3.54"	4.33	3.54	1.97	2.32	0.625	1.06	1.34	M12	200	0.70
5102-651-A48-394	HSK50FxSFC3/4"-3.94"	4.73	3.94	2.04	2.87	0.75	1.26	1.65	M16	320	0.90
5103-651-A12-394	HSK63FxSFC3/16"-3.94"	4.92	3.94	0.79	2.73	0.1875	0.43	0.85	-	18	0.76
5103-651-A16-394	HSK63FxSFC1/4"-3.94"	4.92	3.94	1.42	2.71	0.25	0.71	1.06	M5	18	0.89
5103-651-A20-394	HSK63FxSFC5/16"-3.94"	4.92	3.94	1.42	2.71	0.3125	0.79	1.06	M6	35	0.91
5103-651-A24-394	HSK63FxSFC3/8"-3.94"	4.92	3.94	1.65	2.83	0.375	0.94	1.26	M8	65	1.00
5103-651-A32-394	HSK63FxSFC1/2"-3.94"	4.92	3.94	1.85	2.79	0.5	1.1	1.38	M10	110	1.68
5103-651-A40-394	HSK63FxSFC5/8"-3.94"	4.92	3.94	1.97	2.79	0.625	1.06	1.34	M12	200	1.02
5103-651-A48-394	HSK63FxSFC3/4"-3.94"	4.92	3.94	2.04	2.79	0.75	1.26	1.65	M16	320	1.15
5103-651-A64-394	HSK63FxSFC1"-3.94"	4.92	3.94	2.28	2.72	1	1.42	1.65	M20	500	1.12

HSK-F/SFCT熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/HSK-F-SFCT_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	d4	T	最小扭力 N.m	WEIGHT (KGS)
5102-793-003-120	HSK50FxSFCT3-120	140	120	18	89	3	9	18	-	-	18	0.50
5102-793-004-120	HSK50FxSFCT4-120	140	120	20	89	4	10	18	-	-	18	0.51
5102-793-005-120	HSK50FxSFCT5-120	140	120	20	89	5	11	20	-	-	18	0.53
5102-793-006-120	HSK50FxSFCT6-120	140	120	36	89	6	12	20	-	M5	18	0.54
5102-793-008-120	HSK50FxSFCT8-120	140	120	36	83	8	14	24	22.7	M6	35	0.58
5102-793-010-120	HSK50FxSFCT10-120	140	120	42	83	10	16	26	24.7	M8	65	0.61
5102-793-012-120	HSK50FxSFCT12-120	140	120	47	83	12	18	28	26.7	M10	110	0.65
5102-793-014-120	HSK50FxSFCT14-120	140	120	47	83	14	20	30	28.7	M10	150	0.69
5102-793-016-120	HSK50FxSFCT16-120	140	120	50	83	16	22	32	30.7	M12	200	0.72
5102-793-018-120	HSK50FxSFCT18-120	140	120	50	89	18	24	32	-	M12	250	0.76
5102-793-020-160	HSK50FxSFCT20-160	180	160	52	129	20	26	35	-	M16	320	1.10
5103-793-003-120	HSK63FxSFCT3-120	145	120	18	84	3	9	17.86	-	-	18	0.75
5103-793-004-120	HSK63FxSFCT4-120	145	120	20	89	4	10	18	-	-	18	0.76
5103-793-005-120	HSK63FxSFCT5-120	145	120	20	89	5	11	20	-	-	18	0.78
5103-793-006-120	HSK63FxSFCT6-120	145	120	36	89	6	12	20	-	M5	18	0.79
5103-793-008-120	HSK63FxSFCT8-120	145	120	36	78	8	14	24	22.2	M6	35	0.84
5103-793-010-120	HSK63FxSFCT10-120	145	120	42	84	10	16	24.86	-	M8	65	0.88
5103-793-012-120	HSK63FxSFCT12-120	145	120	47	83	12	18	28	26.7	M10	110	0.90
5103-793-014-120	HSK63FxSFCT14-120	145	120	47	83	14	20	30	28.7	M10	150	0.94
5103-793-016-120	HSK63FxSFCT16-120	145	120	52	83	16	22	32	30.7	M12	200	0.97
5103-793-018-120	HSK63FxSFCT18-120	145	120	47	89	18	24	32	-	M12	250	1.02
5103-793-020-160	HSK63FxSFCT20-160	185	160	47	129	20	26	35	-	M16	320	1.35
5103-793-025-160	HSK63FxSFCT25-160	185	160	58	129	25	31	40	-	M20	500	1.50
5103-793-032-160	HSK63FxSFCT32-160	185	160	58	129	32	38	49	-	M20	550	1.86

PSC/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/PSC-SFC_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	T	WEIGHT (KGS)
5140-651-006-060	PSC32xSFC6-60	79	60	36	40	6	12	18	M5	0.17
5140-651-008-107	PSC32xSFC8-107	126	107	36	61	8	20	26	M6	0.43
5140-651-010-095	PSC32xSFC10-95	114	95	42	81	10	24	32	M8	0.50
5140-651-012-084	PSC32xSFC12-84	103	84	47	69	12	24	32	M10	0.41
5141-651-006-075	PSC40xSFC6-75	99	75	36	53	6	20	26	M5	0.40
5141-651-008-075	PSC40xSFC8-75	99	75	36	53	8	20	26	M6	0.40
5141-651-010-075	PSC40xSFC10-75	99	75	42	54	10	24	32	M8	0.50
5141-651-012-075	PSC40xSFC12-75	99	75	47	54	12	24	32	M10	0.50
5141-651-014-080	PSC40xSFC14-80	104	80	47	59	14	27	34	M10	0.60
5141-651-016-080	PSC40xSFC16-80	104	80	50	59	16	27	34	M12	0.50
5141-651-018-080	PSC40xSFC18-80	104	80	52	59	18	33	42	M12	0.70
5141-651-020-085	PSC40xSFC20-85	109	85	52	64	20	33	42	M16	0.70
5142-651-006-075	PSC50xSFC6-75	105	75	36	53	6	20	26	M5	0.60
5142-651-008-075	PSC50xSFC8-75	105	75	36	53	8	20	26	M6	0.60
5142-651-010-075	PSC50xSFC10-75	105	75	42	54	10	24	32	M8	0.70
5142-651-012-075	PSC50xSFC12-75	105	75	47	54	12	24	32	M10	0.60
5142-651-014-080	PSC50xSFC14-80	110	80	47	59	14	27	34	M10	0.70
5142-651-016-080	PSC50xSFC16-80	110	80	50	59	16	27	34	M12	0.70
5142-651-018-080	PSC50xSFC18-80	110	80	52	59	18	33	42	M12	0.80
5142-651-020-085	PSC50xSFC20-85	115	85	52	64	20	33	42	M16	0.90
5142-651-025-090	PSC50xSFC25-90	120	90	58	68	25	44	53	M20	1.20
5143-651-006-080	PSC63xSFC6-80	118	80	36	53	6	20	26	M5	1.00
5143-651-008-080	PSC63xSFC8-80	118	80	36	53	8	20	26	M6	0.90
5143-651-010-080	PSC63xSFC10-80	118	80	42	53	10	24	32	M8	1.00
5143-651-012-080	PSC63xSFC12-80	118	80	47	56	12	24	32	M10	1.00
5143-651-014-085	PSC63xSFC14-85	123	85	47	58	14	27	34	M10	1.10
5143-651-016-085	PSC63xSFC16-85	123	85	50	58	16	27	34	M12	1.10
5143-651-018-085	PSC63xSFC18-85	123	85	52	58	18	33	42	M12	1.30
5143-651-020-085	PSC63xSFC20-85	123	85	52	58	20	33	42	M16	1.20
5143-651-025-090	PSC63xSFC25-90	128	90	58	66	25	44	53	M20	1.50
5143-651-032-095	PSC63xSFC32-95	133	95	58	71	32	44	53	M20	1.50
5144-651-010-090	PSC80xSFC10-90	138	90	42	55	10	24	32	M8	1.96
5144-651-012-090	PSC80xSFC12-90	138	90	47	55	12	24	32	M10	1.94
5144-651-016-095	PSC80xSFC16-95	143	95	50	60	16	27	34	M12	1.99
5144-651-020-095	PSC80xSFC20-95	143	95	52	60	20	33	42	M16	2.10
5144-651-025-100	PSC80xSFC25-100	148	100	58	65	25	44	53	M20	2.37
英制
5141-651-A16-205	PSC40xSFC1/4''-2.05''	2.99	2.05	1.41	1.19	0.3125	0.83	1.01	-	0.30
5141-651-A16-295	PSC40xSFC1/4"-2.95"	3.9	2.95	1.41	2.09	0.3125	0.83	1.06	M5	0.40
5141-651-A20-205	PSC40xSFC5/16''-2.05''	2.99	2.05	1.41	1.19	0.3125	0.83	1.01	-	0.40
5141-651-A20-295	PSC40xSFC5/16"-2.95"	3.9	2.95	1.41	2.09	0.3125	0.83	1.06	M6	0.60
5141-651-A24-295	PSC40xSFC3/8"-2.95"	3.9	2.95	1.61	2.13	0.375	0.95	1.26	M8	0.70
5141-651-A32-295	PSC40xSFC1/2"-2.95"	3.9	2.95	1.81	2.13	0.5	1.1	1.34	M10	0.60
5141-651-A40-315	PSC40xSFC5/8"-3.15"	4.09	3.15	1.93	2.32	0.625	1.06	1.34	M12	0.70
5141-651-A48-335	PSC40xSFC3/4"-3.35"	4.29	3.35	2.04	2.52	0.75	1.26	1.65	M16	0.70
5142-651-A16-295	PSC50xSFC1/4"-2.95"	4.13	2.95	1.41	1.97	0.3125	0.83	1.06	M5	0.60
5142-651-A20-295	PSC50xSFC5/16"-2.95"	4.13	2.95	1.41	1.97	0.3125	0.83	1.06	M6	0.60
5142-651-A24-295	PSC50xSFC3/8"-2.95"	4.13	2.95	1.61	2.87	0.375	0.95	1.26	M8	0.70
5142-651-A32-295	PSC50xSFC1/2"-2.95"	4.13	2.95	1.81	1.97	0.5	1.1	1.34	M10	0.60
5142-651-A40-315	PSC50xSFC5/8"-3.15"	4.33	3.15	1.93	2.17	0.625	1.06	1.34	M12	0.70
5142-651-A48-335	PSC50xSFC3/4"-3.35"	4.53	3.35	2.04	2.48	0.75	1.26	1.65	M16	0.90
5142-651-A64-354	PSC50xSFC1"-3.54"	4.72	3.54	2.24	2.7	1	1.73	2.08	M16	1.20
5143-651-A16-315	PSC63xSFC1/4"-3.15"	4.65	3.15	1.41	2.87	0.3125	0.83	1.06	M5	1.00
5143-651-A20-315	PSC63xSFC5/16"-3.15"	4.65	3.15	1.41	2.87	0.3125	0.83	1.06	M6	0.90
5143-651-A24-315	PSC63xSFC3/8"-3.15"	4.65	3.15	1.61	2.87	0.375	0.95	1.26	M8	0.90
5143-651-A32-315	PSC63xSFC1/2"-3.15"	4.65	3.15	1.81	2.87	0.5	1.1	1.34	M10	1.00
5143-651-A40-335	PSC63xSFC5/8"-3.35"	4.84	3.35	1.93	2.28	0.625	1.06	1.34	M12	1.10
5143-651-A48-335	PSC63xSFC3/4"-3.35"	4.84	3.35	2.04	2.28	0.75	1.26	1.65	M16	1.20
5143-651-A64-354	PSC63xSFC1"-3.54"	5.04	3.54	2.24	2.6	1	1.73	2.08	M16	1.50
5143-651-A72-374	PSC63xSFC1-1/4"-3.74"	5.24	3.74	2.4	2.8	1.25	1.73	2.08	M16	1.50
5144-651-A24-354	PSC80xSFC3/8''-3.54''	5.43	3.54	1.65	2.17	0.375	0.95	1.26	M8	1.96
5144-651-A32-354	PSC80xSFC1/2''-3.54''	5.43	3.54	1.85	2.17	0.5	1.10	1.34	M10	1.94
5144-651-A40-374	PSC80xSFC5/8''-3.74''	5.63	3.74	1.97	2.36	0.625	1.06	1.34	M12	1.99
5144-651-A48-374	PSC80xSFC3/4''-3.74''	5.63	3.74	2.04	2.36	0.75	1.26	1.65	M16	2.10

ISO/SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/ISO-SFC.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	d3	T	WEIGHT (KGS)
5111-651-003-060	ISO20xSFC3-60	93.3	60	18	2	8	3	9	21.642	M6	0.40
5111-651-004-060	ISO20xSFC4-60	93.3	60	20	2	8	4	10	21.642	M6	0.40
5111-651-005-060	ISO20xSFC5-60	93.3	60	20	2	8	5	16	21.642	M6	0.40
5111-651-006-060	ISO20xSFC6-60	93.3	60	36	2	8	6	21	21.642	M5	0.40
5112-651-003-060	ISO25xSFC3-60	92.7	60	18	2.95	8	3	9	24.91	M6	0.40
5112-651-004-060	ISO25xSFC4-60	92.7	60	20	2.95	8	4	10	24.91	M6	0.42
5112-651-005-060	ISO25xSFC5-60	92.7	60	20	2.95	8	5	16	24.91	M6	0.42
5112-651-006-060	ISO25xSFC6-60	97.7	60	36	2.95	8	6	21	24.91	M5	0.42
5112-651-008-060	ISO25xSFC8-60	97.7	60	36	2.95	8	8	21	24.91	M6	0.43
5112-651-010-060	ISO25xSFC10-60	97.7	60	42	2.95	8	10	24	24.91	M8	0.44
5112-651-012-060	ISO25xSFC12-60	97.7	60	47	2.95	8	12	24	24.91	M10	0.44
5113-651-003-060	ISO30xSFC3-60	107.8	60	18	3.2	15.9	3	9	31.75	M6	1.00
5113-651-004-060	ISO30xSFC4-60	107.8	60	20	3.2	15.9	4	10	31.75	M6	1.00
5113-651-005-060	ISO30xSFC5-60	107.8	60	20	3.2	15.9	5	16	31.75	M6	1.10
5113-651-006-060	ISO30xSFC6-60	107.8	60	36	3.2	15.9	6	21	31.75	M5	1.10
5113-651-008-080	ISO30xSFC8-80	117.8	80	36	3.2	15.9	8	21	31.75	M6	1.10
5113-651-010-080	ISO30xSFC10-80	117.8	80	42	3.2	15.9	10	24	31.75	M8	1.10
5113-651-012-080	ISO30xSFC12-80	117.8	80	47	3.2	15.9	12	24	31.75	M10	1.10
5113-651-014-080	ISO30xSFC14-80	117.8	80	47	3.2	15.9	14	24	31.75	M10	1.10
5113-651-016-080	ISO30xSFC16-80	117.8	80	50	3.2	15.9	16	27	31.75	M12	1.10
英制
5111-651-A08-250	ISO20xSFC1/8"-2.5"	3.81	2.5	0.71	0.079	0.315	0.125	0.36	0.852	-	0.40
5111-651-A12-250	ISO20xSFC3/16"-2.5"	3.81	2.5	0.79	0.079	0.315	0.1875	0.43	0.852	-	0.40
5111-651-A16-250	ISO20xSFC1/4"-2.5"	3.81	2.5	1.42	0.079	0.315	0.25	0.71	0.852	M5	0.40
5111-651-A20-250	ISO20xSFC5/16"-2.5"	3.81	2.5	1.42	0.079	0.315	0.3125	0.79	0.852	M6	0.40
5112-651-A08-250	ISO25xSFC1/8"-2.5"	3.98	2.5	0.71	0.116	0.315	0.125	0.36	0.981	-	0.40
5112-651-A12-250	ISO25xSFC3/16"-2.5"	3.98	2.5	0.79	0.116	0.315	0.1875	0.43	0.981	-	0.42
5112-651-A16-250	ISO25xSFC1/4"-2.5"	3.99	2.5	1.42	0.116	0.315	0.25	0.71	0.981	M5	0.42
5112-651-A20-250	ISO25xSFC5/16"-2.5"	3.98	2.5	1.42	0.116	0.315	0.3125	0.79	0.981	M6	0.42
5112-651-A24-250	ISO25xSFC3/8"-2.5"	3.98	2.5	1.65	0.116	0.315	0.375	0.94	0.981	M8	0.43
5113-651-A08-250	ISO30xSFC1/8"-2.5"	4.39	2.5	0.71	0.126	0.626	0.125	0.36	1.25	-	0.44
5113-651-A12-250	ISO30xSFC3/16"-2.5"	4.39	2.5	0.79	0.126	0.626	0.1875	0.43	1.25	-	0.44
5113-651-A16-250	ISO30xSFC1/4"-2.5"	4.38	2.5	1.42	0.126	0.626	0.25	0.71	1.25	M5	1.00
5113-651-A20-315	ISO30xSFC5/16"-3.15"	4.64	3.15	1.42	0.126	0.626	0.3125	0.79	1.25	M6	1.00
5113-651-A24-315	ISO30xSFC3/8"-3.15"	4.64	3.15	1.65	0.126	0.626	0.375	0.94	1.25	M8	1.10
5113-651-A32-315	ISO30xSFC1/2"-3.15"	4.64	3.15	1.85	0.126	0.626	0.5	1.1	1.25	M10	1.10
5113-651-A40-315	ISO30xSFC5/8"-3.15"	4.64	3.15	1.97	0.126	0.626	0.625	1.06	1.25	M12	1.10

SLF熱膨脹筒夾刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SLF_figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	d3	T	WEIGHT (KGS)
5257-S12-01203-038	SLF12xC3-38	93	38	35.8	3	8	13.6	-	0.15
5257-S12-01204-038	SLF12xC4-38	93	38	35.8	4	8	13.6	-	0.16
5257-S12-01205-038	SLF12xC5-38	93	38	36.3	5	9	14.7	M4 x 0.7P	0.16
5257-S12-01206-038	SLF12xC6-38	93	38	36.9	6	10	15.8	M5 x 0.8P	0.18
5257-S12-01208-038	SLF12xC8-38	93	38	37.9	8	12	17.9	M6 x 1.0P	0.18
5257-S12-01210-038	SLF12xC10-38	93	38	25.4	10	14	18	M8 x 1.25P	0.18
5257-S12-02003-040	SLF20xC3-40	108	40	33.1	3	8	13.2	-	0.16
5257-S12-02004-040	SLF20xC4-40	108	40	33.1	4	8	13.2	-	0.18
5257-S12-02005-040	SLF20xC5-40	108	40	33.6	5	9	14.29	M4 x 0.7P	0.18
5257-S12-02006-040	SLF20xC6-40	108	40	34.1	6	10	15.3	M8 x 1.25P	0.18
5257-S12-02008-040	SLF20xC8-40	108	40	35.2	8	12	17.5	M8 x 1.25P	0.18
5257-S12-02010-040	SLF20xC10-40	108	40	36.3	10	14	19.7	M8 x 1.25P	0.20
5257-S12-02012-040	SLF20xC12-40	108	40	37.4	12	16	21.8	M10 x 1.5P	0.20
5257-S12-02014-040	SLF20xC14-40	108	40	38.5	14	18	24.1	M10 x 1.5P	0.21
5257-S12-02016-040	SLF20xC16-40	108	40	39.6	16	20	26.2	M12 x 1.75P	0.22
英制
5257-S12-012A08-150	SLF12xC1/8"-1.496"	3.661	1.496	1.41	0.125	0.315	0.536	-	0.16
5257-S12-012A12-150	SLF12xC3/16"-1.496"	3.661	1.496	1.41	0.1875	0.315	0.536	-	0.16
5257-S12-012A16-150	SLF12xC1/4"-1.496"	3.661	1.496	1.453	0.25	0.394	0.622	M8 x 1.25P	0.18
5257-S12-012A20-150	SLF12xC5/16"-1.496"	3.661	1.496	1.495	0.3125	0.472	0.708	M8 x 1.25P	0.18
5257-S12-012A24-150	SLF12xC3/8"-1.496"	3.661	1.496	1.41	0.375	0.551	0.708	M8 x 1.25P	0.18
5257-S12-020A08-158	SLF20xC1/8"-1.575"	4.252	1.575	1.303	0.125	0.315	0.52	-	0.16
5257-S12-020A12-158	SLF20xC3/16"-1.575"	4.252	1.575	1.303	0.1875	0.315	0.52	-	0.18
5257-S12-020A16-158	SLF20xC1/4"-1.575"	4.252	1.575	1.346	0.25	0.394	0.605	M8 x 1.25P	0.18
5257-S12-020A20-158	SLF20xC5/16"-1.575"	4.252	1.575	1.388	0.3125	0.472	0.691	M8 x 1.25P	0.18
5257-S12-020A24-158	SLF20xC3/8"-1.575"	4.252	1.575	1.392	0.375	0.551	0.776	M8 x 1.25P	0.18
5257-S12-020A32-158	SLF20xC1/2"-1.575"	4.252	1.575	1.474	0.5	0.63	0.861	M10 x 1.5P	0.20
5257-S12-020A40-158	SLF20xC5/8"-1.575"	4.252	1.575	1.517	0.625	0.709	0.947	M12 x 1.75P	0.20

直柄SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SFC_SHRINK_FIT_CHUCK-4.5_figure.jpg

MODEL NO.	TYPE	C	L	l2	d	d1	T	Ɵ	WEIGHT (KGS)
5272-651-01003-120	C10xSFC3-120	10	120	20	3	9	-	4.5゜	0.12
5272-651-01004-120	C10xSFC4-120	10	120	20	4	10	-	-	0.12
5272-651-01005-120	C10xSFC5-120	10	120	20	5	10	M4 x 0.7P	-	0.12
5272-651-01203-120	C12xSFC3-120	12	120	20	3	9	-	4.5゜	0.12
5272-651-01204-120	C12xSFC4-120	12	120	20	4	10	-	4.5゜	0.12
5272-651-01205-120	C12xSFC5-120	12	120	20	5	11	M4 x 0.7P	4.5゜	0.12
5272-651-01206-120	C12xSFC6-120	12	120	36	6	12	M5 x 0.8P	-	0.12
5272-651-01603-120	C16xSFC3-120	16	120	20	3	9	M5 x 0.8P	4.5゜	0.12
5272-651-01604-120	C16xSFC4-120	16	120	20	4	10	M6 x 1.0P	4.5゜	0.12
5272-651-01605-120	C16xSFC5-120	16	120	20	5	11	M6 x 1.0P	4.5゜	0.12
5272-651-01606-120	C16xSFC6-120	16	120	36	6	12	M5 x 0.8P	4.5゜	0.12
5272-651-01608-120	C16xSFC8-120	16	120	36	8	14	M8 x 1.25P	4.5゜	0.13
5272-651-01610-120	C16xSFC10-120	16	120	42	10	16	M8 x 1.25P	-	0.12
5272-651-01612-120	C16xSFC12-120	16	120	47	12	16	M10 x 1.5P	-	0.16
5272-651-02003-120	C20xSFC3-120	20	120	20	3	9	-	4.5゜	0.16
5272-651-02004-120	C20xSFC4-120	20	120	20	4	10	-	4.5゜	0.17
5272-651-02005-120	C20xSFC5-120	20	120	20	5	11	M6 x 1.0P	4.5゜	0.17
5272-651-02006-120	C20xSFC6-120	20	120	36	6	12	M5 x 0.8P	4.5゜	0.17
5272-651-02008-120	C20xSFC8-120	20	120	36	8	14	M6 x 1.0P	4.5゜	0.19
5272-651-02010-120	C20xSFC10-120	20	120	42	10	16	M8 x 1.25P	4.5゜	0.20
5272-651-02012-120	C20xSFC12-120	20	120	47	12	18	M10 x 1.5P	4.5゜	0.20
5272-651-02014-120	C20xSFC14-120	20	120	47	14	20	M12 x 1.75P	-	0.29
5272-651-02016-120	C20xSFC16-120	20	120	47	16	20	M12 x 1.75P	-	0.30
5272-651-03206-120	C32xSFC6-120	32	120	36	6	12	M5 x 0.8P	4.5゜	0.26
5272-651-03208-120	C32xSFC8-120	32	120	36	8	14	M6 x 1.0P	4.5゜	0.28
5272-651-03210-120	C32xSFC10-120	32	120	42	10	16	M8 x 1.25P	4.5゜	0.30
5272-651-03212-120	C32xSFC12-120	32	120	47	12	18	M10 x 1.5P	4.5゜	0.32
5272-651-03216-120	C32xSFC16-120	32	120	50	16	22	M12 x 1.75P	4.5゜	0.34
英制
5272-651-A4003-630	C5/8"xSFC3mm-6.3"	0.625	6.3	0.79	3mm	0.394	-	4.5゜	0.18
5272-651-A40A08-630	C5/8"xSFC1/8"-6.3"	0.625	6.3	0.79	0.125	0.394	-	4.5゜	0.18
5272-651-A40A12-630	C5/8"xSFC3/16"-6.3"	0.625	6.3	0.79	0.1875	0.394	-	4.5゜	0.20
5272-651-A40A16-630	C5/8"xSFC1/4"-6.3"	0.625	6.3	0.79	0.25	0.375	-	4.5゜	0.24
5272-651-A40A20-630	C5/8"xSFC5/16"-6.3"	0.625	6.3	1.417	0.3125	0.472	M6 x 1.0P	4.5゜	0.25
5272-651-A48A16-630	C3/4"xSFC1/4"-6.3"	0.75	6.3	1.417	0.25	0.551	M6 x 1.0P	4.5゜	0.25
5272-651-A48A24-630	C3/4"xSFC3/8"-6.3"	0.75	6.3	1.654	0.375	0.551	M8 x 1.25P	4.5゜	0.25
5272-651-A64A24-630	C1"xSFC3/8"-6.3"	1	6.3	1.654	0.375	0.787	M8 x 1.25P	4.5゜	0.25
5272-651-A64A32-630	C1"xSFC1/2"-6.3"	1	6.3	1.850	0.5	0.787	M10 x 1.5P	4.5゜	0.25
5272-651-A64A40-630	C1"xSFC5/8"-6.3"	1	6.3	1.969	0.625	0.866	M12 x 1.75P	4.5゜	0.25

直柄SFC熱膨脹刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/SFC_SHRINK_FIT_CHUCK-3_figure.jpg

MODEL NO.	TYPE	C	L	l2	d	d1	T	Ɵ	WEIGHT (KGS)
5272-651-01604-150	C16xSFC4-150	16	150	20	4	10	-	3゜	0.18
5272-651-01606-150	C16xSFC6-150	16	150	36	6	12	M5 x 0.8P	3゜	0.18
5272-651-01608-150	C16xSFC8-150	16	150	36	8	14	M6 x 1.0P	3゜	0.18
5272-651-02006-150	C20xSFC6-150	20	150	36	6	12	-	3゜	0.25
5272-651-02008-150	C20xSFC8-150	20	150	36	8	14	-	3゜	0.26
5272-651-02010-150	C20xSFC10-150	20	150	42	10	16	-	3゜	0.24
5272-651-02506-250	C25xSFC6-250	25	250	36	6	12	-	3゜	0.64
5272-651-02508-250	C25xSFC8-250	25	250	36	8	14	-	3゜	0.66
5272-651-02510-250	C25xSFC10-250	25	250	42	10	16	-	3゜	0.64
5272-651-02512-250	C25xSFC12-250	25	250	47	12	18	-	3゜	0.62

ER/SFE熱膨脹筒夾刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFC/ER-SFE_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	d2	d3	T	WEIGHT (KGS)
5257-S13-02003-040	ER20 SFE3-40	71.5	40	18	20	3	8	14	-	0.16
5257-S13-02003-060	ER20 SFE3-60	91.5	60	18	20	3	8	14	-	0.19
5257-S13-02004-040	ER20 SFE4-40	71.5	40	20	20	4	8	14	-	0.16
5257-S13-02004-060	ER20 SFE4-60	91.5	60	20	20	4	8	14	-	0.19
5257-S13-02005-040	ER20 SFE5-40	71.5	40	20	20	5	9	15	M4 x 0.7P	0.16
5257-S13-02005-060	ER20 SFE5-60	91.5	60	20	20	5	9	15	M4 x 0.7P	0.19
5257-S13-02006-040	ER20 SFE6-40	71.5	40	36	20	6	10	15	M5 x 0.8P	0.16
5257-S13-02006-060	ER20 SFE6-60	91.5	60	36	20	6	10	15	M5 x 0.8P	0.19
5257-S13-02503-040	ER25 SFE3-40	74	40	18	25	3	8	14	-	0.15
5257-S13-02503-060	ER25 SFE3-60	94	60	18	25	3	8	14	-	0.18
5257-S13-02504-040	ER25 SFE4-40	74	40	20	25	4	8	14	-	0.15
5257-S13-02504-060	ER25 SFE4-60	94	60	20	25	4	8	14	-	0.18
5257-S13-02505-040	ER25 SFE5-40	74	40	20	25	5	9	15	M4 x 0.7P	0.15
5257-S13-02505-060	ER25 SFE5-60	94	60	20	25	5	9	15	M4 x 0.7P	0.18
5257-S13-02506-040	ER25 SFE6-40	74	40	36	25	6	10	16	M5 x 0.8P	0.15
5257-S13-02506-060	ER25 SFE6-60	94	60	36	25	6	10	16	M5 x 0.8P	0.18
5257-S13-03203-040	ER32 SFE3-40	80	40	18	32	3	8	14	-	0.15
5257-S13-03203-060	ER32 SFE3-60	100	60	18	32	3	8	14	-	0.18
5257-S13-03203-090	ER32 SFE3-90	130	90	20	32	3	8	14	-	0.21
5257-S13-03204-040	ER32 SFE4-40	80	40	20	32	4	8	14	-	0.15
5257-S13-03204-060	ER32 SFE4-60	100	60	20	32	4	8	14	-	0.18
5257-S13-03204-090	ER32 SFE4-90	130	90	20	32	4	8	14	-	0.21
5257-S13-03205-040	ER32 SFE5-40	80	40	20	32	5	9	15	M4 x 0.7P	0.15
5257-S13-03205-060	ER32 SFE5-60	100	60	20	32	5	9	15	M4 x 0.7P	0.18
5257-S13-03205-090	ER32 SFE5-90	130	90	20	32	5	9	15	M4 x 0.7P	0.21
5257-S13-03206-040	ER32 SFE6-40	80	40	36	32	6	10	16	M5 x 0.8P	0.15
5257-S13-03206-060	ER32 SFE6-60	100	60	36	32	6	10	16	M5 x 0.8P	0.18
5257-S13-03206-090	ER32 SFE6-90	130	90	36	32	6	10	16	M5 x 0.8P	0.21
5257-S13-03208-040	ER32 SFE8-40	80	40	36	32	8	12	18	M6 x 1.0P	0.15
5257-S13-03208-060	ER32 SFE8-60	100	60	36	32	8	12	18	M6 x 1.0P	0.18
5257-S13-03208-090	ER32 SFE8-90	130	90	36	32	8	12	18	M6 x 1.0P	0.21
5257-S13-03210-040	ER32 SFE10-40	80	40	42	32	10	14	20	M8 x 1.25P	0.15
5257-S13-03210-060	ER32 SFE10-60	100	60	42	32	10	14	20	M8 x 1.25P	0.18
5257-S13-03210-090	ER32 SFE10-90	130	90	42	32	10	14	20	M8 x 1.25P	0.21
5257-S13-03212-040	ER32 SFE12-40	80	40	47	32	12	16	20	M10 x 1.5P	0.15
5257-S13-03212-060	ER32 SFE12-60	100	60	47	32	12	16	20	M10 x 1.5P	0.18
5257-S13-03212-090	ER32 SFE12-90	130	90	47	32	12	16	20	M10 x 1.5P	0.21

series

HSK40E熱膨脹刀桿檢驗流程

SFC熱膨脹刀桿

產品描述
