SFS後拉式刀桿 C01-3-7

series

BT30, SBT30後拉式刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/BT30-SFS-figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	Ɵ	Fig.	WEIGHT (KGS)
5010-780-12A-035	BT30xSFS12-35	83.4	35	12	18	38.1	3	45°	1	0.4
5010-780-12B-035	BT30xSFS12-35	83.4	35	12	18	38.1	3	60°	1	0.4
5010-780-12C-035	BT30xSFS12-35	83.4	35	12	18	38.1	-	45°	2	0.4
5010-780-12D-035	BT30xSFS12-35	83.4	35	12	18	38.1	-	60°	2	0.4
5025-780-12A-035	SBT30xSFS12-35	83.4	35	12	18	38.1	3	45°	1	0.4
5025-780-12B-035	SBT30xSFS12-35	83.4	35	12	18	38.1	3	60°	1	0.4
5025-780-12C-035	SBT30xSFS12-35	83.4	35	12	18	38.1	-	45°	2	0.4
5025-780-12D-035	SBT30xSFS12-35	83.4	35	12	18	38.1	-	60°	2	0.4

BT30一體式後拉螺絲拉頭

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/BT30_ONE_PIECE_PULL_STUD-figure.jpg

MODEL NO.	TYPE	l3	d2	Ɵ	Fig.
5231-010-45-01	BT30-45°-MAS	18	3	45°	1
5231-010-60-01	BT30-60°-MAS	18	3	60°	1
5230-010-45-01	BT30-45°-MAS	18	-	45°	2
5230-010-60-01	BT30-60°-MAS	18	-	60°	2

SFS後拉式刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/SFS-figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	WEIGHT (KGS)
5011-780-012-045	BT40xSFS12-45	110.4	45	15.1	38.1	39.6	1.1
5011-780-012-075	BT40xSFS12-75	140.4	75	60.1	38.1	42.8	1.4
5011-780-012-090	BT40xSFS12-90	155.4	90	45.1	38.1	44.4	1.6
5011-780-012-135	BT40xSFS12-135	200.4	135	105.1	38.1	49.1	2.2
5012-780-012-075	BT50xSFS12-75	176.8	75	34.1	38.1	41.6	4.0
5012-780-012-105	BT50xSFS12-105	206.8	105	64.1	38.1	44.8	4.4
5012-780-012-135	BT50xSFS12-135	236.8	135	94.1	38.1	47.9	4.7
5012-780-012-225	BT50xSFS12-225	326.8	225	184.1	38.1	57.4	6.4
5012-780-012-315	BT50xSFS12-315	416.8	315	274.1	38.1	66.8	11
5031-780-012-045	CAT40xSFS12-1.77”	113.249	45	8.73	38.1	41.9	1.1
5031-780-012-075	CAT40xSFS12-2.95”	143.249	75	37.28	38.1	41.9	1.4
5032-780-012-075	CAT50xSFS12-2.95”	176.6	75	37.15	38.1	41.9	4.0
5032-780-012-203	CAT50xSFS12-8”	304.8	203.2	165.35	38.1	55.4	6.1
5032-780-012-305	CAT50xSFS12-12”	406.4	304.8	267.9	38.1	66.1	10.8
5051-780-012-045	DAT40xSFS12-45	113.4	45	23.05	38.1	20.2	1.0
5051-780-012-075	DAT40xSFS12-75	143.4	75	53.05	38.1	43.6	1.3
5052-780-012-075	DAT50xSFS12-75	176.75	75	53.05	38.1	43.6	3.4
5052-780-012-135	DAT50xSFS12-135	236.75	135	113.05	38.1	49.9	4.3

SFS法蘭加厚型後拉式刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/DualDRIVE_SFS-figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	WEIGHT (KGS)
5026-780-012-045	SBT40xSFS12-45	110.4	45	15.1	38.1	39.6	1.1
5026-780-012-075	SBT40xSFS12-75	140.4	75	60.1	38.1	42.8	1.4
5026-780-012-090	SBT40xSFS12-90	155.4	90	45.1	38.1	44.4	1.6
5026-780-012-135	SBT40xSFS12-135	200.4	135	105.1	38.1	49.1	2.2
5027-780-012-075	SBT50xSFS12-75	176.8	75	34.1	38.1	41.6	4.0
5027-780-012-105	SBT50xSFS12-105	206.8	105	64.1	38.1	44.8	4.4
5027-780-012-135	SBT50xSFS12-135	236.8	135	94.1	38.1	47.9	4.7
5027-780-012-225	SBT50xSFS12-225	326.8	225	184.1	38.1	57.4	6.4
5027-780-012-315	SBT50xSFS12-315	416.8	315	274.1	38.1	66.8	11
5043-780-012-045	SCAT40xSFS12-1.77”	113.249	45	8.73	38.1	41.9	1.1
5043-780-012-075	SCAT40xSFS12-2.95”	143.249	75	37.28	38.1	41.9	1.4
5044-780-012-075	SCAT50xSFS12-2.95”	176.6	75	37.15	38.1	41.9	4.0
5044-780-012-203	SCAT50xSFS12-8”	304.8	203.2	165.35	38.1	55.4	6.1
5044-780-012-305	SCAT50xSFS12-12”	406.4	304.8	267.9	38.1	66.1	10.8
5066-780-012-045	SDAT40xSFS12-45	113.4	45	23.05	38.1	20.2	1.0
5066-780-012-075	SDAT40xSFS12-75	143.4	75	53.05	38.1	43.6	1.3
5067-780-012-075	SDAT50xSFS12-75	176.75	75	53.05	38.1	43.6	3.4
5067-780-012-135	SDAT50xSFS12-135	236.75	135	113.05	38.1	49.9	4.3

SFS後拉式刀桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/PSC-SFS-figure.jpg

MODEL NO.	TYPE	L	l1	l2	d1	d2	WEIGHT (KGS)
5072-780-012-075	HSK50AxSFS12-75	100	75	48.6	38.1	42	0.8
5073-780-012-075	HSK63AxSFS12-75	107	75	47.105	38.1	43	1.0
5073-780-012-135	HSK63AxSFS12-135	167	135	107.5	38.1	49.3	1.7
5073-780-012-165	HSK63AxSFS12-165	197	165	138.6	38.1	52.6	2.1
5073-780-012-225	HSK63AxSFS12-225	257	225	199	38.1	52	2.9
5073-780-012-240	HSK63AxSFS12-240	272	240	132.6	38.1	52	3.1
5075-780-012-105	HSK100AxSFS12-105	155	105	66.5	38.1	45	3.4
5075-780-012-135	HSK100AxSFS12-135	185	135	101.26	38.1	48.7	3.8
5075-780-012-160	HSK100AxSFS12-160	210	160	121.5	38.1	50.8	3.4
5075-780-012-225	HSK100AxSFS12-225	275	225	191.2	38.1	58.1	5.4
5075-780-012-315	HSK100AxSFS12-315	365	315	281.2	38.1	67.5	6.4
5099-780-012-075	HSK40ExSFS12-75	95	75	55	38.1	40	0.7
5100-780-012-075	HSK50ExSFS12-75	110	75	48.6	38.1	42	0.8
5103-780-012-075	HSK63FxSFS12-75	100	75	47.1	38.1	43	1.0
5103-780-012-100	HSK63FxSFS12-100	125	100	72.1	38.1	45.6	1.3
5103-780-012-125	HSK63FxSFS12-125	150	125	97	38.1	48.2	1.6
5143-780-012-080	PSC63xSFS12-80	118	80	53	38.1	43.6	1.21

SFS熱膨脹延長桿

proimages/Products/Tool_holders/Shrink_fit_chuck,_machine/SFS/SFS_extension-figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	WEIGHT (KGS)
5272-780-01203-035	SFS12x3mm-35mm	80	35	10	22	3	6	8.3	0.16
5272-780-01203-055	SFS12x3mm-55mm	100	55	10	42	3	6	10.4	0.17
5272-780-01203-080	SFS12x3mm-80mm	125	80	10	67	3	6	13	0.20
5272-780-01203-110	SFS12x3mm-110mm	155	110	10	97	3	6	16.2	0.23
5272-780-01204-035	SFS12x4mm-35mm	80	35	10	22	4	7	9.3	0.16
5272-780-01204-055	SFS12x4mm-55mm	100	55	10	42	4	7	11.4	0.18
5272-780-01204-080	SFS12x4mm-80mm	125	80	10	67	4	7	14	0.20
5272-780-01204-110	SFS12x4mm-110mm	155	110	10	97	4	7	17.2	0.24
5272-780-01206-035	SFS12x6mm-35mm	80	35	20	22	6	9	11.3	0.17
5272-780-01206-055	SFS12x6mm-55mm	100	55	20	42	6	9	13.4	0.18
5272-780-01206-080	SFS12x6mm-80mm	125	80	20	67	6	9	16.2	0.21
5272-780-01206-110	SFS12x6mm-110mm	155	110	20	97	6	9	19.2	0.26
5272-780-01208-035	SFS12x8mm-35mm	80	35	26	22	8	11	13.3	0.17
5272-780-01208-055	SFS12x8mm-55mm	100	55	26	42	8	11	15.4	0.19
5272-780-01208-080	SFS12x8mm-80mm	125	80	26	67	8	11	18	0.23
5272-780-01208-110	SFS12x8mm-110mm	155	110	26	97	8	11	21.2	0.29
5272-780-01210-035	SFS12x10mm-35mm	80	35	32	22	10	13	15.3	0.17
5272-780-01210-055	SFS12x10mm-55mm	100	55	32	42	10	13	17.4	0.20
5272-780-01210-080	SFS12x10mm-80mm	125	80	32	67	10	13	20	0.24
5272-780-01210-110	SFS12x10mm-110mm	155	110	32	97	10	13	23.2	0.32
5272-780-01212-035	SFS12x12mm-35mm	80	35	37	22	12	15	17.3	0.17
5272-780-01212-055	SFS12x12mm-55mm	100	55	37	42	12	15	19.4	0.20
5272-780-01212-080	SFS12x12mm-80mm	125	80	37	67	12	15	22	0.26
5272-780-01212-110	SFS12x12mm-110mm	155	110	37	97	12	15	25.2	0.35

MFS-R熱膨脹延長桿

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	WEIGHT (KGS)
5272-474-01203-035	MFS12Rx3mm-35	80	35	10	22	3	7.5	9.8	0.2
5272-474-01203-055	MFS12Rx3mm-55	100	55	10	42	3	7.5	11.9	0.2
5272-474-01203-080	MFS12Rx3mm-80	125	80	10	67	3	7.5	14.5	0.2
5272-474-01204-035	MFS12Rx4mm-35	80	35	10	22	4	10	12.3	0.2
5272-474-01204-055	MFS12Rx4mm-55	100	55	10	42	4	10	14.4	0.2
5272-474-01204-080	MFS12Rx4mm-80	125	80	10	67	4	10	17	0.2
5272-474-01206-035	MFS12Rx6mm-35	80	35	20	22	6	12	14.3	0.2
5272-474-01206-055	MFS12Rx6mm-55	100	55	20	42	6	12	16.4	0.2
5272-474-01206-080	MFS12Rx6mm-80	125	80	20	67	6	12	19	0.2
5272-474-01208-035	MFS12Rx8mm-35	80	35	26	22	8	14	16.3	0.2
5272-474-01208-055	MFS12Rx8mm-55	100	55	26	42	8	14	18.4	0.2
5272-474-01208-080	MFS12Rx8mm-80	125	80	26	67	8	14	21	0.3
5272-474-01210-035	MFS12Rx10mm-35	80	35	32	22	10	16	18.3	0.2
5272-474-01210-055	MFS12Rx10mm-55	100	55	32	42	10	16	20.4	0.2
5272-474-01210-080	MFS12Rx10mm-80	125	80	32	67	10	16	23	0.3
5272-474-01212-035	MFS12Rx12mm-35	80	35	37	22	12	20	22.3	0.2
5272-474-01212-055	MFS12Rx12mm-55	100	55	37	42	12	20	24.4	0.2
5272-474-01212-080	MFS12Rx12mm-80	125	80	37	67	12	20	25.4	0.3

MFS-S熱膨脹延長桿

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	d3	WEIGHT (KGS)
5272-473-01203-035	MFS12Sx3mm-35	80	35	10	22	3	6	8.3	0.16
5272-473-01203-055	MFS12Sx3mm-55	100	55	10	42	3	6	10.4	0.17
5272-473-01203-080	MFS12Sx3mm-80	125	80	10	67	3	6	13	0.20
5272-473-01203-110	MFS12Sx3mm-110	155	110	10	97	3	6	16.2	0.23
5272-473-012A08-035	MFS12Sx3.175mm-35	80	35	10	22	3.175	6.175	8.5	0.16
5272-473-012A08-055	MFS12Sx3.175mm-55	100	55	10	42	3.175	6.175	10.6	0.17
5272-473-012A08-080	MFS12Sx3.175mm-80	125	80	10	67	3.175	6.175	13.2	0.19
5272-473-012A08-110	MFS12Sx3.175mm-110	155	110	10	97	3.175	6.175	16.3	0.23
5272-473-01204-035	MFS12Sx4mm-35	80	35	10	22	4	7	9.3	0.16
5272-473-01204-055	MFS12Sx4mm-55	100	55	10	42	4	7	11.4	0.18
5272-473-01204-080	MFS12Sx4mm-80	125	80	10	67	4	7	14	0.20
5272-473-01204-110	MFS12Sx4mm-110	155	110	10	97	4	7	17.2	0.24
5272-473-01206-035	MFS12Sx6mm-35	80	35	20	22	6	9	11.3	0.17
5272-473-01206-055	MFS12Sx6mm-55	100	55	20	42	6	9	13.4	0.18
5272-473-01206-080	MFS12Sx6mm-80	125	80	20	67	6	9	16.2	0.21
5272-473-01206-110	MFS12Sx6mm-110	155	110	20	97	6	9	19.2	0.26
5272-473-01208-035	MFS12Sx8mm-35	80	35	26	22	8	11	13.3	0.17
5272-473-01208-055	MFS12Sx8mm-55	100	55	26	42	8	11	15.4	0.19
5272-473-01208-080	MFS12Sx8mm-80	125	80	26	67	8	11	18	0.23
5272-473-01208-110	MFS12Sx8mm-110	155	110	26	97	8	11	21.2	0.29
5272-473-01210-035	MFS12Sx10mm-35	80	35	32	22	10	13	15.3	0.17
5272-473-01210-055	MFS12Sx10mm-55	100	55	32	42	10	13	17.4	0.20
5272-473-01210-080	MFS12Sx10mm-80	125	80	32	67	10	13	20	0.24
5272-473-01210-110	MFS12Sx10mm-110	155	110	32	97	10	13	23.2	0.32
5272-473-01212-035	MFS12Sx12mm-35	80	35	37	22	12	15	17.3	0.17
5272-473-01212-055	MFS12Sx12mm-55	100	55	37	42	12	15	19.4	0.20
5272-473-01212-080	MFS12Sx12mm-80	125	80	37	67	12	15	22	0.26
5272-473-01212-110	MFS12Sx12mm-110	155	110	37	97	12	15	25.2	0.35

series

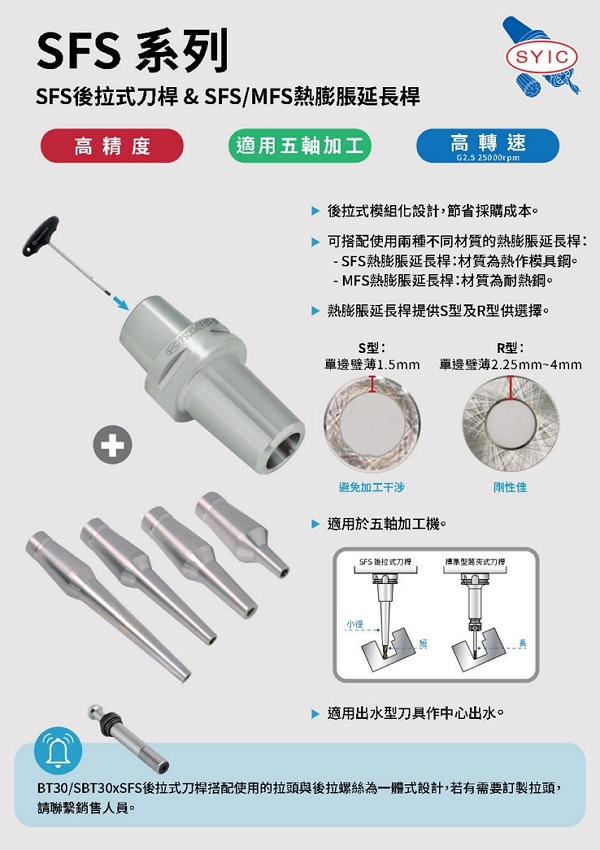

SFS後拉式刀桿 & SFS/MFS熱膨脹延長桿

SFS後拉式刀桿

產品描述
