SLN側固式立銑刀柄

規格表

series

BT/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/BT-SLN_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	Fig.	WEIGHT (KGS)
5010-653-006-060	BT30xSLN6-60	108.4	60	18	-	35	33	6	25	M6 x 1.0P	1	0.55
5010-653-008-060	BT30xSLN8-60	108.4	60	18	-	35	33	8	28	M8 x 1.25P	1	0.60
5010-653-010-060	BT30xSLN10-60	108.4	60	20	-	39	35	10	35	M10 x 1.5P	1	0.70
5010-653-012-060	BT30xSLN12-60	108.4	60	22.5	-	44	36	12	42	M12 x 1.75P	1	0.75
5010-653-016-075	BT30xSLN16-75	123.4	75	24	-	47	53	16	48	M14 x 2.0P	1	1.05
5010-653-020-075	BT30xSLN20-75	123.4	75	25	-	49	53	20	52	M16 x 2.0P	1	1.10
5010-653-025-090	BT30xSLN25-90	138.4	90	24	25	58	68	25	65	M18 x 2.0P	2	1.70
5011-653-006-050	BT40xSLN6-50	115.4	50	18	-	35	20	6	25	M6 x 1.0P	1	1.10
5011-653-006-150	BT40xSLN6-150	215.4	150	18	-	35	113	6	25	M6 x 1.0P	1	1.32
5011-653-008-050	BT40xSLN8-50	115.4	50	18	-	35	20	8	28	M8 x 1.25P	1	1.10
5011-653-008-150	BT40xSLN8-150	215.4	150	18	-	35	113	8	28	M8 x 1.25P	1	1.30
5011-653-010-063	BT40xSLN10-63	128.4	63	20	-	39	33	10	35	M10 x 1.5P	1	1.25
5011-653-010-150	BT40xSLN10-150	215.4	150	20	-	39	113	10	35	M10 x 1.5P	1	1.40
5011-653-012-063	BT40xSLN12-63	128.4	63	22.5	-	44	33	12	42	M12 x 1.75P	1	1.30
5011-653-012-150	BT40xSLN12-150	215.4	150	22.5	-	44	116	12	42	M12 x 1.75P	1	1.53
5011-653-016-063	BT40xSLN16-63	128.4	63	24	-	47	33	16	48	M14 x 2.0P	1	1.40
5011-653-016-150	BT40xSLN16-150	215.4	150	24	-	47	120	16	48	M14 x 2.0P	1	1.60
5011-653-018-063	BT40xSLN18-63	128.4	63	24	-	44	33	18	50	M14 x 2.0P	1	1.65
5011-653-020-063	BT40xSLN20-63	128.4	63	25	-	49	33	20	52	M16 x 2.0P	1	1.40
5011-653-025-100	BT40xSLN25-100	165.4	100	24	25	58	73	25	65	M18 x 2.0P	2	2.50
5011-653-032-100	BT40xSLN32-100	165.4	100	24	28	63	73	32	72	M20 x 2.0P	2	2.75
5012-653-006-063	BT50xSLN6-63	164.8	63	18	-	35	20	6	25	M6 x 1.0P	1	3.80
5012-653-008-063	BT50xSLN8-63	164.8	63	18	-	39	20	8	28	M8 x 1.25P	1	3.80
5012-653-010-063	BT50xSLN10-63	164.8	63	20	-	39	22	10	35	M10 x 1.5P	1	3.00
5012-653-012-080	BT50xSLN12-80	181.8	80	22.5	-	44	39	12	42	M12 x 1.75P	1	4.00
5012-653-016-080	BT50xSLN16-80	181.8	80	24	-	47	32	16	48	M14 x 2.0P	1	4.40
5012-653-020-080	BT50xSLN20-80	181.8	80	25	-	49	37	20	52	M16 x 2.0P	1	4.40
5012-653-025-100	BT50xSLN25-100	201.8	100	24	25	58	59	25	65	M18 x 2.0P	2	5.10
5012-653-032-105	BT50xSLN32-105	206.8	105	24	28	63	64	32	72	M20 x 2.0P	2	5.20
5012-653-040-115	BT50xSLN40-115	216.8	115	30	32	75	74	40	90	M20 x 2.0P	2	6.70
5012-653-040-120	BT50xSLN40-120	221.8	120	30	32	75	79	40	90	M20 x 2.0P	2	6.70
5012-653-042-120	BT50xSLN42-120	221.8	120	30	32	75	79	42	90	M20 x 2.0P	2	6.70
5012-653-050-120	BT50xSLN50-120	221.8	120	35	35	78	82	50	98	M24 x 2.0P	2	7.16
5012-653-A96-472	BT50xSLN50.8-120	221.8	120	33.1	28.58	80	82	50.8	99	M20 x 2.0P	2	6.80
5012-677-A96-472	BT50xSLN50.8-120	221.8	120	33.1	28.58	75	81	50.8	95	M20 x 2.0P	3	7.20
5012-677-063-120	BT50xSLN63-120	221.8	120	33.1	28.58	80	82	63	125	M16 x 2.0P	3	6.60

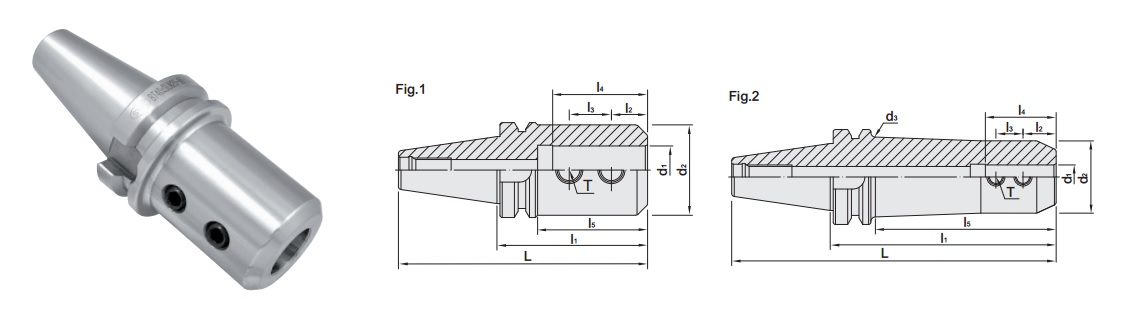

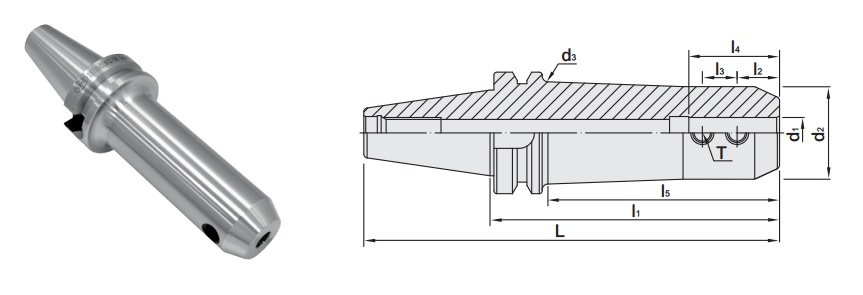

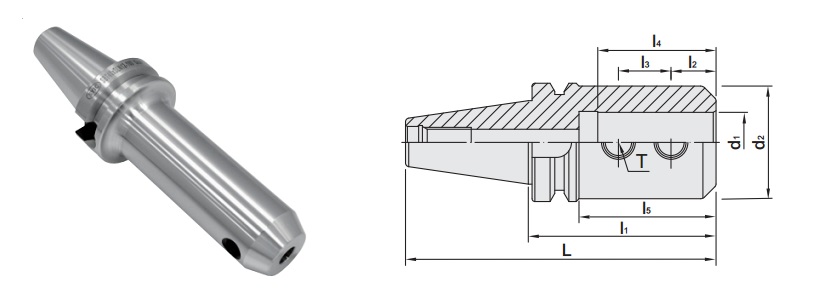

BT/SLN側固式立銑刀柄 (JIS型)
proimages/Products/Tool_holders/Others/SLN/BT-SLN_(JIS_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	d3	T	Fig.	WEIGHT (KGS)
5011-654-006-075	BT40xSLN6-75JIS	140.4	75	12	10	35	45	6	25	-	M6 x 1.0P	1	1.20
5011-654-006-150	BT40xSLN6-150JIS	215.4	150	12	10	35	113	6	25	30	M6 x 1.0P	2	1.50
5011-654-008-075	BT40xSLN8-75JIS	140.4	75	14	12	35	45	8	28	-	M8 x 1.25P	1	1.20
5011-654-008-150	BT40xSLN8-150JIS	215.4	150	14	12	35	113	8	28	33	M8 x 1.25P	2	1.50
5011-654-010-075	BT40xSLN10-75JIS	140.4	75	15	14	39	45	10	35	-	M10 x 1.5P	1	1.40
5011-654-010-150	BT40xSLN10-150JIS	215.4	150	15	14	39	118	10	35	40	M10 x 1.5P	2	1.50
5011-654-012-075	BT40xSLN12-75JIS	140.4	75	20	16	44	45	12	42	-	M10 x 1.5P	1	1.50
5011-654-012-150	BT40xSLN12-150JIS	215.4	150	20	16	44	118	12	42	47	M10 x 1.5P	2	1.70
5011-654-016-075	BT40xSLN16-75JIS	140.4	75	22	18	47	45	16	48	-	M10 x 1.5P	1	1.60
5011-654-016-150	BT40xSLN16-150JIS	215.4	150	22	18	47	120	16	48	53	M10 x 1.5P	2	1.70
5011-654-020-090	BT40xSLN20-90JIS	155.4	90	25	20	55	60	20	50	-	M12 x 1.75P	1	1.75
5011-654-020-150	BT40xSLN20-150JIS	215.4	150	25	20	55	120	20	52	57	M12 x 1.75P	2	1.80
5011-654-025-090	BT40xSLN25-90JIS	155.4	90	24	25	58	60	25	50	-	M12 x 1.75P	1	1.70
5011-654-032-100	BT40xSLN32-100JIS	165.4	100	24	28	63	73	32	60	-	M16 x 2.0P	1	2.10
5012-654-006-075	BT50xSLN6-75JIS	176.8	75	12	10	35	27	6	25	-	M6 x 1.0P	1	3.90
5012-654-008-075	BT50xSLN8-75JIS	176.8	75	14	12	35	27	8	28	-	M8 x 1.25P	1	3.90
5012-654-010-075	BT50xSLN10-75JIS	176.8	75	15	14	39	32	10	35	-	M10 x 1.5P	1	3.90
5012-654-012-090	BT50xSLN12-90JIS	191.8	90	20	16	44	42	12	42	-	M10 x 1.5P	1	3.90
5012-654-012-165	BT50xSLN12-165JIS	266.8	165	20	16	44	124	12	42	47	M10 x 1.5P	2	5.00
5012-654-016-090	BT50xSLN16-90JIS	191.8	90	22	18	47	42	16	48	-	M10 x 1.5P	1	3.90
5012-654-016-150	BT50xSLN16-150JIS	251.8	150	22	18	47	102	16	48	53	M10 x 1.5P	2	4.98
5012-654-016-165	BT50xSLN16-165JIS	266.8	165	22	18	47	117	16	48	53	M10 x 1.5P	2	5.00
5012-654-020-090	BT50xSLN20-90JIS	191.8	90	25	20	55	49	20	50	-	M12 x 1.75P	1	4.50
5012-654-020-150	BT50xSLN20-150JIS	251.8	150	25	20	55	102	20	50	57	M12 x 1.75P	2	5.98
5012-654-020-165	BT50xSLN20-165JIS	266.8	165	25	20	55	117	20	50	57	M12 x 1.75P	2	6.00
5012-654-020-210	BT50xSLN20-210JIS	311.8	210	25	20	55	162	20	50	57	M12 x 1.75P	2	7.00
5012-654-025-100	BT50xSLN25-100JIS	201.8	100	24	25	58	59	25	50	-	M12 x 1.75P	1	4.58
5012-654-025-150	BT50xSLN25-150JIS	251.8	150	24	25	58	102	25	50	57	M12 x 1.75P	2	5.48
5012-654-025-165	BT50xSLN25-165JIS	266.8	165	24	25	58	117	25	50	57	M12 x 1.75P	2	5.50
5012-654-025-210	BT50xSLN25-210JIS	311.8	210	24	25	58	169	25	50	57	M12 x 1.75P	2	6.00
5012-654-025-250	BT50xSLN25-250JIS	351.8	250	24	25	58	202	25	50	60	M12 x 1.75P	2	7.00
5012-654-032-105	BT50xSLN32-105JIS	206.8	105	24	28	63	64	32	60	-	M16 x 2.0P	1	4.89
5012-654-032-150	BT50xSLN32-150JIS	251.8	150	24	28	63	102	32	50	60	M16 x 2.0P	2	7.48
5012-654-032-165	BT50xSLN32-165JIS	266.8	165	24	28	63	117	32	60	65	M16 x 2.0P	2	6.22
5012-654-032-210	BT50xSLN32-210JIS	311.8	210	24	28	63	162	32	50	60	M16 x 2.0P	2	6.34
5012-654-032-250	BT50xSLN32-250JIS	351.8	250	24	28	63	207	32	50	60	M16 x 2.0P	2	7.50
5012-654-032-300	BT50xSLN32-300JIS	401.8	300	24	28	63	257	32	60	65	M16 x 2.0P	2	8.00

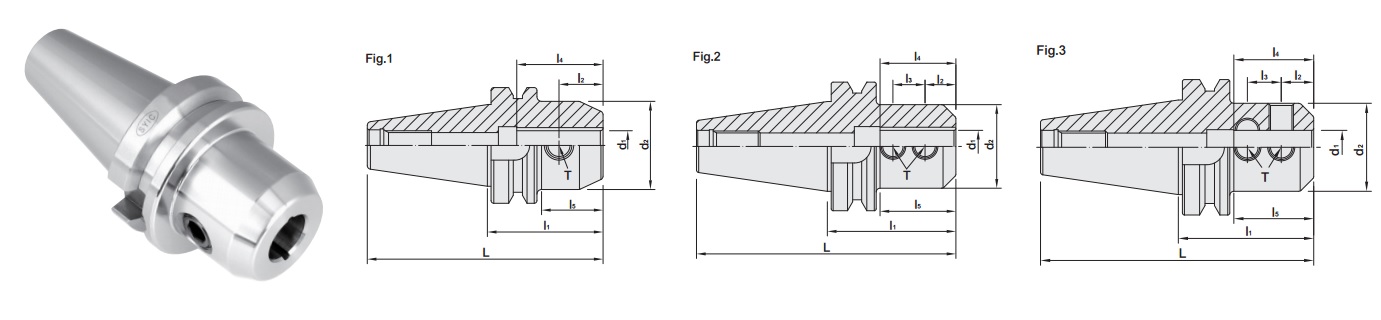

BT/SLN側固式立銑刀柄 (FID型)
proimages/Products/Tool_holders/Others/SLN/BT-SLN_(FID_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	Fig.	WEIGHT (KGS)
5011-S35-006-050	BT40xSLN6-50-FID	115.4	50	18	-	35	20	6	25	M6 x 1.0P	1	1.10
5011-S35-006-150	BT40xSLN6-150-FID	215.4	150	18	-	35	113	6	25	M6 x 1.0P	1	1.32
5011-S35-008-050	BT40xSLN8-50-FID	115.4	50	18	-	35	20	8	28	M8 x 1.25P	1	1.10
5011-S35-008-150	BT40xSLN8-150-FID	215.4	150	18	-	35	113	8	28	M8 x 1.25P	1	1.30
5011-S35-010-063	BT40xSLN10-63-FID	128.4	63	20	-	39	33	10	35	M10 x 1.5P	1	1.25
5011-S35-010-150	BT40xSLN10-150-FID	215.4	150	20	-	39	113	10	35	M10 x 1.5P	1	1.40
5011-S35-012-063	BT40xSLN12-63-FID	128.4	63	22.5	-	44	33	12	42	M12 x 1.75P	1	1.30
5011-S35-012-150	BT40xSLN12-150-FID	215.4	150	22.5	-	44	116	12	42	M12 x 1.75P	1	1.53
5011-S35-016-063	BT40xSLN16-63-FID	128.4	63	24	-	47	33	16	48	M14 x 2.0P	1	1.40
5011-S35-016-150	BT40xSLN16-150-FID	215.4	150	24	-	47	120	16	48	M14 x 2.0P	1	1.60
5011-S35-018-063	BT40xSLN18-63-FID	128.4	63	24	-	44	33	18	50	M14 x 2.0P	1	1.65
5011-S35-020-063	BT40xSLN20-63-FID	128.4	63	25	-	49	33	20	52	M16 x 2.0P	1	1.40
5011-S35-025-100	BT40xSLN25-100-FID	165.4	100	24	25	58	73	25	65	M18 x 2.0P	2	2.50
5011-S35-032-100	BT40xSLN32-100-FID	165.4	100	24	28	63	73	32	72	M20 x 2.0P	2	2.75
5012-S35-006-063	BT50xSLN6-63-FID	164.8	63	18	-	35	20	6	25	M6 x 1.0P	1	3.80
5012-S35-008-063	BT50xSLN8-63-FID	164.8	63	18	-	39	20	8	28	M8 x 1.25P	1	3.80
5012-S35-010-063	BT50xSLN10-63-FID	164.8	63	20	-	39	22	10	35	M10 x 1.5P	1	3.00
5012-S35-012-080	BT50xSLN12-80-FID	181.8	80	22.5	-	44	39	12	42	M12 x 1.75P	1	4.00
5012-S35-016-080	BT50xSLN16-80-FID	181.8	80	24	-	47	32	16	48	M14 x 2.0P	1	4.40
5012-S35-020-080	BT50xSLN20-80-FID	181.8	80	25	-	49	37	20	52	M16 x 2.0P	1	4.40
5012-S35-025-100	BT50xSLN25-100-FID	201.8	100	24	25	58	59	25	65	M18 x 2.0P	2	5.10
5012-S35-032-105	BT50xSLN32-105-FID	206.8	105	24	28	63	64	32	72	M20 x 2.0P	2	5.20
5012-S35-040-115	BT50xSLN40-115-FID	216.8	115	30	32	75	74	40	90	M20 x 2.0P	2	6.70
5012-S35-040-120	BT50xSLN40-120-FID	221.8	120	30	32	75	79	40	90	M20 x 2.0P	2	6.70
5012-S35-042-120	BT50xSLN42-120-FID	221.8	120	30	32	75	79	42	90	M20 x 2.0P	2	6.70
5012-S35-050-120	BT50xSLN50-120-FID	221.8	120	35	35	78	82	50	98	M24 x 2.0P	2	7.16
5012-S35-A96-472	BT50xSLN50.8-120-FID	221.8	120	33.1	28.58	80	82	50.8	99	M20 x 2.0P	2	6.80
5012-S81-A96-472	BT50xSLN50.8-120-FID	221.8	120	33.1	28.58	75	81	50.8	95	M20 x 2.0P	3	7.20
5012-S81-063-120	BT50xSLN63-120-FID	221.8	120	33.1	28.58	80	82	63	125	M16 x 2.0P	3	6.60

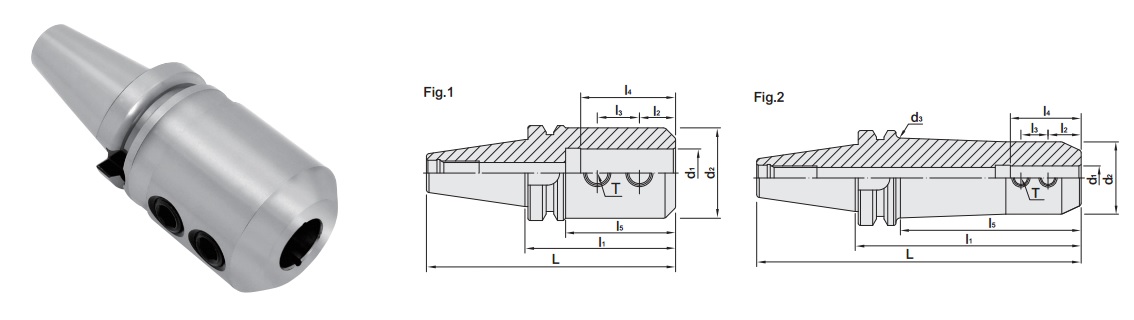

BT/SLN側固式立銑刀柄 (JIS-FID型)
proimages/Products/Tool_holders/Others/SLN/BT-SLN_(JIS-FID_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	d3	T	Fig.	WEIGHT (KGS)
5011-S34-006-075	BT40xSLN6-75JIS-FID	140.4	75	12	10	35	45	6	25	-	M6 x 1.0P	1	1.20
5011-S34-006-150	BT40xSLN6-150JIS-FID	215.4	150	12	10	35	113	6	25	30	M6 x 1.0P	2	1.50
5011-S34-008-075	BT40xSLN8-75JIS-FID	140.4	75	14	12	35	45	8	28	-	M8 x 1.25P	1	1.20
5011-S34-008-150	BT40xSLN8-150JIS-FID	215.4	150	14	12	35	113	8	28	33	M8 x 1.25P	2	1.50
5011-S34-010-075	BT40xSLN10-75JIS-FID	140.4	75	15	14	39	45	10	35	-	M10 x 1.5P	1	1.40
5011-S34-010-150	BT40xSLN10-150JIS-FID	215.4	150	15	14	39	118	10	35	40	M10 x 1.5P	2	1.50
5011-S34-012-075	BT40xSLN12-75JIS-FID	140.4	75	20	16	44	45	12	42	-	M10 x 1.5P	1	1.50
5011-S34-012-150	BT40xSLN12-150JIS-FID	215.4	150	20	16	44	118	12	42	47	M10 x 1.5P	2	1.70
5011-S34-016-075	BT40xSLN16-75JIS-FID	140.4	75	22	18	47	45	16	48	-	M10 x 1.5P	1	1.60
5011-S34-016-150	BT40xSLN16-150JIS-FID	215.4	150	22	18	47	120	16	48	53	M10 x 1.5P	2	1.70
5011-S34-020-090	BT40xSLN20-90JIS-FID	155.4	90	25	20	55	60	20	50	-	M12 x 1.75P	1	1.75
5011-S34-020-150	BT40xSLN20-150JIS-FID	215.4	150	25	20	55	120	20	52	57	M12 x 1.75P	2	1.80
5011-S34-025-090	BT40xSLN25-90JIS-FID	155.4	90	24	25	58	60	25	50	-	M12 x 1.75P	1	1.70
5011-S34-032-100	BT40xSLN32-100JIS-FID	165.4	100	24	28	63	73	32	60	-	M16 x 2.0P	1	2.10
5012-S34-006-075	BT50xSLN6-75JIS-FID	176.8	75	12	10	35	27	6	25	-	M6 x 1.0P	1	3.90
5012-S34-008-075	BT50xSLN8-75JIS-FID	176.8	75	14	12	35	27	8	28	-	M8 x 1.25P	1	3.90
5012-S34-010-075	BT50xSLN10-75JIS-FID	176.8	75	15	14	39	32	10	35	-	M10 x 1.5P	1	3.90
5012-S34-012-090	BT50xSLN12-90JIS-FID	191.8	90	20	16	44	42	12	42	-	M10 x 1.5P	1	3.90
5012-S34-012-165	BT50xSLN12-165JIS-FID	266.8	165	20	16	44	124	12	42	47	M10 x 1.5P	2	5.00
5012-S34-016-090	BT50xSLN16-90JIS-FID	191.8	90	22	18	47	42	16	48	-	M10 x 1.5P	1	3.90
5012-S34-016-165	BT50xSLN16-165JIS-FID	266.8	165	22	18	47	117	16	48	53	M10 x 1.5P	2	5.00
5012-S34-020-090	BT50xSLN20-90JIS-FID	191.8	90	25	20	55	49	20	50	-	M12 x 1.75P	1	4.50
5012-S34-020-165	BT50xSLN20-165JIS-FID	266.8	165	25	20	55	117	20	50	57	M12 x 1.75P	2	6.00
5012-S34-020-210	BT50xSLN20-210JIS-FID	311.8	210	25	20	55	162	20	50	57	M12 x 1.75P	2	7.00
5012-S34-025-100	BT50xSLN25-100JIS-FID	201.8	100	24	25	58	59	25	50	-	M12 x 1.75P	1	4.58
5012-S34-025-165	BT50xSLN25-165JIS-FID	266.8	165	24	25	58	117	25	50	57	M12 x 1.75P	2	5.50
5012-S34-025-210	BT50xSLN25-210JIS-FID	311.8	210	24	25	58	169	25	50	57	M12 x 1.75P	2	6.00
5012-S34-025-250	BT50xSLN25-250JIS-FID	351.8	250	24	25	58	202	25	50	60	M12 x 1.75P	2	7.00
5012-S34-032-105	BT50xSLN32-105JIS-FID	206.8	105	24	28	63	64	32	60	-	M16 x 2.0P	1	4.89
5012-S34-032-165	BT50xSLN32-165JIS-FID	266.8	165	24	28	63	117	32	60	65	M16 x 2.0P	2	6.22
5012-S34-032-210	BT50xSLN32-210JIS-FID	311.8	210	24	28	63	162	32	50	60	M16 x 2.0P	2	6.34
5012-S34-032-250	BT50xSLN32-250JIS-FID	351.8	250	24	28	63	207	32	50	60	M16 x 2.0P	2	7.50
5012-S34-032-300	BT50xSLN32-300JIS-FID	401.8	300	24	28	63	257	32	60	65	M16 x 2.0P	2	8.00

CAT/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/CAT-SLN_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5031-653-A08-238	CAT40xSLN1/8"-2.375"	5.062	2.375	0.37	-	0.787	0.125	0.69	6# - 32	1.15
5031-653-A12-250	CAT40xSLN3/16"-2.5"	5.187	2.5	0.562	-	0.984	0.1875	0.69	8# - 32	1.20
5031-653-A16-300	CAT40xSLN1/4"-3"	5.687	3	0.63	-	1.38	0.25	0.78	1/4 - 28	1.15
5031-653-A20-300	CAT40xSLN5/16"-3"	5.687	3	0.6	-	1.38	0.3125	0.88	5/16 - 24	1.20
5031-653-A24-300	CAT40xSLN3/8"-3"	5.687	3	0.75	-	1.535	0.375	1	3/8 - 24	1.18
5031-653-A32-300	CAT40xSLN1/2"-3"	5.687	3	0.875	-	1.732	0.5	1.25	7/16 - 20	1.40
5031-653-A40-300	CAT40xSLN5/8"-3"	5.687	3	0.937	-	1.85	0.625	1.5	1/2 - 20	1.50
5031-653-A48-300	CAT40xSLN3/4"-3"	5.687	3	1	-	1.929	0.75	1.75	5/8 - 18	1.65
5031-653-A48-350	CAT40xSLN3/4"-3.5"	6.187	3.5	1	-	1.929	0.75	1.75	5/8 - 18	1.70
5031-653-A56-350	CAT40xSLN7/8"-3.5"	6.187	3.5	1.063	0.875	2.36	0.875	1.88	5/8 - 18	2.55
5031-653-A64-400	CAT40xSLN1"-4"	6.687	4	1.125	1	2.56	1	2	3/4 - 16	2.80
5031-653-A72-460	CAT40xSLN1-1/4"-4.6"	7.287	4.6	1.125	1	2.56	1.25	2.5	3/4 - 16	2.90
5031-653-A80-450	CAT40xSLN1-1/2"-4.5"	7.187	4.5	1.125	1	2.56	1.5	2.5	3/4 - 16	3.20
5032-653-A16-400	CAT50xSLN1/4"-4"	8	4	0.63	-	1.378	0.25	0.78	1/4 - 28	3.95
5032-653-A20-400	CAT50xSLN5/16"-4"	8	4	0.6	-	1.378	0.3125	0.88	5/16 - 24	3.95
5032-653-A24-400	CAT50xSLN3/8"-4"	8	4	0.75	-	1.535	0.375	1	3/8 - 24	4.00
5032-653-A32-400	CAT50xSLN1/2"-4"	8	4	0.875	-	1.732	0.5	1.25	7/16 - 20	4.15
5032-653-A40-400	CAT50xSLN5/8"-4"	8	4	0.937	-	1.85	0.625	1.5	1/2 - 20	4.30
5032-653-A48-400	CAT50xSLN3/4"-4"	8	4	1	-	1.929	0.75	1.75	5/8 - 18	4.35
5032-653-A56-400	CAT50xSLN7/8"-4"	8	4	1.063	0.875	2.362	0.875	1.88	5/8 - 18	5.30
5032-653-A64-400	CAT50xSLN1"-4"	8	4	1.125	1	2.56	1	2	3/4 - 16	5.50
5032-653-A72-400	CAT50xSLN1-1/4"-4"	8	4	1.125	1	2.756	1.25	2.5	3/4 - 16	5.65
5032-653-A72-460	CAT50xSLN1-1/4"-4.6"	8.6	4.6	1.125	1	2.756	1.25	2.5	3/4 - 16	5.70
5032-653-A80-460	CAT50xSLN1-1/2"-4.6"	8.6	4.6	1.125	1	2.756	1.5	2.5	3/4 - 16	5.70
5032-653-A96-600	CAT50xSLN2"-6"	10	6	1.41	1.5	3.347	2	3.75	1 - 14	5.90

DAT/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/DAT-SLN_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	Fig.	WEIGHT (KGS)
5050-653-006-050	DAT30xSLN6-50	97.8	50	18	-	25	6	25	M6 x 1.0P	1	0.73
5050-653-008-050	DAT30xSLN8-50	97.8	50	18	-	27	8	28	M8 x 1.25P	1	0.80
5050-653-010-050	DAT30xSLN10-50	97.8	50	20	-	27	10	35	M10 x 1.5P	1	0.90
5050-653-012-050	DAT30xSLN12-50	97.8	50	22.5	-	29	12	42	M12 x 1.75P	1	0.90
5050-653-016-063	DAT30xSLN16-63	110.8	63	24	-	43	16	45	M14 x 2.0P	1	1.10
5051-653-006-050	DAT40xSLN6-50	118.4	50	18	-	27	6	25	M6 x 1.0P	1	0.85
5051-653-008-050	DAT40xSLN8-50	118.4	50	18	-	27	8	28	M8 x 1.25P	1	1.00
5051-653-010-050	DAT40xSLN10-50	118.4	50	20	-	27	10	35	M10 x 1.5P	1	1.10
5051-653-012-050	DAT40xSLN12-50	118.4	50	22.5	-	30	12	42	M12 x 1.75P	1	1.15
5051-653-014-063	DAT40xSLN14-63	131.4	63	22.5	-	40.9	14	44	M12 x 1.75P	1	1.30
5051-653-016-063	DAT40xSLN16-63	131.4	63	24	-	43	16	48	M14 x 2.0P	1	1.40
5051-653-020-063	DAT40xSLN20-63	131.4	63	25	-	43	20	52	M16 x 2.0P	1	1.30
5051-653-025-100	DAT40xSLN25-100	168.4	100	24	25	65	25	65	M18 x 2.0P	1	2.40
5051-653-032-100	DAT40xSLN32-100	168.4	100	24	28	65	32	72	M20 x 2.0P	1	2.70
5052-653-006-063	DAT50xSLN6-63	164.75	63	18	-	33	6	25	M6 x 1.0P	1	3.10
5052-653-008-063	DAT50xSLN8-63	164.75	63	18	-	33	8	28	M8 x 1.25P	1	3.10
5052-653-010-063	DAT50xSLN10-63	164.75	63	20	-	33	10	35	M10 x 1.5P	1	3.30
5052-653-012-063	DAT50xSLN12-63	164.75	63	22.5	-	40	12	42	M12 x 1.75P	1	3.50
5052-653-014-063	DAT50xSLN14-63	164.75	63	22.5	-	40.9	14	44	M12 x 1.75P	1	3.50
5052-653-016-063	DAT50xSLN16-63	164.75	63	24	-	40	16	48	M14 x 2.0P	1	3.45
5052-653-020-063	DAT50xSLN20-63	164.75	63	25	-	40	20	52	M16 x 2.0P	1	3.50
5052-653-025-080	DAT50xSLN25-80	181.75	80	24	25	59	25	65	M18 x 2.0P	1	4.20
5052-653-032-100	DAT50xSLN32-100	201.75	100	24	28	78	32	72	M20 x 2.0P	1	5.00
5052-653-040-100	DAT50xSLN40-100	201.75	100	30	32	80	40	90	M20 x 2.0P	1	5.60
5052-653-042-100	DAT50xSLN42-100	201.75	100	30	32	80	42	90	M20 x 2.0P	1	5.70
5052-653-050-125	DAT50xSLN50-125	226.75	125	35	35	85	50	100	M24 x 2.0P	1	5.90
5052-677-A96-472	DAT50xSLN50.8-120	221.75	120	33.1	28.58	82	50.8	95	M20 x 2.0P	2	5.80
5052-653-063-150	DAT50xSLN63-150	251.75	150	40	40	112	63	125	M20 x 2.0P	1	6.20
5052-677-063-150	DAT50xSLN63-150	251.75	150	40	24	112	63	125	M16 x 2.0P	2	6.20

SBT/SLN法蘭加厚型側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/SBT-SLN_figure...jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	Fig	WEIGHT (KGS)
5025-653-006-060	SBT30xSLN6-60	108.4	60	18	-	35	33	6	25	M6 x 1.0P	1	0.55
5025-653-008-060	SBT30xSLN8-60	108.4	60	18	-	35	33	8	28	M8 x 1.25P	1	0.60
5025-653-010-060	SBT30xSLN10-60	108.4	60	20	-	39	35	10	35	M10 x 1.5P	1	0.70
5025-653-012-060	SBT30xSLN12-60	108.4	60	22.5	-	44	36	12	42	M12 x 1.75P	1	0.75
5025-653-016-075	SBT30xSLN16-75	123.4	75	24	-	47	53	16	48	M14 x 2.0P	1	1.05
5025-653-020-075	SBT30xSLN20-75	123.4	75	25	-	49	53	20	52	M16 x 2.0P	1	1.10
5025-653-025-090	SBT30xSLN25-90	138.4	90	24	25	58	68	25	65	M18 x 2.0P	1	1.70
5026-653-006-050	SBT40xSLN6-50	115.4	50	18	-	35	20	6	25	M6 x 1.0P	1	1.10
5026-653-006-150	SBT40xSLN6-150	215.4	150	18	-	35	113	6	25	M6 x 1.0P	1	1.32
5026-653-008-050	SBT40xSLN8-50	115.4	50	18	-	35	20	8	28	M8 x 1.25P	1	1.10
5026-653-008-150	SBT40xSLN8-150	215.4	150	18	-	35	113	8	28	M8 x 1.25P	1	1.30
5026-653-010-063	SBT40xSLN10-63	128.4	63	20	-	39	33.5	10	35	M10 x 1.5P	1	1.25
5026-653-010-150	SBT40xSLN10-150	215.4	150	20	-	39	113	10	35	M10 x 1.5P	1	1.40
5026-653-012-063	SBT40xSLN12-63	128.4	63	22.5	-	44	33.5	12	42	M12 x 1.75P	1	1.30
5026-653-012-150	SBT40xSLN12-150	215.4	150	22.5	-	44	116	12	42	M12 x 1.75P	1	1.53
5026-653-016-063	SBT40xSLN16-63	128.4	63	24	-	47	33.5	16	48	M14 x 2.0P	1	1.40
5026-653-016-150	SBT40xSLN16-150	215.4	150	24	-	47	120	16	48	M14 x 2.0P	1	1.60
5026-653-018-063	SBT40xSLN18-63	128.4	63	24	-	44	33	18	50	M14 x 2.0P	1	1.65
5026-653-020-063	SBT40xSLN20-63	128.4	63	25	-	49	33	20	52	M16 x 2.0P	1	1.40
5026-653-025-100	SBT40xSLN25-100	165.4	100	24	25	58	73	25	65	M18 x 2.0P	1	2.50
5026-653-032-100	SBT40xSLN32-100	165.4	100	24	28	63	73	32	72	M20 x 2.0P	1	2.75
5027-653-006-063	SBT50xSLN6-63	164.8	63	18	-	35	20	6	25	M6 x 1.0P	1	3.80
5027-653-008-063	SBT50xSLN8-63	164.8	63	18	-	39	20	8	28	M8 x 1.25P	1	3.80
5027-653-010-063	SBT50xSLN10-63	164.8	63	20	-	39	22	10	35	M10 x 1.5P	1	3.00
5027-653-012-080	SBT50xSLN12-80	181.8	80	22.5	-	44	39	12	42	M12 x 1.75P	1	4.00
5027-653-016-080	SBT50xSLN16-80	181.8	80	24	-	47	37	16	48	M14 x 2.0P	1	4.40
5027-653-020-080	SBT50xSLN20-80	181.8	80	25	-	49	37	20	52	M16 x 2.0P	1	4.40
5027-653-025-100	SBT50xSLN25-100	201.8	100	24	25	58	59	25	65	M18 x 2.0P	1	5.10
5027-653-032-105	SBT50xSLN32-105	206.8	105	24	28	63	64	32	72	M20 x 2.0P	1	5.20
5027-653-040-115	SBT50xSLN40-115	216.8	115	30	32	75	74	40	90	M20 x 2.0P	1	6.70
5027-653-040-120	SBT50xSLN40-120	221.8	120	30	32	75	79	40	90	M20 x 2.0P	1	6.70
5027-653-042-120	SBT50xSLN42-120	221.8	120	30	32	75	79	42	90	M20 x 2.0P	1	6.70
5027-653-050-120	SBT50xSLN50-120	221.8	120	35	35	78	82	50	98	M24 x 2.0P	1	6.80
5027-653-A96-472	SBT50xSLN50.8-120	221.8	120	33.1	28.58	80	82	50.8	99	M20 x 2.0P	1	6.80
5027-677-A96-472	SBT50xSLN50.8-120	221.8	120	33.1	28.58	75	81	50.8	95	M20 x 2.0P	2	7.20
英制
5025-653-A08-236	SBT30xSLN1/8"-2.36"	4.265	2.36	0.37	-	0.787	1.299	0.125	0.69	#6 - 32	1	0.43
5025-653-A12-236	SBT30xSLN3/16"-2.36"	4.265	2.36	0.562	-	0.984	1.102	0.1875	0.69	#8 - 32	1	0.44
5025-653-A16-236	SBT30xSLN1/4"-2.36"	4.265	2.36	0.629	-	1.378	1.181	0.25	0.78	1/4" - 28	1	0.45
5025-653-A20-236	SBT30xSLN5/16"-2.36"	4.265	2.36	0.6	-	1.378	1.181	0.3125	0.88	5/16" - 24	1	0.47
5025-653-A24-236	SBT30xSLN3/8"-2.36"	4.265	2.36	0.781	-	1.535	1.299	0.375	1	3/8" - 24	1	0.48
5025-653-A28-236	SBT30xSLN7/16"-2.36"	4.265	2.36	0.812	-	1.535	1.299	0.4375	1.13	7/16" - 20	1	0.51
5025-653-A32-236	SBT30xSLN1/2"-2.36"	4.265	2.36	0.875	-	1.732	1.378	0.5	1.25	7/16" - 20	1	0.54
5025-653-A40-236	SBT30xSLN5/8"-2.36"	4.265	2.36	0.937	-	1.85	1.417	0.625	1.5	1/2" - 20	1	0.61
5025-653-A40-300	SBT30xSLN5/8"-3"	4.906	3	0.937	-	1.85	2.094	0.625	1.5	1/2" - 20	1	0.73
5025-653-A48-236	SBT30xSLN3/4"-2.36"	4.265	2.36	1	-	1.929	1.494	0.75	1.75	5/8" - 18	1	0.65
5025-653-A64-400	SBT30xSLN1"-4"	5.906	4	1.125	1	2.559	2.818	1	2	3/4" - 16	1	1.15
5026-653-A08-250	SBT40xSLN1/8"-2.5"	5.075	2.5	0.37	-	0.787	1.24	0.125	0.69	#6-32	1	1.01
5026-653-A08-400	SBT40xSLN1/8"-4"	6.575	4	0.37	-	0.787	2.543	0.125	0.69	#6-32	1	1.06
5026-653-A12-250	SBT40xSLN3/16"-2.5"	5.075	2.5	0.562	-	0.984	1.24	0.1875	0.69	#8-32	1	1.01
5026-653-A12-400	SBT40xSLN3/16"-4"	6.575	4	0.562	-	0.984	2.543	0.1875	0.69	#8-32	1	1.02
5026-653-A16-250	SBT40xSLN1/4"-2.5"	5.075	2.5	0.63	-	1.378	1.122	0.25	0.78	1/4"-28	1	1.1
5026-653-A16-400	SBT40xSLN1/4"-4"	6.575	4	0.63	-	1.378	2.622	0.25	0.78	1/4"-28	1	1.04
5026-653-A20-250	SBT40xSLN5/16"-2.5"	5.075	2.5	0.6	-	1.378	1.043	0.3125	0.88	5/16"-24	1	1.12
5026-653-A24-250	SBT40xSLN3/8"-2.5"	5.075	2.5	0.75	-	1.535	1.24	0.375	1.25	3/8"-24	1	1.15
5026-653-A24-400	SBT40xSLN3/8"-4"	6.575	4	0.75	-	1.535	2.74	0.375	1	3/8"-24	1	1.07
5026-653-A28-250	SBT40xSLN7/16"-2.5"	5.075	2.5	0.812	-	1.535	1.24	0.4375	1.13	7/16"-20	1	1.1
5026-653-A32-250	SBT40xSLN1/2"-2.5"	5.075	2.5	0.875	-	1.732	1.319	0.5	1.25	7/16"-20	1	1.3
5026-653-A32-400	SBT40xSLN1/2"-4"	6.575	4	0.875	-	1.732	2.74	0.5	1.25	7/16"-20	1	1.18
5026-653-A40-250	SBT40xSLN5/8"-2.5"	5.075	2.5	0.937	-	1.85	1.319	0.625	1.5	1/2"-20	1	1.45
5026-653-A40-400	SBT40xSLN5/8"-4"	6.575	4	0.937	-	1.85	2.74	0.625	1.5	1/2"-20	1	1.23
5026-653-A48-250	SBT40xSLN3/4"-2.5"	5.075	2.5	1	-	1.929	1.319	0.75	1.75	5/8"-18	1	1.37
5026-653-A48-300	SBT40xSLN3/4"-3"	5.575	3	1	-	1.929	1.819	0.75	1.75	5/8"-18	1	1.65
5026-653-A48-400	SBT40xSLN3/4"-4"	6.575	4	1	-	1.929	2.819	0.75	1.75	5/8"-18	1	1.95
5026-653-A56-500	SBT40xSLN7/8"-5"	7.575	5	1.06	0.875	2.362	3.74	0.875	1.88	5/8"-18	1	1.59
5026-653-A64-356	SBT40xSLN1"-3.563"	6.137	3.563	1.046	1	2.559	2.421	1	2	3/4"-16	1	1.77
5026-653-A64-500	SBT40xSLN1"-5"	7.575	5	1.046	1	2.559	3.858	1	2	3/4"-16	1	1.93
5026-653-A72-356	SBT40xSLN1-1/4"-3.563"	6.137	3.563	1.125	1	2.559	2.539	1.25	2.5	3/4"-16	1	1.74
5026-653-A80-356	SBT40xSLN1-1/2"-3.563"	6.137	3.563	1.125	1	2.559	2.539	1.5	2.5	3/4"-16	1	3.62
5027-653-A16-300	SBT50xSLN1/4"-3"	7	3	0.63	-	1.378	1.11	0.25	0.78	1/4"-28	1	3.62
5027-653-A24-275	SBT50xSLN3/8"-2.75"	6.758	2.75	0.75	-	1.535	1.057	0.375	1	3/8"-24	1	3.61
5027-653-A32-300	SBT50xSLN1/2"-3"	7	3	0.875	-	1.732	1.386	0.5	1.25	7/16"-20	1	3.68
5027-653-A40-300	SBT50xSLN5/8"-3"	7	3	0.94	-	1.85	1.386	0.625	1.5	1/2"-20	1	3.77
5027-653-A48-300	SBT50xSLN3/4"-3"	7	3	1	-	1.929	1.386	0.75	1.75	5/8"-18	1	3.84
5027-653-A64-450	SBT50xSLN1"-4.5"	8.508	4.5	1.12	1	2.559	2.886	1	2	3/4"-16	1	4.27
5027-653-A64-600	SBT50xSLN1"-6"	10	6	1.125	1	2.559	4.11	1	2	3/4"-16	1	4.78
5027-653-A72-450	SBT50xSLN1-1/4"-4.5"	8.508	4.5	1.12	1	2.559	2.886	1.25	2.5	3/4"-16	1	4.65
5027-653-A80-400	SBT50xSLN1-1/2"-4"	8	4	1.12	1	2.559	2.504	1.5	2.5	3/4"-16	1	4.17

SBT/SLN法蘭加厚型側固式立銑刀柄 (JIS型)

proimages/Products/Tool_holders/Others/SLN/SBT-SLN_(JIS_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	WEIGHT (KGS)
5026-654-006-075	SBT40xSLN6-75JIS	140.4	75	12	10	35	45	6	25	M6 x 1.0P	1.20
5026-654-008-075	SBT40xSLN8-75JIS	140.4	75	14	12	35	45	8	28	M8 x 1.25P	1.20
5026-654-010-075	SBT40xSLN10-75JIS	140.4	75	15	14	39	45	10	35	M10 x 1.5P	1.40
5026-654-012-075	SBT40xSLN12-75JIS	140.4	75	20	16	44	45	12	42	M10 x 1.5P	1.50
5026-654-016-075	SBT40xSLN16-75JIS	140.4	75	22	18	47	45	16	48	M10 x 1.5P	1.60
5026-654-020-090	SBT40xSLN20-90JIS	155.4	90	25	20	55	60	20	50	M12 x 1.75P	1.75
5026-654-025-090	SBT40xSLN25-90JIS	155.4	90	24	25	58	60	25	50	M12 x 1.75P	1.70
5026-654-032-100	SBT40xSLN32-100JIS	165.4	100	24	28	63	73	32	60	M16 x 2.0P	2.10
5027-654-006-075	SBT50xSLN6-75JIS	176.8	75	12	10	35	27	6	25	M6 x 1.0P	3.90
5027-654-008-075	SBT50xSLN8-75JIS	176.8	75	14	12	35	27	8	28	M8 x 1.25P	3.90
5027-654-010-075	SBT50xSLN10-75JIS	176.8	75	15	14	39	32	10	35	M10 x 1.5P	3.90
5027-654-012-090	SBT50xSLN12-90JIS	191.8	90	20	16	44	42	12	42	M10 x 1.5P	3.90
5027-654-016-090	SBT50xSLN16-90JIS	191.8	90	22	18	47	42	16	48	M10 x 1.5P	3.90
5027-654-020-090	SBT50xSLN20-90JIS	191.8	90	25	20	55	49	20	50	M12 x 1.75P	4.50
5027-654-025-100	SBT50xSLN25-100JIS	201.8	100	24	25	58	59	25	50	M12 x 1.75P	4.58
5027-654-032-105	SBT50xSLN32-105JIS	206.8	105	24	28	63	64	32	60	M16 x 2.0P	4.89

proimages/Products/Tool_holders/Others/SLN/SBT-SLN_(JIS_TYPE)_figure2.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	d3	T	WEIGHT (KGS)
5026-654-006-150	SBT40xSLN6-150JIS	215.4	150	12	10	35	113	6	25	30	M6 x 1.0P	1.50
5026-654-008-150	SBT40xSLN8-150JIS	215.4	150	14	12	35	113	8	28	33	M8 x 1.25P	1.50
5026-654-010-150	SBT40xSLN10-150JIS	215.4	150	15	14	39	118	10	35	40	M10 x 1.5P	1.50
5026-654-012-150	SBT40xSLN12-150JIS	215.4	150	20	16	44	118	12	42	47	M10 x 1.5P	1.70
5026-654-016-150	SBT40xSLN16-150JIS	215.4	150	22	18	47	120	16	48	53	M10 x 1.5P	1.70
5026-654-020-150	SBT40xSLN20-150JIS	215.4	150	25	20	55	120	20	52	57	M12 x 1.75P	1.80
5027-654-012-165	SBT50xSLN12-165JIS	266.8	165	20	16	44	124	12	42	47	M10 x 1.5P	5.00
5027-654-016-165	SBT50xSLN16-165JIS	266.8	165	22	18	47	117	16	48	53	M10 x 1.5P	5.00
5027-654-020-165	SBT50xSLN20-165JIS	266.8	165	25	20	55	117	20	50	57	M12 x 1.75P	6.00
5027-654-020-210	SBT50xSLN20-210JIS	311.8	210	25	20	55	162	20	50	57	M12 x 1.75P	7.00
5027-654-025-165	SBT50xSLN25-165JIS	266.8	165	24	25	58	117	25	50	57	M12 x 1.75P	5.50
5027-654-025-210	SBT50xSLN25-210JIS	311.8	210	24	25	58	162	25	50	57	M12 x 1.75P	6.00
5027-654-025-250	SBT50xSLN25-250JIS	351.8	250	24	25	58	202	25	50	57	M12 x 1.75P	7.00
5027-654-032-165	SBT50xSLN32-165JIS	266.8	165	24	28	63	117	32	60	65	M16 x 2.0P	6.22
5027-654-032-210	SBT50xSLN32-210JIS	311.8	210	24	28	63	162	32	60	65	M16 x 2.0P	6.34
5027-654-032-250	SBT50xSLN32-250JIS	351.8	250	24	28	63	202	32	60	65	M16 x 2.0P	7.50
5027-654-032-300	SBT50xSLN32-300JIS	401.8	300	24	28	63	252	32	60	65	M16 x 2.0P	8.00

SCAT/SLN法蘭加厚型側固式立銑刀柄

proimages/Products/Tool_holders/Others/SLN/SCAT-SLN_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	WEIGHT (KGS)
5043-653-A08-238	SCAT40xSLN1/8"-2.375"	5.062	2.375	0.37	-	0.787	0.8	0.125	0.69	6#-32	1.15
5043-653-A12-250	SCAT40xSLN3/16"-2.5"	5.187	2.5	0.562	-	0.984	0.73	0.1875	0.69	8#-32	1.20
5043-653-A16-300	SCAT40xSLN1/4"-3"	5.687	3	0.63	-	1.38	1.28	0.25	0.78	1/4-28	1.15
5043-653-A20-300	SCAT40xSLN5/16"-3"	5.687	3	0.63	-	1.38	1.11	0.3125	0.88	5/16-24	1.20
5043-653-A24-300	SCAT40xSLN3/8"-3"	5.687	3	0.75	-	1.535	1.08	0.375	1	3/8-24	1.20
5043-653-A32-300	SCAT40xSLN1/2"-3"	5.687	3	0.875	-	1.732	1.29	0.5	1.25	7/16-20	1.40
5043-653-A40-300	SCAT40xSLN5/8"-3"	5.687	3	0.937	-	1.85	1.46	0.625	1.5	1/2-20	1.50
5043-653-A48-300	SCAT40xSLN3/4"-3"	5.687	3	1	-	1.929	2.12	0.75	1.75	5/8-18	1.65
5043-653-A48-350	SCAT40xSLN3/4"-3.5"	6.187	3.5	1	-	1.929	2.12	0.75	1.75	5/8-18	1.70
5043-653-A56-350	SCAT40xSLN7/8"-3.5"	6.187	3.5	1.063	0.875	2.36	2.06	0.875	1.88	5/8-18	2.55
5043-653-A64-400	SCAT40xSLN1"-4"	6.687	4	1.125	1	2.56	2.5	1	2	3/4-16	2.80
5043-653-A72-460	SCAT40xSLN1-1/4"-4.6"	7.287	4.6	1.125	1	2.56	3.12	1.25	2.5	3/4-16	2.90
5043-653-A80-450	SCAT40xSLN1-1/2"-4.5"	7.187	4.5	1.125	1	2.56	3.02	1.5	2.5	3/4-16	3.20
5044-653-A16-400	SCAT50xSLN1/4"-4"	8	4	0.63	-	1.38	1.85	0.25	0.78	1/4-28	3.95
5044-653-A20-400	SCAT50xSLN5/16"-4"	8	4	0.63	-	1.38	2.23	0.3125	0.88	5/16-24	3.95
5044-653-A24-400	SCAT50xSLN3/8"-4"	8	4	0.781	-	1.535	1.89	0.375	1	3/8-24	4.00
5044-653-A32-400	SCAT50xSLN1/2"-4"	8	4	0.875	-	1.732	2.08	0.5	1.25	7/16-20	4.15
5044-653-A40-400	SCAT50xSLN5/8"-4"	8	4	0.937	-	1.85	1.83	0.625	1.5	1/2-20	4.30
5044-653-A48-400	SCAT50xSLN3/4"-4"	8	4	1	-	1.929	1.96	0.75	1.75	5/8-18	4.35
5044-653-A56-400	SCAT50xSLN7/8"-4"	8	4	1.063	0.875	2.36	2.43	0.875	1.88	5/8-18	5.30
5044-653-A64-400	SCAT50xSLN1"-4"	8	4	1.125	1	2.56	2.5	1	2	3/4-16	5.50
5044-653-A72-400	SCAT50xSLN1-1/4"-4"	8	4	1.125	1	2.756	2.5	1.25	2.5	3/4-16	5.65
5044-653-A72-460	SCAT50xSLN1-1/4"-4.6"	8.6	4.6	1.125	1	2.756	3.1	1.25	2.5	3/4-16	5.70
5044-653-A80-460	SCAT50xSLN1-1/2"-4.6"	8.6	4.6	1.125	1	2.756	3.14	1.5	2.5	3/4-16	5.70
5044-653-A96-600	SCAT50xSLN2"-6"	10	6	1.335	1.41	3.347	4.48	2	3.75	1-14	5.90

SDAT/SLN法蘭加厚型側固式立銑刀柄

proimages/Products/Tool_holders/Others/SLN/SDAT-SLN_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5066-653-006-050	SDAT40xSLN6-50	118.4	50	18	-	27	6	25	M6 x 1.0P	0.85
5066-653-008-050	SDAT40xSLN8-50	118.4	50	18	-	27	8	28	M8 x 1.25P	1.00
5066-653-010-050	SDAT40xSLN10-50	118.4	50	20	-	27	10	35	M10 x 1.5P	1.10
5066-653-012-050	SDAT40xSLN12-50	118.4	50	22.5	-	30	12	42	M12 x 1.75P	1.15
5066-653-016-063	SDAT40xSLN16-63	131.4	63	24	-	43	16	48	M14 x 2.0P	1.40
5066-653-020-063	SDAT40xSLN20-63	131.4	63	25	-	43	20	52	M16 x 2.0P	1.30
5066-653-025-100	SDAT40xSLN25-100	168.4	100	24	25	80	25	65	M18 x 2.0P	2.40
5066-653-032-100	SDAT40xSLN32-100	168.4	100	24	28	80	32	72	M20 x 2.0P	2.70
5067-653-006-063	SDAT50xSLN6-63	164.75	63	18	-	33	6	25	M6 x 1.0P	3.10
5067-653-008-063	SDAT50xSLN8-63	164.75	63	18	-	33	8	28	M8 x 1.25P	3.10
5067-653-010-063	SDAT50xSLN10-63	164.75	63	20	-	33	10	35	M10 x 1.5P	3.30
5067-653-012-063	SDAT50xSLN12-63	164.75	63	22.5	-	40	12	42	M12 x 1.75P	3.50
5067-653-016-063	SDAT50xSLN16-63	164.75	63	24	-	40	16	48	M14 x 2.0P	3.45
5067-653-020-063	SDAT50xSLN20-63	164.75	63	25	-	40	20	52	M16 x 2.0P	3.50
5067-653-025-080	SDAT50xSLN25-80	181.75	80	24	25	59	25	65	M18 x 2.0P	4.20
5067-653-032-100	SDAT50xSLN32-100	201.75	100	24	28	78	32	72	M20 x 2.0P	5.00
5067-653-040-100	SDAT50xSLN40-100	201.75	100	30	32	80	40	90	M20 x 2.0P	5.60
5067-653-042-100	SDAT50xSLN42-100	201.75	100	30	32	80	42	90	M20 x 2.0P	5.70
5067-653-050-125	SDAT50xSLN50-125	226.75	125	35	35	105	50	100	M24 x 2.0P	5.90
5067-653-063-150	SDAT50xSLN63-150	251.75	150	40	40	130	63	125	M20 x 2.0P	6.20

HSK-A/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/HSK-SLN_figure-1.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5072-653-006-065	HSK50AxSLN6-65	90	65	34	18	-	6	25	M6x1.0P	0.70
5072-653-008-065	HSK50AxSLN8-65	90	65	36	18	-	8	28	M8x1.25P	0.80
5072-653-010-065	HSK50AxSLN10-65	90	65	36.5	20	-	10	35	M10x1.5P	0.80
5072-653-012-080	HSK50AxSLN12-80	105	80	53.5	22.5	-	12	42	M12x1.75P	1.20
5072-653-014-080	HSK50AxSLN14-80	105	80	53.5	22.5	-	14	44	M12x1.75P	1.30
5072-653-016-080	HSK50AxSLN16-80	105	80	53.5	24	-	16	48	M14x2.0P	1.30
5072-653-018-080	HSK50AxSLN18-80	105	80	53.5	24	-	18	50	M14x2.0P	1.40
5072-653-020-080	HSK50AxSLN20-80	105	80	53	25	-	20	52	M16x2.0P	1.50
5073-653-006-065	HSK63AxSLN6-65	97	65	36	18	-	6	25	M6x1.0P	0.90
5073-653-008-065	HSK63AxSLN8-65	97	65	36	18	-	8	28	M8x1.25P	1.00
5073-653-010-065	HSK63AxSLN10-65	97	65	36	20	-	10	35	M10x1.5P	1.00
5073-653-012-080	HSK63AxSLN12-80	112	80	49	22.5	-	12	42	M12x1.75P	1.70
5073-653-014-080	HSK63AxSLN14-80	112	80	51	22.5	-	14	44	M12x1.75P	1.70
5073-653-016-080	HSK63AxSLN16-80	112	80	51.5	24	-	16	48	M14x2.0P	1.70
5073-653-018-080	HSK63AxSLN18-80	112	80	52.5	24	-	18	50	M14x2.0P	1.80
5073-653-020-080	HSK63AxSLN20-80	112	80	53.5	25	-	20	52	M16x2.0P	1.80
5073-653-025-110	HSK63AxSLN25-110	142	110	83.2	24	25	25	65	M18x2.0P	2.50
5073-653-032-110	HSK63AxSLN32-110	142	110	83.2	24	28	32	72	M20x2.0P	2.70
5075-653-006-080	HSK100AxSLN6-80	130	80	41	18	-	6	25	M6x1.0P	3.00
5075-653-008-080	HSK100AxSLN8-80	130	80	41	18	-	8	28	M8x1.25P	3.20
5075-653-010-080	HSK100AxSLN10-80	130	80	46	20	-	10	35	M10x1.5P	3.40
5075-653-012-080	HSK100AxSLN12-80	130	80	46	22.5	-	12	42	M12x1.75P	3.40
5075-653-014-080	HSK100AxSLN14-80	130	80	46	22.5	-	14	44	M12x1.75P	3.50
5075-653-016-100	HSK100AxSLN16-100	150	100	66	24	-	16	48	M14x2.0P	3.80
5075-653-018-100	HSK100AxSLN18-100	150	100	66	24	-	18	50	M16x2.0P	3.80
5075-653-020-100	HSK100AxSLN20-100	150	100	61	25	-	20	52	M16x2.0P	3.90
5075-653-025-100	HSK100AxSLN25-100	150	100	66	24	25	25	65	M18x2.0P	4.00
5075-653-032-100	HSK100AxSLN32-100	150	100	66	24	28	32	72	M20x2.0P	4.10
5075-653-040-120	HSK100AxSLN40-120	170	120	89	30	32	40	90	M20x2.0P	4.40

proimages/Products/Tool_holders/Others/SLN/HSK-SLN_figure-2.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5076-653-010-085	HSK125AxSLN10-85	148	85	41.5	20	-	10	35	M10x1.5P	4.20
5076-653-012-090	HSK125AxSLN12-90	153	90	51	22.5	-	12	42	M12x1.75P	4.30
5076-653-014-090	HSK125AxSLN14-90	153	90	51	22.5	-	14	44	M12x1.75P	4.30
5076-653-016-095	HSK125AxSLN16-95	158	95	56	24	-	16	48	M14x2.0P	4.50
5076-653-020-095	HSK125AxSLN20-95	158	95	56	25	-	20	52	M16x2.0P	4.60
5076-653-025-100	HSK125AxSLN25-100	163	100	66	24	25	25	65	M18x2.0P	4.90
5076-653-032-105	HSK125AxSLN32-105	168	105	71	24	28	32	72	M20x2.0P	5.30
5076-653-040-120	HSK125AxSLN40-120	183	120	86	30	32	40	90	M20x2.0P	6.85
5076-653-050-130	HSK125AxSLN50-130	193	130	96	35	35	50	98	M24x2.0P	7.55

proimages/Products/Tool_holders/Others/SLN/HSK-SLN_figure-3.jpg

英制

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5071-653-A16-250	HSK40AxSLN1/4"-2.5"	3.287	2.5	1.516	0.63	-	0.25	0.78	1/4 - 28	0.31
5071-653-A24-250	HSK40AxSLN3/8"-2.5"	3.287	2.5	1.594	0.75	-	0.375	1	3/8 - 24	0.42
5071-653-A32-275	HSK40AxSLN1/2"-2.75"	3.537	2.75	1.923	0.875	-	0.5	1.38	7/16 - 20	0.57
5071-653-A40-300	HSK40AxSLN5/8"-3"	3.787	3	2.181	0.937	-	0.625	1.63	1/2 - 20	0.69
5073-653-A16-300	HSK63AxSLN1/4"-3"	4.26	3	1.78	0.63	-	0.25	0.78	1/4 - 28	0.76
5073-653-A24-300	HSK63AxSLN3/8"-3"	4.26	3	1.78	0.75	-	0.375	1	3/8 - 24	0.88
5073-653-A32-300	HSK63AxSLN1/2"-3"	4.26	3	1.78	0.875	-	0.5	1.38	7/16 - 20	1.13
5073-653-A40-375	HSK63AxSLN5/8"-3.75"	5	3.75	2.53	0.937	-	0.625	1.63	1/2 - 20	1.26
5073-653-A48-375	HSK63AxSLN3/4"-3.75"	5	3.75	2.648	1	-	0.75	1.75	5/8 - 18	1.33
5073-653-A64-375	HSK63AxSLN1"-3.75"	5	3.75	2.687	1.125	1	1	2	3/4 - 16	2.30
5073-653-A72-425	HSK63AxSLN1-1/4"-4.25"	5.51	4.25	3.187	1.125	1	1.25	2.5	3/4 - 16	2.52
5075-653-A16-300	HSK100AxSLN1/4"-3"	4.97	3	1.465	0.63	-	0.25	0.78	1/4 - 28	2.16
5075-653-A24-300	HSK100AxSLN3/8"-3"	4.97	3	1.661	0.75	-	0.375	1	3/8 - 24	2.31
5075-653-A32-325	HSK100AxSLN1/2"-3.25"	5.219	3.25	1.911	0.875	-	0.5	1.38	7/16 - 20	2.45
5075-653-A40-375	HSK100AxSLN5/8"-3.75"	5.719	3.75	2.411	0.937	-	0.625	1.63	1/2 - 20	2.84
5075-653-A48-375	HSK100AxSLN3/4"-3.75"	5.719	3.75	2.411	1	-	0.75	1.75	5/8 - 18	2.95
5075-653-A64-425	HSK100AxSLN1"-4.25"	6.219	4.25	2.911	1.125	1	1	2	3/4 - 16	3.46
5075-653-A72-425	HSK100AxSLN1-1/4"-4.25"	6.219	4.25	2.911	1.125	1	1.25	2.5	3/4 - 16	3.73
5075-653-A80-450	HSK100AxSLN1-1/2"-4.5"	6.469	4.5	3.161	1.125	1	1.5	2.5	3/4 - 16	5.51
5075-653-A96-550	HSK100AxSLN2"-5.5"	7.469	5.5	4.319	1.41	1.5	2	3.75	1 - 14	6.37

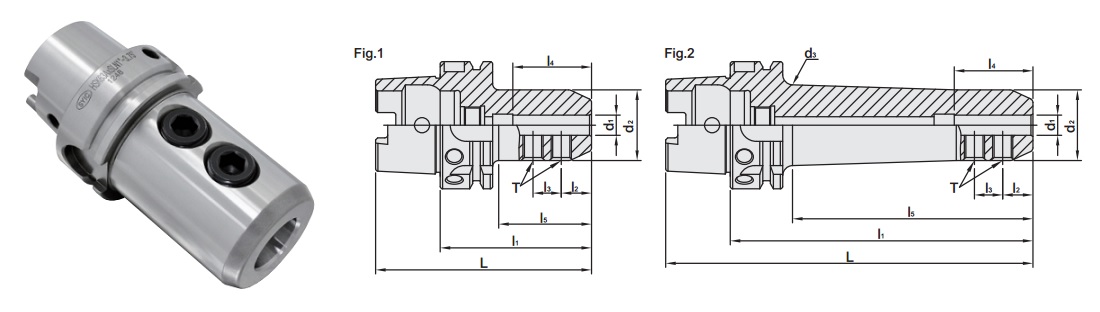

HSK-A/SLN側固式立銑刀柄 (JIS型)
proimages/Products/Tool_holders/Others/SLN/HSK-SLN_(JIS_TYPE)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	d3	T	Fig.	WEIGHT (KGS)
5073-654-010-075	HSK63AxSLN10-75JIS	107	75	15	14	39	46	10	35	-	M10x1.5P	1	0.94
5073-654-010-150	HSK63AxSLN10-150JIS	182	150	15	14	39	119	10	35	40	M10x1.5P	2	1.56
5073-654-012-080	HSK63AxSLN12-80JIS	112	80	20	16	44	51	12	42	-	M10x1.5P	1	1.12
5073-654-012-150	HSK63AxSLN12-150JIS	182	150	20	16	44	121	12	42	47	M10x1.5P	2	1.94
5073-654-016-090	HSK63AxSLN16-90JIS	122	90	22	18	47	62	16	48	-	M10x1.5P	1	1.38
5073-654-016-150	HSK63AxSLN16-150JIS	182	150	22	18	47	123	16	48	53	M10x1.5P	2	2.31
5073-654-020-090	HSK63AxSLN20-90JIS	122	90	25	20	55	62.5	20	50	-	M12x1.75P	1	1.41
5073-654-020-150	HSK63AxSLN20-150JIS	182	150	25	20	55	123	20	50	53	M12x1.75P	2	2.35
5073-654-025-090	HSK63AxSLN25-90JIS	122	90	24	25	58	62.5	25	50	-	M12x1.75P	1	1.31
5073-654-025-150	HSK63AxSLN25-150JIS	182	150	24	25	58	123	25	50	53	M12x1.75P	2	2.25
5073-654-032-105	HSK63AxSLN32-105JIS	137	105	24	28	63	79	32	60	-	M16x2.0P	1	1.73
5074-654-032-105	HSK80AxSLN32-105JIS	145	105	24	28	63	76	32	60	-	M16x2.0P	1	2.22

HSK-A/SLN側固式立銑刀柄 (FID型)
proimages/Products/Tool_holders/Others/SLN/HSK-SLN_(FID)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	T	WEIGHT (KGS)
5072-S35-006-065	HSK50AxSLN6-65-FID	90	65	34	18	-	6	25	M6x1.0P	0.70
5072-S35-008-065	HSK50AxSLN8-65-FID	90	65	36	18	-	8	28	M8x1.25P	0.80
5072-S35-010-065	HSK50AxSLN10-65-FID	90	65	36.5	20	-	10	35	M10x1.5P	0.80
5072-S35-012-080	HSK50AxSLN12-80-FID	105	80	53.5	22.5	-	12	42	M12x1.75P	1.20
5072-S35-014-080	HSK50AxSLN14-80-FID	105	80	53.5	22.5	-	14	44	M12x1.75P	1.30
5072-S35-016-080	HSK50AxSLN16-80-FID	105	80	53.5	24	-	16	48	M14x2.0P	1.30
5072-S35-018-080	HSK50AxSLN18-80-FID	105	80	53.5	24	-	18	50	M14x2.0P	1.40
5072-S35-020-080	HSK50AxSLN20-80-FID	105	80	53	25	-	20	52	M16x2.0P	1.50
5073-S35-006-065	HSK63AxSLN6-65-FID	97	65	36	18	-	6	25	M6x1.0P	0.90
5073-S35-008-065	HSK63AxSLN8-65-FID	97	65	36	18	-	8	28	M8x1.25P	1.00
5073-S35-010-065	HSK63AxSLN10-65-FID	97	65	36	20	-	10	35	M10x1.5P	1.00
5073-S35-012-080	HSK63AxSLN12-80-FID	112	80	49	22.5	-	12	42	M12x1.75P	1.70
5073-S35-014-080	HSK63AxSLN14-80-FID	112	80	51	22.5	-	14	44	M12x1.75P	1.70
5073-S35-016-080	HSK63AxSLN16-80-FID	112	80	51.5	24	-	16	48	M14x2.0P	1.70
5073-S35-018-080	HSK63AxSLN18-80-FID	112	80	52.5	24	-	18	50	M14x2.0P	1.80
5073-S35-020-080	HSK63AxSLN20-80-FID	112	80	53.5	25	-	20	52	M16x2.0P	1.80
5073-S35-025-110	HSK63AxSLN25-110-FID	142	110	83.2	24	25	25	65	M18x2.0P	2.50
5073-S35-032-110	HSK63AxSLN32-110-FID	142	110	83.2	24	28	32	72	M20x2.0P	2.70
5075-S35-006-080	HSK100AxSLN6-80-FID	130	80	41	18	-	6	25	M6x1.0P	3.00
5075-S35-008-080	HSK100AxSLN8-80-FID	130	80	41	18	-	8	28	M8x1.25P	3.20
5075-S35-010-080	HSK100AxSLN10-80-FID	130	80	46	20	-	10	35	M10x1.5P	3.40
5075-S35-012-080	HSK100AxSLN12-80-FID	130	80	46	22.5	-	12	42	M12x1.75P	3.40
5075-S35-014-080	HSK100AxSLN14-80-FID	130	80	46	22.5	-	14	44	M12x1.75P	3.50
5075-S35-016-100	HSK100AxSLN16-100-FID	150	100	66	24	-	16	48	M14x2.0P	3.80
5075-S35-018-100	HSK100AxSLN18-100-FID	150	100	66	24	-	18	50	M16x2.0P	3.80
5075-S35-020-100	HSK100AxSLN20-100-FID	150	100	61	25	-	20	52	M16x2.0P	3.90
5075-S35-025-100	HSK100AxSLN25-100-FID	150	100	66	24	25	25	65	M18x2.0P	4.00
5075-S35-032-100	HSK100AxSLN32-100-FID	150	100	66	24	28	32	72	M20x2.0P	4.10
5075-S35-040-120	HSK100AxSLN40-120-FID	170	120	89	30	32	40	90	M20x2.0P	4.40
5076-S35-010-085	HSK125AxSLN10-85-FID	148	85	35	20	-	10	35	M10x1.5P	4.20
5076-S35-012-090	HSK125AxSLN12-90-FID	153	90	40	22.5	-	12	42	M12x1.75P	4.30
5076-S35-014-090	HSK125AxSLN14-90-FID	153	90	40	22.5	-	14	44	M12x1.75P	4.30
5076-S35-016-095	HSK125AxSLN16-95-FID	158	95	45	24	-	16	48	M14x2.0P	4.50
5076-S35-020-095	HSK125AxSLN20-95-FID	158	95	45	25	-	20	52	M16x2.0P	4.60
5076-S35-025-100	HSK125AxSLN25-100-FID	163	100	60	24	25	25	65	M18x2.0P	4.90
5076-S35-032-105	HSK125AxSLN32-105-FID	168	105	65	24	28	32	72	M20x2.0P	5.30
5076-S35-040-120	HSK125AxSLN40-120-FID	183	120	80	30	32	40	90	M20x2.0P	6.85
5076-S35-050-130	HSK125AxSLN50-130-FID	193	130	90	35	35	50	98	M24x2.0P	7.55

HSK-A/SLN側固式立銑刀柄 (JIS-FID型)
proimages/Products/Tool_holders/Others/SLN/HSK-SLN_(JIS-FID)_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	d3	T	Fig.	WEIGHT (KGS)
5073-S34-010-075	HSK63AxSLN10-75JIS-FID	107	75	15	14	39	46	10	35	-	M10x1.5P	1	0.94
5073-S34-010-150	HSK63AxSLN10-150JIS-FID	182	150	15	14	39	119	10	35	40	M10x1.5P	2	1.56
5073-S34-012-080	HSK63AxSLN12-80JIS-FID	112	80	20	16	44	51	12	42	-	M10x1.5P	1	1.12
5073-S34-012-150	HSK63AxSLN12-150JIS-FID	182	150	20	16	44	121	12	42	47	M10x1.5P	2	1.94
5073-S34-016-090	HSK63AxSLN16-90JIS-FID	122	90	22	18	47	62	16	48	-	M10x1.5P	1	1.38
5073-S34-016-150	HSK63AxSLN16-150JIS-FID	182	150	22	18	47	123	16	48	53	M10x1.5P	2	2.31
5073-S34-020-090	HSK63AxSLN20-90JIS-FID	122	90	25	20	55	62.5	20	50	-	M12x1.75P	1	1.41
5073-S34-020-150	HSK63AxSLN20-150JIS-FID	182	150	25	20	55	123	20	50	53	M12x1.75P	2	2.35
5073-S34-025-090	HSK63AxSLN25-90JIS-FID	122	90	24	25	58	62.5	25	50	-	M12x1.75P	1	1.31
5073-S34-025-150	HSK63AxSLN25-150JIS-FID	182	150	24	25	58	123	25	50	53	M12x1.75P	2	2.25
5073-S34-032-105	HSK63AxSLN32-105JIS-FID	137	105	24	28	63	79	32	60	-	M16x2.0P	1	1.73

HSK-A/SLNB側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/HSK-SLNB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	d1	d2	t	T	WEIGHT (KGS)
5072-S50-006-080	HSK50AxSLNB6-80	105	80	49	18	-	6	25	M5	M6x1.0P	0.80
5072-S50-008-080	HSK50AxSLNB8-80	105	80	49	18	-	8	28	M6	M8x1.25P	0.90
5072-S50-010-080	HSK50AxSLNB10-80	105	80	51	20	-	10	35	M8	M10x1.5P	0.90
5072-S50-012-090	HSK50AxSLNB12-90	115	90	64	22.5	-	12	42	M10	M12x1.75P	1.30
5072-S50-014-090	HSK50AxSLNB14-90	115	90	63.2	22.5	-	14	44	M10	M12x1.75P	1.40
5072-S50-016-090	HSK50AxSLNB16-90	115	90	63.2	24	-	16	48	M12	M14x2.0P	1.40
5072-S50-018-090	HSK50AxSLNB18-90	115	90	63.2	24	-	18	50	M12	M14x2.0P	1.60
5072-S50-020-100	HSK50AxSLNB20-100	125	100	73	25	-	20	52	M16	M16x2.0P	1.70
5073-S50-006-080	HSK63AxSLNB6-80	112	80	49	18	-	6	25	M5	M6x1.0P	1.00
5073-S50-008-080	HSK63AxSLNB8-80	112	80	49	18	-	8	28	M6	M8x1.25P	1.10
5073-S50-010-080	HSK63AxSLNB10-80	112	80	51	20	-	10	35	M8	M10x1.5P	1.10
5073-S50-012-090	HSK63AxSLNB12-90	122	90	64	22.5	-	12	42	M10	M12x1.75P	2.00
5073-S50-014-090	HSK63AxSLNB14-90	122	90	61	22.5	-	14	44	M10	M12x1.75P	2.00
5073-S50-016-100	HSK63AxSLNB16-100	132	100	72	24	-	16	48	M12	M14x2.0P	2.00
5073-S50-018-100	HSK63AxSLNB18-100	132	100	72.5	24	-	18	50	M12	M14x2.0P	2.10
5073-S50-020-100	HSK63AxSLNB20-100	132	100	72.5	25	-	20	52	M16	M16x2.0P	2.10
5073-S50-025-110	HSK63AxSLNB25-110	142	110	83.2	24	25	25	65	M20	M18x2.0P	2.60
5073-S50-032-110	HSK63AxSLNB32-110	142	110	82.5	24	24	32	72	-	M20x2.0P	2.80
5075-S50-006-090	HSK100AxSLNB6-90	140	90	51	18	-	6	25	M5	M6x1.0P	3.40
5075-S50-008-090	HSK100AxSLNB8-90	140	90	51	18	-	8	28	M6	M8x1.25P	3.50
5075-S50-010-090	HSK100AxSLNB10-90	140	90	51	20	-	10	35	M8	M10x1.5P	3.80
5075-S50-012-100	HSK100AxSLNB12-100	150	100	61	22.5	-	12	42	M10	M12x1.75P	3.80
5075-S50-014-100	HSK100AxSLNB14-100	150	100	61	22.5	-	14	44	M10	M12x1.75P	4.00
5075-S50-016-100	HSK100AxSLNB16-100	150	100	66	24	-	16	48	M12	M14x2.0P	4.00
5075-S50-018-100	HSK100AxSLNB18-100	150	100	61	24	-	18	50	M12	M14x2.0P	4.00
5075-S50-020-110	HSK100AxSLNB20-110	160	110	71	25	-	20	52	M16	M16x2.0P	4.20
5075-S50-025-120	HSK100AxSLNB25-120	170	120	86	24	22	25	65	M20	M18x2.0P	4.40
5075-S50-032-120	HSK100AxSLNB32-120	170	120	86	24	24	32	72	M20	M20x2.0P	4.50
5075-S50-040-120	HSK100AxSLNB40-120	170	120	89	30	32	40	90	M20	M20x2.0P	5.00
5076-S50-020-120	HSK125AxSLNB20-120	183	120	80	25	-	20	52	M16	M16x2.0P	4.80
5076-S50-025-130	HSK125AxSLNB25-130	193	130	90	24	22	25	65	M20	M18x2.0P	5.10
5076-S50-032-130	HSK125AxSLNB32-130	193	130	90	24	24	32	72	M20	M20x2.0P	5.50
5076-S50-040-140	HSK125AxSLNB40-140	203	140	100	30	32	40	90	M20	M20x2.0P	7.00

PSC/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/PSC-SLN_figure-1.jpg

MODEL NO.	TYPE	L	l1	l2	l3	l4	l5	d1	d2	T	WEIGHT (KGS)
5140-653-006-045	PSC32xSLN6-45	64	45	18	-	36	29	6	25	M6	0.30
5140-653-008-045	PSC32xSLN8-45	64	45	18	-	36	29.5	8	28	M8	0.30
5140-653-010-050	PSC32xSLN10-50	69	50	20	-	29	35	10	35	M10	0.40
5140-653-012-055	PSC32xSLN12-55	74	55	22.5	-	38	40	12	42	M12	0.30
5141-653-006-050	PSC40xSLN6-50	74	50	18	-	35	25	6	25	M6	0.40
5141-653-008-050	PSC40xSLN8-50	74	50	18	-	35	26	8	28	M8	0.40
5141-653-010-050	PSC40xSLN10-50	74	50	20	-	39	27.5	10	35	M10	0.50
5141-653-012-055	PSC40xSLN12-55	79	55	22.5	-	44	35	12	42	M12	0.60
5141-653-014-055	PSC40xSLN14-55	79	55	22.5	-	39	35	14	44	M12	0.60
5141-653-016-055	PSC40xSLN16-55	79	55	24	-	37	35	16	47	M14	0.70
5142-653-006-050	PSC50xSLN6-50	80	50	18	-	38	25	6	25	M6	0.60
5142-653-008-050	PSC50xSLN8-50	80	50	18	-	38	25	8	28	M8	0.70
5142-653-010-055	PSC50xSLN10-55	85	55	20	-	43	30	10	35	M10	0.70
5142-653-012-060	PSC50xSLN12-60	90	60	22.5	-	48	38	12	42	M12	0.90
5142-653-014-060	PSC50xSLN14-60	90	60	22.5	-	44	37	14	44	M12	0.80
5142-653-016-060	PSC50xSLN16-60	90	60	24	-	43	39	16	48	M14	1.00
5142-653-018-060	PSC50xSLN18-60	90	60	24	-	45	-	18	50	M14	1.00
5142-653-020-060	PSC50xSLN20-60	90	60	25	-	43	40	20	52	M16	1.00
5142-653-025-080	PSC50xSLN25-80	110	80	24	25	58	60	25	65	M18	1.80
5143-653-006-055	PSC63xSLN6-55	93	55	18	-	35	28	6	25	M6	0.90
5143-653-008-055	PSC63xSLN8-55	93	55	18	-	39	28	8	28	M8	0.90
5143-653-010-060	PSC63xSLN10-60	98	60	20	-	39	33	10	35	M10	1.00
5143-653-012-060	PSC63xSLN12-60	98	60	22.5	-	44	33	12	42	M12	1.10
5143-653-014-060	PSC63xSLN14-60	98	60	22.5	-	44	33	14	44	M12	1.10
5143-653-016-065	PSC63xSLN16-65	103	65	24	-	47	40	16	48	M14	1.20
5143-653-018-065	PSC63xSLN18-65	103	65	24	-	44	40	18	50	M14	1.20
5143-653-020-065	PSC63xSLN20-65	103	65	25		49	40	20	52	M16	1.50
5143-653-025-080	PSC63xSLN25-80	118	80	24	25	58	58	25	65	M18	1.90
5143-653-032-090	PSC63xSLN32-90	128	90	24	28	63	68	32	72	M20	2.40
5143-653-040-100	PSC63xSLN40-100	138	100	30	32	75	78	40	90	M20	3.70
5144-653-006-070	PSC80xSLN6-70	118	70	18	-	35	35	6	25	M6	2.10
5144-653-008-070	PSC80xSLN8-70	118	70	18	-	35	35	8	28	M8	2.10
5144-653-010-070	PSC80xSLN10-70	118	70	20	-	39	35	10	35	M10	2.20
5144-653-012-070	PSC80xSLN12-70	118	70	22.5	-	44	35	12	42	M12	2.20
5144-653-014-070	PSC80xSLN14-70	118	70	22.5	-	44	35	14	44	M12	2.30
5144-653-016-070	PSC80xSLN16-70	118	70	24	-	47	35	16	48	M14	2.30
5144-653-018-070	PSC80xSLN18-70	118	70	24	-	44	35	18	50	M14	2.30
5144-653-020-070	PSC80xSLN20-70	118	70	25	-	49	37	20	52	M16	2.30
5144-653-025-090	PSC80xSLN25-90	138	90	24	25	58	59	25	65	M18	2.40
5144-653-032-095	PSC80xSLN32-95	143	95	24	28	63	63.5	32	72	M20	2.90
5144-653-040-110	PSC80xSLN40-110	158	110	30	32	75	79.5	40	90	M20	4.50
5144-653-050-120	PSC80xSLN50-120	168	120	35	35	78	90	50	98	M24	5.50
5146-653-020-090	PSC100xSLN20-90	150	90	25	-	49	44	20	52	M16	3.91
5146-653-025-105	PSC100xSLN25-105	165	105	24	25	58	64	25	65	M18	4.56
5146-653-032-110	PSC100xSLN32-110	170	110	24	28	63	69	32	72	M20	4.93
5146-653-040-115	PSC100xSLN40-115	175	115	30	32	75	78	40	90	M20	6.10
5146-653-050-120	PSC100xSLN50-120	180	120	35	35	78	84	50	98	M24	6.40
英制
5140-653-A16-177	PSC32xSLN1/4"-1.77"	2.52	1.77	0.63	-	1.38	0.984	0.25	0.78	1/4 - 28	0.30
5140-653-A20-177	PSC32xSLN5/16"-1.77"	2.52	1.77	0.63	-	1.38	1.06	0.3125	0.88	5/16 - 24	0.30
5140-653-A24-197	PSC32xSLN3/8"-1.97"	2.72	1.97	0.75	-	1.38	1.34	0.375	1	3/8 - 24	0.40
5140-653-A32-217	PSC32xSLN1/2"-2.17"	2.91	2.17	0.875	-	1.732	1.57	0.5	1.25	7/16 - 20	0.30
5141-653-A16-197	PSC40xSLN1/4"-1.97"	2.91	1.97	0.63	-	1.38	0.984	0.25	0.78	1/4 - 28	0.40
5141-653-A20-197	PSC40xSLN5/16"-1.97"	2.91	1.97	0.6	-	1.38	1.06	0.3125	0.88	5/16 - 24	0.40
5141-653-A24-197	PSC40xSLN3/8"-1.97"	2.91	1.97	0.75	-	1.38	1.08	0.375	1	3/8 - 24	0.50
5141-653-A32-217	PSC40xSLN1/2"-2.17"	3.11	2.17	0.875	-	1.732	1.34	0.5	1.25	7/16 - 20	0.60
5141-653-A36-217	PSC40xSLN9/16"-2.17"	3.11	2.17	0.937	-	1.81	1.38	0.5625	1.75	1/2 - 20	0.60
5141-653-A40-217	PSC40xSLN5/8"-2.17"	3.11	2.17	0.937	-	1.73	1.34	0.625	1.5	1/2 - 20	0.70
5142-653-A16-200	PSC50xSLN1/4"-2"	3.18	2	0.63	-	1.38	1	0.25	0.78	1/4 - 28	0.60
5142-653-A20-200	PSC50xSLN5/16"-2"	3.18	2	0.6	-	1.38	1.02	0.3125	0.88	5/16 - 24	0.70
5142-653-A24-217	PSC50xSLN3/8"-2.17"	3.35	2.17	0.75	-	1.38	1.18	0.375	1	3/8 - 24	0.70
5142-653-A32-236	PSC50xSLN1/2"-2.36"	3.54	2.36	0.875	-	1.732	1.38	0.5	1.25	7/16 - 20	0.90
5142-653-A36-236	PSC50xSLN9/16"-2.36"	3.54	2.36	0.937	-	1.77	1.46	0.5625	1.75	1/2 - 20	0.80
5142-653-A40-236	PSC50xSLN5/8"-2.36"	3.54	2.36	0.937	-	1.69	1.46	0.625	1.5	1/2 - 20	1.00
5142-653-A48-236	PSC50xSLN3/4"-2.36"	3.54	2.36	1	-	1.69	1.53	0.75	1.75	5/8 - 18	1.00
5142-653-A64-315	PSC50xSLN1"-3.15"	4.33	3.15	1.125	1	2.559	2.36	1	2	3/4 - 16	1.00
5143-653-A16-217	PSC63xSLN1/4"-2.17"	3.66	2.17	0.63	-	1.38	1.102	0.25	0.78	1/4 - 28	1.80
5143-653-A20-217	PSC63xSLN5/16"-2.17"	3.66	2.17	0.6	-	1.38	1.102	0.3125	0.88	5/16 - 24	0.90
5143-653-A24-236	PSC63xSLN3/8"-2.36"	3.86	2.36	0.75	-	1.38	1.299	0.375	1	3/8 - 24	0.90
5143-653-A32-236	PSC63xSLN1/2"-2.36"	3.86	2.36	0.875	-	1.732	1.299	0.5	1.25	7/16 - 20	1.00
5143-653-A36-236	PSC63xSLN9/16"-2.36"	3.86	2.36	0.937	-	1.85	1.338	0.5625	1.75	1/2 - 20	1.10
5143-653-A40-256	PSC63xSLN5/8"-2.56"	4.06	2.56	0.937	-	1.85	1.496	0.625	1.5	1/2 - 20	1.10
5143-653-A48-256	PSC63xSLN3/4"-2.56"	4.06	2.56	1	-	1.929	1.496	0.75	1.75	5/8 - 18	1.20
5143-653-A64-315	PSC63xSLN1"-3.15"	4.65	3.15	1.125	-	2.559	2.283	1	2	3/4 - 16	1.20
5143-653-A72-354	PSC63xSLN1-1/4"-3.54"	5.04	3.54	1.125	1	2.559	2.677	1.25	2.5	3/4 - 16	1.50
5143-653-A80-394	PSC63xSLN1-1/2"-3.94"	5.43	3.94	1.125	1	2.56	3.07	1.5	2.5	3/4 - 16	1.90

NT/SLN側固式立銑刀柄
proimages/Products/Tool_holders/Others/SLN/NT-SLN_figure..jpg

MODEL NO.	TYPE	L	l1	l2	l3	d1	d2	t1	T DRAW BAR		Fig.	WEIGHT (KGS)
5120-653-061/5-040	NT30xSLN6-40	108.4	40	18	-	6	25	M6 x 1.0P	1/2"-12	M12x1.75P	1	0.50
5120-653-081/5-040	NT30xSLN8-40	108.4	40	18	-	8	28	M8 x 1.25P	1/2"-12	M12x1.75P	1	0.60
5120-653-101/5-040	NT30xSLN10-40	108.4	40	20	-	10	35	M10 x 1.5P	1/2"-12	M12x1.75P	1	0.60
5120-653-121/5-050	NT30xSLN12-50	118.4	50	22.5	-	12	42	M12x 1.75P	1/2"-12	M12x1.75P	1	0.65
5120-653-161/5-050	NT30xSLN16-50	118.4	50	24	-	16	48	M14 x 2.0P	1/2"-12	M12x1.75P	1	0.75
5120-653-201/5-063	NT30xSLN20-63	131.4	63	25	-	20	52	M16 x 2.0P	1/2"-12	M12x1.75P	1	1.10
5120-653-251/5-080	NT30xSLN25-80	148.4	80	24	25	25	63.5	M18 x 2.0P	1/2"-12	M12x1.75P	1	1.20
5121-653-061/5-050	NT40xSLN6-50	143.4	50	18	-	6	25	M6 x 1.0P	5/8"-11	M16x2.0P	1	0.90
5121-653-081/5-050	NT40xSLN8-50	143.4	50	18	-	8	28	M8 x 1.25P	5/8"-11	M16x2.0P	1	0.95
5121-653-101/5-050	NT40xSLN10-50	143.4	50	20	-	10	35	M10 x 1.5P	5/8"-11	M16x2.0P	1	1.10
5121-653-121/5-050	NT40xSLN12-50	143.4	50	22.5	-	12	42	M12 x 1.75P	5/8"-11	M16x2.0P	1	1.00
5121-653-161/5-063	NT40xSLN16-63	156.4	63	24	-	16	48	M14 x 2.0P	5/8"-11	M16x2.0P	1	1.40
5121-653-201/5-063	NT40xSLN20-63	156.4	63	25	-	20	52	M16 x 2.0P	5/8"-11	M16x2.0P	1	1.45
5121-653-251/5-080	NT40xSLN25-80	173.4	80	24	25	25	65	M18 x 2.0P	5/8"-11	M16x2.0P	1	2.10
5121-653-321/5-080	NT40xSLN32-80	173.4	80	24	28	32	72	M20 x 2.0P	5/8"-11	M16x2.0P	1	2.50
5122-653-061/5-063	NT50xSLN6-63	189.8	63	18	-	6	25	M6 x 1P	1"-8	M24x3.0P	1	2.90
5122-653-081/5-063	NT50xSLN8-63	189.8	63	18	-	8	28	M8 x 1.25P	1"-8	M24x3.0P	1	3.00
5122-653-101/5-063	NT50xSLN10-63	189.8	63	20	-	10	35	M10 x 1.5P	1"-8	M24x3.0P	1	3.20
5122-653-121/5-063	NT50xSLN12-63	189.8	63	22.5	-	12	42	M12 x 1.75P	1"-8	M24x3.0P	1	3.30
5122-653-161/5-063	NT50xSLN16-63	189.8	63	24	-	16	48	M14 x 2.0P	1"-8	M24x3.0P	1	3.50
5122-653-201/5-063	NT50xSLN20-63	189.8	63	25	-	20	52	M16 x 2.0P	1"-8	M24x3.0P	1	3.60
5122-653-251/5-080	NT50xSLN25-80	206.8	80	24	25	25	65	M18 x 2.0P	1"-8	M24x3.0P	1	4.20
5122-653-321/5-080	NT50xSLN32-80	206.8	80	24	28	32	72	M20 x 2.0P	1"-8	M24x3.0P	1	4.40
5122-653-401/5-100	NT50xSLN40-100	226.8	100	30	32	40	90	M20 x 2.0P	1"-8	M24x3.0P	1	4.40
5122-653-401/5-120	NT50xSLN40-120	246.8	120	30	32	40	90	M20 x 2.0P	1"-8	M24x3.0P	1	4.20
5122-653-421/5-100	NT50xSLN42-100	226.8	100	30	32	42	90	M20 x 2.0P	1"-8	M24x3.0P	1	4.60
5122-653-501/5-120	NT50xSLN50-120	246.8	120	35	35	50	95	M24 x 2.0P	1"-8	M24x3.0P	1	4.80
5122-653-631/5-120	NT50xSLN63-120	246.8	120	40	40	63	125	M20 x 2.0P	1"-8	M24x3.0P	1	5.40
5122-653-A961/5-472	NT50xSLN50.8-120	246.8	120	33.1	28.58	50.8	95	M20 x 2.0P	1"-8	M24x3.0P	1	5.00
5122-677-A961/5-472	NT50xSLN50.8-120	246.8	120	33.1	28.58	50.8	95	M20 x 2.0P	1"-8	M24x3.0P	2	5.00

C/SL直柄側固式延長小徑刀柄
proimages/Products/Tool_holders/Others/SLN/C-SL-figure.jpg

MODEL NO.	TYPE	L	l2	l3	l4	D	d1	d2	T	WEIGHT (KGS)
5272-803-00804-110	C8xSL4-110	110	6	10	25	8	4	8	M3 x 0.5P	0.10
5272-803-01003-150	C10xSL3-150	150	6	10	20	10	3	9	M3 x 0.5P	0.10
5272-803-01004-150	C10xSL4-150	150	6	10	25	10	4	9	M4 x 0.7P	0.10
5272-803-01006-150	C10xSL6-150	150	6	10	25	10	6	-	M4 x 0.7P	0.10
5272-803-01204-150	C12xSL4-150	150	6	10	25	12	4	9	M4 x 0.7P	0.12
5272-803-01206-100	C12xSL6-100	100	6	10	25	12	6	10	M4 x 0.7P	0.10
5272-803-01206-150	C12xSL6-150	150	6	10	25	12	6	10	M4 x 0.7P	0.12
5272-803-01604-150	C16xSL4-150	150	6	10	25	16	4	10	M4 x 0.7P	0.15
5272-803-01604-200	C16xSL4-200	200	6	10	25	16	4	10	M4 x 0.7P	0.18
5272-803-01606-150	C16xSL6-150	150	6	10	25	16	6	13	M4 x 0.7P	0.15
5272-803-01606-200	C16xSL6-200	200	6	10	25	16	6	13	M4 x 0.7P	0.18
5272-803-01608-150	C16xSL8-150	150	6	10	25	16	8	15	M4 x 0.7P	0.15
5272-803-01608-200	C16xSL8-200	200	6	10	25	16	8	15	M4 x 0.7P	0.18
5272-803-02006-150	C20xSL6-150	150	6	10	25	20	6	13	M4 x 0.7P	0.18
5272-803-02008-150	C20xSL8-150	150	6	10	25	20	8	15	M6 x 1.0P	0.18
5272-803-02008-200	C20xSL8-200	200	6	10	25	20	8	15	M6 x 1.0P	0.18
5272-803-02010-150	C20xSL10-150	150	6	10	25	20	10	17	M6 x 1.0P	0.18
5272-803-02010-200	C20xSL10-200	200	6	10	25	20	10	17	M6 x 1.0P	0.20
5272-803-02012-150	C20xSL12-150	150	6	10	25	20	12	19	M6 x 1.0P	0.18
5272-803-02012-200	C20xSL12-200	200	6	10	25	20	12	19	M6 x 1.0P	0.20
5272-803-03206-150	C32xSL6-150	150	6	10	25	32	6	13	M6 x 1.0P	0.21
5272-803-03208-150	C32xSL8-150	150	6	10	25	32	8	15	M6 x 1.0P	0.21
5272-803-03210-150	C32xSL10-150	150	6	10	25	32	10	17	M6 x 1.0P	0.22
5272-803-03212-150	C32xSL12-150	150	6	10	25	32	12	19	M6 x 1.0P	0.22

SLN側固式立銑刀柄

產品描述
